April 23, 2024
How to find good Isuzu refrigerated trucks in Russia?
Isuzu refrigerator truck is a closed van transport truck specially used to transport goods that need to be refrigerated or kept fresh. Isuzu refrigerator truck is equipped with specialized refrigeration equipment to maintain the temperature and humidity inside the vehicle within a suitable range, thereby ensuring the freshness and quality of the goods.
Isuzu Russia refrigerated truck is a vehicle specially designed to transport perishable food and goods. It mainly carries refrigeration equipment to keep the goods transported at a constant temperature. The following are the main uses of refrigerated trucks in the Russias:
1. Food transportation:
Russia refrigerated trucks are widely used in the food industry and are responsible for transporting fresh, frozen or refrigerated food from production sites to markets or merchants. Isuzu refrigerator wagon can ensure that food remains fresh and safe throughout the transportation process, preventing food from spoiling or being contaminated by bacteria.
2. Medical product distribution:
Isuzu refrigerated boxcar are also used to transport pharmaceutical and medical products, such as vaccines, plasma and medicines. These products need to be stored under constant temperature conditions to ensure their effectiveness and safety. Isuzu refrigerated boxcar ensure that these medical products are not damaged during long-distance transportation by providing a constant temperature environment.
3. Flower transportation:
Isuzu freezer vehicle are also used to transport flowers and plants, especially in tropical climates where flowers are prone to fading and withering. By transporting them in a constant temperature environment, refrigerated trucks can extend the shelf life of flowers and keep them beautiful and fresh.
4. Distribution of fishery products:
As a country rich in seafood, Isuzu freezer wagon are also widely used in the distribution of seafood and fishery products in the Russias. Fresh seafood needs to be transported at low and constant temperatures to prevent bacterial growth and spoilage. Refrigerated trucks can ensure that seafood is fresh and safe during distribution, maintaining its original taste and quality.
Overall, Russia refrigerated trucks play a vital role in the food, medical, flower and seafood distribution industries, meeting people's demand for high-quality products by providing a constant temperature environment to keep goods fresh and safe.
1. ISUZU KV100 freezer vehicle:
Isuzu 3X wide-body cab, equipped with Isuzu 4KH1 120 horsepower and MSB 5-speed gearbox, with air conditioning, steering assist, central locking, electric glass, etc. The interior and exterior materials of the cargo compartment are made of: fiberglass/color steel. The insulation layer is made of polyurethane foam. The thickness of the insulation layer is 8cm. It uses a Carrier refrigeration unit imported from the United States. It has a good thermal insulation effect and can effectively prevent external heat from entering the compartment and keep the internal temperature stable. . Various types of ventilation hoods, hooks, etc. can be customized.
2. ISUZU 700P/NQR refrigerated truck:
Isuzu 3X wide-body cab, equipped with Isuzu 4HK1 190 horsepower and MLD 6-speed gearbox, with air conditioning, steering assist, central locking, electric glass, etc. The interior and exterior materials of the cargo compartment are made of: fiberglass/color steel, the insulation layer is made of polyurethane foam, the thickness of the insulation layer is 8cm, and the inside and outside are covered with 2.5mm glass fiber. The Isuzu 700P refrigerated truck uses Carrier refrigeration units imported from the United States. Since Russia has very high requirements for the insulation performance of refrigerated trucks, they can be customized according to needs.
3. ISUZU 6x4 FVZ refrigerated truck:
It adopts Isuzu 6HK1 300-horsepower engine and Fast 9-speed gearbox, which is powerful. With air conditioning, steering assist, central locking, etc. The interior and exterior materials of the cargo compartment are made of: fiberglass/color steel, the insulation layer is made of polyurethane foam, the bottom thickness is 105mm, the thickness of the side door and rear door is 85mm, the refrigeration unit uses a Carrier refrigeration unit imported from the United States, and the temperature can reach: -20 degrees to 0 degrees.
-
April 22, 2024
Working principle of Isuzu vacuum suction truck
Isuzu vacuum suction truck also known as fecal suction truck and cleaning truck, is a special vehicle specially used to clean sewage, sludge and other liquids containing solid particles. Isuzu vacuum suction truck is used in the fields of urban cleaning, environmental protection and sewage treatment. plays an important role.
Isuzu vacuum suction truck is mainly composed of vehicle body, vacuum pump, high-pressure water pump, sewage tank, sewage suction pipeline, hydraulic system and other components. The working principle of Isuzu vacuum suction truck is to generate negative pressure through a vacuum pump, suck the dirt into the sewage tank, and then use the high-pressure water pump and water spray pipeline to perform high-pressure flushing of the cleaning object, and finally realize the cleaning and treatment of the dirt.
Isuzu vacuum suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.
Complete Vehicle Parameter
Vehicle
Isuzu vacuum suction truck
Overall dimension (mm)
7850×2470×3200
Sewage tank (m3)
10
Gross vehicle weight (kg)
18000
Curb weight (kg)
8048
Payload (kg)
9757
Wheel base (mm)
4500
Max speed (km/h)
95
Chassis Parameter
Cabin
Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive
Drive form
4×2
Engine
Brand: ISUZU
Model: 4HK1-TC50, 205hp
Type: diesel, turbocharged, 6 cylinder.
Displacement: 5193ml
Emission standard: Euro 5
Gearbox
Isuzu MLD, 6 forward,1 reverse, manual operated
Tire model
1000R20
No.of tires
6pcs, with 1pc spare tire
Superstructure Parameter
Characteristic
1. Sewage tank volume 10000 liter.
2. Sewage tank material is carbon steel,thickness 6mm.
3. Sewage suction pipe 1pcs, length 7m.
4. Hydraulic lifting sewage tank,rear cover can open.
5. Equipped with PTO.
6. Equipped with vacuum pump.
7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
Performance
(1) Vertical suction ≥ 7m.
(2) Pumping speed : 45L/s.
(3) Intake and exhaust diameter: 50mm.
(4) Full tank pumping time ≤ 5min.
(5) Sewage tank emptying time ≤ 4min.
Accessory of sewage suction function:Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Vacuum tank capacity ranges from 3,000 Liters to 20,000 liters
Features:
1.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.
2.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
3.Pump can be operated by a hydraulic motor or by an auxiliary engine.
4.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
5.Nice shape ,rational structure,durable and long service life.
Working principle of Isuzu vacuum suction truck:
1. Inhalation
The first step in the work of the Isuzu vacuum suction truck is to suck in sewage or sludge. The suction work mainly relies on vacuum pumps and suction tubes. The vacuum pump generates negative pressure in the airtight container and evacuates the air in the tank to form a vacuum state. The suction pipe is connected to the working tank through a foam seal and placed in the sewage or sludge. The sewage or sludge is sucked into the tank through the action of the vacuum pump.
2. Transport
After inhaling sewage or sludge, the Isuzu septic suction truck will transport the liquid material in the tank to centralized treatment or treatment equipment through the clutch, drive shaft and hydraulic system. The drive shaft transports the liquid material in the tank to the centralized processing equipment through the power generated by the engine. The liquid material in the tank will be assisted by a stirring device during transportation to ensure the uniformity and consistency of the liquid material.
3. Filtering
In the process of transporting liquid materials, Isuzu sewer vacuum truck will filter out the solid particles and impurities through the filtration system to ensure that the transported liquid materials are clean and pure. Filtration systems generally include components such as filters, filters, and filter pumps. The filter can effectively filter out larger particles of solid matter through the design of the mesh size and structure; the filter can further filter out tiny particles through the characteristics of the filter material and the setting of the penetration pore size; the filter pump uses power The filtered solid matter is removed from the filtration system by means of transfer.
4. Emissions
The filtered liquid material will be sent to downstream processing equipment for further processing. Treatment equipment can select appropriate treatment methods according to the properties and uses of liquid substances, including precipitation, filtration, dehydration, regeneration, etc. At the same time, after the treatment is completed, the Isuzu industrial vacuum truck will discharge the processed cleaning liquid through the discharge device to complete the entire sewage suction process.
-
April 19, 2024
Introduction and uses of Isuzu aerial lift bucket truck
Isuzu aerial lift bucket truck also known as lifting platform truck, is a kind of mechanical equipment specially used for high-altitude operations. Isuzu aerial lift bucket truck is mainly used to provide a safe working platform for people to work at heights.
Isuzu aerial lift bucket truck can be used in construction sites, industrial facilities, public facilities, power lines and other places where high-altitude operations are required. Isuzu aerial lift bucket truck usually have telescopic arms, rotation functions and lifting platforms, which can directly lift workers to the required working height, providing a safe and stable working environment and facilitating high-altitude maintenance, installation, cleaning, inspection and other work. Isuzu aerial work truck can replace traditional scaffolding, lifts and other equipment, improve work efficiency, reduce labor intensity and ensure the safety of workers.
Isuzu aerial work truck also called man lift truck, aerial work platform truck,aerial platform truck,bucket working truck,folding arm aerial trucks, self-propelled aerial work platforms, telescopic boom aerial work truck. articulated telescopic bucket lift, truck mounted platform, high platform truck,high altitude operation truck,telescoping hydraulic lift truck,truck mounted aerial platform,high-up truck,telescopic bucket truck,hydraulic cage lift truck,truck mounted man lift,boom bucket truck,lifting platform truck,truck mounted articulating boom,truck with basket,overhead working truck,articulated telescopic bucket lift, truck mounted platform, high platform truck, man lift vehicle.
Main specification
Chassis brand
I SUZU
Chassis model
QL1040BUHAY
Overall dimension(L*W*H)
6080x2150x3050mm
Gross / Curb weight
6800kg / 5275kg
Chassis
Drive modle
4*2 left hand drive
Wheel Base
3360 mm
Tyre size & number
700R16, with one spare tyre
Fuel/Engine type:
Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail
Engine model
4KH1CN6LB
Engine horse power
120HP (88KW)
Emission
Euro 6
Transmission
5 speed forward, 1 reverse
Working condition
Maximum operating height
16 m
Max. bucket bottom height
14 m
Rotation
360°
Boom Type
3Sections telescopic boom
Outrigger type
Outrigger type
Front V Rear H type. Controlled independently
Outrigger span
Vertical
4000mm
horizontal
4350mm
Basket
Rated loading weight
200kg
L*W*H
1500x700x1150mm
Operation system
Operation
4 operation mode: Electrical operation of working platform ,ground remote control ,controller in the bucket,and emergency lever.
Control system
Electro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation
Leveling system
Hydraulic automatic leveling
Security configuration
Automatic interlocking device for up and down
For locking up and down the truck to prevent the risk of misoperation.
Basket
360 degree rotation
Horizontal function
Real time display
Emergency electric emergency pump
When the engine and main pump failure, the operator can be sent back to the ground.
Features:
Aerial platform truck superstructure :
1. Aerial working height 14m,16m,18m,20m,22m,24m,26m,28m,30m,32m.
2. the rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
3. Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the basket
4. truck equipped with two rotating amber lights
5. Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead working.
Various of operation modes:
Electrical operation of working platform ,ground remote control,
emergency lever on turntable and controller in the bucket.
Controlled by computer:
computer displays the working conditions of vehicle in real time.
As professional aerial working truck/manlifter truck factory,
we provide different kinds of aerial truck to meet different customers requirements.
1. Aerial working height : 14m - 32m.
2. Different emission standard :Euro 2,Euro 3,Euro 4,Euro 5
3. Drive type : 4X2,4X4.6X4,6X6
4. Cabin option double-row ( 6 passengers ) and single row(3 passengers).
5. Steering wheel has left hand drive and right hand drive.
6. Aerial bucket can choose FRP, carbon steel, aluminum alloy.
-
April 18, 2024
The structure and working principle of Isuzu road sweeper
Isuzu road sweeper is a new type of efficient sweeping equipment that integrates road cleaning, garbage recycling and transportation. Isuzu road sweeper is a sweeping model modified with road cleaning function on a special car chassis. In addition to the chassis engine, the vehicle is also equipped with an auxiliary engine. The four sweeping brushes are driven by a hydraulic motor and equipped with a fan, dustbin, water tank, etc. kind of supporting equipment.
Isuzu road sweeper can complete ground cleaning, road curb edge cleaning, road curb cleaning and watering the ground after cleaning at one time. It is suitable for cleaning operations in various climates and different dry roads.
Isuzu road sweeper truck also called street sweeper truck ,municipal vehicle,sweeping vehicle,street cleaner ,sweeper cleaning truck ,street cleaning vehice.
Which is suitable for brushing,suction and transportation of dusts,leaves,mud,soil,sand,stone chips ,gravles and other small particles on the ground of city roads and areas.This truck shall be suitabe for dry type cleaning jods as well as dust suppression with water spray in the road sides and narrow lanes.
The Isuzu road sweeper truck is composted by chassis ,auxiliary engine ,air blower,mahnetic vavles ,dustbin ,water taner ,sweepring system ,suction system ,water sprinkling system ,hydraulic system ,electrical control system ,etc .
4 brooms sweeping system and suction system combine working high efficient.Water sprinklers equipped on brooms ,suction nozzles ,effective dust suppression .
Isuzu road sweeper truck technical specification sheet
Vehicle parameters
Overall dimensions
8250X2550X3120mm
Curb weight
8200kg
Dust tank volume
6000L
Water tank volume
5000L
Isuzu chassis parameters
Chassis model
QL1180JQFRY
Wheel base
4500mm
Front/rear wheel track
1960/1855mm
Front/rear suspension
1335/1800mm
Approach/departure angle
15/26°
Maximum speed
105km/h
Cab
Configuration
ISUZU 3D cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt, Mechanical suspension
Color
White,other color is optional
Engine
Model
4HK1-TC
Emission
Euro 6
Rated power
205hp,rated power speed 2600rpm
Displacement
5193ml
Tire
Size
295/80R22.5
Number
6+1 nos
Front axle
6.3 tons
Rear axle
13 tons
Drive form
4X2
Suspension
Multi leaf springs
Transmissions
Isuzu MLD six speed transmission,6 speed forward 1 reverse.
Steering device
Power assisted steering
Steering wheel
Left hand drive
Road sweeper structure parameters
Dust tank volume
6000L
Water tank volume
5000L
Sweep width
3000m
Cleaning speed
3-20km/h
Cleaning ability
9000-60000 m2/h
Cleaning efficiency
0.98
Maximum suction particle
120mm
Min. clearance of suction nozzle
200mm
Unloading angle
45°
Unloading height
970mm
Standard configuration
Sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
Selective configuration
surveillance system,rolling brush.
1. Structure and functional components of Isuzu sweeper truck
1). Cleaning brush: Isuzu street sweeper truck are usually equipped with a rotating cleaning brush, which sweeps garbage and dust on the ground into the vehicle's cleaning device through high-speed rotation.
2). Vacuum suction device: Isuzu street sweeper truck are also equipped with a vacuum suction device, which can suck the swept garbage and dust into the dustbin for subsequent processing.
3). Water washing and cleaning device: Isuzu vacuum street sweeper is also equipped with a water washing and cleaning function, which can wash and clean the ground through a water spray pipe or sprinkler device.
4). Trash can: The dustbin of an Isuzu vacuum street sweeper usually has a certain capacity, and the cleaned garbage and dust can be temporarily stored in it for disposal after the cleaning is completed.
5). Driving control system: The operator can operate the driving and cleaning functions of the Isuzu sweeper cleaning truck through the driving control system, adjust the working speed and direction of the cleaning brush, and control the opening and closing of the vacuum device.
2. Working principle of Isuzu vacuum street sweeper
1). Preparation: Before starting work, the operator conducts equipment inspection and route planning to ensure that the equipment is working properly and the route is reasonably arranged.
2). Cleaning work: Under normal circumstances, the Isuzu vacuum street sweeper controls the driving of the vehicle through the driving control system and starts the cleaning brush and vacuum device at the same time. The cleaning brush rotates at high speed to sweep the garbage and dust on the ground into the vehicle's cleaning device; the vacuum device sucks in the garbage and dust and stores it in the dustbin.
3). Water washing and cleaning work: Isuzu road sweeper can also wash and clean the ground through the water washing and cleaning function to improve the cleaning effect.
4). Garbage disposal: After cleaning is completed, the garbage in the trash bin needs to be cleaned and processed for next use. After the Isuzu sweeper cleaning truck completes its work, the equipment needs to be cleaned and maintained to ensure the smooth progress of the next work.
-
April 12, 2024
The structure and working principle of Isuzu fire truck
An Isuzu fire truck also known as a firetruck, is a special vehicle designed to put out fires and perform other emergency rescue tasks. Isuzu fire truck can be designed and manufactured according to needs to be suitable for firefighters to ride on, equipped with various firefighting equipment or fire extinguishing agents, and used by firefighting forces for fire extinguishing, auxiliary fire extinguishing or fire rescue. Isuzu fire truck are widely used for fire extinguishing and disaster relief, emergency rescue, management and command, etc.
Isuzu fire truck also called fire tanker,fire engine ,fire appatatus ,water fire truck ,foam fire truck ,fire rescue truck) is a vehicle designed primarity for fire fighting operations-to extinguish fire efficientyly to prevent fire spread ,reducing the loss caused by fire maximumly.
Fire fighting truck can be divided into many types:
a. According to vehicle size ,there are mini fire fighting truck ,light fire fighting truck ,medium fire fighting truck ,heavy-duty fire fighting truck;
b. According to chassis drive type ,there are 4x2 fire fighitng truck ,6x4 fire fighting truck ,8x4 fire fighitng truck and off-road type 4x4,6x6 fire truck;
c. According to fire agent,there are water tank fire fighting truck ,water/foam fire fighting truck ,dry powder fire fighting truck .
TECHNICAL SPECIFICATION
Main specification
Chassis brand
ISUZU
Chassis model
QL1160
Overall dimension(L*W*H)
8500x2500x3500mm
Water tank volume
5,000 LITRES
Foam tank volume
2000 litres
Cabin
double cabin,with Air conditioner, electronic windows, USB
Chassis
Drive modle
4x2 left hand drive
Front axle loading
6,300 kg
Rear axle loading
13,000 kg loading capacity
Wheel Base
4500mm or 4700mm
Front/rear suspension
1335/2265mm
Approach/departure angle
16/12 (°)
Tyre size & number
1000R20, 6 pieces tires ,with one spare tyre
Transmission
ISUZU MLD brand, manual, 6 gears with 1 reverse
Voltage
Have 2 batteries , each 12 volts
Color
Red and white including tanker , standard
Brake
AIR brake, With ABS
Max speed
95km/h
Engine
Brand
ISUZU
Model
4HK1-TC50
Engine Type
FOUR-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling
Horse power
205hp
Displacement
5193ml
Emission
Euro 5
TANK SPECIFICATION
Tank capacity
5,000 LITRES WATER TANK WITH 2,000 LITRES FOAM TANK
Tank material
All Tank made of carbon steel . Thickness:4mm, The foam tank inside is painted with
Anticorrosion material
Bitmap
Model
/
CB10/40 model ,Normal pressure pump, Rear-mounted
Pressure
Mpa
≥1.0
Fire pump
Max suction height
m
7
Flux
L/S
40
Rated speed
r/min
3000
Time of drawing water (s)
s
≤35
Input
/
one nozzle , diameter : 125mm
Outlet
/
2 nozzles, diameter: 80mm
The Isuzu fire truck is a vehicle specially used for fire extinguishing and rescue. Its structural design mainly includes several major parts such as chassis, body, pump system, water storage system, control system and accessories. The structural components of the fire truck will be introduced one by one below.
1. Body:
The body of an Isuzu fire engine is the upper shell structure of the vehicle. It is generally made of steel plates or aluminum alloys and other materials and has fire protection, anti-static and anti-corrosion properties. The interior of the car body is usually equipped with water storage tanks, pump rooms, distribution cabinets, fire fighting equipment and other equipment and devices to meet the needs of fire rescue work.
2. Pump system:
The pump system of an Isuzu fire tender is a key component that ensures the vehicle's fire-fighting operations. It usually consists of a water pump, a water inlet, a water outlet, and a control valve. The water pump pumps water into the vehicle through the driving device and sends it to the fire scene through the injection system for fire extinguishing operations. The design of the pump system needs to consider factors such as pumping speed, water pressure and spray distance to ensure the effectiveness of fire trucks in different fire-fighting tasks.
3. Water storage system:
The water storage system of an Isuzu fire truck usually includes components such as water tanks and water pipelines, which are used to store the water sources required by the fire truck. The water tank is generally located on the chassis or bottom of the vehicle body. The capacity depends on the type and purpose of the fire truck. It is mainly used to meet the amount of water required by the fire truck in the initial fire-fighting stage.

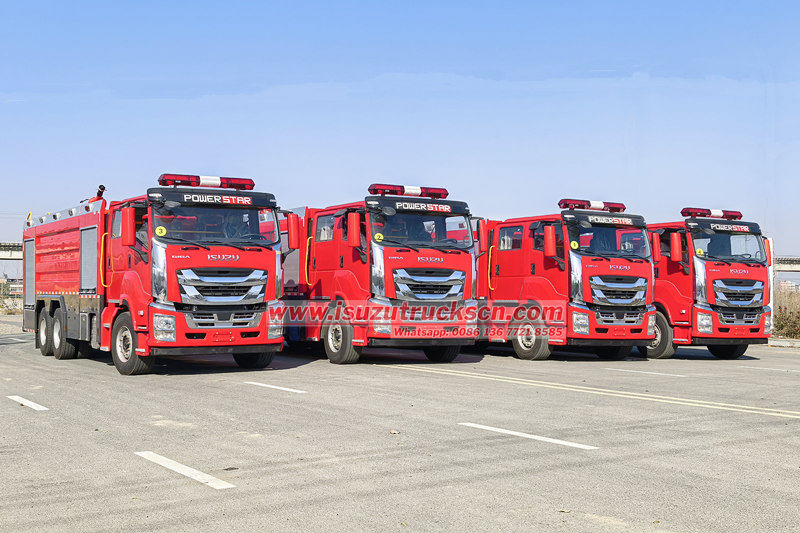

4.Control system:
The control system of the Isuzu fire engine includes cab console, instrument panel, switch buttons and other equipment, which are used to control the driving of the vehicle, the start and stop of the pump system and the injection direction. The control system needs to be simple, easy to operate, flexible and reliable so that firefighters can quickly respond to fire extinguishing and rescue commands.
5. Accessories:
Isuzu fire truck are also equipped with various firefighting equipment and equipment, such as water guns, hoses, fire extinguishers, breathing apparatus, etc., to deal with various fire-fighting and rescue situations. These accessories are usually configured according to vehicle type and usage requirements to improve the comprehensive rescue capabilities and efficiency of Isuzu fire truck.
The working principle of a fire truck mainly includes three aspects: water tank loading, water pump extraction, injection and control.
1. One of the working principles of Isuzu fire trucks is the loading of water tanks.
The water tanks of Isuzu fire truck are usually made of special corrosion-resistant, high-strength materials to ensure that the water tanks can safely store water in various environments. When a disaster occurs, the fire truck needs to fill the water tank with clean water or fire-fighting water in case of fire-fighting needs.
2. The working principle of the Isuzu fire truck also includes the extraction of water pumps.
Isuzu fire engine are usually equipped with one or more water pumps to draw water from the water tank and deliver it to the fire extinguishing site through a spray system. The water pump is generally driven by an internal combustion engine. It draws water into the pump body through mechanical rotation and provides sufficient pressure to send the water to the faucet or nozzle.
3. The working principle of Isuzu fire trucks also involves injection and control.
Once the Isuzu fire tender arrives at the fire extinguishing scene, firefighters can spray water directly to the fire scene through the sprinkler hose or nozzle to extinguish the fire. Firefighters can flexibly adjust the fire extinguishing effect by controlling the switch of the water pump, the spray direction and the amount of water spray.
-
April 11, 2024
The structure and working principle of Isuzu dump truck
Isuzu dump truck is a common engineering vehicle, mainly used for transporting, loading and unloading bulk materials, such as sand, coal, soil, etc. Dump trucks are indispensable and important tools in construction, mining, agriculture, environmental protection and other industries. Isuzu dump truck are widely used in construction, mining, agriculture, environmental protection and other industries.
Isuzu dump trucks can be divided into various types:
1. According to vehicle size, there are mini dump trucks, light dump trucks, medium dump trucks, and heavy dump trucks.
2. According to the chassis drive type, there are 4X2 dump trucks, 6X4 dump trucks, 8X4 dump trucks, off-road 4X4, and 6X6 dump trucks.
ISUZU TIPPER TRUCK (also called tipping truck, dump truck, dumper truck, dumping truck, rear lifting truck, bucket lifting truck, ) is a vehicle designed primarily for transporting various kinds of materials and equipenmts like as the sand, mud, garbage and etc.
ITEM
PARAMETER
UNIT
DATA
WHOLE
VEHICLE
Overall demension
MM
9400*2680*3650
Gross weight
KG
15500
Max loading capacity
KG
30000
Max speed
KM/H
100
Front/rear hanging
MM
1370/930
Close/departure angle
DEG
17/36
Leaf spring
PCS
8/10
Drive wheel
6x4
CHASSIS
Chassia model
ISUZU GIGA VC61
Wheelbase
3985+1370mm
Engine horsepower
PH
420
Displacement
ML
15681
Emission standard
Euro 6
Body dimension
MM
5600x2300x1500
Configuration
MM
side:6mm,bottom.8mm or according to you
Steering
Left hand drive
Others
With FM RADIO,MP3 interface,Spare tire stents,et
1. Basic structure
1). Chassis:
The chassis is the basic skeleton of the Isuzu dump lorry truck and an important part of the entire vehicle. It consists of tires, steering system, transmission system, etc., and can support the load of the entire vehicle.
2). Driving system:
The driving system consists of engine, transmission system, differential, reducer, etc. The engine is responsible for providing power, the transmission system is responsible for transmitting power to the driving wheels, and the differential and reducer regulate and distribute the rotational force.
3).Transport box:
The transport box is the part of the Isuzu tipper truck used to load goods. It is usually welded with high-strength steel plates and has the characteristics of large load-bearing capacity, wear resistance, and reduced vehicle weight.
The transport box is mainly composed of a box body, a box support structure, a top cover, a box hydraulic cylinder and a discharge door. The box is the main body of the transport box. The support structure can give the box a certain stability. The top cover can protect the goods from the outside world. The hydraulic cylinder of the box is the key device to realize the unloading function. The unloading door is responsible for unloading the goods. , the overall structure is compact, flexible and easy to operate.
4). Unloading system:
The unloading system is a key part of the Isuzu dump truck unloading function. It mainly consists of a unloading hydraulic cylinder, a unloading valve and a control system.
The discharge hydraulic cylinder is a device that realizes the discharge function through hydraulic pressure. By changing the working state of the hydraulic cylinder, the opening and closing of the discharge door can be controlled.
The discharge valve is a key component in controlling the work of the hydraulic system and can flexibly control the working status of the discharge hydraulic cylinder.
The control system is an important part of the vehicle driver's operation. It controls the work of the unloading system through the joystick or buttons to achieve rapid unloading of goods.
2. Working principle
1). Loading of heavy objects:
Isuzu dumper truck usually have a large capacity cargo box for loading various types of cargo. Goods can be loaded manually or mechanically (such as cranes, cranes, etc.), and the goods can be placed into containers.
2). Unload cargo:
Isuzu tipper truck adopt an unloading method called "dumping", which unloads goods by changing its own structure. When unloading is required, the vehicle must first be parked and the vehicle's unloading mechanism released.
3. Uninstall the mechanism:
The unloading mechanism of an Isuzu dump truck usually consists of a hydraulic system or a pneumatic system. The hydraulic system controls the pressure of hydraulic oil to "lift" or "turn over" the cargo container to unload the cargo. The pneumatic system controls the gas pressure to push up or dump the container to unload the cargo.
4. Control system:
The control system of the Isuzu tipper truck is used to manipulate and control the unloading process. By operating the console or buttons in the cab, the work of the hydraulic system or pneumatic system can be controlled, so that the unloading mechanism can unload as needed. During the unloading process, the driver needs to closely observe the unloading situation to ensure safe and effective unloading.
Advantages:
1. We will do quality test from the production to the finish of the whole truck.
2. We have an experienced and technological team to customize the best products.
3. Spare Parts Supply: We can supply spare parts for many brands, such as SINOTRUK, BEIBEN, FAW, FOTON, SHACMAN,DONGFENG and so on.
4. All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way.
