The Isuzu FVZ chassis is a truck with excellent cab and chassis design, adaptable to various modifications. Rich engine power specifications and wheelbase series, combined with more than ten types of medium-tonnage modified truck chassis, can meet the needs of various top-mounted and wide-straight frames, facilitate various top-mounted layouts, and quickly respond to users' local strengthening of the frame; Isuzu FVZ Chassis components such as the chassis fuel tank muffler can be replaced as needed, making it easy to modify the layout. The chassis is the foundation that provides stability and control. This article will focus on the cab and chassis design of the Isuzu FVZ chassis.

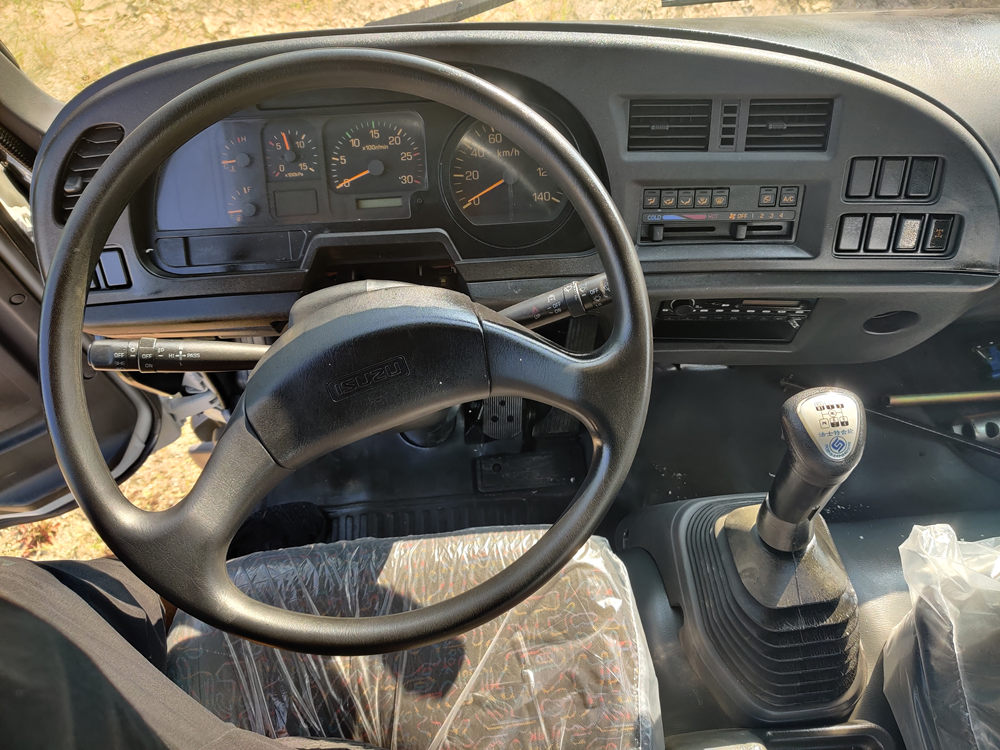

1. Cab structure:
The Isuzu FVZ cab combines comfort and functionality. The spacious cab space allows the driver to move freely while providing comfortable seats and a user-friendly console layout. In addition, the cab is also equipped with a multi-function steering wheel, a center console and a large-screen display to facilitate the driver to operate the vehicle and obtain necessary information. The cab of Isuzu FVZ also has good sound insulation and heat insulation properties, which effectively reduces driving noise and vehicle vibration, providing drivers with a more comfortable driving environment.
2. Chassis design:
The Isuzu FVZ chassis is made of high-strength steel and has a solid frame structure that can withstand heavy loads and high speeds. In addition, the chassis adopts double-wishbone independent suspension front suspension and leaf spring rear suspension to ensure driving stability and comfort. Isuzu FVZ also uses advanced braking and steering systems to provide drivers with precise control and reliable braking effects.

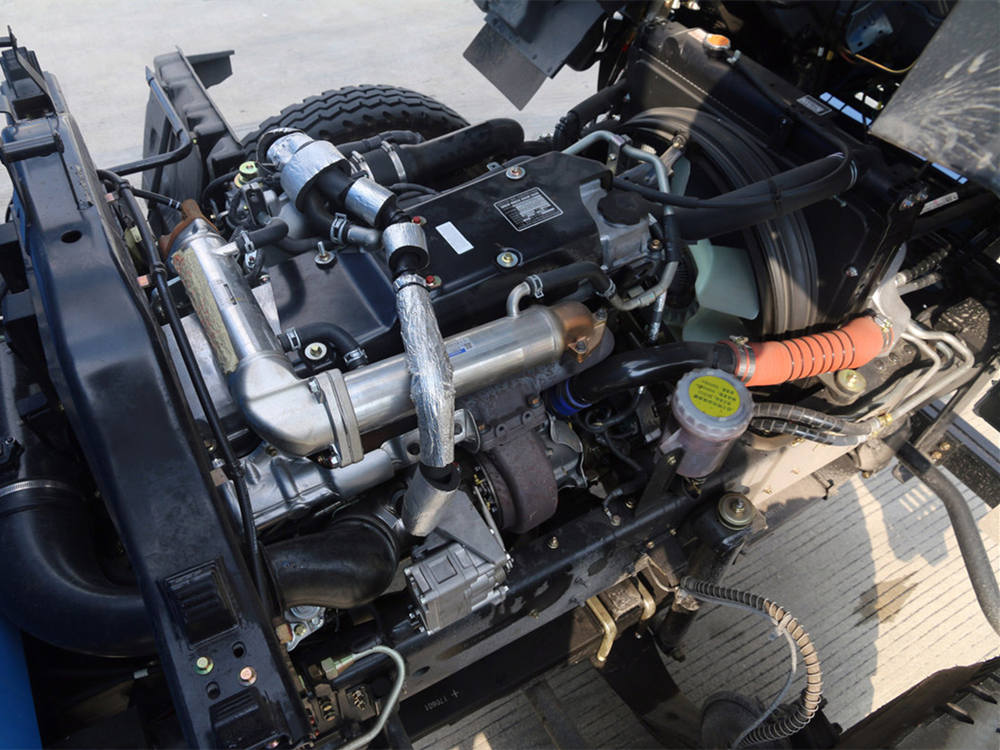

3. Power system:
The Isuzu FVZ chassis is equipped with a high-power diesel engine, which can provide powerful power output. The engine uses advanced fuel injection technology to improve fuel efficiency and reduce fuel consumption. The transmission system adopts manual or automatic transmission, which can be selected according to different needs.
4. Safety performance and convenience:
The Isuzu FVZ chassis adopts a number of active safety technologies, such as ESP body stability control system, ASR traction control system, etc., which can improve the stability of the vehicle during driving and reduce the risk of sideslip and loss of control. In addition, the chassis is equipped with passive safety configurations such as airbags and seat belts to maximize occupant safety.
In summary, the cab and chassis design of the Isuzu FVZ fully take into account the driver's needs and the vehicle's performance requirements. The cab provides a comfortable working environment and is equipped with advanced control equipment and information display systems. The chassis provides stable handling performance and reliable load-bearing capacity.
Vehicle Model |
QL1250WTFZY |
|
Vehicle Dimensions and Parameters |
Overall Dimension |
11575x2490x2810(mm) |
Wheelbase |
5700+1300mm |
|
Front/ Rear Wheel Distance |
1960/1855mm |
|
Front/Rear Suspension |
1335/3325mm |
|
Weights and Capacities |
Curb Weight |
8100(kg) |
GVW |
25000kg |
|
Axel Loads |
7000/18000kg |
|
Engine |
Model |
6HK1-TCH |
Power |
300Kw |
|
Displacement |
7790ml |
|
Exhaust Gas Treatment Technology |
DPF |
|
Cab |
Number of Seats |
3 |
Chassis |
Drive Type |
6x4 |
Tires |
11(Including Spare Tire) |
|
Fuel Tank |
Capacity |
200L |
Configurations |
Power Steering System |
|
Air Conditioner |
||
Retro-reflective Marking |
||
ABS |
||
Free Maintenance Battery |
