18M Hydraulic Aerial Platform Truck—Colombia
Contractor: NPO Electric Service Co.,Ltd
Project: For working
and maintance in the electrical area of Bogota city
Service Area: Main street of Bogota city

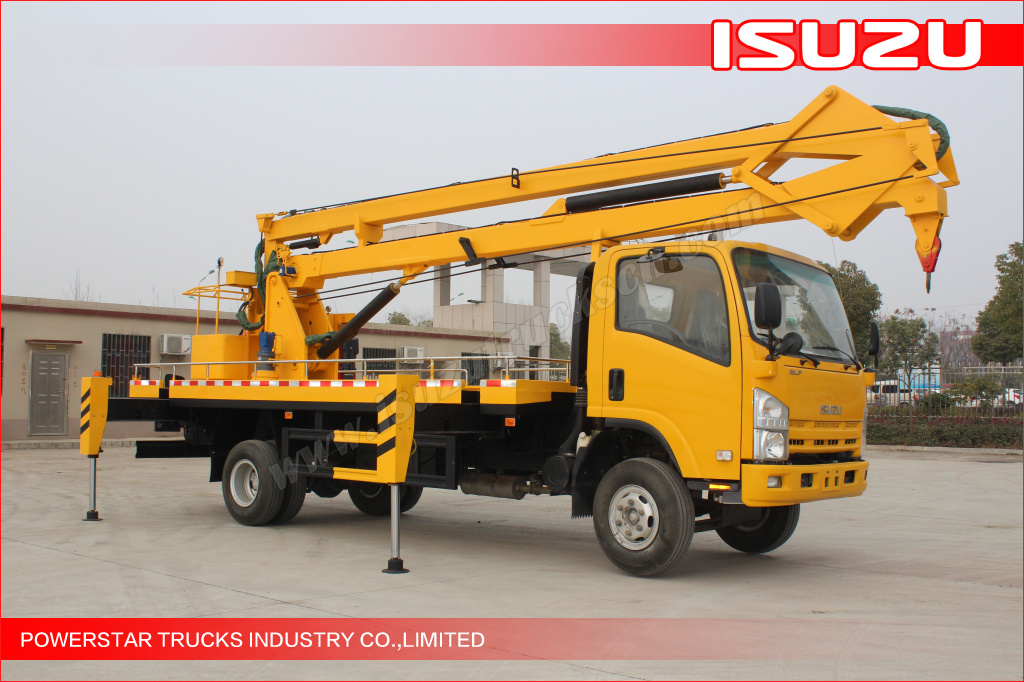

1unti 18meters Isuzu ELF Aerial Working Platform Truck is the first Isuzu special truck as try order to Powerstar trucks.
After finish, their senior manager Mr.Ronquete visit our factory inspection the ELF bucket Crane truck, he is very satisfied with the quality.
Feature:
1. Isuzu ELF chassis, economical, safe and comfortable;

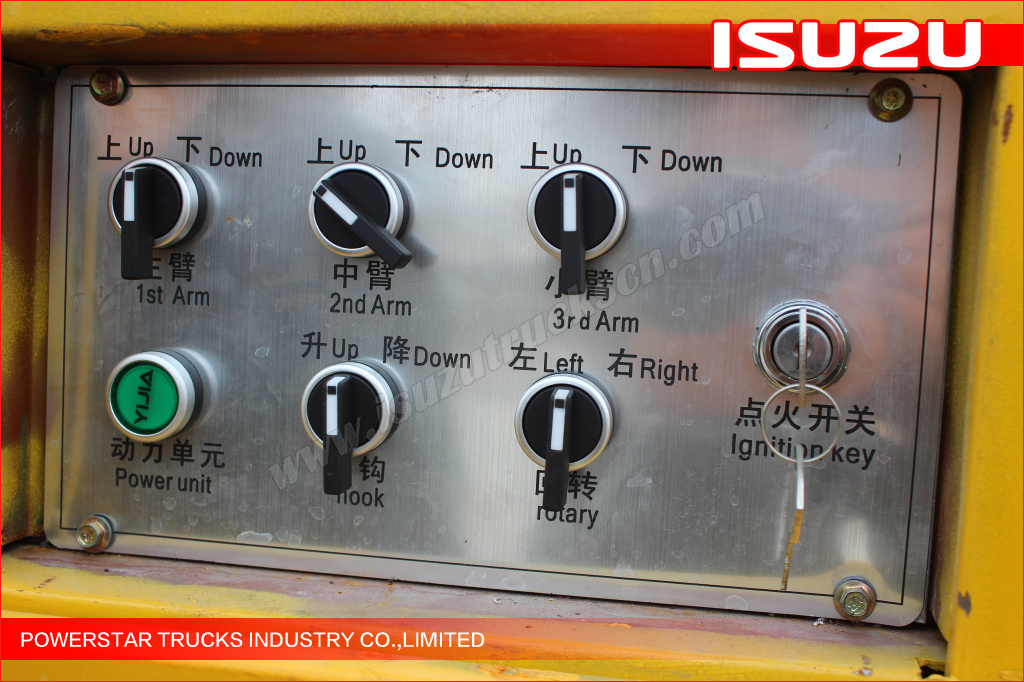

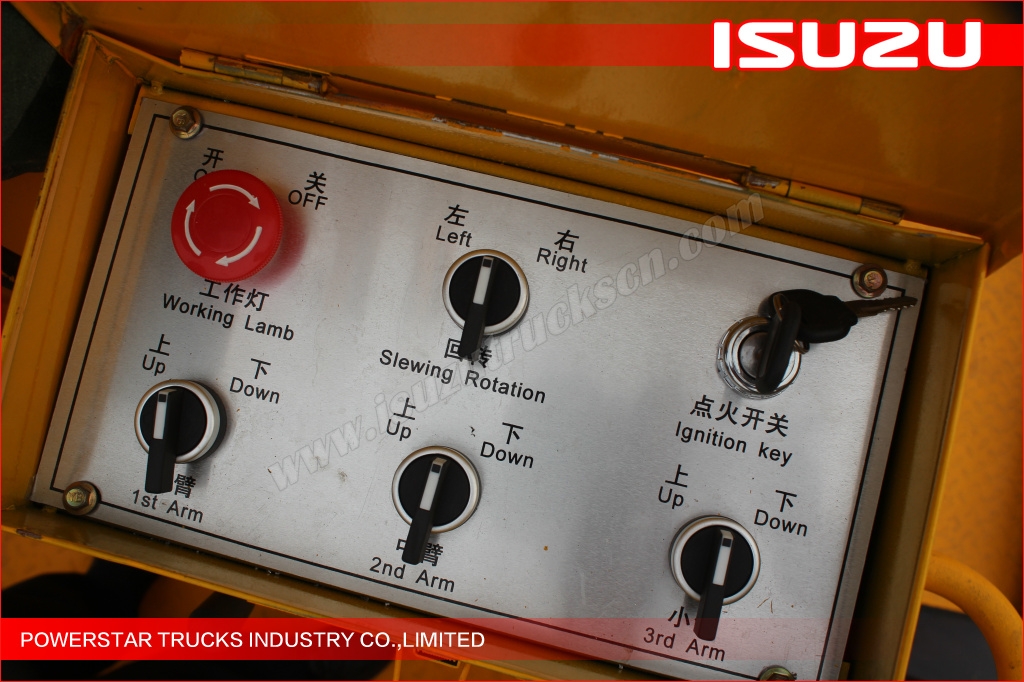

2. Manual and electric integration multi-way valve, simple and reliable operation;
3. The imported key parts has high reliability, good performance and long service life.
4. The work platform is mounted at the rear part, which is convenient to enter or exit the cab; and it also reduces the gravity of the whole machine and improves travel performance.
5. 12m, 14m 16m, 18m, 20m, 22m available
Trucks from PowerStar
|
Model |
PT5100GJK |
|
|
Chassis |
ISUZU ELF chassis |
|
|
Engine |
4HK1 190PS |
|
|
Wheelbase |
3815 mm |
|
|
Seats |
2+3 person |
|
|
Type |
GKZ-18M |
|
|
Structure type |

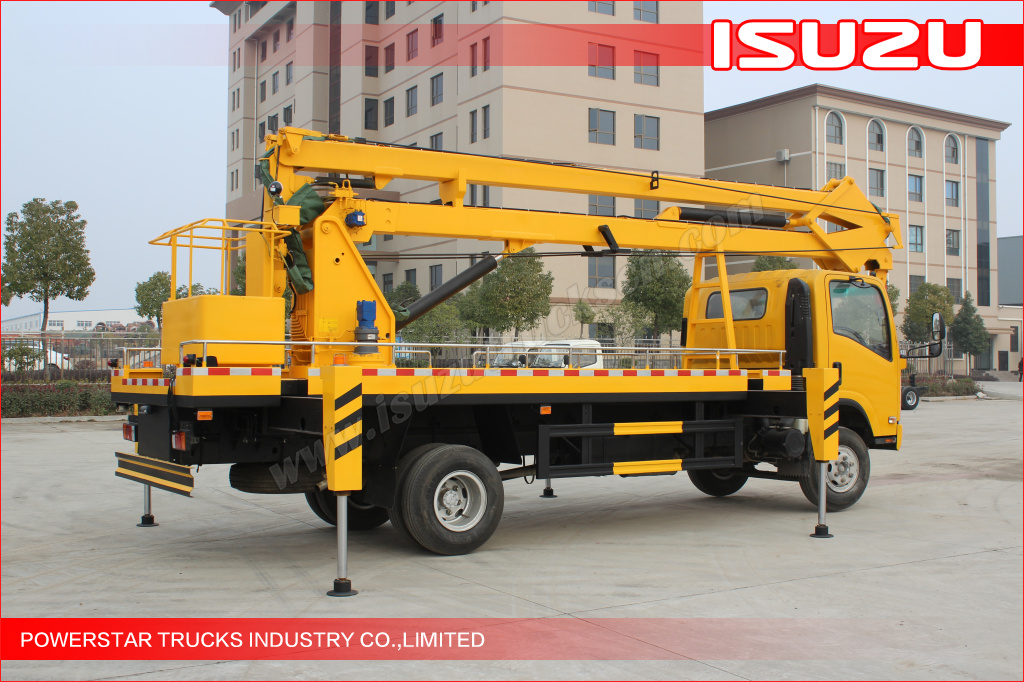

Three-section articulated boom |
|
|
Working Cage |
Internal size(mm) |
1100×600×1100 |
|
Rated loading(kg) |
200 |
|
|
Max. Working height |
18.2 Meters |
|
|
Max. Working radius |
9.2 Meters |
|
|

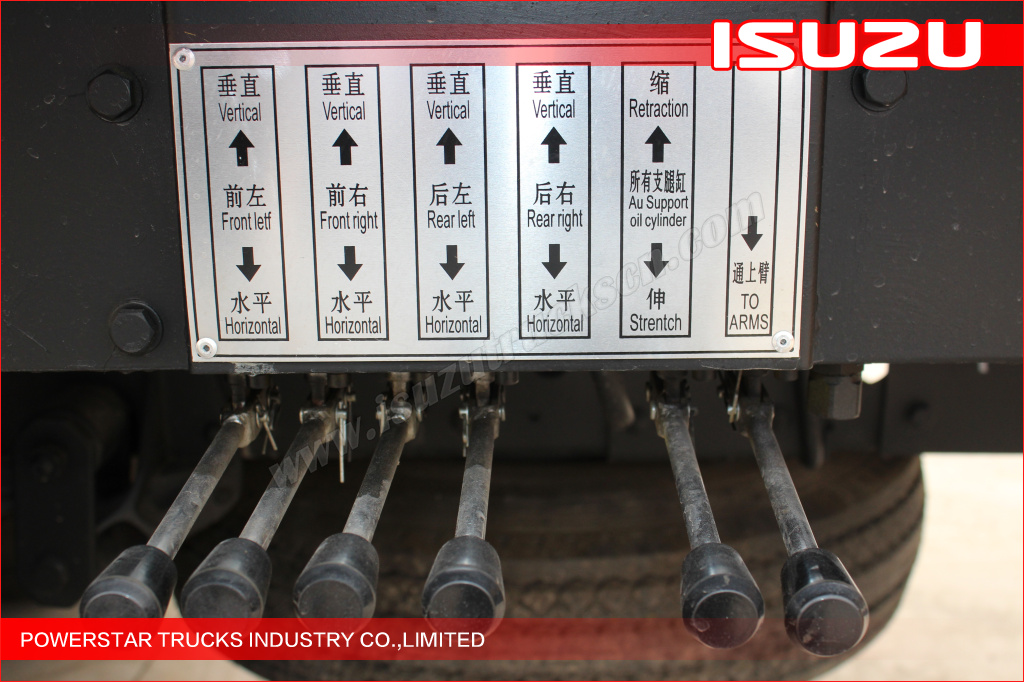

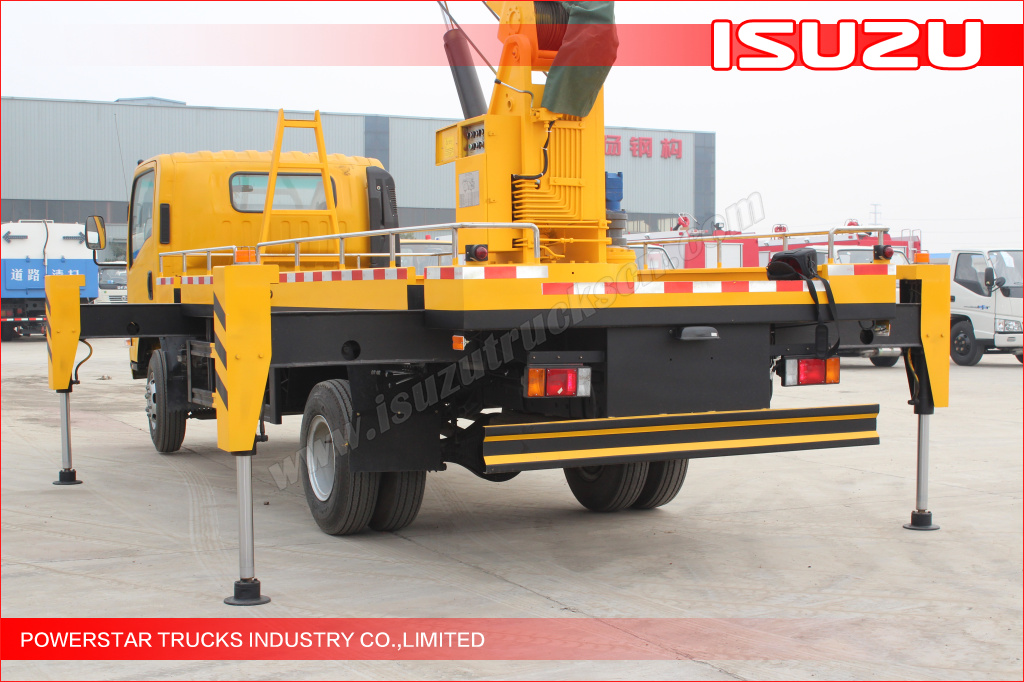

Outrigger |
Vertical span(mm) |
3200 |
|
Horizontal span(mm) |
3600 |
|
|
Traveling of vertical outrigger(mm) |
450 |
|
|
Adjustment |
Single adjustable |
|

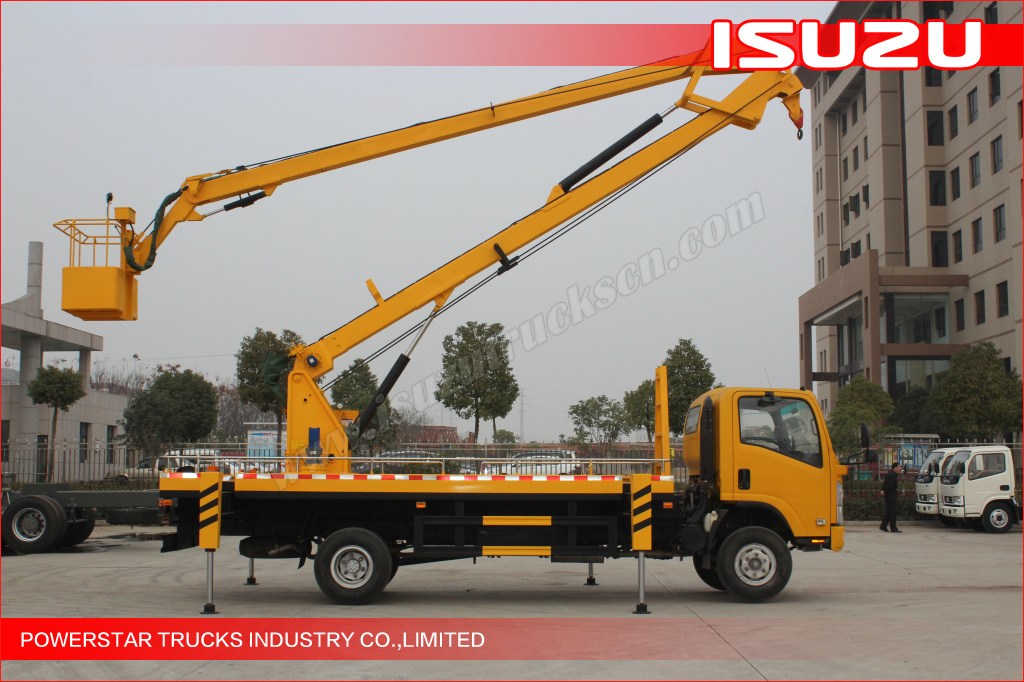

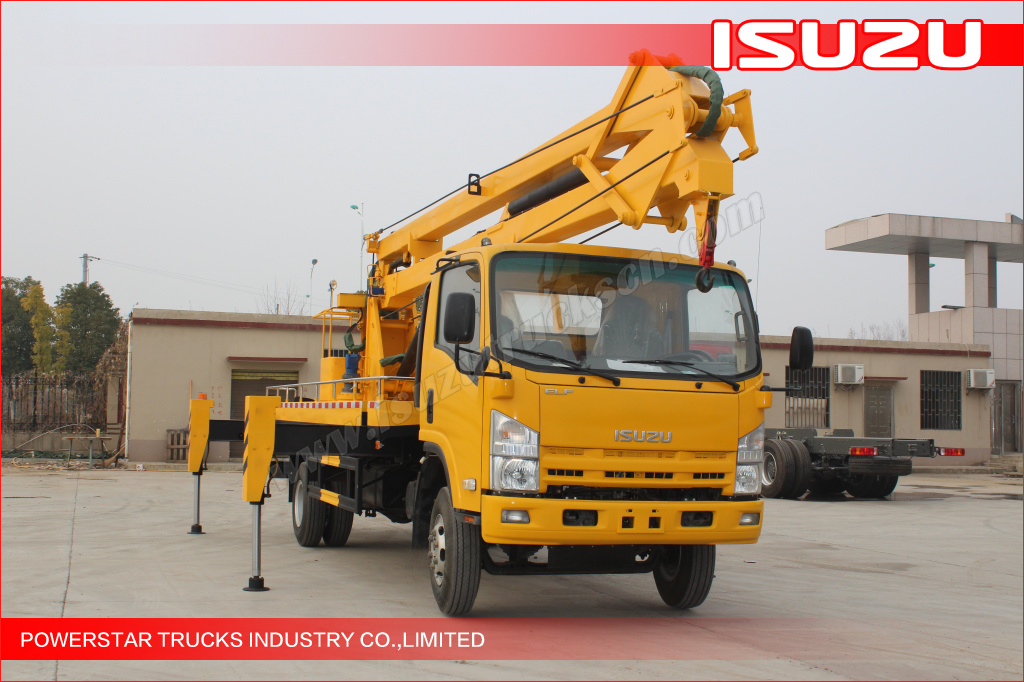

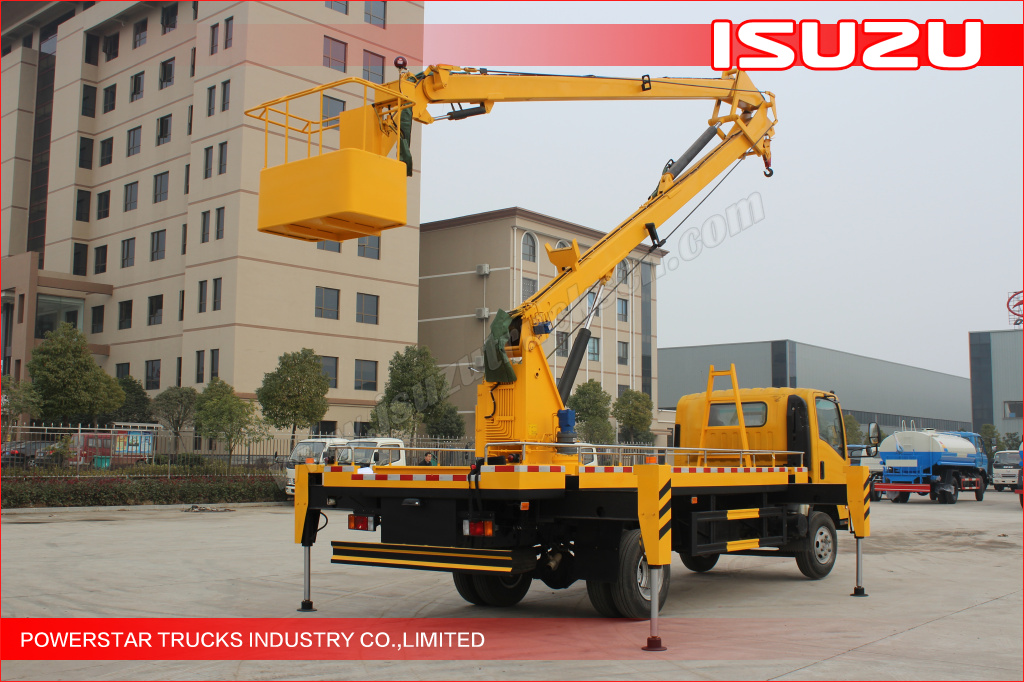

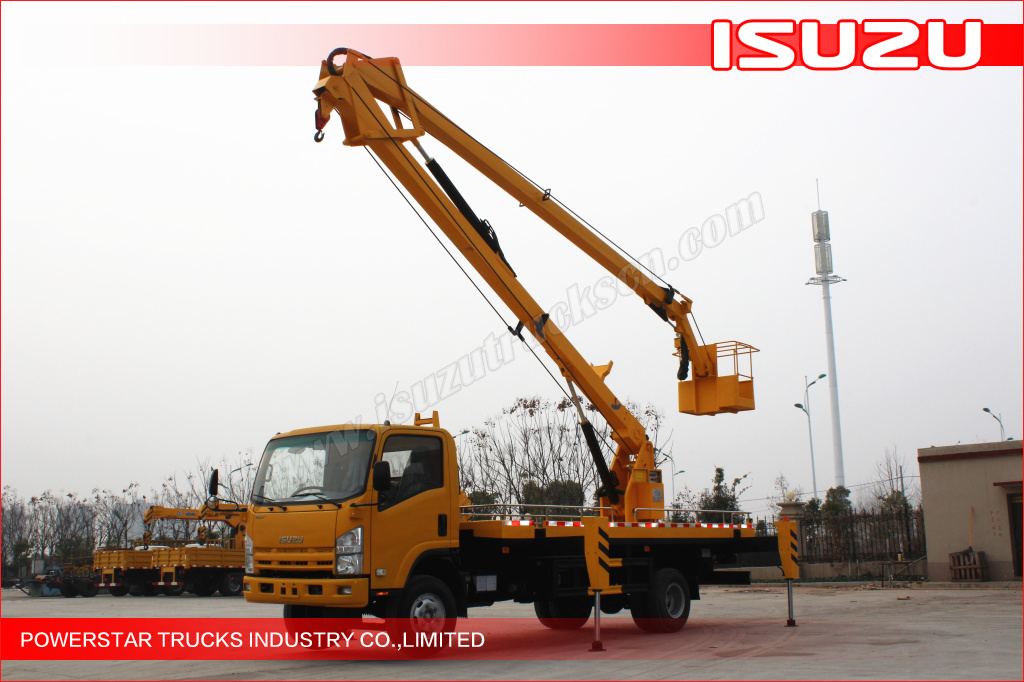

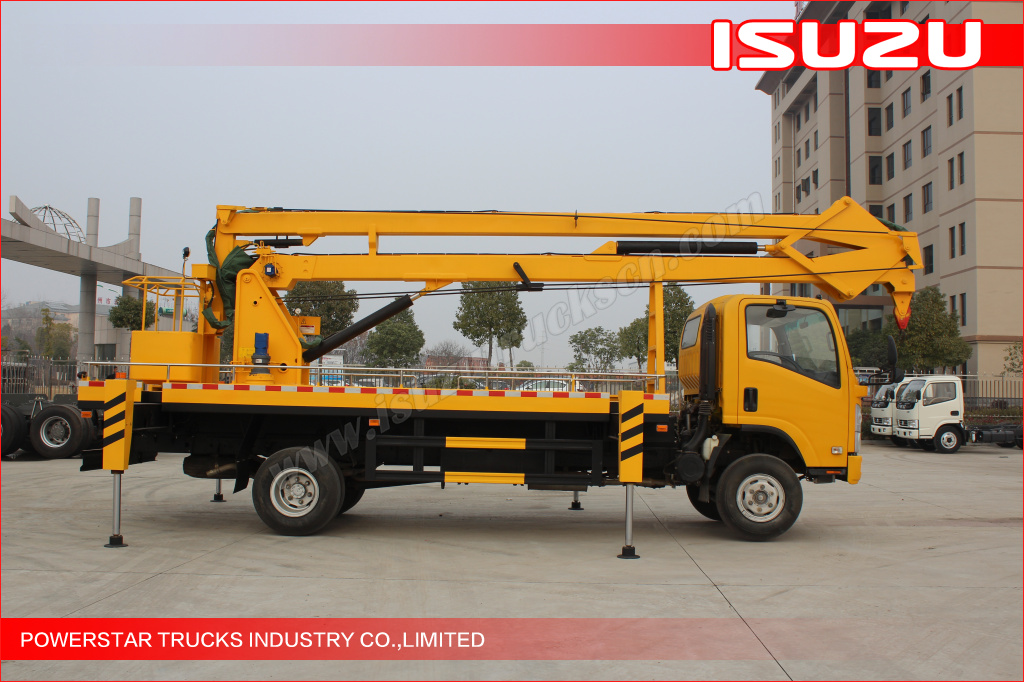

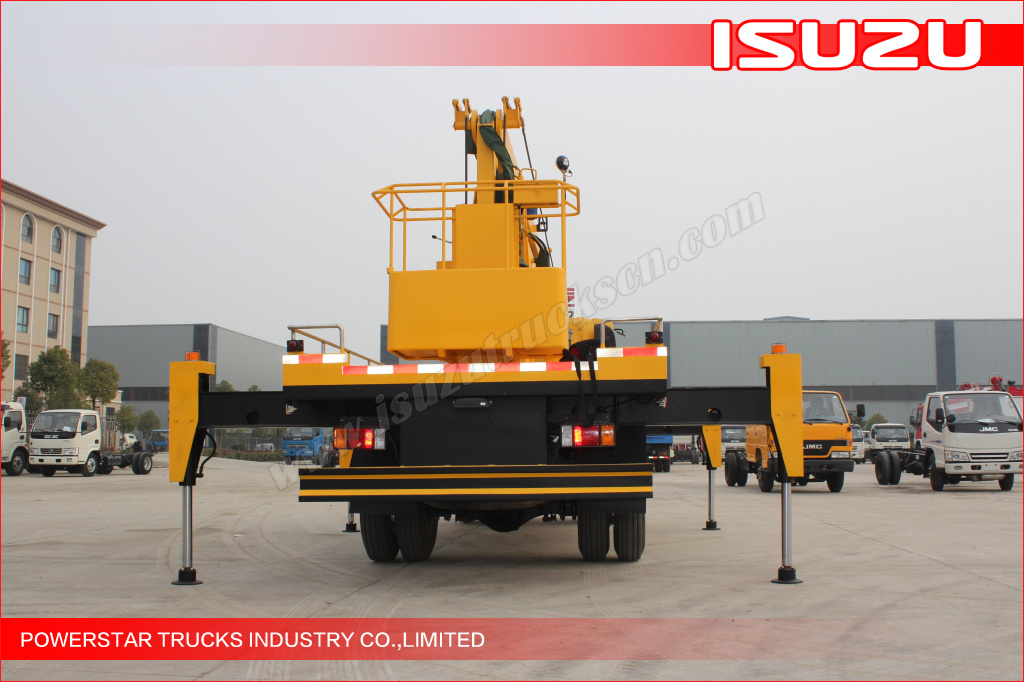

Detial pictures as below:
