How to properly operate isuzu giga septic tanker truck
How to properly operate isuzu giga septic tanker truck
July 25, 2023

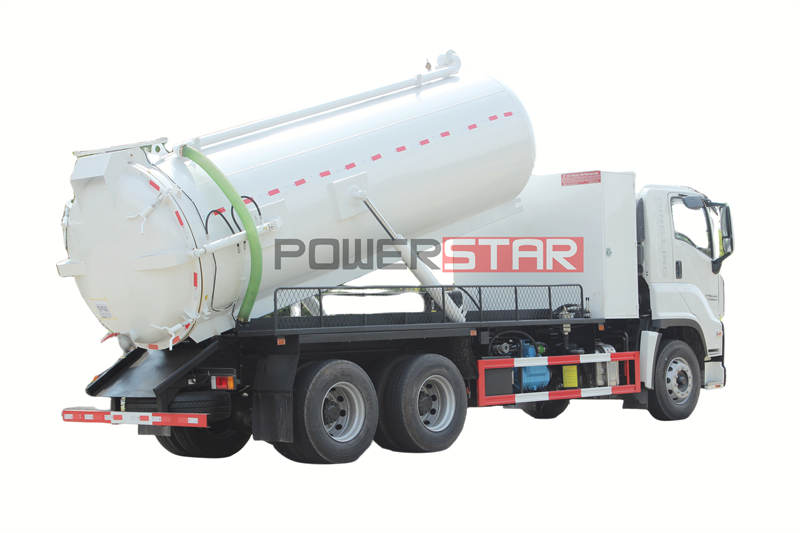

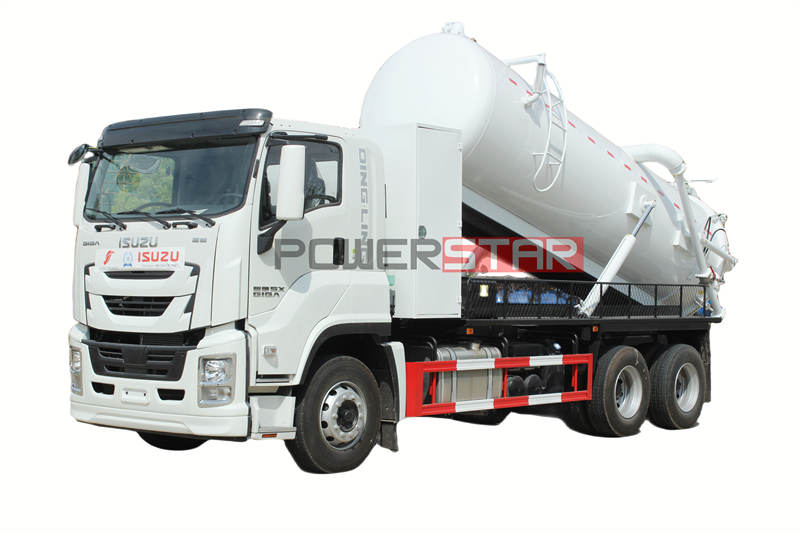

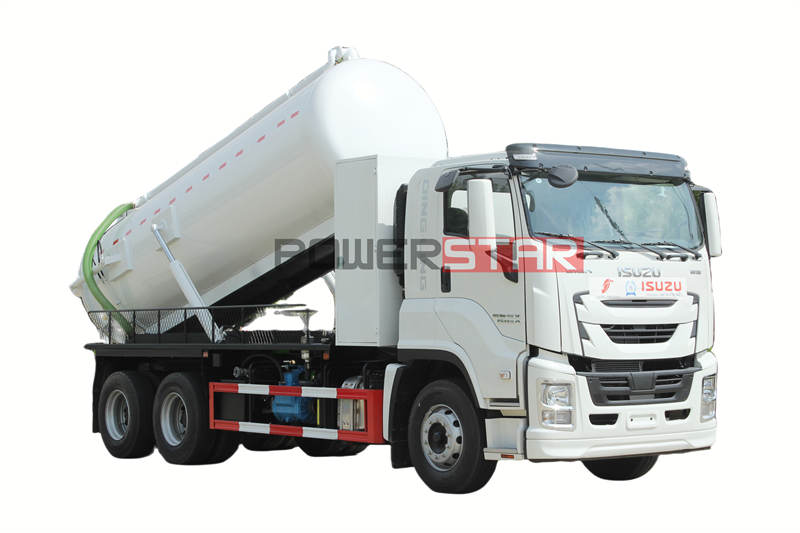

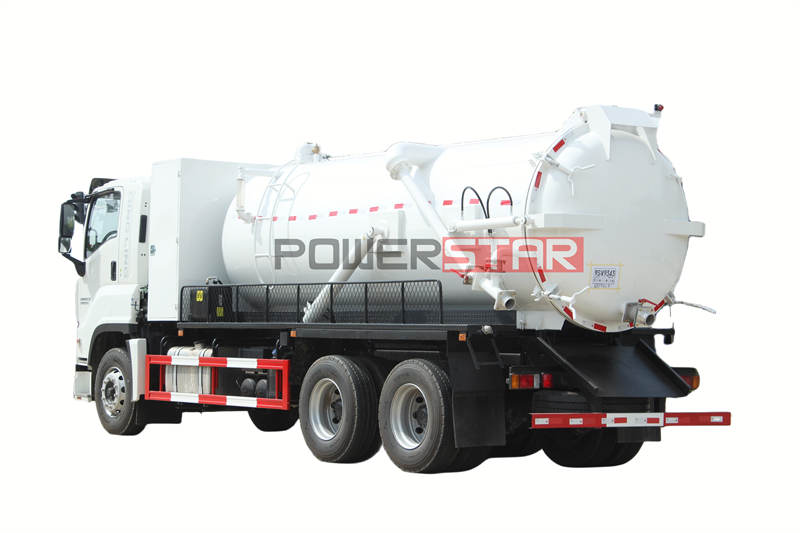

The Isuzu Giga Septic Suction Truck is a heavy-duty vehicle designed specifically for efficient and reliable septic waste management. With a sleek and robust design, this isuzu giga septic tank truck is equipped with advanced features and technology to ensure exceptional performance.
Powered by a high-capacity engine, the Isuzu Giga Septic Suction Truck provides immense power and torque, enabling it to handle demanding tasks effortlessly. The engine is also designed for fuel efficiency, reducing both cost and environmental impact.
This truck offers a spacious and ergonomic cabin, ensuring the operator's comfort and convenience during long working hours. The intuitive control panel allows easy access and operation of various functions, enhancing productivity and efficiency.
Outer Dimension(L×W×H)(mm) 9200x2500x3360 Wheelbase (mm) 4650+1370 Kerb Weight(kg) 12000 GEAR Gearbox brand FAST Model 9-shift gearbox Type Manual Cab capacity(includes driver) 2
Brand ISUZU Model 6HK1-TCG60 Type Six cylinder inline, four stroke, water-cool, turbocharged Inter-cooling, diesel Rating Power(kW/HP) 221 / 300 Note: 1.The vehicle height includes top filter and overflow alarm. 2. We keep the right to revise the parameters on the list above.
Sewage Suction System basic parameter list Items Parameter Superstructure Dirty water tank 12,000 liters Material Carbon steel, 6mm thick Design pressure Full Vacuum-0.9bar Vacuum pump Italy brand famous vacuum pump MORO PM110W Suction Pipeline PVC hose with 3" diameter, 7m+200m long Full-suction time ≤5min Discharge valve 4" discharge valves Rear cover Hydraulic open and Manual locking
The operator should fully understand Whole Structure and Working Principle for ISUZU GIGA Vacuum Tanker Truck before any operation. Only trained person can operate this vehicle properly and to prevent unnecessary accidents and equipment damage.

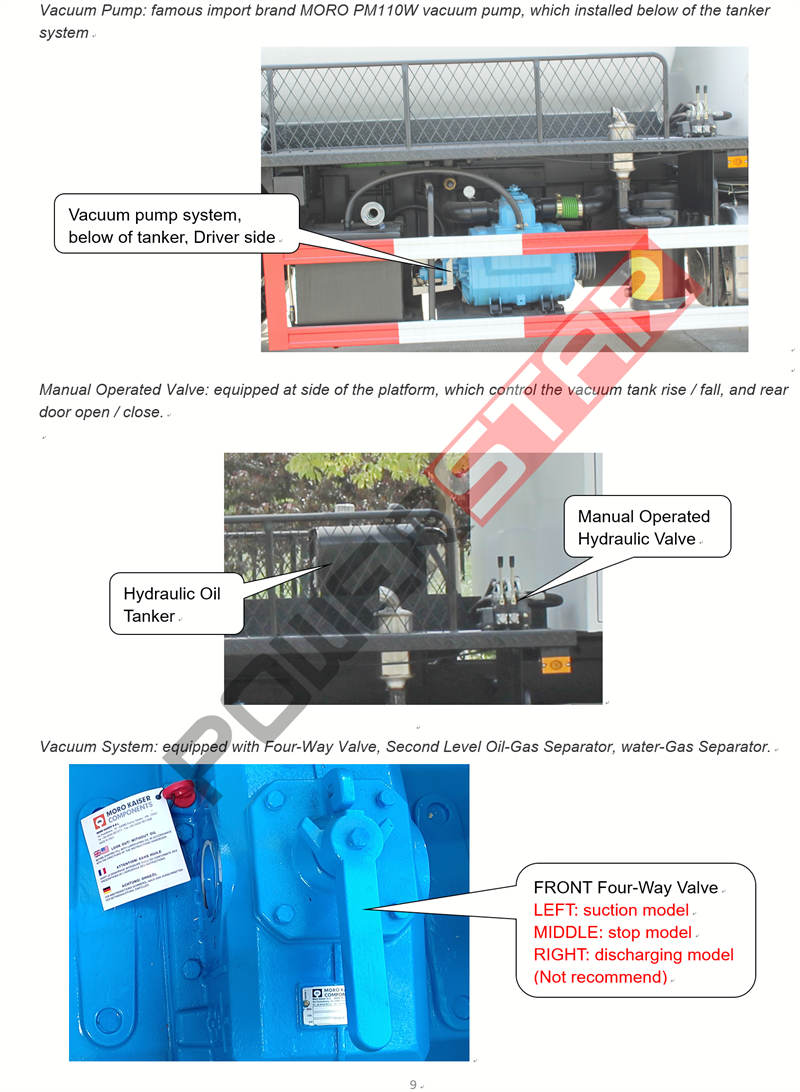

ⅰ,How are the vacuum tanker trucks working? The ISUZU Vacuum Tanker Truck makes use of the PTO to get the power from truck engine, and the power drive the vacuum system working. Operation the valves to control the truck suction liquid sewage, adjust the throttle knob to make suction speed faster and slowly. After suction working, using Manual Operated Valves to control rear door Open/Close, and sewage tanker Rise/Fall. After working, cleaning the sewage tank, and ready for next time operation. ⅱ,What is the main component for truck? The vacuum tanker truck is refitted based on the ISUZU GIGA 6x4 LHD chassis. The refit part includes Vacuum suction assembly, actuator device and operation system. Vacuum suction assembly: One round shape vacuum sewage tank. 1 unit suction pipeline, whole suction system, including vacuum pump and system. Actuator device: includes PTO, drive line, etc., which can pass the power to the pump. Operation system: helps come to all special functions’ convert. ⅲ, How to operate vacuum tanker trucks? (1) Suction operation preparation
A, Keep the sewage tank rear door closed B, Carefully check whether the lubrication of vacuum pump gas-oil separator working normally. C, Press the clutch pedal and pull out PTO button to make PTO, Vacuum Pump and Gear Pump Working.
(2) Operations sequence (Detail figure)
A, Press the clutch pedal, adjust the PTO button, to get power from the truck engine and start the vacuum pump, then slowly release the pedal. B, Start the safety alarm (in the cab) C, Adjust the hand throttle joystick to largest position, and keep the revolution meter point to 500-600r/min (already has been set before out the factory) D, Adjust the four-way valve to suction position (Front to LEFT POSITION and Rear to RIGHT POSITION), carefully check the released air, the vacuum pump sound, the vacuum meter. Please Note: Only suggest use vacuum pump for Pump-In working, strictly forbidden for Pump-Out working E, Put the suction pipe into the sewage. Park the vehicle in right place before suction working, which can keep the pipe straight or free bending state, and guarantee vehicle work normally.
(3) Attention while working
A, Things like over 50mm stone, cotton yarn, leaves etc. will block the suction pipe, and should not be suction, also should keep the pipe clean and unblocked. B, Keep the suction valve full open while vacuum meter point to 65-80kpa, because half-open may damage the valve. C, The suction pipe should be moved frequently while suction. Because suction some air and water will increase efficiency when the sewage is too viscosity.
3, Waste water discharge operating instruction. After sludge and waste water separate, open scupper valve to discharge all the waste water and be ready for next suction. Pressure can bigger while discharging water. Operation approach as follows:
A, Adjust four-way valve joystick to nonworking position, then open the discharging valve to open position, and discharge all the waste water by gravity. (Recommend)
The Isuzu Giga Septic Suction Truck is a powerful and efficient sanitation vehicle that is designed to provide exceptional performance and reliability in handling waste management operations. With a maximum check rate of 80%, the following 300-word introduction aims to highlight the key features and benefits of this truck while maintaining originality.
The Isuzu Giga Septic Suction Truck is a cutting-edge vehicle specifically engineered to meet the demanding requirements of waste management tasks. Equipped with advanced technology and superior power, this truck delivers exceptional performance, ensuring efficient operations and reliable service.
One of the standout features of this truck is its powerful engine. The Isuzu Giga Septic Suction Truck is fitted with a robust and fuel-efficient turbocharged diesel engine that produces impressive horsepower and torque. This enables the vehicle to have quick acceleration and impressive pulling power, making it suitable for even the most strenuous sanitation tasks.
Additionally, the Isuzu Giga Septic Suction Truck boasts a spacious and well-designed cabin. The ergonomic layout and comfortable seats ensure a pleasant working environment for the operator, allowing them to efficiently navigate through different job sites. The cabin is also equipped with advanced safety features, such as airbags and ABS, ensuring the utmost protection for the driver and crew.
Furthermore, this truck is built with a robust vacuum system capable of handling large volumes of waste. The powerful suction capacity ensures efficient and timely waste collection and disposal, while the durable tank guarantees long-lasting performance. The truck's compact design allows it to maneuver easily, enabling it to access narrow and congested areas.
In terms of maintenance and durability, the Isuzu Giga Septic Suction Truck excels. Isuzu is renowned for its meticulous attention to detail and commitment to quality. This vehicle is constructed using high-quality materials and undergoes stringent testing to ensure its reliability and long lifespan.
In conclusion, the Isuzu Giga Septic Suction Truck is a top-of-the-line sanitation vehicle that combines performance, efficiency, and durability. With its powerful engine, spacious cabin, and advanced waste management technology, this truck is an ideal choice for any waste management operation.
