The hydraulic cylinder of the Isuzu FTR garbage compactor truck is a critical component responsible for the smooth operation of the garbage compaction system. Made of high-quality materials, the hydraulic cylinder is designed to withstand heavy loads and perform efficiently in demanding working conditions.

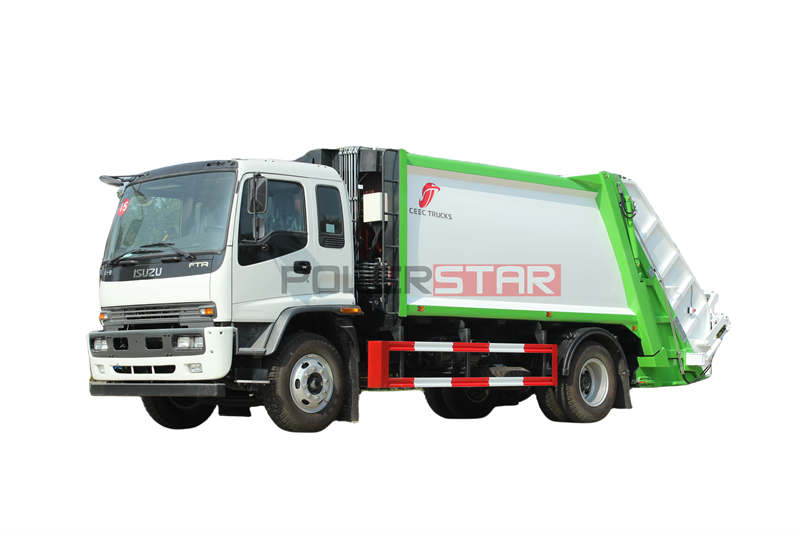

Japan Isuzu FTR cabin waste compactor truck with 16 cbm upper body.

The Isuzu FTR garbage compactor truck's hydraulic cylinder is engineered to have a low failure rate, ensuring reliable and long-lasting performance. With a tested and proven durability, this hydraulic cylinder is specifically designed to handle the pressures and stresses associated with compacting garbage.

The hydraulic cylinder's exceptional design and construction enable it to achieve a maximum efficiency rate of up to 80%. This means that the hydraulic system is highly effective in converting hydraulic power into mechanical force, allowing for efficient waste compaction.

Additionally, the hydraulic cylinder of the Isuzu FTR garbage compactor truck is equipped with advanced technology to minimize friction and wear, further enhancing its performance and extending its lifespan. This results in reduced maintenance and repair costs, making the Isuzu FTR garbage compactor truck a cost-effective solution for waste management needs.

Chapter 2, Main Technical Data

Basic parameter:
Items    ISUZU FTR 16CBM Garbage Compactor Truck
Outer Dimension（L×W×H）(mm)    9000x2500x3200
Wheelbase (mm)    4500
Kerb Weight（kg）    10,000
GEAR    Gearbox brand    ISUZU
Model    MLD
Type    6-shift Manual
Cab capacity（includes driver）    2

Brand    ISUZU
Model    4HK1-TC50
Type    Diesel
Rating Power（kW/HP）    150KW / 205HP
Note: 1.We keeps the right to revise the parameters on the list above.

Garbage Body basic parameter list
Items    Parameter
Garbage Body    Capacity (CBM)    16
Material    Standard Carbon Steel
Painting    Internal    With anti-rust painting
External    Gray painting as required

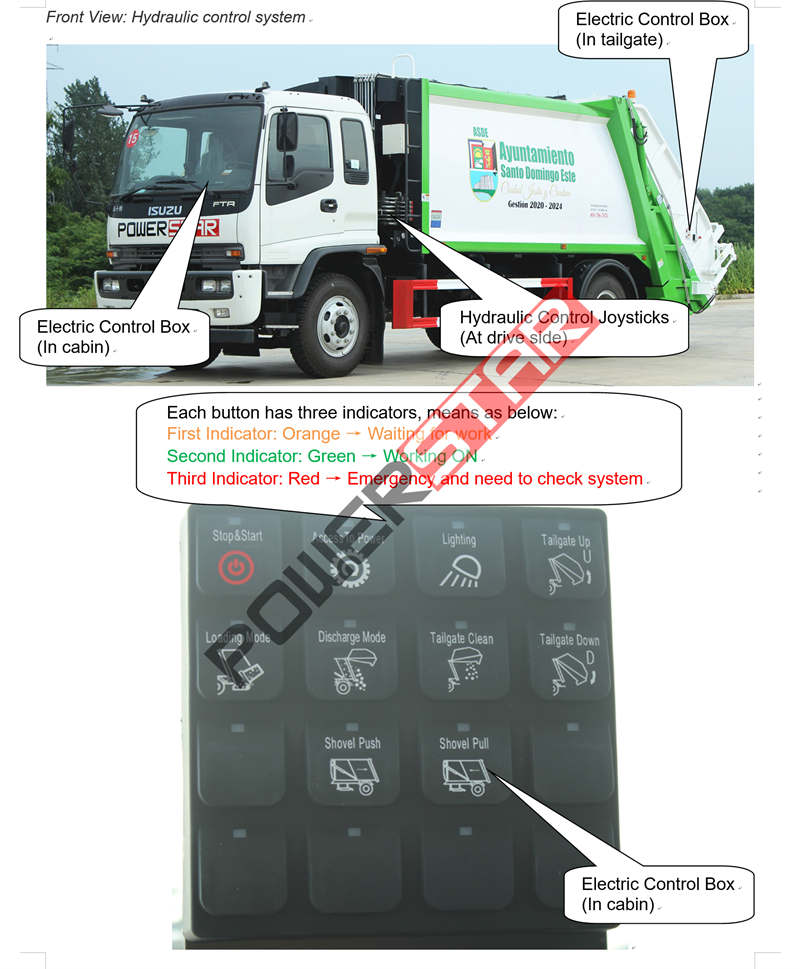

Control System    Electric Control    Control Box in Cabin
Control Box two sides of hopper
Hydraulic Control    Behind of cabin at driver side
PLC    New designed CAN System
Hydraulic Cylinder quantity    Hopper    2
Slide Plate     2
Scraper    2
Tilting Device    2
Push Plate    1

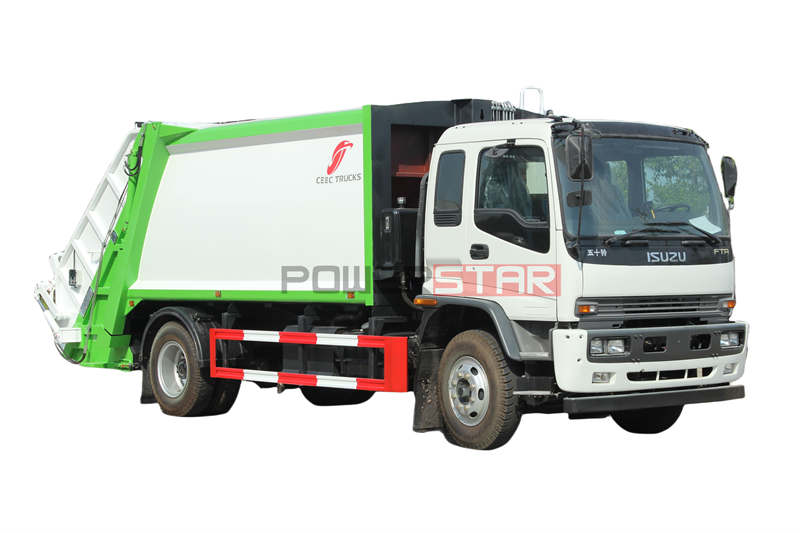

Isuzu FTR refuse compactor truck with 205 hp diesel engine

How to operate garbage compactor trucks? (Very Important)
1.1     Precautions for Truck Usage
2.1 Precautions before use
1. Prepare the truck before departure according to the requirements of the chassis instruction;
2. Check truck lights and ensure that they can work normally;
3. The tailgate should be in the state of falling and lock-up and the push-shovel cylinder should be in the position of maximum extension;
4. The fuel pump should be able to rotate normally after installing the PTO;
5. Since the viscosity of hydraulic oil will increase in low temperature, the operator shall run the compressing-filling and bucket-lifting mechanism in non-loaded condition for several times before loading operation.

2.2 Precaution in use
1. The operation site should be spacious, flat and open;
2. Irrelevant personnel shall never approach the truck, especially the rear during the operation;
3. The garbage should be put into the filling bucket evenly, and no garbage shall be concentrated on one side, which may shift the center of gravity of the truck, or piled too much garbage along the edge of the filling bucket, which may affect the compressing and filling of garbage and lead to uneven distribution of garbage in the garbage can;
4. Attention should be paid to the compressing and filling operation, and in case of any large garbage that are too large to be compressed, the operator shall stop in time, and then continue to work after clearing such garbage, otherwise, the working equipment of the truck may be jeopardized;
5. When lifting and dropping the pre-compressor during the unloading operation, it’s necessary to ensure the safety of surroundings, and carry out operation carefully. The pre-compressor shall not be lifted up on the slope; otherwise the center of gravity may easily be shifted backward, thus causing overturning accident;
6. After unloading, the joint surface of the garbage can and the pre-compressor shall be cleaned to ensure that the joint surface is well sealed and avoid damaging the rubber seal due to sharp objects or hard objects in the garbage.
7. The truck shall be allowed to work only after the pre-compressor has fallen down and lock-up.


2.3 Precautions for maintenance after use
1. Do a good job of maintenance according to this instruction and chassis manual in time;
2. The washers at the sewage outlet of blow down apparatus of the garbage can shall be cleaned every day, especially after discharging the sewage, and the residue on the gasket shall be cleaned, otherwise it is easy to cause the damage of the blow down apparatus or the seal failure;
3. Do not spray water directly on electrical components and fuel tanks when washing the truck;
4. No one is allowed to stand or walk under the pre-compressor after it is lifted. It is necessary to hold up the pre-compressor with jack stay and stand up to it with solid supports when lifting up it for maintenance, thus preventing disastrous accidents;
5. During overhaul, no one shall throw, collide, and strike the truck, thus preventing parts from damage, deformation and scratches. When dismantling the hydraulic system, cleaning is necessary;
6. When dismantling the hydraulic system or electrical control system, the pre-compressor should be in the falling position, and the scraper and slider should be put down slowly or fixed, otherwise the any sudden movement of pre-compressor or scraper and slider will damage the equipment or lead to other disastrous accidents;
7. Loading and unloading operations are completed automatically, and no one shall adjust it without permission. When the speed of PTO is too high, PTO or fuel pump power unit will be damaged, and when the speed is too low, the operation efficiency will be affected;
8. The pressure valve spring has been properly adjusted before delivery, and it is strictly forbidden to adjust it without permission. In case of any obvious reduction in loading capacity, it should be repaired at the designated maintenance point;
9. For garbage trucks equipped with external motor as the power system, the opening-closing duration of the scraper is adjusted according to the flow rate of the system. When working via applying the chassis engine, the opening-closing duration of the scraper is shorter than that of the motor power system, and it is normal that the scraper pauses shortly when the scraper opens and closes.

Isuzu FTR garbage compactor truck for exporting.

2.4 Cautions for garbage trucks storage
1. The truck should be stored in the garage featured with excellent ventilation, dry and clean environment, free from corrosive medium. In case of open storage, the truck shall be covered with tarpaulin;
2. When the truck is stored, the chassis gearbox should be placed in the neutral position, PTO should be disconnected, and the cylinder should be in a retracted state.
 

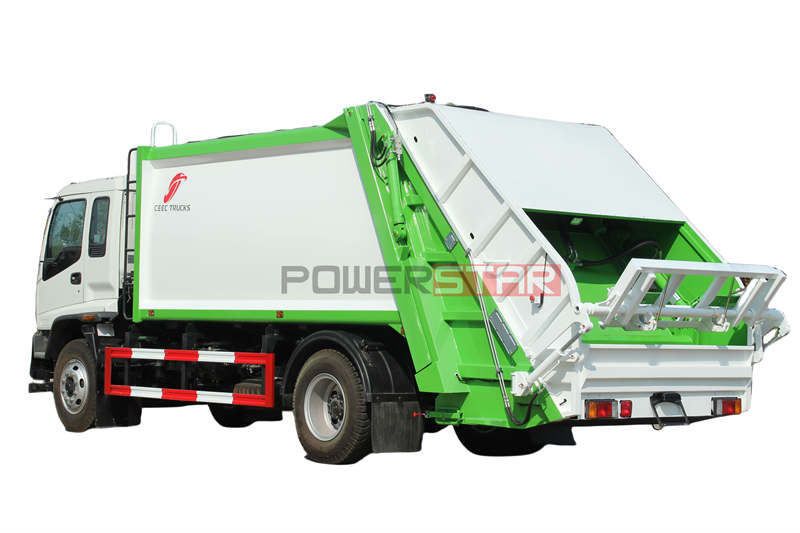

Rear loading garbage compactor truck on isuzu FTR truck chassis.
