Contractor: Saku Speed Company
Project: Emergency
road rescue for city road of Djibouti
Service Area: Downtown area. Saku Speed company as excellent service company in Djibouti, often delivery road rescue Trucks for country’s
fast growing infrastructure development projects, Municipal Corporation,
Electricity Board, Defense Establishment needs Trucks, who can deliver their
load in no time loss and with precision and safe handling of load.

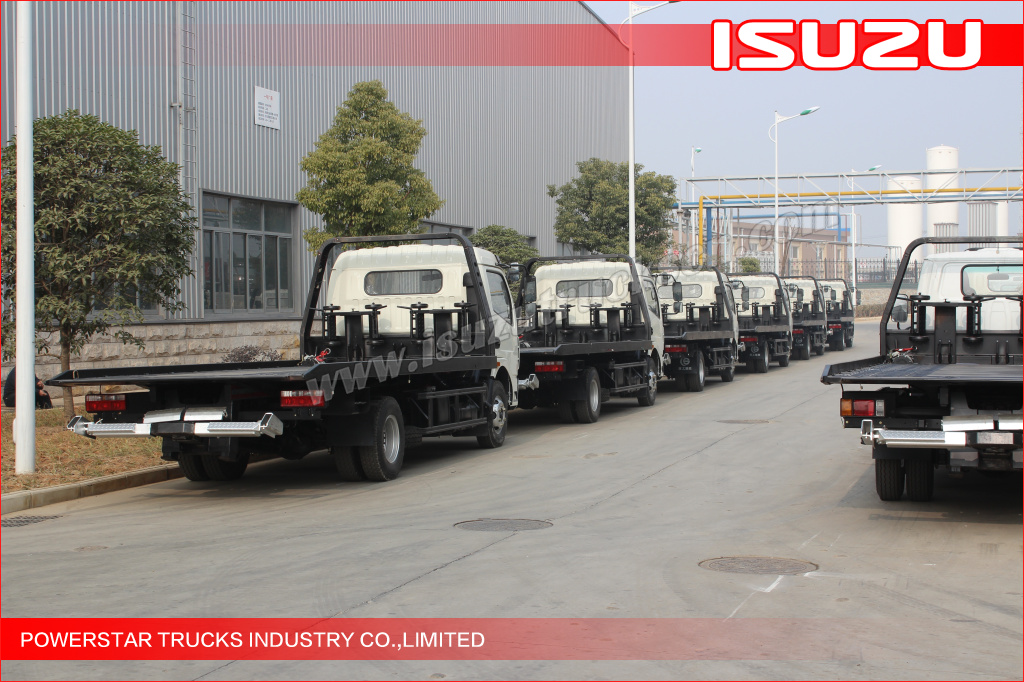

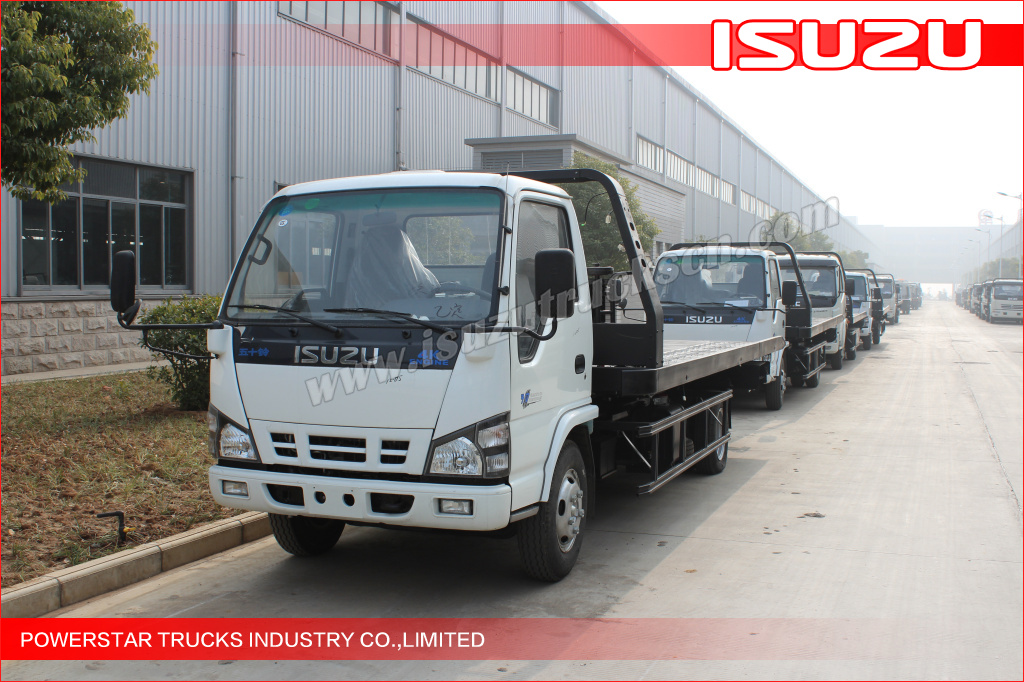

4untis Isuzu NKR road wrecker truck is the first batch wrecker truck as try order to Powerstar trucks.
After finish, Saku Speed Company senior manager Daopos visit our factory inspection Road wrecker truck, he is very satisfied with the quality.
Trucks from PowerStar
|
PT5070TQZ |
|
||
|
Driving Type |
4x2 (Left hand drive) |
|
|
|
Wheelbase |
3815 mm |
|
|
|
Cab |
Forward control over engine, all-steel-welded construction |
|
|
|
Boom Structure |
Rated towing weight |
7300kg |
|
|
Max. Lifting weight |
1500kg |
|
|
|
Max. Lifting weight of full extending boom |
800kg |
|
|
|
Effective length of boom |
1600mm |
|
|
|
Extension traveling of boom |
1200mm |
|
|
|
Elevation of boom (upper/ lower) |
9~-10° |
|
|
|

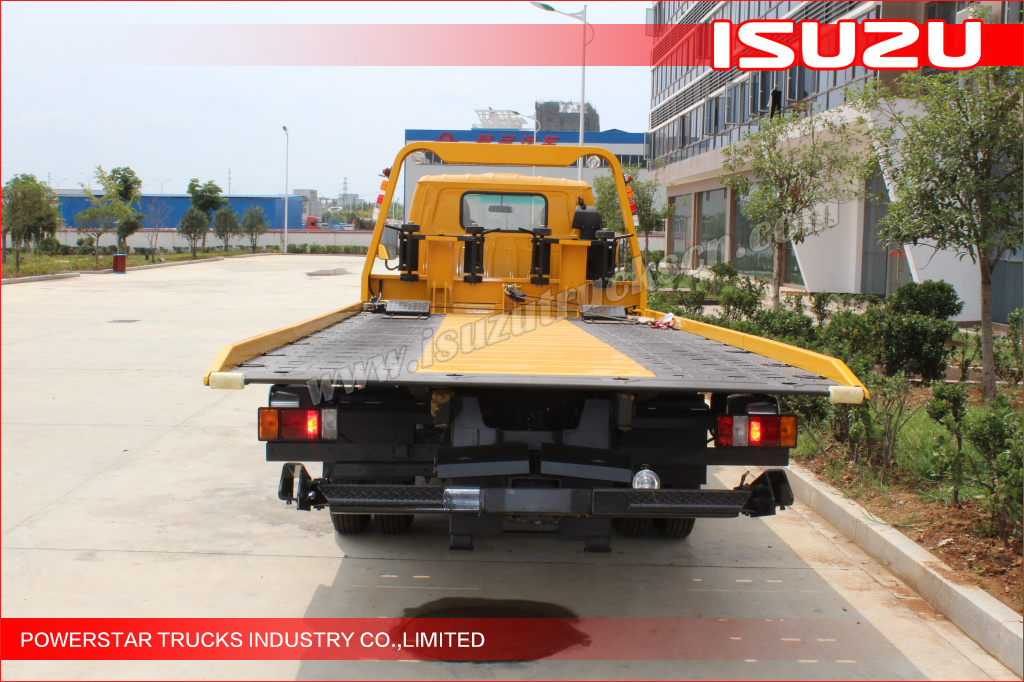

Platform Structure |
Min. Elevation of full extending platform |
8° |
|
|
Max. Loading of platform |
3000kg |
||
|
External dimension of platform (L×W×H) |
5400×2140×57mm |
||
|
Ground clearance of cage floor |
1014mm |
||
|

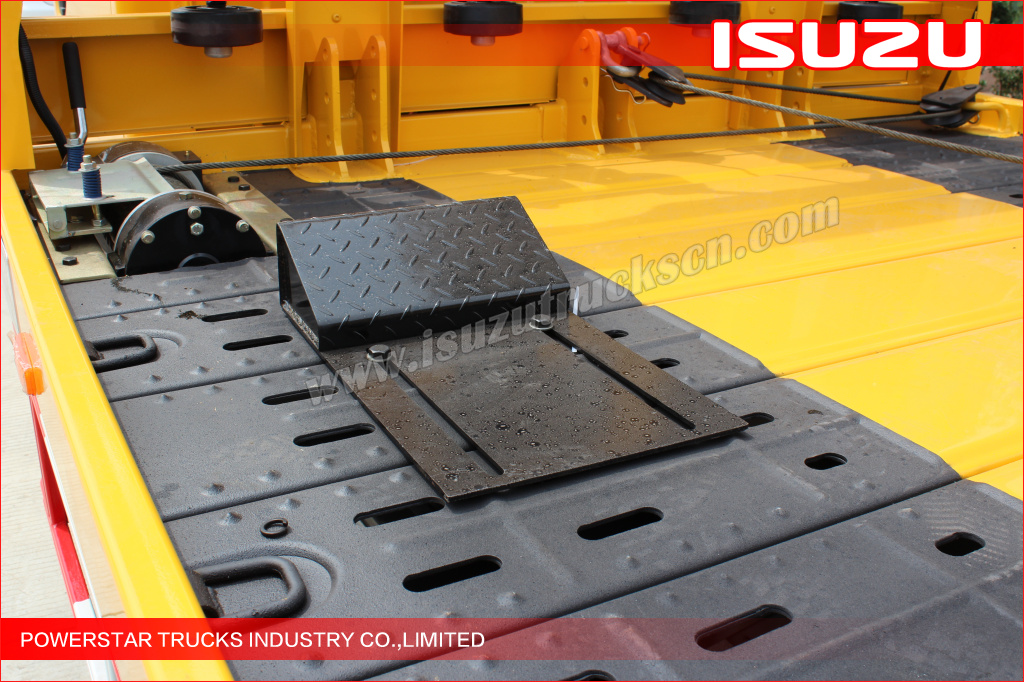

Max. Pulling power of winch |
4000kg |
||
|
Dia. Of steel cable |
10mm |
||
|
Length of steel cable |
25m |
||
|
Min. Speed of steel cable |
4.5m/min |
||
|
Engine |
Model |
4KH1-TCG40 |
|
|
Type |
Diesel, turbo charged inter-cooled, 4 cylinder |
||
|
Max. Power |
88 KW (120 HP) |
||

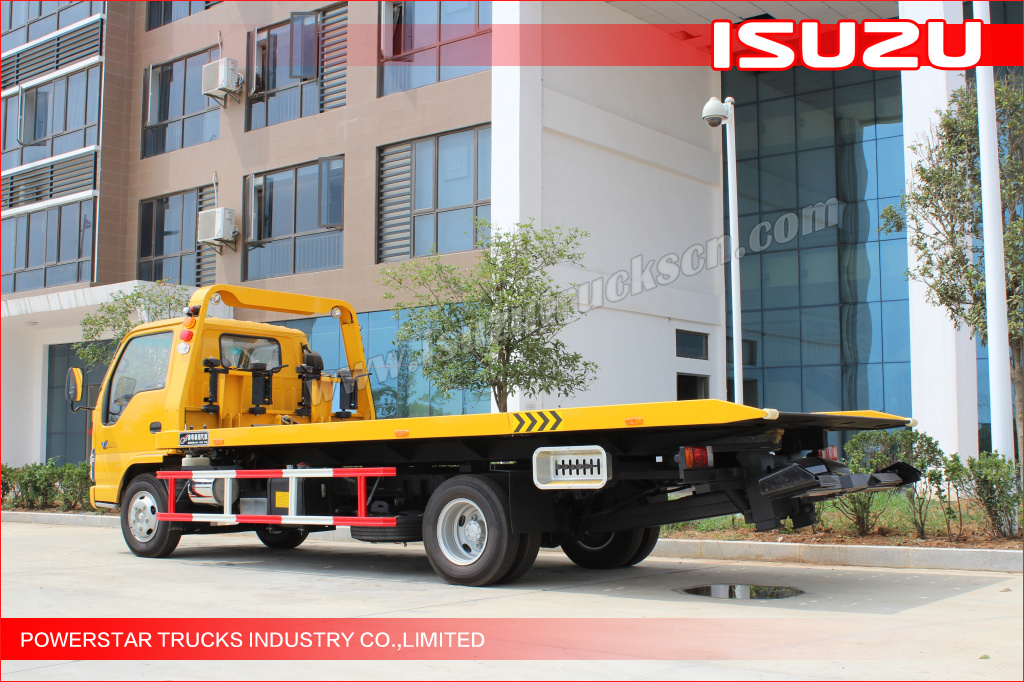

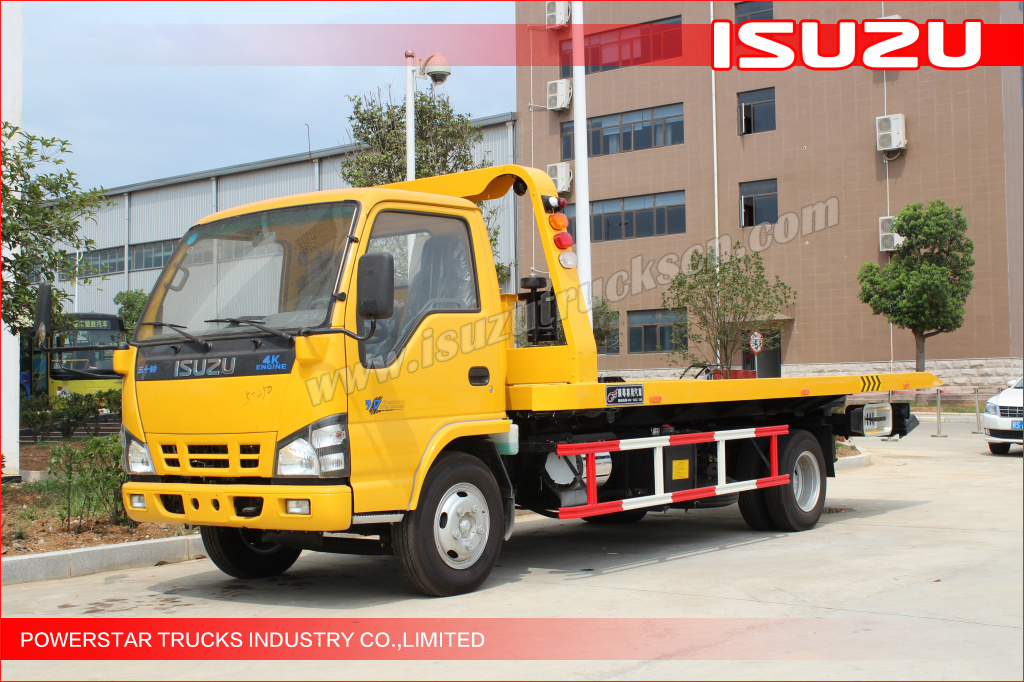

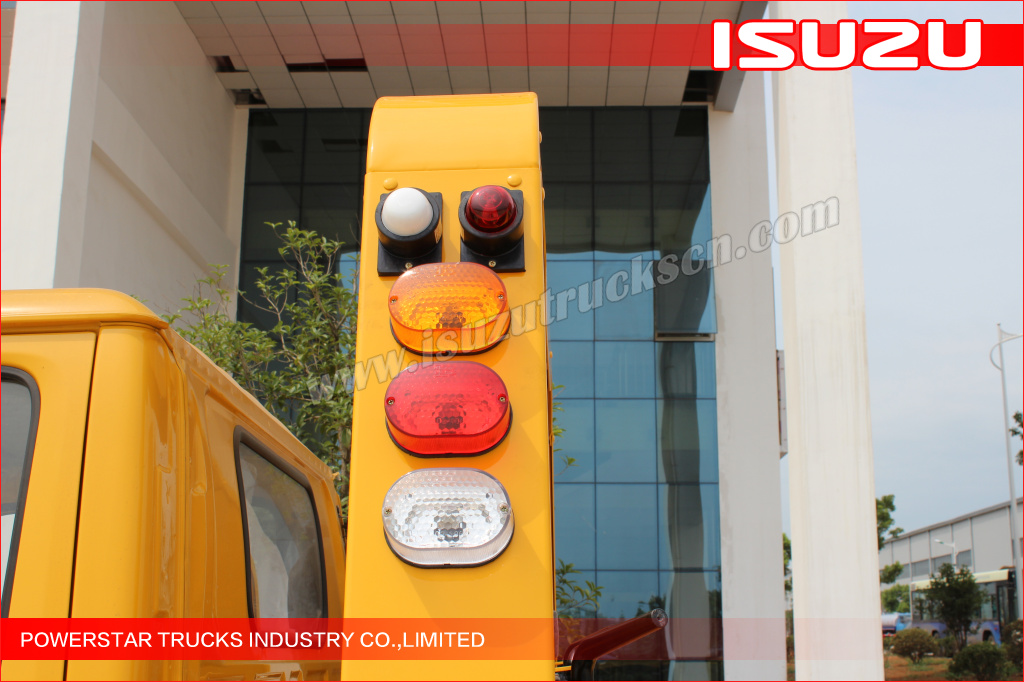

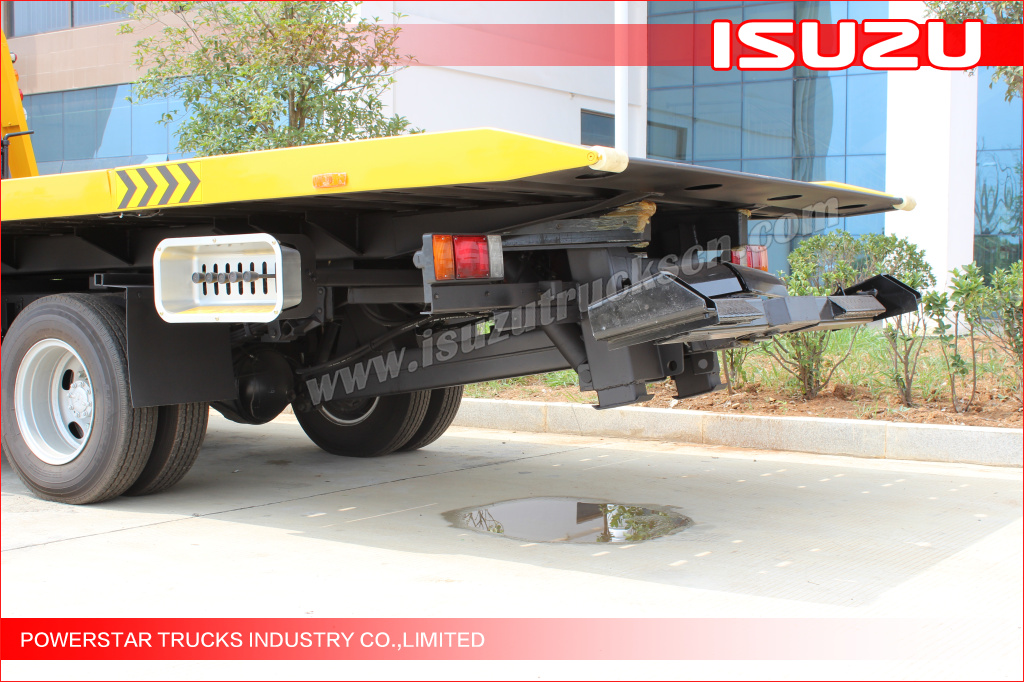

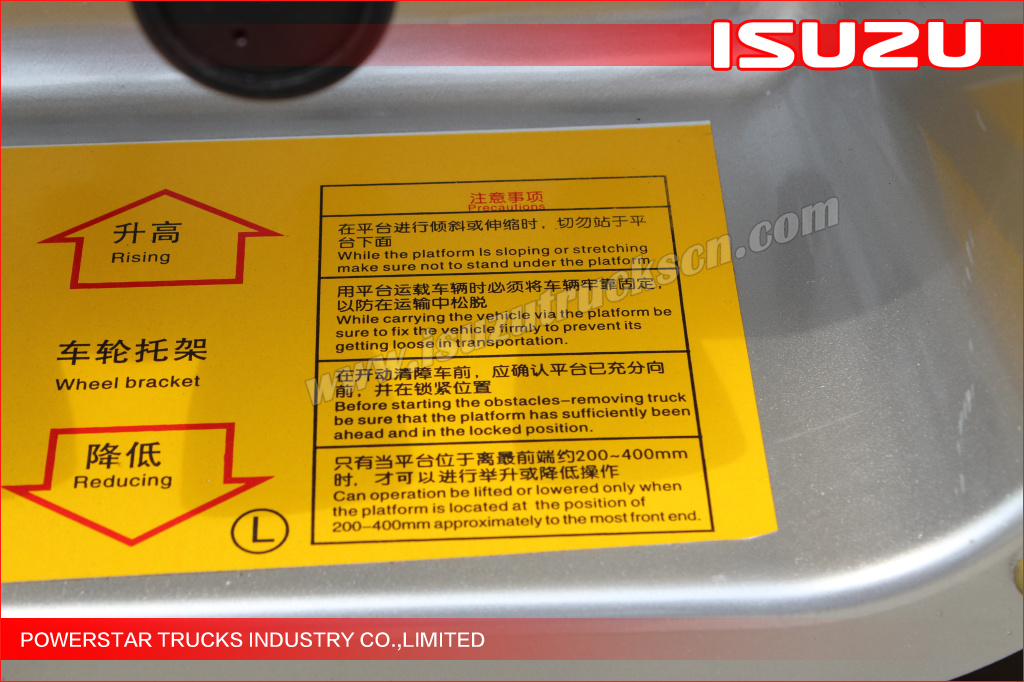

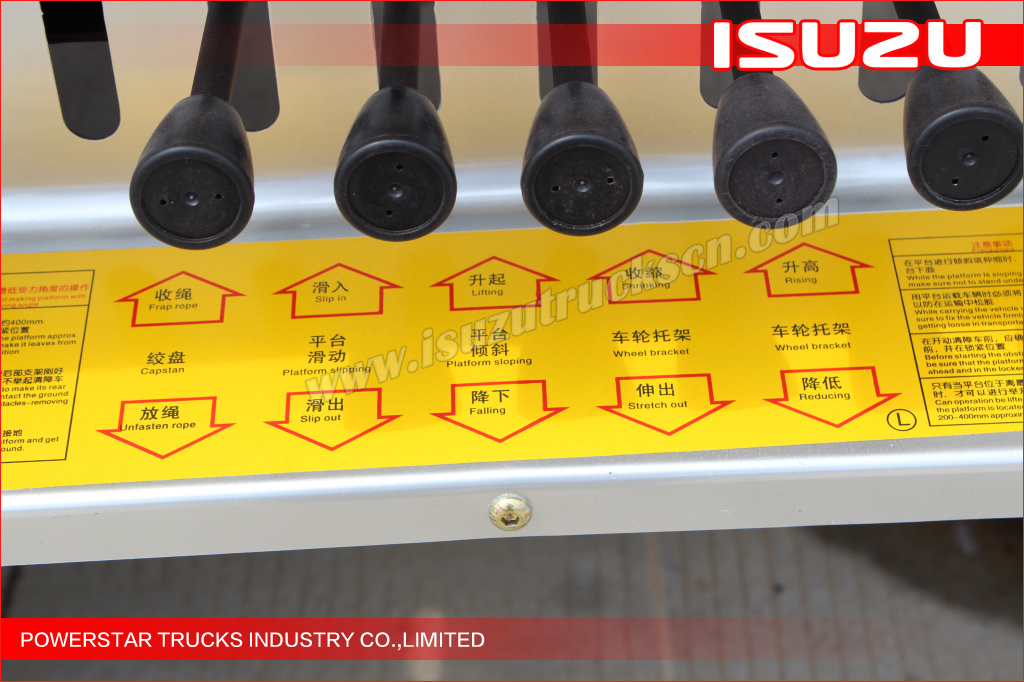

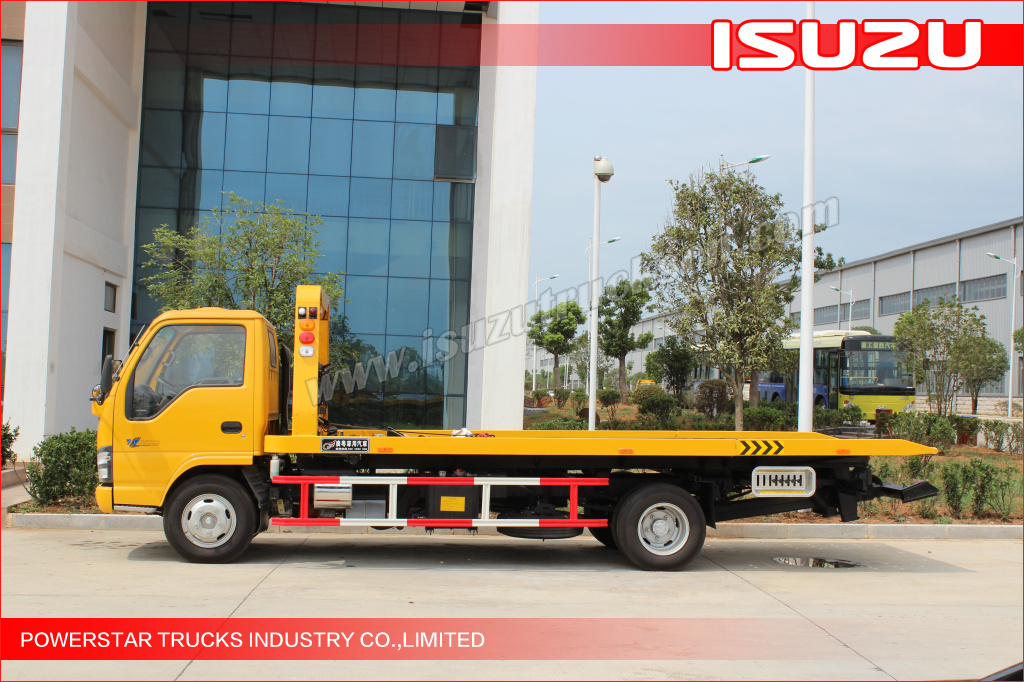

Customer build example for reference:
