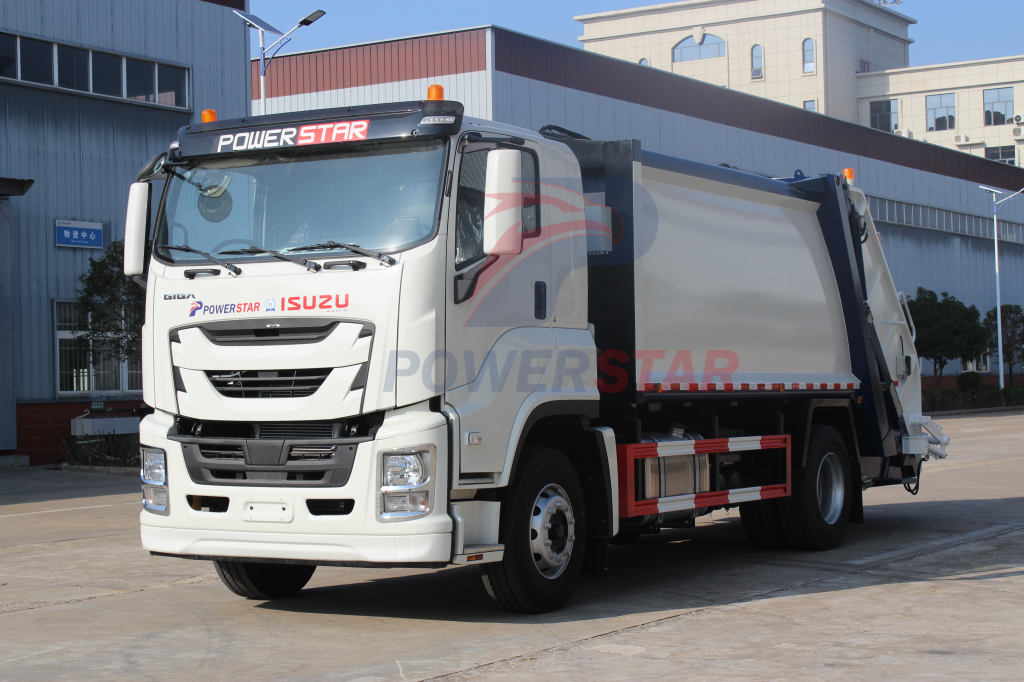

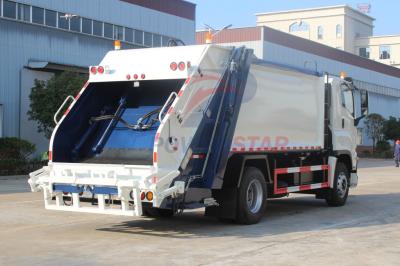

6HK1-TCG61 Engine Trash compactor truck Isuzu
6HK1-TCG61 Trash compactor body by Isuzu giga trucks, also named Isuzu refuse garbage compression garbage truck collection method is simple: it changes the dirty and messy old appearance of garbage bins placed on the streets of the city, and eliminates secondary pollution.High compression ratio and large loading capacity: The maximum crushing pressure reaches 12 tons, and the loading capacity is equivalent to twice and a half times that of non compressed garbage of the same ton level.
Work capacity:
16cbmTruck model:
PT5180GYSEngine power:
240 HPEngine type:
ISUZU 6HK1-TC661Axle drive:
4x2Gear box:
Isuzu MLD 6-shiftRemarks:
10-18CBM availablePhilippines National Environmental Sanitation Bureau Acquires Isuzu FVR Giga Trash Compactor Trucks
The Philippines National Environmental Sanitation Bureau (NESB), a pivotal agency dedicated to maintaining cleanliness and sanitation across the country, has recently made a significant procurement move. The bureau has acquired a fleet of Isuzu Giga Trash Compactor Trucks to bolster its waste management efforts, particularly in urban areas like Manila. This move underscores the NESB's commitment to enhancing the efficiency and effectiveness of waste collection and disposal services.
Product Description

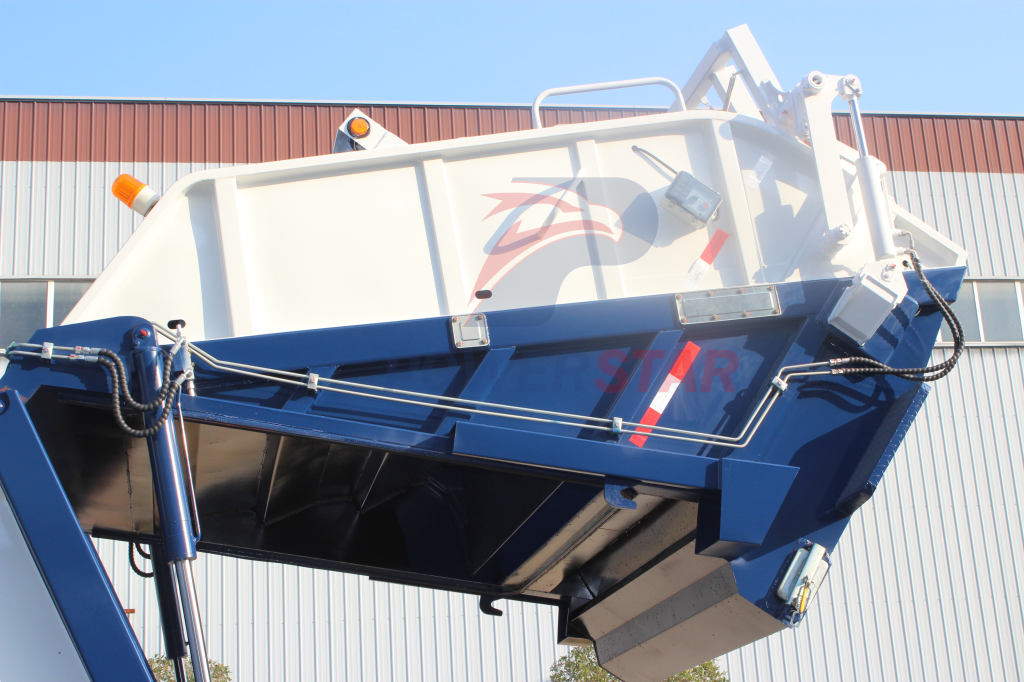

6HK1-TCG61 Trash compactor body by Isuzu giga trucks collection method is simple: it changes the dirty and messy old appearance of garbage bins placed on the streets of the city, and eliminates secondary pollution.
High compression ratio and large loading capacity: The maximum crushing pressure reaches 12 tons, and the loading capacity is equivalent to twice and a half times that of non compressed garbage of the same ton level.
Automation of homework: Using a computer control system, all filling and unloading operations require one driver to operate, and can be set to two operating modes: fully automatic and semi-automatic. This not only reduces the labor intensity of sanitation workers, but also greatly improves the working environment.
Good economy: When specialized equipment is in operation, the computer control system automatically controls the throttle.
Dual insurance system: The operating system has dual functions of computer control and manual operation, greatly ensuring and improving the utilization rate of vehicles.
The NESB is a government agency under the Philippines' Department of Environment and Natural Resources (DENR). Its core responsibilities include overseeing waste management operations, ensuring compliance with sanitation standards, and promoting environmental sustainability. The bureau plays a crucial role in implementing policies and programs aimed at reducing pollution, improving public health, and preserving natural resources. With a nationwide reach, the NESB collaborates with local governments, non-governmental organizations, and private sector entities to achieve its mandates.
The decision to acquire Isuzu Giga Trash Compactor Trucks was driven by several factors. Firstly, the rapid urbanization in the Philippines, especially in Manila, has led to a surge in waste generation. Traditional waste collection methods have struggled to cope with this increase, resulting in overflowing dumpsites and unsanitary conditions. Secondly, the government's push for environmental sustainability and waste reduction necessitates more efficient and eco-friendly waste management solutions.
The Isuzu Giga Trash Compactor Truck emerged as the ideal choice due to its advanced features and proven reliability in similar applications worldwide. These trucks are known for their robust construction, high compression capabilities, and fuel efficiency, making them well-suited for the demanding conditions of urban waste management in the Philippines.
The Isuzu Giga Trash Compactor Truck is a high-performance vehicle designed specifically for waste collection and compaction. It features a heavy-duty engine, typically a V-series diesel engine with a displacement of up to 30 liters, capable of delivering significant torque and power. The truck is equipped with a state-of-the-art compaction system that can reduce the volume of waste by up to 50%, enabling more efficient transportation and disposal.
Other key components include a durable chassis, robust suspension system, and advanced safety features such as airbags, ABS, and ESP. The cab is ergonomically designed to provide a comfortable working environment for drivers, ensuring better productivity and safety.
Maintaining the Isuzu Giga Trash Compactor Truck is crucial to ensuring its long-term performance and reliability. Regular inspections and maintenance schedules should be adhered to, covering engine oil changes, tire pressure checks, brake adjustments, and hydraulic system inspections. The compaction system, in particular, requires frequent checks for wear and tear, as it is the most critical component of the truck.
|
SPECIFICATION
|
|||
|
Chassis parameters
|
|||
|
Vehicle model
|
PT5180GYS
|
Vehicle brand
|
POWERSTAR
|
|
Chassis brand
|
ISUZU
|
Overall dimensions
|
9250X2500X3230mm
|
|
Wheel base/No.of axle
|
4500mm /2
|
GVW/Kerb weight
|
18000/8600kg
|
|
Drive type
|
4x2,left hand drive
|
Maximum speed
|
95km/h
|
|
Cab
|
Configuration
|
GIGA half cab,hydraulic mechanical flip,channel type instrument panel,air conditioner,allowable 2 passengers
|
|
|
Color
|
white,other color is optional
|
||
|
Engine
|
Model
|
6HK1-TCG61
|
|
|
Emission
|
Euro 6
|
||
|
Type
|
6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine
|
||
|
Rated power
|
240HP
|
||
|
Bore x stroke
|
115*125mm
|
||
|
Tire
|
Size
|
10.00R20
|
|
|
Number
|
6+1 nos
|
||
|
Front axle
|
6.3 tons
|
||
|
Rear axle
|
13tons
|
||
|
Rated voltage
|
24V,DC
|
||
|
Transmissions
|
isuzu mld 6 speed transmission,manual
|
||
|
Steering device
|
Power assisted steering
|
||
|

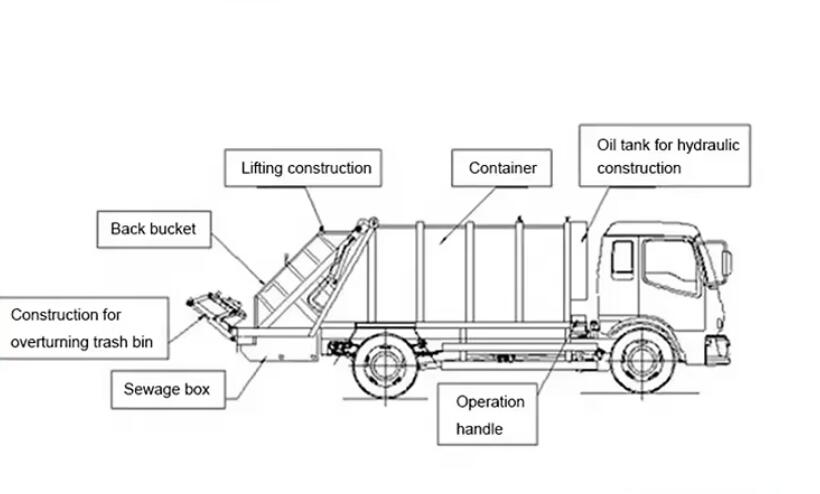

Refuse compactor structure parameters
|
|||
|
Equipment
|
|||
|
Loading capacity
|
16m3
|
||
|
System of loading
|
Mechanized, rear loading
|
||
|

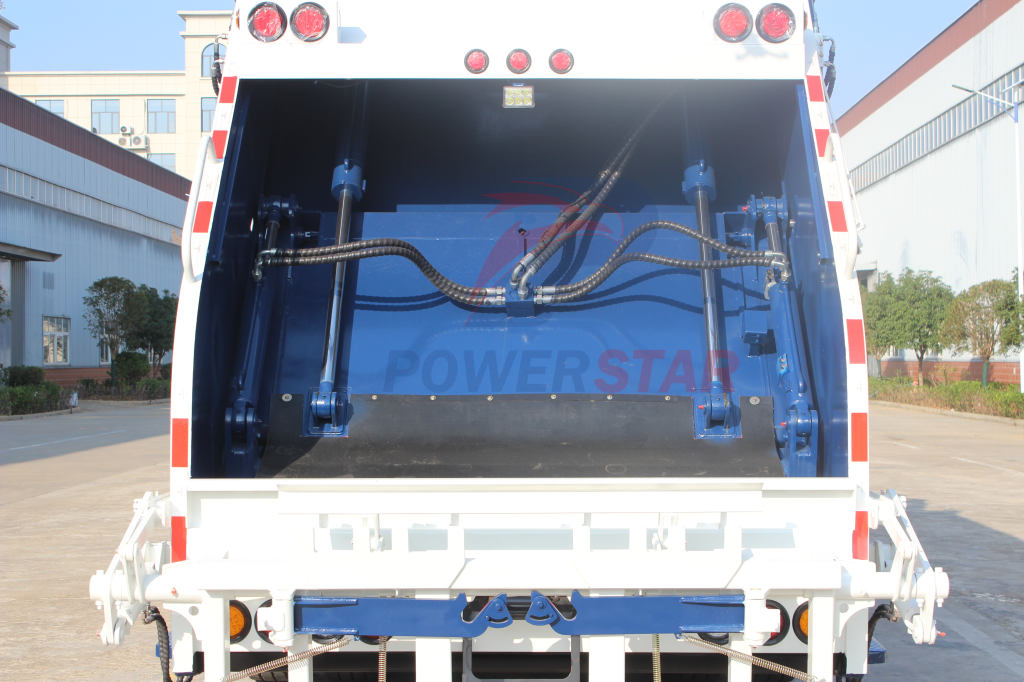

Hydraulic System
|
Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board.
|
||
|
Modes of the pressing
|
Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic
|
||
|
Body
|
|||
|
Version
|
All-metal
|
||
|
Sidewalls
|
Sheet carbon steel (thickness: 4 mm)
|
||
|
Bottom
|
Sheet carbon steel (thickness: 5 mm)
|
||
|
Cycle Time of Filling(S)
|
≤40
|
||
|

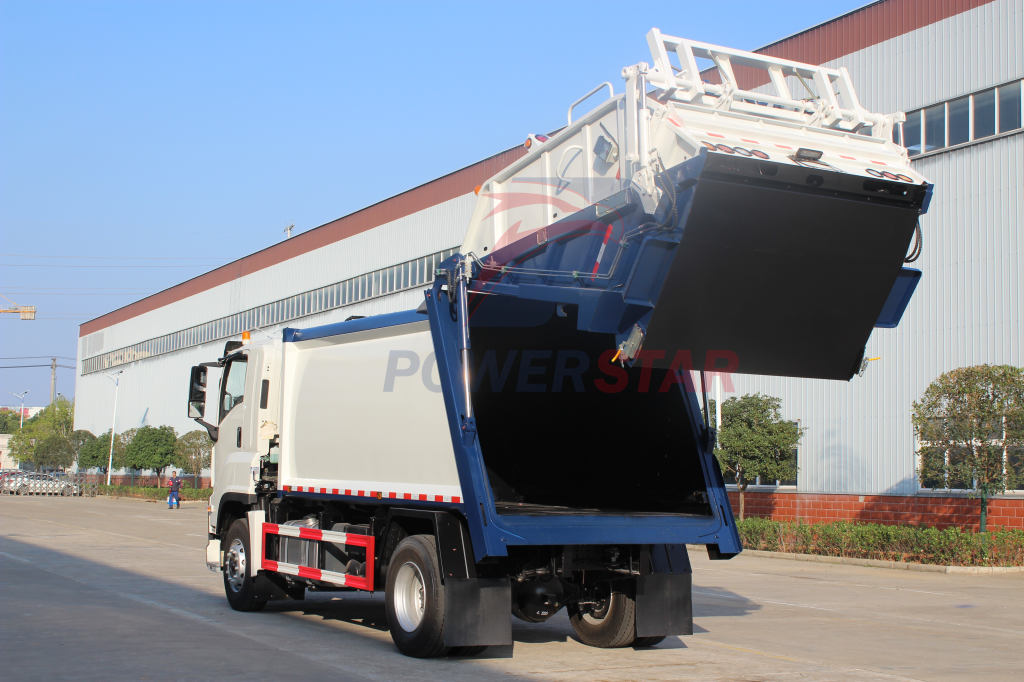

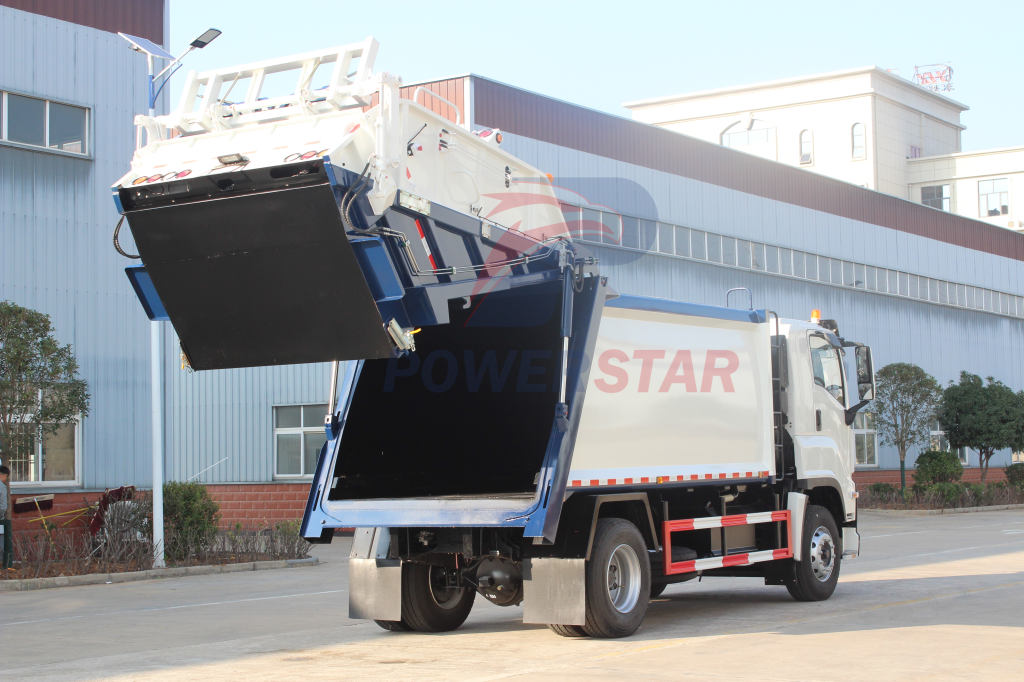

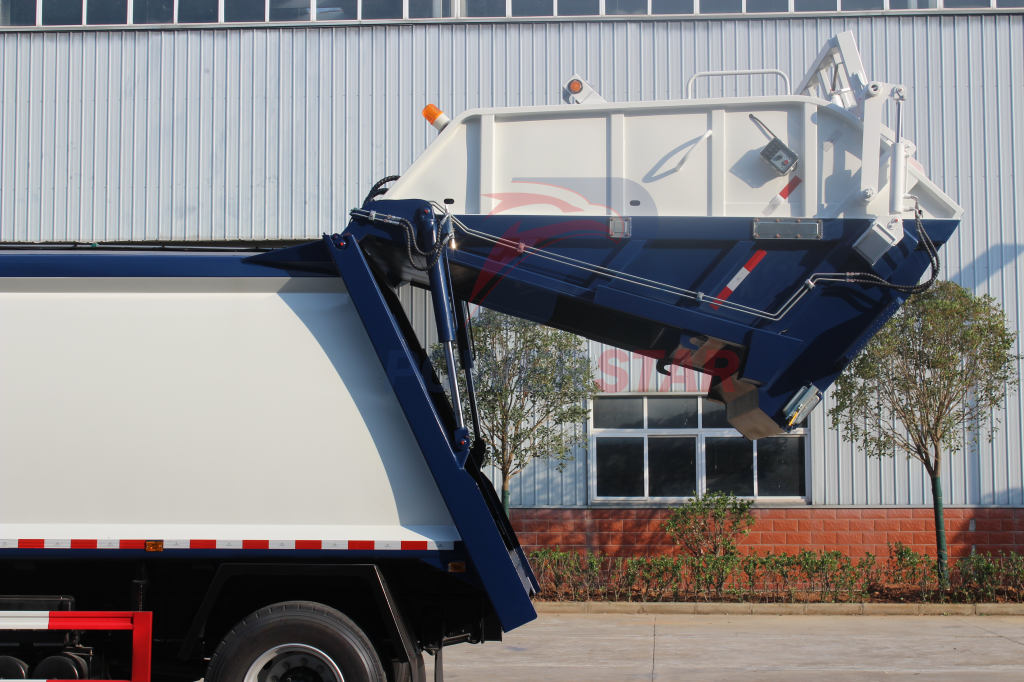

Lifting Time of Filler(S)
|
8 to 10s
|
||
|
Time of Discharging
|
≤60
|
||
Operators should also be trained on proper driving techniques and safety protocols to minimize the risk of accidents and extend the vehicle's lifespan. Additionally, having a dedicated maintenance team or partnering with a reputable service provider can ensure timely repairs and preventive maintenance.
The acquisition of Isuzu Giga Trash Compactor Trucks by the NESB marks a significant step forward in the evolution of waste management in Manila. With these trucks, the bureau is poised to enhance waste collection efficiency, reduce operational costs, and improve public health outcomes.
Moreover, as the Philippines continues to urbanize and the middle class expands, there will be an increasing demand for more sophisticated waste management solutions. The Isuzu Giga Trash Compactor Truck, with its advanced features and proven performance, is likely to become a staple in the Manila waste management landscape.
Furthermore, the government's focus on environmental sustainability and green initiatives will drive the adoption of eco-friendly waste management technologies. This presents an opportunity for the NESB to explore innovations such as electric or hybrid-powered waste collection vehicles in the future.
In conclusion, the procurement of Isuzu Giga Trash Compactor Trucks by the NESB is a strategic move that aligns with the country's waste management goals. With these trucks, the bureau is well-equipped to tackle the challenges of urban waste management, ensuring a cleaner, healthier, and more sustainable future for the Philippines.
