The Isuzu FVR GIGA 4X2 14cbm waste collection truck emerges as a pinnacle in the domain of efficient refuse management. With a robust design and cutting-edge features, this vehicle revolutionizes waste collection operations, exemplifying a fusion of power, sustainability, and precision.
Work capacity:
14cbmTruck model:
PT5180GSYEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4x2，LHDGear box:
FAST 8-speed,manualRemarks:
Isuzu new FVR GIGA chassisThe Isuzu new FVR waste collection trucks are a sophisticated and efficient vehicle designed for the rigorous demands of waste management. With its robust construction, advanced features, and impressive capabilities, this truck stands out as a top choice for municipalities, waste management companies, and other entities involved in waste collection and disposal.

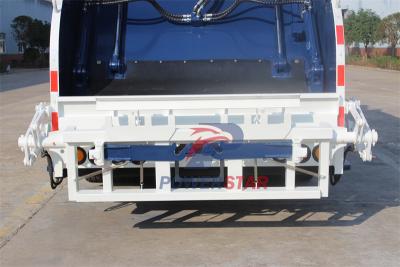

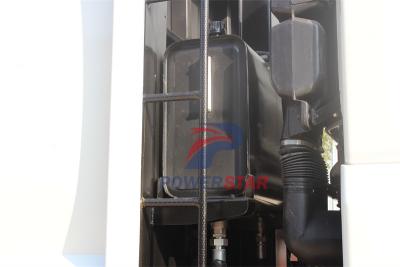

Isuzu GIGA truck with compactors are suitable for garbage removal tasks in urban streets, residential areas, commercial areas, industrial areas, etc. Its efficient and reliable garbage disposal capabilities help improve the level of urban environmental sanitation and improve the quality of life of residents.
Specifications of Isuzu new FVR GIGA 4x2 14cbm waste collection truck
|
Isuzu FVR GIGA 14cbm waste compactor truck |
||
|
Truck model |
PT5180GSY |
|
|
Cabin |
Isuzu new FVR cabin,driving type 4*2 LHD,one and half row,3 passengers, air conditioner,USB,AC |
|
|
Overall Size(mm) |
9070*2500*3300 mm |
|
|
Bin capacity(mm) |
14CBM |
|
|
Wheel base(mm) |
4500 |
|
|
GVW(kg) |
18000 |
|
|
Curb weight(kg) |
8600 |
|
|
Front axle loading capacity(kg) |
6300kg |
|
|
Rear axle loading capacity(kg) |
13000kg |
|
|
Engine |
Model |
6HK1-TCG61 |
|
Type |
4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Hose Power(HP) |
240HP/177KW |
|
|
Bore*stroke |
115*125mm |
|
|
Displacement |
7790ml |
|
|
Emission standard |
Euro 6 |
|
|
Max speed |
95km/h |
|
|
Tire |
295/80R22.5(6+1 tire) |
|
|
Transmission |
FAST 8-speed,manual |
|
|
Superstructure |
Body capacity |
14cbm |
|
Box material |
All-metal,side 4mm,bottom 5mm |
|
|
Design |
Whole unit with Leakage Proof Design |
|
|
Sewage tank |
200 liters |
|
|
Filling work cycling time |
≤40 s |
|
|
Lifting time of filler |
8-10s |
|
|
Discharging time |
≤60s |
|
|
Garbage Compact Ratio |
1/3 - 1/4 |
|
|
Discharge model |
Horizontal Ejection |
|
|
Control system |
The system is controlled from the PLC control box, which enables, start, stop, 1-cycle, continuous cycles, and rescue activities. Tailgate and ejector controls are in front of the body. All devices for loading control are mounted on the tailgate right side, and all are manual control for safety purposes. Compaction is controlled electrically via push-buttons, and manually in case |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual... |
||
|
Electrics |
Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|
|
Optional |
** Back alarm and Camera can be equipped. |
|
Truck detailed video
The Isuzu GIGA 4x2 14cbm garbage disposal truck is a vehicle tailor-made for the collection and transportation of waste. With a spacious 14 cubic meter cargo capacity, it is ideal for efficiently handling large volumes of waste. The truck is powered by a reliable and fuel-efficient engine that ensures smooth and reliable operation even in demanding conditions.
Design and Construction
The truck’s design combines functionality with aesthetics, presenting a sleek and modern look. The truck body is made of high-strength materials, ensuring durability and resistance to wear and tear. The trash compactor mechanism is also durable, with strong components that can withstand the rigors of daily use.
The Isuzu FVR GIGA 4x2 rear loader compactor truck’s cab is ergonomically designed to enhance driver comfort and productivity. It features a spacious interior with comfortable seats, easy-to-reach controls and a well-laid-out dashboard. The driver’s seat offers good lumbar support and adjustability, ensuring a comfortable driving position for long days on the road.
The truck’s imposing presence, with its aerodynamic silhouette and sturdy frame highlighting its majesty, embodies reliability and durability. Built to navigate a bustling urban environment, the FVR GIGA strikes a harmonious balance between functionality and aesthetics. Its smooth lines and streamlined shape exude a sense of purposeful sophistication, making it a symbol of modernity and efficiency.

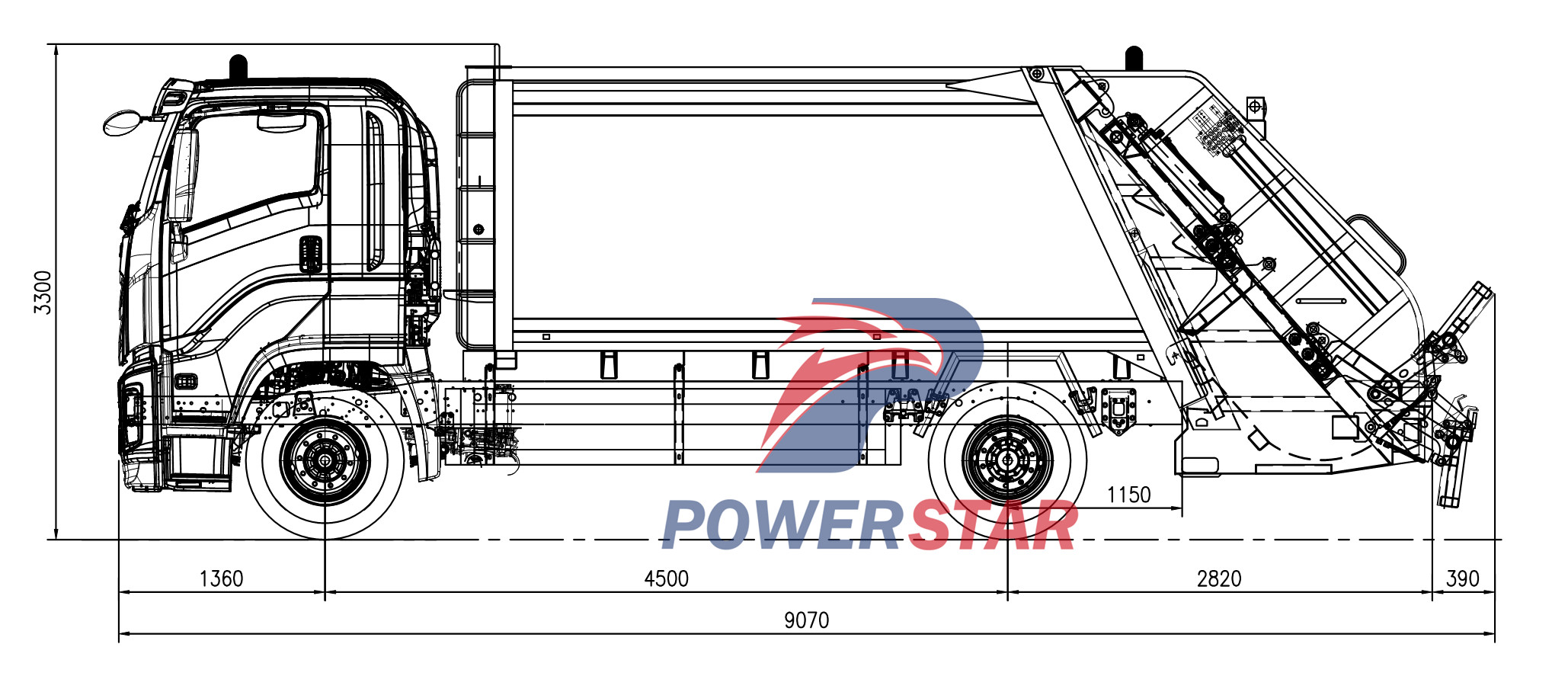

Technical drawing of Isuzu new FVR 14cbm waste collection truck
Engine and Performance
At the heart of the Isuzu FVR trash collector truck is the powerful and reliable 6HK1-TCG61 engine. The engine provides ample 850 torque and 240 horsepower to handle the heavy loads associated with trash collection. It is also renowned for its fuel efficiency, which helps reduce operating costs and environmental impact.
The transmission is smooth and responsive, allowing the driver to easily change gears. The truck’s brakes are also reliable, with good stopping power, ensuring safety during operation.
The FVR GIGA with its powerful engine provides excellent performance and optimized fuel efficiency, ensuring smooth operation even on challenging terrains. The advanced suspension system enhances stability and maneuverability, providing a comfortable ride for operators traversing various trash collection routes.
The 14 cubic meter trash compactor proves the truck’s versatility and capacity. Designed to maximize trash collection efficiency, the compactor integrates seamlessly with the chassis, optimizing loading operations and minimizing turnaround time. Its well-designed mechanism ensures thorough compaction, allowing the truck to accommodate large amounts of trash while maintaining operational efficiency.
Truck photos

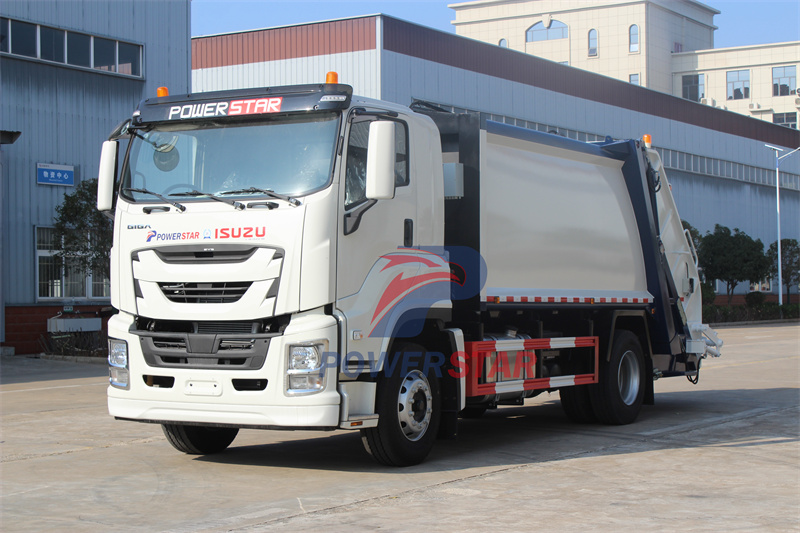

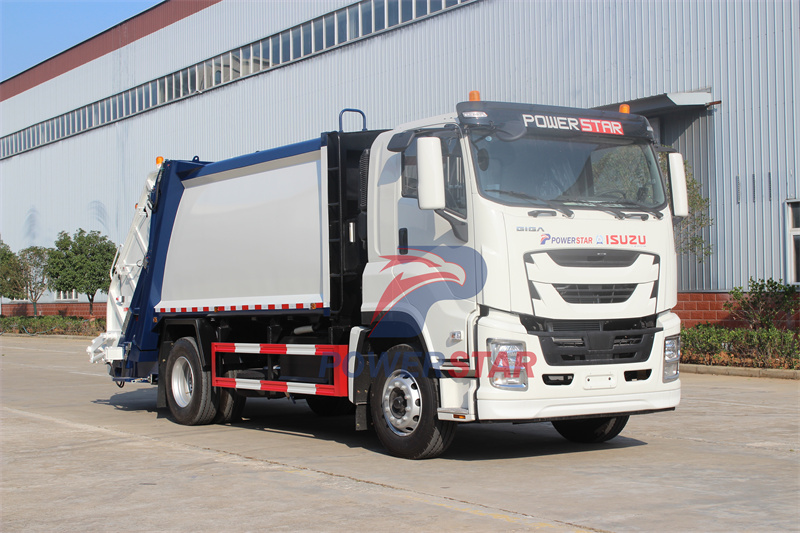

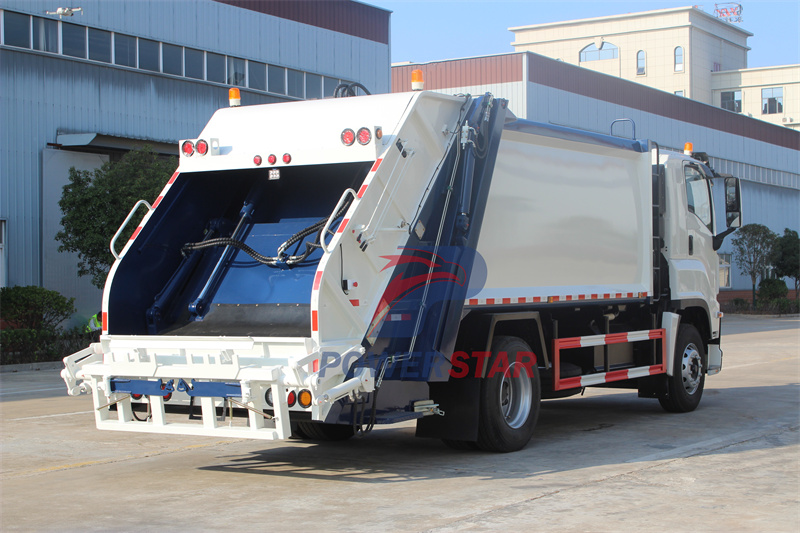

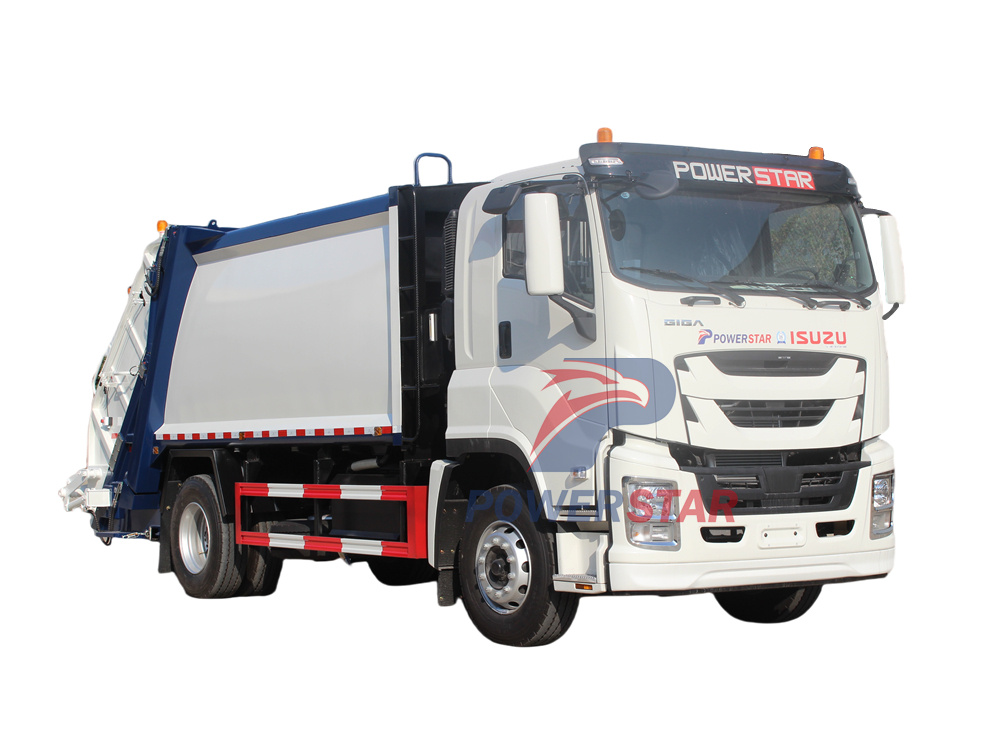

Isuzu FVR GIGA 4X2 14cbm waste collection truck

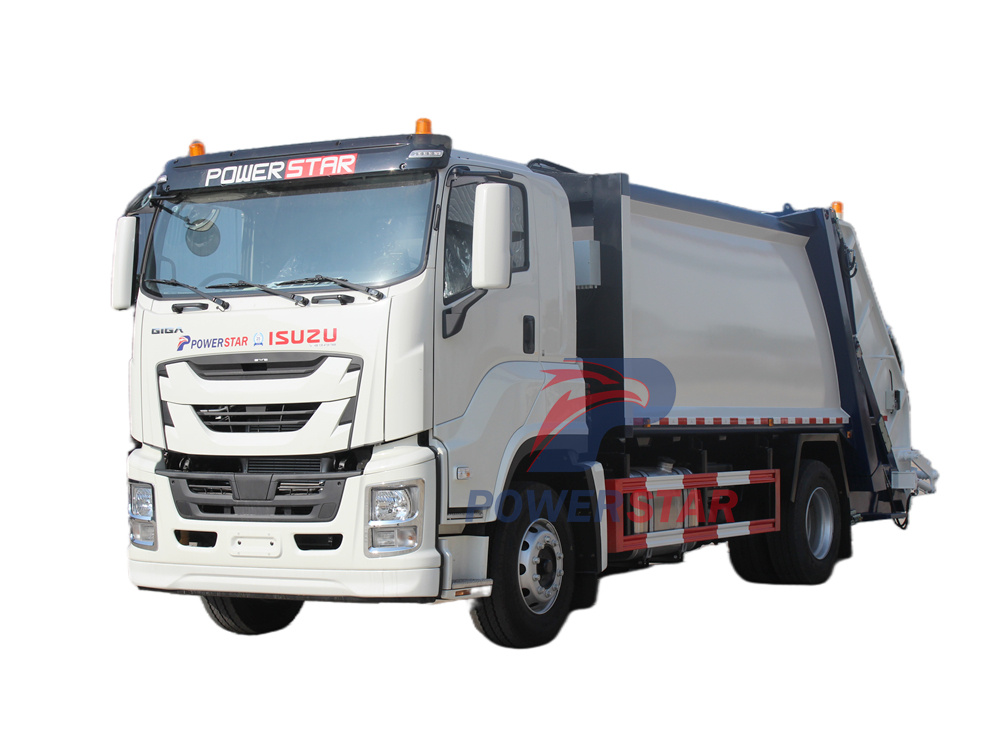

Isuzu New FVR waste collection trucks

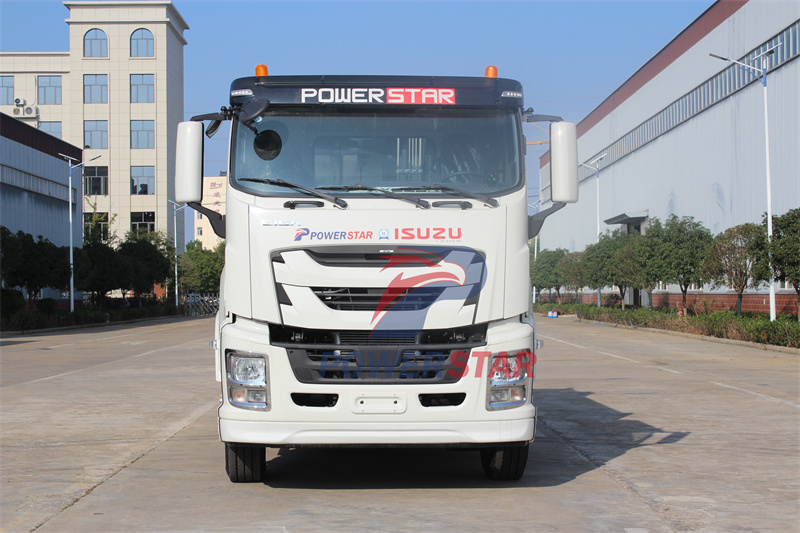

Isuzu GIGA 4x2 14cbm garbage disposal truck
Isuzu FVR GIGA 4x2 rear loader compactor truck
Waste Compression System
The compaction system of this model uses advanced technology, featuring high efficiency and energy saving. The compression mechanism is well designed and can quickly compress the garbage into compact blocks, effectively improving the garbage loading capacity and transportation efficiency. At the same time, the noise and vibration during the compression process are effectively controlled, providing a more comfortable working environment for the driver.
Loading capacity
The Isuzu GIGA refuse compression truck has a loading capacity of 14 cubic meters, which can meet the large demand for urban garbage collection and treatment. Its spacious loading space makes garbage collection more efficient, reduces the number of multiple round trips, and reduces operating costs.
The interior of the garbage bin is made of wear-resistant and corrosion-resistant materials to ensure reliability and durability under long-term use.
The garbage bin is easy to clean and maintain, ensuring that the truck remains in good working condition. The system also has a safety lock to prevent unauthorized access while the truck is running.
Applications
This Isuzu FVR GIGA 4X2 14cbm garbage collection truck demonstrates its excellent value and versatility in multiple application scenarios. Its design and performance make it an indispensable garbage disposal tool in urban and industrial areas.
● Urban garbage collection and treatment
As the main tool for urban garbage collection and treatment, the FVR Giga 4×2 14CBM garbage compression truck can quickly compress garbage into compact blocks with its efficient compression system and spacious loading space, improving garbage loading capacity and transportation efficiency. This not only reduces the number of multiple round trips of garbage trucks and reduces operating costs, but also reduces the pressure of urban garbage disposal and improves the cleanliness and sanitation level of the city.
● Industrial Park Garbage Disposal
Industrial parks usually generate a large amount of industrial waste, and the treatment of these wastes is crucial to the clean environment and safe production of the park. The efficient compression capacity and durability of the FVR Giga 4×2 14CBM garbage compression truck make it an ideal choice for industrial park garbage disposal. It can quickly and effectively collect and dispose of industrial waste, ensuring the clean environment and safe production of the park.
● Rural and remote areas garbage collection
In some rural and remote areas, garbage collection and disposal are difficult due to poor road conditions. The FVR Giga 4×2 14CBM garbage compactor can play an important role in these areas with its excellent off-road performance and durability. It can easily handle complex road conditions, ensure the smooth progress of garbage collection, and provide a cleaner and more hygienic living environment for residents in rural and remote areas.
● Emergency response
This truck can also play an important role in natural disasters or other emergency situations. Its stability and capacity make it an ideal choice for handling post-disaster garbage and waste, providing important cleanup and service support to disaster areas.
Truck details

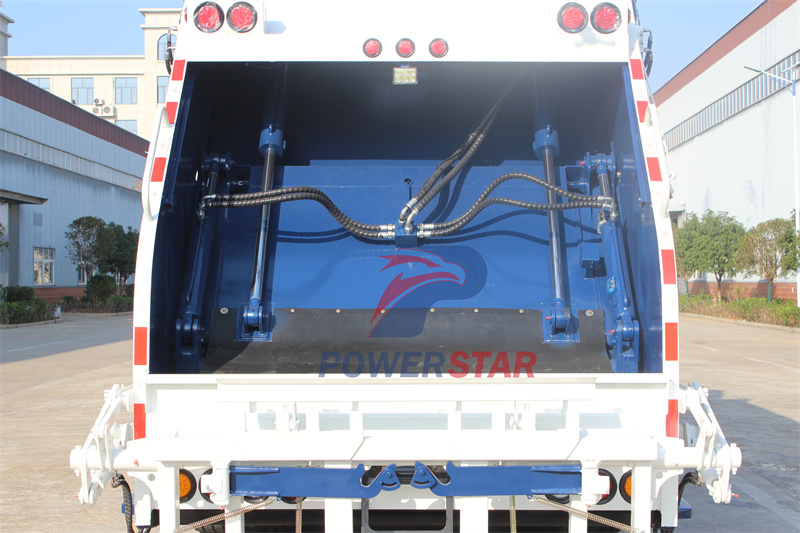

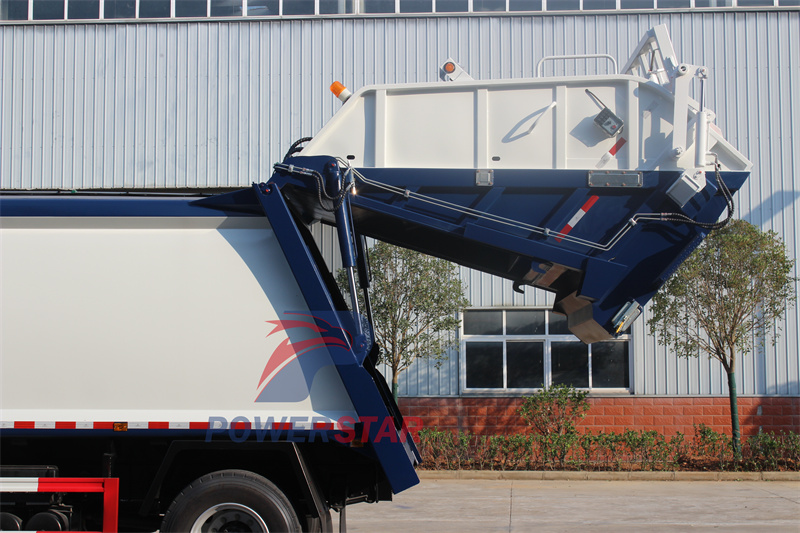

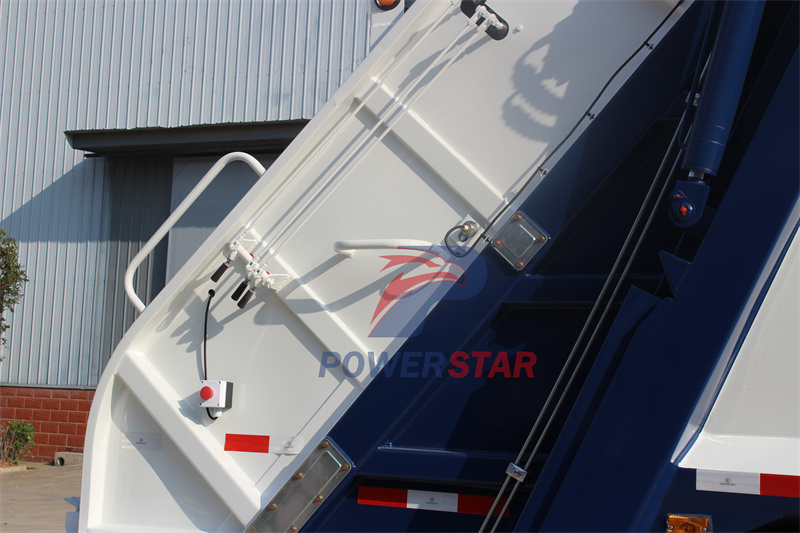

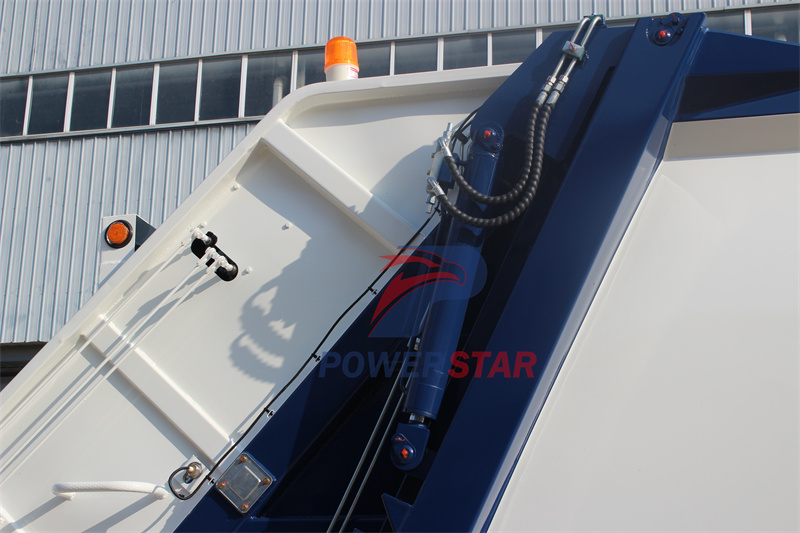

Tailgate assembly

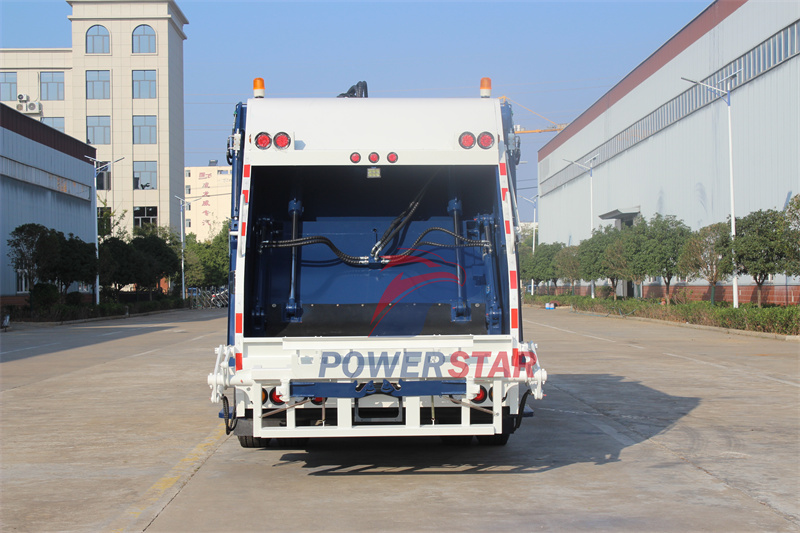

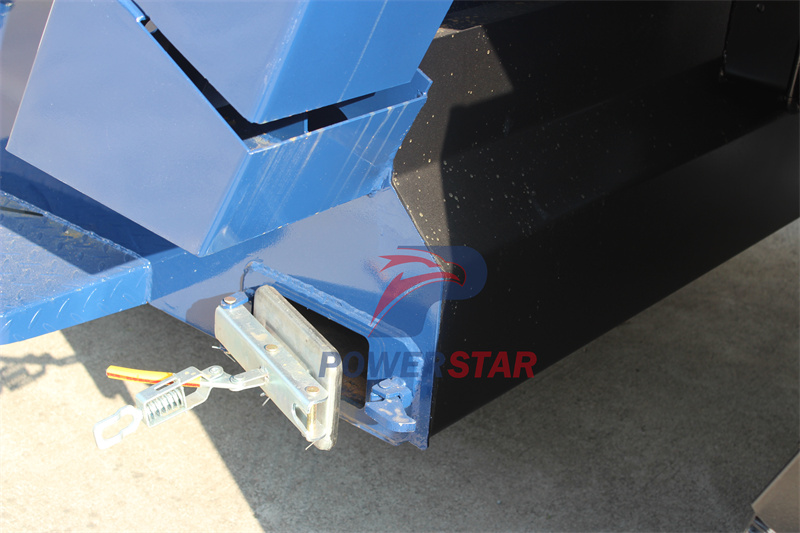

Slide plate assembly,Scraper assembly,Flip mechanism
Manual rear lever,Emergency stop button

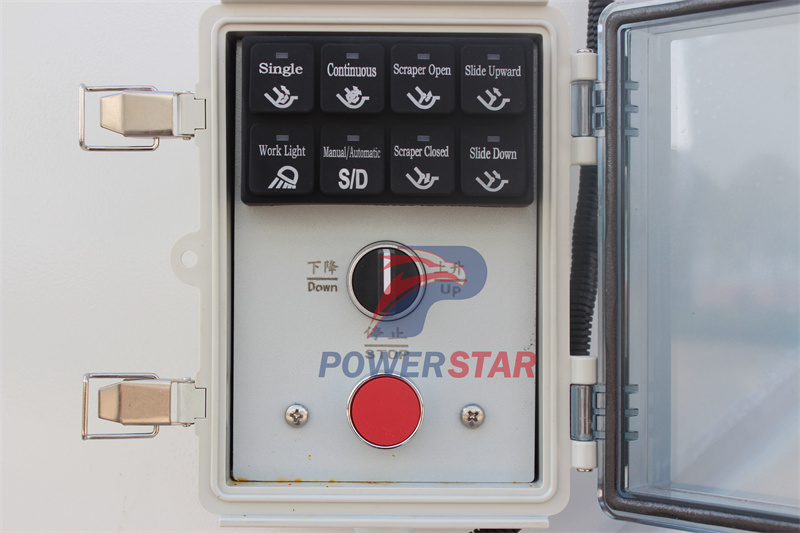

Electric Control Box (In tailgate)

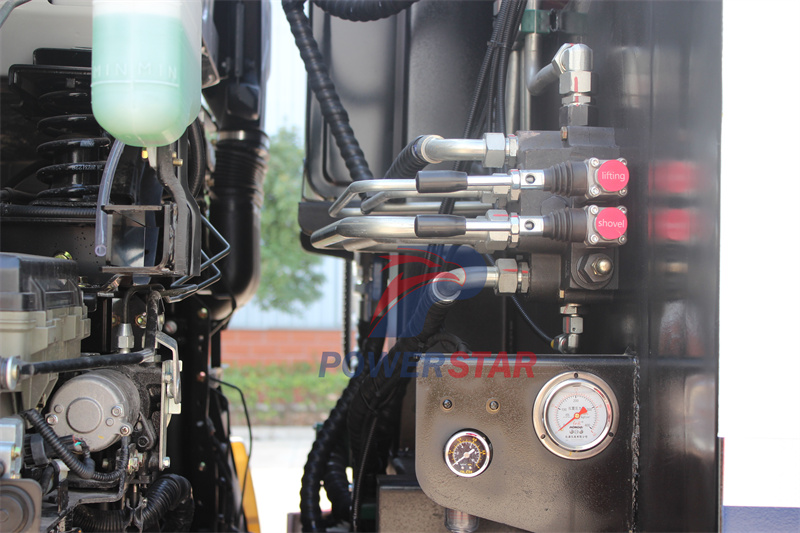

Hydraulic Control Joysticks (At drive side)

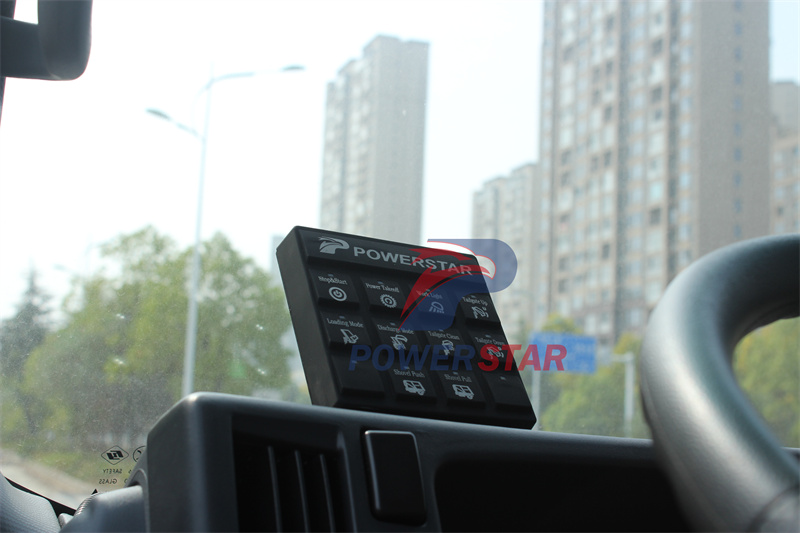

Electric Control Box(In cabin)
