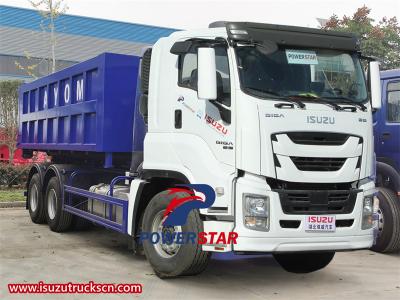

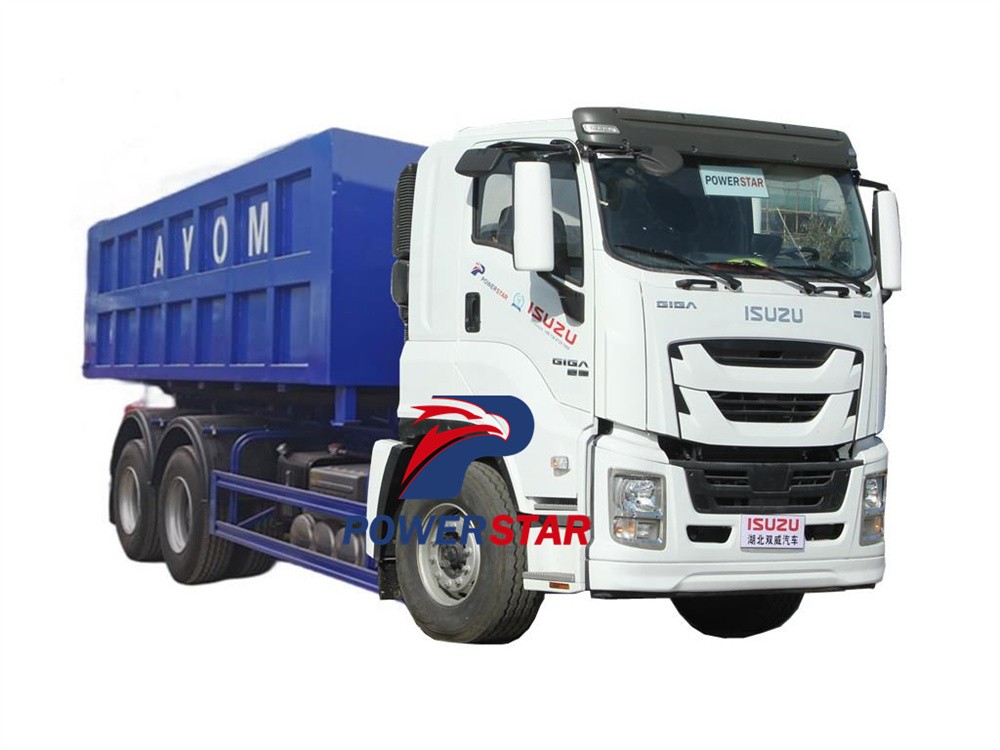

Isuzu VC61 GIGA hook loader box truck

Isuzu VC61 GIGA hook loader box truck also called Isuzu GIGA hook-arm garbage truck,Isuzu GIGA 6x4 hooklift truck with container,Isuzu GIGA 10 wheeler hook loader,Isuzu VC61 hook lifting refuse truck,Isuzu GIGA roll-off waste truck,is a commonly used unloading vehicle. It has two functions: self-unloading of goods and automatic loading and unloading of boxes (i.e. whole loading and unloading). Moreover, these two functions are completed by a vehicle-mounted working device, which has high working efficiency. The operation and conversion of these two functions are realized by the hydraulic system. The garbage box of the hook truck can be lifted up and lowered by itself, and the garbage can be dumped by itself.

The Isuzu VC61 GIGA hook loader box truck is mainly used for various sanitation, municipal and large factories and mines to carry various garbage, and can also transport bulk building materials such as ash, sand, stone, soil, etc., and can also transport ore or coal in mines or coal mines.

Isuzu GIGA hook-arm garbage truck is characterized by its convenient loading and unloading, high equipment utilization rate, high efficiency and speed. It is technologically advanced in the domestic sanitation field, has strong vitality and broad development prospects, and is widely used in the transportation of garbage and coal ash in garbage transfer stations, garbage treatment plants, residential garbage collection points, power plants and other places. This product uses the domestically renowned Class II chassis and is equipped with a variety of hydraulic lifting devices to provide you with the most perfect and ideal garbage transfer tool.

The Isuzu 6x4 GIGA hook loader is a special-purpose garbage disposal vehicle. This vehicle is usually equipped with a large garbage bin grab arm that can quickly and efficiently load garbage into the vehicle's garbage compartment. "6x4" means that the vehicle has six wheels, four of which are used for power transmission. This configuration provides good traction and handling capabilities, suitable for handling large amounts of garbage.

This Isuzu 6x4 GIGA hook lift garbage truck is usually used in urban garbage disposal systems, construction sites or other large garbage-generating sites. The vehicle's hook arm can be quickly extended and rotated, suitable for garbage containers of different types and sizes, improving the convenience and efficiency of operation. This hook-arm garbage truck helps reduce manual labor and speed up garbage removal through an efficient loading and dumping system.

The Isuzu 6x4 GIGA hooklifting refuse truck, plays a key role in urban cleaning and garbage disposal, helping to maintain a clean and sanitary environment and improve garbage disposal efficiency. Its powerful and easy-to-operate features make it an ideal choice for handling large volumes of garbage, providing a reliable garbage disposal solution for various occasions.It is a rare and effective assistant to the urban sanitation department.

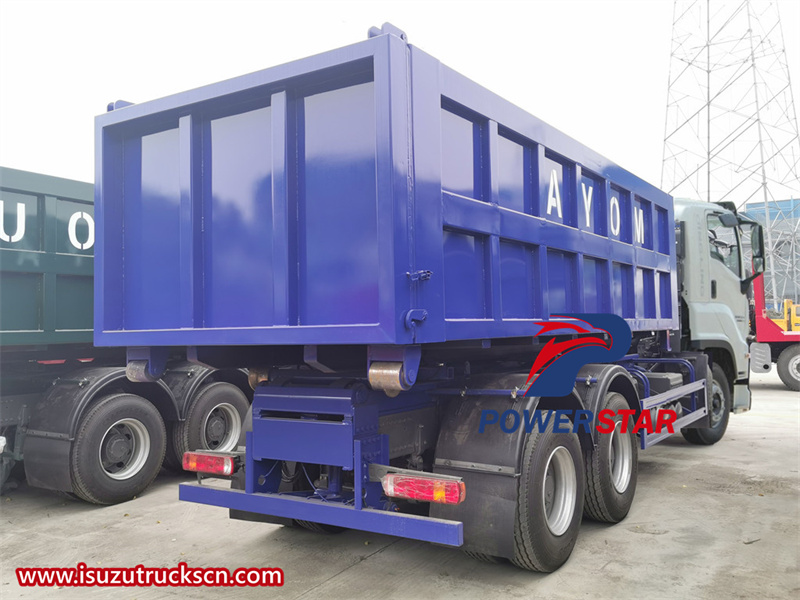

Isuzu GIGA 22 cbm hook lift garbage truck

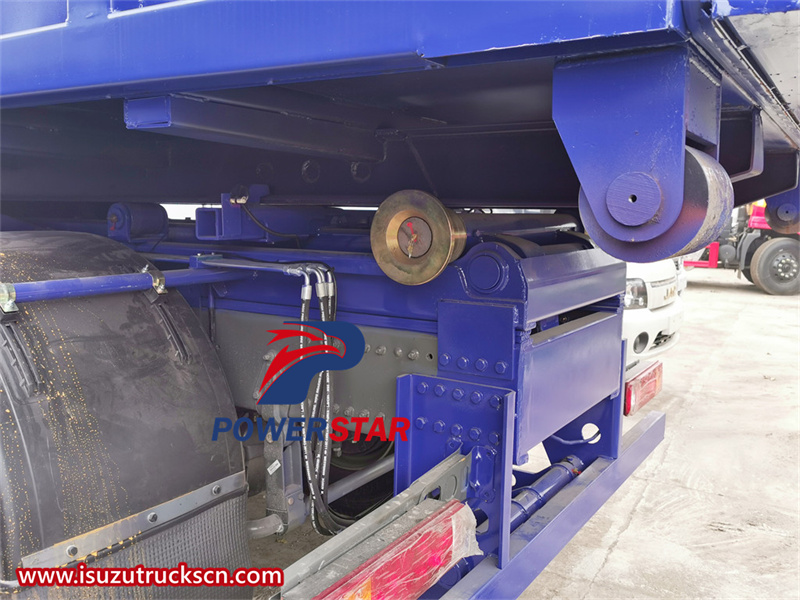

Working principle: The locking frame mechanism of the arm truck is set on the flip frame, and the locking function is realized by the action of the hydraulic cylinder. When the arm truck box is placed on the attached frame, the locking frame makes the box of the whole vehicle firm and stable during driving, and at the same time, the box is connected with the movable arm and the flip frame during the self-unloading process to form a self-unloading angle; when the arm truck box is placed or pulled up, the retraction action of the locking frame makes the flip frame connected with the attached frame, which is convenient for the movable arm to place or pull the box; the action of this mechanism makes the whole vehicle work accurately and reliably.

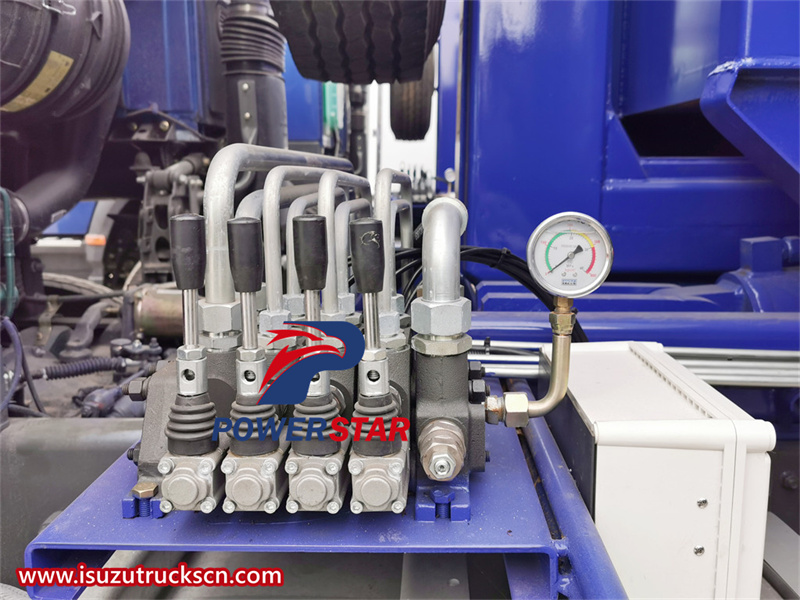

The action of the hydraulic cylinder of the arm truck is controlled by a manual hydraulic multi-way valve, and the hydraulic multi-way valve controls the action of the cylinder. The operation is simple and reliable, and it is easy to maintain.

Operation steps diagram of Isuzu 6X4 hook lifting refuse truck

Hydraulic system: The hydraulic system of the arm truck consists of a fuel tank and a filtration system, an oil pump, a multi-way reversing valve, a one-way throttle valve, a cylinder, an oil pipe, etc. The power of the system comes from the engine, and the power is separated through the power take-off, and the power take-off drives the gear pump to work.

The gear pump of the arm truck sucks the hydraulic oil from the hydraulic oil tank through the oil suction filter, and the multi-way valve (located outside the cab and in the front of the car box) supplies oil. When the multi-way valve of the arm truck is working, the arm cylinder and the locking cylinder are activated. When the hydraulic cylinder is not working, the hydraulic oil returns directly to the tank through the multi-way valve.
