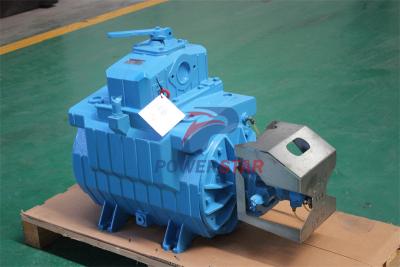

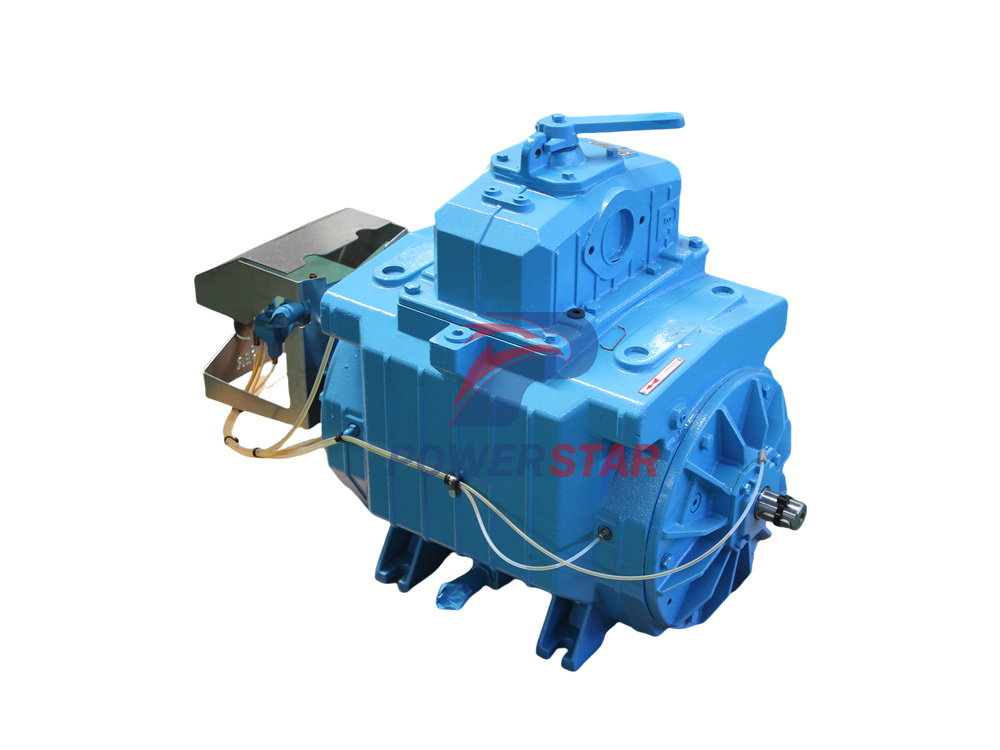

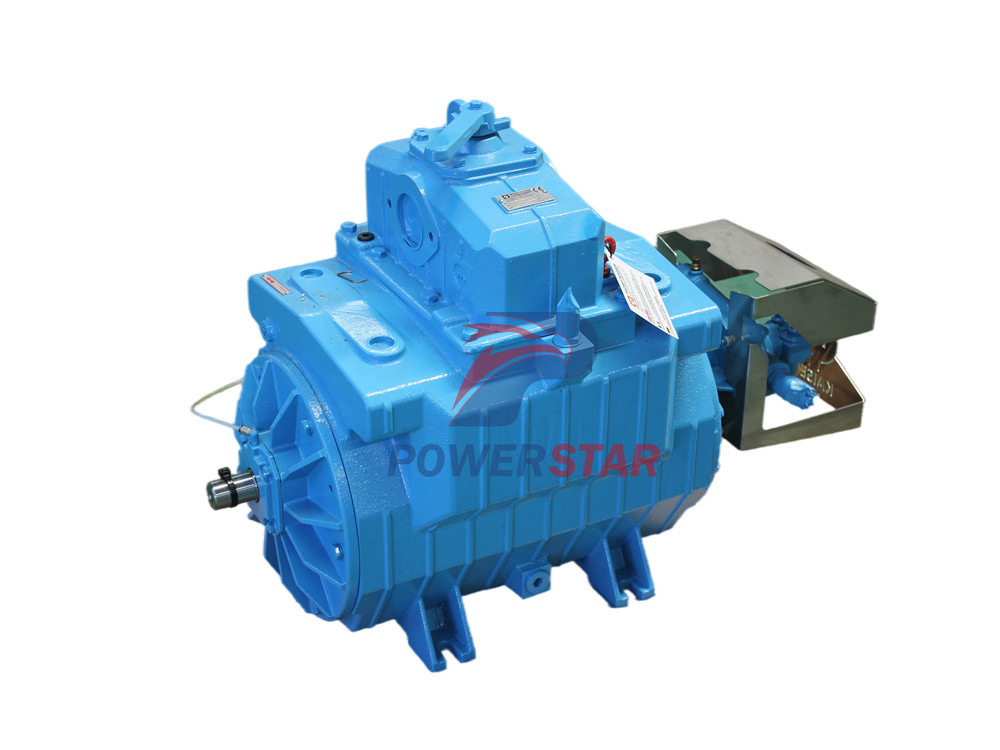

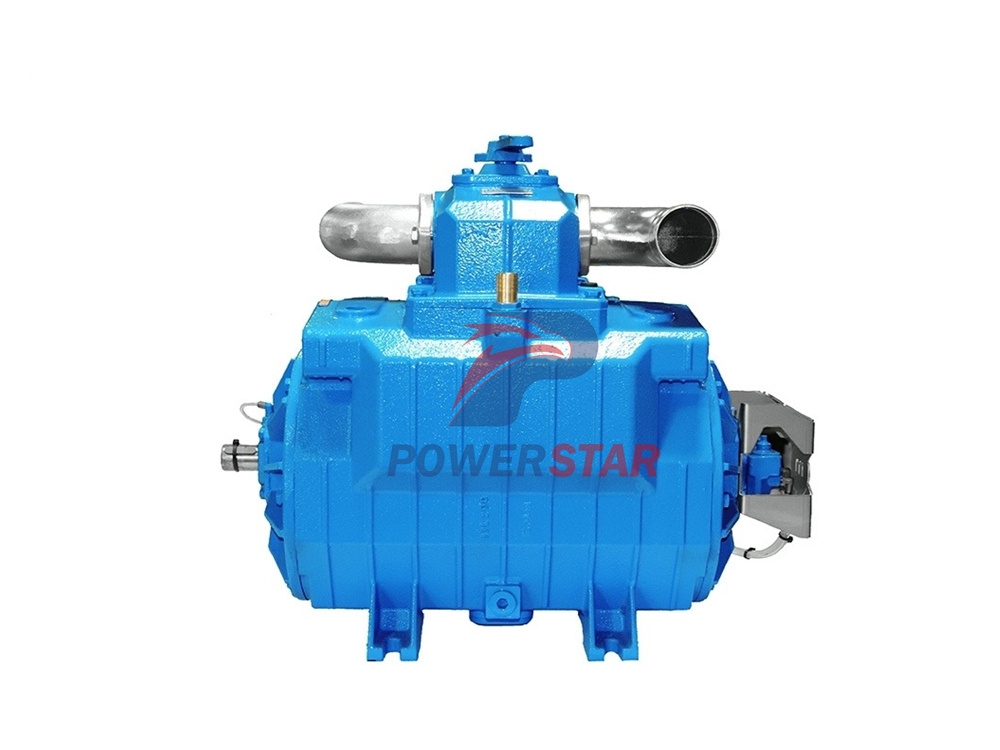

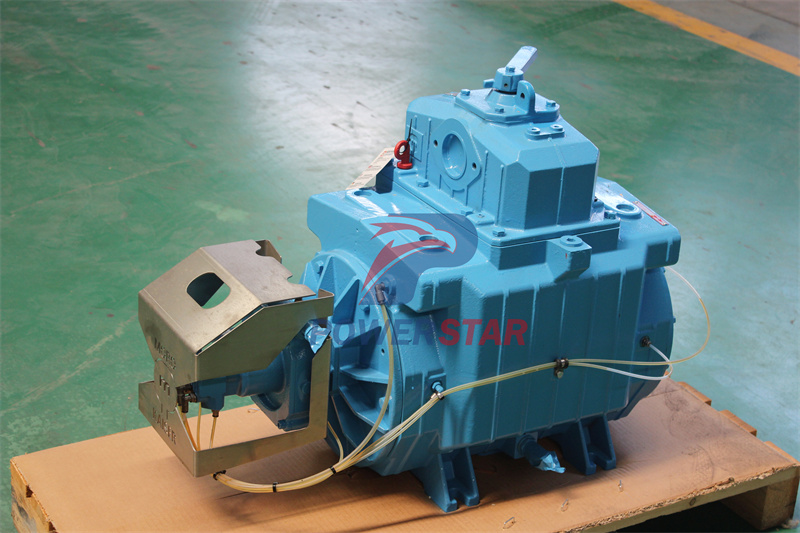

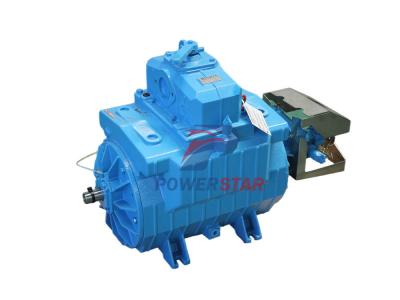

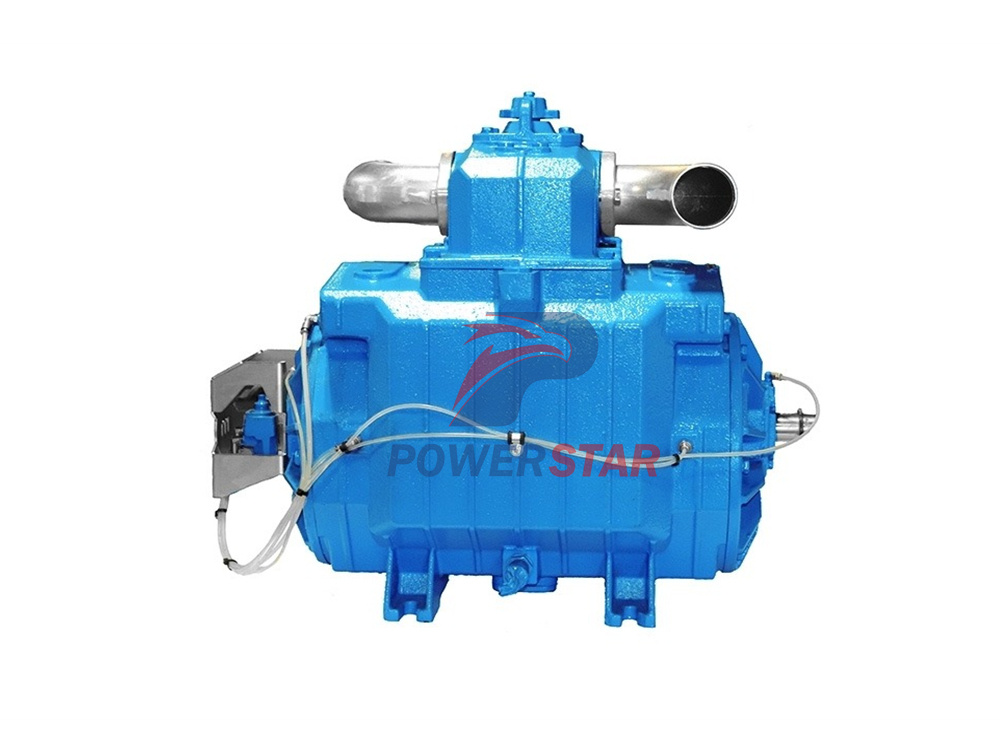

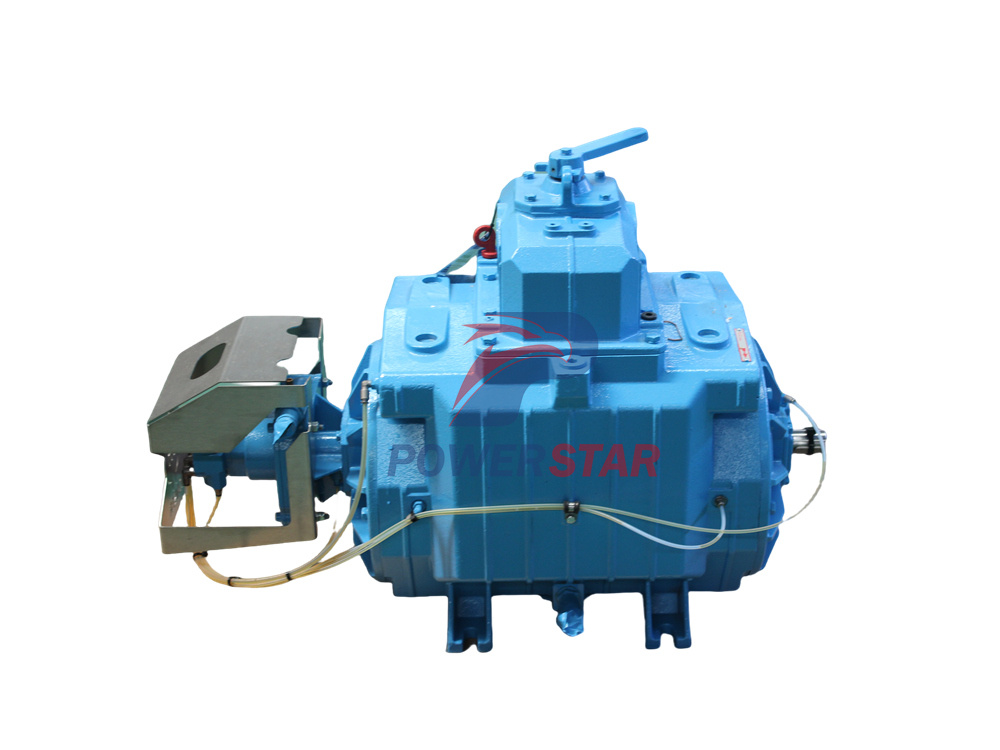

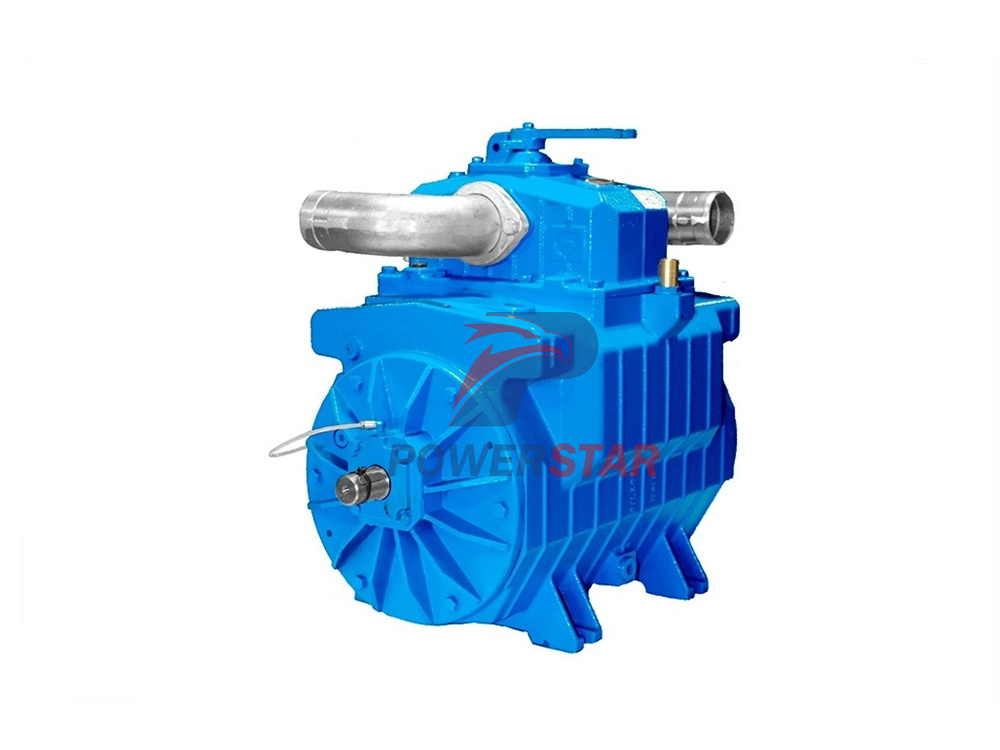

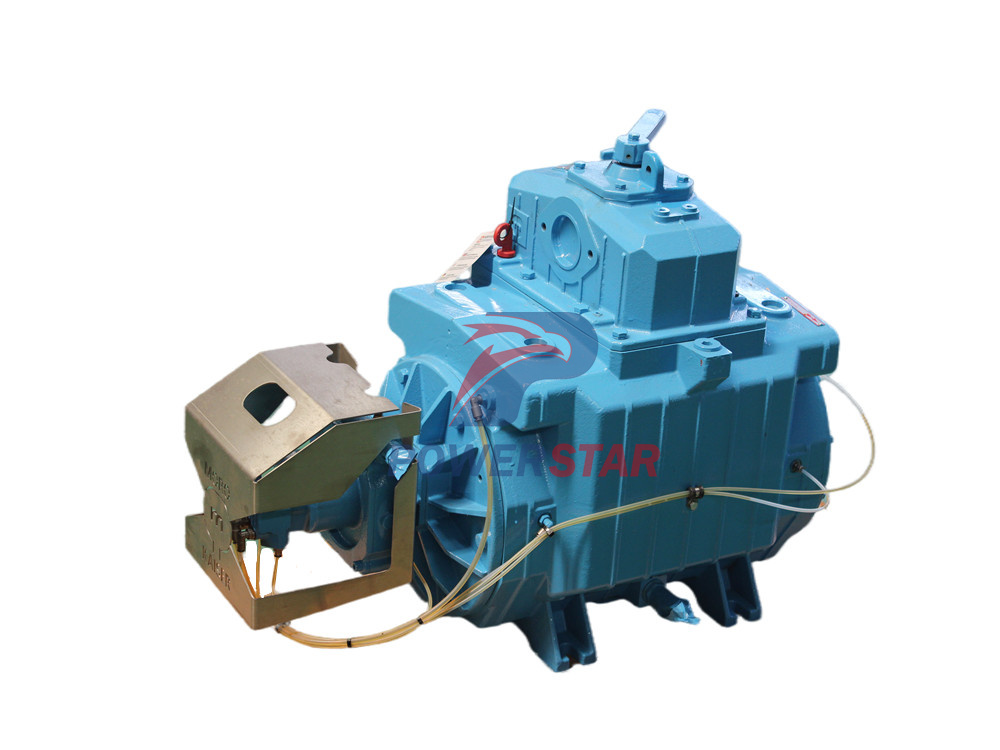

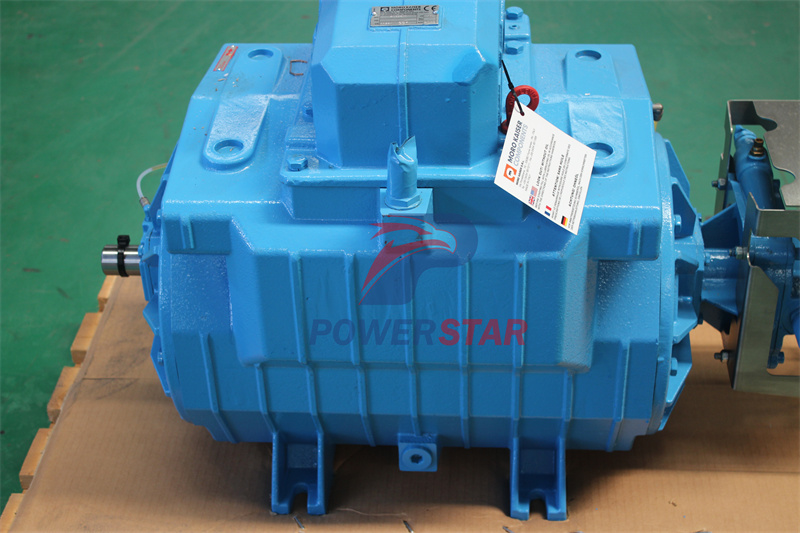

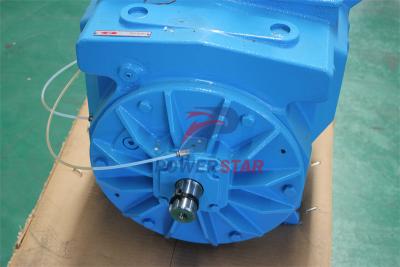

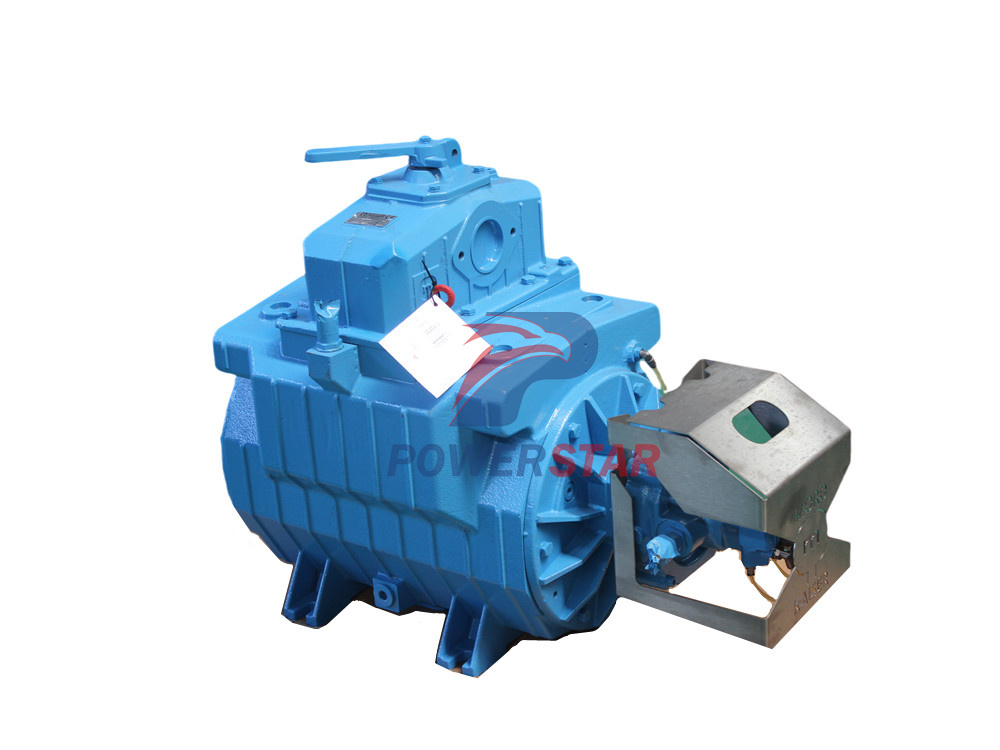

Moro water cooled PM110W vacuum pumps are designed and built for low maintenance, long life and trouble-free service for tough industrial applications. Liquid cooled vacuum pumps are used in a variety of industries and field applications to pump any noncombustible liquid.The application of MORO PM110W vacuum pump in vacuum sewage suction truck greatly improves the sewage suction efficiency.
Work capacity:
16400Lt/minTruck model:
MORO PM110WRemarks:
Moro water cooling vacuum pump PM110WThe Moro Water vacuum pump PM110W for Sewage Vacuum truck embody the most elevated standards in technology of liquid cooled suction pumps. They are designed to be used in industrial applications that have varying capability requirements. Moro offers two separate WATER Series pumps to meet these differing application needs. These pumps are crafted with a cast iron body to guarantee maximum reliability. These pumps also come with a cooling jacket to maximize heat dissipation.
The WATER Series is designed with air intake and discharge ports which have been fine-tuned to reduce both noise and heat production. The cooling jacket greatly increases heat dissipation and improves the time of pump usage under deep vacuum. These Moro Water vacuum pump PM110W for Sewage Vacuum truck are available with an optional water -recirculating pump. These pumps are equipped with a special inspection port in the pump body allowing a visual check of the equipment’s wear.
The vanes of this pump are made of a high-heat-resistant Kevlar material. The pump comes with the non-return and four-way valves integrated into the pump. The hose connection elbows are flanged and can be moved in any desired direction in accordance with the requirements of the vacuum pump usage.
Moro PM110W liquid cooled vacuum pump produces a flow of 630 CFM.
|
Specification |
Unit |
Value |
|
Free Air Flow |
lt/min |
16'400 |
|
Free air capacity |
cfm |
630 |
|
Air capacity at 15" Hg/50% vacuum |
cfm |
554 |
|
Max. Vacuum |
Hg (in.) |
28 |
|
Continuous Vacuum |
Hg(in.) |
24 |
|
Power required at 15" of vacuum |
hp |
20 |
|
Max. Pressure |
psig |
29 |
|
Power required at max. pressure |
hp |
54 |
|
Rotation speed |
rpm |
1100 |
|
Oil tank capacity |
quart(us) |
4 |
|
Oil consumption |
gal (US)/Hr |
0.053 |
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
dB |
80 |
|
Suggested Tank Size |
Gallons |
2000-6000 |
|
Hose |
in |
3/4 |
|
Weight |
lbs |
645 |
FEATURES
● High performance, Kevlar vanes with visual inspection ports in casing
● High quality Viton oil seals – longer life than traditional oil seals
● Low rotating speed leads to longer pump life
● Oiled bearings
● Direct feed, sealed oiling system
● Remote oil tank
● Quiet operation
Recommended R.P.M.
|
R.P.M. |
Free |
Performance |
Continuous |
Suggested |
|
1400 |
630 cfm |
554 cfm |
24" Hg |
2000-6000 Gallons |
|
1250 |
562 cfm |
486 cfm |
||
|
*1100 |
496 cfm |
388 cfm |
Key Benefits
Water Cooling System:
The PM110W features a water cooling system that effectively dissipates the heat generated during operation.
This ensures that the pump can run continuously for long periods of time without overheating, maintaining optimal performance and extending the life of the pump.
High Vacuum:
The pump’s ability to achieve high vacuum levels allows for more precise control of industrial processes, resulting in improved product quality and yield, which is critical for many industrial processes that require a low-pressure environment.
This high vacuum capability makes the PM110W suitable for applications such as vacuum distillation, drying, and degassing.
Durable Construction:
The pump is constructed from high-quality materials such as cast steel to ensure ruggedness and durability.
Its design incorporates features that minimize wear, such as precision-machined parts and high-quality bearings. This extends the life of the pump and reduces maintenance requirements.
Electric Drive:
The PM110W is driven by an electric motor, which provides a reliable and stable power source that is less prone to failure than mechanical drives.
The electric drive system is designed to facilitate maintenance and troubleshooting, reducing downtime and operating costs.
Compact Design:
The pump’s compact design makes it easy to install and integrate into existing systems.
Its small footprint and lightweight construction also make it easy to transport and operate in confined spaces.
Versatile:
The PM110W can be used in a variety of applications, including vacuum suction vehicles and equipment, chemical processing, pharmaceutical manufacturing, food processing, and semiconductor production.
