The Isuzu 700P double cabin truck chassis is a versatile, reliable and durable commercial vehicle chassis. It is designed with ride comfort, carrying capacity, performance and stability in mind, and is suitable for a wide range of commercial and transportation needs. Whether it is cargo transportation, passenger transportation or special vehicles, this chassis performs well and is a reliable and trustworthy choice that can provide strong support for users' commercial operations.
Work capacity:
5～8 tonsTruck model:
PT5100GWZEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x2Gear box:
MLD-6Remarks:
Customized to be Isuzu ELF NPR 700P 4WD double cabin truck chassis
The NPR Isuzu double cabin truck chassis also called Isuzu 700P double row cab chassis,Isuzu ELF double cabin light truck chassis,Isuzu 700P double cabin cargo truck chassis,refers to a model that features an NPR chassis from Isuzu with a double cabin configuration. This setup typically includes a cabin designed to accommodate both passengers and the driver comfortably. The double cabin layout allows for increased capacity for transporting personnel along with goods, making it suitable for various commercial and industrial applications.
The NPR Isuzu double cabin truck chassis is known for its durability, reliability, and performance, making it a popular choice for businesses requiring a versatile and robust truck platform. The double cabin design enhances the truck's utility, enabling it to serve multiple purposes effectively while maintaining a balance between passenger comfort and cargo-carrying capability.
|
Isuzu 700P double cabin truck chassis |
||
|
Chassis Dimensions and Parameters |
Chassis Brand |
Isuzu |
|
Overall Dimension(L x W x H) |
7355×2170×2410mm |
|
|
Wheelbase: |
4175mm |
|
|
Front/ Rear Wheel Distance: |
1680/1650mm |
|
|
Front/Rear Suspension |
1110/2070mm |
|
|
Weights and Capacities |
Curb Weight: |
3380kg |
|
Payload: |
5250kg |
|
|
GVW: |
10000kg |
|
|
Axle Loads: |
4000/7000kg |
|
|
Engine |
Engine Model: |
4HK1-TCG61 |
|
Max output: |
139Kw |
|
|
Displacement: |
5193ml |
|
|
Horsepower: |
190HP |
|
|
Exhaust Gas Treatment Technology： |
DPF+SCR |
|
|
Transmission |
Transmission: |
MLD-6 |
|
Forward Gear: |
6 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake |
Hydraulic Brake |
|
|
Front Drum Back Drum |
||
|
Generator |
12V-60A |
|
|
Cab |
Number of Seats: |
2+3 |
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7(Including Spare Tire) |
|
|
Tire Model: |
235/75R17.5 |
|
|
Fuel Tank
|
Number: |
1 |
|
Capacity: |
75L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
5 |
Retro-reflective Marking |
|
|
6 |
Free Maintenance Battery |
|
|
7 |
Cab Tilting Mechanism |
|
The Isuzu 100P double-row cab chassis is a sturdy and versatile chassis design widely used in commercial transportation. A double-row cab layout is adopted to meet the needs of transporting people and goods at the same time. This chassis produced by PowerStar is known for its reliability, durability and flexibility, and is suitable for a variety of uses and work scenarios.
1. Chassis Features
The Isuzu 100P chassis is solid and reliable, with good stability, which can effectively ensure the integrity of the goods during transportation. The lightweight design makes the vehicle light and can tow large items, which improves transportation efficiency. In addition, the durability of the chassis has also been rigorously tested and can maintain stable performance under various complex road conditions.
Technical drawing of Isuzu 700P double cabin truck chassis
2. Excellent performance
The Isuzu ELF double cabin light truck chassis is equipped with a newly developed 5.193-liter 4HK1 National VI engine, which has been optimized in terms of intake and exhaust systems, combustion systems, etc., to improve environmental protection and economy. At the same time, the low noise and low fuel consumption characteristics of the engine also further reduce the cost of using the vehicle. In addition, the chassis suspension system has been carefully adjusted to provide good ride comfort and handling stability.
3. Design Concept
The design concept of the chassis focuses on versatility and comfort. The double-row seat design makes the transportation of passengers and goods more convenient, while providing a comfortable riding experience. Considering the diverse needs of users, this chassis can also be customized for specific purposes, such as converted into trucks, buses or other special models.
The Isuzu 700P double cabin cargo truck chassis has excellent performance. Its suspension system is well designed, which can effectively absorb bumps and provide a comfortable ride. The power performance is strong and stable, the handling is excellent, and it has good fuel economy, which enables the vehicle to show excellent performance and stability under different road conditions.

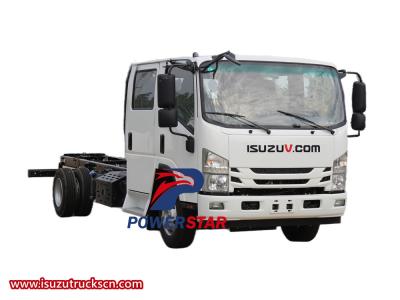

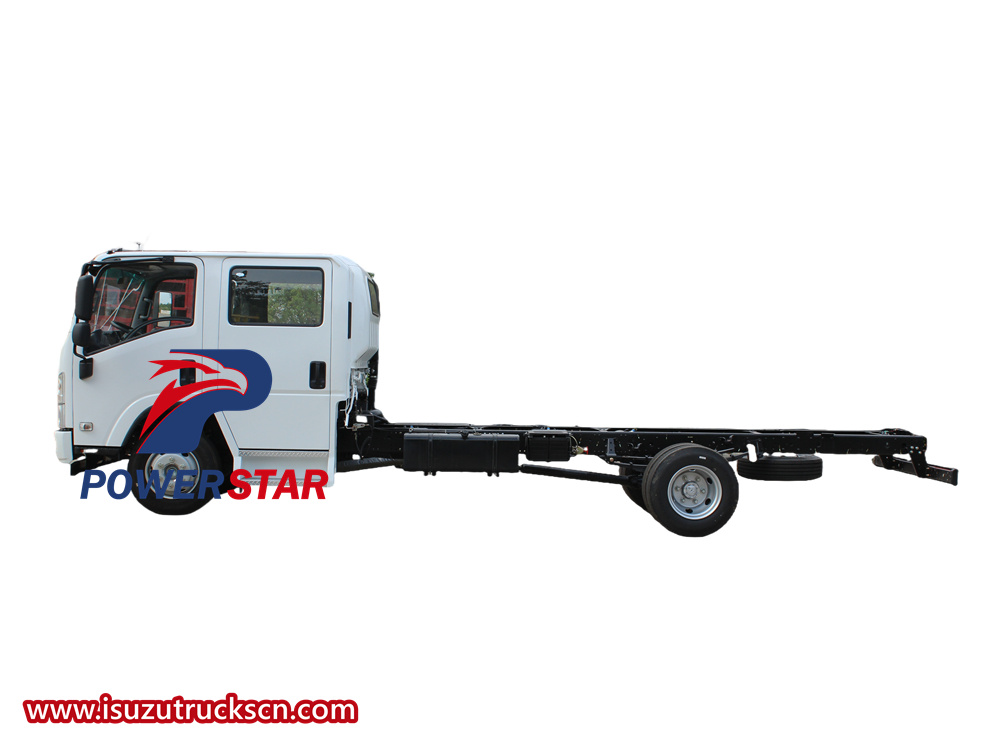

Isuzu ELF double cabin light truck chassis
4. Applicable vehicle types
The NPR Isuzu double cabin truck chassis is suitable for a variety of vehicle types, such as trucks, municipal engineering vehicles, municipal sanitation vehicles, emergency rescue vehicles, etc. From cargo transportation to passenger transportation, from special vehicles to emergency rescue vehicles, it can be converted into different types of special vehicles according to needs. Its flexible design and reliability make it an ideal choice for wide use in commercial and industrial fields, providing efficient transportation solutions for different industries.

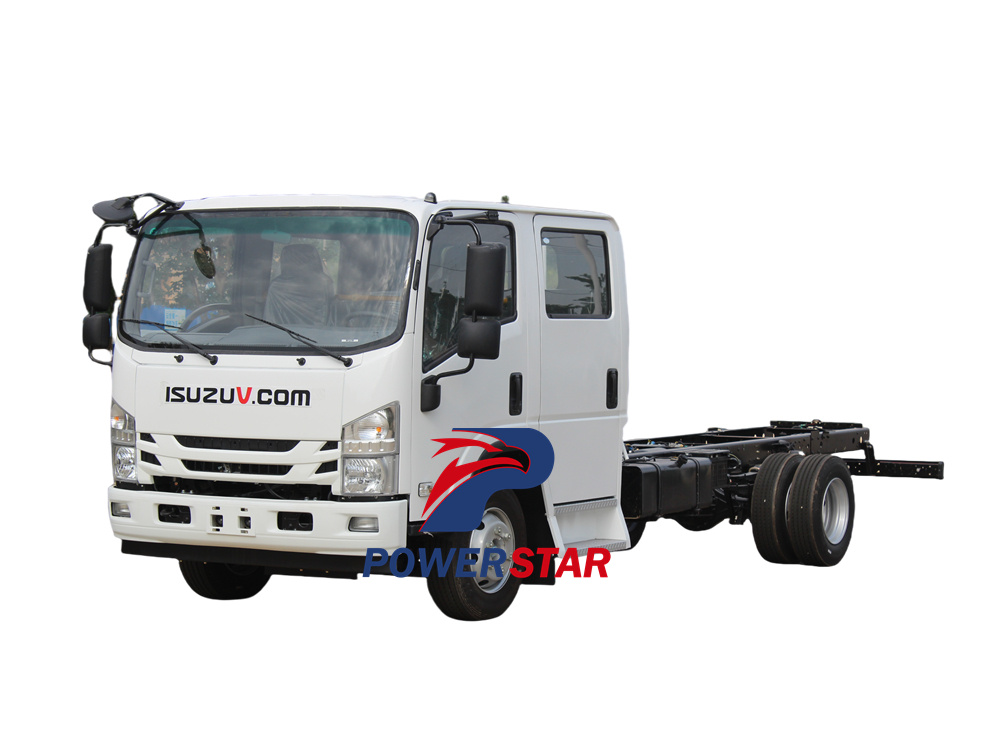

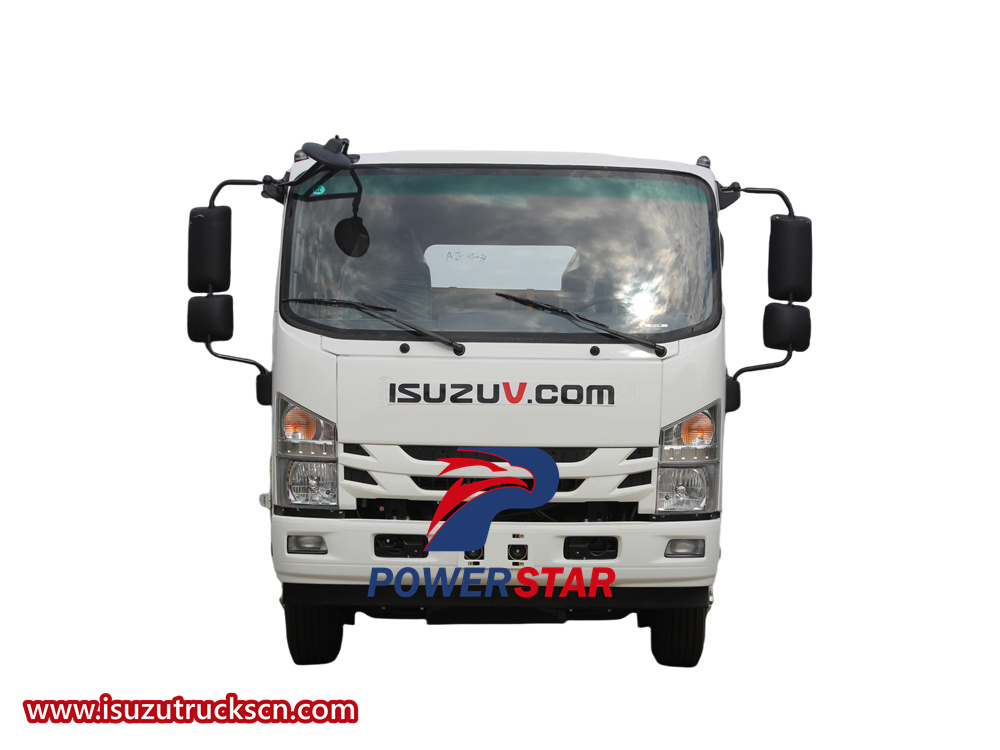

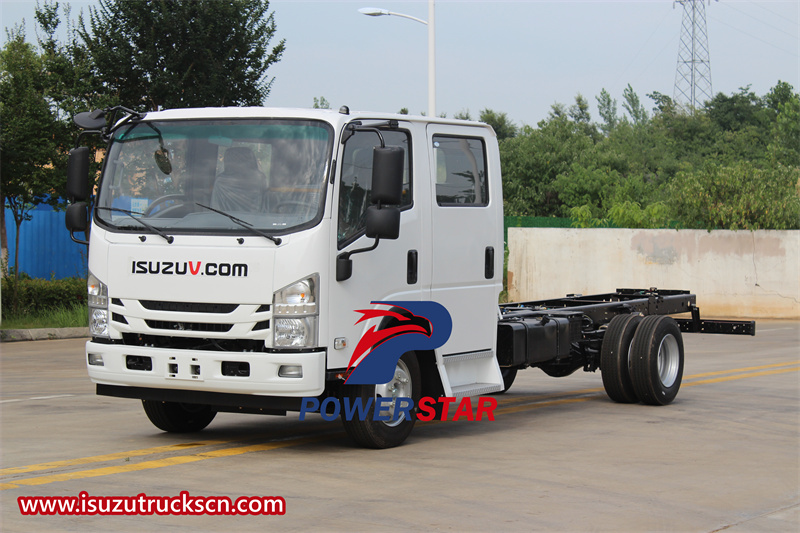

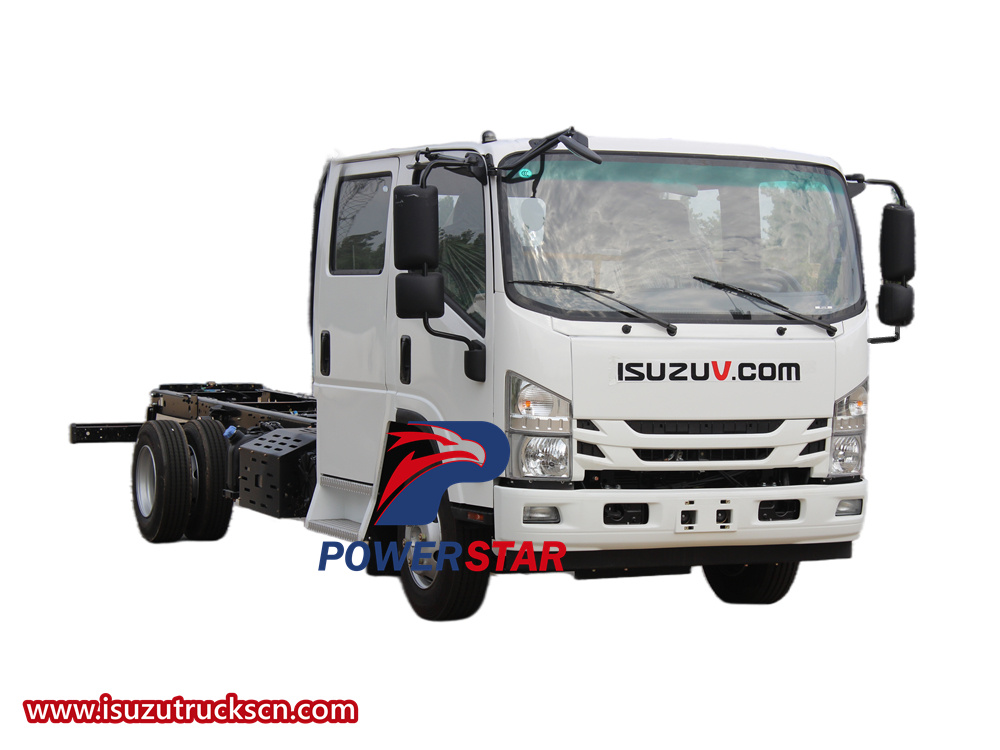

Isuzu 700P double cabin truck chassis front view

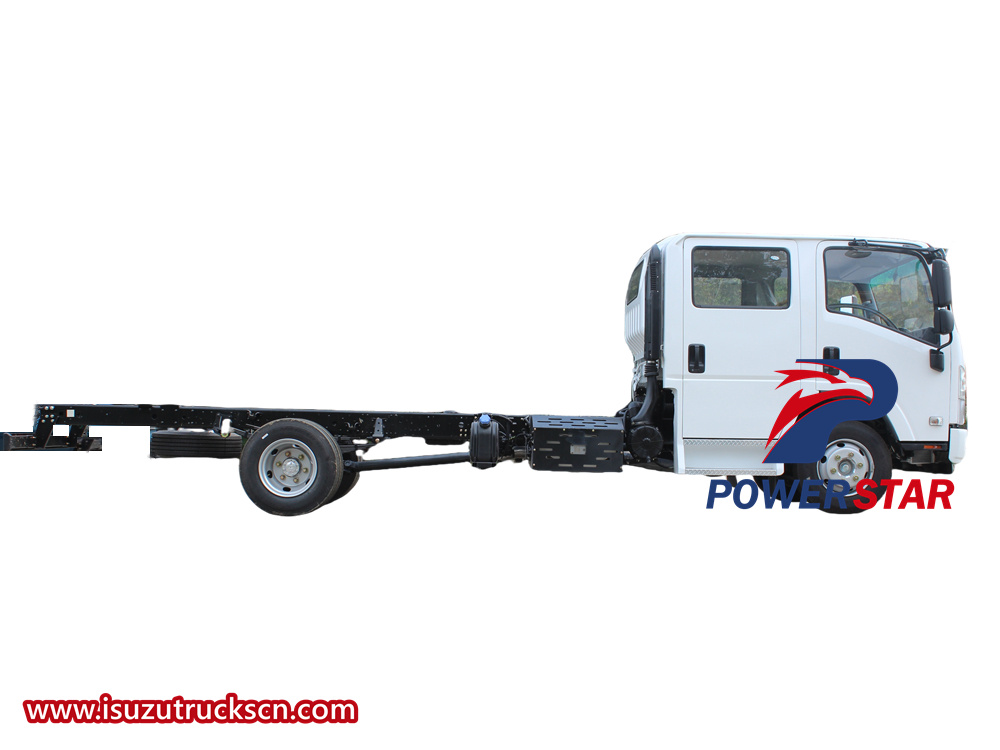

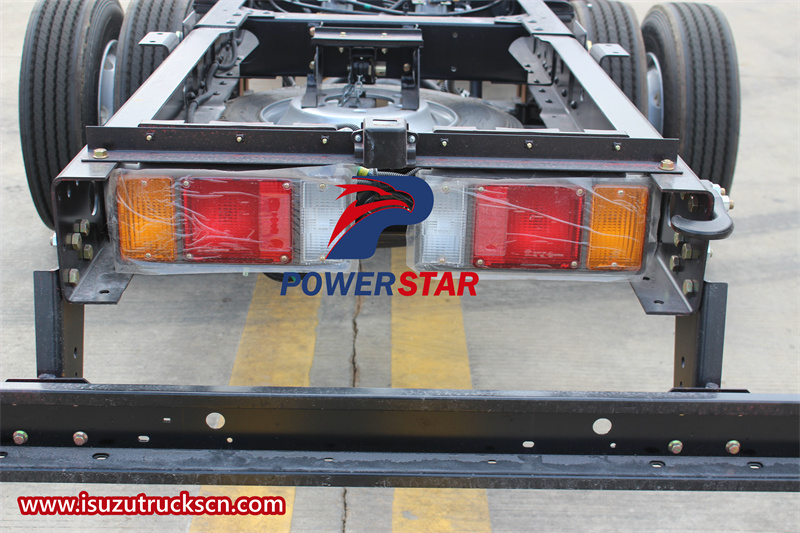

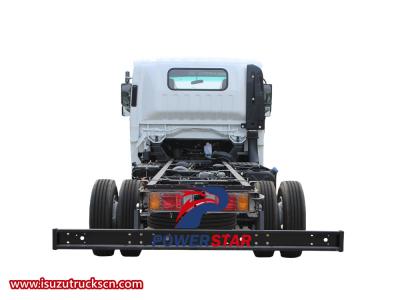

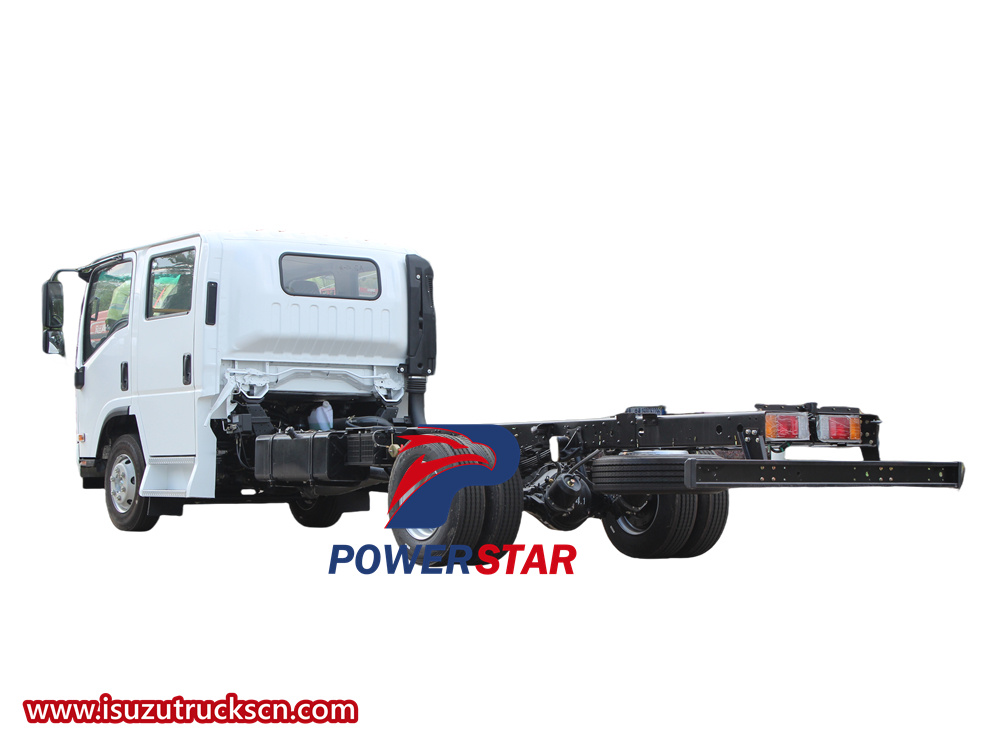

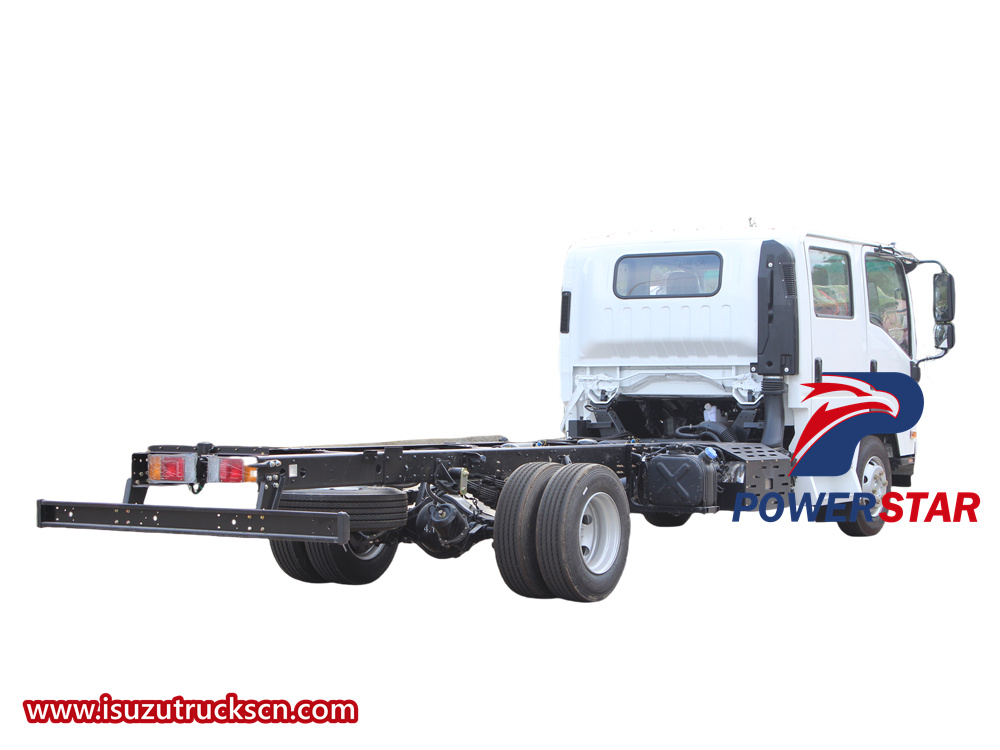

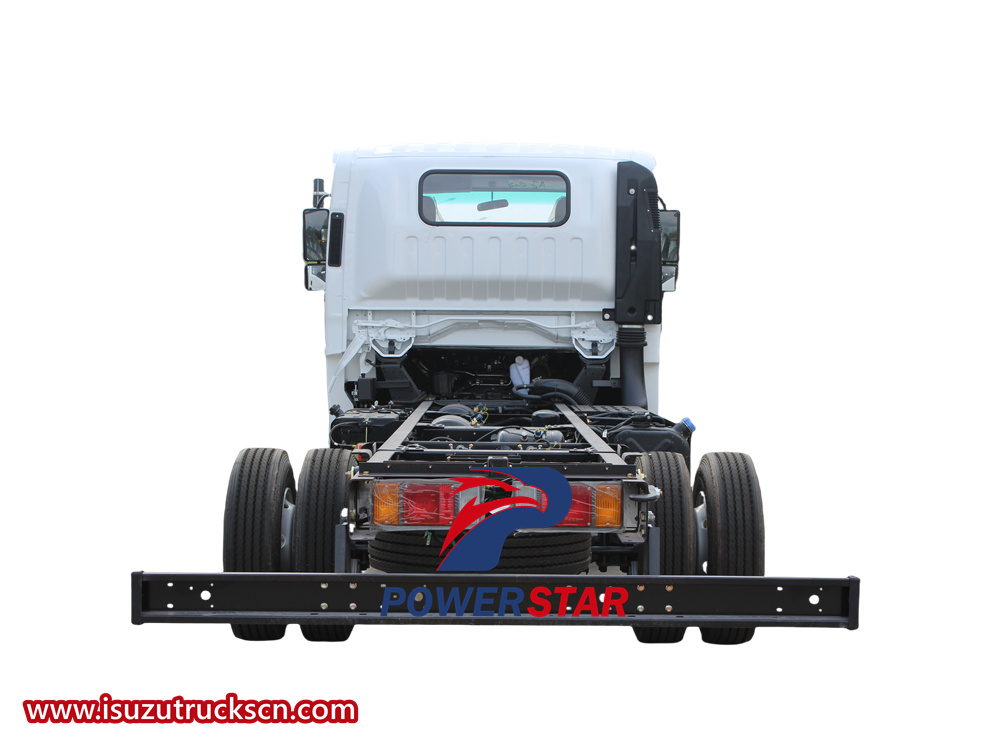

Isuzu 700P double cabin truck chassis rear view

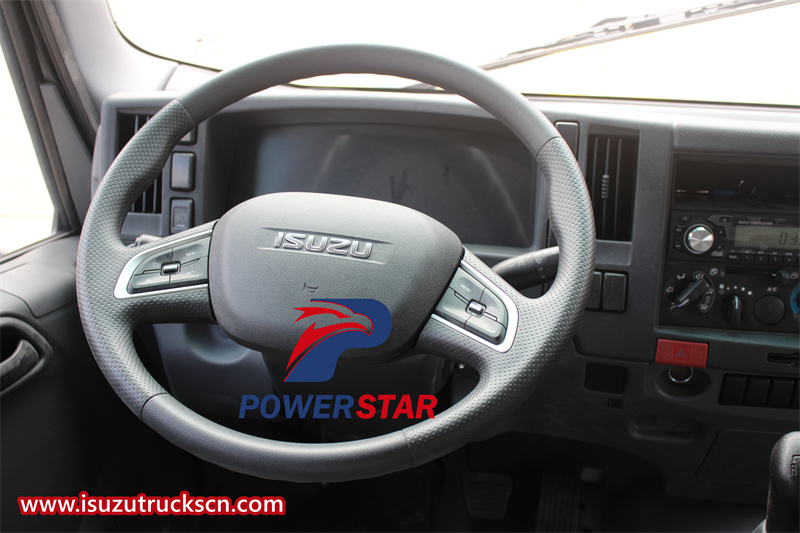

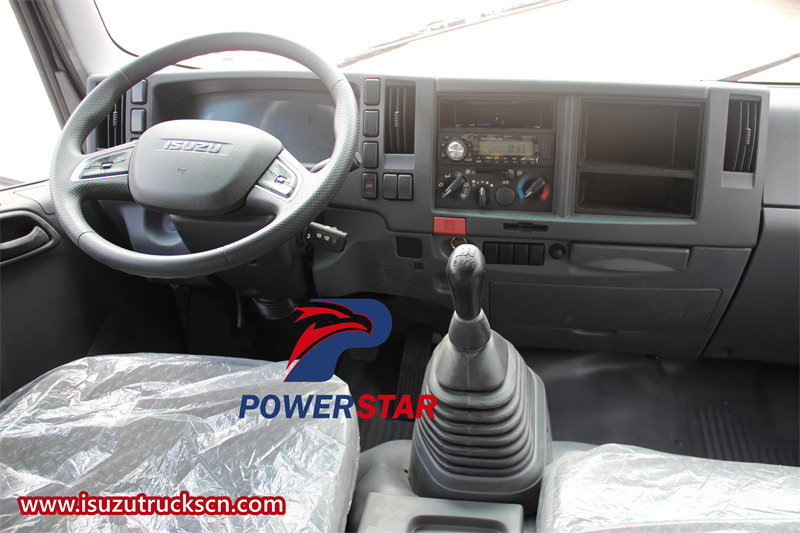

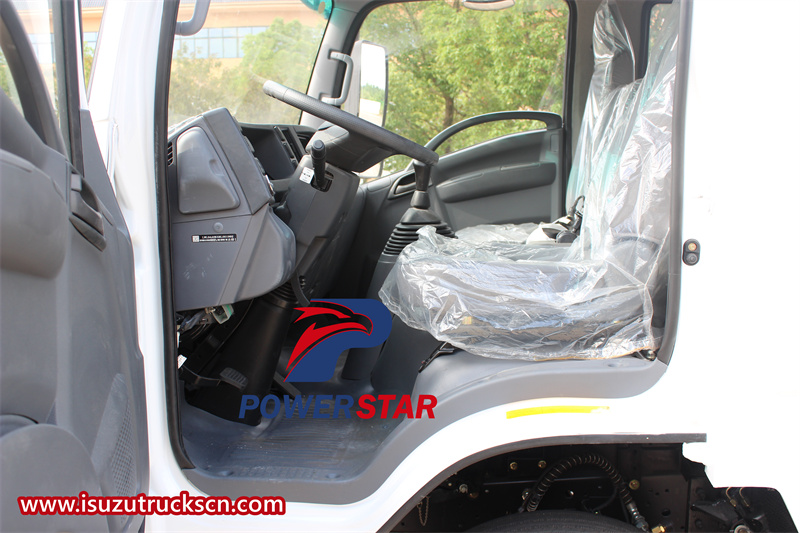

Isuzu 700P double cabin chassis cab steering wheel

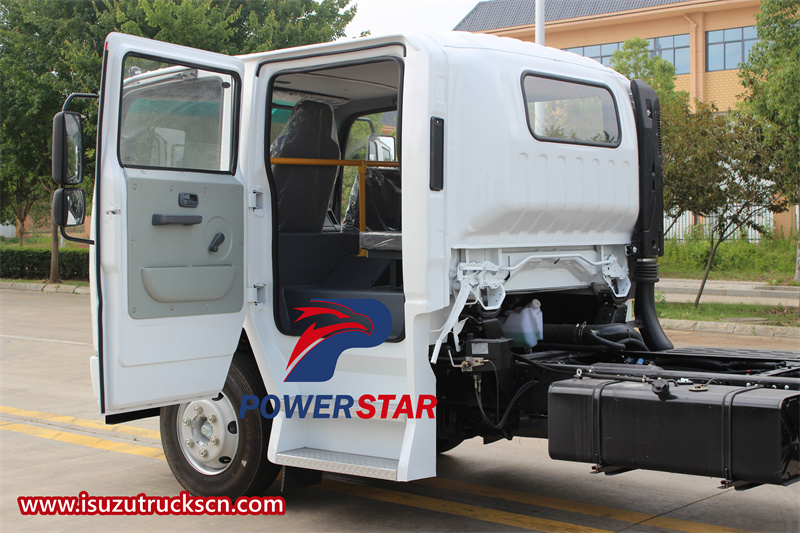

Isuzu 700P double cabin chassis cab back seats

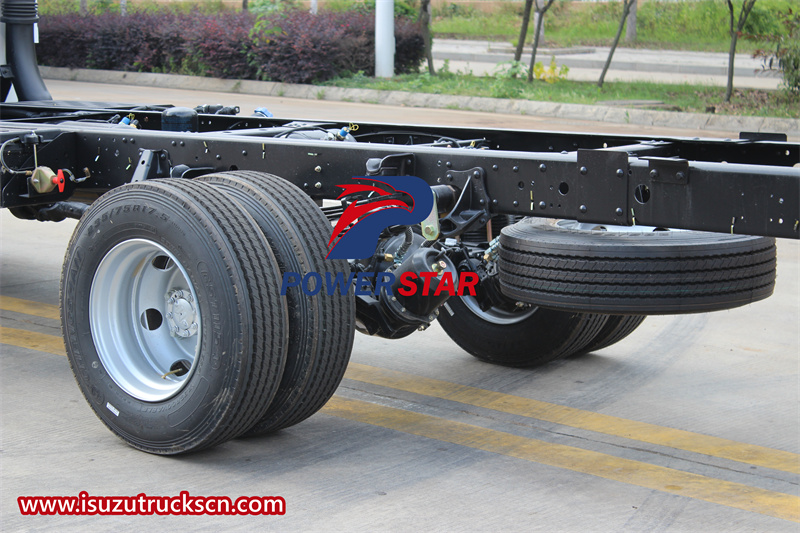

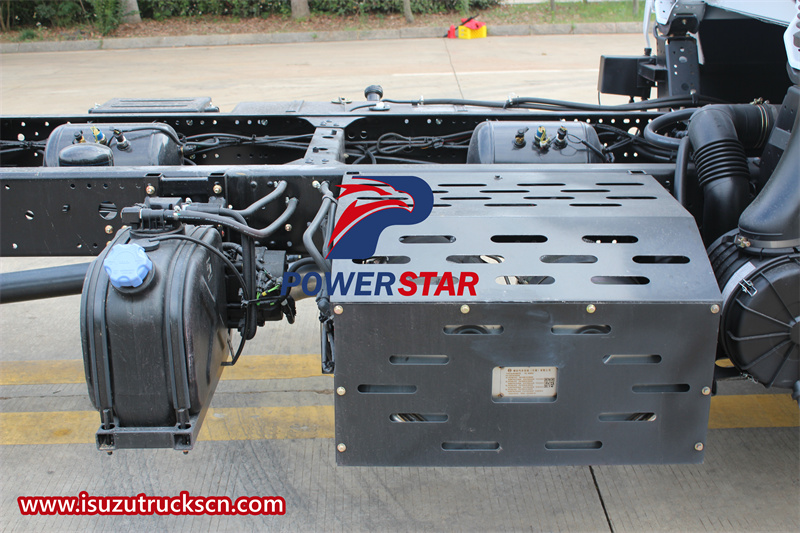

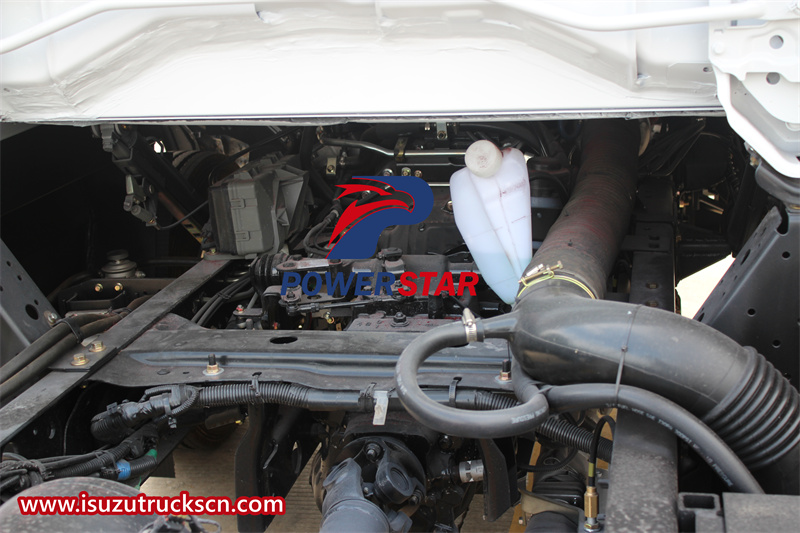

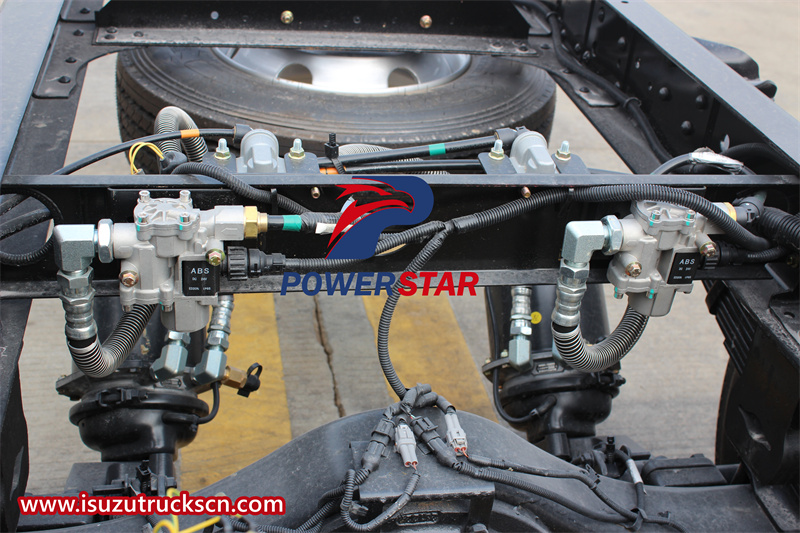

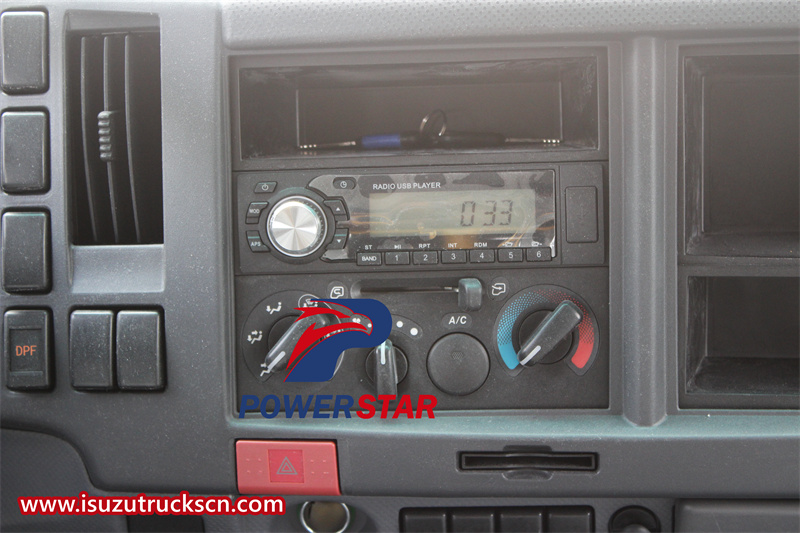

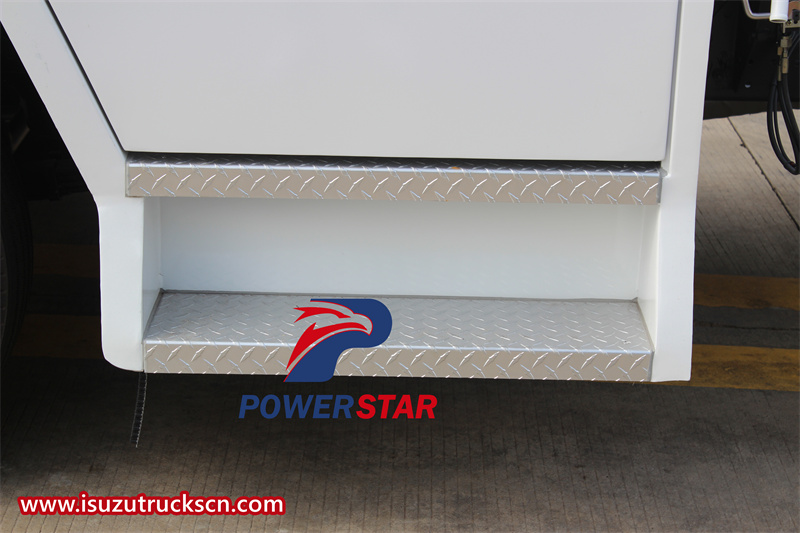

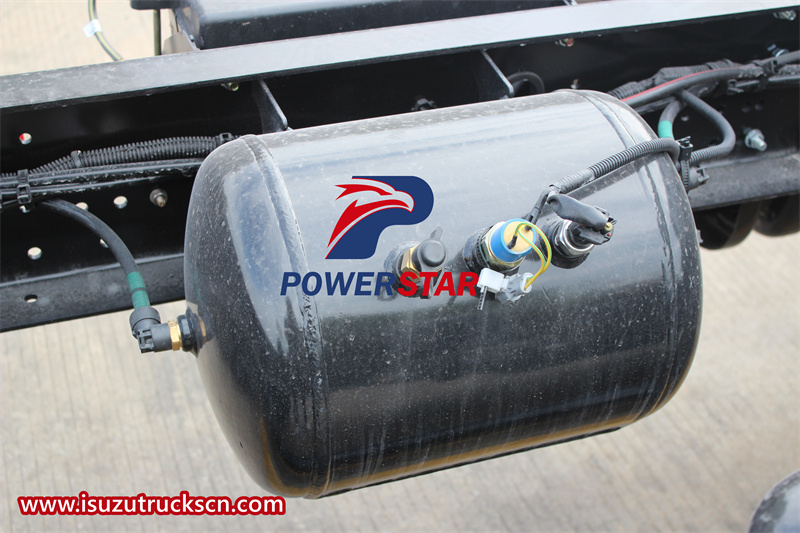

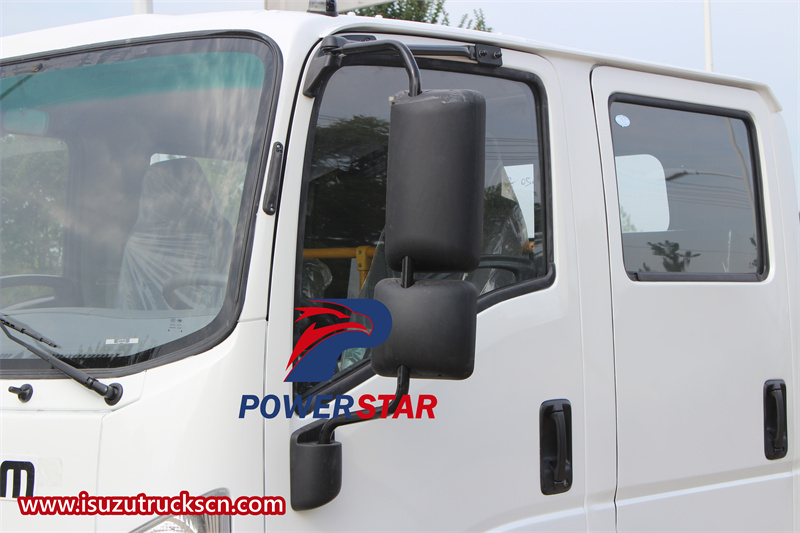

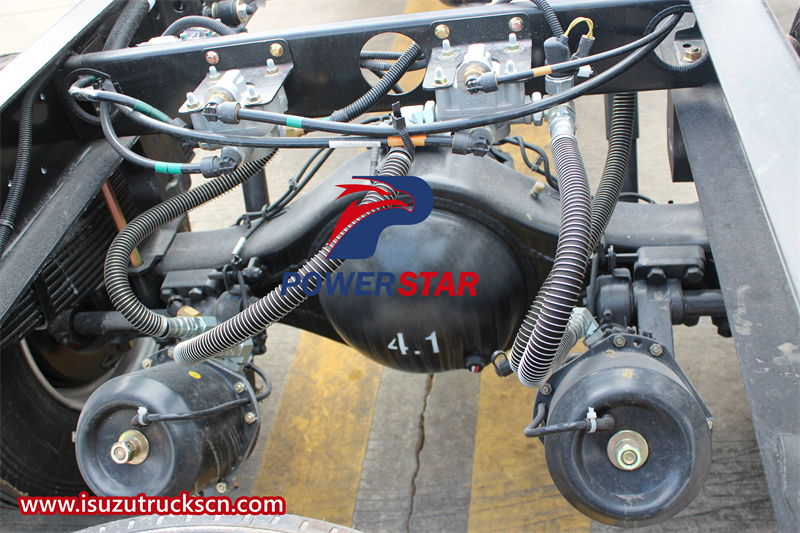

Isuzu 700P double cabin chassis details

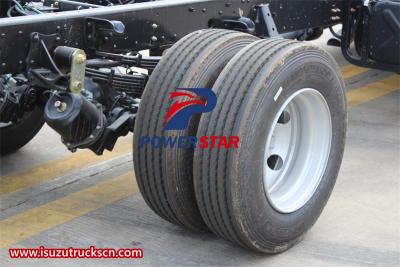

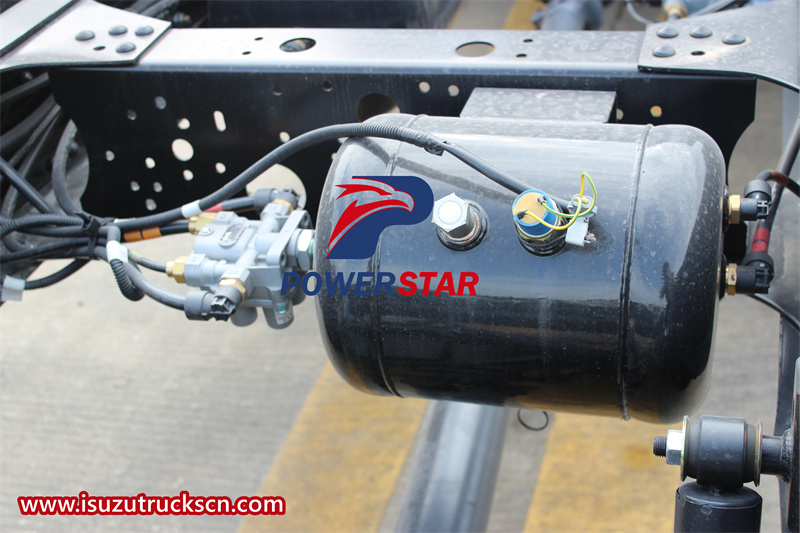

Isuzu 700P double cabin chassis details
Brand new ISUZU N series truck chassis, to be mounted with 4KH1CN diesel engine, with engine power can be 98HP or 120HP, 4 Cylinders in line, turbo charging, inter cooling, high pressure common-rail diesel injection system, liquid-cooled engine. 4x2 or 4x4 truck drive model with front axle 2.5tons and rear axle 4.8tons. In cabin comfortable driving feeling with Air conditional equipped, also AM/FM radio and USD MP3 for video play. The truck can be mounted with ISUZU garbage compactor truck, Isuzu road sweeper truck, Isuzu sewage truck, Isuzu fire truck, Isuzu tanker trucks, etc.
Learn More
Isuzu NPR cabin chassis trucks for sale from various reliable sources. You can find Isuzu truck cabin chassis for sale at Powerstar, a reputable Isuzu truck manufacturer offering a range of Isuzu chassis cabin truck. Like Isuzu NKR chassis cabin truck, Isuzu FVR cabin truck chassis, Isuzu Giga cabin truck chassis and so on.
Learn More
RHD Japanese ISUZU 4x2 NPR truck chassis for hot sale, new designed best quality Isuzu 4HK1-TC diesel engine with 190HP and 5193cc emission, MLD 6-shift manual gearbox with 6 forward and 1 reverse, full steel welding Isuzu cabinet with forward tilting function, and customized right hand drive steering, comfortable and reliable driving. Optional wheelbase as 3815mm, 4175mm, 4475mm and 5200mm. Standard tubeless tires with model 235/75R17.5, single tire at front and durable tires at rear, also equipped with one set full size spare tire for emergency.
Learn More
Equipped with a powerful engine, the Isuzu NKR chassis provides ample torque and horsepower to tackle steep inclines, rocky trails, and muddy paths with ease. Its advanced drivetrain system allows for seamless power delivery to all four wheels, providing maximum traction and control in challenging off-road conditions. The Isuzu NKR off-road truck chassis is powered by a powerful and efficient diesel engine, delivering ample torque and horsepower to tackle steep gradients and challenging obstacles.
Learn More

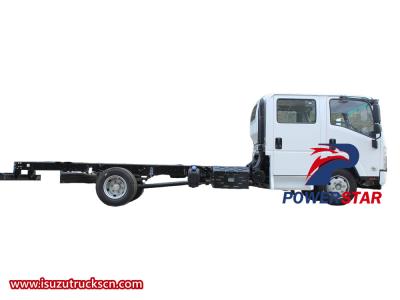

Isuzu ELF NPR 700P cargo truck chassis, to be mounted with 4KH1-TCG61 diesel engine, with engine power 190HP, 4 Cylinders in line, turbo charging, inter cooling, high pressure common-rail diesel injection system, liquid-cooled engine. 4x2 LHD truck drive model with front axle 4tons and rear axle 7tons. The engine has strong power, low fuel consumption, reliable and durable. Recognized for its outstanding combination of economy, safety, reliability and durability, it is a very popular light truck in many countries.
