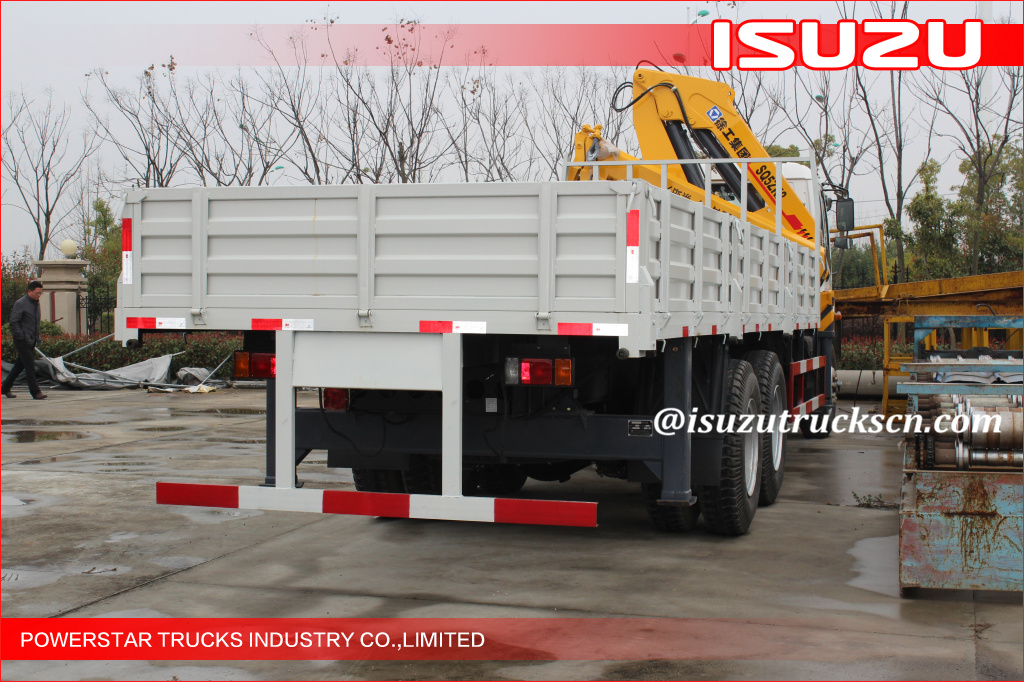

6.3ton Isuzu Truck Mounted Crane for city transportation
Order(MOQ):
16.3ton Isuzu Truck Mounted Crane for city transportation
Durable XCMG Transportation Truck Mounted Crane , 6300kg Knuckle Boom Crane
Description:
Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.
Knuckle boom crane SQ6.3ZK2 is used for lifting 6.3tons, moment is 13.23T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Knuckleboom cranes have the ability to easily load and unload materials in just about any possible situation.
Specifications:
Model |
SQ6.3ZK2 |
Unit |
Max Lifting Moment |
13.23 |
t.m |
Max Lifting Capacity |
6300 |
kg |
Recommend Power Needed At Recommend Oil Flow |
18 |
kw |
Max Oil Flow of Hydraulic System |
25 |
L/min |
Rated Pressure Of Hydraulic System |
28 |
MPa |
Oil Tank Capacity |
90 |
L |
Rotation Angle |
(370°)All Rotation |
° |
Crane Weight |
2152 |
kg |
Installation Space |
1100 |
mm |
Choice of Chassis |
ISUZU |
|
SQ6.3ZK2 Lifting capability diagram |
||||
Working radius (m) |
2.1 |
4.44 |
6.2 |
8.01 |
Lifting capacity (kg) |
6300 |
2700 |
1700 |
1200 |
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg |
Spread |
Fixed |
2179mm |
Single extension |
2256-3556mm |
Double extension |
2212-4752mm |
