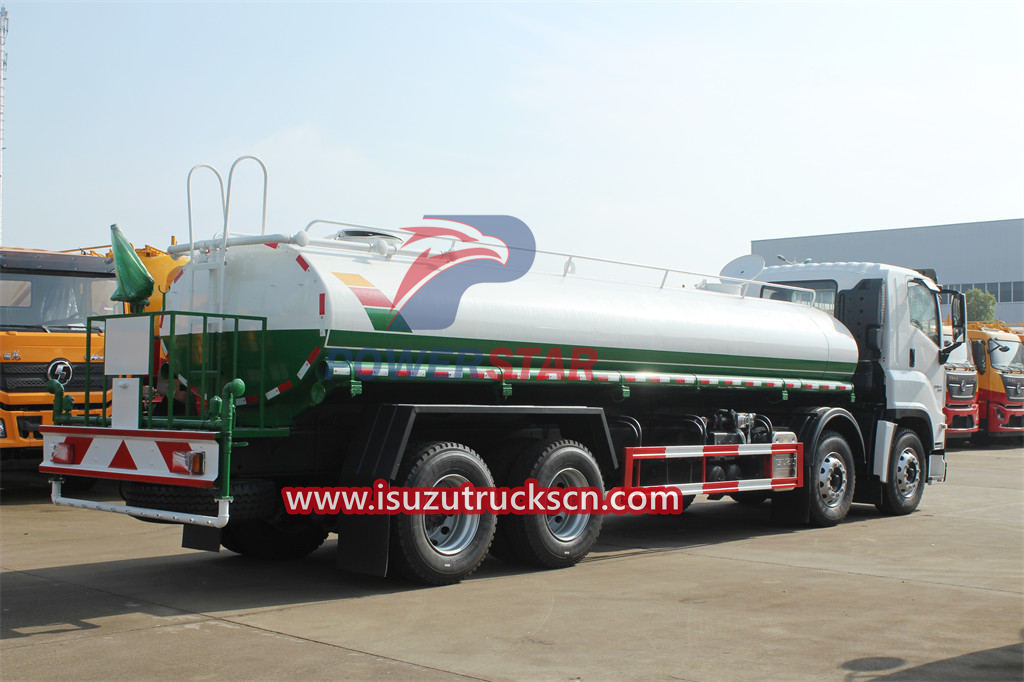

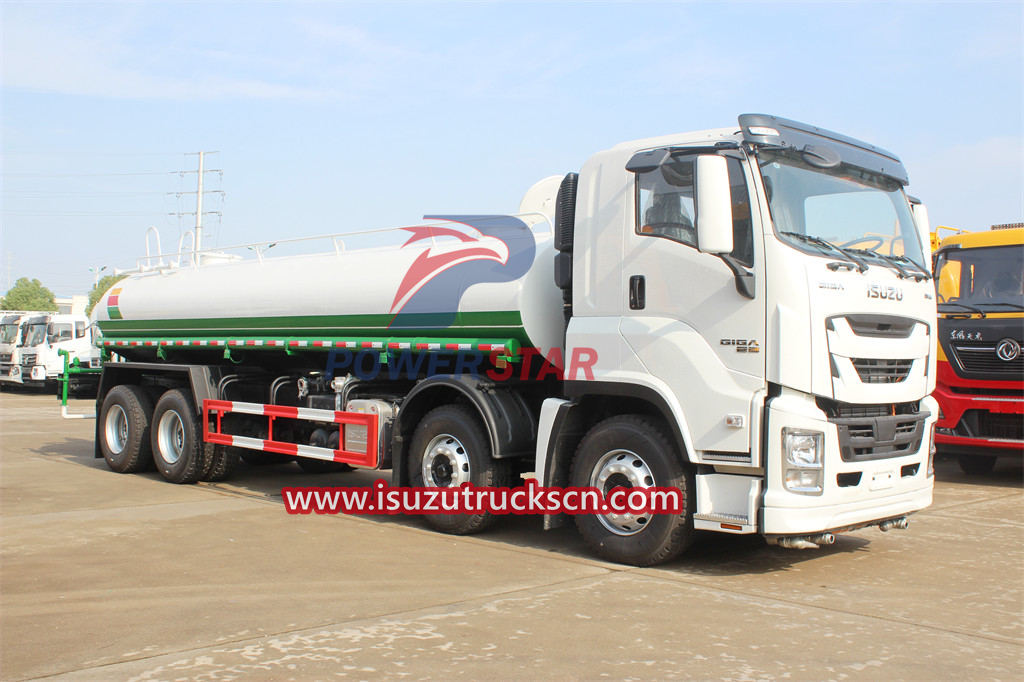

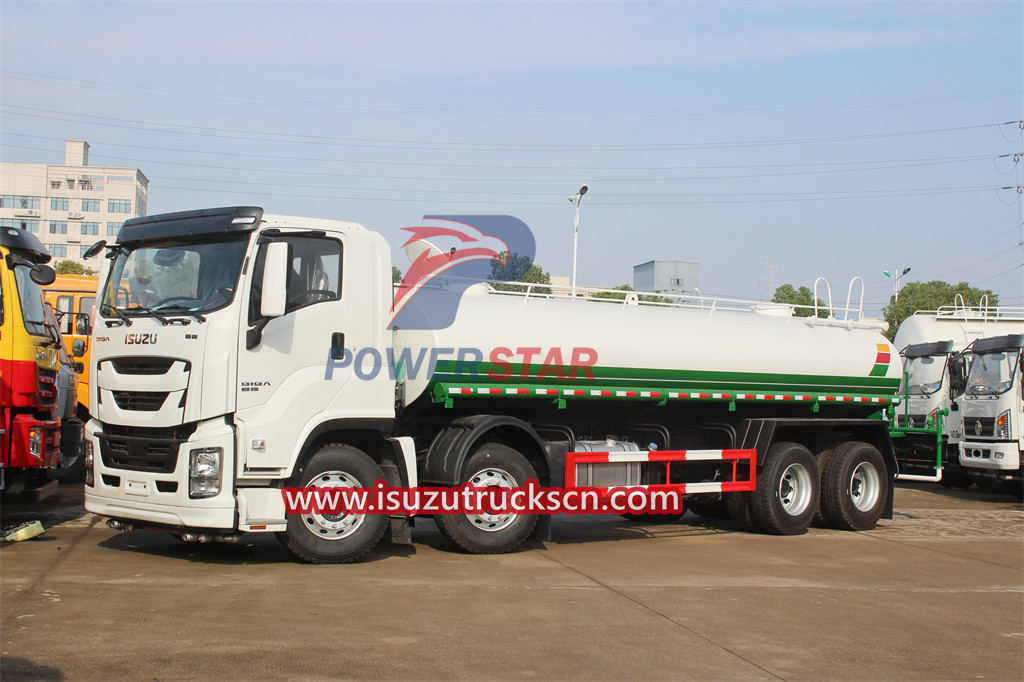

25,000L 25tons Isuzu Giga Street Wash Water Trucks, also known as 25cbm Giga Isuzu street washing water trucks, offer a range of features to meet various needs. All our Isuzu giga Isuzu street water trucks come equipped with multiple spray heads located at the front, side, and rear of the truck. These spray heads are independently controlled and feature air-operated valves for efficient water distribution.
Work capacity:
25,000LTruck model:
PT5350GSSEngine power:
420 HPEngine type:
Isuzu 6WG1Axle drive:
8x4Gear box:
FAST 12-shiftRemarks:

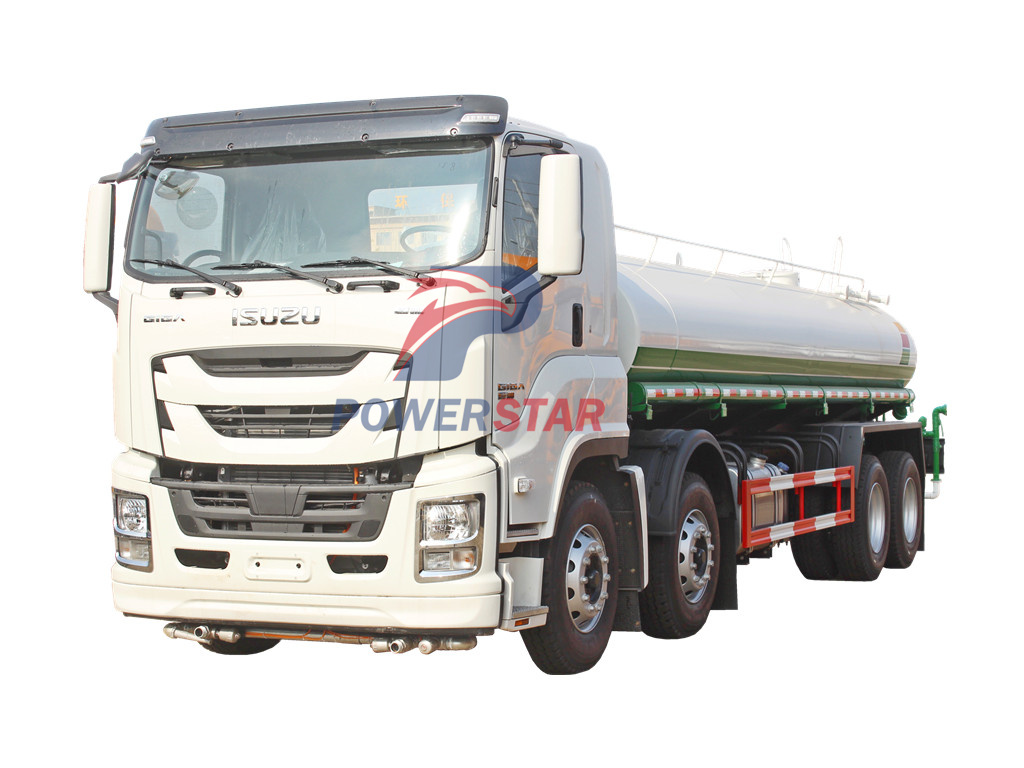

stainless steel tank body available6WG1 Engine Isuzu Giga Street Water Trucks has a 6,500 gallon water tank for maximum capacity. Compatible with 4 axle Isuzu Giga heavy duty truck chassis, 8x4 12wheels Isuzu Giga Street Water Trucks are ideal for many different applications including dust control and delivery.
6WG1 Engine Isuzu Giga Street Water Trucks employ a cross baffle to prevent sloshing during transport. Sight gauges enable the operator to easily view water levels without having to climb onto the top of the tank.
If your jobsite depends on a high performance Isuzu Water Truck, let the 6WG1 Engine Isuzu Giga Street Water Trucks work for you.
The Isuzu giga sprinkler truck is suitable for all kinds of road washing, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude buildings. It has the functions of water spraying, dust pressure, high and low spraying, pesticide spraying, guardrail flushing, etc. It also has functions such as water transportation, drainage, and emergency fire fighting.
GIGA Isuzu 25tons Water Sprayer Truck | ||
Chassis Model | ISUZU | |
Chassis | Driving type | 8x4, RHD/LHD |
Wheelbase | 2100+4325+1370mm | |
Dimension | 10300x2500x3100 mm | |
Engine | Model | ISUZU 6WG1 |
Power | 420HP | |
Emission Standard | EURO 5 | |
Water Tank | Volume | 25m3 |
Shape | Ellipse | |
Thickness | 5mm | |
Material | Carbon Steel Q235 | |
Anti-corrosion | Anti-corrosion layer inside the tank | |
control system | Electrically hydraulic control | |
Spraying system | Front Sprinklers | a sprinkler on the left and right side respectively |
Rear Sprinklers | a sprinkler on the left and right side respectively | |
Working Platform | an operator standing there to operate the water gun | |
high-pressure water gun | shotting range over 28m | |
Water suction tube | 2 tubes of 3m long, or 1 tube of 6m long | |
Water level gauge | 1 set | |
Special Function | Vertical suction height | >7m |
Sprinkler width | >14m | |
Flux | 90m3/h | |
Water intake time | <5min | |
Water Pump | WLOONG brand, for water suction and drainage as dual function |

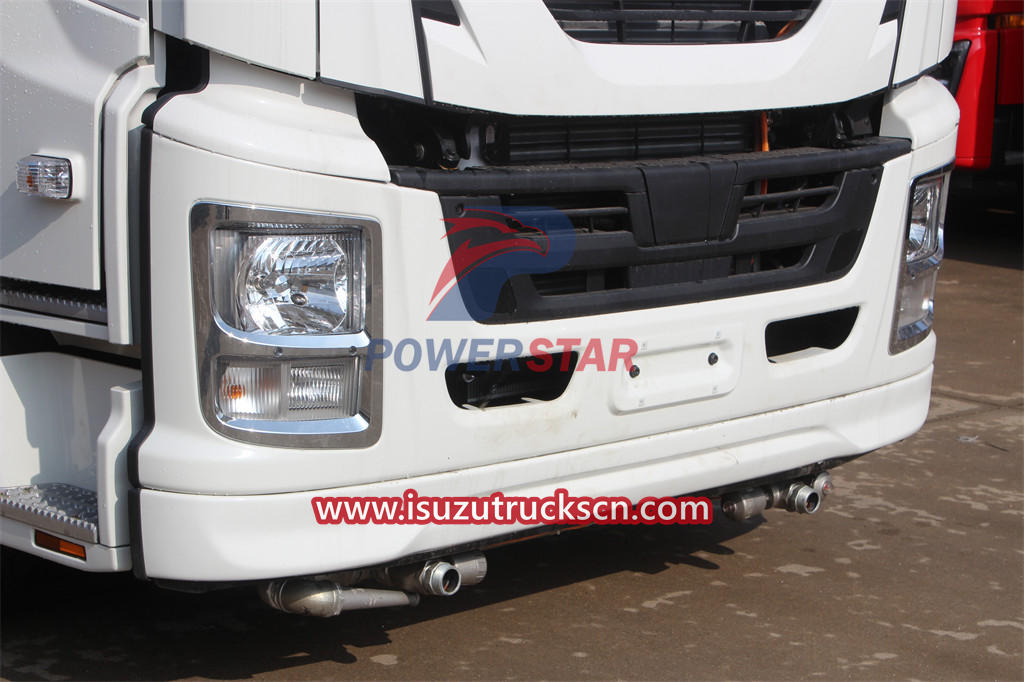

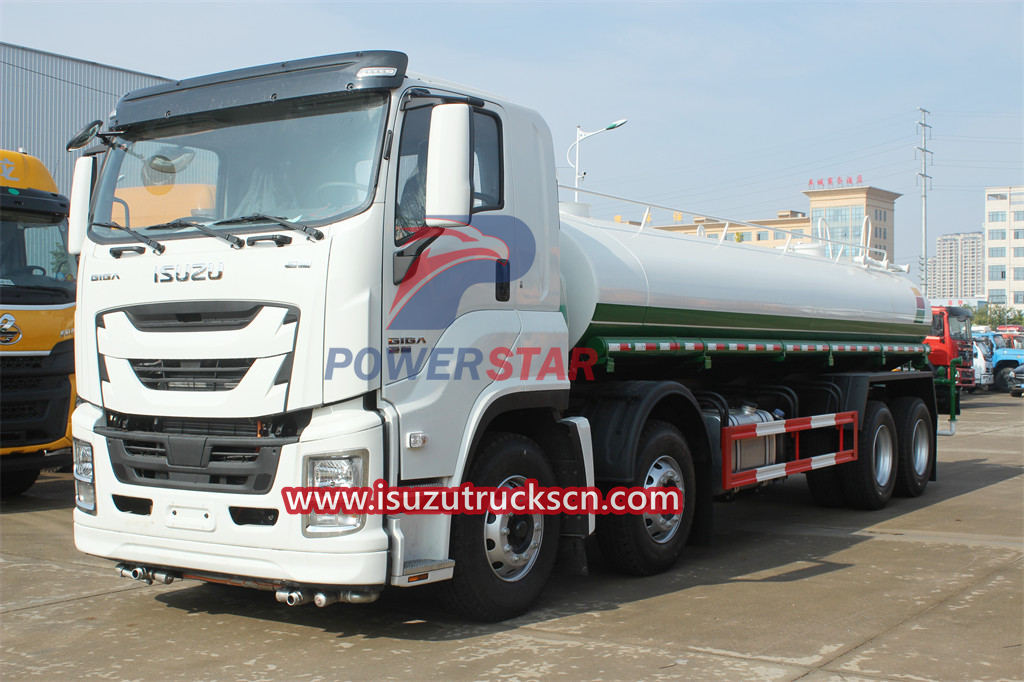

Powerful front spray system

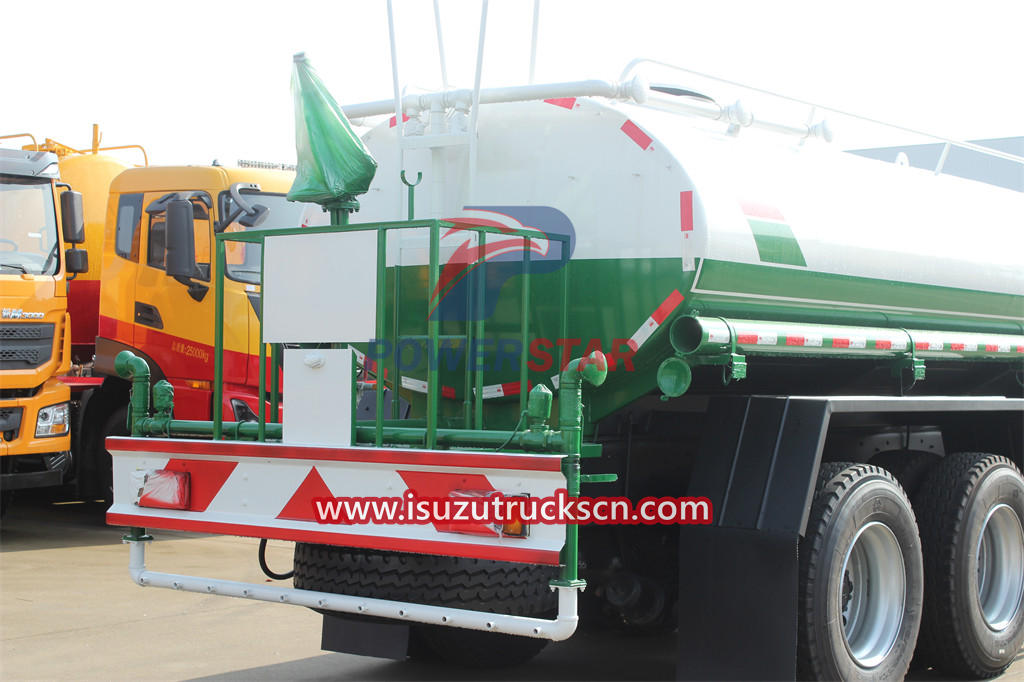

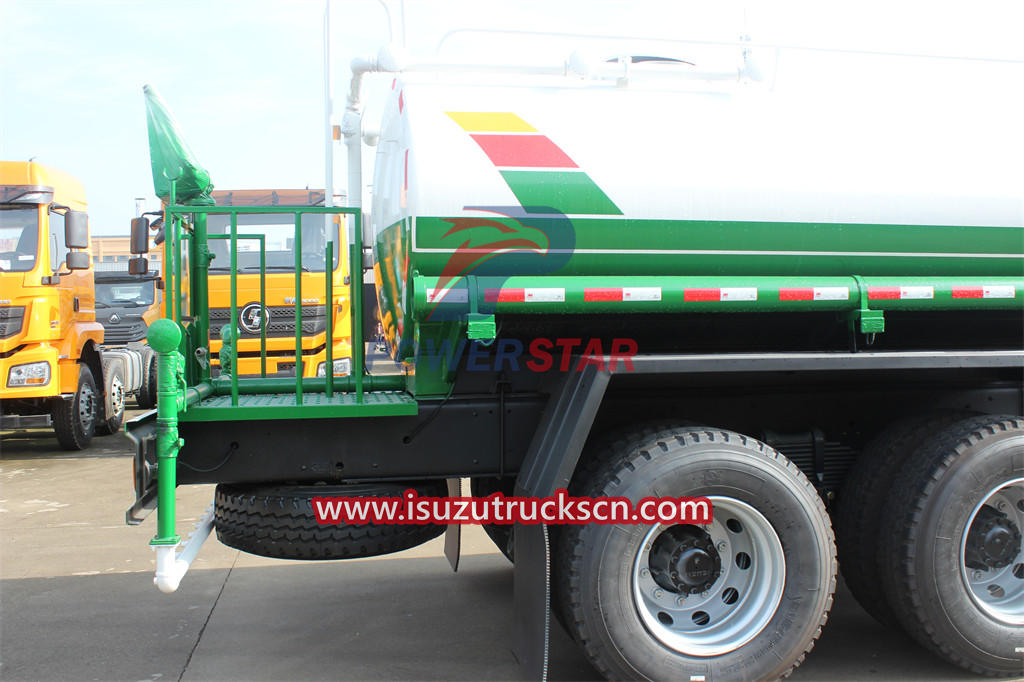

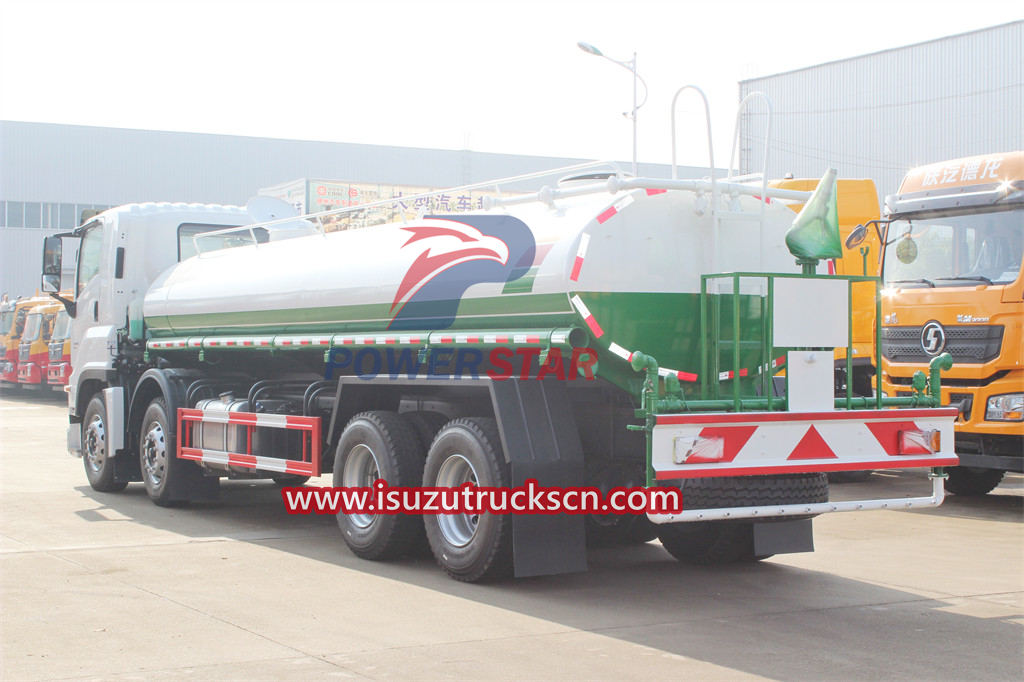

Rear working platform
