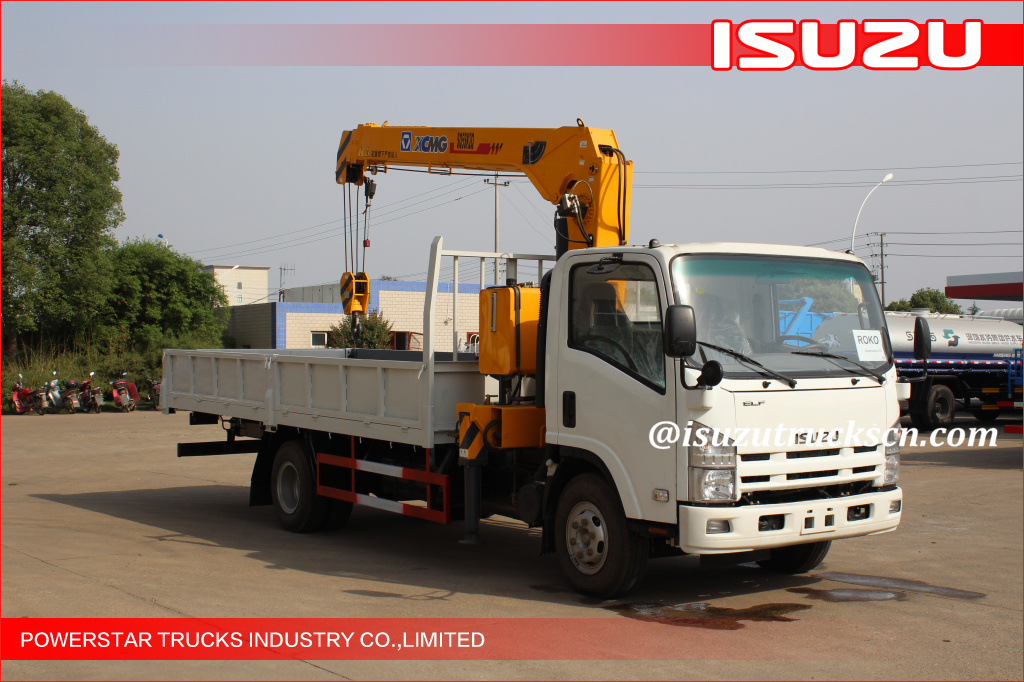

700P ELF 5 Ton Hydraulic Lifting Truck Mounted Crane
Order(MOQ):
1700P ELF 5 Ton Hydraulic Lifting Truck Mounted Crane
Durable 5 Ton Hydraulic Lifting Truck Mounted Crane, 2120kg Crane
Description:
Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.
Telescopic boom crane SQ5SK2Q is lifting capacity is 5tons, moment is 12.5T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model |
SQ5SK2Q |
Unit |
Max Lifting Capacity |
5000 |
kg |
Max Lifting Moment |
12.5 |
T.M |
Recommend Powe |
18 |
kw |
Max Oil Flow of Hydraulic System |
32 |
L/min |
Max Pressure of Hydraulic System |
20 |
MPa |
Oil Tank Capacit |
90 |
L |
Rotation Angle |
All Rotation |
|
Crane Weight |
2120 |
kg |
Installation Space |
900 |
mm |
Choice of Chassis |
ISUZU | |
SQ2SK1Q Lifting capability diagram |
||||
Working radius(m) |
2.5 |
3.5 |
6 |
8.5 |
Lifting capacity(kg) |
5000 |
2940 |
1500 |
1050 |
