Order(MOQ):
15 cubic meter Fuel tank truck Isuzu
Description:
ISUZU Fuel Tank Trucks (also called Fuel tank bowser, Fuel carrier truck, small fuel trucks, Isuzu truck chassis fuel truck, Factory fuel tank truck, Fuel tank trucks, NPR fuel dispensing tanker, oil refueler truck Isuzu trucks, light fuel tank truck, Isuzu fuel oil tanker, oil tank for truck) is used to transport oil, diesel, gasoline, kerosene,
Technical drawings:
The Isuzu fuel tank transportation series, as to the whole tank truck, usage for transport the gasoline, light diesel oil, petroleum and other non-corresive fuel properties, rarely impact the damage for oil pump, generator, refullering gun,etc.

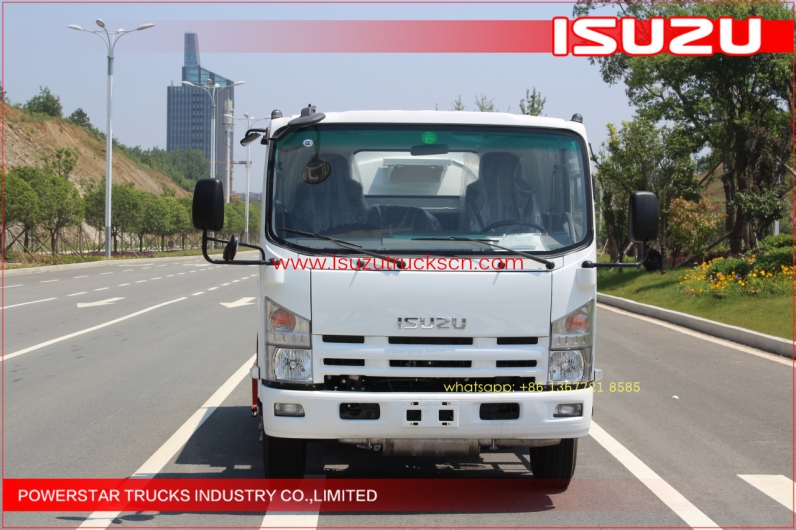

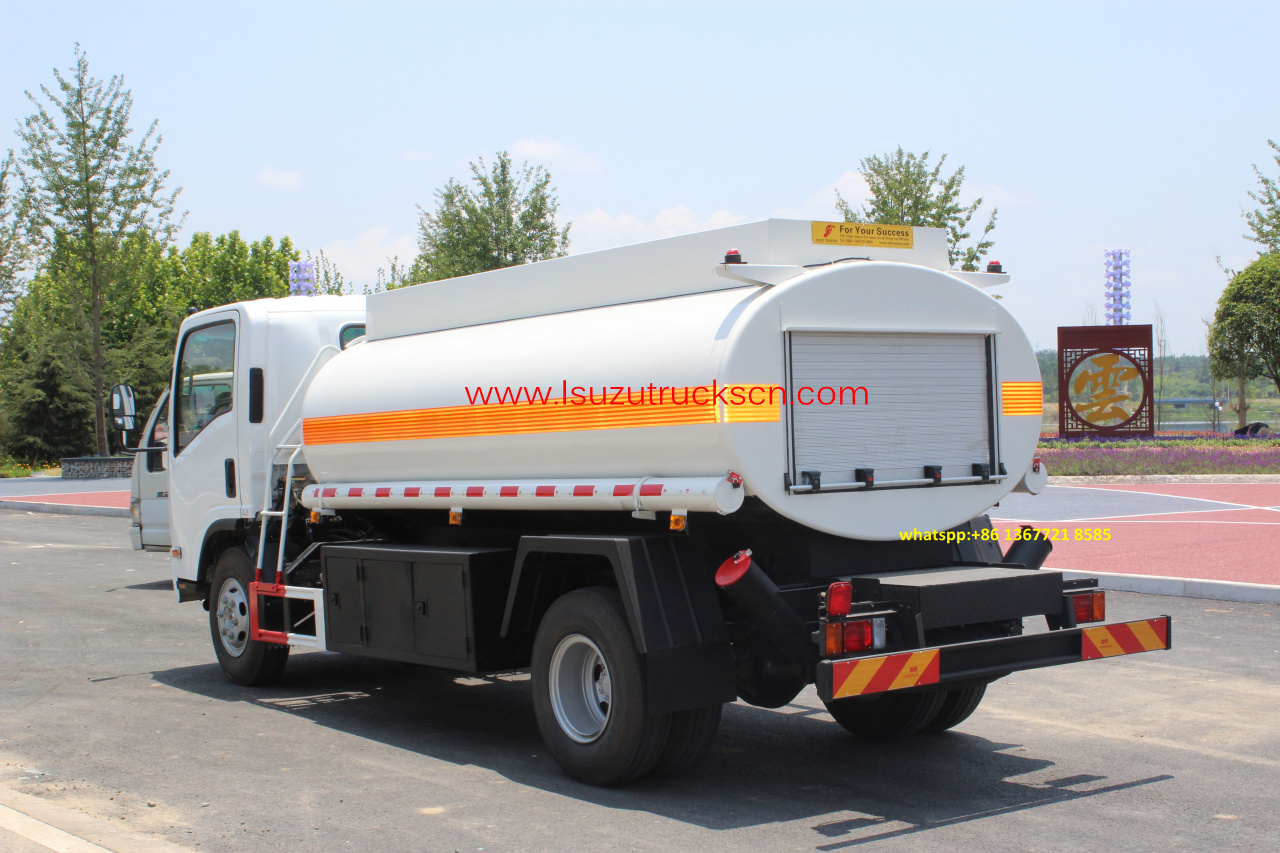

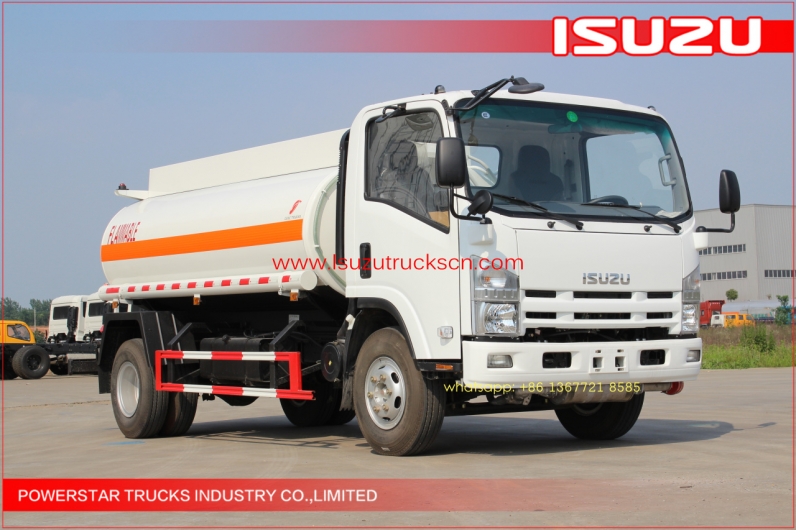

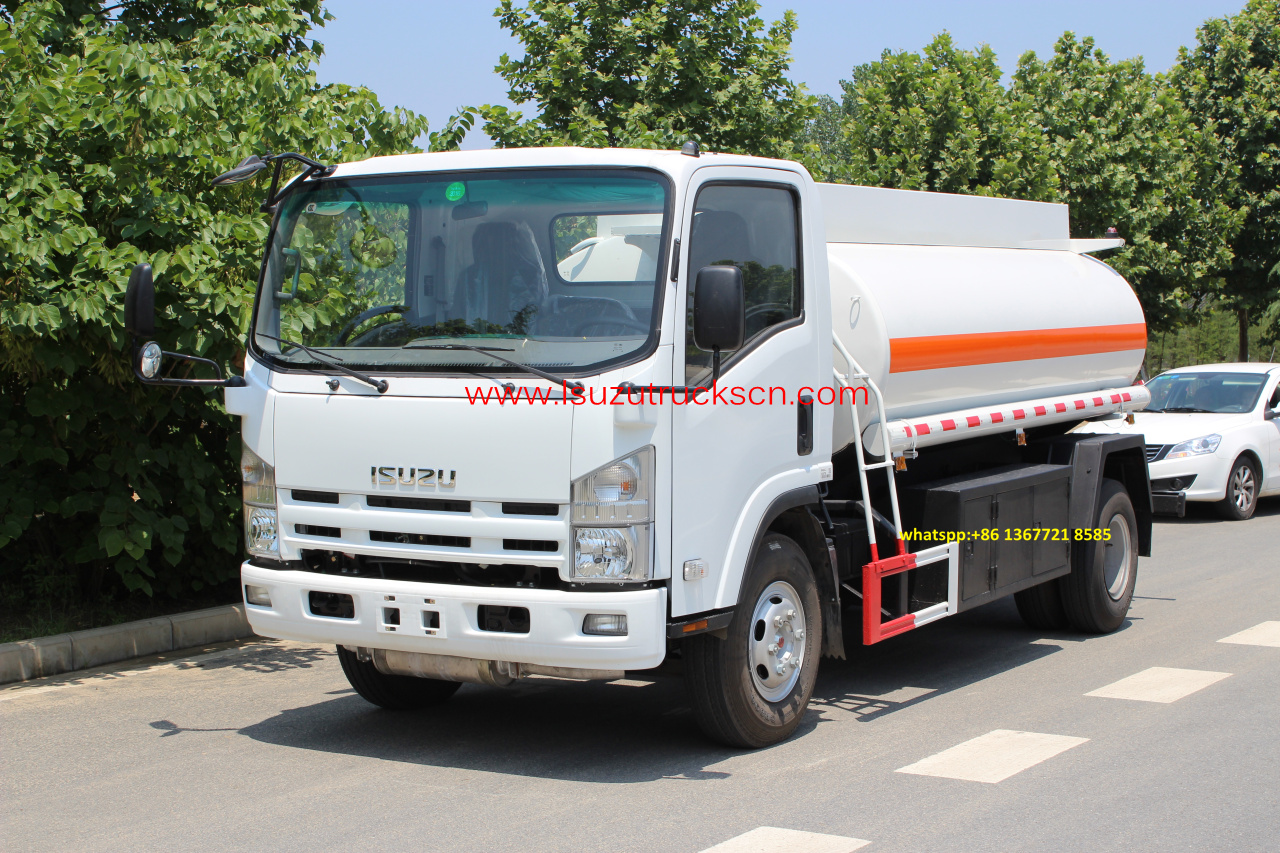

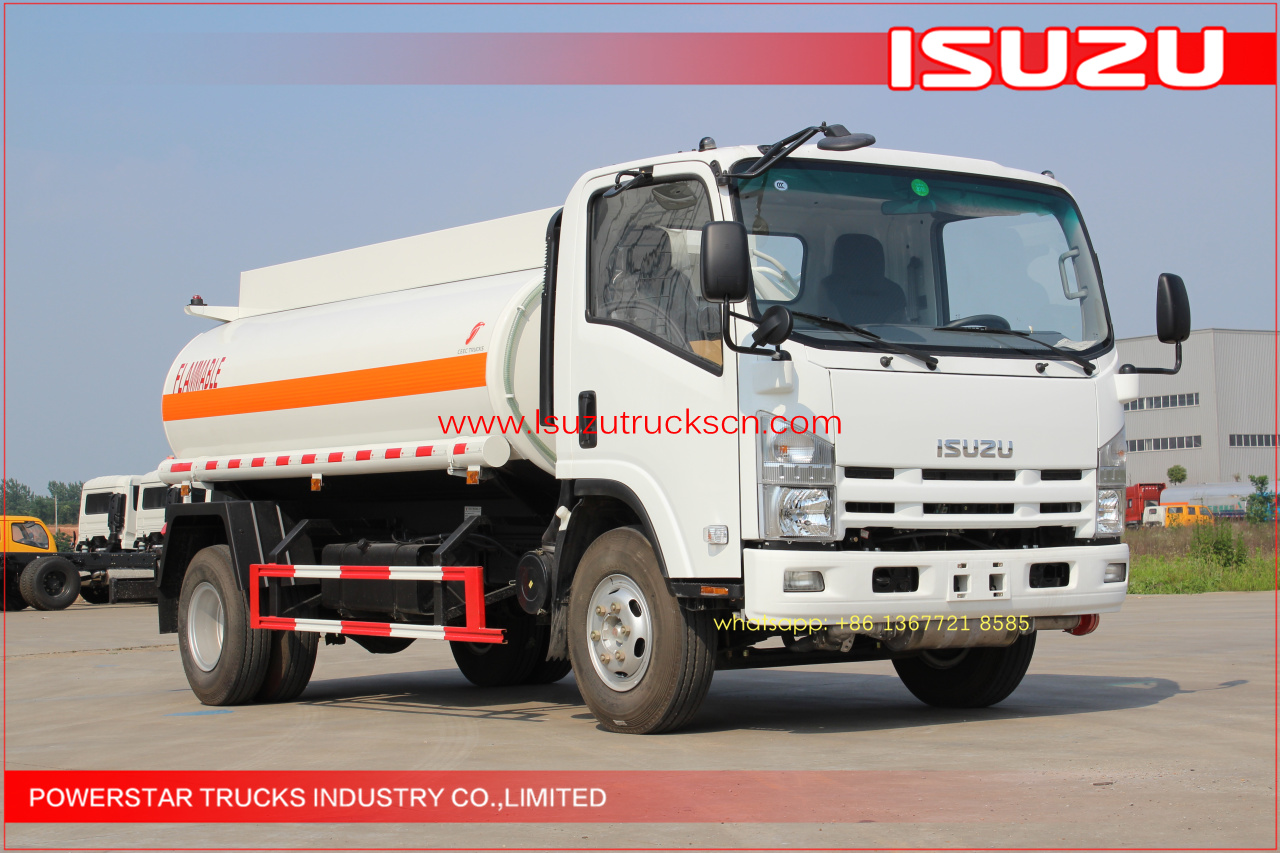

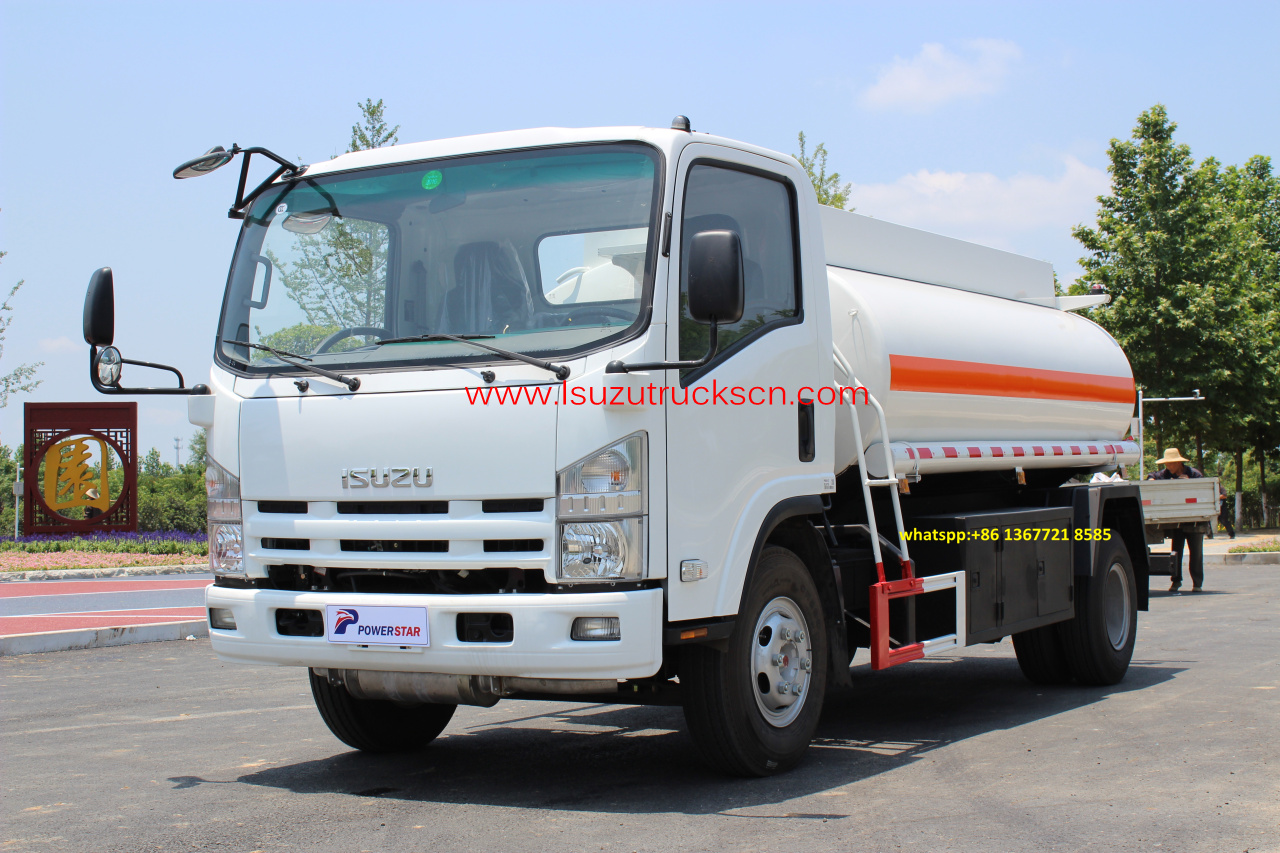

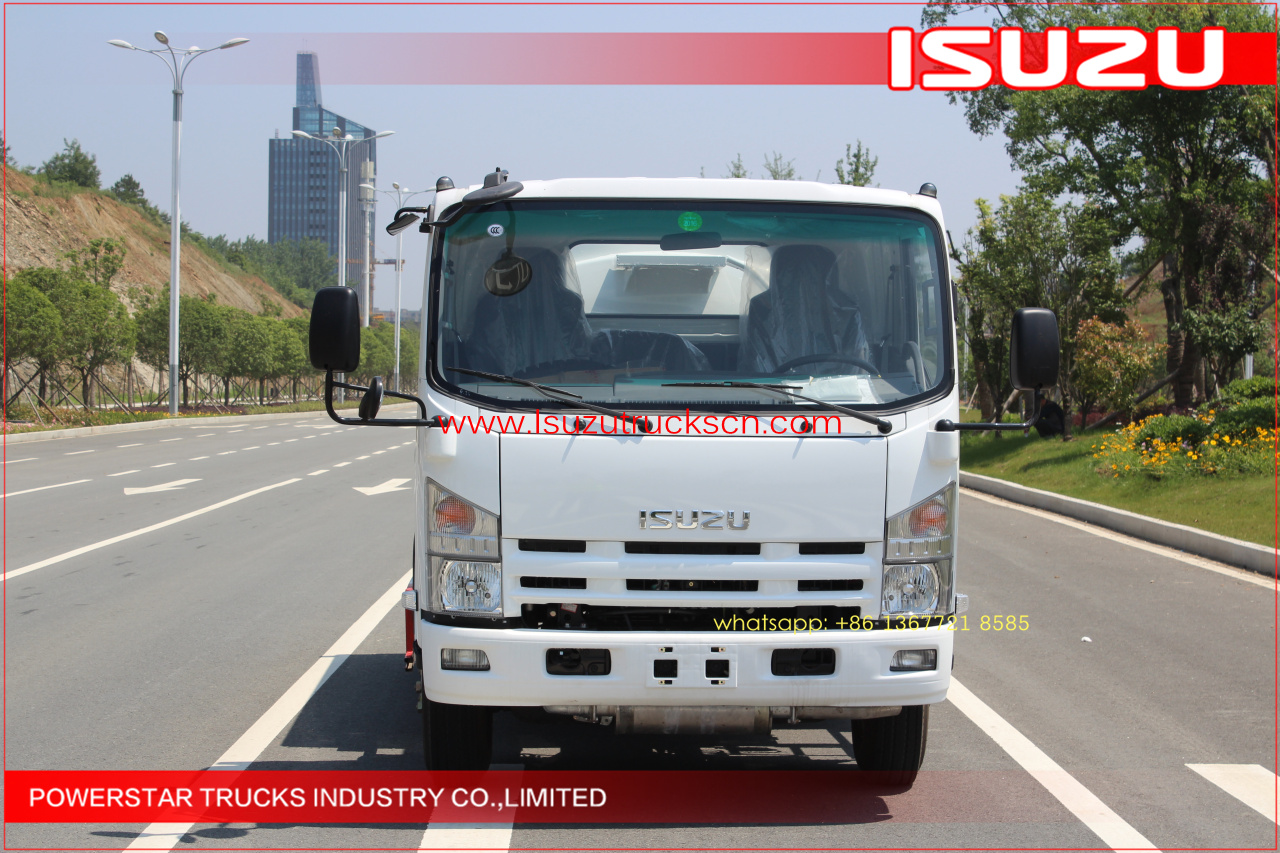

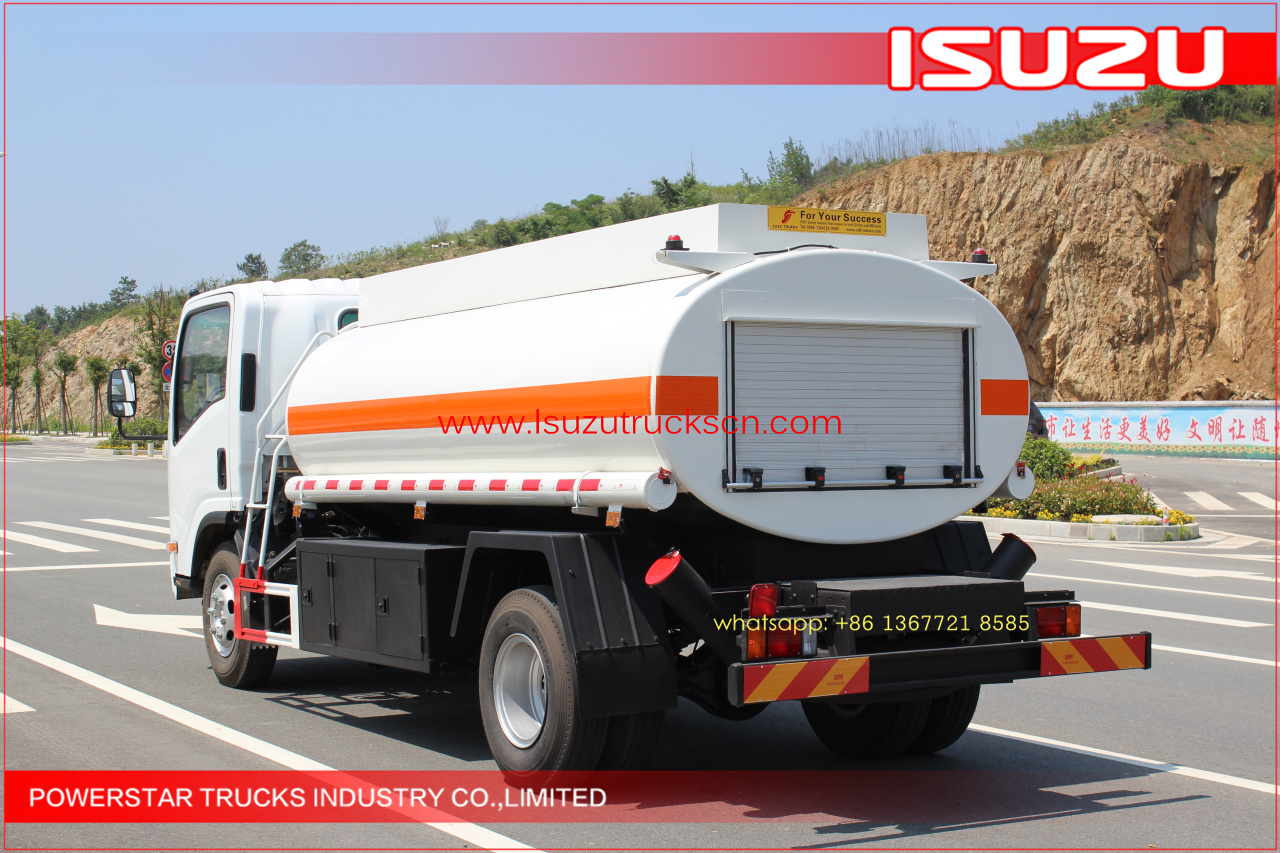

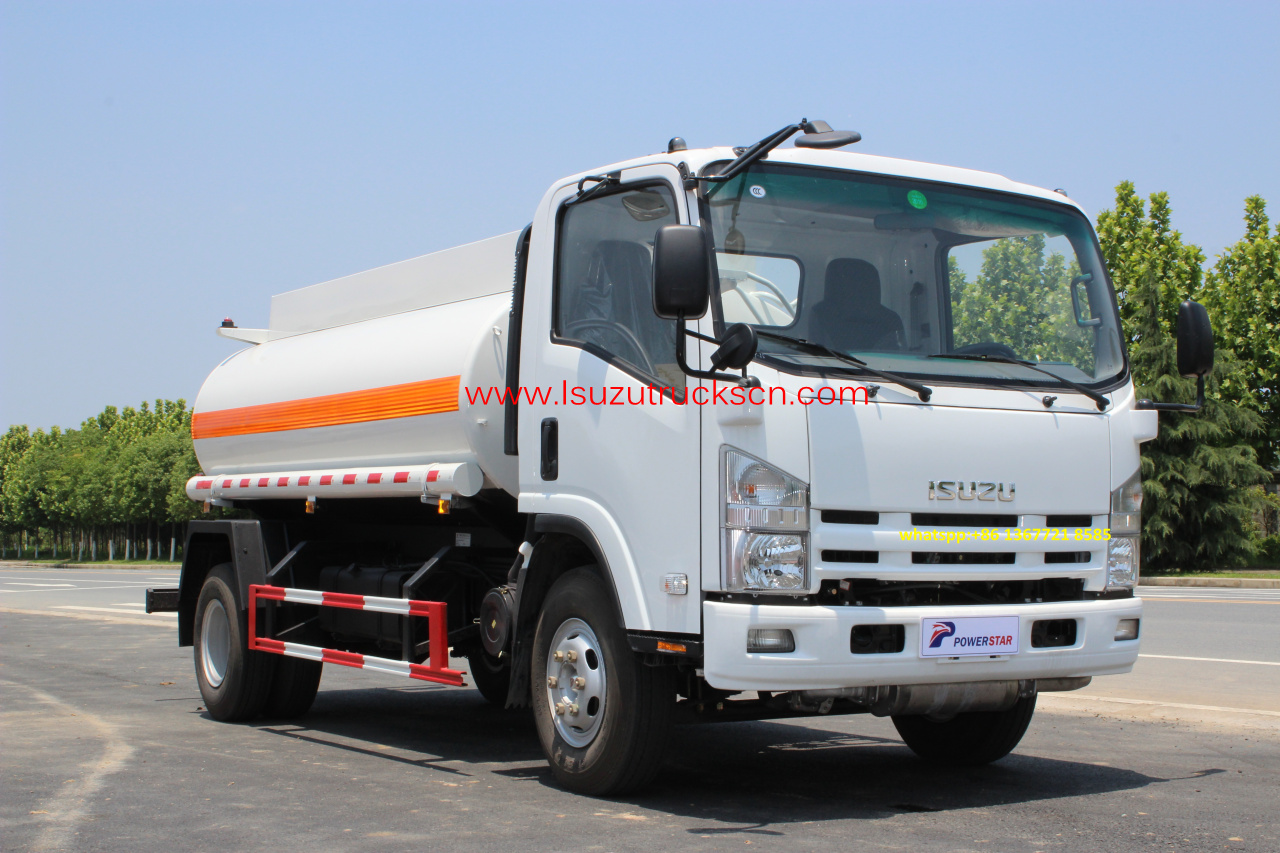

Overview of ISUZU Fuel Tank Truck:
Fuel Tank Body Work:

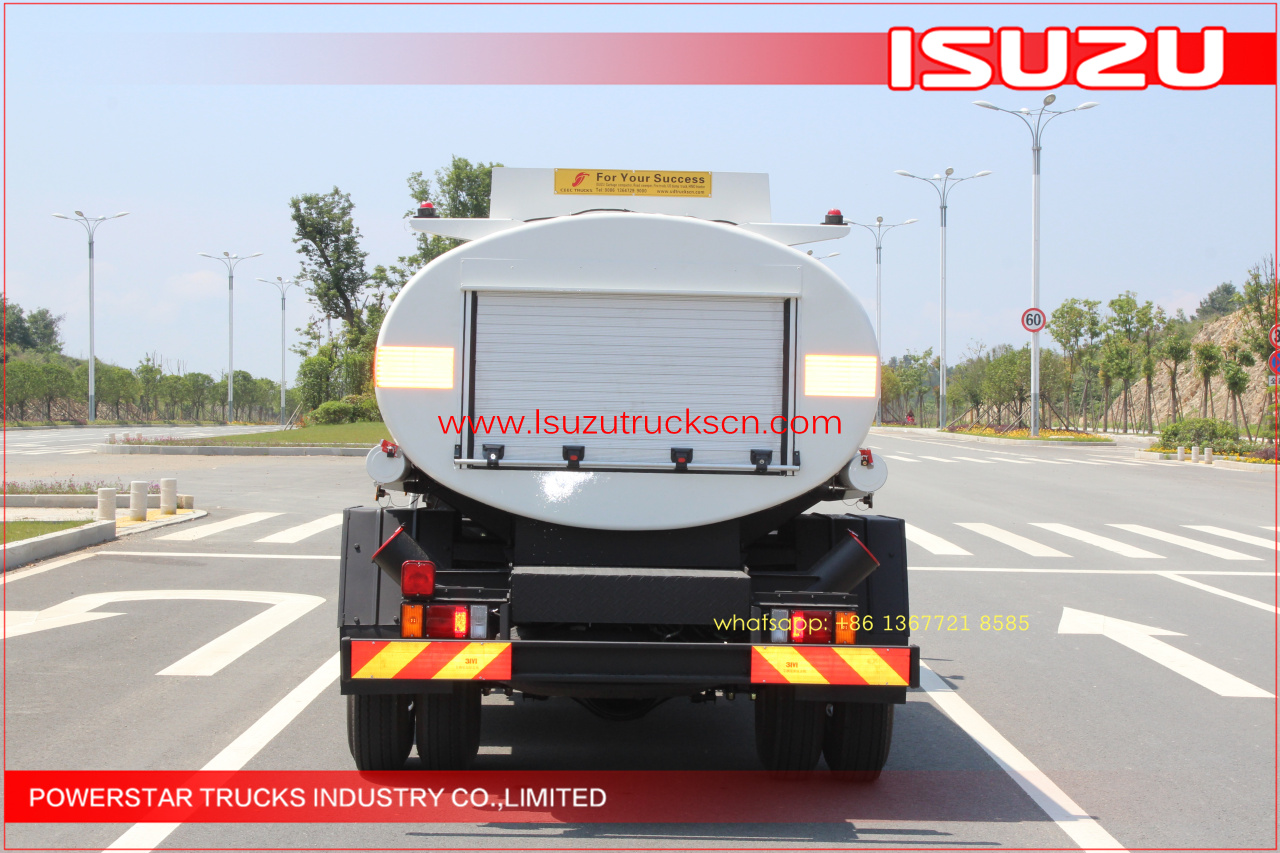

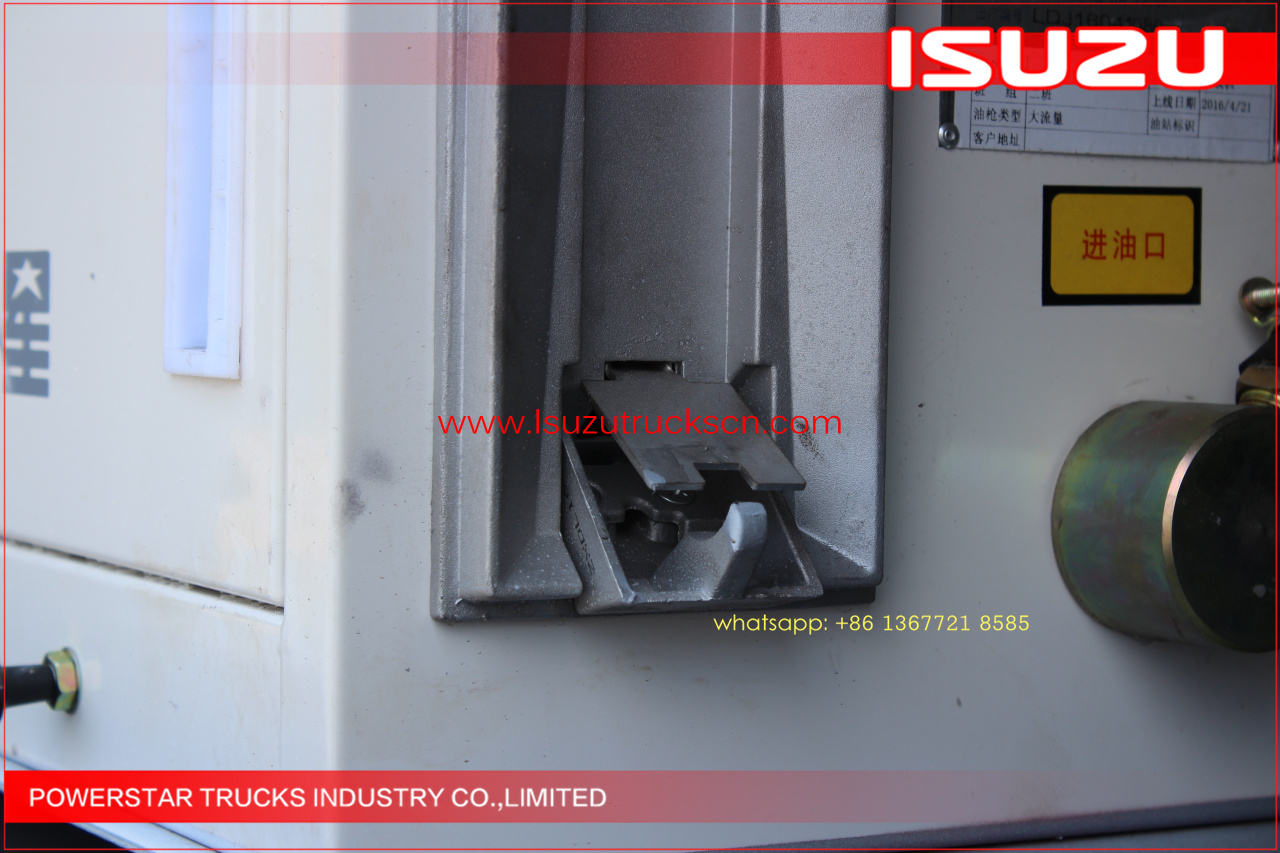

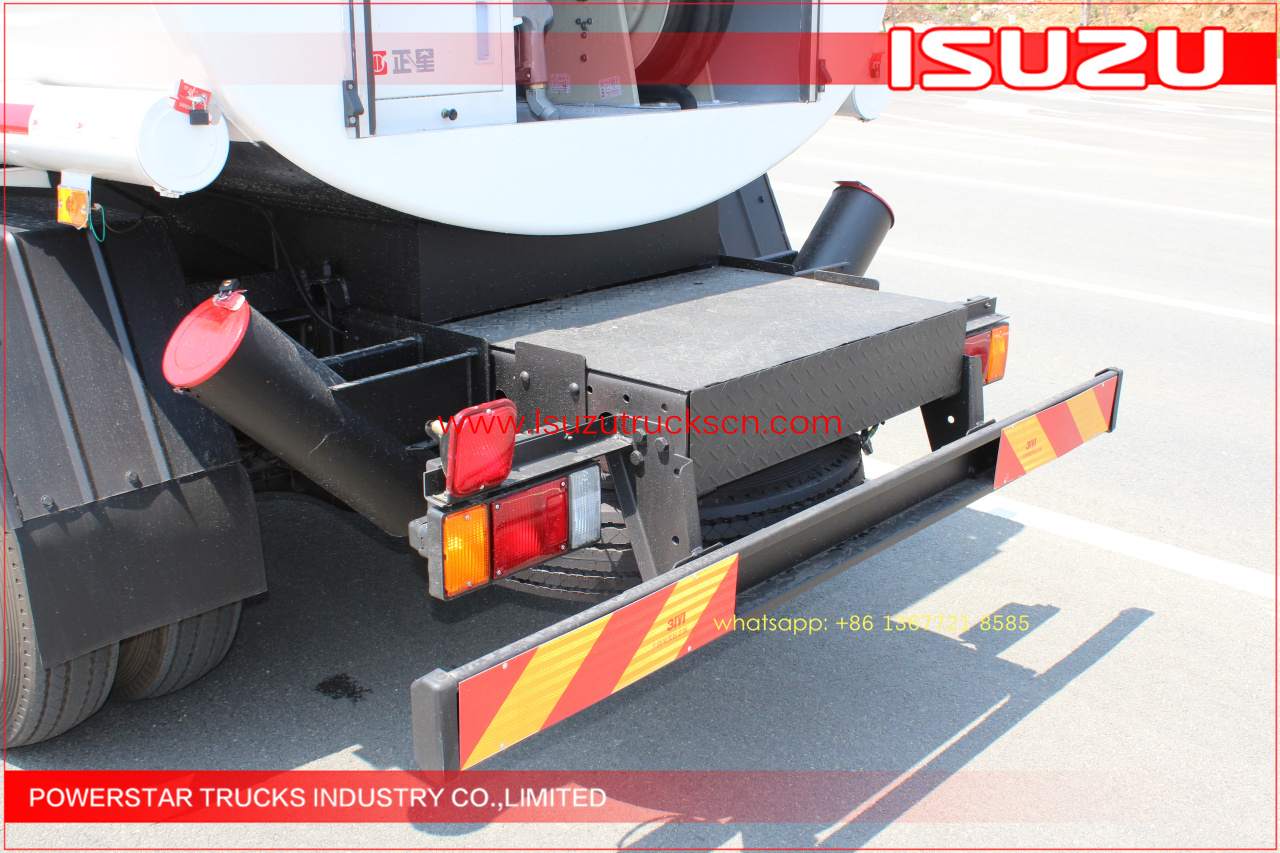

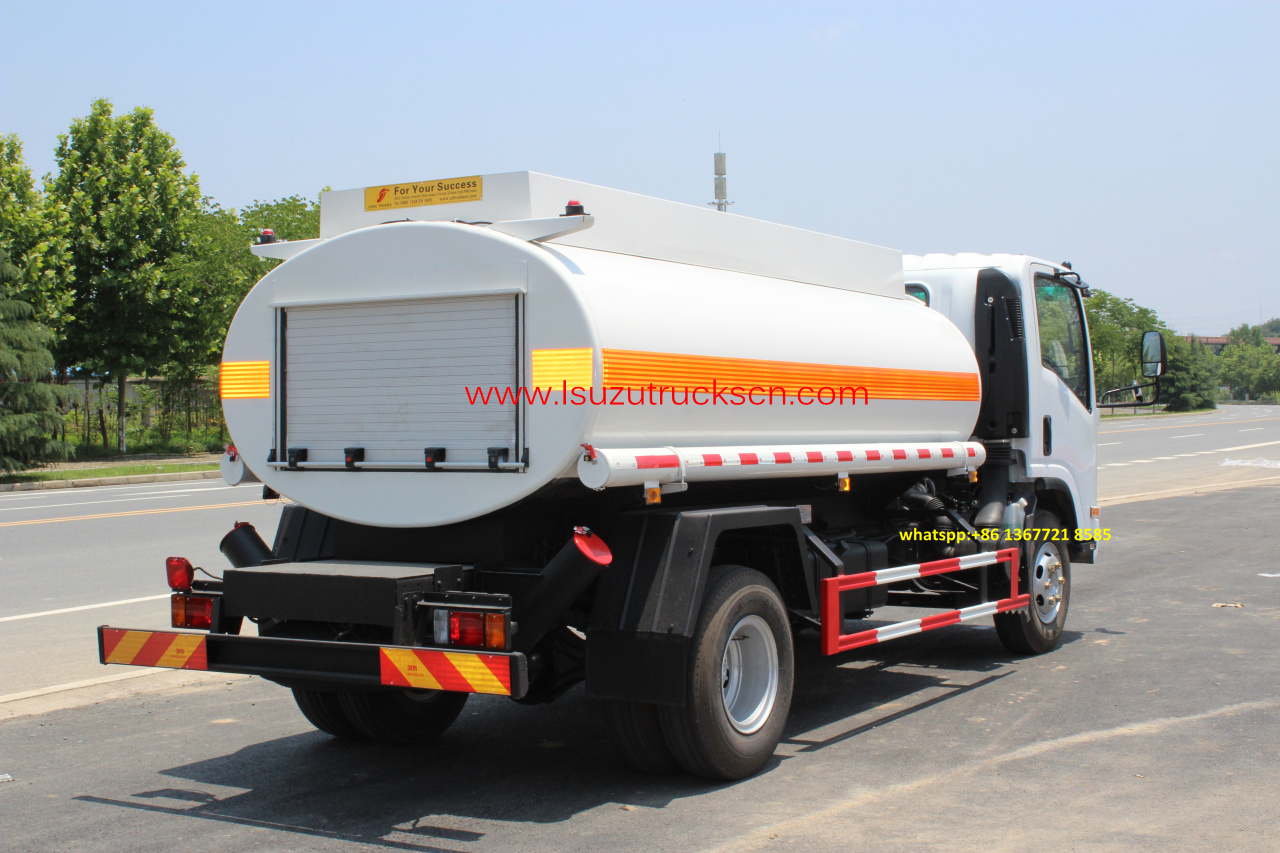

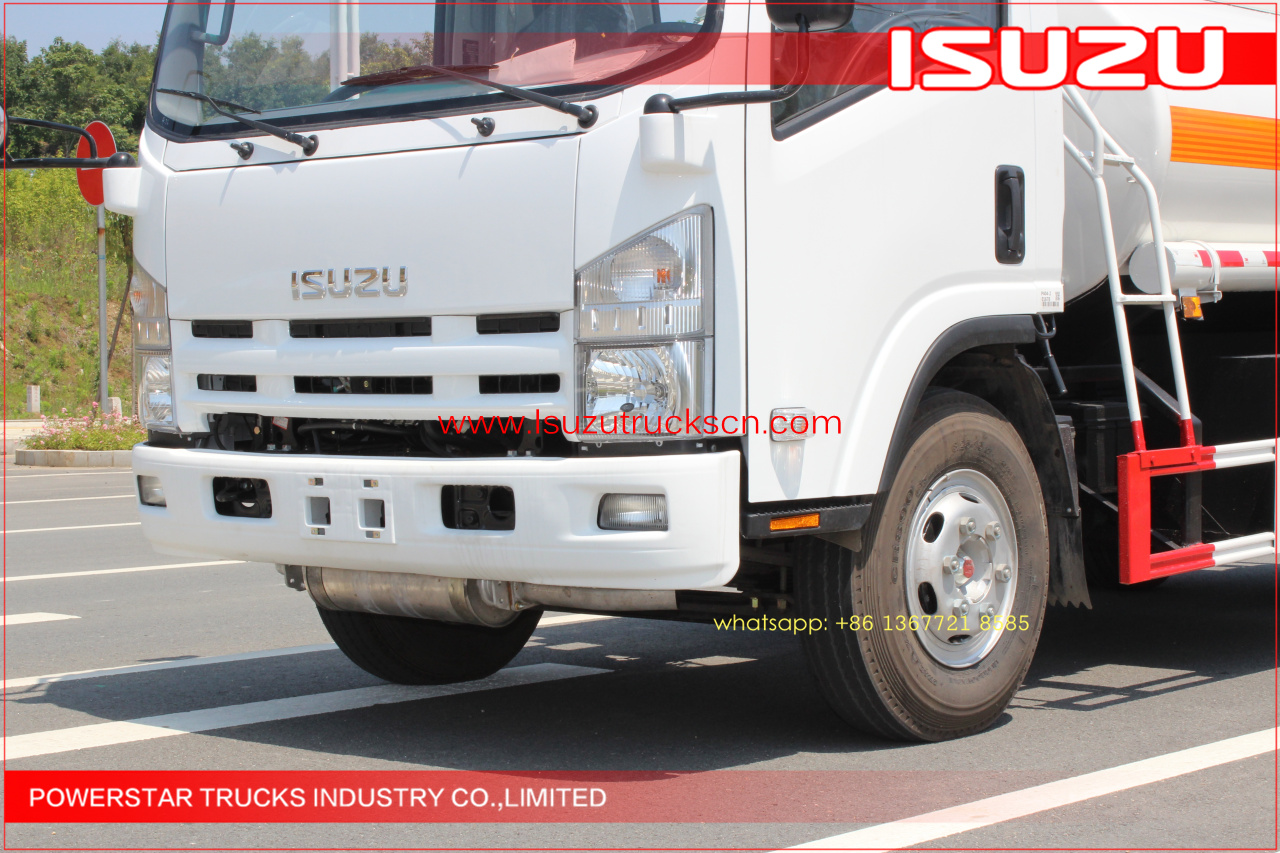

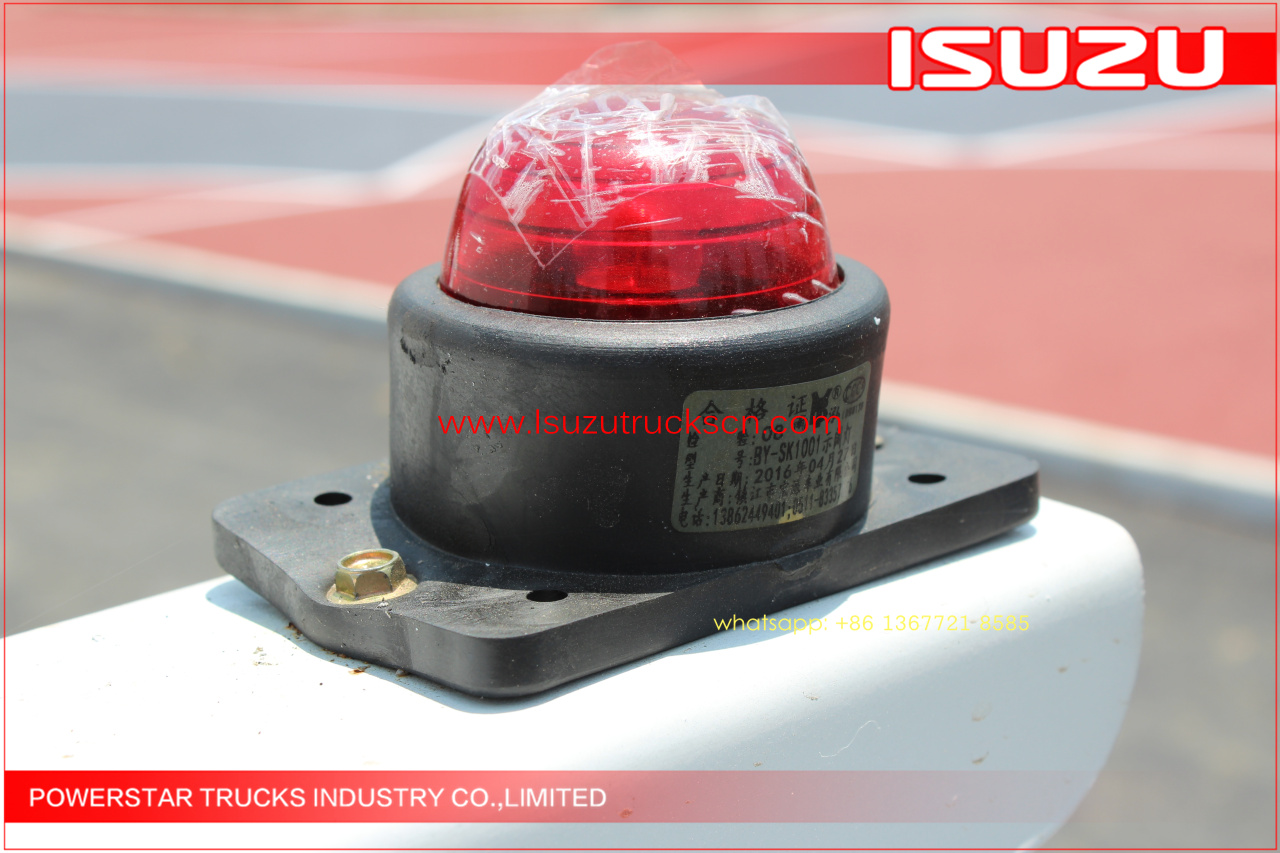

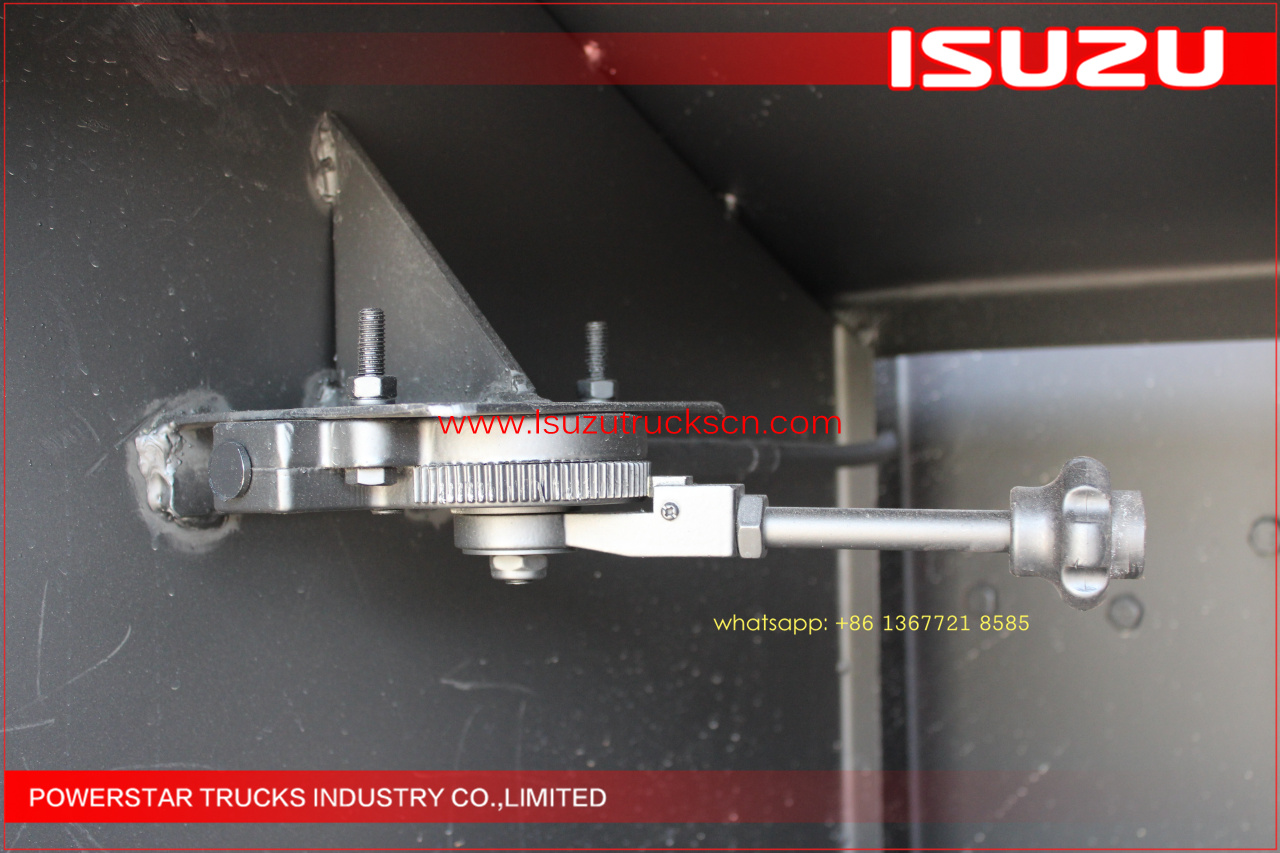

Details picture of ISUZU Fuel Tanker Truck
Optional Equipment of ISUZU Fuel Tanker Truck

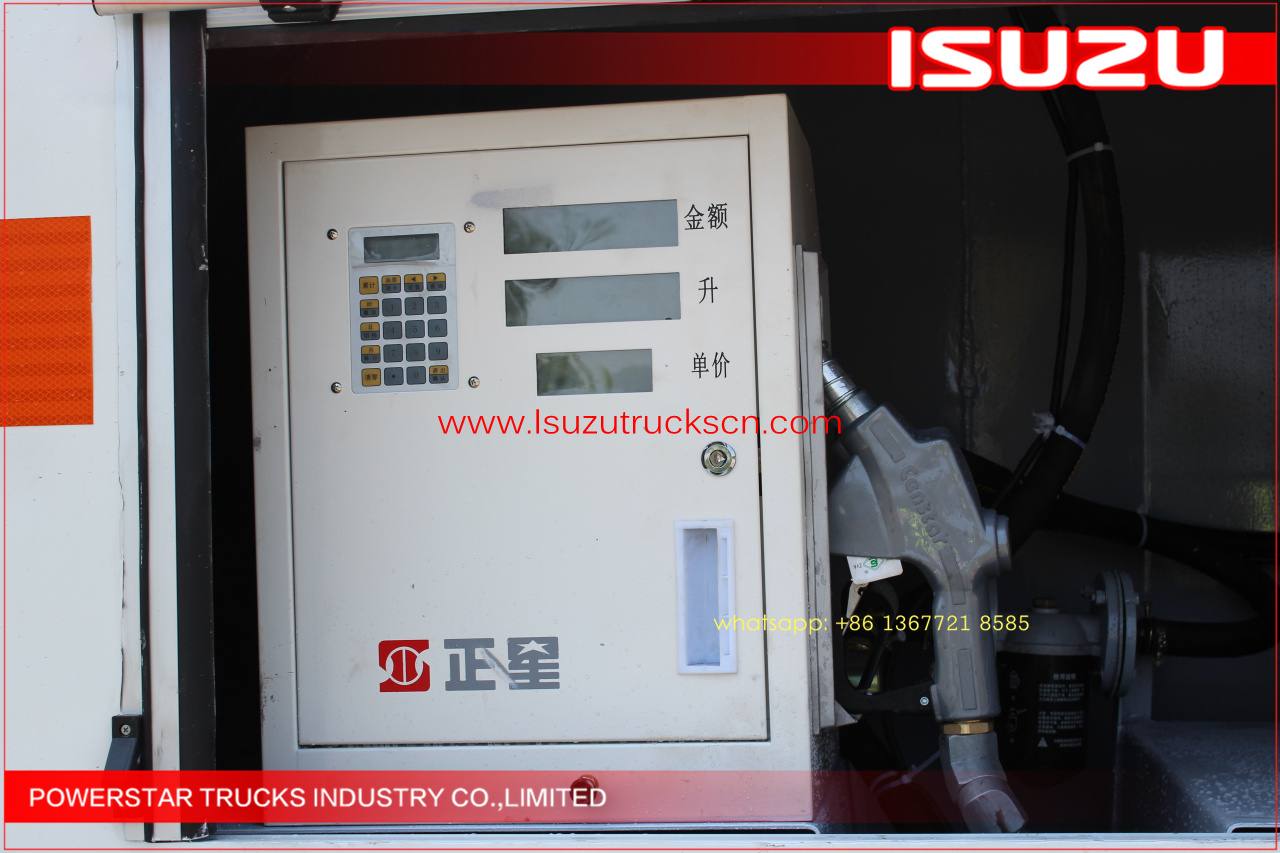

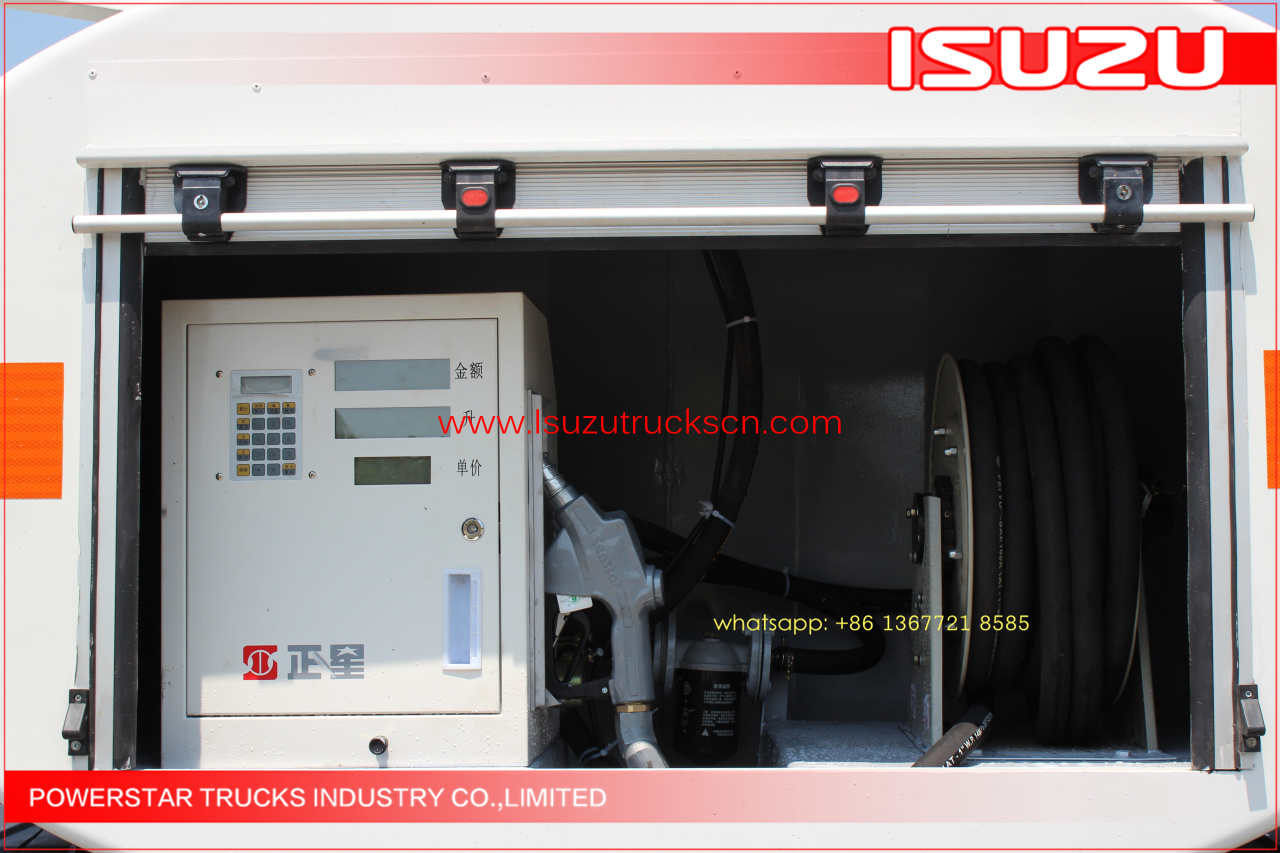

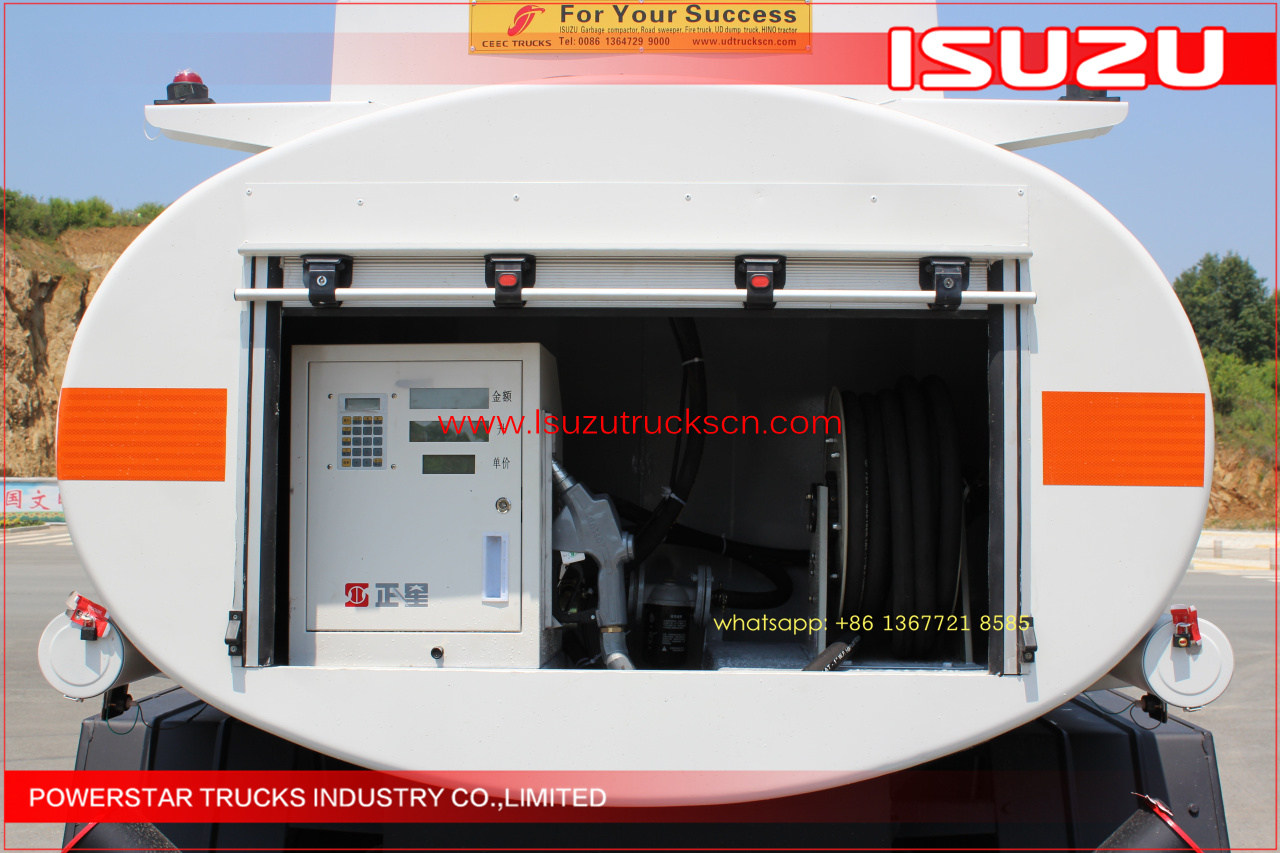

Computer Fuel Dispenser
API Adaptor Valve
Bottom Valve
Manhole Cover
Ball Valve

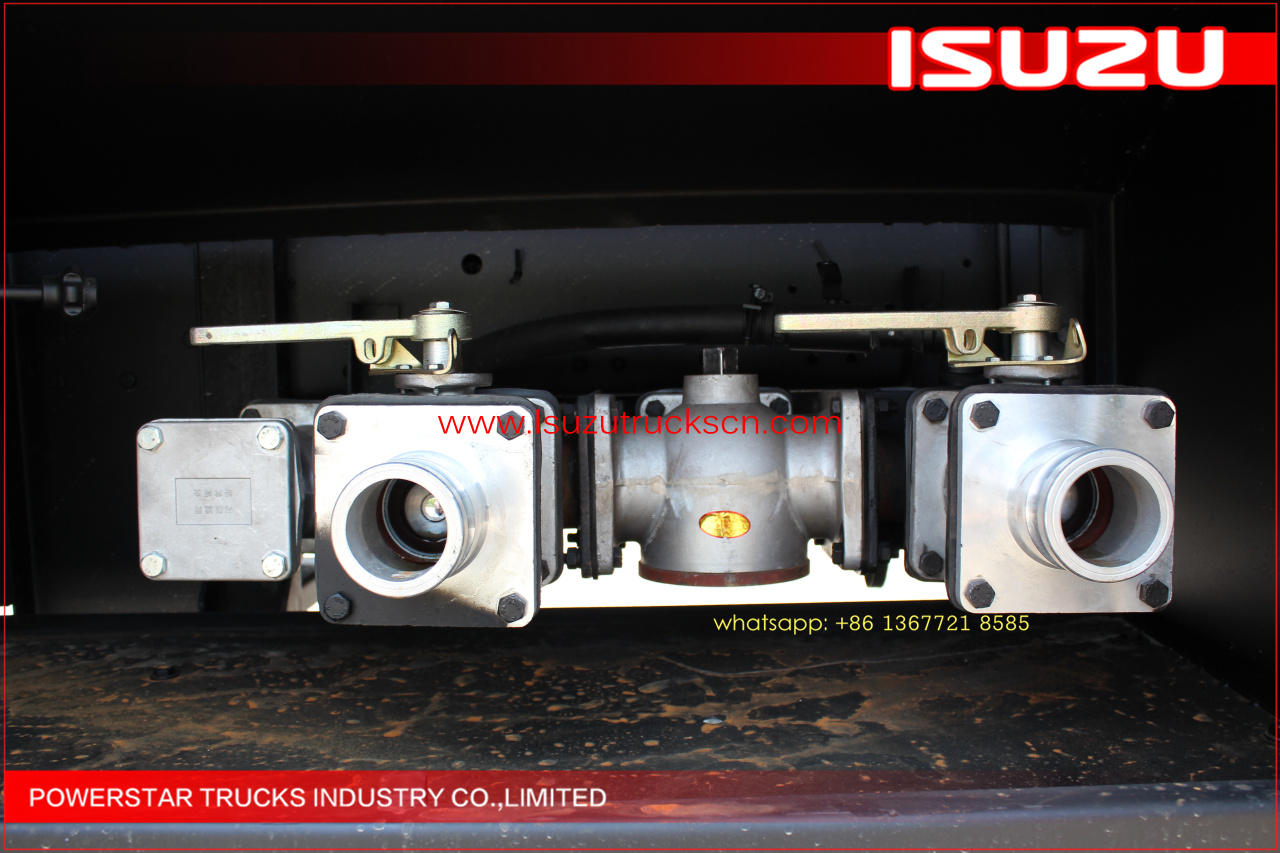

Three Ways Set Ball Valve
Level Gauge
Oil and Gas Recovery Valve
Main specifications:
PT5100GJY |
||
Driving Type |
4x2 (Left hand drive) |
|
Wheelbase |
4175 mm |
|
Engine |
139 kw (190hp) |
|
Tyre |
8.25-20 |
|
Tank |
Material: |
Carbon steel(Q345) |
Shell Body |
5 mm nominal thickness |
|
Head |
6 mm nominal thickness |
|
Baffles |
3mm nominal thick, wave shape, four pieces with Ø 500mm service port |
|
Tank shape |
Ellipse |
|
Capacity |
Full capacity 7000L |
|
Compartment |
No |
|
Shell Finish |
Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement. |
|
Testing Pressure |
36kPa, Water pressure test |
|
Tank Fittings |
Top inlet port |
2pieces |

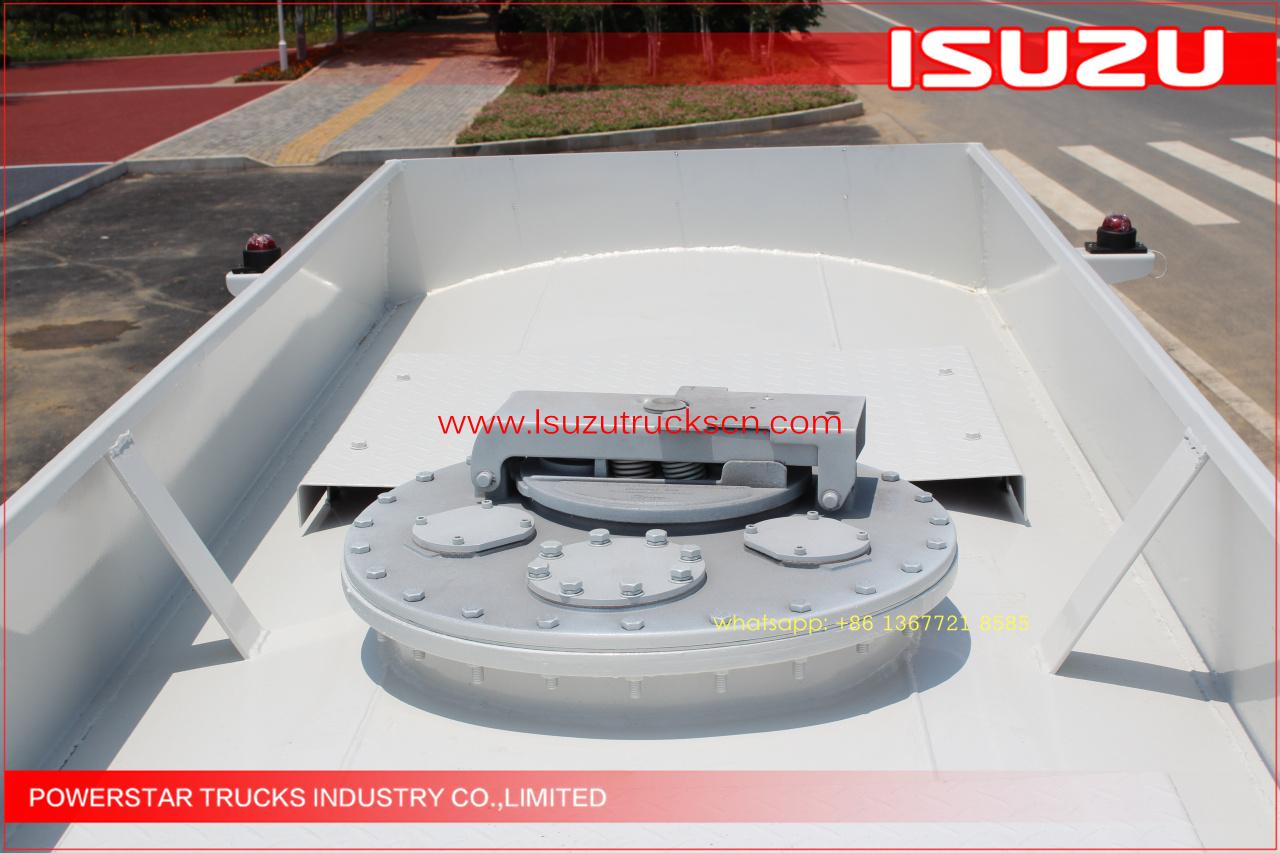

Manhole Cover |
Aluminum alloy, 20” self-latching manhole cover, with air-van. |
|
Outlet port: |
One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector. |
|

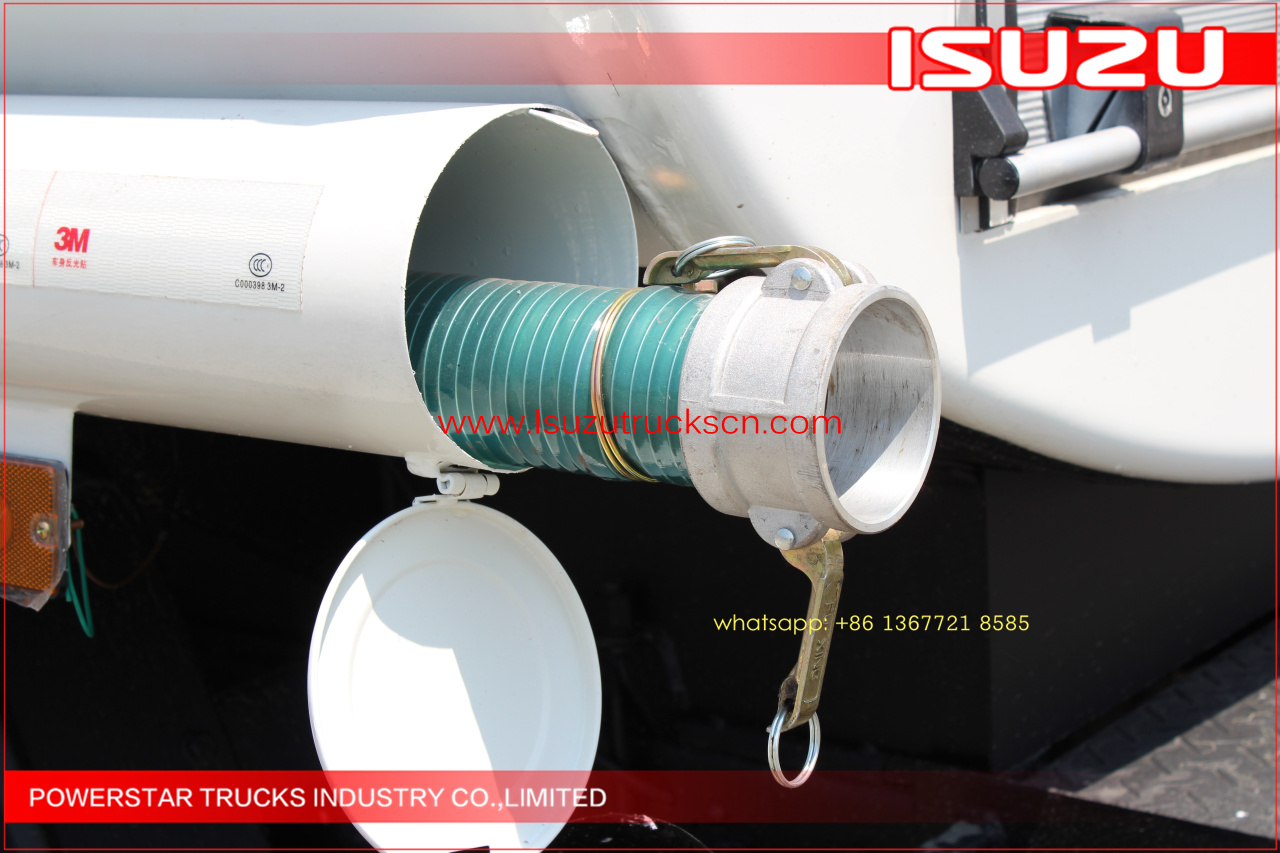

Pipe box: |
It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m) |
|
Anti –Static System: |

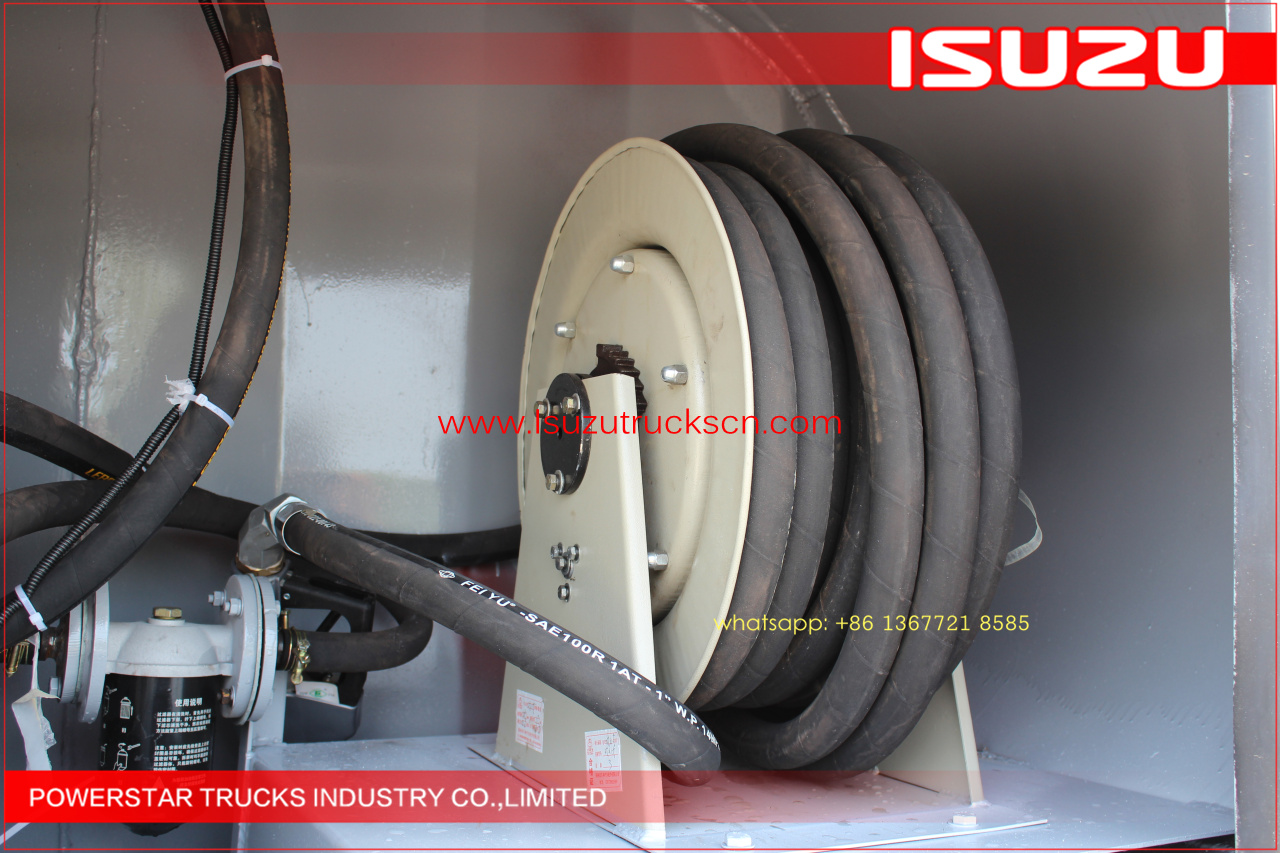

Static electricity plate , copper plate and earth cable reel |
|
Tank Accessories |

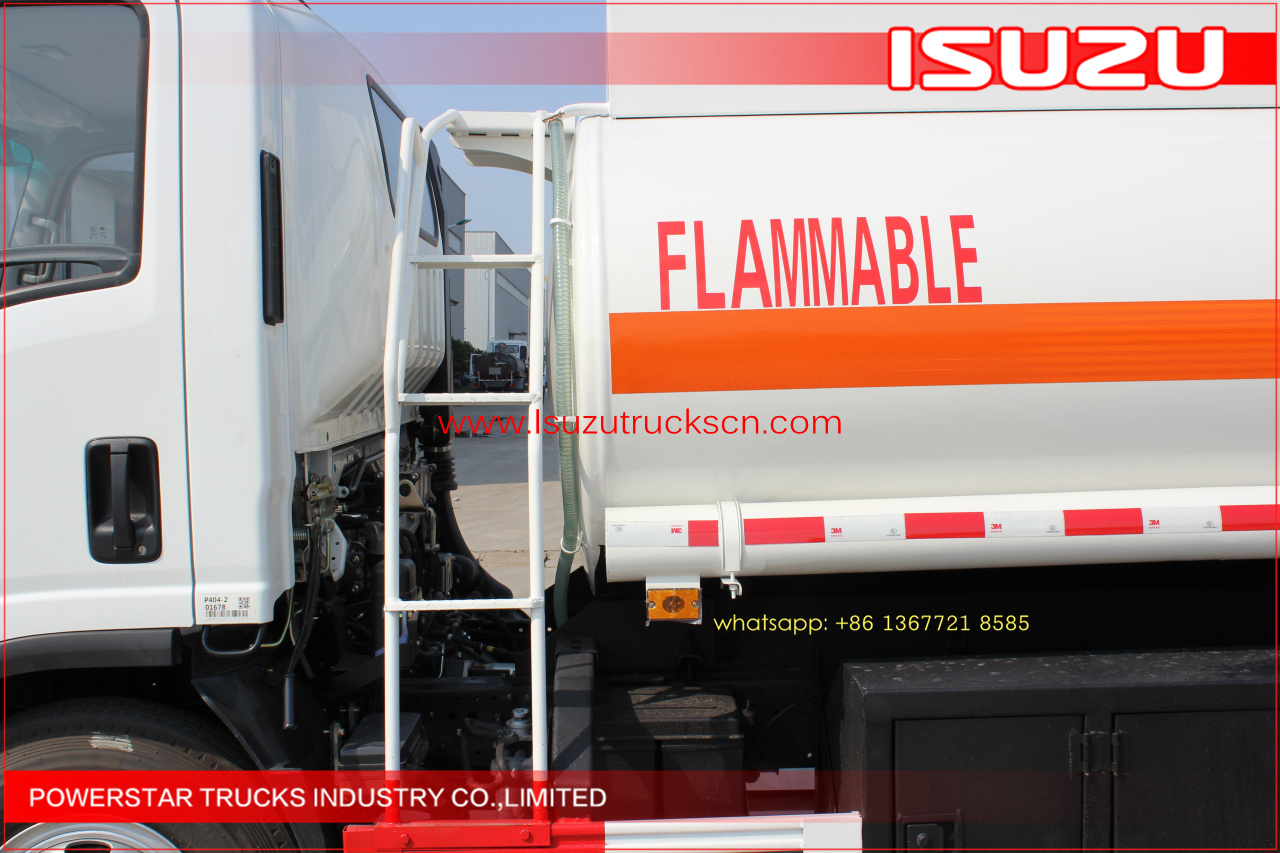

Ladder: |
Stainless Steel ladder fixed at rear of tank |
Walkway Platform: |
It fixed on the top of tank with anti – skid surface treatment. |
|
Handrail: |
No |
|

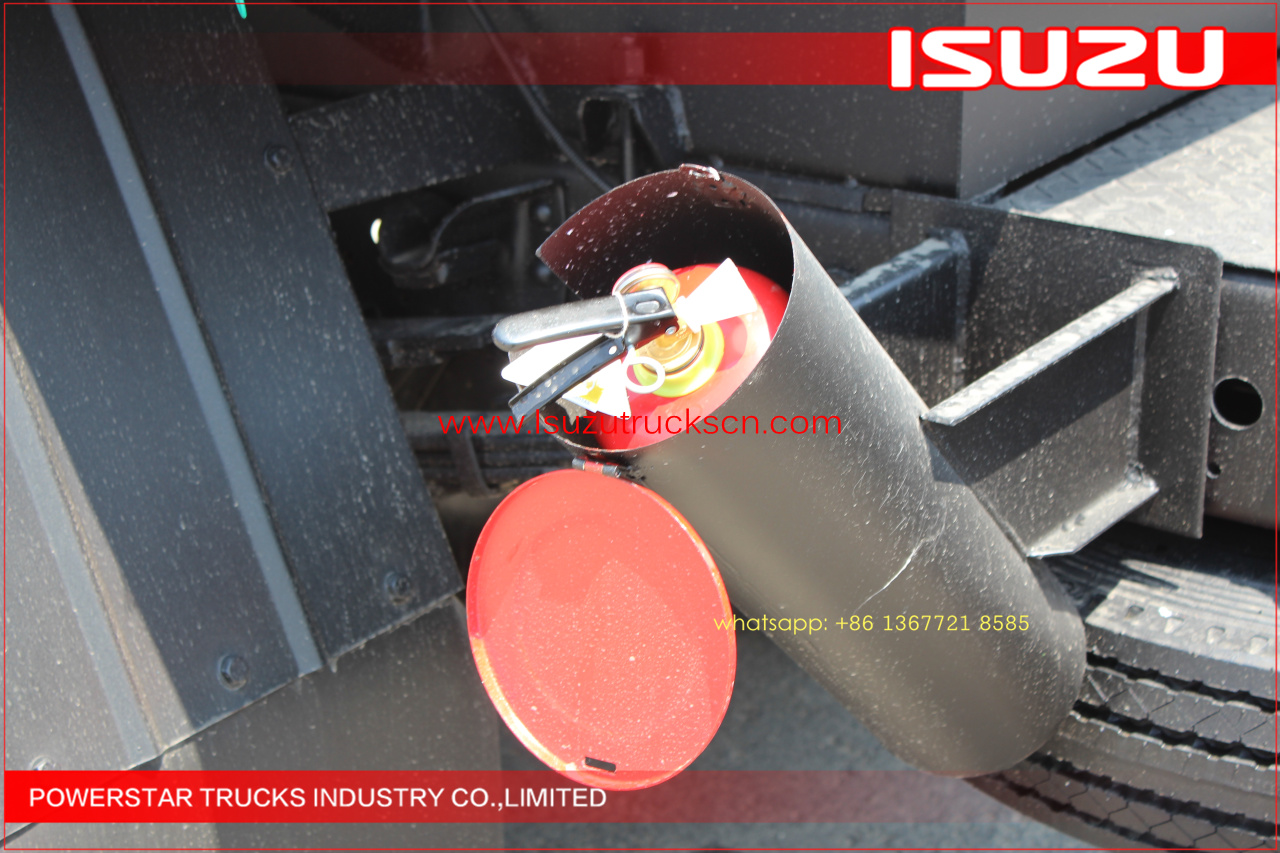

Fire Extinguisher Housing: |
2 units, suitable for 4 kg’s fire extinguisher |
|
Pump Device |
Yes |
|
Flow meter |
Yes |
|
Tool box |
Small box |
|
Color |
As option |
