ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
Order(MOQ):
1

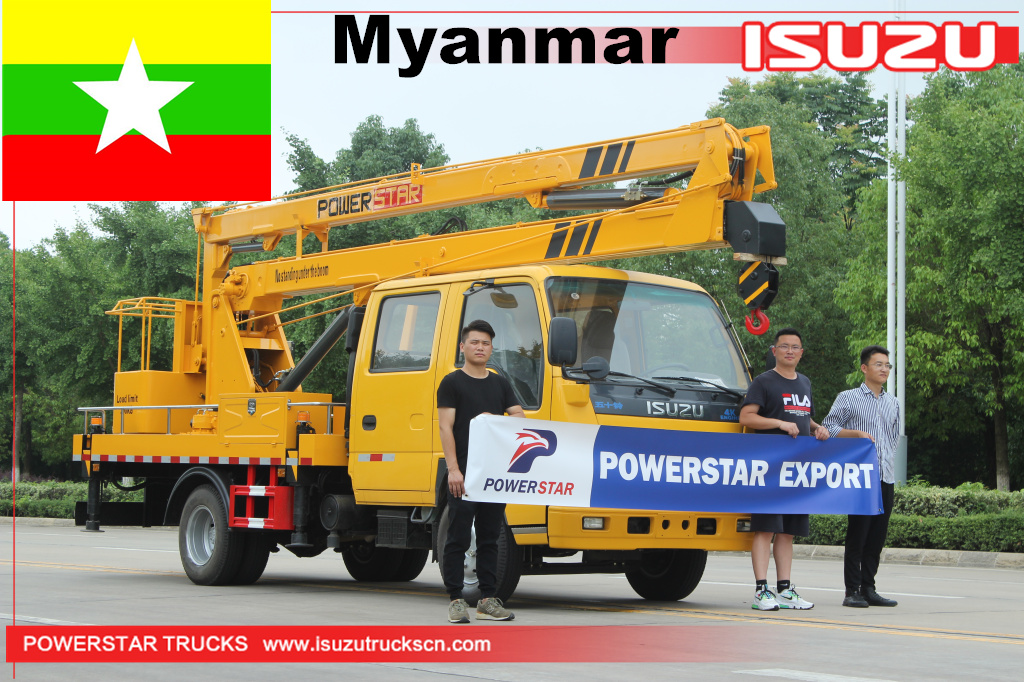

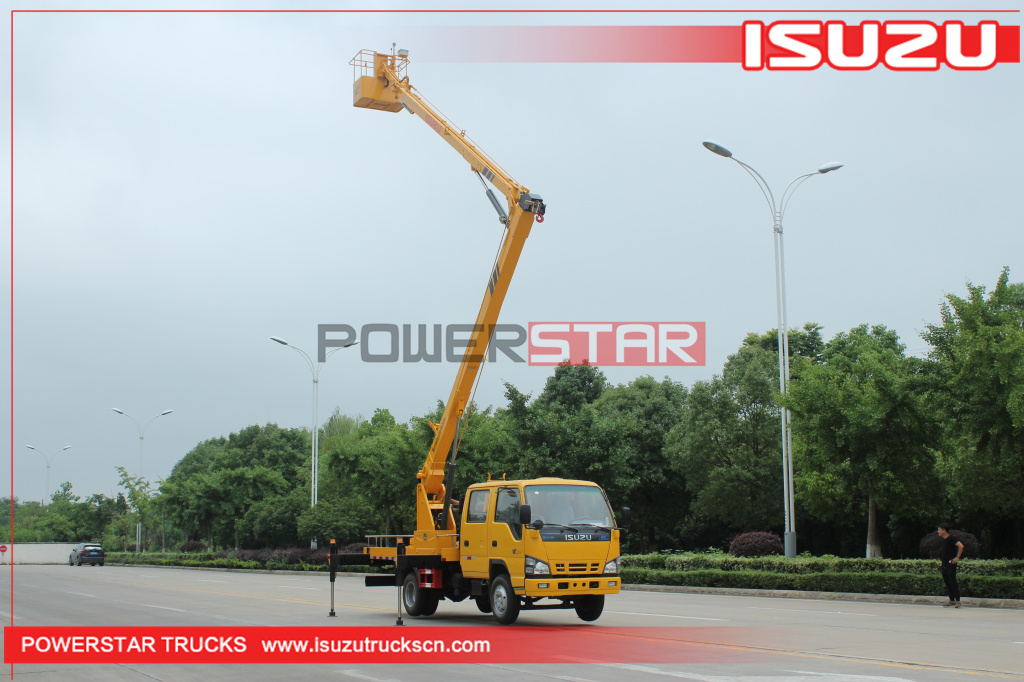

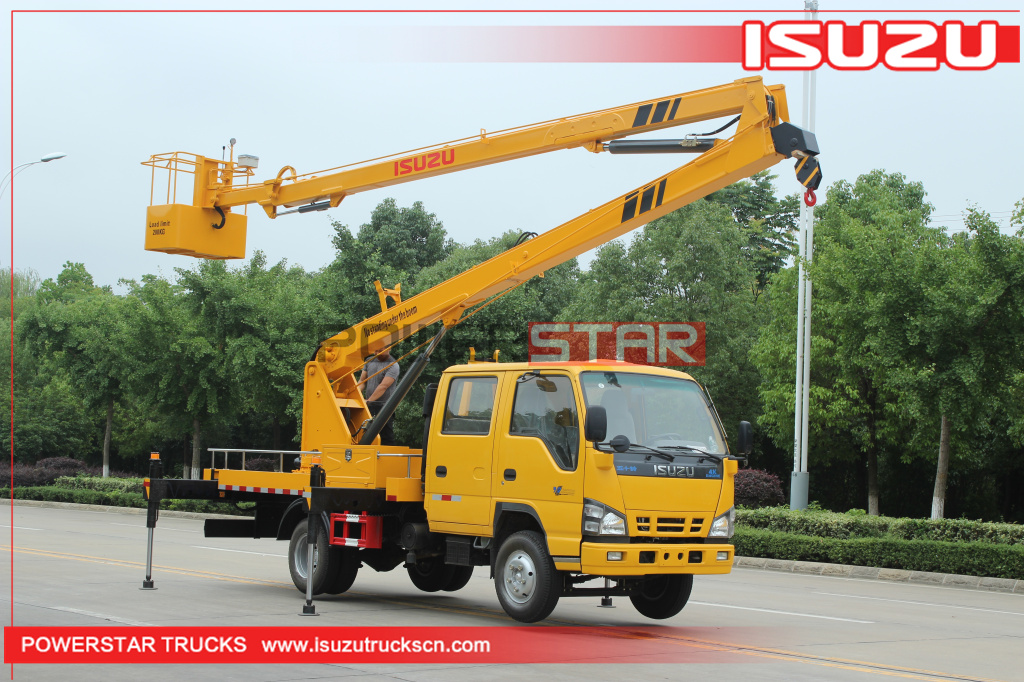

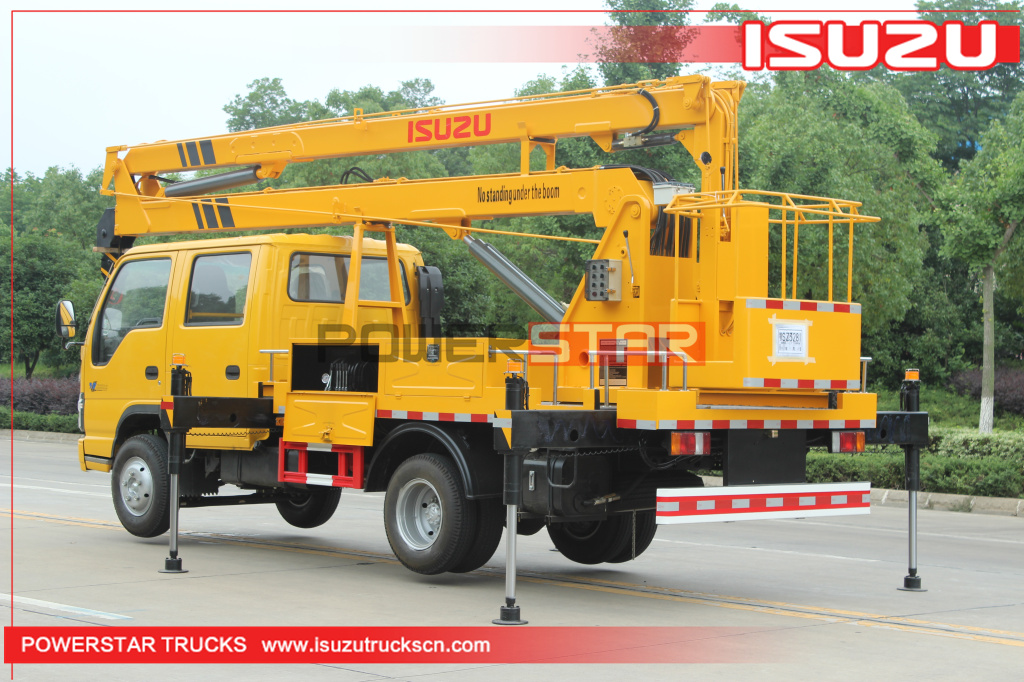

ISUZU 600P Man Lifter Aerial Altitude Working Truck
ISUZU 600P Aerial Altitude Working Truck (also called Isuzu man lifter truck, Isuzu aerial working vehicle, Isuzu aerial platform truck etc) suitable for the construction of electrical and telecommunication infrastructures, that are essential for daily life. A variety of models are also available for general construction.
Also ideal for maintenance of traffic lights,
street lights, landscaping trees, cleaning/setting signboard and other
high aerial works.
|
100% custom-made
|
|
|
10m to 32m available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU Aerial Platform Truck |
||
|
Vehicle Brand Series |
ISUZU 600P |
||
|
Vehicle Model |
PST5310TGK |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
7550*2000*3100 |
|
Gross weight |
kg |
7,300 |
|
|
Kerb weight |
5,500 |
||
|
Wheelbase |
mm |
3,360 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU 600P |
||
|
Tire size |
7.00-16 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
4KH1-TCG40 |
|
|
Type of fuel |
Diesel |
||
|
Power |
120HP |
||
|
Max speed |
Km/h |
110 |
|
|
Emission standard |
EURO 4,5,6 |
||
|
Lifting performance |
Max Working height |
16m |
|
|
Max Working radius |
7.1m |
||
|

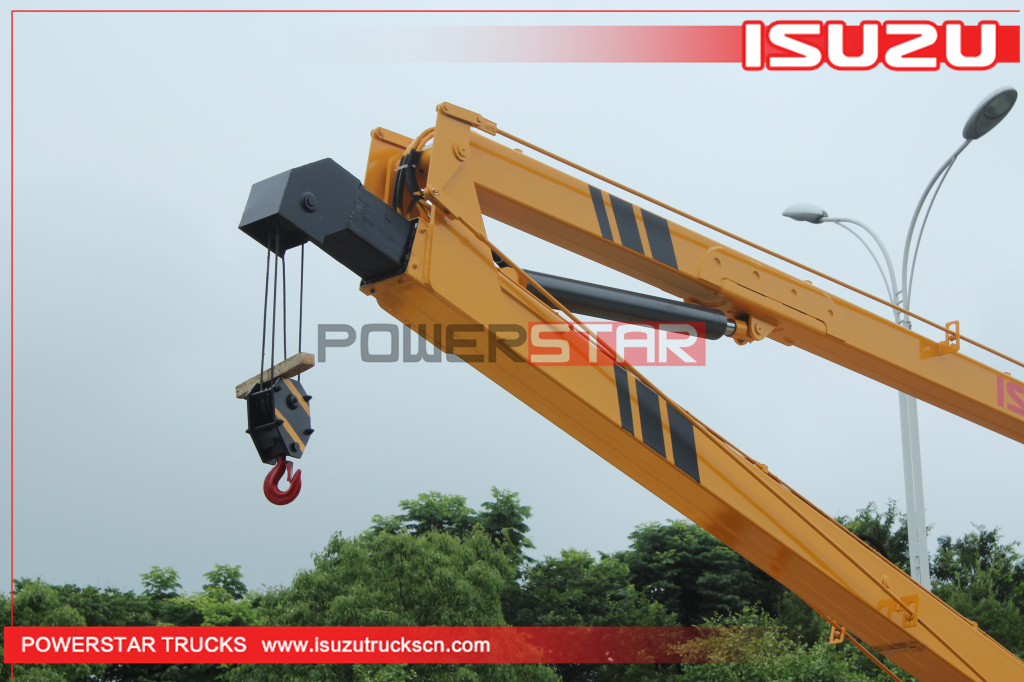

Hook |
1000kg |
||
|
Bucket/Cage |
200 kg loading capacity |
||
|
1100x1100x660mm |
|||
|
Boom |
Three-section, Articulated Rotation Angle 360 |
||
|

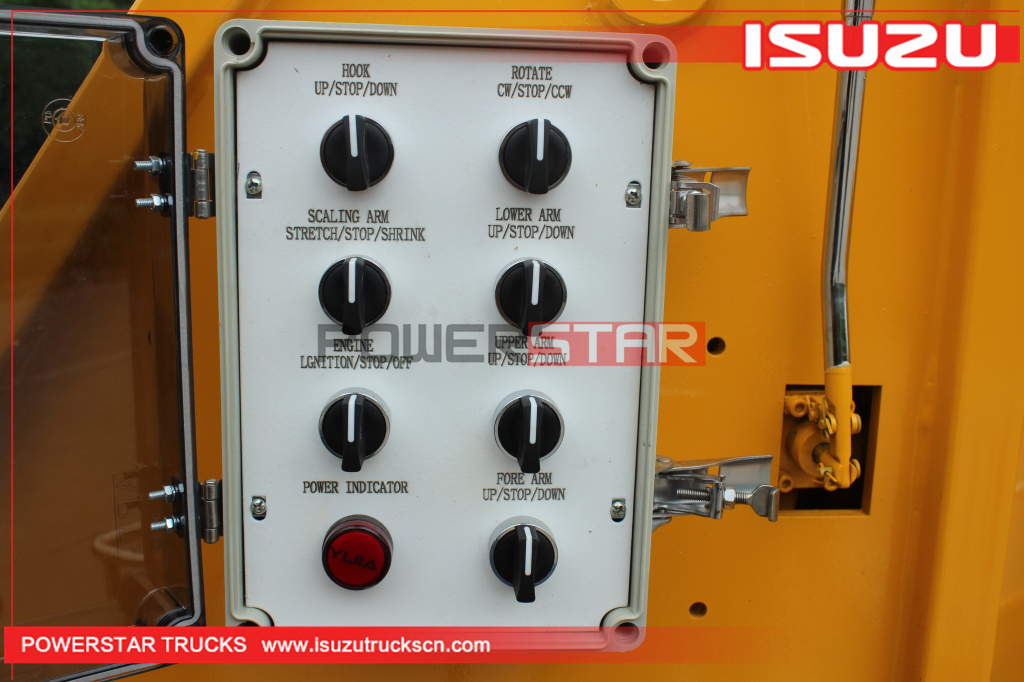

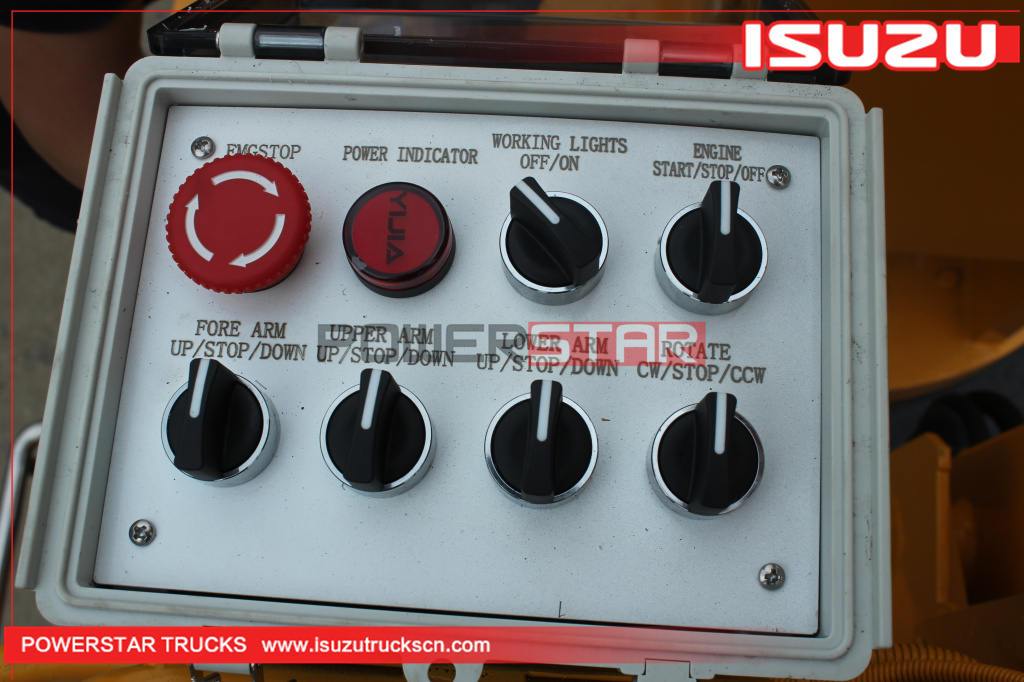

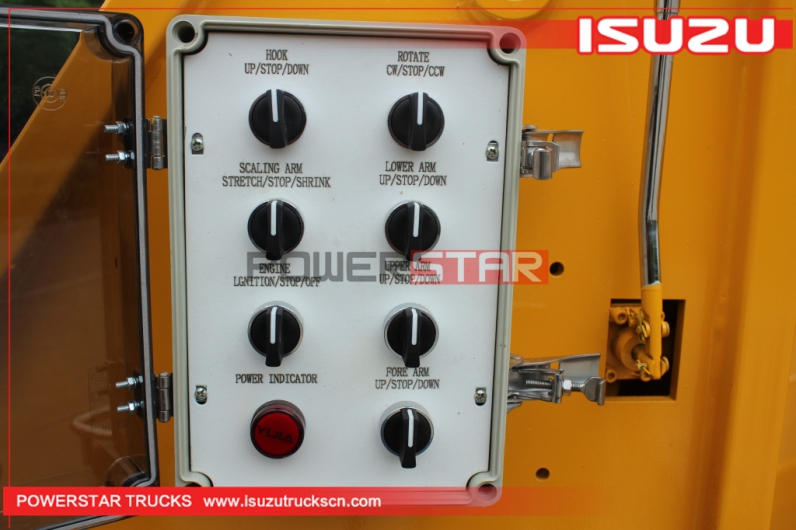

Control |
Control both on the ground and remote control in cage |
||
|
Outrigger |
4 pcs/Adjusted separately |
||
|
Leveling System |
Hydraulic stabilizer to level the vehicle on uneven ground |
||
|
Operation |
Hydraulic control lever system |
||
|
Control Panel |
English |
||
|
Emergency pump |
Included, When the engine and main pump fail, workers can be sent back to the ground |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system,Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Other Working height (with any option)
2, Fiber-glass bucket 3, Italy imported multi-way valve 4, Optional remote control |
||
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
ISUZU Man lifter Aerial Working Platform High Altitude Working Truck
Key words: ISUZU aerial work platform truck, ISUZU Skylift vehicle, ISUZU cherry picker
