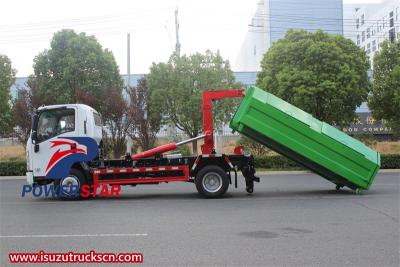

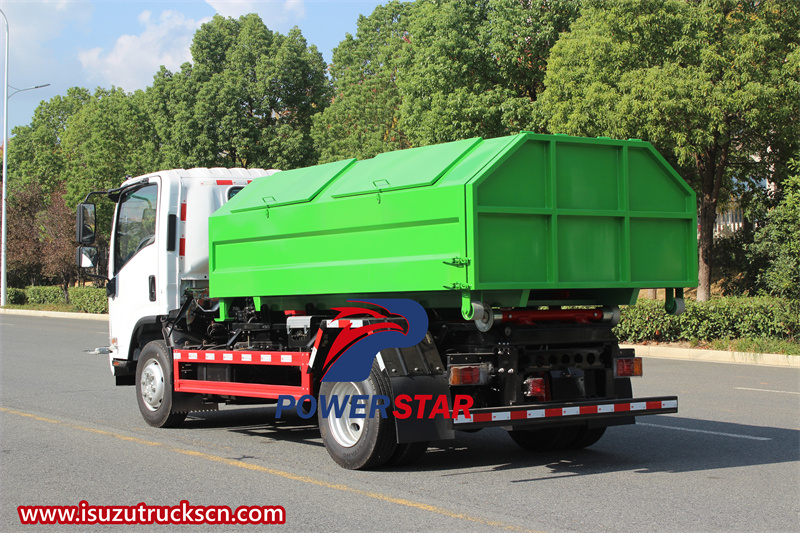

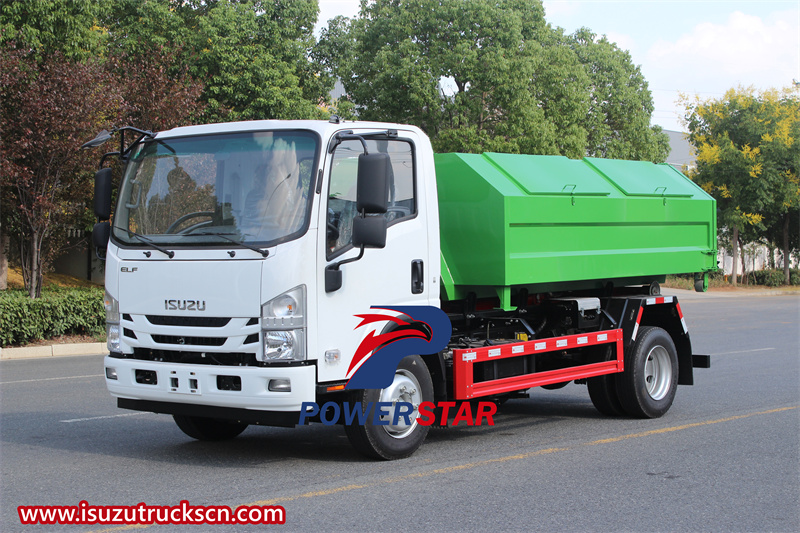

Isuzu ELF roll on roll off truck

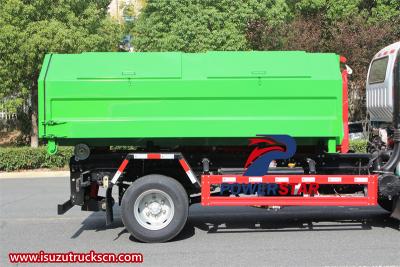

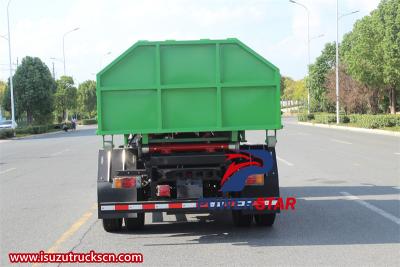

Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck
Isuzu ELF multilift hooklift truck

Isuzu ELF roll on roll off truck

The Isuzu ELF 700P hooklift truck is a medium-duty commercial vehicle that combines the reliability and durability of the Isuzu ELF series with the professional functionality of a hooklift system. It can be used for transporting goods, material handling on construction sites, waste disposal, and a variety of other logistics tasks. With its flexible hook system, this truck can easily load and unload a variety of containers and equipment, providing customized solutions for the needs of different industries.

  • Work capacity:

    6 tons
  • Truck model:

    PT5110GLB
  • Engine power:

    190HP
  • Engine type:

    ISUZU 4HK1-TCG61
  • Axle drive:

    4X2,LHD
  • Gear box:

    Isuzu MLD 6-speed,manual
  • Remarks:

    6 tons Hook lift garbage truck

Products Description

Isuzu ELF roll-on roll-off truck also called Isuzu ELF multilift hooklift truck,Isuzu 700P hook loader garbage truck,Isuzu ELF 700P 6ton hook loader box truck,Isuzu hook-lift truck with container,Isuzu NPR roll-off hook lift garbage truck.The Isuzu ELF roll-on roll-off truck represents a blend of robust design, versatile functionality, and advanced engineering. This truck is tailored for applications that require the efficient loading, transporting, and unloading of various cargo, particularly those that benefit from a hooklift system. Isuzu ELF roll on roll off truck

The Isuzu 700P 6ton hook loader truck is a versatile vehicle that can be used for transporting freight, material handling on construction sites, waste disposal and a variety of other logistics tasks. Its trailer design allows this truck to load and unload a variety of items with ease, providing an innovative approach to material handling, transportation and logistics challenges.





Specifications

Isuzu ELF roll on roll off truck

VEHICLE PARAMETERS

Vehicle model

PT5110GLB

Chassis brand

ISUZU

Overall dimensions

5810*2200*2340mm

Wheel base

3360mm

GVW

10550kg

Curb weight

4500kg

Loading weight

6tons

Maximum speed

105km/h

Cab

Configuration

Isuzu 700P single row cab, with air conditioner, allowable 3 passengers, with ABS, with air suspension seat

Engine

Model

ISUZU 4HK1-TCG61

Emission

Euro 6

Type

4 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine

Rated power

190HP/139Kw

Displacement

5193ml

Rated speed

2600rpm

Max.torque

507N·m

Tire

Size

235/75R17.5 Tire, With one spare tire

Number

6+1 pcs

Front axle loading

4tons

Rear axle loading

7tons

Rated voltage

24V,DC

Transmissions

Isuzu MLD 6-speed,manual

Steering device

Power assisted steering

Steering wheel

4x2,Left hand drive

LIFTING SYSTEM

Lift capacity

6tons

Garbage bin material

Carbon steel

Sidewalls

Sheet carbon steel (thickness: 5 mm)

Bottom

Sheet carbon steel (thickness: 6 mm)

Discharge time

40S-50S

Discharge system

lifting/dump type

Max dump angle

45°

Hydraulic system pressure

16Mpa

Standard equipment

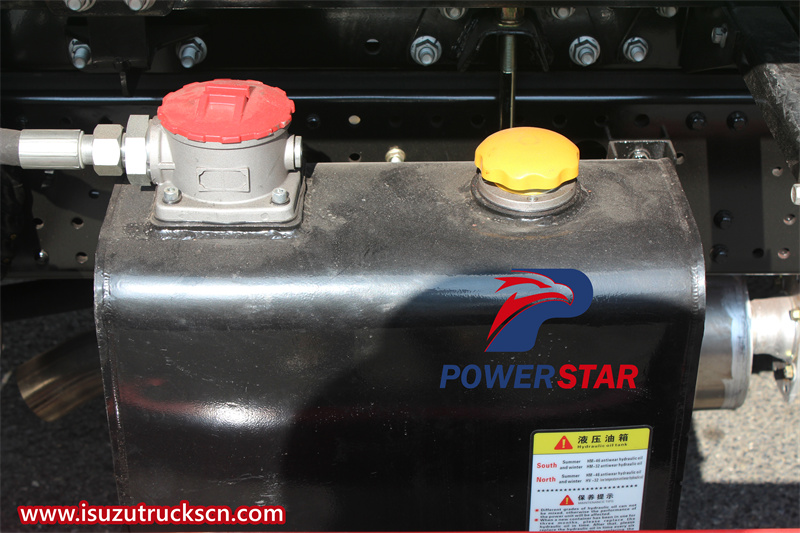

Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm, hydraulic oil pipe , hydraulic oil tank,  Hydraulic strengthen rear outrigger.

Operation way: Manual and Wireless remote control operation.

One dumper box,



Applications

Isuzu 700P 6-ton hook-arm garbage truck is composed of a car chassis, a main oil cylinder for pulling arm, an attached frame, a turning frame, supporting legs (, locking frame, locking cylinder and multi-way reversing valve. One end of the turning frame is connected to the attached frame, and the other end is provided with a movable pulling arm, and a locking system is installed in the middle; one end of the movable arm oil cylinder is connected to the movable arm, and the other end is connected to the attached frame; the locking mechanism can connect the box on the attached frame with the turning frame and the pulling arm as a whole when the box is unloaded through the action of the locking cylinder, and form a self-unloading angle when the main oil cylinder is extended, and the turning frame and the attached frame can also be locked as a whole by retracting the locking cylinder, and the active pulling arm is used to drag the underground garbage box to the attached frame or put it back to the ground from the attached frame by retracting or extending the main oil cylinder.

Isuzu ELF 700P 6 ton hook lifting garbage truck structure diagramIsuzu ELF 700P 6 ton hook lifting garbage truck structure diagram

Isuzu ELF hook lift truck frame structure diagram

Isuzu ELF hook lift truck frame structure diagram

Isuzu ELF roll on roll off truck

Isuzu ELF roll on roll off truck

Engine and Performance

At the heart of this machine lies its powerful engine, a rugged powerplant designed to tackle tough tasks head-on. Renowned for its reliability and performance, the legendary Isuzu powertrain effortlessly propels the Isuzu 700P Hook-On Roll-Off Truck, ensuring timely deliveries and quick maneuvers even in challenging conditions. Designed for efficiency, this powertrain strikes a balance between power output and fuel economy, reflecting Isuzu's commitment to sustainability and operational excellence.



Design

The Isuzu Hook-On Truck is designed to be both functional and beautiful, with its bold silhouette and signature Isuzu styling cues exuding a sense of power and capability. Built with durability in mind, this hook-on truck features a reinforced chassis that withstands heavy loads and rough terrain, providing a sturdy underpinning for the vehicle's operations. Whether navigating congested city streets or traversing rugged off-road trails, this vehicle is always ready to get the job done.

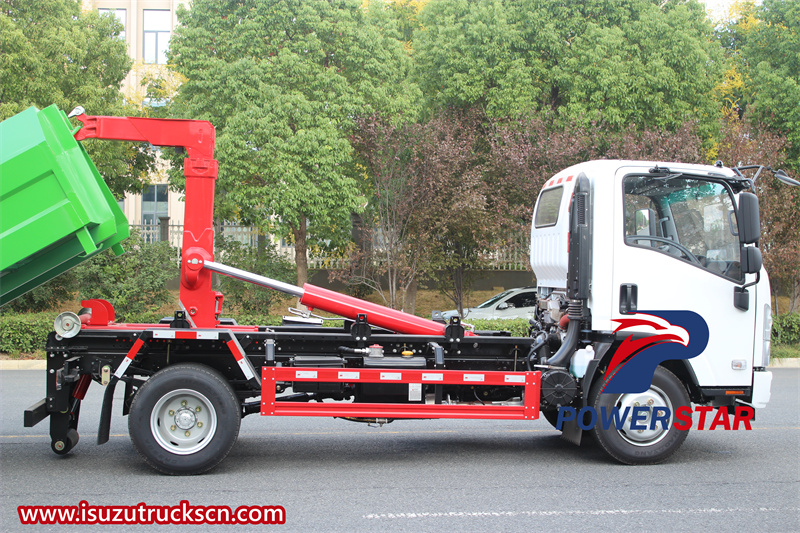

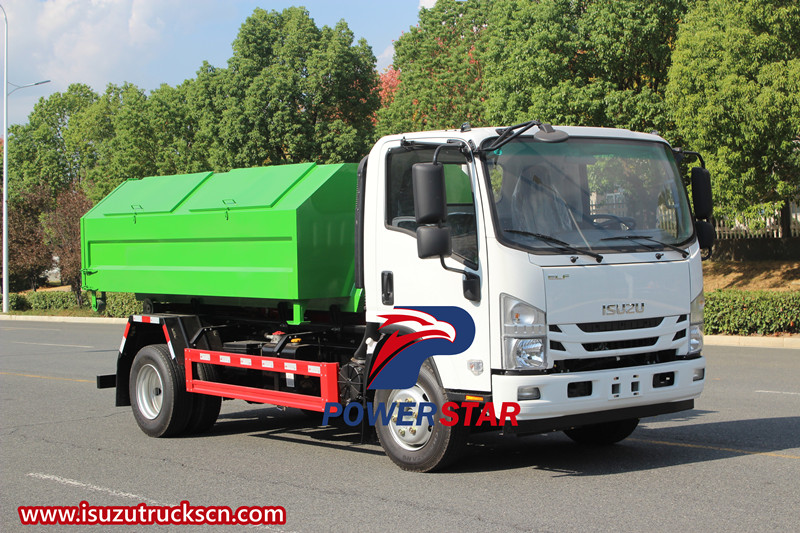

 Isuzu ELF 700P hooklift truck

Isuzu ELF 700P hooklift truck



Hook-lift System

At the heart of the Isuzu ELF roll-on roll-off truck's capabilities lies its innovative hook-lift system, a seamless combination of precision engineering and smart design. The system allows for easy loading and unloading of cargo containers, hoppers or other roll-on/roll-off equipment. The hooklift mechanism is mounted on the rear of the truck and is designed to engage and disengage with compatible cargo units.



The hook lift system operates through a series of hydraulic cylinders and controls, enabling the operator to raise, lower and tilt cargo units. The process is highly automated, reducing the physical effort required from the driver and increasing the efficiency of the loading and unloading process. The system is also designed to be durable and reliable, withstanding the rigors of daily use in a variety of environments.



From construction waste to agricultural products, the Isuzu 700P hook loader garbage truck is suitable for a variety of industries, providing reliable and efficient transportation solutions for a variety of cargo types. Its roll-on/roll-off capabilities simplify material handling, reduce turnaround time and increase productivity on the job site. The integration of the hydraulic system ensures smooth, precise operation, allowing the operator to effortlessly raise and lower containers with precise control.

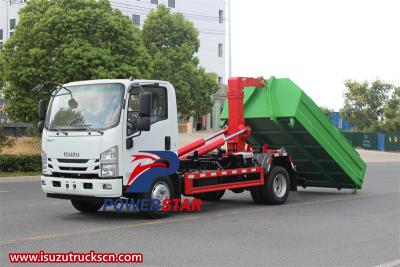

 Isuzu ELF multilift hooklift truck

Isuzu ELF multilift hooklift truck



Cargo Capacity and Versatility

With a payload of 6 tons, the Isuzu ELF 700P hook loader truck is capable of handling a wide range of cargo. The hook system allows for the use of a variety of cargo units, including containers, hoppers and other specialized equipment. This versatility makes the truck suitable for a wide range of applications, including waste management, construction and agricultural transport.



The truck’s cargo area is designed to be spacious and easily accessible, making loading and unloading of cargo easy. The hook system also allows for quick and easy changes of cargo units, increasing the truck’s flexibility and efficiency.



Safety

The Isuzu 700P is designed with safety as a top priority, with features such as its advanced braking system, stability control technology and ergonomic cab design prioritizing the health of the driver and surrounding road users. Equipped with state-of-the-art safety-enhancing features and driver-assist technologies, the 700P inspires confidence and peace of mind, creating a safe and comfortable working environment for the operator.



Isuzu 700P hook loader garbage truckIsuzu 700P hook loader garbage truck

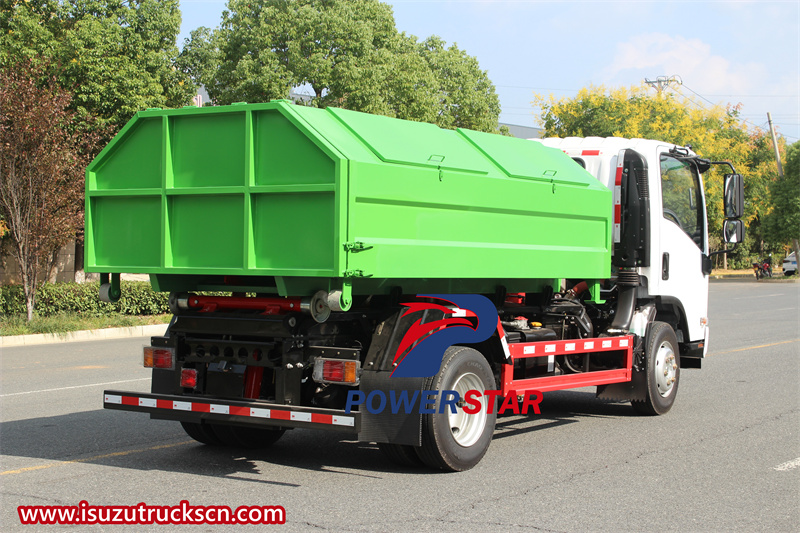

Isuzu ELF 700P 6ton hook loader box truck

Isuzu ELF 700P 6ton hook loader box truck



Operation steps

Before loading garbage on the hook-arm garbage truck, when the no-load operation reaches 6 standard air pressures, hang up the power take-off (lower left of the steering wheel in the cab), check whether there are any leaks or abnormalities in each component, and then operate according to the position indicated by the operation sign;



The specific operation steps are as follows:



Pull up the garbage box of the hook-arm garbage truck

Step 1. Push the locking hook operating handle to the retracted position, retract the locking cylinder, retract the locking frame and lock the flip frame with the attached frame;



Isuzu hook-lift truck with container



Step 2. Pull up the arm operating handle to the extended position, extend the arm cylinder, and rotate the movable arm around the front hinge axis of the flip frame. The arm is in the hook box position, and the arm hook height is adjusted appropriately and aligned with the box body hook;



Step 3. When the arm hook is hooked to the box body hook, continue to push the arm operating handle down to the dropped position to allow the garbage box to continue to load the vehicle (Note: Make sure that the longitudinal beam of the garbage box is located between the two rear rollers at the tail of the attached frame);

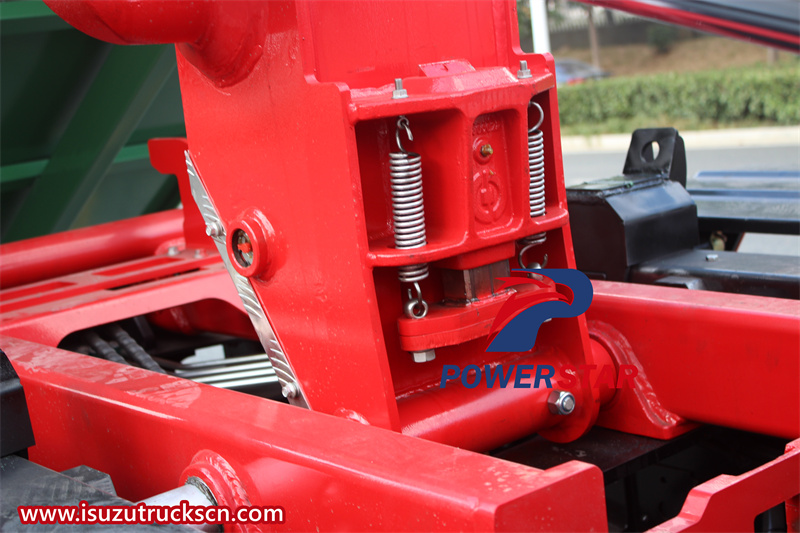

FrameFrame

6ton garbage bin

6ton garbage bin



Step 4. After the garbage bin is dropped onto the vehicle frame, release the arm operating handle to return it to the middle position, then pull up the locking hook operating handle to the locking position, extend the locking cylinder, flip up the locking frame and lock the flip frame and the garbage bin, release the handle to return it to the middle position; complete the loading of the garbage bin, release the power take-off, and the whole vehicle can be transported.



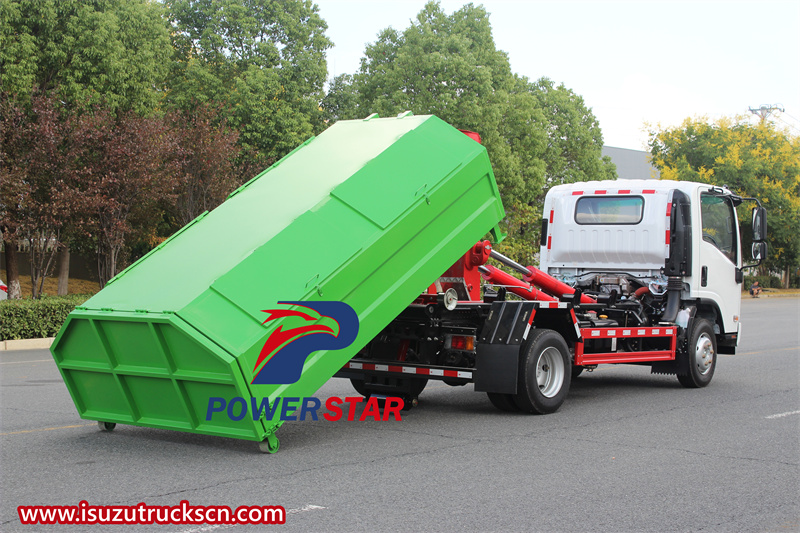

Hook-arm garbage truck unloading garbage

Step 5. Before unloading the garbage, hang up the power take-off when the whole vehicle reaches 6 standard air pressures, open the locking device of the garbage bin rear door, and at the front two-way valve, first make sure that the locking frame locks the garbage bin (pull up the locking hook operating handle to the locking position), then pull up the arm operating handle to the extended position, and the garbage bin is ready to be tilted and lifted to unload the garbage; when the garbage bin is unloading, it is strictly forbidden to stand at the tail of the bin.

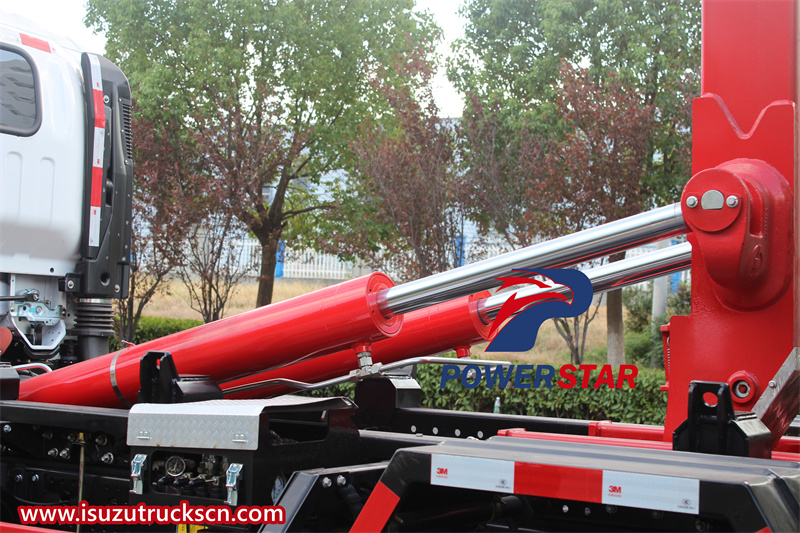

Hook lift cylinderHook lift cylinder

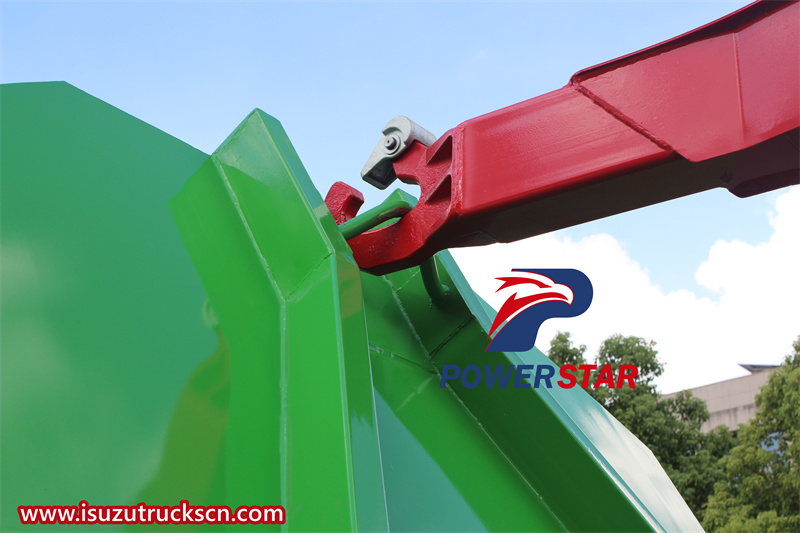

Hook

Hook



Step 6. After the garbage is unloaded, push the arm operating handle to the lowered position, the garbage box falls onto the attached frame, release the power take-off and lock the rear door of the box, the garbage unloading work is completed, and the whole vehicle can be transported.



Operation of placing the garbage box of the hook-arm garbage truck

Step 7. When the whole vehicle reaches 6 standard air pressures, hang up the power take-off, push the locking hook operating handle down to the retracted position, retract the locking cylinder, turn the locking frame down, disengage the locking and fixing of the flip frame from the garbage box and lock it with the attached frame, and release the handle to return it to the middle position:



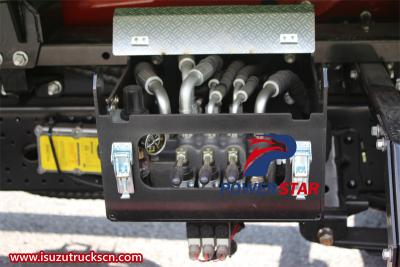

JoystickJoystick



Step 8. Pull up the arm operating handle to the extended position, the arm cylinder extends, the movable arm rotates around the front hinge shaft of the flip frame, and the garbage bin flips and tilts down with the movable arm; when placing the garbage bin, it is strictly forbidden to stand at the rear of the car.



Step 9. After the garbage bin is placed, adjust the position of the movable arm hook and the bent hook of the bin to unhook them, push the arm operating handle down to the drop position, retract the arm cylinder, rotate the movable arm around the front hinge axis of the flip frame, put the movable arm back on the attached frame, release the power take-off, the garbage bin is placed, and the vehicle can be transported;

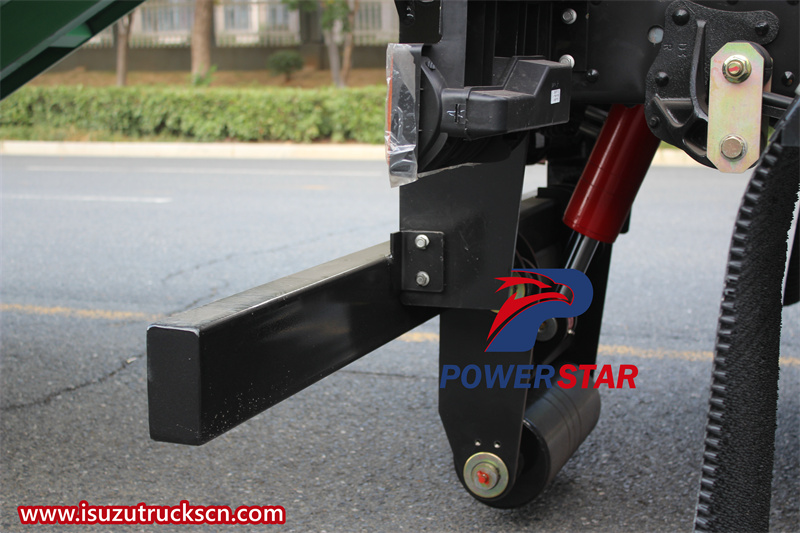

Rear roller
