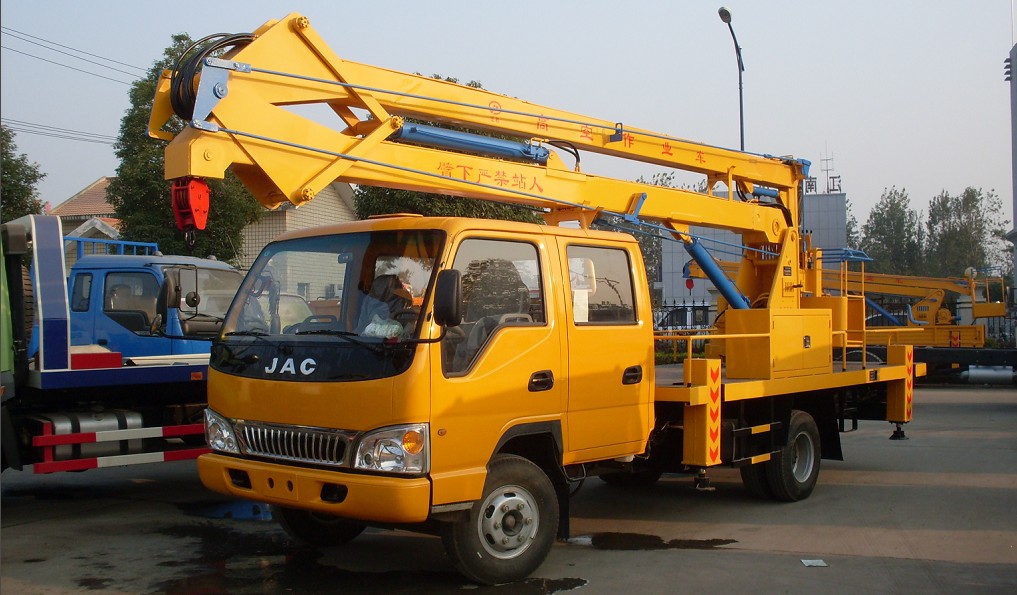

16m Aerial lift and Bucket Truck JAC

16m Aerial lift and Bucket Truck JAC

Function:

Aerial Platform Truck JAC (also called Aerial platform vehicle, basket crane truck, truck mounted aerial lift truck, hydraulic aerial platform truck, overhead working truck, aerial boomlift, hydraulic beam lifter, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.



Features:

---- JAC chassis ensures perfect driving performance;
---- J engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specification:

Similar Key Words:  Bucket lift vehicle, hydraulic aerial cage, high platform truck, mobile man lift truck, articulated telescopic boom aerial truck, basket crane truck


 High working platform Truck JAC(16M)
General Vehicle Brand POWERSTAR
Chassis Brand JAC
Overall Dimension 7650 x 2100 x 3250 mm
GVW / Kerb Weight 6,810 kg / 6,485 kg
Cab Cab Capacity 2+3 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand JAC engine, HFC4DA
Power 92Ps (68KW)
Displacement 2771 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand drive
Transmission  5-forward gears & 1 reverse
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00-16 or 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 16 m
Beam The beam is articulated & telescopic extension type, hydraulic actuated and controlled
Slewing Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
Control Control both on the ground and remote control in cage
Safety Device Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
Leveling System Hydraulic stabilizer to level the vehicle on uneven ground
Optional Insulated cage; Wireless remote control system
