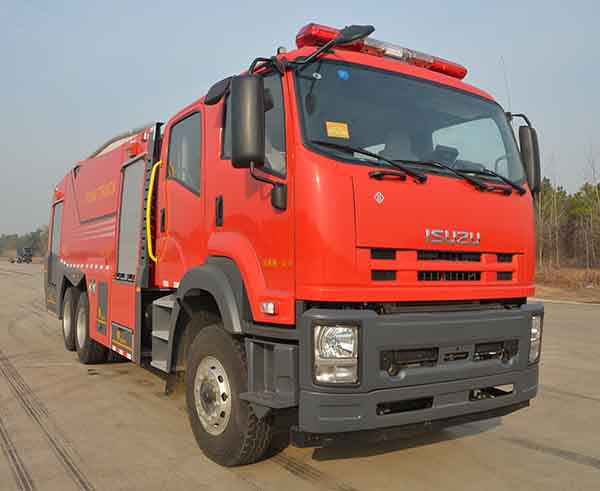

1ALL NEW ISUZU FXZ VC46 INDUSTRY FOAM FIRE TRUCK WITH 6UZ1-TCG40
Tags: ALL NEW ISUZU FXZ VC46 INDUSTRY FOAM FIRE TRUCK WITH 6UZ1-TCG40, Isuzu Fire Fighting Water Truck; Simple water tanker fire fighting truck, factory price Isuzu 6x4 drive high quality 15 tons water/foam fire truck for sale

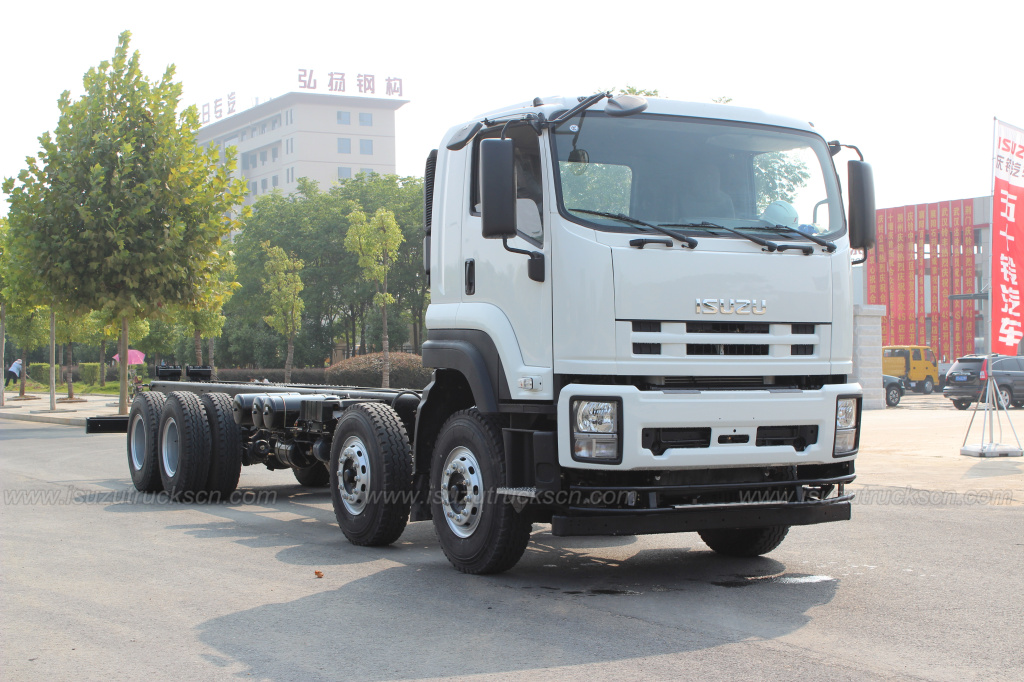

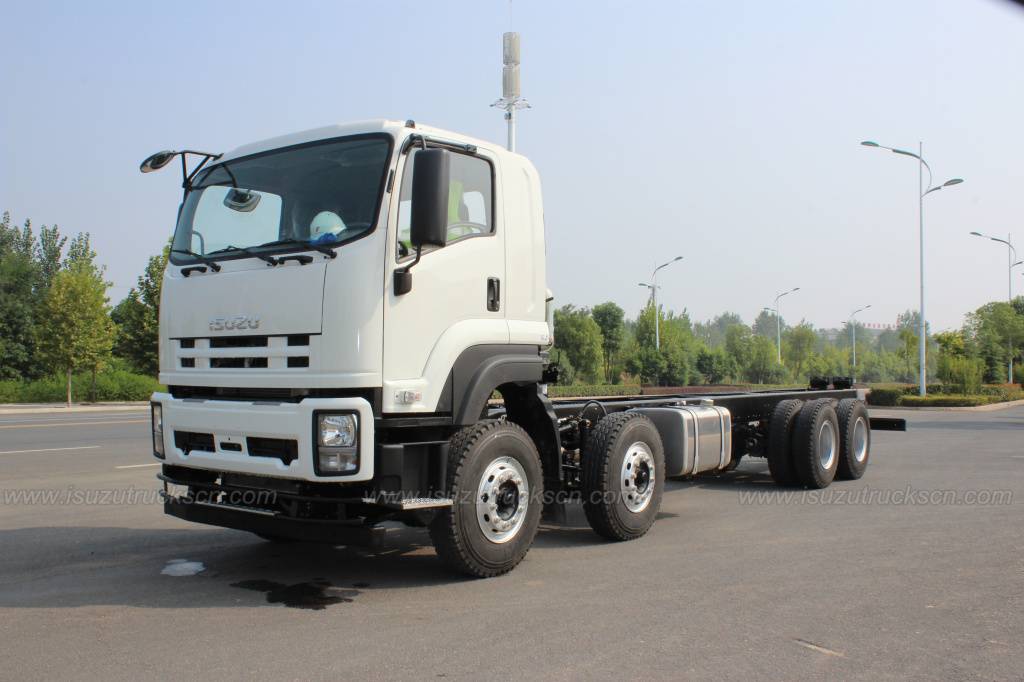

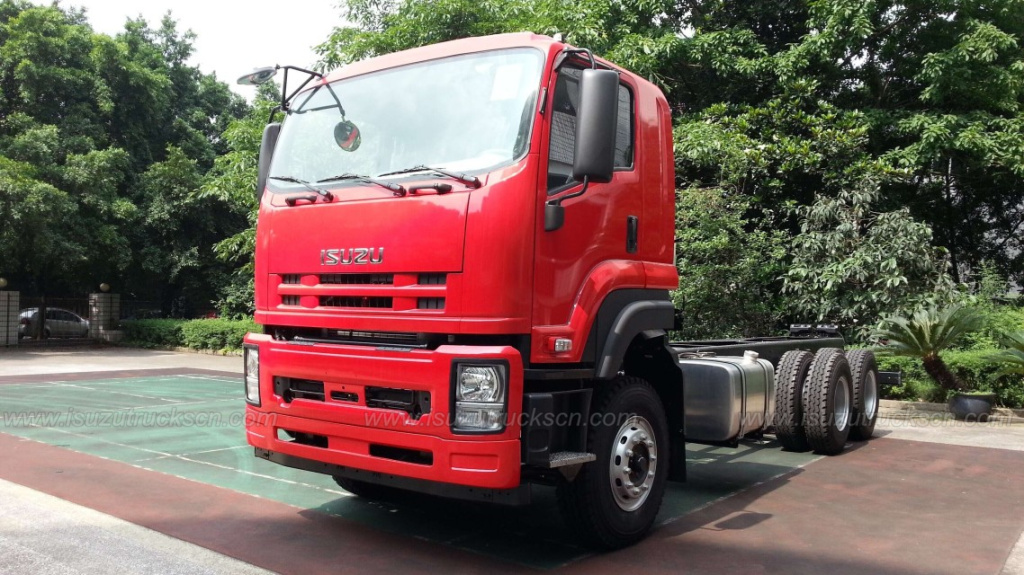

6x4 ISUZU Fire Truck chassis |
For 8000L ~12,000L Extinguishing agent tank capacity
|
6x4 ISUZU Fire Truck chassis | For 10,000L ~25,000L Extinguishing agent tank capacity |
Main specifications:
FXZ/VC46 Heavy-duty chassis for Fire-fighting application |
||
Model |
PT5270GXF |
|
Driving Type |
6x4 (Left hand drive) |
|
Wheelbase |
4605+1300 mm |
|
Overall Dimension |
10210×2500×3720 mm |
|
Tank capacity |
11000L water + 4000L foam |
|
Fire Pump |
Rated low pressure:1.0MPa, Flow rate:60L/S. Rear-mounted,Water delivery time:≤20s |
|
Fire Cannon |
Rated pressure≤1.0MPa,Rated Flow rate:50L/s, Throw range≥60m, Rotation angle:360°, |
|
Cab |
Double cab with Four doors, 6 seats with safe belts. |
|
Engine |
Model: |
6UZ1-TCG40 |
Type: |
Diesel, turbo charged inter-cooled, 6 cylinder |
|
Max. Power: |
257 KW (350HP) |
|
Gearbox |
9-shift, mechanical type, 9 forward and 1 reverse with |
|
Tire |
11.00-20 |
|
Color |
Red (Any color & logos up to wish) |
|
Max Speed |
90 km/h |

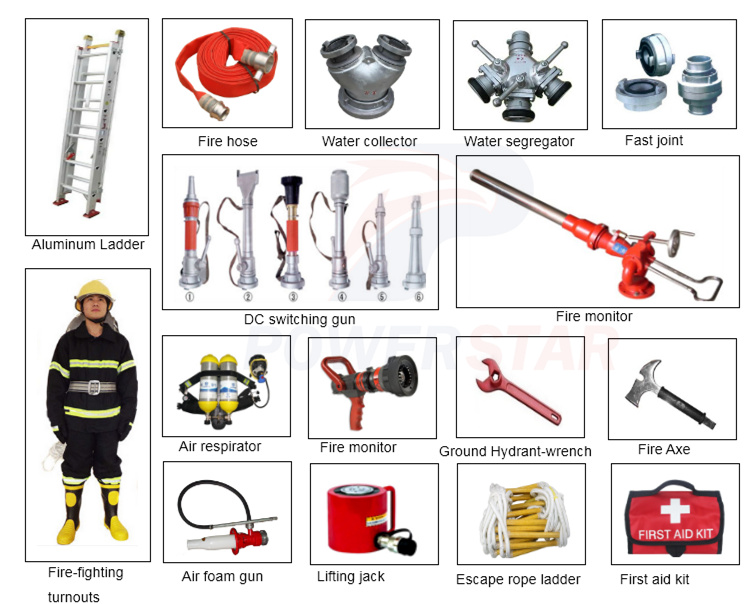

Accessories List:
(With below equipment, you can put into fire-fighting immediately)

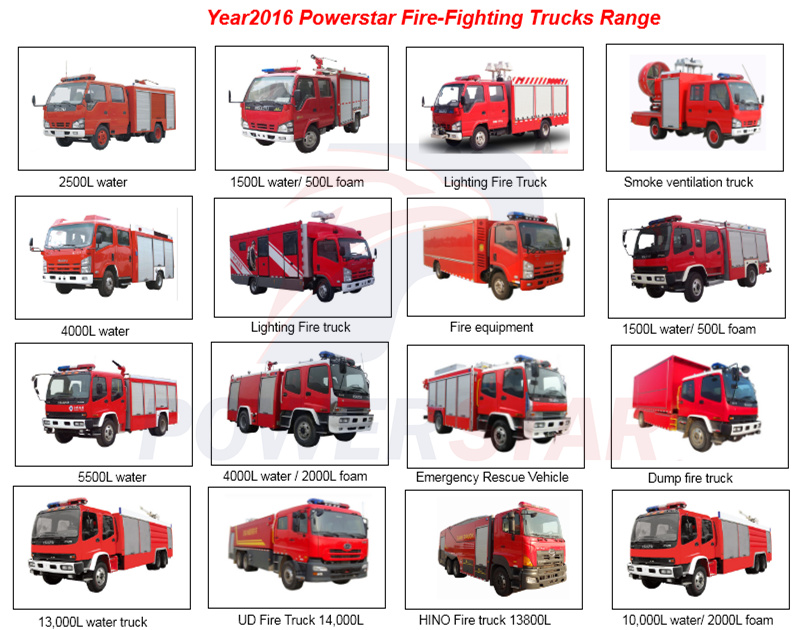

Recently Customer Build Examples:
