Garbage Compactor Truck ISUZU 4x2 Rear Loader Refuse Trucks
Order(MOQ):

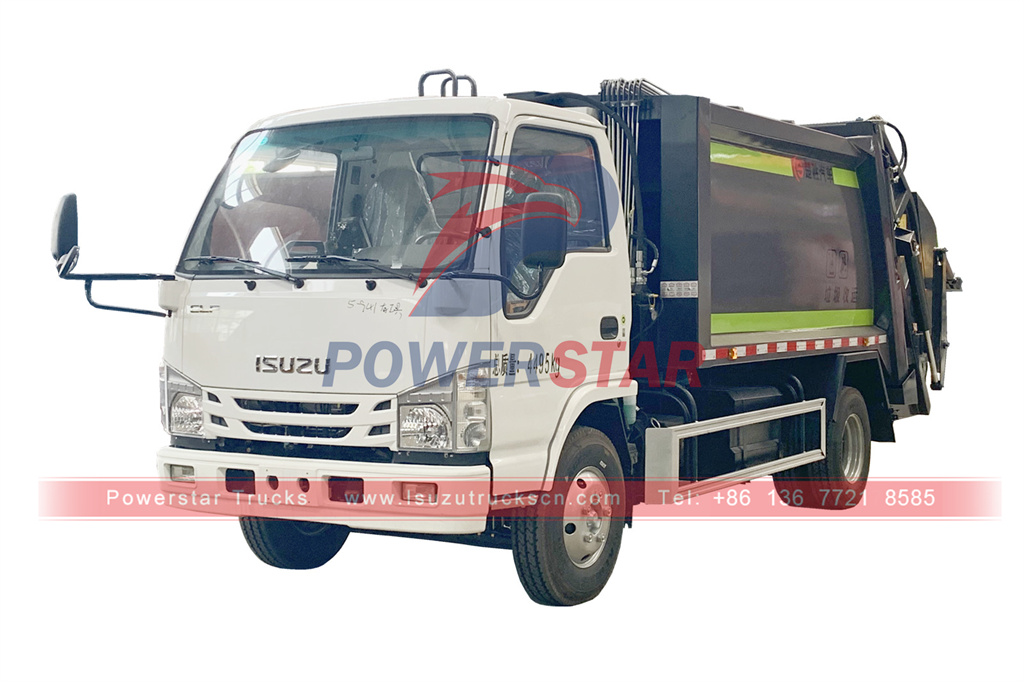

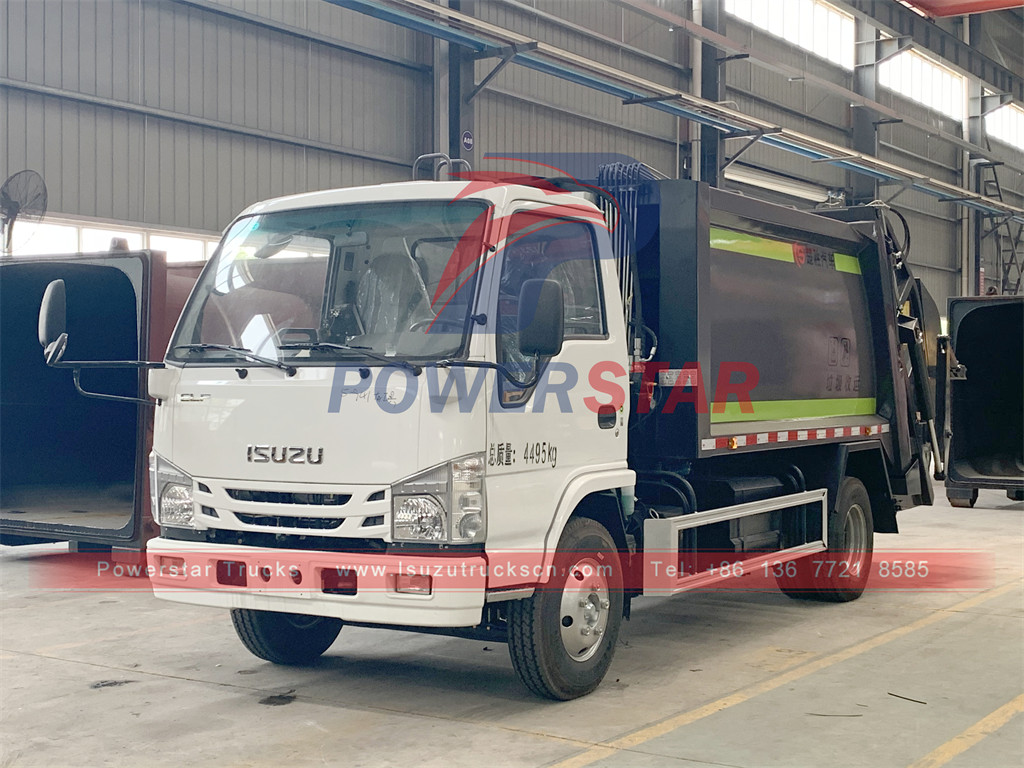

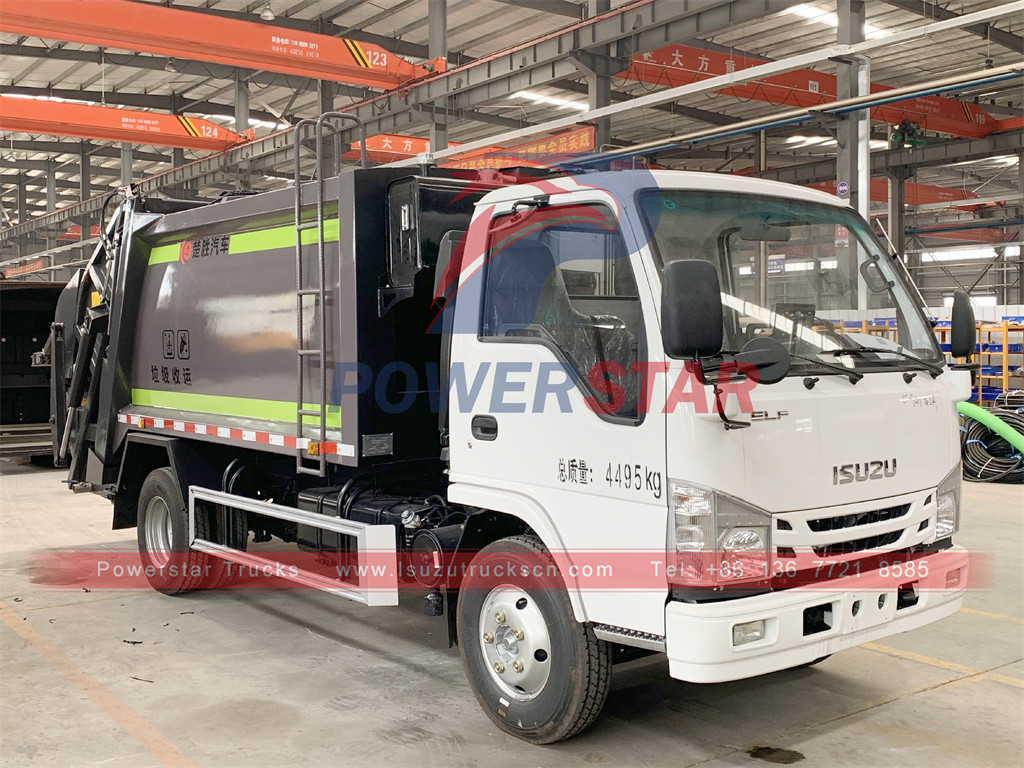

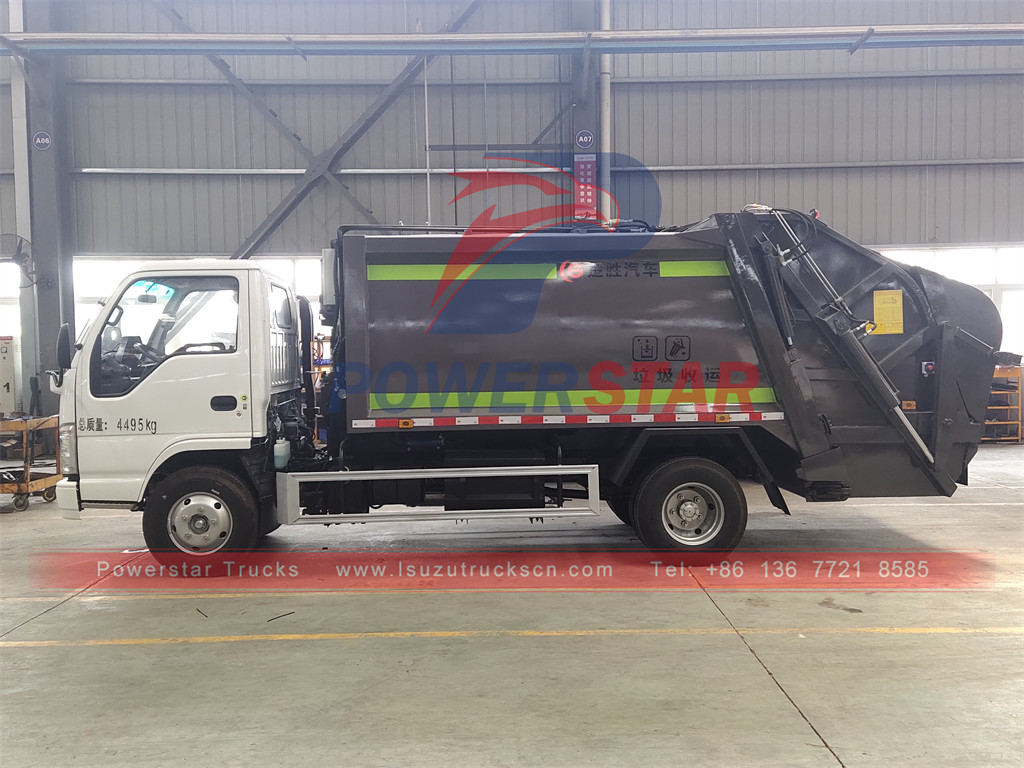

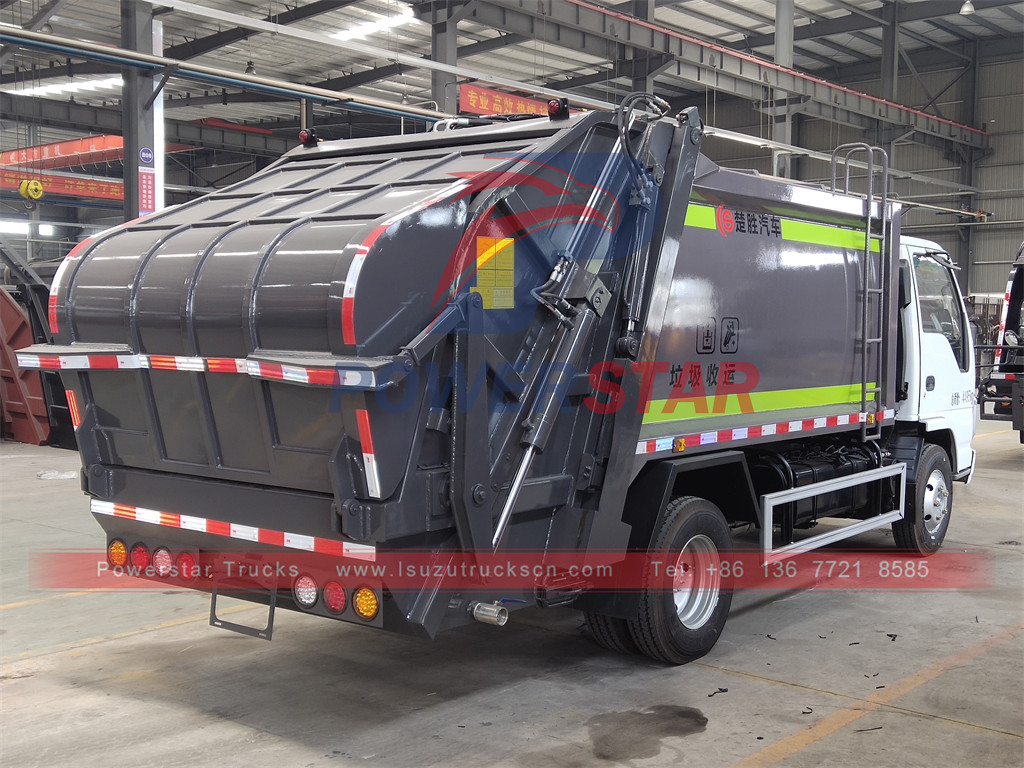

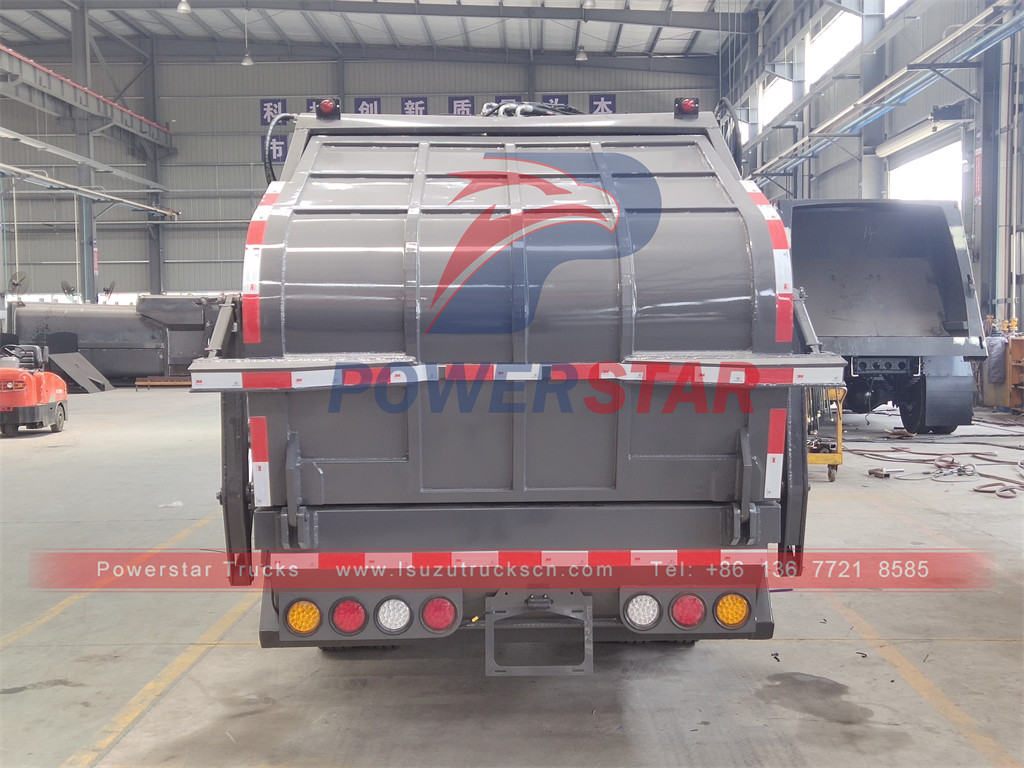

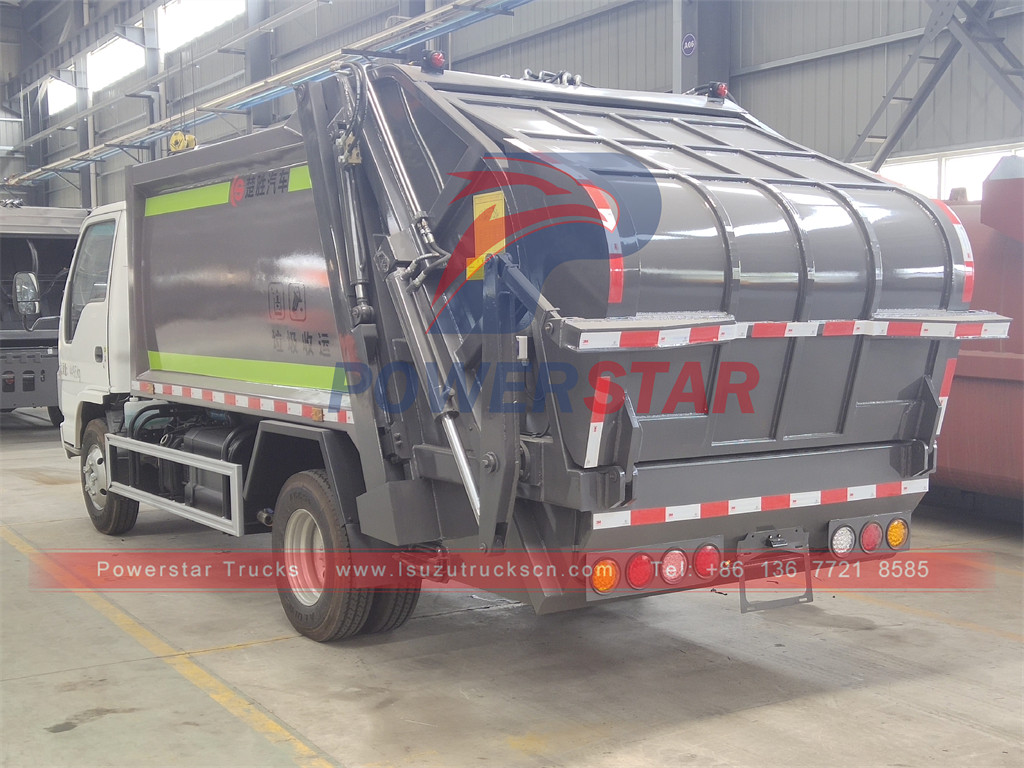

1ISUZU ELF 4x2 Rear Loader 6cubic meter Garbage Compactor Truck
ISUZU ELF 6cubic meter compressed refuse truck (also called Isuzu waste compactor truck, Isuzu brand garbage bin lifters ) suitable for the garbage collection and transportation in good conditions places, such as urban and rural streets, large factories, residential areas and school.
 |
100% custom-made
|
|
3 cbm to 22 cbm available
|
|
Short delivery time 7~30 days
|
|
Easy operation & Easy maintenance
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU ELF Trash compactor truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5070ZYS |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
6500*2200*2680 |
|
Gross weight |
kg |
7,300 |
|
|
Kerb weight |
4,150 |
||
|
Wheelbase |
mm |
3,360 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU ELF |
||
|
Tire size |
7.00-16 |
||
|
Number of Tires |
6+1 |
||
|

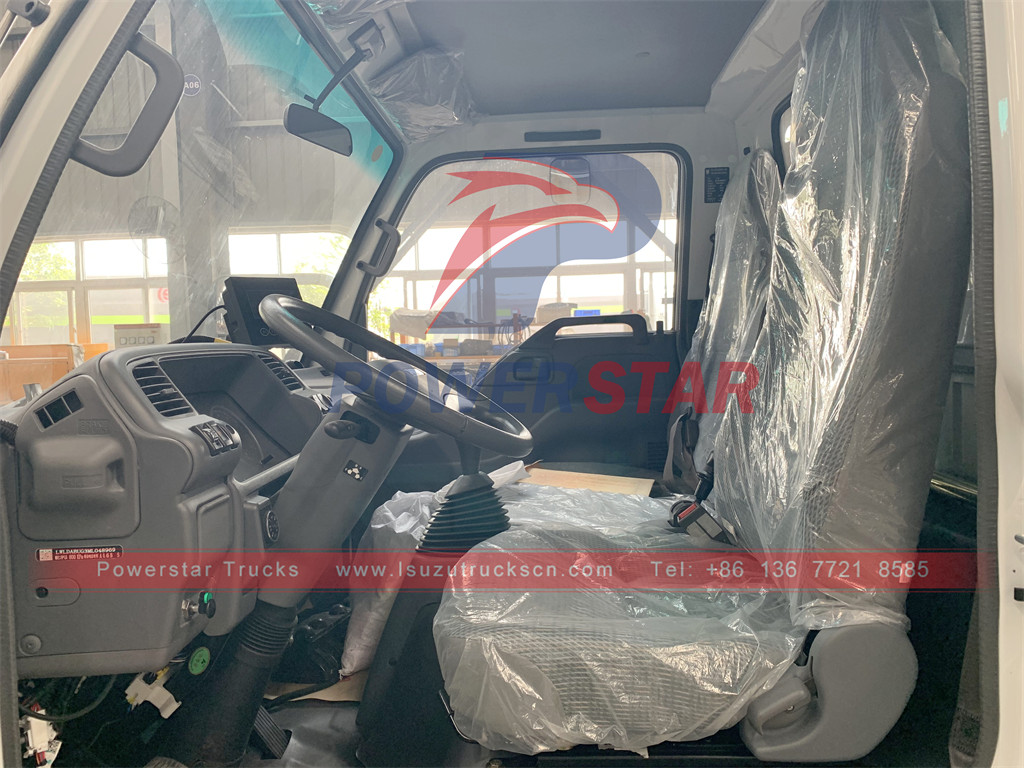

Passengers in cab |
3 |
||
|
Engine |
Engine model |
4KH1CN5LS |
|
|
Type of fuel |
Diesel |
||
|
Power |
98HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 4,5,6 |
||
|
Compactor performance |

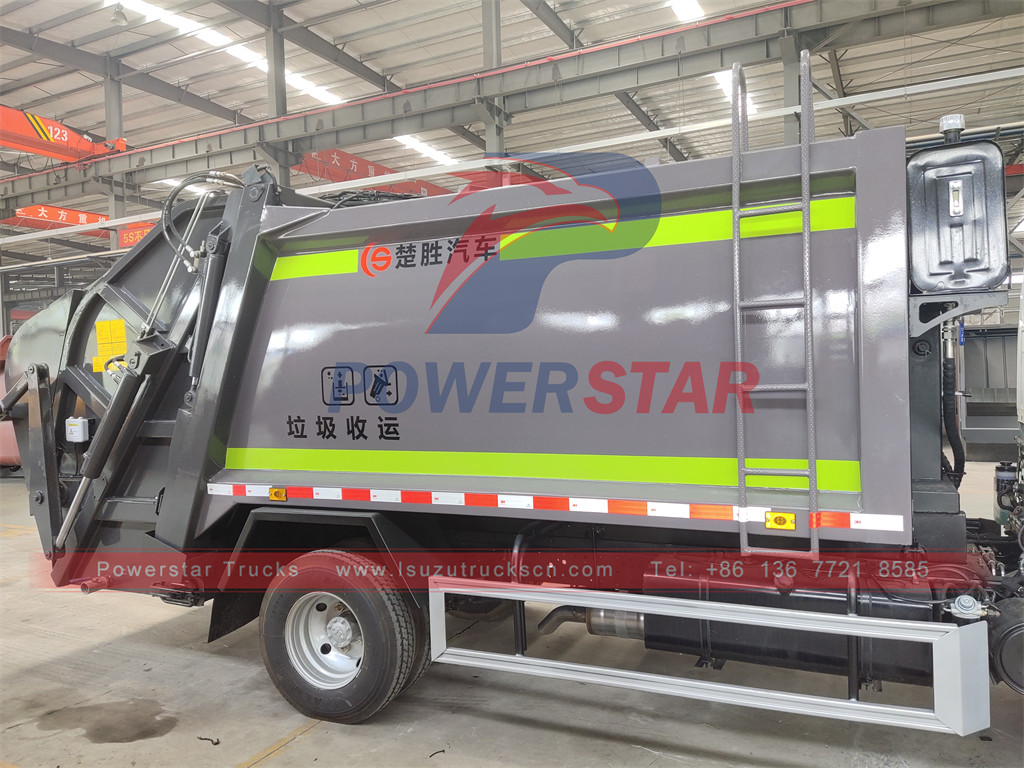

Compactor Body |
6 Cbm |
|
|
Body Material |
Weather Resisting Steel |
||
|
Compressing Ration |
≥ 1:3.4 |
||
|
Dust Bin Lifter |
120 lt. - 240 lt- Two bins |
||
|
Optional 1100 lt,660 lt |
|||
|
Loading Cycle Time |
15 ～ 20 sec |
||
|
Discharging Time |
10 ～18 sec |
||
|
Discharging system |
Horizontal ejection |
||
|
Waste Water Tank |
200L |
||
|
Operation |
Siemens Automatic-PLC system |
||
|
Control Panel |
English |
||
|
Foot Stands |
2 sets with hander |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||
