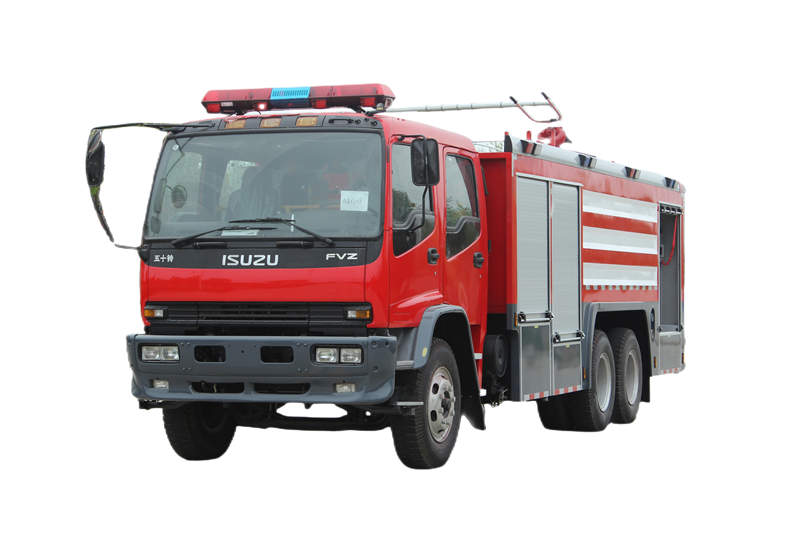

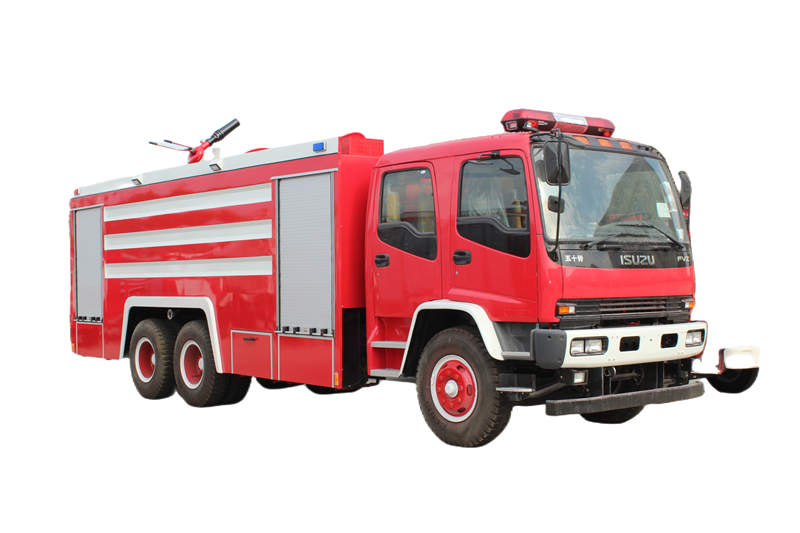

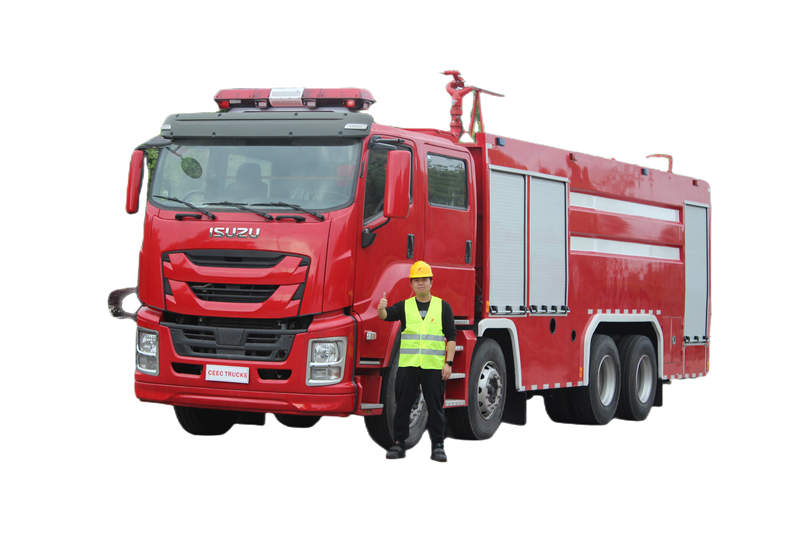

Isuzu FVZ 10 wheeler fire fighting truck for philippine customer

Another unique feature of the ISUZU FVZ FIRE TRUCK is its large water tank. The vehicle's water tank holds up to 1,500 gallons of water, which allows firefighters to tackle fires for extended periods without needing to refill. Furthermore, the truck comes equipped with a range of firefighting equipment, including hoses, nozzles, and ladders, all of which are easily accessible to the crew.

This book is the instruction about operation and maintenance for refitting parts
(Firefighting function parts).
This vehicle is used for extinguishing class A or B fire. It is ideal for government fire brigade and large-scale enterprise.
This vehicle is composed of crew room, hose box, tank, pump room, dry powder system, fire pump, PTO, inlet and outlet pipeline and fire monitor, etc.

The located of nameplate of this vehicle.

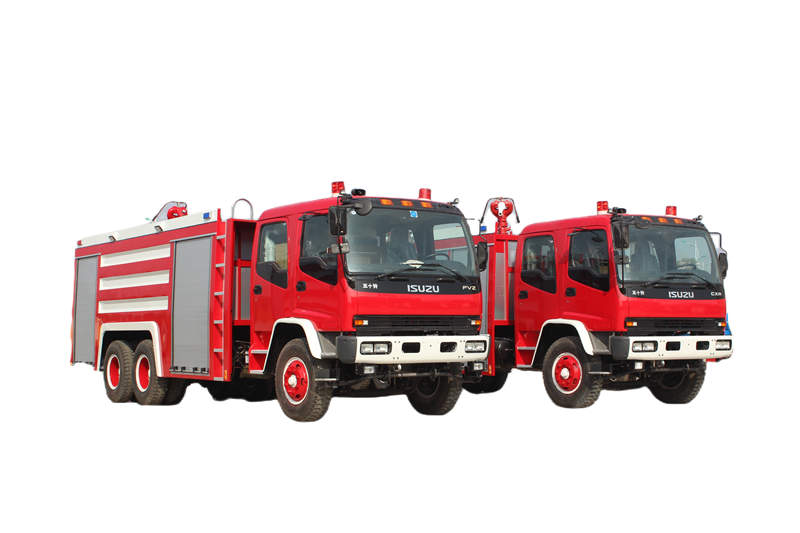

Isuzu FVZ foam fire fighting truck for Philippine customer

(Preview for your ISUZU Water & Foam Firefighting Truck)
Ⅱ. Main Technology Specification

Basic parameter:
Items    6000liters Water & 2000liters foam
ISUZU Firefighting truck
Outer Dimension（L×W×H）(mm)    8530*2500*3365
    Wheelbase  (mm)    4000+1300
    Front Axle Capacity（kg）    7000
    Rear Axle Capacity（kg）    15000
    Tank Capacity    Water    6000 L
        Foam    2000 L
Cab capacity（includes driver）    Double Row  2+4
Tire    11.00-20   6+1
    Model    6HK1-TCS
    Type    Six cylinder inline, water-cool, turbocharged Inter-cooling, diesel
    Rating Power（kW/HP）    220/300

Note: 1.The vehicle height includes fire monitor.
2. We keep the right to revise the parameters on the list above.
Firefighting basic parameter list (1)
                    Model
Items    CB 10/60
Low pressure fire pump
Fire
Pump    Model    CB 10/60
    Diameter     125-80-80mm
    Flow (Low Pressure)    60L/s at 1.0Mpa
    Max suction depth(m)    7-9
Fire
Monitor    Model    PL48
    Location     Top
    Angle of rotation       360°
    Angle of elevation      ≥70°
    Angle of depression       ≤-15°
    Throw                                Water: ≥60m
                                    Foam: ≥55m
    Rotation     360°

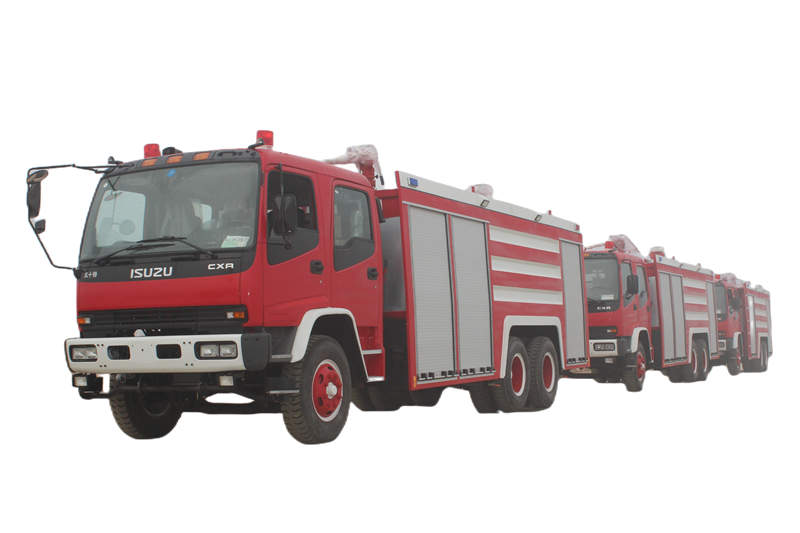

 Isuzu FVZ/CXA fire rescue truck for africa customer

1. Cab room
Cab room allows 2+4 crews most. It is double rows 4 doors all-metal structure. Inside it, there are PTO’s and other additional control switch; also there is multifunctional electronic siren below the instrument desk. There are two cup style alarm lamps & a loudspeaker on the top of the crew room.

4. Pump room
The pump room is located at the rear part of the vehicle and it is all-mental structure.
In the pump room, there is the fire pump system, and the operation system & control board, help checking the working condition monitoring and fire pump operation.
At the front part of the water tank in the pump room, there is one large injection hole for water injection from the external water source.
There are special lightings in the pump room for the night work. And the rear Headlight controller also is in the pump room.

5. Pump and pipeline
   The fire pump of this vehicle is middle-positioned. It is made of aluminum alloy materials, corrosion-resistant and easy for maintenance.
    The vacuum gauge, pressure gauge and the additional cooling system have been equipped with the fire pump pipeline system, for monitoring the fire pump working situation and cooling the PTO.

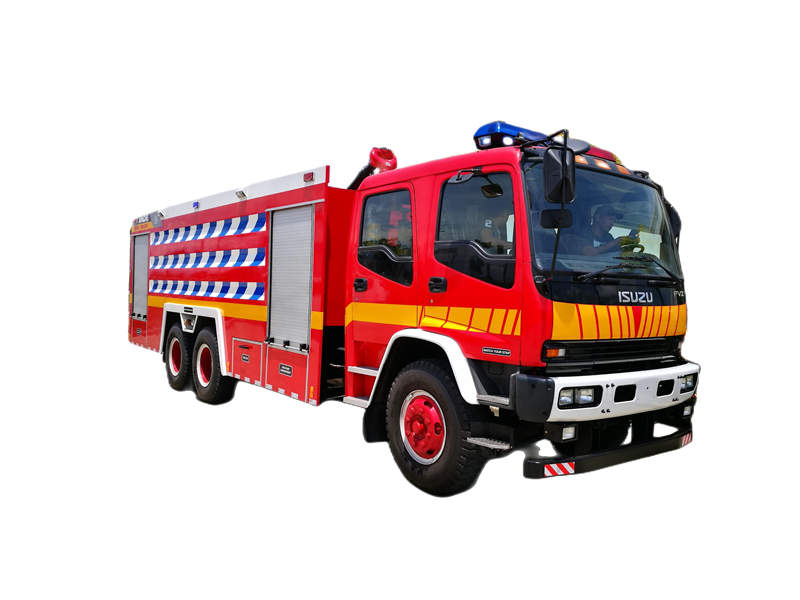

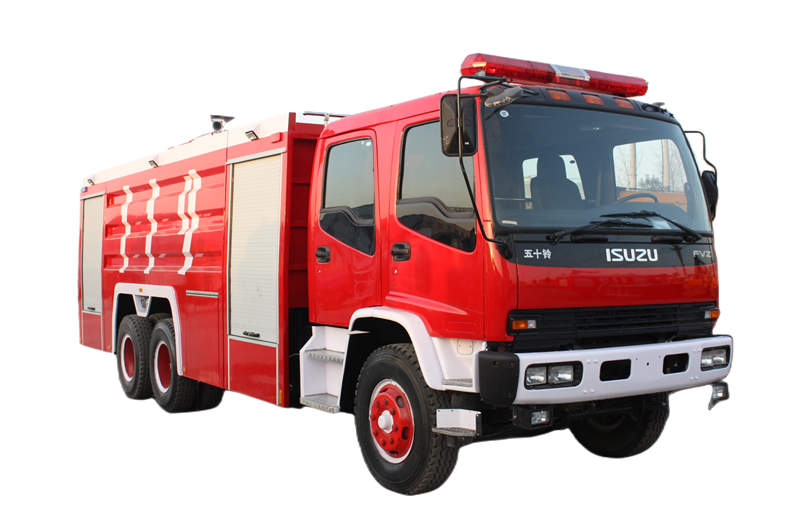

Isuzu FVZ double cabin fire fighting truck with 240 hp diesel engine

6. Fire monitor
Model: PL48
Location: Top of tank
Angle of rotation: 360°
Angle of elevation:≤70°
Angle of depression: ≥—30°
Throw:  Water throw≥60m
             Foam throw≥55m

7. Additional drive system
Additional drive system is composed of PTO, pump transmission shaft and brackets.
The PTO is sandwich and full-power output type, gear driving, water cooling, Manual（pneumatic） control. It is fitted between the clutch and transmission, getting power from engine and passing it to the fire pump through its pump transmission shaft.

8. Additional Control system
Additional Control system is composed of PTO control rod, fire pump valve control rod, electrical control, button, hand throttle control rod, etc.

9. Additional cooling system
   The main purpose of additional cooling system is use to cool PTO imperatively.
   It can control the temperature of that equipment when the fire truck is in a continuously running condition, prolonging the equipment life.

10. Additional electrical system
Additional electrical system is composed of several parts as below:
(1)    Alarm lamp, siren


(2) Priming pump pneumatic electrical valve switch, fire pump rotation meter, electronic liquid level meter
(3) Fire scene lighting, pump room lighting and tool box lighting, etc.



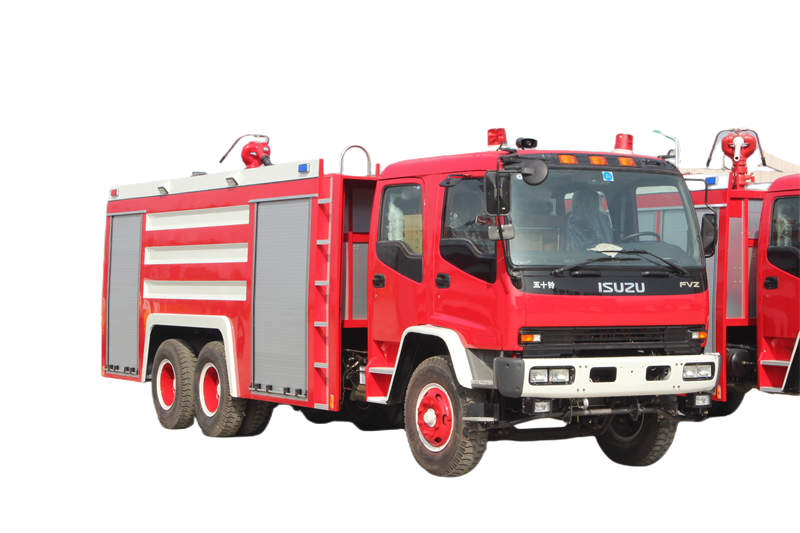

Isuzu FVZ fire fighting truck with 6 cbm water tanker

11. Additional gauge system
Additional gauge system is composed of several parts as below:
(1)  Vacuum pressure gauge: to show the vacuum degree in the pump.
(2)  Pressure gauge: To show the water outlet pressure of the pump.（2.5 degree）；
(3)  Rotation meter: To show the rpm of the rotation axis of the pump.（2.5 degree）；
(4)  Fluid level gauge: To show the fluid level of the tank by a set of LED

12. Equipment
The equipment is mainly for three purposes: extinguishing fire, saving life and eliminating danger. For detailed items, please refer to equipment list.
1.    Suction hose: for connecting the pump inlet with the water source, equipped on the   top of the truck; the number is 2.
2.    Water filter: for preventing the pipe system from being blocked by the odds. When the fire pump stops running, the water in suction pipe will not spill out for the check valve or say one-way valve in the filter, so water will get in quickly while restarting the pump.
3.    Manifold for separating: connecting equipment for dividing the main hose into three smaller caliber hoses. Each outlet has been controlled by the ball valve, so they could work at the same time, or separately.
4.    Manifold for converging: while connecting the external water source by water hose, the manifold for converging could be fitted in the inlet of fire pump, with another two 65mm connector to connect with the water hose, and the other end to the water source.
It is always used to supply & get water between several fire truck, or connect the fire hydrant（100mm）.
5.    Reducing caliber connector: for connecting the outlet valve and the water hose with caliber between 80mm and 65mm.
6.    Hose coating: for wrapping the leaking place of the water hose tightly while there is leaking in firefighting, preventing the leaking place expanding and reducing the water loss.
7.    Hose link: for hanging the water hose on climbing ladder, helping the fire fighter control the hose.

Japan Isuzu 10 wheeler FVZ cabin fire fighting truck

Introduction：
Valve  1：Fire hydrant water injecting to tank control Valve
Valve  2：Water foam proportioner control Valve
Valve  3：PTO control Valve
Valve  4：65’’ Fire pump water outlet Valve
Valve  5：50’’ Fire pump
Valve  6：Water foam proportioner control Valve
Valve  7：Tank water outlet control Valve
Valve  8：Reel pipeline control valve
Valve  9：Water foam proportioner control Valve

Joint  1：Water inlet Joint
Joint  2：65’’ Fire pump water outlet Joint
Joint  3：50’’ Fire pump water outlet Joint
Joint  4：50’’ Fire pump water outlet Joint
Joint  5：65’’ Fire pump water outlet Joint
Joint  6：Foam pipeline Joint
Joint  7：Fire hydrant water inlet Joint
Joint  8：Fire hydrant water inlet Joint

Foreign customer is with ISUZU FVZ fire fighting truck

1. Fire pump operation instruction
In order to extinguish the fire quickly, it is necessary to operate the fire pump exactly and masterly
1. CB10/60 operation instruction
a．Priming water：
   If using water from tank, we can push the butterfly valve toward to the fire pump shaft direction in order to pull the pin out from pin-hole. Then pull the handle to horizontal position and open the butterfly valve, after that, water will be flowing into the pump.
   If using water from hydrant, we can connect the suction pipe to the hydrant, and then the water will be flowing into the pump from the hydrant
If using water from pond, we need to use a piston primer pump for priming water. In this situation, firstly we can put the suction pipe into the pond; secondly start the low pressure fire pump; thirdly turn the pump rotational speed to 3200r/min in a short time; fourthly pull the control handle down and the piston primer pump begin to work. The water priming will be finished in 40 seconds, then the fire pump begin to work and the piston primer pump stop working automatically, after that ,we can push the control handle up to normal position, if the water priming are not finished in 60 seconds, please check whether there is air leakage in the system.

b．Low pressure work condition
   Open the ball valve which is in the low pressure outlet, and then turn the reflux ball valve to “low pressure” position.

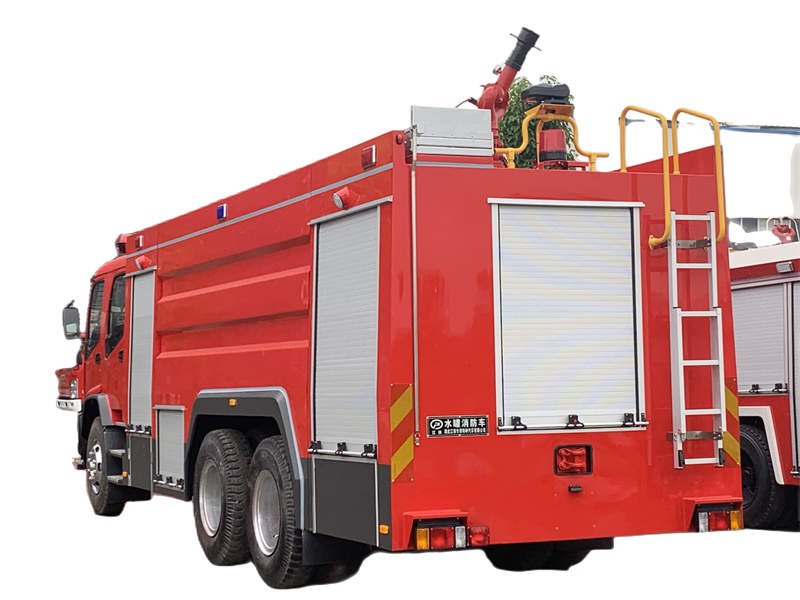

Rear view for Isuzu FVZ fire fighting truck

2. Water injection, suction and discharging
1.Two ways of injecting water into the tank：
(1) Water from hydrant
    A. After parking the vehicle according to correct steps, take out fire hose and hydrant wrench.
B. Connect the outer injection joint to the hydrant with fire hose.
C. Open the hydrant valve with hydrant wrench until the tank has been full.

(2)Water from river and pond
A. After parking the vehicle according to correct steps, take out suction pipe, water-strainer and suction pipe wrench.
B. Connect the suction pipe to the inlet of the fire pump and make sure the length is suitable, then fix the water-strainer on the end of the suction pipe and put it into the river or pond (0.5m under water surface is best).

Notice:
1 Do not bend the suction pipe excessively.
2 Make sure the bending part not higher than the inlet of fire pump.
3 Do not make the water-strainer touch the bottom of pond or river to prevent sundries.
4 Make sure there is not air leakage at all joint, otherwise the water will not be primed
5 Turn off all valves, making the transmission in neutral. Start the engine, push the clutch, press the PTO switch, then release the clutch slowly until the fire pump runs.
6 Press the priming button, adjust the manual throttle simultaneously, making the rotation of pump around 2200r/min-2500r/min, get the vacuum gauge at around 0.5-0.8MPa.
7 After water getting in the pump, make the priming button back reset.
8 While the pressure gauge points at 0.25MPa open the water injection valve, adjust the manual throttle to the necessary pressure until the tank is full.

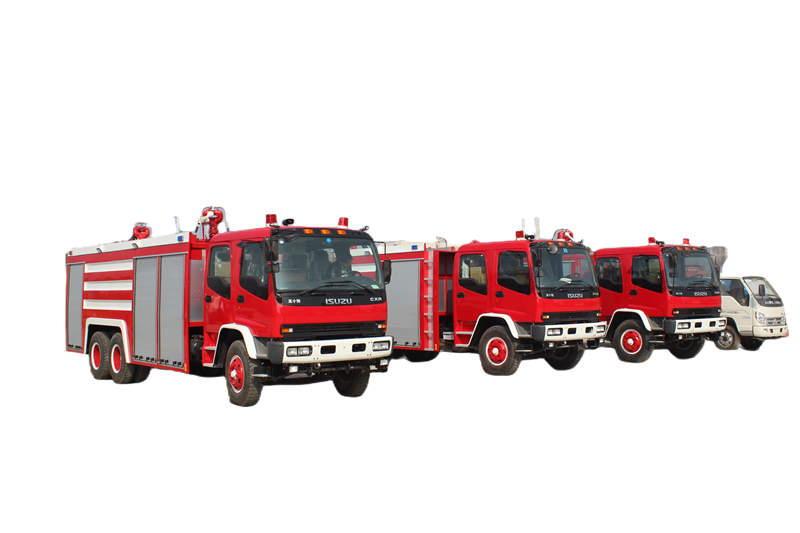

Batch isuzu FVZ fire fighting truck for exporting.

 2. Water supplied by pump
    Three water supply types:
1.  Supply from tank
2.  Supply from hydrant
3.  Supply from river and pond
(1)Priming operation (Supply from tank):
        Open the pipe valve between tank and fire pump, start fire pump, turn the hand throttle to make the rotational speed to rated speed. When the value of vacuum gauge is from 50Kpa to 80Kpa, open the outlet valve, then turn the hand throttle to proper pressure.
(2) Priming operation (Supply from hydrant):
        a After parking the vehicle according to correct steps, take out fire hose, collecting breeching and hydrant wrench.
        b Connect the outer injection joint to the hydrant with fire hose and collecting breeching
        c Open the hydrant valve with hydrant wrench, when the water has been primed into the pump, the following steps are same as water supplied by tank situation.
(3) Priming operation (Supply from river and pond):
        The operation steps are the same as water supplied by tank situation a to c.

3. Fire fighting
1). with water
After parking the vehicle according to correct steps, connect the fire hose and hose nozzle correctly, aim to the fire source, operate the clutch and PTO to make the pump start to work. Open vacuum gauge, pressure gauge and cooling system stopcock, check the indication of each gauge, and turn the hand throttle, when the pressure gauge indicates around 0.8Kpa to 1.0Kpa, open the outlet valve, then turn the hand throttle to proper pressure.
Note: Turn off the inlet valve while firefighting.

 2). with foam
 Water foam proportioner:
 Fitted on the fire pump, composed of water pipe system, ball valve, inlet pipe, adjust valve, Y-branch, outlet soft pipe.
Working principle:
When the water with pressure gets into the nozzle through the pressure pipe, cock, then out of the nozzle, negative pressure will be formed inside the proportioner. The foam liquid in the foam tank is sucked into the proportioner through the liquid pipe, ball valve, the calibration hole of the control valve, mixing with the water inside. After the injection pipe, outlet pipe, bending pipe to the pump, the mixing liquid is mixing in pump again and then being pressurized, most of the mixing liquid is sent to the injecting equipment to inject as foam, and small part of it enters the proportioner for running circularly.

Fire fighting with foam:
Two foam liquid supply:
1.    Supply from the foam tank: The foam liquid, sucked by the proportioner from the foam tank, is sent to the air-foam maker through the fire pump, forming the foam.
2.    Supply from the external foam source: the foam liquid is sucked from the foam liquid bucket through the inlet of the air-foam spear, making foam for fighting fire.
(1)    Foam liquid from the foam tank:
a.    Take the water hose and air-foam spear as needed.
Connect one end of the water hose with the fire pump outlet valve, and the other end is connected with the air-foam spear (other spraying equipment)
b.    Make the handle of air-foam spear at the position for mixing liquid and water.
c.    Start the fire pump for water supply as the instruction.
d.    Turn on the switch of outlet valve.
e.    Open the throttle, adjusting the pump pressure till the standard working pressure of the praying equipment.
f.    Turn down the operation handle of foam liquid on the fire pump, open the foam liquid inlet valve on suction pipe, the air-foam liquid will spray out from the fire monitor (foam spear) or other spraying equipment.
g.    If the foam liquid in foam tank has run out, the foam inlet valve could be turned off. After wrenching the screw of the external liquid inlet, fit the pipette, and get the other end into the foam liquid bucket, the foam could continue praying.
h.    While the fire pump is send the mixing liquid, if the water in tank is not enough, don’t add any water with pressure at the inlet of fire pump.
i.    After fighting fire, the proportioner and the pipe system must be cleaned with water. The proper way is to put the pipette into clean water, start the pump, and turn on the proportioner valve.
(2)    Foam liquid suction:
a.     Take the water hose and air-foam spear as needed.
Connect one end of the water hose with the fire pump outlet valve, and the other end is connected with the air-foam spear (other spraying equipment)
Make the handle of air-foam spear at the position for mixing liquid and water.
b.     As the instruction for fire pump in water supply, adjust the pump pressure, reaching the indicated outlet pressure of the air-foam spear, then the foam could be sprayed out.
c.     The air-foam spear must be cleaned after firefighting.
NOTES:
In both condition, the foam outlet valve should be turned off, preventing the water backflow to the foam tank


Ⅴ. Other fire equipment brief introduction

1．Monitor operation
Making sure the water in pump be with pressure after the operation above, the monitor aims at the fire scene and adjust its angle, then open the valve under the monitor.
The monitor could spurt like stream by adjusting the handle at the muzzle of monitor.

2．Fire hose reel and firefighting gun
     This series vehicle has been equipped with a set of fire hose reel and middle pressure
gun. Take out the middle pressure gun and pull out the fire hose to proper length. Open the reels input valve, make it aim to fire scene and pull the trigger. It can also spurt both fog and stream by adjusting the gun.

3．Siren
       This series vehicle has been equipped with multi-function electronic siren. Before using, turn on the main power switch, then turn on the siren power switch, finally turn on the relevant switch according to practical demands.
If the vehicle contains foam system, please acquaint yourself with the using of foam system, in order to operate skillfully.

 4．Foam proportioner
The foam proportioner is fixed on the fire pump, including pipeline from outlet pipeline, ball valve, refilling pipe, adjusting valve, Y tube and effusion tube.

Working principle:
    When the pressure water of pump flow into foam proportioner nozzle and spurt out by passing the pressure pipe and faucet, it will lead to a negative pressure. At this moment, the foam from the foam tank will be flow passing inlet pipe, ball valve, ration orifice of adjusting valve and then be sucked into mixing box automatically. After it is mixed with the water in mixing room, it will flow passing adjutage, outlet pipe and siphon into the water pump. Then the mixed liquor will be mixed again and pressurized in the pump, after that, most of the mixed liquor will be spurt out as foam, the rest flows into the proportioner for recycling.
When using, take the steps as follow: open the outer inlet cap of the foam tank, adjust the position of location hole according to foam spray equipment and flow, open the faucet and inlet pipe ball valve, adjust pump pressure according to foam spray equipment’s pressure, the proportioner provide mixed liquor according to stated ratio, at last, the mixed liquor is mixed with the inhalant air and form the final foam mixed liquor spraying to the fire scene to extinguish


Ⅵ. Attentions on Using

1. When using foam proportioner, the fire pump cannot suck pressure water from hydrant.
2. Make sure the clutch is detached completely and the engine speed is low when the PTO is approaching or departing.
3. Fire pump running without water for more than 3 minutes or at a high speed are not allowed.
4. When the system is running, before all the water outlet valves have been closed, it must reduce the pump speed. Fire pump running in over rated pressure for a long time is not allowed.
5.  After water priming finished, reset the priming handle.
6. After PTO working over 10 minutes in hot weather, it must turn on the water cooling stopcock, otherwise it may cause problems, the water must be drain out when the work is over.
7. If using seawater, sewage, corrosive liquid or foam, please run the fire pump with clear water to clean the fire pump .If using in cold weather, make the piston pump run for a while to drain out the remaining water to prevent it from freezing.
8. It is equipped with a breather valve on the top of foam tank. When using foam to extinguish fire, the foam liquid level will decline, the breather can suck air to make sure the ratio of water and foam are not change.
