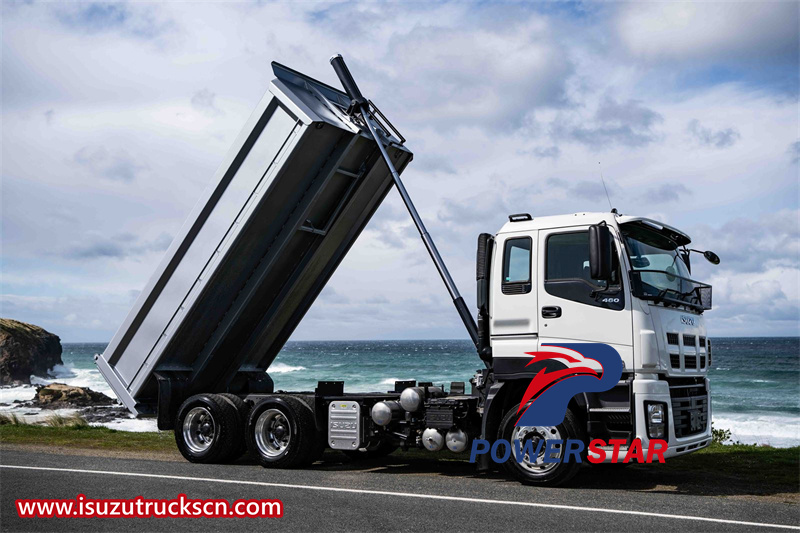

Isuzu 10 wheeler mining transport truck

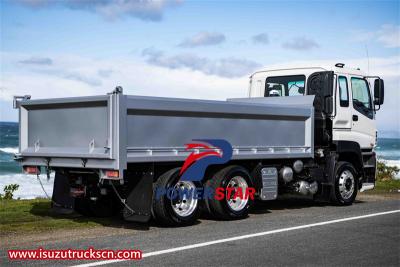

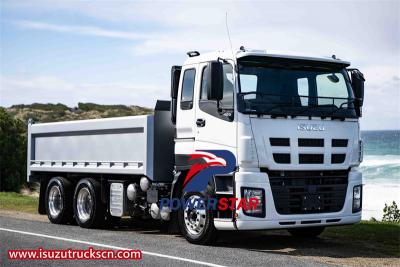

Philippine Isuzu 10 wheeler mining transport truck
Philippine Isuzu 10 wheeler mining transport truck
Philippine Isuzu 10 wheeler mining transport truck
Philippine Isuzu 10 wheeler mining transport truck
Philippine Isuzu 10 wheeler mining transport truck
Philippine Isuzu 10 wheeler mining transport truck
Philippine Isuzu 10 wheeler mining transport truck
Philippine Isuzu 10 wheeler mining transport truck
Philippine Isuzu 10 wheeler mining transport truck
Philippine Isuzu 10 wheeler mining transport truck

Isuzu 10 wheeler mining transport truck

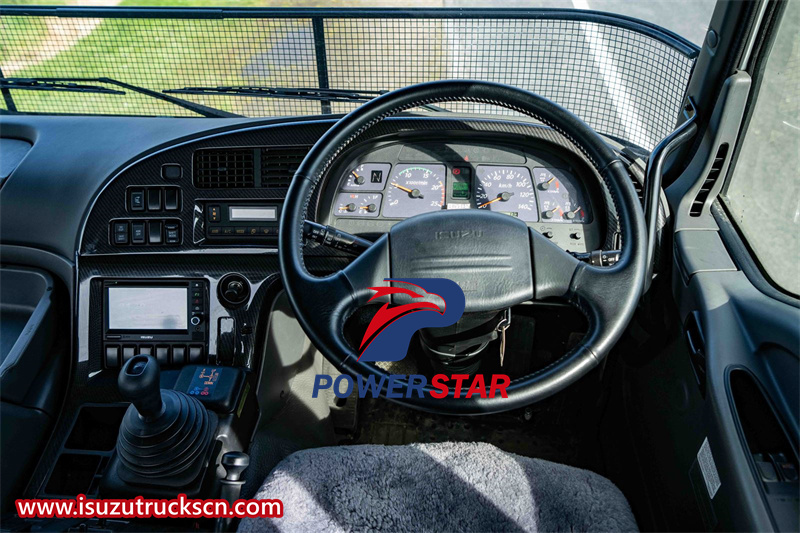

Isuzu 10 wheeler mining transport truck has simple design, lightweight, and fuel-efficient as quality. The streamlined shape of the front of the tractor head effectively reduces the wind resistance and reduces fuel consumption. The Isuzu 10 wheeler dump truck uses a 6W engine model with maximum 460 horsepower. 6x4 drive type and 10 wheels.The interior of the cabin is spacious and comfortable, we focus on reducing fatigue driving.

  • Work capacity:

    24 tons
  • Truck model:

    PT5240GRW
  • Engine power:

    460HP
  • Engine type:

    6WG1-TCG61
  • Axle drive:

    6x4
  • Gear box:

    ZF 16-speed, manual
  • Remarks:

    Middle lighting cylinder, customized color

Isuzu 10 wheeler mining transport truck also called Isuzu 6x4 dump truck,Isuzu tipper truck for off road,Isuzu heavy dump truck,Isuzu 6x4 tipper lorry.

Isuzu offers a range of heavy-duty trucks suitable for mining applications, including 10-wheeler transport trucks designed to handle the demands of the mining industry. These trucks are known for their durability, reliability, and robust performance in challenging off-road conditions typically found in mining operations. Isuzu 10-wheeler mining transport trucks are built to provide efficient transportation of materials and equipment within mining sites, offering high payload capacity and excellent off-road capabilities to meet the specific needs of the mining sector.

isuzu 6x4 dump truck

Features:

  1. Using Japanese technology ISUZU Chassis, super power, larger displacement, with Stronger Engine performance.
    2. Remove the urea system and cancel DPF.
    3. Quality test from the production to the finish of the whole truck.
    4. Professional and experienced technical team support to provide customized trucks with high quality & reasonable price.
    5. Genuine spare parts supply.
    6. Prompt delivery. All the truck will be polished with wax before shipping and accordingly the truck type and destination port to choose the most suitable and cost-effective shipping way.
  2.





Isuzu 10 wheeler mining transport truck

Truck model

PT5240GRW

Cab

Single row cab, with power steering. Electronic flameout

Driving Type

6x4, Right hand driving

Max Speed (km/h)

95

Overall dimension(mm)

9800×2553450(mm)

GVW( tons)

24

Payload(tons)

Approx 10.8 Tonne Payload

Wheelbase(mm)

3800+1450

F/R track base (mm)

1504/1425

F/R overhang (mm)

1015/1815

Approach/Departure Angel

24/14

Tire

295/80R22.5

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

ZF 16-speed

Bridge

Front axle

7.5 T

Rear axle

21 T

Enging

Model

6WG1-TCG61

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

15681

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

24v





The Isuzu 10-wheeler mining transport truck is a heavy-duty vehicle specifically designed for use in mining operations. These trucks are built to endure the challenging terrain and demanding conditions typically encountered in mining sites. Key features of the Isuzu 10-wheeler mining transport truck may include:



— ISUZU 6W Engine:

● Pursuing the fuel consumption performance of the practical speed zone with high frequency of use, from supercharging to cooling, fuel multi-point injection, the pursuit of maximizing fuel cost reduction, achieving large torque, large economic speed and strong power;

● Low speed and high twist, continuous maximum torque in the 800-1400 rpm range.



— ZF Transmission:

● The latest 4th generation ZF gearbox with high transmission efficiency (0.965-0.98), more fuel-efficient, high reliability;

● Lightweight: Optimized two-section aluminum housing, light weight 100 kg;

● Long life: short stroke long life synchronizer; gear full grinding process; built-in oil pump forced lubrication; optimized speed ratio distribution; low noise design;

● Fuel-saving: ZF 16-speed products, the engine is running at economic speed, more gears, saving 3% fuel consumption;

● Lightweight and flexible shifting: with shift servo.



isuzu dump truck

Isuzu 10 wheeler mining transport truck



 Robust Construction:

 These trucks are constructed with durable materials to withstand heavy loads, rough terrains, and harsh environmental conditions commonly found in mining areas.



 Powerful Engine:

 Equipped with a high-performance engine capable of delivering ample power and torque to carry heavy payloads efficiently.



 Enhanced Suspension:

 The truck is equipped with a specialized suspension system to provide stability and smooth operation even over rough terrain.



 Cargo Capacity:

 Designed to transport significant volumes of materials, these trucks offer ample cargo space to efficiently move mining resources.



 Safety Features:

 To ensure the safety of operators and cargo, these trucks are likely equipped with advanced safety features such as anti-lock braking systems, airbags, and stability control.



 Customization Options:

 POWERSTAR COMPANY may offer customization options to tailor the truck to specific mining requirements, such as specialized bed configurations, lighting, and communication systems.



Isuzu 10 wheeler mining transport truck

Isuzu 6x4 tipper truck for sale
