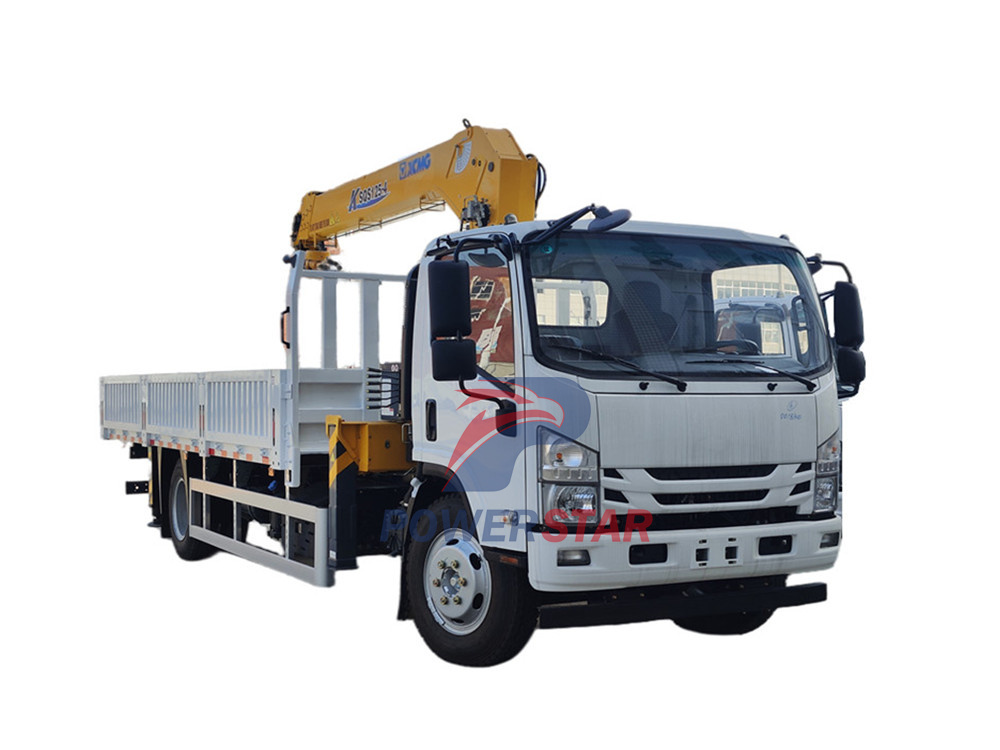

ISUZU 3.2 Ton hydraulic crane lorry truck

ISUZU 3.2 Ton hydraulic crane lorry truck also called Isuzu 700P boom crane truck,Isuzu NPR truck mounted crane,Isuzu 700P straight arm crane,Isuzu 700P 4x2 cargo truck with crane,Telescopic truck crane Isuzu.

The ISUZU 3.2 Ton hydraulic crane lorry truck is designed to meet the demanding needs of modern construction and logistics operations. With its powerful engine, sturdy construction, and advanced crane system, this truck is capable of handling heavy loads with ease and precision. The integration of the XCMG SQS125-4 boom crane further enhances its performance, making it an ideal choice for a variety of tasks.

Features:

• Adopt world-class lSUZU 700P Chassis, High power and Fuel efficiency, Reliability, Uptime;

• All Structural made of High Strength Steel;

• Easy to mount and Minimum space required for Mounting;

• Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load;

• Optional Chassis 4x2, 6x4,8x4 and engine power;

• Optional Crane brand: XCMG, UNIC, PALFINGER...

•Optional Crane type: Telescopic boom crane or knuckled boom crane;

• Radio Remote Control Available as an Optional Fitment.

Specifications

Apilications

The Isuzu 3.2 ton hydraulic crane truck, equipped with a powerful XCMG SQS125-4 boom crane, is the pinnacle of strength and precision in the field of utility vehicles. This rugged machine embodies unparalleled power, versatility and technological sophistication, making it a game-changer for heavy lifting tasks across a wide range of industries.

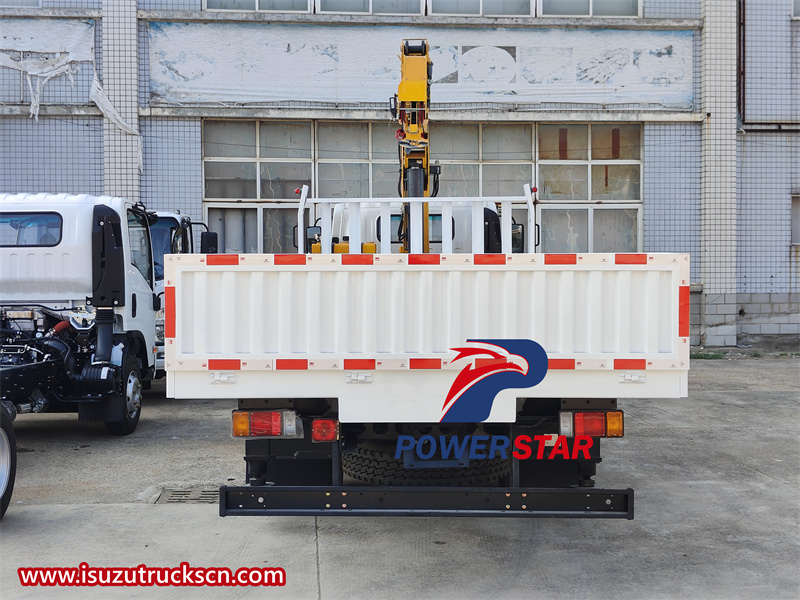

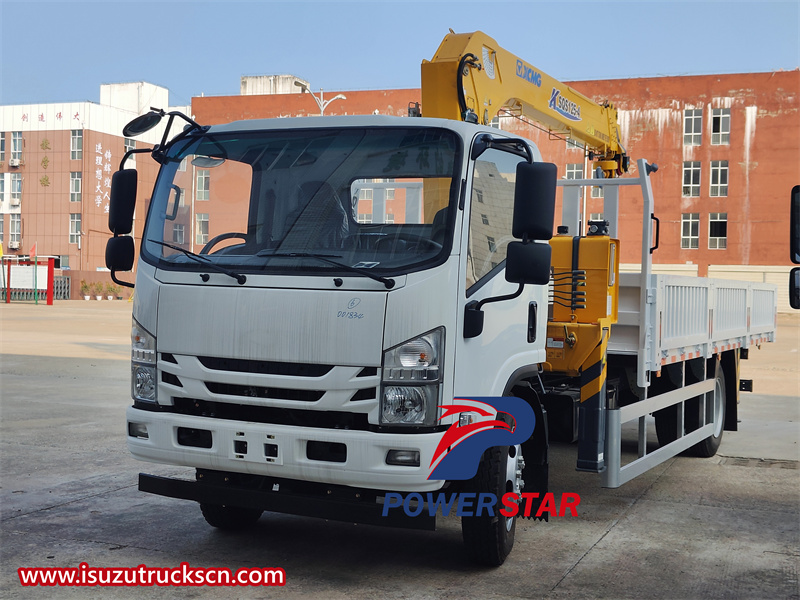

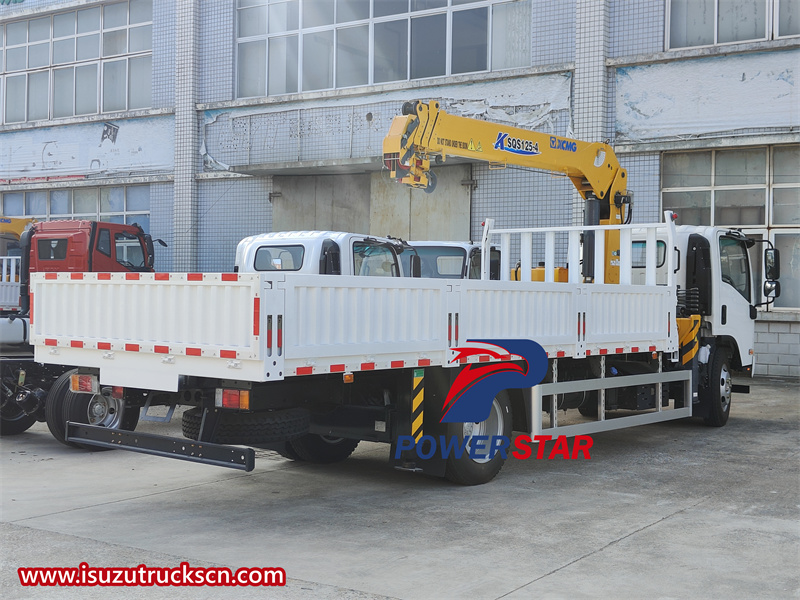

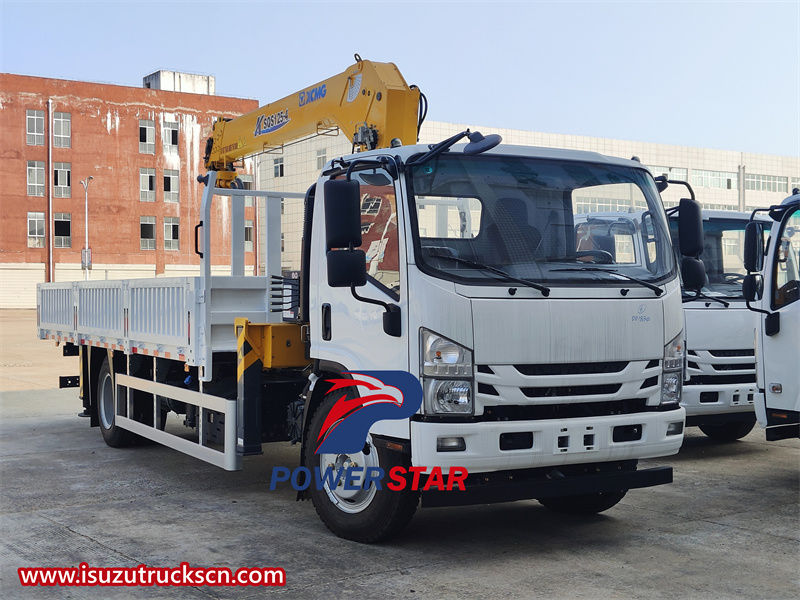

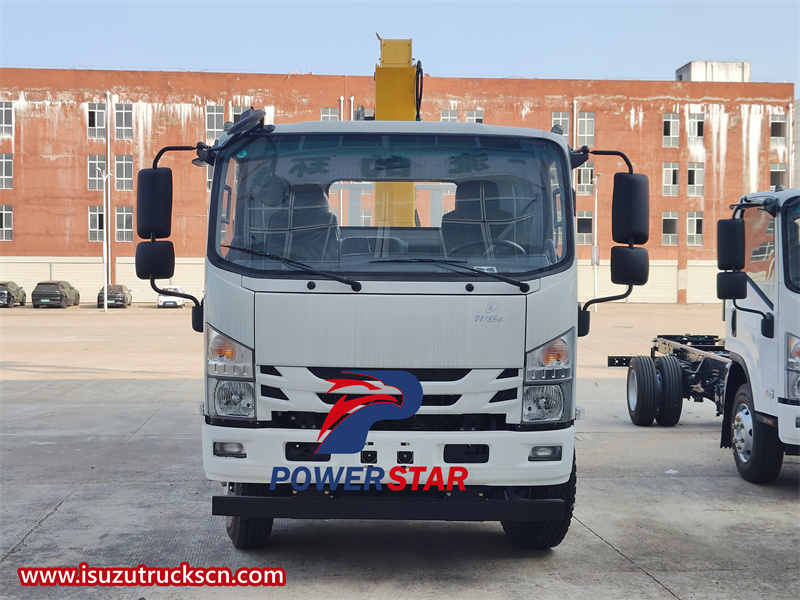

Isuzu 3.2 ton hydraulic crane truck

Powerful chassis and engine

The Isuzu 3.2 ton hydraulic crane truck is modified based on the Isuzu 700P chassis, providing a 4175mm wheelbase, the vehicle is powered by a powerful Isuzu 4HK1-TCG61 190HP diesel engine that provides ample torque and power for demanding operations. The engine is mated to a smooth-shifting Isuzu MLD 6-speed transmission, allowing for easy maneuvering in tight spaces and on uneven terrain. This combination ensures the truck can confidently handle heavy loads even in the most challenging conditions.

Advanced crane system

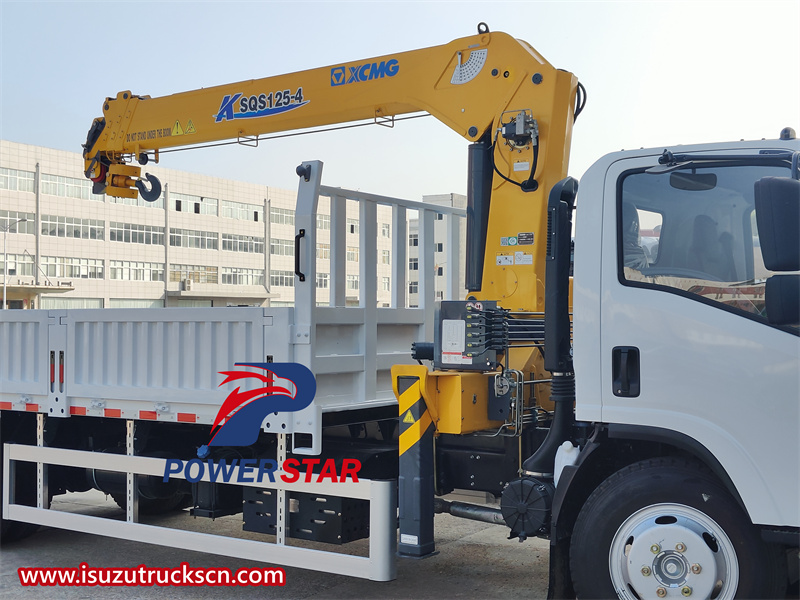

The heart of this truck is the XCMG SQS125-4 boom crane. This crane features a sturdy boom structure and advanced hydraulic system that provide unmatched reach, accuracy and load handling capabilities. It excels at lifting heavy objects with ease, making it an indispensable tool for construction sites, logistics operations and industrial applications where precision and strength are critical.

The crane features a 4-section boom with excellent neutral alignment and high bending resistance, ensuring stable and reliable lifting performance. The boom is equipped with a single-cylinder cable synchronous telescopic mechanism, which enables efficient and reliable boom extension and retraction. In addition, the crane is equipped with a terminal automatic hook retraction device, which saves time before and after operation and improves driving safety by preventing hook swing.

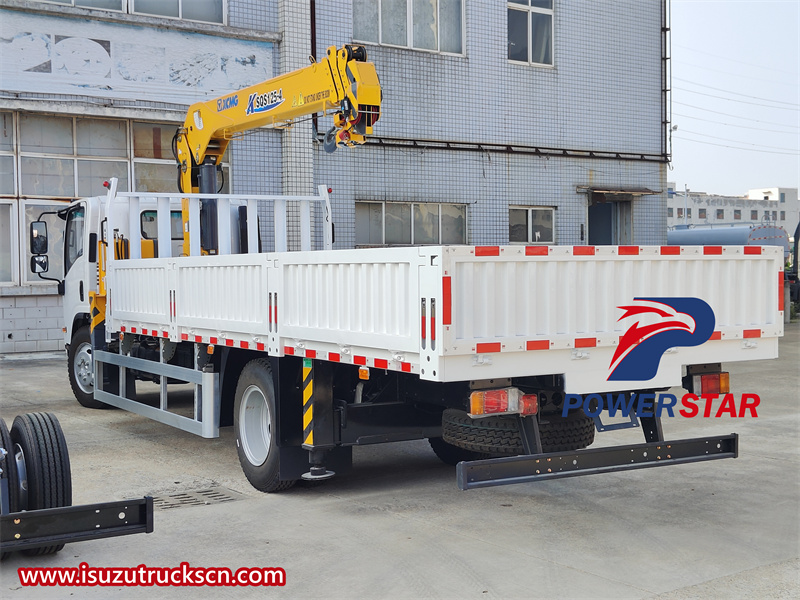

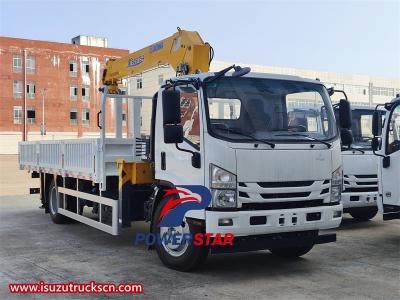

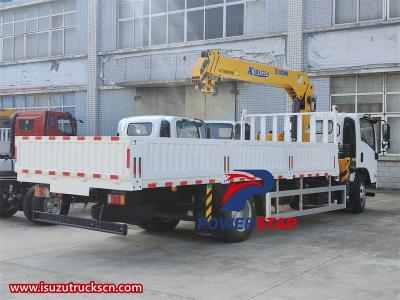

Isuzu 700P boom crane truck

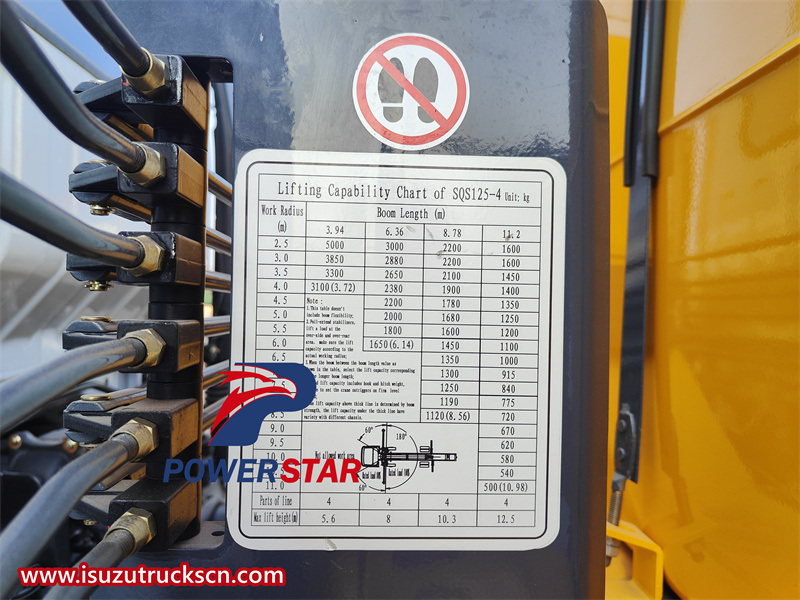

Technical drawing of XCMG SQS125-4

Versatile lifting capacity

With a maximum lifting capacity of 5 tons, the XCMG SQS125-4 boom crane is suitable for a variety of lifting tasks. The boom can be extended to a maximum of 11.2 meters and the maximum lifting height is 12.5 meters. With a maximum lifting moment of 125 kN·m and a working range of 11 meters, this crane can easily handle the heaviest loads. The crane also features a variable amplitude range of 0°-75° and 360° rotation for precise positioning of loads in any direction.

Known for its large lifting capacity, the XCMG SQS125-4 crane is able to handle heavy lifting tasks with ease. Its design is sturdy and easy to operate, with excellent telescopic functions and smooth lifting performance. Whether on construction sites, logistics centers or industrial sites, this crane is capable of various lifting operations and is an important auxiliary.

XCMG SQS125-4

Operational efficiency

The seamless integration of crane and truck improves operational efficiency and ensures optimal performance in different tasks. The intuitive controls and ergonomic design of the crane cab prioritize ease of operation for the crane operator, facilitating quick and accurate load handling. This combination vehicle offers a variety of functions and seamless transition between transport and lifting operations, thereby improving productivity.

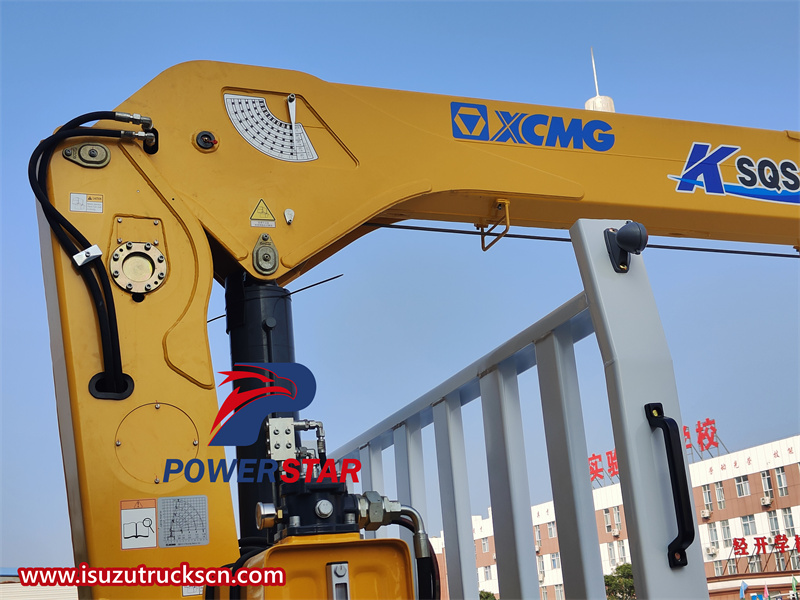

Rotating prop

Isuzu 700P truck crane is a multifunctional lifting equipment that is flexible, easy to operate, efficient and reliable. Therefore, the correct operation method and understanding of the precautions for truck crane operation are particularly important, which can not only improve the service life of the vehicle, but also greatly improve the safety of operation.

Truck crane operation method steps:

1. Observe the working environment, choose a suitable angle for operation, ensure enough space for the left and right legs to be fully opened, and park the car at a suitable distance from the cargo according to the weight of the cargo.

2. Check whether all the control handles of the crane are in the middle position. If the handle is not in the middle position, restore it to the middle position.

3. Check whether the shut-off valve on the hydraulic oil tank is open. If not, be sure to open it. At the same time, ensure that the hydraulic oil capacity is within the qualified range.

4. Make sure that the hydraulic leg lock is in the closed position.

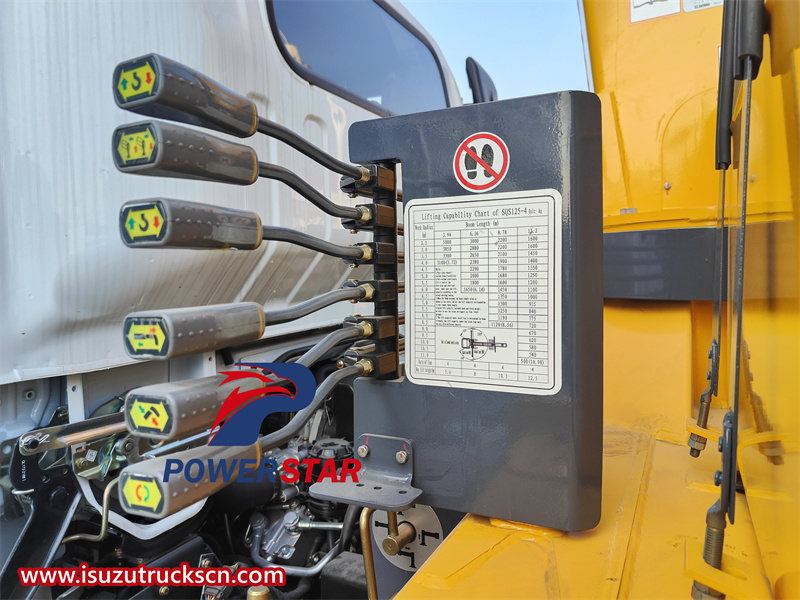

Joystick

5. Check whether the hydraulic pipeline is normal and the wear of the wire rope to ensure safety.

6. Start the car and observe the air pressure. When it reaches more than 5 air pressures, hang up the power take-off and put the power take-off in working condition. The specific operation is: step on the clutch, put the gearbox in neutral position, press the power take-off electric button, and slowly release the clutch. At this time, the clutch is in working condition.

7. Open the front and rear outrigger locks and fully unfold the outriggers. The outriggers must touch the ground and the car cannot be suspended in the air. All wheels of the car must touch the ground.

8. Unplug the locking pin of the slewing mechanism.

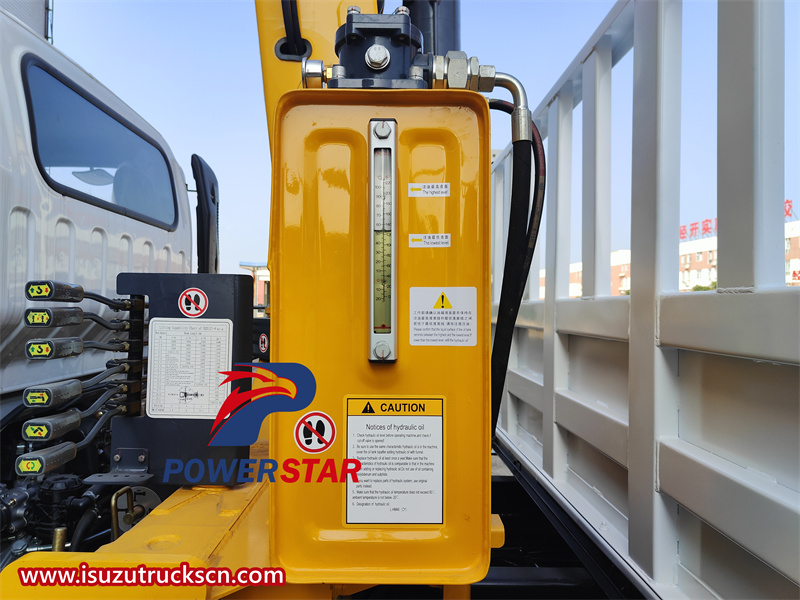

Hydraulic oil tank

9. Only after completing the above steps can the crane be used for operation.

10. When using the crane, first release the wire rope, then extend the arm. The lifting angle of the crane is recommended to be no less than 30 degrees

11. After the lifting operation is completed, the crane arm and outrigger must be reset. First retract the vertical outrigger off the ground, and then retract the horizontal outrigger. Then remember to insert the fixing pin and mechanical lock. Disconnect the power take-off.

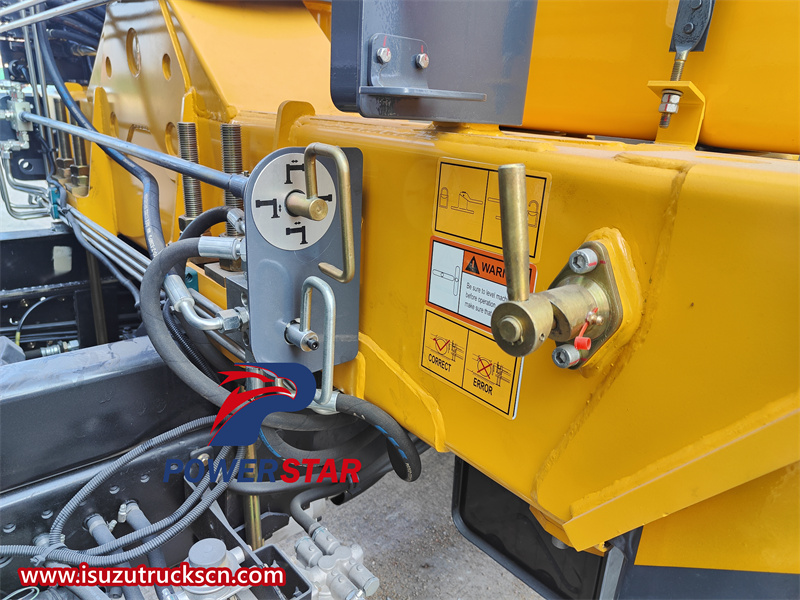

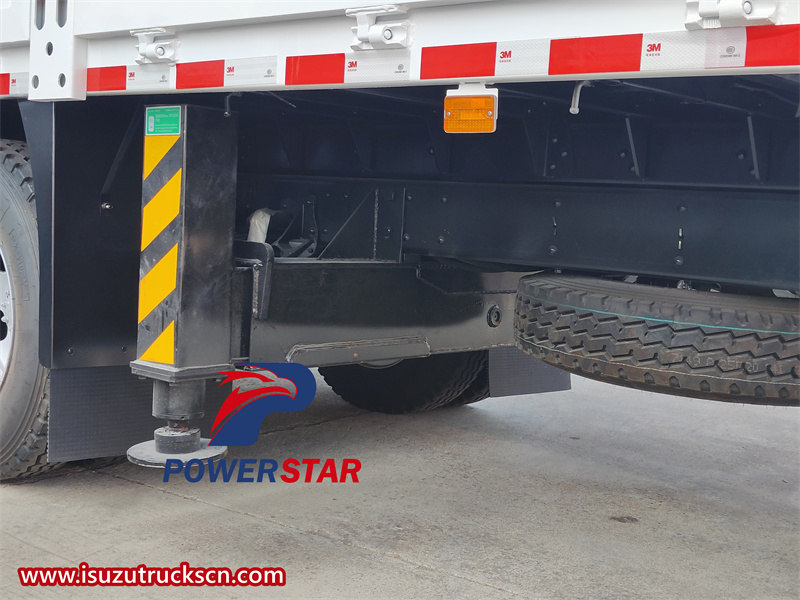

Hydraulic leg lock

Notes on Isuzu NPR boom crane truck operation:

1. Overweight operation is strictly prohibited, and people are strictly prohibited from standing under the crane arm

2. Hoisting operation is strictly prohibited in front of the vehicle

3. It is prohibited to drag heavy objects with the crane arm

4. When the wire rope is released, at least 3 turns of wire rope should be retained on the drum

5. When the outer wire of the wire rope is worn to 10% of its diameter, the wire rope should be scrapped

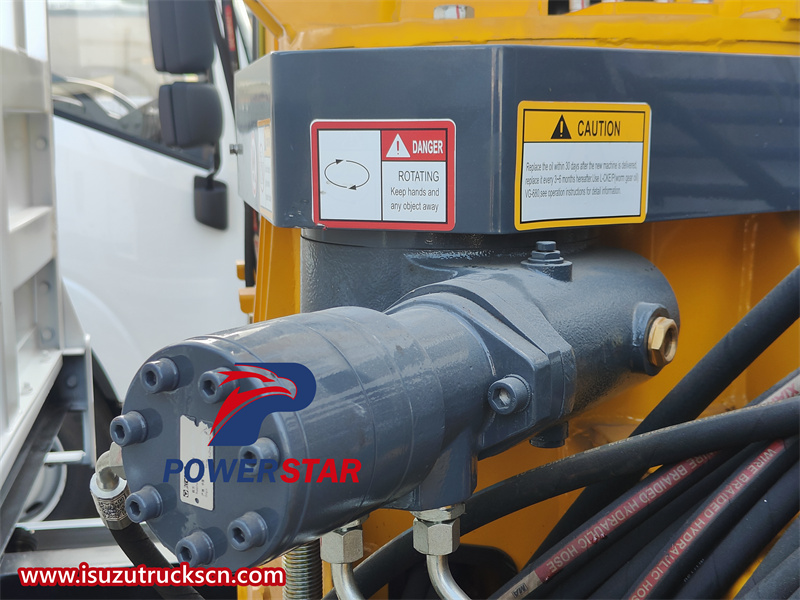

Rotary reducer

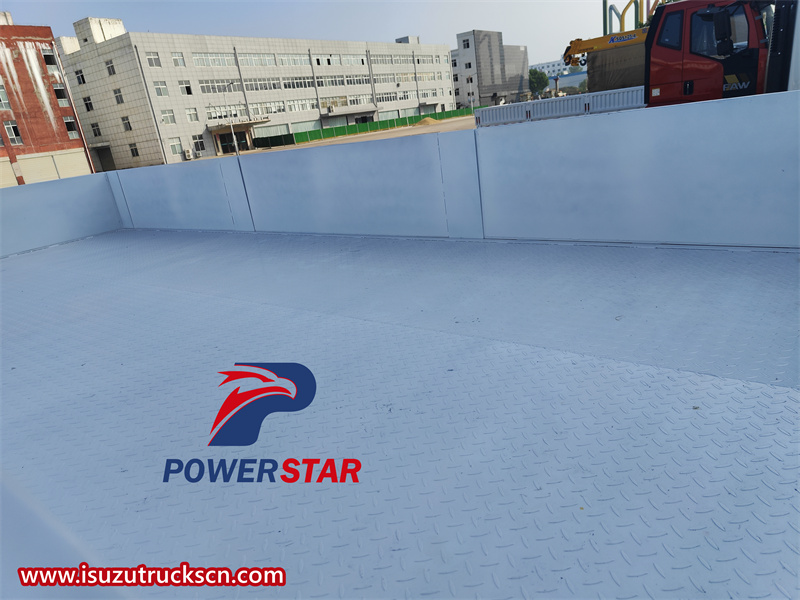

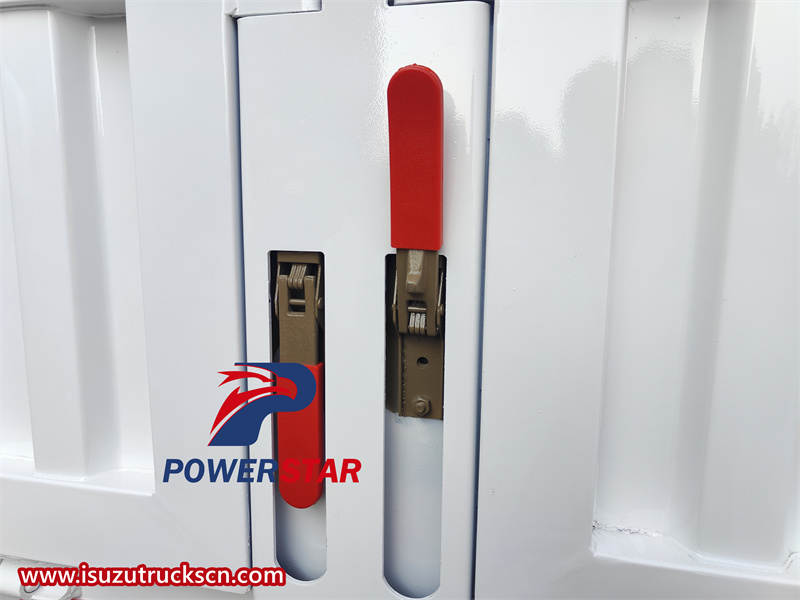

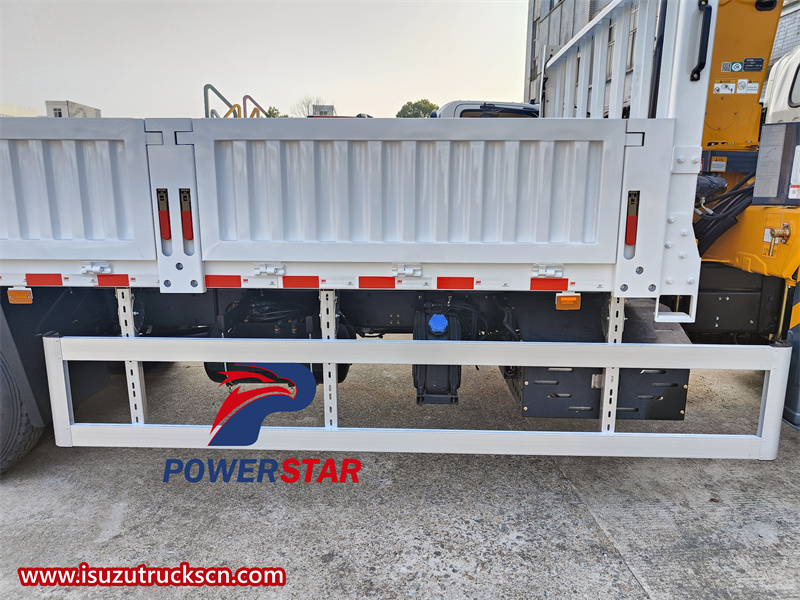

Cargo box side panel lock

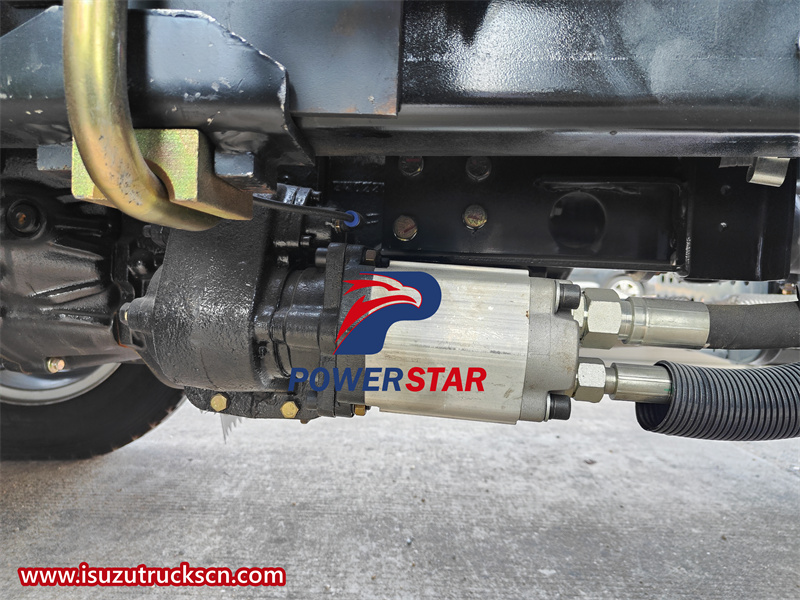

PTO
