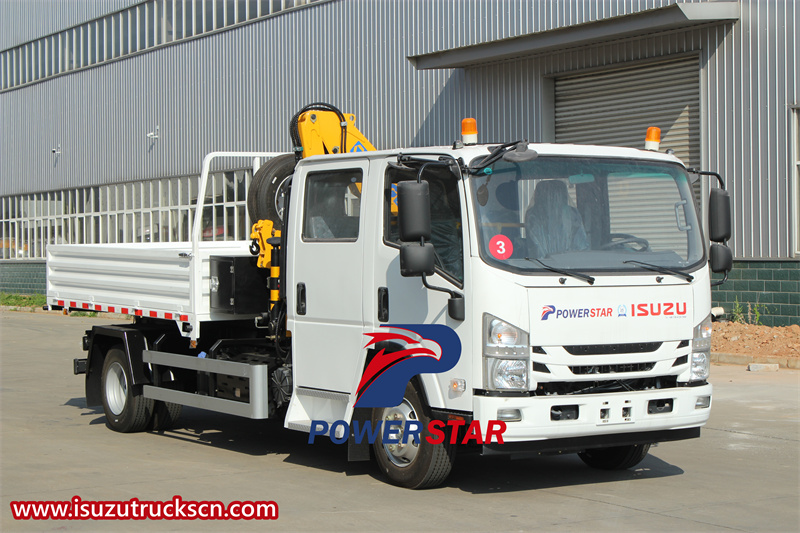

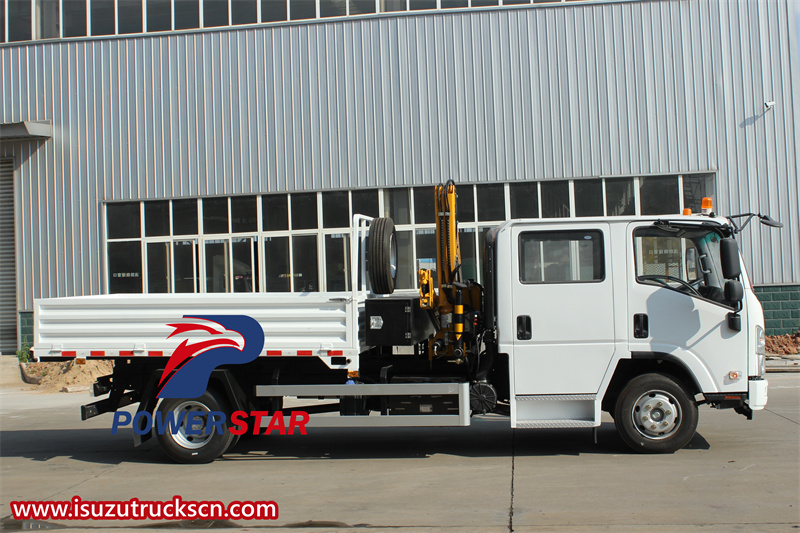

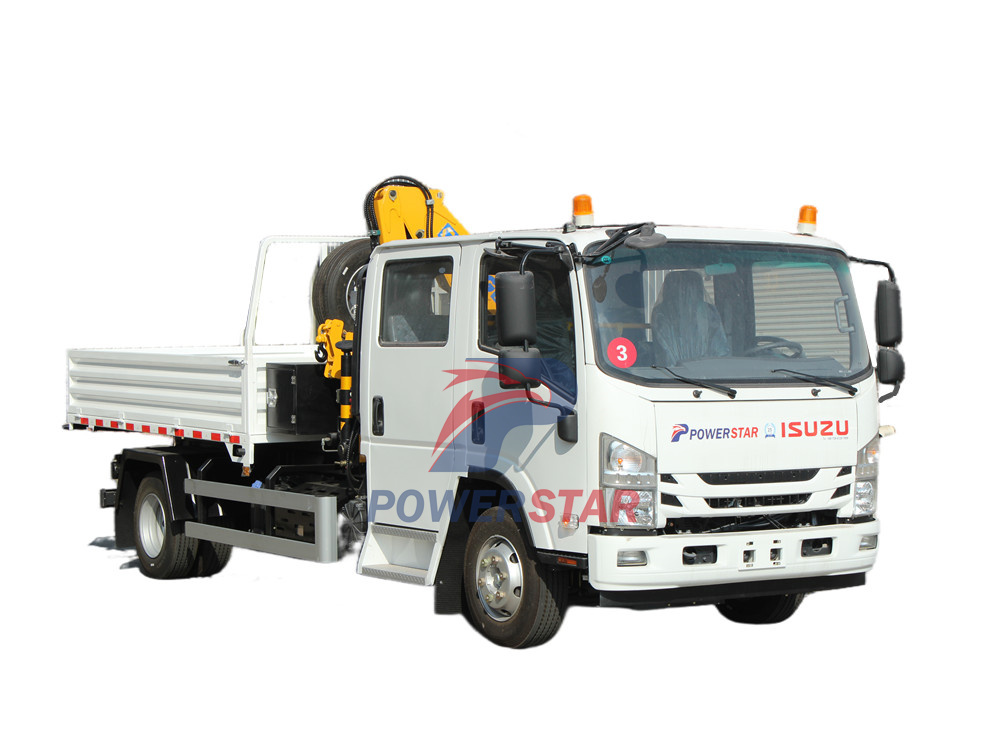

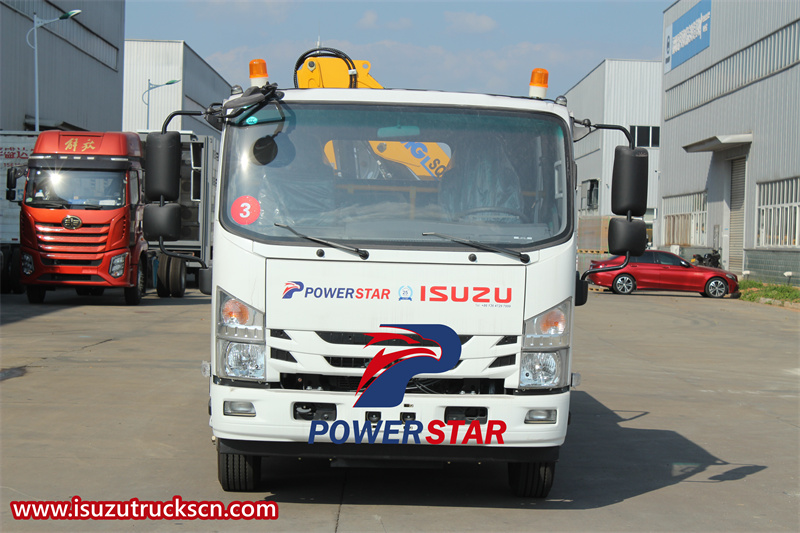

Isuzu 5 Ton articulated crane lorry truck

Products Description

Isuzu 5 Ton articulated crane lorry truck also called ISUZU 5 ton knuckle boom truck crane,Isuzu lorry truck with 5 T folding crane,ISUZU 700P double row 5 ton folding arm truck crane,Isuzu 700P truck mounted folding arm crane,Isuzu truck mounted XCMG knuckle boom crane.

The Isuzu 5 Ton articulated crane lorry truck is a versatile and powerful vehicle designed for a wide range of applications. This truck combines the robustness and reliability of Isuzu's commercial vehicle heritage with the functionality and versatility of an articulated crane, making it an ideal choice for construction, logistics, and various other industries.

Specifications

Applications

The ISUZU 700P crane truck is a medium-duty commercial vehicle designed for durability and performance. With a maximum lifting capacity of 5 tons, this truck crane is able to lift and transport heavy loads with ease. The articulated crane design allows for greater flexibility and reach, making it suitable for a variety of tasks, including loading and unloading, lifting materials, and positioning heavy objects.

Isuzu 5 Ton articulated crane lorry truck

Chassis and Engine

The ISUZU rticulated crane lorry truck features a rugged 700P chassis that can withstand the rigors of daily use. The cab features a double-row design, which can carry more people.

The truck is powered by a reliable ISUZU diesel engine, which is known for its high fuel efficiency, low emissions, and long service life. The engine is equipped with advanced fuel injection technology and electronic control systems to ensure optimal performance and fuel economy.

The engine's power is transmitted to the wheels through a durable driveline, which includes a heavy-duty gearbox and axles. This enables the truck to handle heavy loads and operate smoothly in challenging conditions.

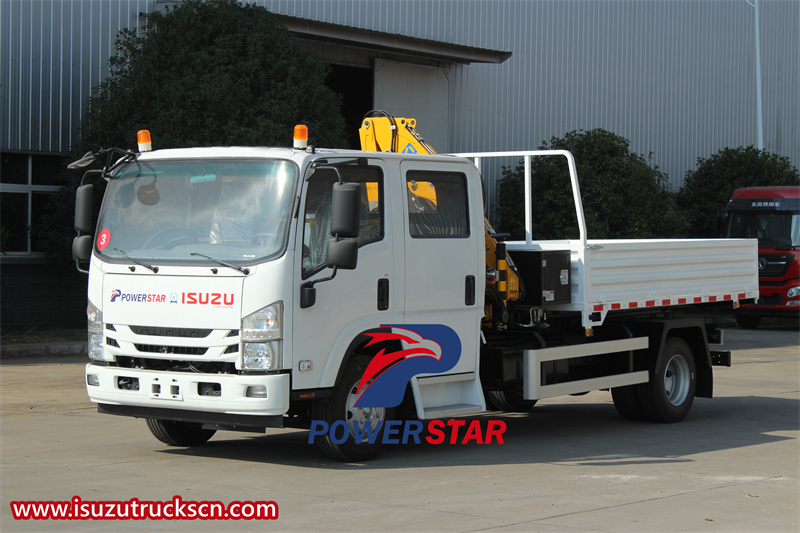

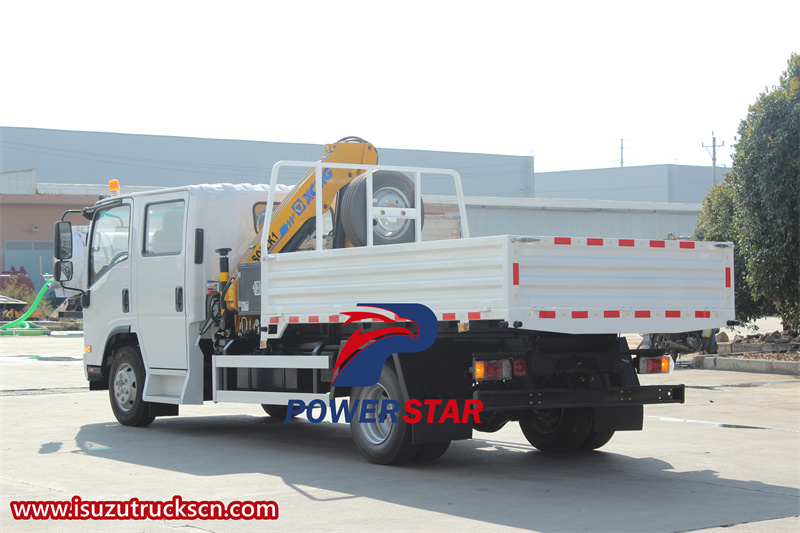

Isuzu 700P double row 5 ton knuckle boom truck

Crane and Boom

The XCMG SQ5ZK2Q articulated crane on this vehicle is a key feature that sets it apart from other commercial vehicles. The folding boom crane is located at the rear, which has excellent reach and maneuverability, which is essential for seamlessly navigating various working environments. The crane is equipped with a knuckle boom, which is an articulated boom with greater flexibility and reach. The boom can be extended and retracted to reach different heights and distances, making it suitable for various lifting tasks.

The crane is also equipped with a powerful hydraulic system to provide the necessary lifting force. The hydraulic system is designed to be reliable and durable, ensuring that the crane can operate smoothly even under heavy loads.

ISUZU 5 ton knuckle boom truck crane

Performance characteristics

1. Strong carrying capacity: The crane has a lifting capacity of up to 5 tons and is suitable for handling large objects.

2. High flexibility: The crane boom is retractable and rotatable, with a two-stage luffing mechanism, and the cargo curve can be lifted and lowered to meet the working needs of different scenarios.

3. Safe and reliable: It adopts an advanced hydraulic control system and is equipped with multiple operating safety protection measures, such as overload protection devices, limiters, etc., which can effectively ensure the safety of operators and equipment. At the same time, the crane meets safety requirements such as CE and GOST.

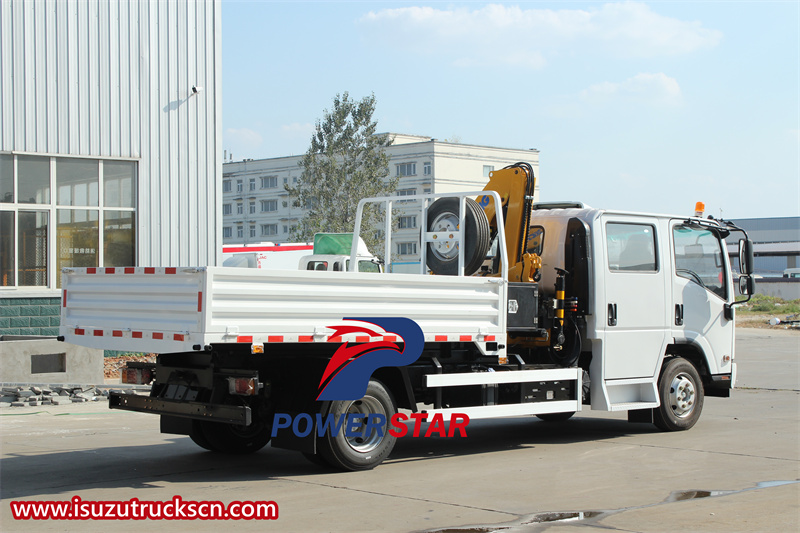

Isuzu lorry truck with 5 T folding crane

4. Environmental protection and energy saving: The optimized structural design makes the crane lighter, and the optimized hydraulic system reduces energy consumption.

5. Convenient operation: A separate control valve is used for getting on and getting off the vehicle, and a rotary valve is used to select the oil circuit. The interlocking of getting on and getting off the vehicle effectively reduces the risk of misoperation when getting off the vehicle. The operating seat for getting on the vehicle is arranged on the side of the turntable and can rotate infinitely with the turntable, providing a better operating field of vision. In addition, the crane can be operated while standing, and the operation process is simple and convenient, and the situation inside the cargo box can be directly seen during operation.

ISUZU 700P double row 5 ton folding arm truck crane

The Isuzu 700P double row 5 ton knuckle boom truck crane is suitable for a wide range of applications. It can be used for lifting and transporting materials in the construction industry, loading and unloading trucks and trailers in the logistics industry, and various other industries that require heavy lifting and transport.

In the construction industry, truck cranes can be used to lift and position building materials such as steel beams, concrete blocks, and other heavy objects. In the logistics industry, it can be used to load and unload goods from trucks and trailers, and to transport heavy objects over short distances.

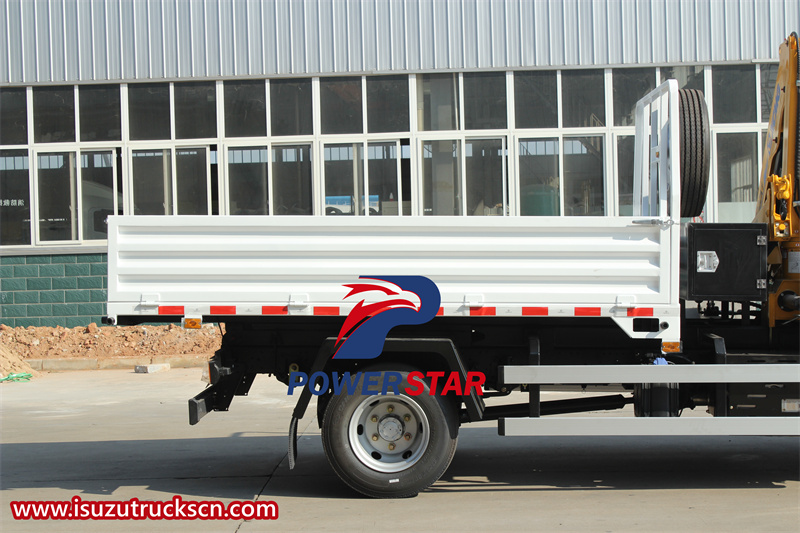

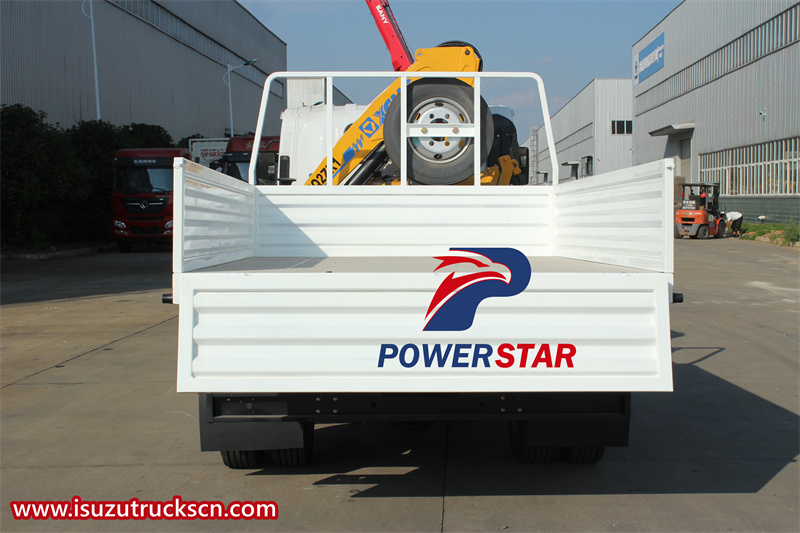

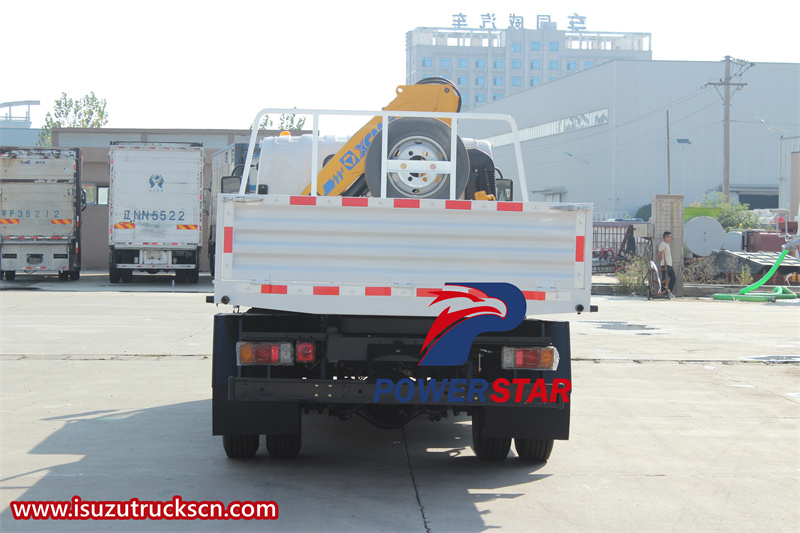

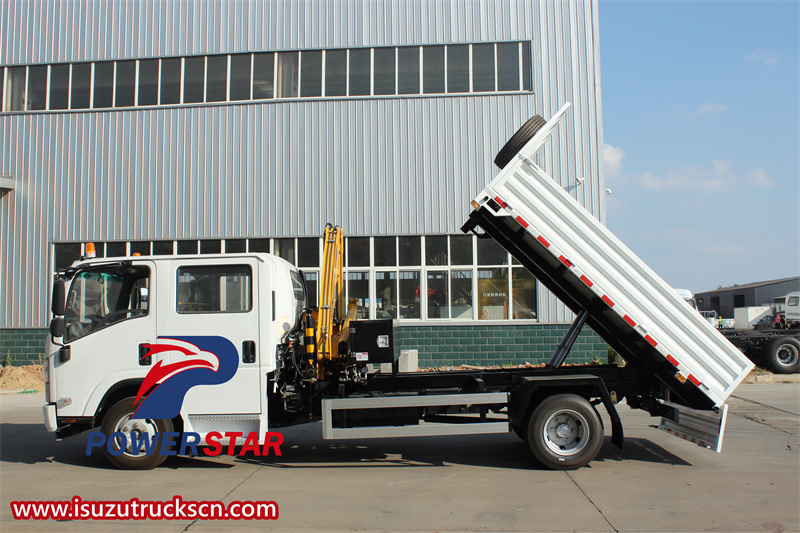

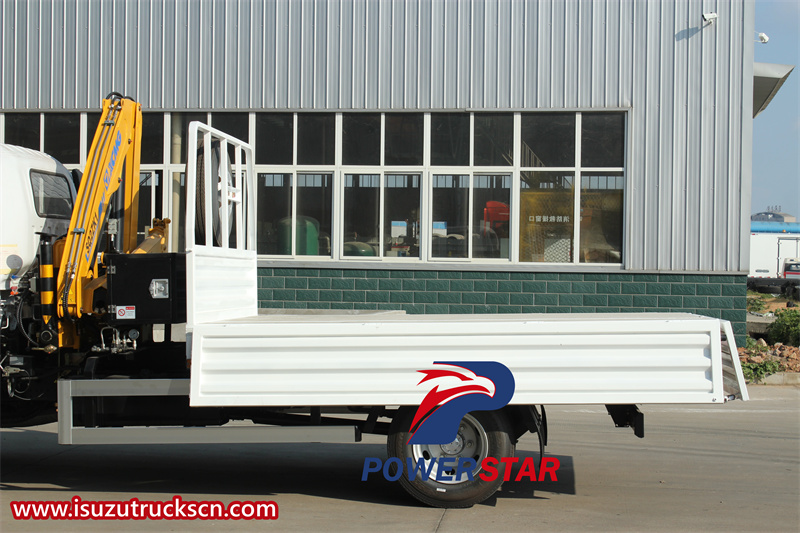

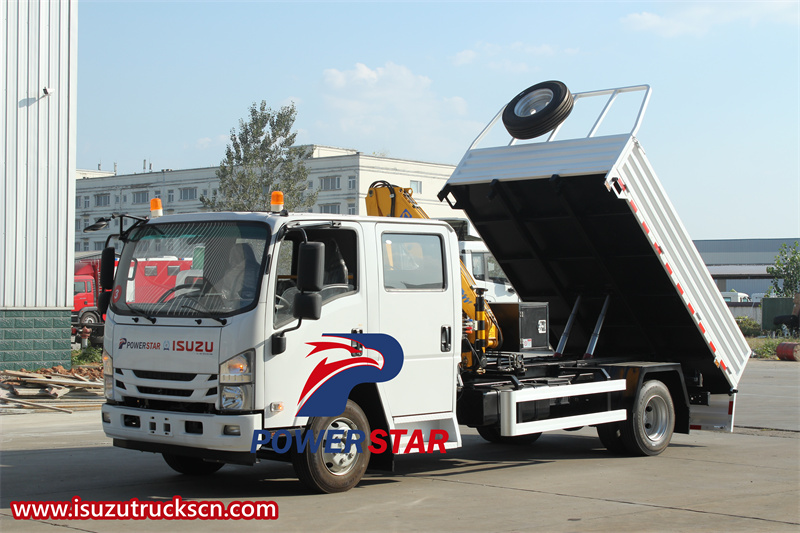

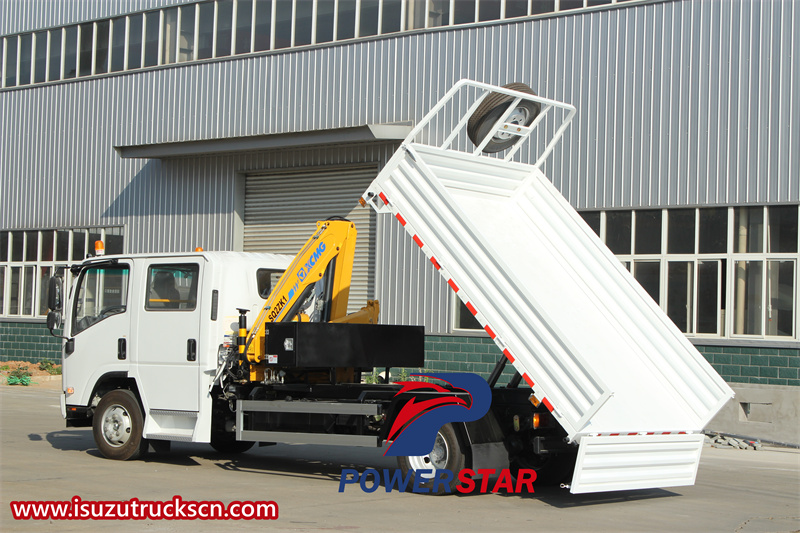

Folding arm crane and cargo box

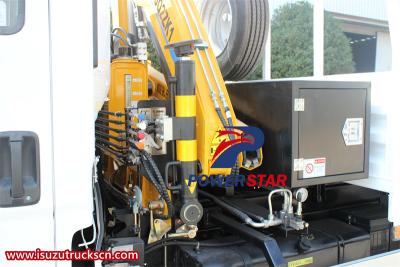

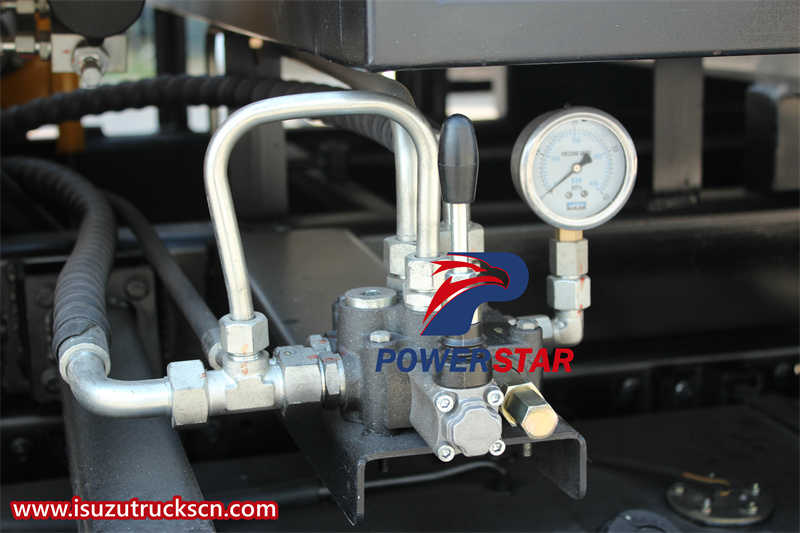

Hydraulic valve

Joystick

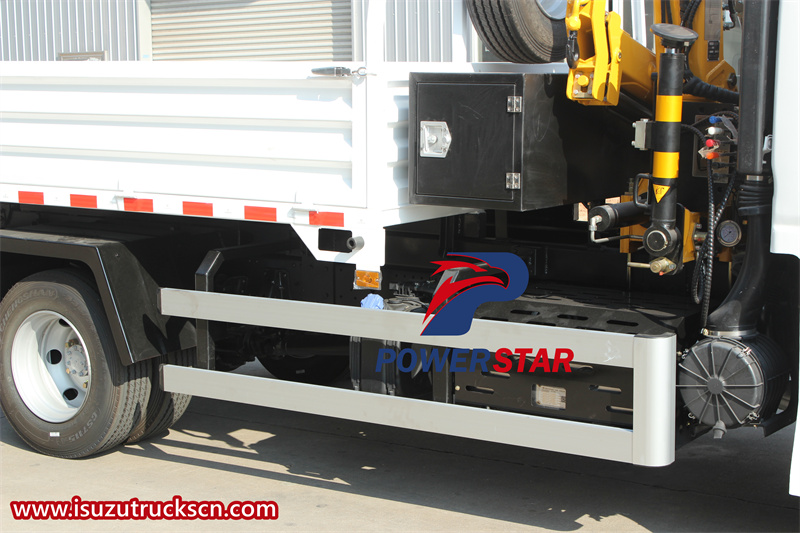

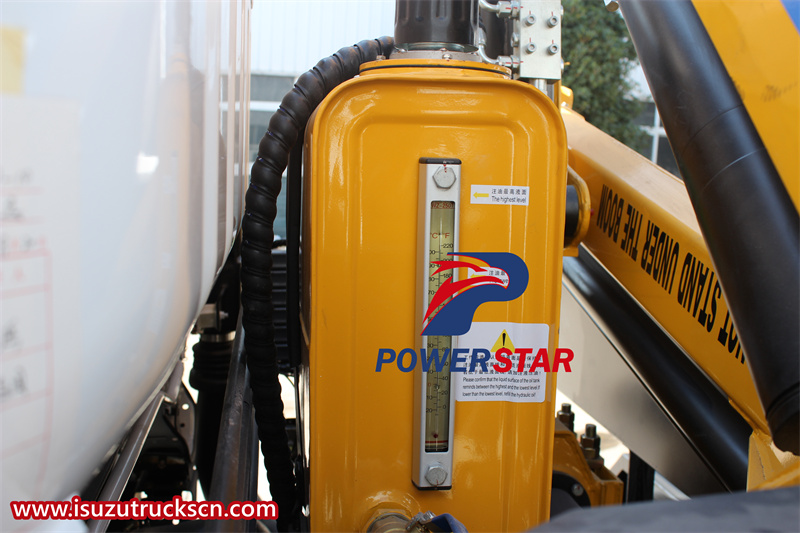

Hydraulic oil tank

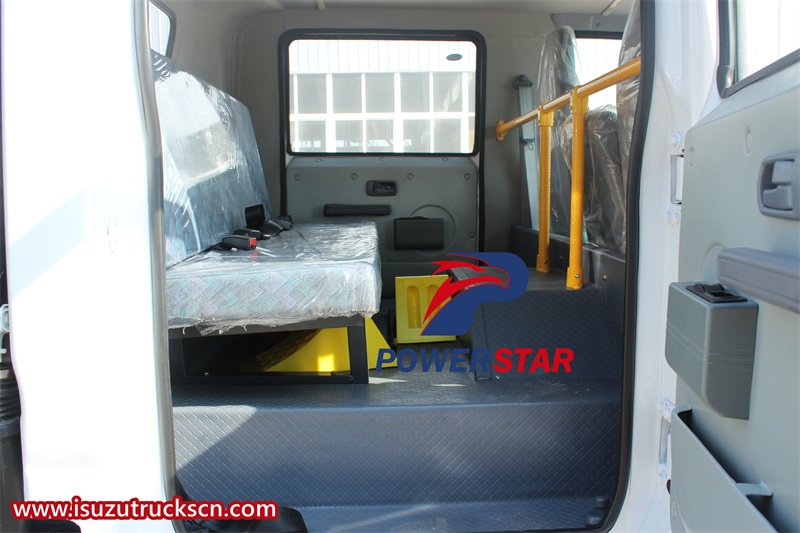

Cabin rear row

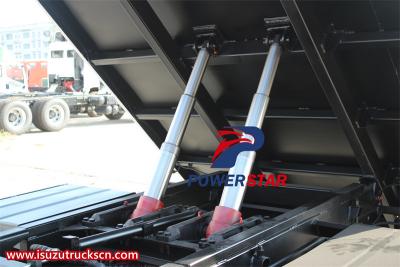

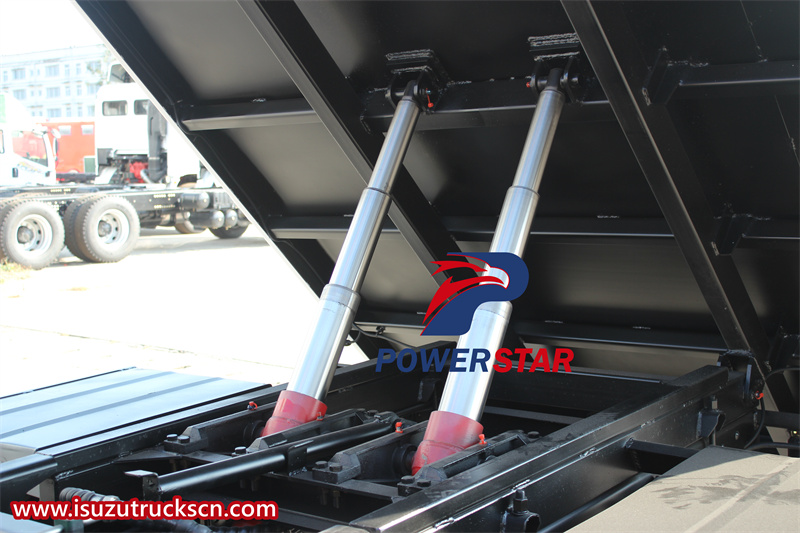

Hydraulic cylinder
