Work capacity:
12 CBMTruck model:
PT5120GYSEngine power:
240 HPEngine type:
6HK1-TCLAxle drive:
4x2Gear box:
ISUZU MLD 6SRemarks:

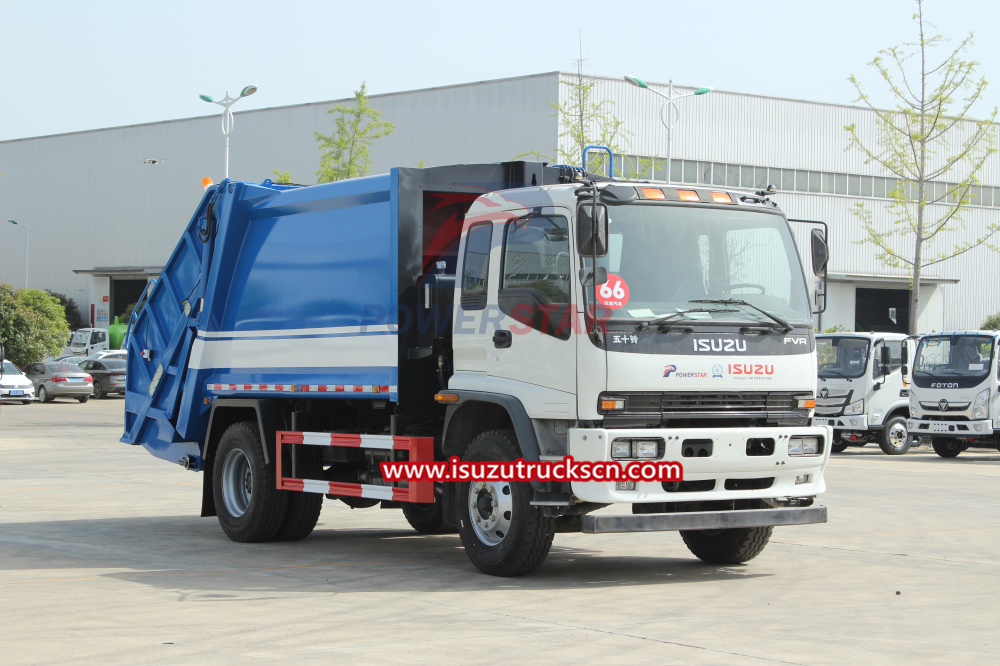

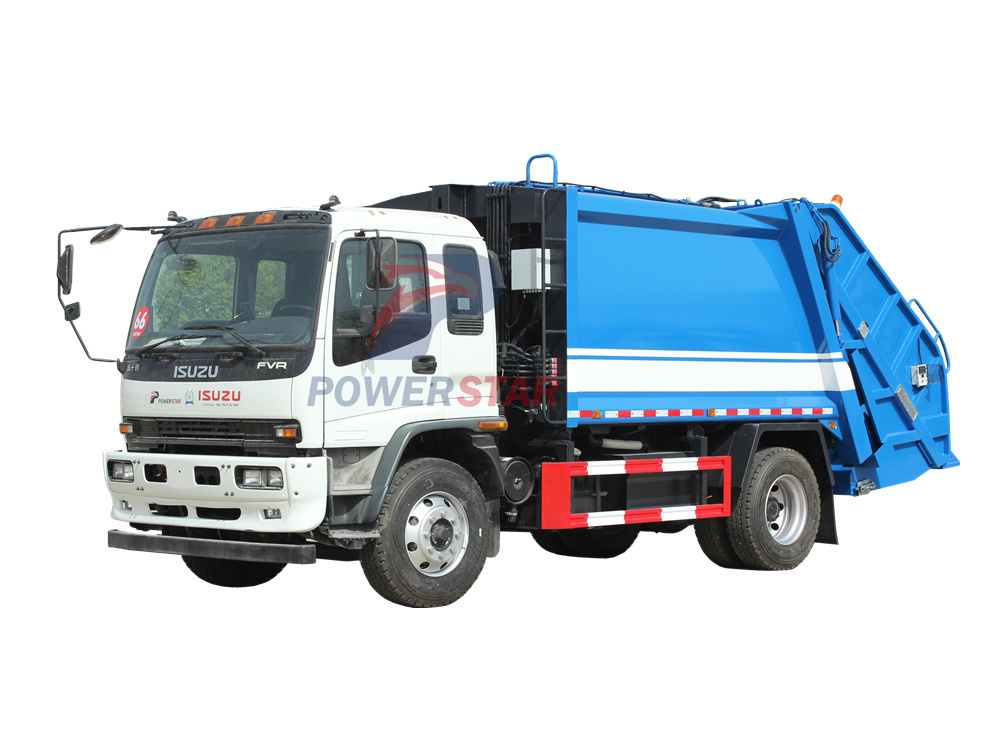

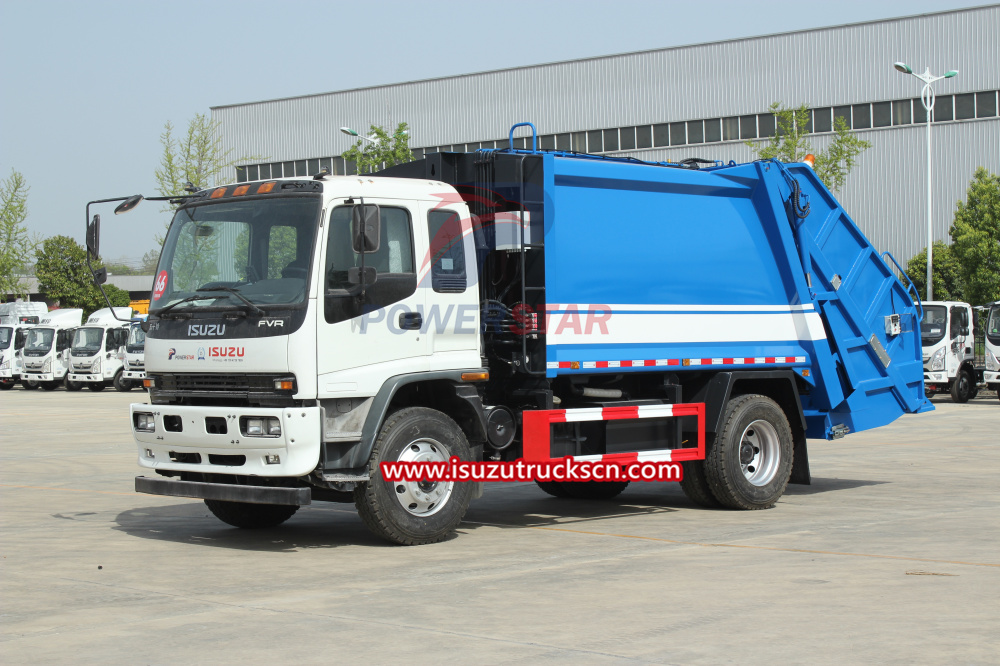

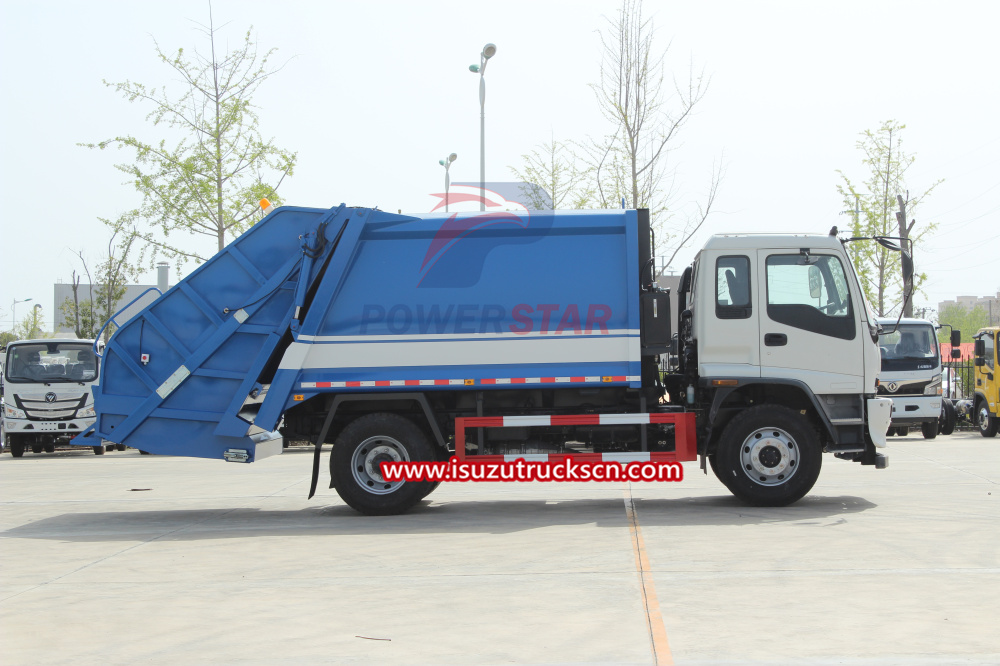

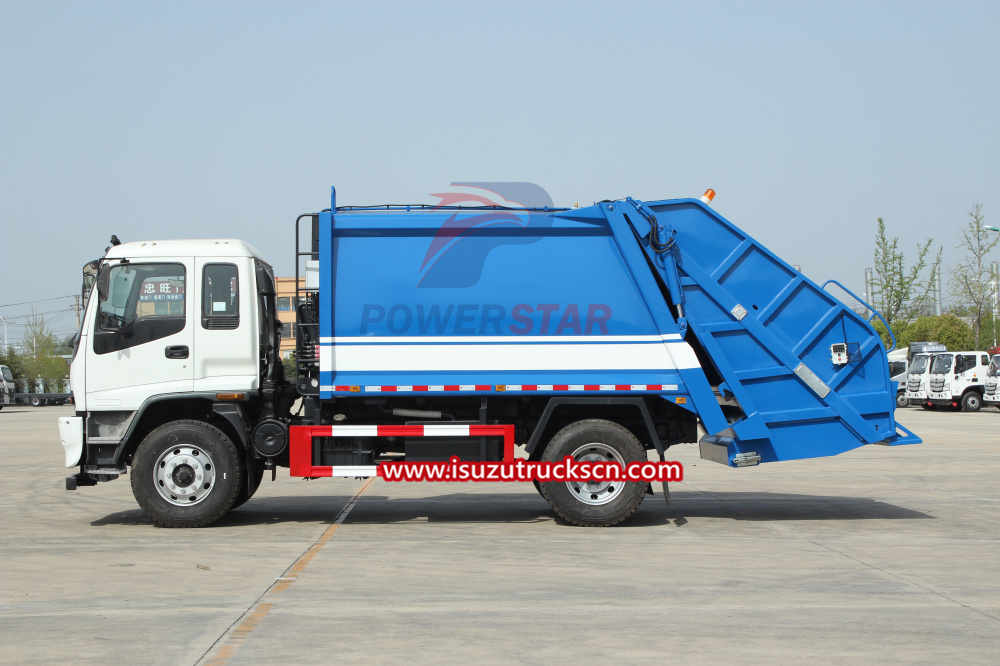

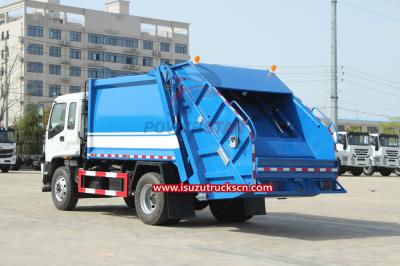

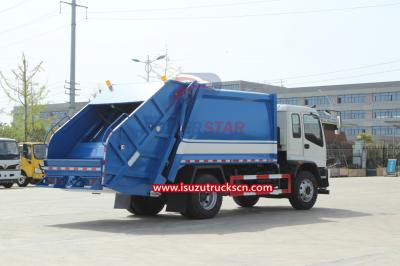

high standard painting working for 10 yearsPhilippines Government Introduces Brand New Isuzu FVR 240hp Garbage Compactor 18000kg to Improve Environmental Hygiene in Metro Manila. FVR Isuzu Compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology. It's with the features of high system pressure, large compression force, high volume rate and large loading capacity, which could make loading capacity increase 5-7 times.With the function of high automatic degrees, quick loading speed, convenient, safe and reliable operation, and preventing re-pollution.
The Philippines government has taken a significant step towards improving environmental hygiene in Metro Manila by procuring brand new Isuzu FVR 240hp garbage compactors, each with a capacity of 18000kg. In an exclusive initiative, the government aims to enhance waste management capabilities and contribute to a cleaner and healthier living environment for the residents of Metro Manila.
Recognizing the need for efficient and reliable waste management solutions, the Philippines government conducted extensive research and evaluation to identify the most suitable manufacturer for the procurement of garbage compactors. Through a meticulous selection process, Isuzu, a leading global producer of commercial vehicles, was chosen for its renowned expertise in manufacturing high-quality and durable compactor trucks that have been proven successful worldwide.

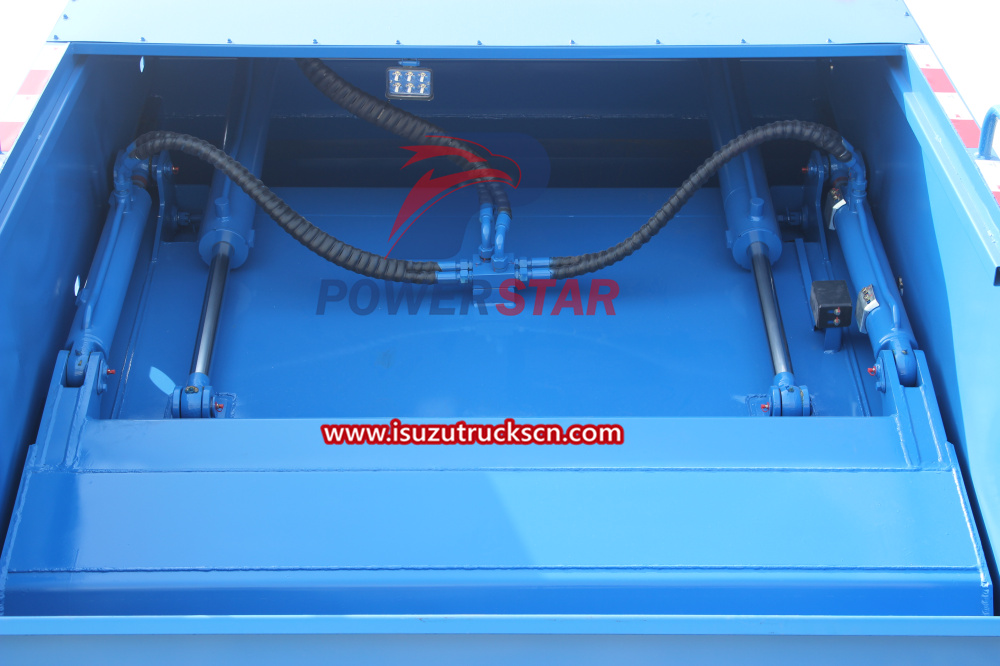

The Isuzu FVR 240hp garbage compactors have been custom-built to meet the specific requirements of Metro Manila's garbage collection system. These compactor trucks are equipped with a robust compaction mechanism, allowing for effective and efficient waste compaction within the specified capacity. The compaction process significantly reduces the volume of waste, maximizing the truck's load capacity and minimizing the number of trips required for disposal.
To ensure the suitability and compatibility of the Isuzu FVR 240hp garbage compactors, the Philippines government engaged in comprehensive negotiations with Isuzu representatives. These negotiations focused on customization options to address the unique waste management challenges faced by Metro Manila. Considerations included the selection of compactor sizes, loading and unloading mechanisms, and advanced safety features to ensure seamless operations in heavily populated areas.
Vehicle Description | |

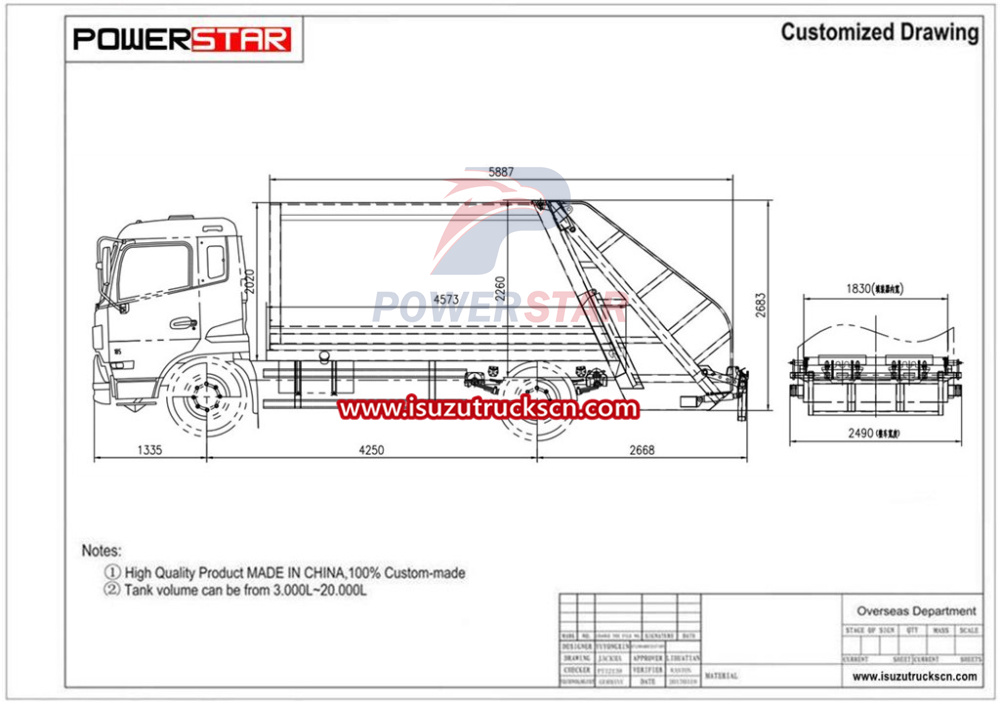

Overall dimensions | 8520x2490x3350mm |
GVW | 18000kg |
Curb weight | 9100kg |
Loading weight | 6500kg |
Chassis brand | ISUZU |
Traction type | 4*2; Left hand drive |
Up-parts Specification | ||

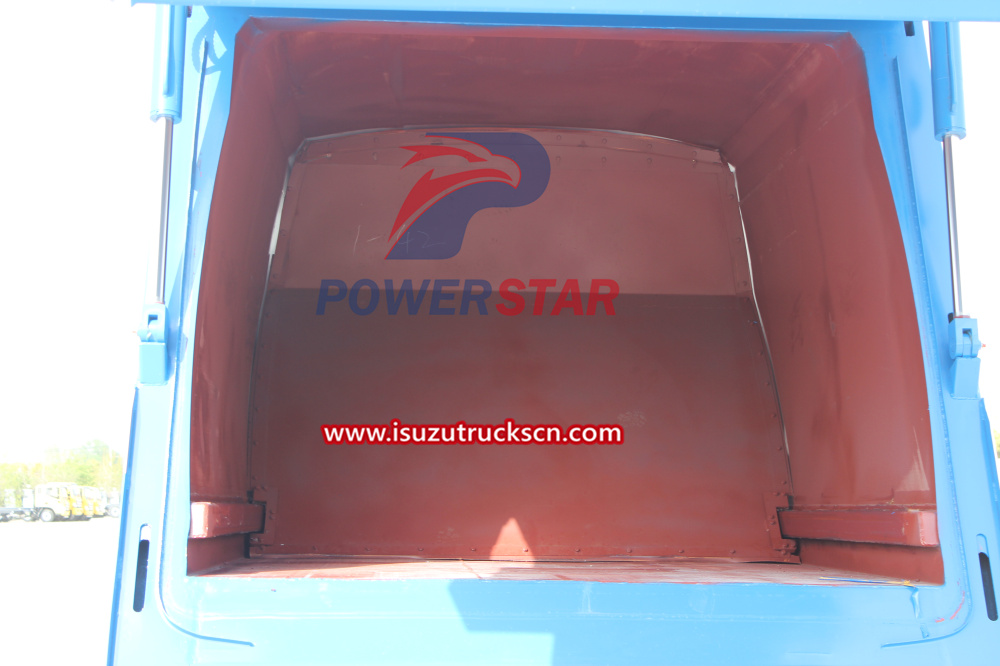

Dustbin volume | 12-14cbm | |
Material & thickness | Side | 4mm Q345 |
Bottom | 5mm Q235A | |

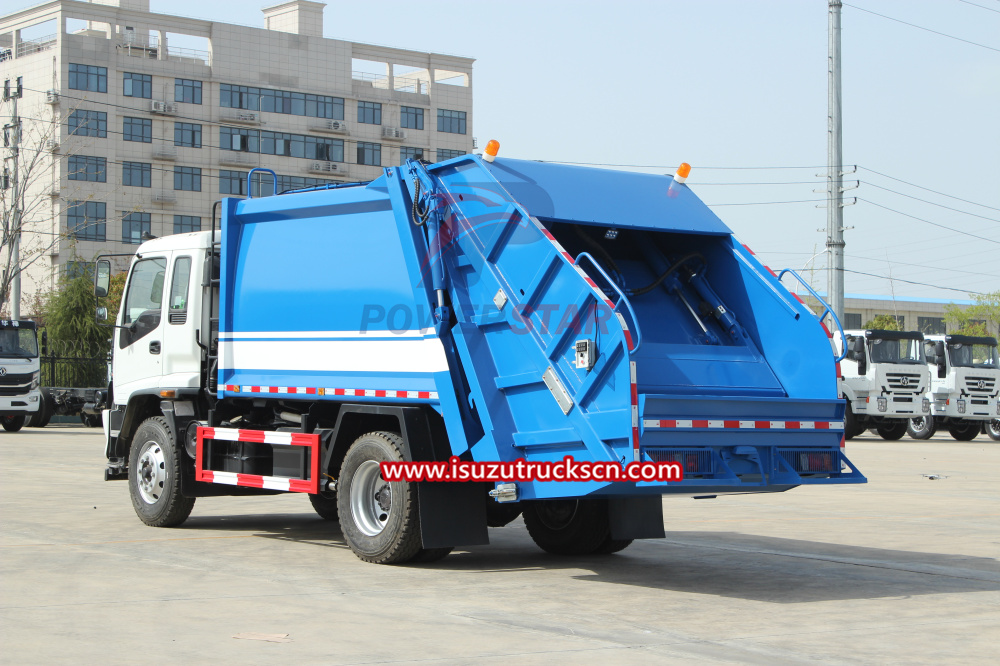

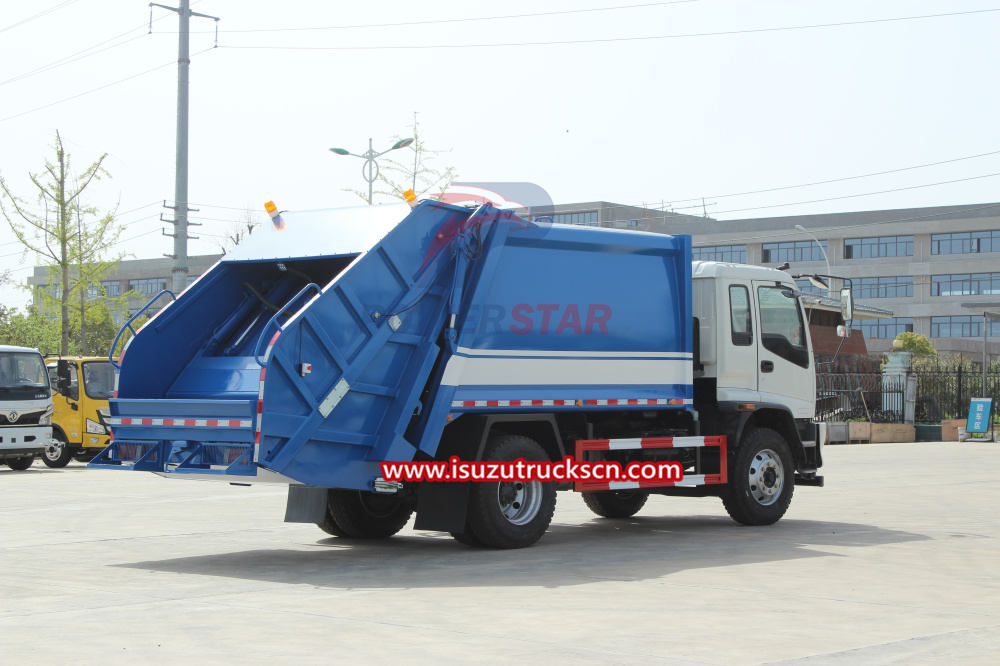

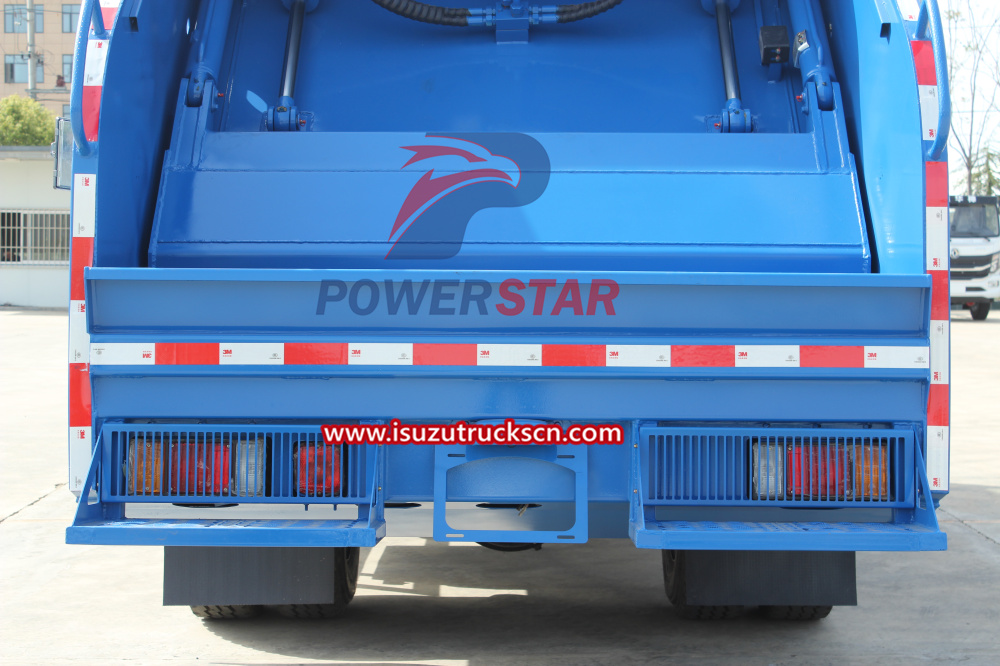

Type of Rear garbage filler (Rear Turnover device) |
1.Hanging trash bin | |
2.Swing arm | ||
3.Dustpan | ||

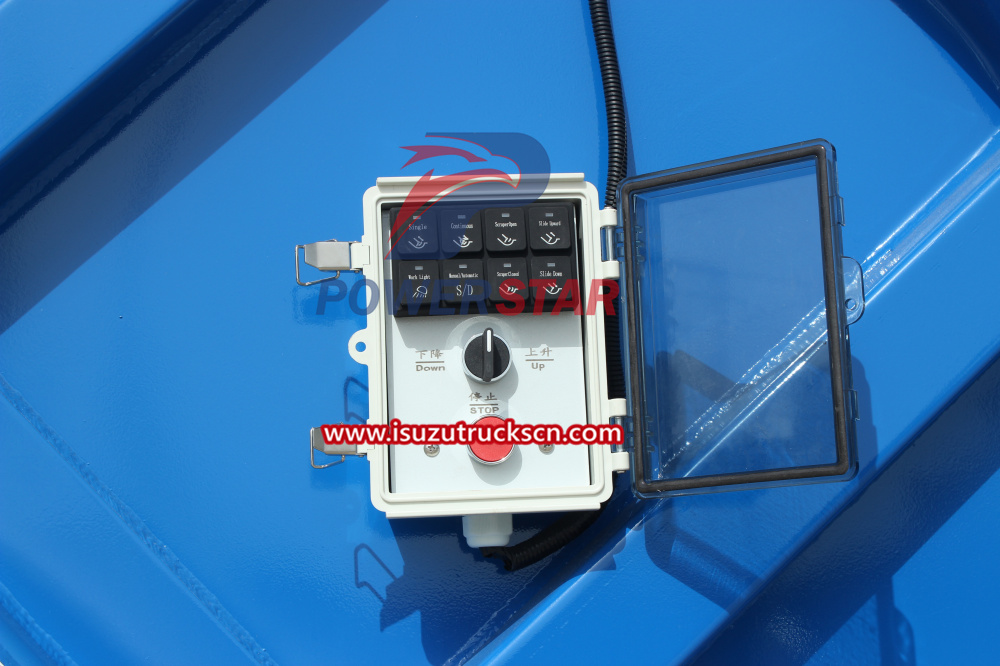

Control system | Electrically Controlled Hydraulic + Manual Hydraulic | |
Type of compactor | Fill, push and compression | |
Garbage compact density | 0.9±0.05 T/m³ | |
Sewage water tank | Rear | About 500L, on the bottom of rear filler |
Front | About 230L, on the front of garbage van | |
Max compact | ≥141 KN | |
Max push | ≥189 KN | |

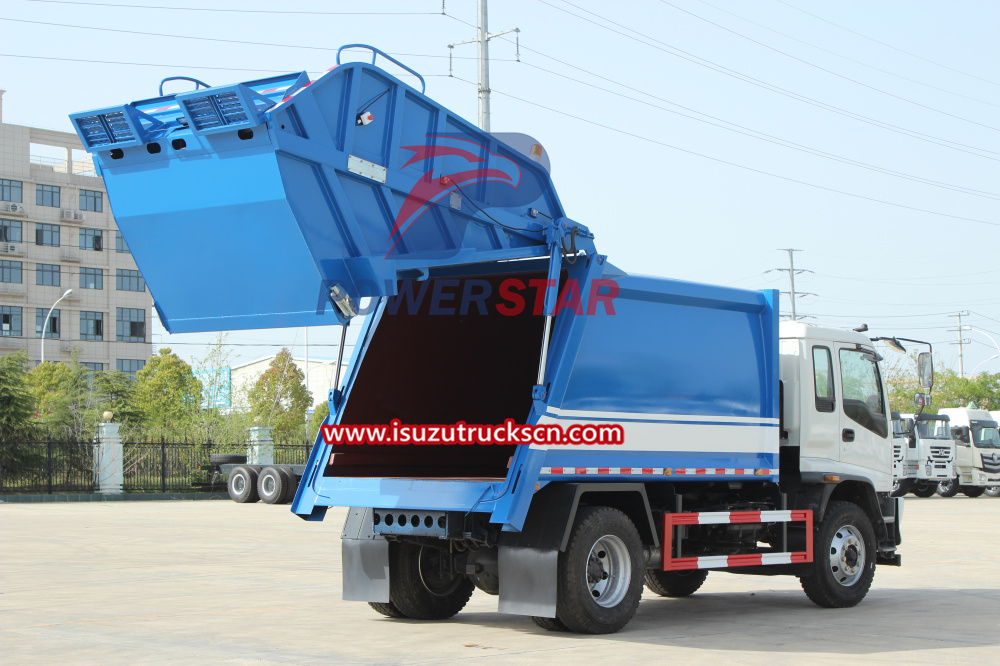

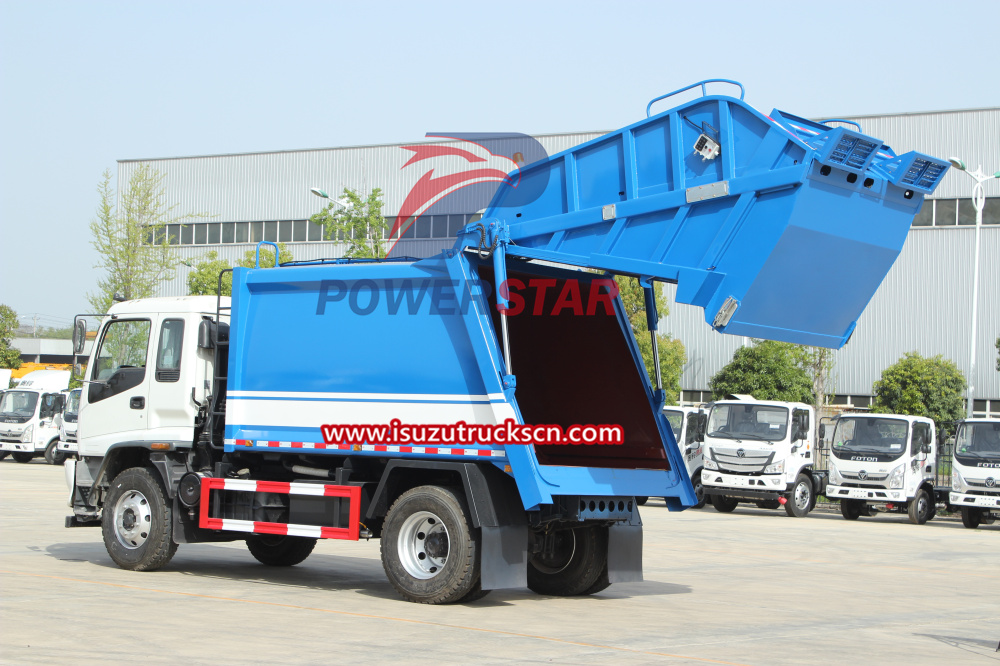

Tailgate ascending Angle | ~95° | |
Cycle of loading | ≤40s | |
Cycle of discharge | ≤45s | |
Hydraulic pressure system working pressure | 16 Mpa | |
PLC | Importation PLC (Programmable controller) | |
Gear pump | Made in China | |
Multi-way valve | Air controlled, Made in China | |
Hydraulic oil cylinder | Made in China | |
Hydraulic rubber hose | Made in China |
Chassis Description | ||
Chassis model | isuzu FVR | |
Cab | FVR ,one and half row, with A/C | |
Wheelbase | 4500mm | |
Tire specification | 295/80R22.5 | |
Tire quantity | 6+1 units tires and 1 spare tire | |
Engine | Engine model | 6HK1-TC |
Emission level | Euro 5 | |
Displacement/output | 7900ml/177kw | |
Horse power | 240hp | |
Gear box | Model | ISUZU MLD 6-shift |
Number of gears | 6 forward gears & 1 reverse | |
Brake system | Full air brake | |
Axle | Front | 6T |
Rear | 13T | |
Suspension | Front | Leaf springs |
Rear | Leaf springs | |
Fuel tanker | Type | Aluminum alloy tanker, with lockable cap |
Capacity | 200L |
Finding the most suitable manufacturer involved diligent research and evaluation by a dedicated government task force. This team thoroughly examined Isuzu's track record, technological advancements, and customer satisfaction ratings. Additionally, site visits to Isuzu manufacturing facilities were conducted to assess production quality, adherence to international standards, and commitment to environmental sustainability.
With the objective of avoiding any potential copyright infringement or plagiarism, the Philippines government extensively reviewed all contractual agreements, invoices, and documentation associated with the procurement process. This ensured compliance with legal and ethical standards, aligning with the government's commitment to transparency and accountability.
In conclusion, the introduction of the brand new Isuzu FVR 240hp garbage compactors by the Philippines government demonstrates their commitment to improving environmental hygiene in Metro Manila. Through a meticulous selection process, Isuzu was chosen as the most suitable manufacturer, delivering customized solutions to address the specific challenges faced by the city. This exclusive initiative is set to revolutionize waste management practices, leading to a cleaner and healthier Metro Manila for all its residents.
