ISUZU GIGA 14CBM rear loader garbage truck
With the accelerated urbanization process, urban waste disposal has become an increasingly important issue. To fulfill the demands of urban cleaning work, ISUZU GIGA garbage compactor trucks have become the first choice for many urban managers due to their high efficiency and environmental friendliness.
Work capacity:
14 CBMTruck model:
PT5220GYS14Engine power:
380 HPEngine type:
6UZ1-TCG61Axle drive:
4×2Gear box:
FAST 12-speed, manualRemarks:
ISUZU GIGA chassis, with large volume compactor bodyThe ISUZU GIGA refuse compactor truck is a specialized vehicle designed specifically for urban waste collection and transportation. It utilizes ISUZU's advanced engine technology and reliable chassis system, coupled with a highly efficient garbage compression device, significantly enhancing the efficiency of waste collection and disposal. This model boasts a waste loading capacity of 14 cubic meters, suitable for various scales of waste collection tasks.
The garbage disposal system of the ISUZU GIGA garbage compactor truck is its core component. This system employs advanced compression technology, driven by a hydraulic system to operate a pusher plate for compressing the garbage. Once the garbage is loaded into the vehicle, the pusher plate begins to operate, gradually advancing forward to compress the garbage initially. As the garbage continues to accumulate, the system will activate a deep compression mode, using higher pressure and a slower speed to compress the garbage even more tightly. This significantly reduces the volume of the garbage, thus increasing the loading capacity of the vehicle.
The ISUZU GIGA rear loader garbage truck is widely used for waste collection and disposal in urban streets, residential areas, commercial districts, and other locations. It can be paired with various waste collection containers to achieve automatic loading and compression of garbage. Additionally, this model is suitable for waste collection in various weather conditions, ensuring a clean and tidy urban environment.
Product Specifications
ISUZU GIGA 14CBM garbage compactor truck |
|||
Overall Dimension |
8500×2550×3150 mm |
Gross Vehicle Weight |
22000 kg |
Curb Weight |
11000 kg |
Loading Weight |
12000 kg |
Wheel Base |
4600 mm |
Front / Rear Axle |
9000 kg / 13000kg |
Cabin |
GIGA left hand drive, 2 passengers allowed, with Air Conditioner, Radio, ABS |
||
Engine Model |
6UZ1-TCG61 |
||
Engine Power |
380HP/279KW |
||
Emission Standard |
Euro 6 |
||
Displacement |
9839 ml |
||
Max Driving Speed |
90 km/h |
||
Gear Box |
ZF 8-speed or FAST 12-speed |
||
Tire |
295//80R22.5 (6 pieces with one spare) |
||
Garbage Bin |
Capacity |
14 CBM |
|
Material |
T420 steel for Garbage Compactor Body |
||
Design |
Whole unit with Leakage Proof Design |
||
Ways of Loading |
Rear Loading with optional Bucket Lifting System |
||
Garbage Compact Ratio |
1/3 - 1/4 |
||

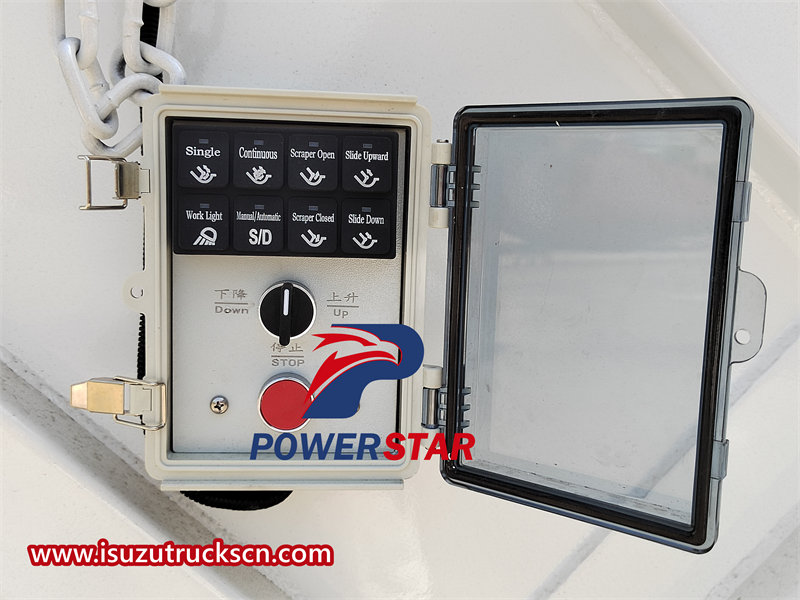

Control System |
One control Panel on the tailgate, one control system behind cabin |
||

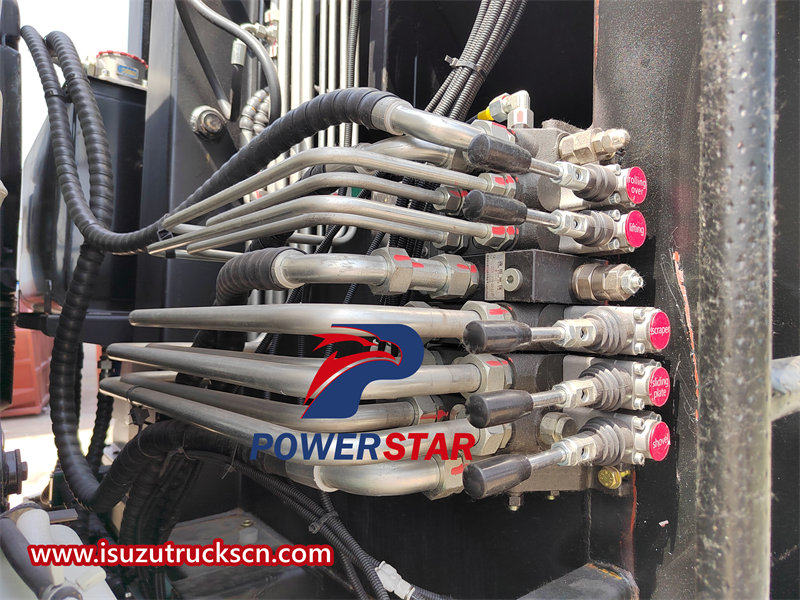

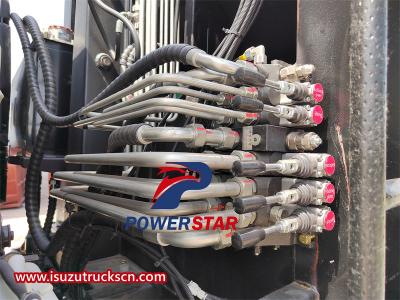

Compression System |
1. Equipped with air-tight dustbin, hydraulic system and operating system. |
||
2. Automatic loading, compressing and discharging, all handled by 1 person |
|||
3. Sewage water collection tank to avoid any pollution during handling. |
|||
4. Large Pressure, Good Leakage Proof, Convenient Operation |
|||
5. Emergency stop |
|||
6. Electrical Control Panel for compacting system. |
|||
7. Cycling time<14~18s |
|||
Remarks |
1. Color is optional |
||
2. Customized LOGO painting as per customer request |
Technical features
1. High-efficiency compression system: The ISUZU GIGA rear loader is equipped with a high-performance compression system, which can efficiently compress a large amount of garbage in a short time, reduce the volume, and improve transportation efficiency.
2. Large-capacity garbage bin: The garbage bin capacity of 14CBM can meet the needs of most urban garbage collection, reducing the number of vehicle trips and reducing operating costs.
3. Intelligent control system: Adopting the most advanced "CAN bus + dedicated controller mode", it has high degree of automation, good reliability, low failure rate and long service life.
4. Environmentally friendly design: During the design and manufacturing process, environmental protection factors were fully considered, and low-emission, low-noise engines and efficient and energy-saving hydraulic systems were used to reduce environmental pollution.

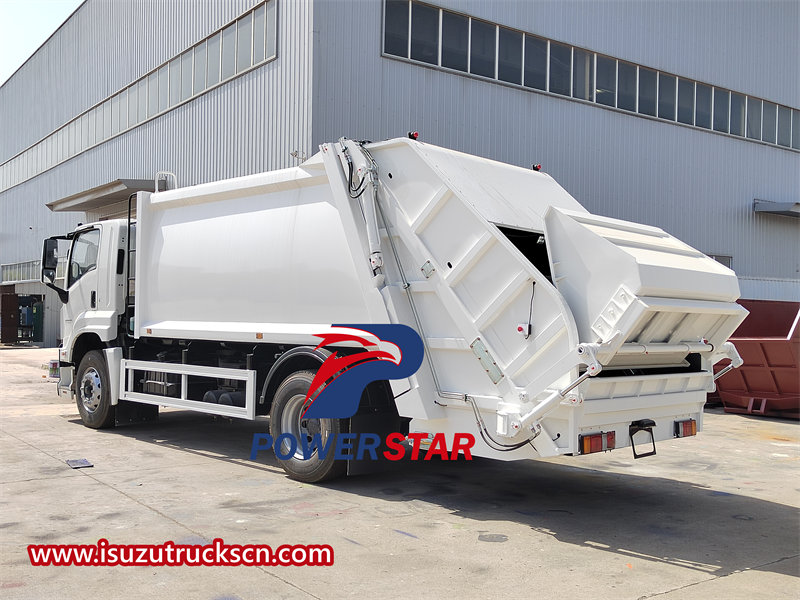

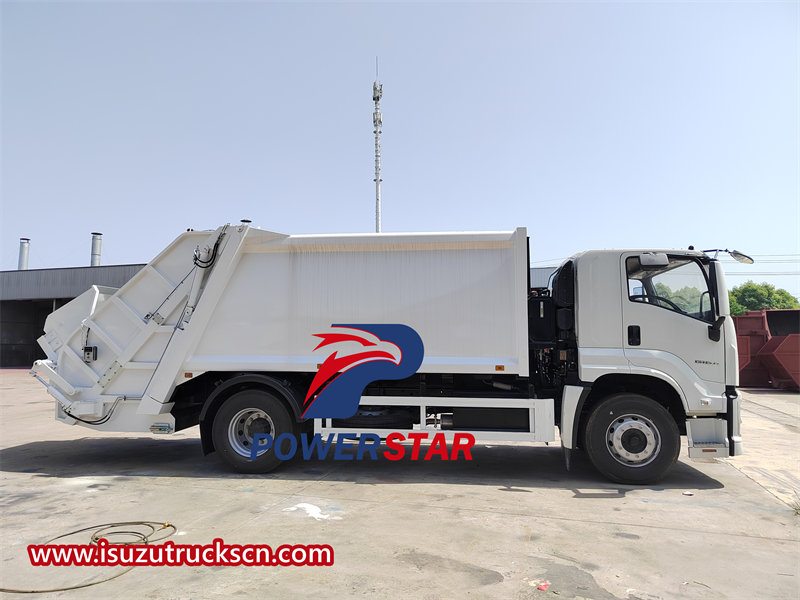

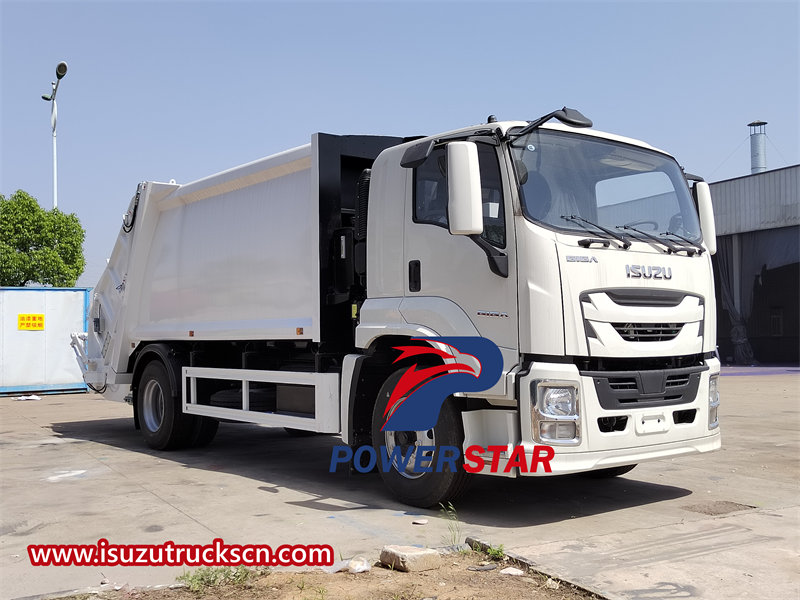

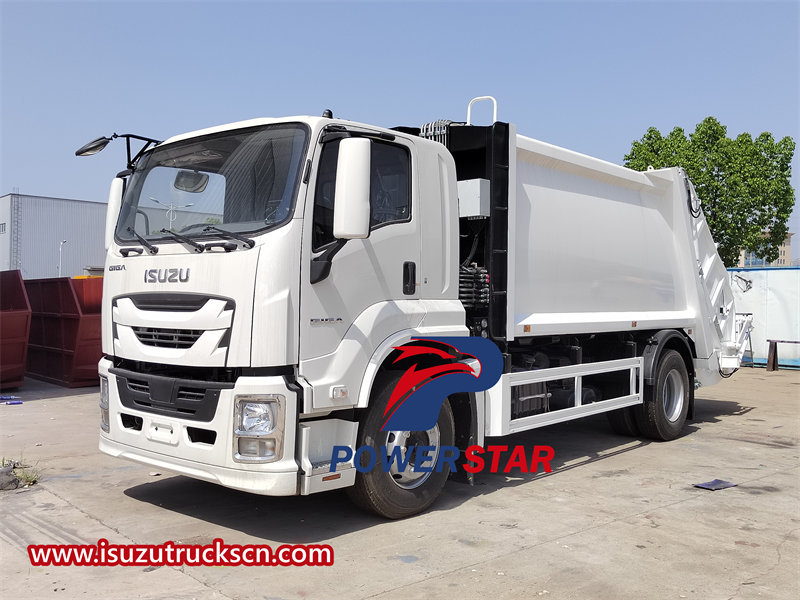

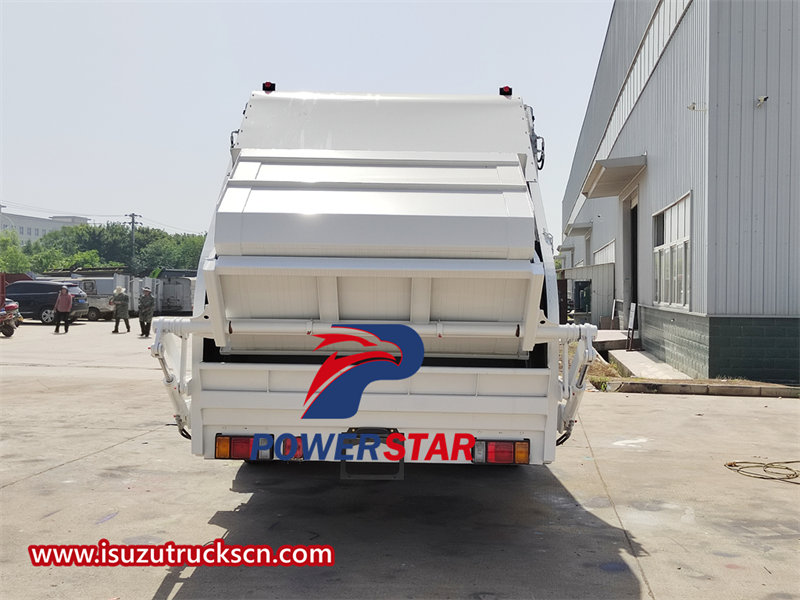

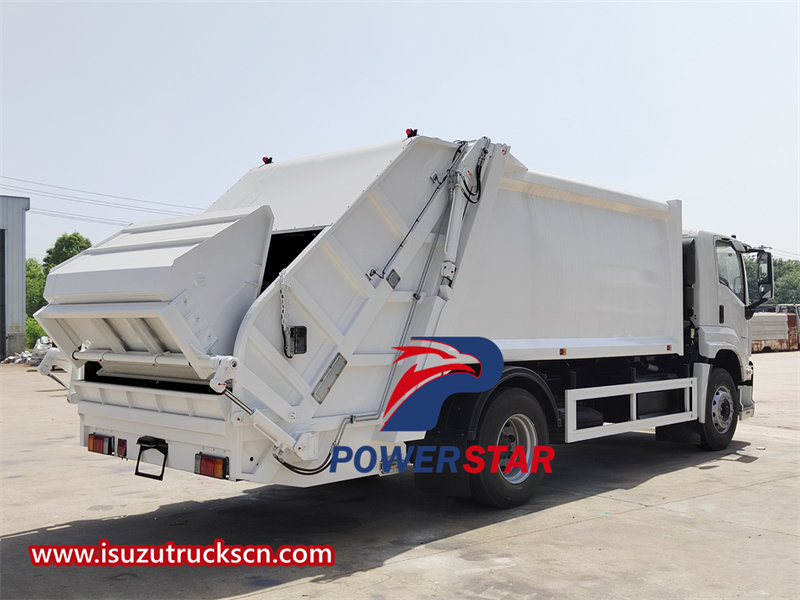

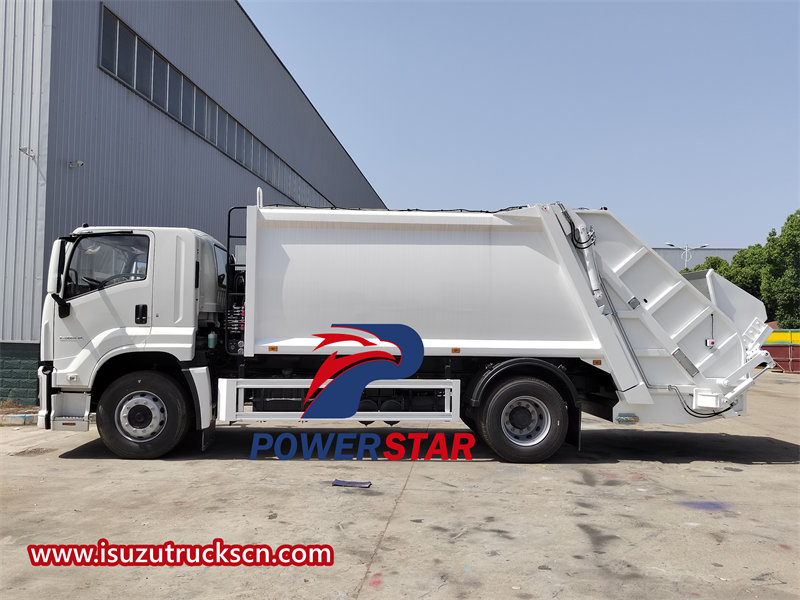

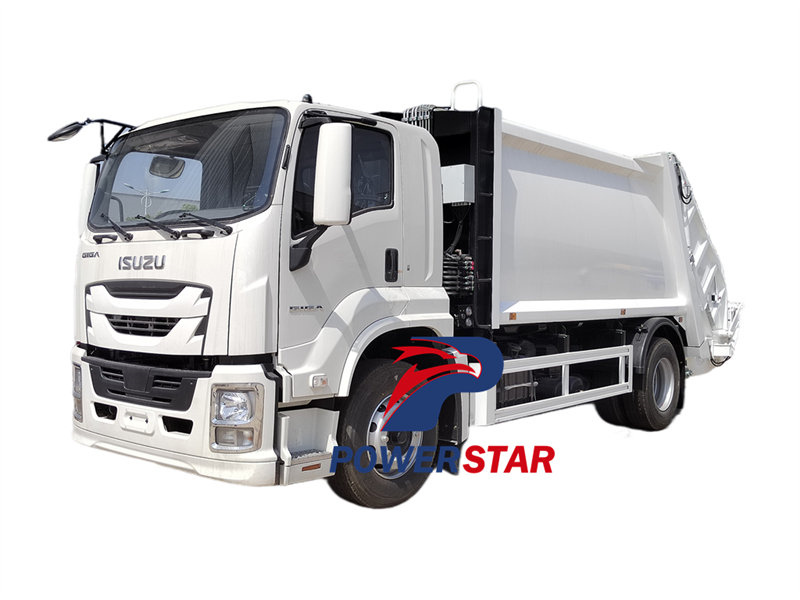

Product Details
