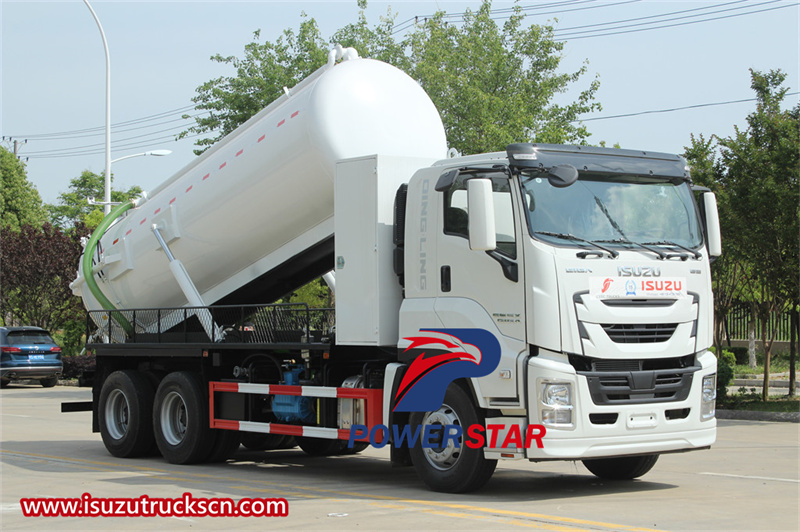

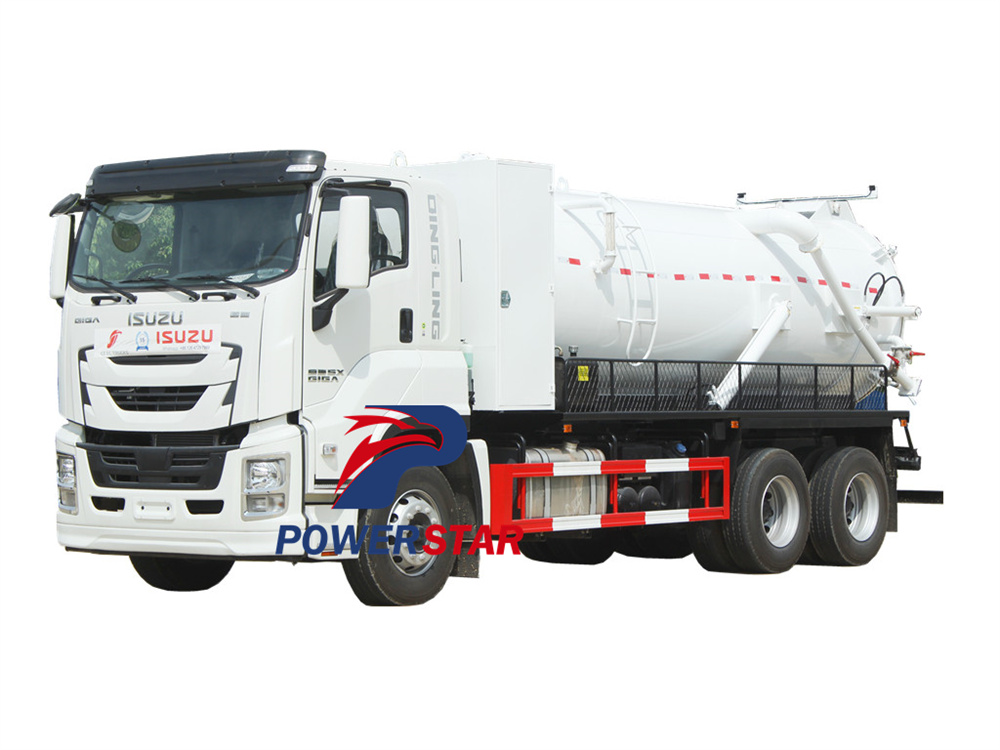

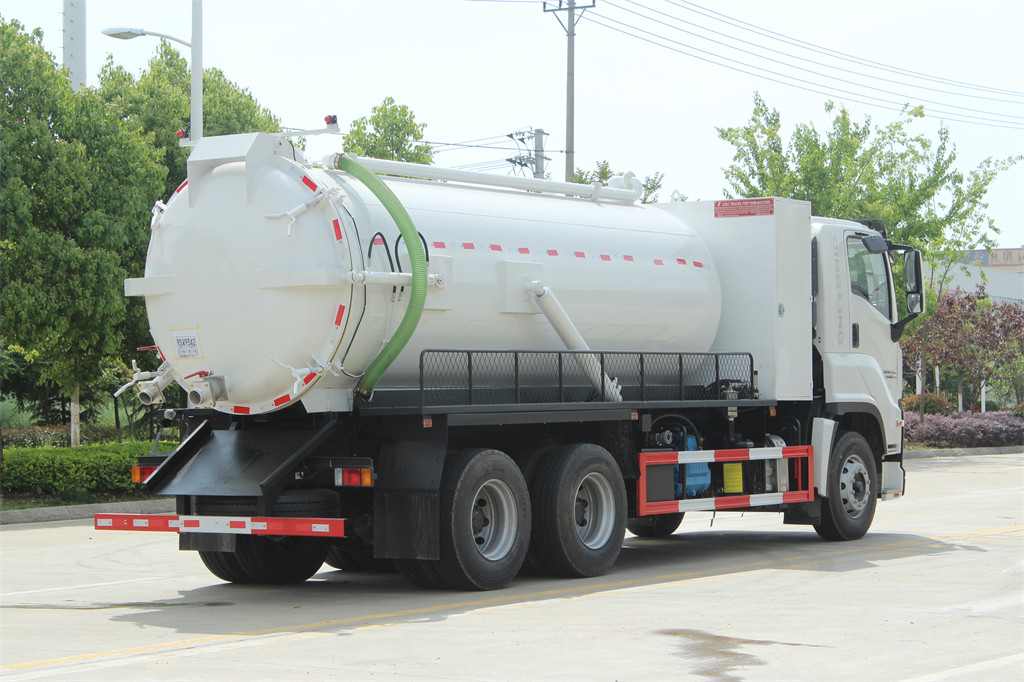

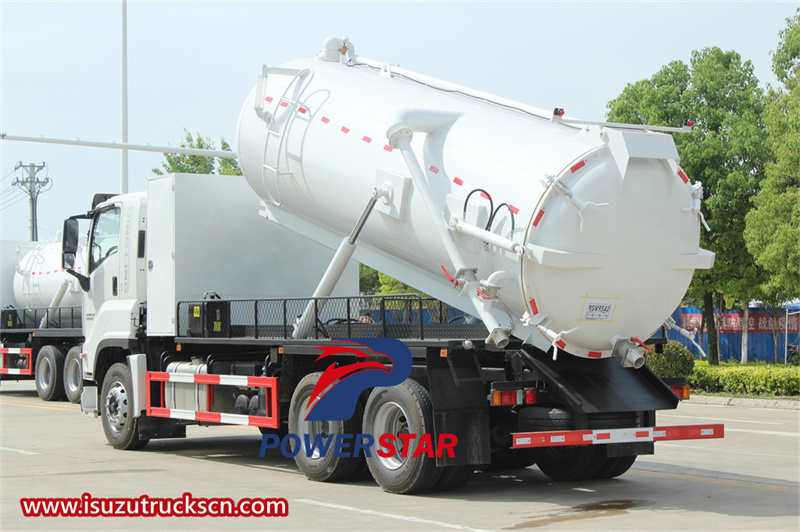

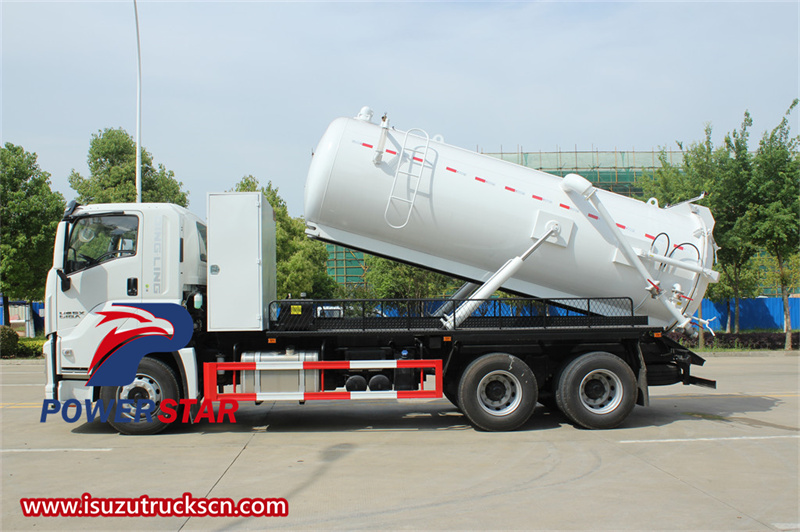

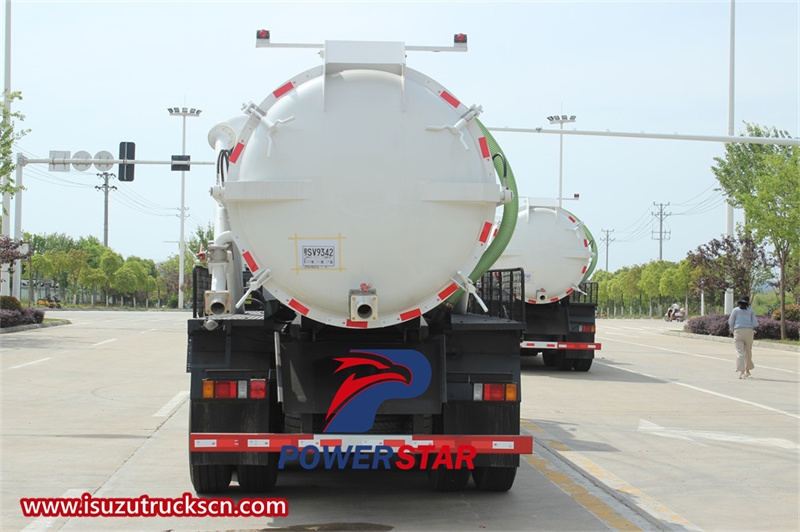

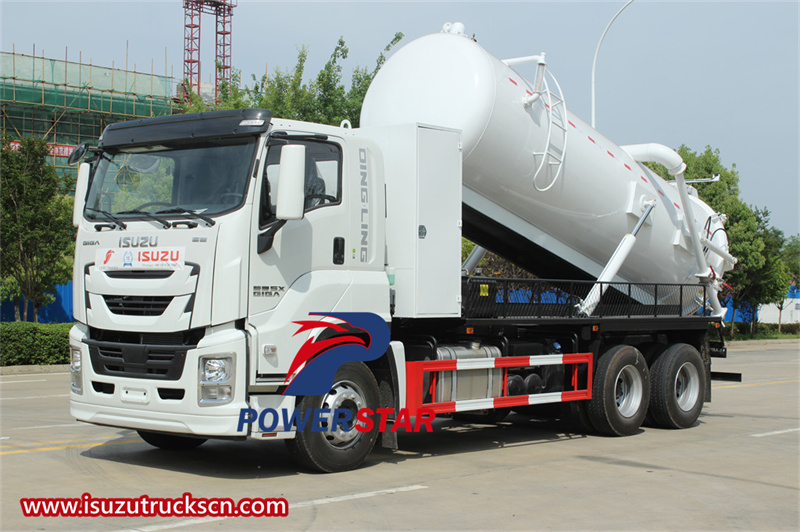

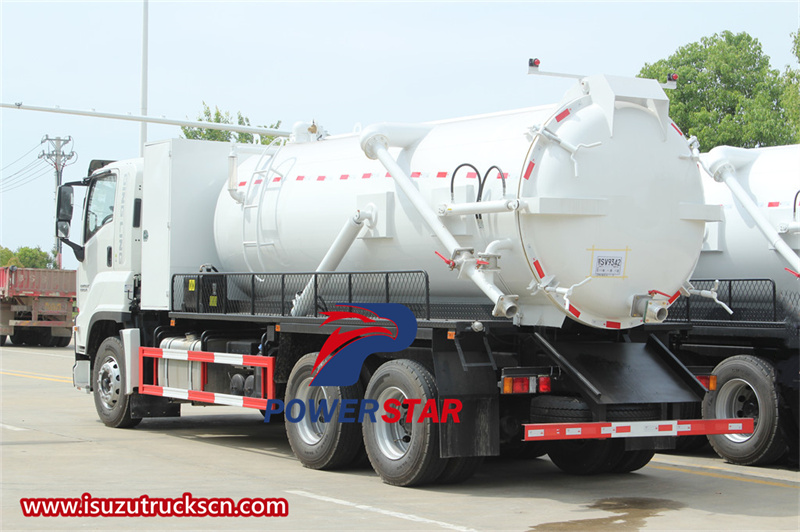

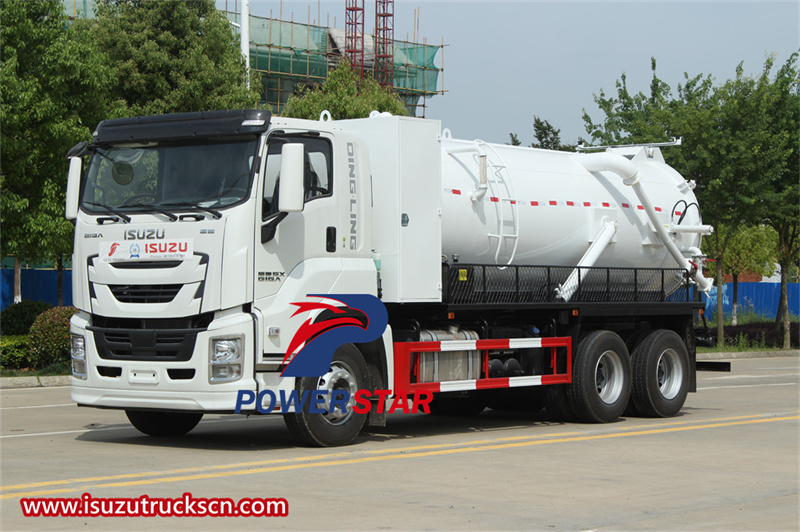

Isuzu GIGA 6x4 sewer vacuum truck

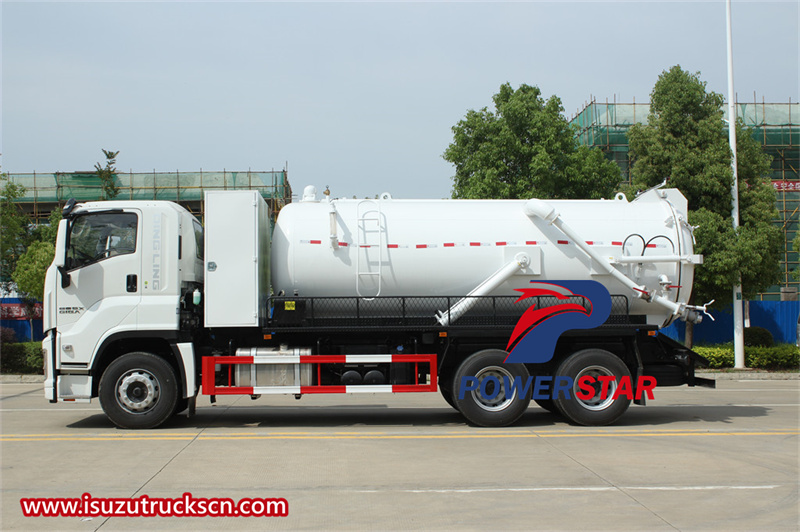

Philippine Isuzu GIGA 6x4 sewer vacuum truck

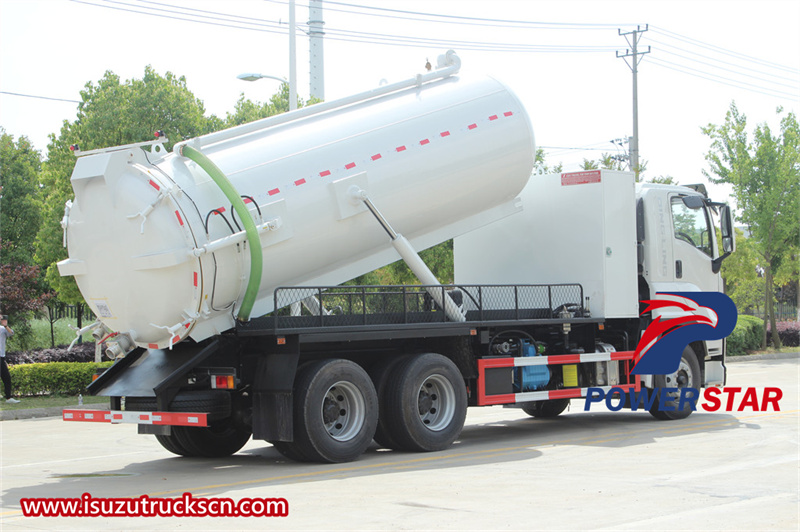

Philippine Isuzu GIGA 6x4 sewer vacuum truck

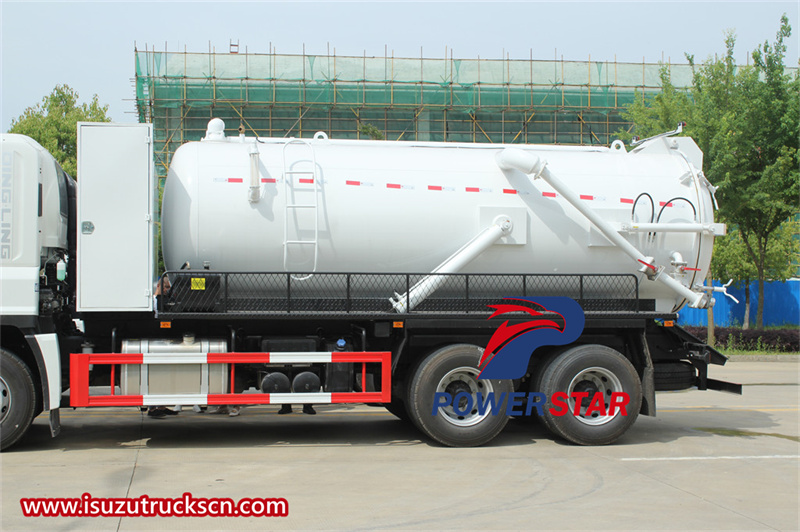

Philippine Isuzu GIGA 6x4 sewer vacuum truck

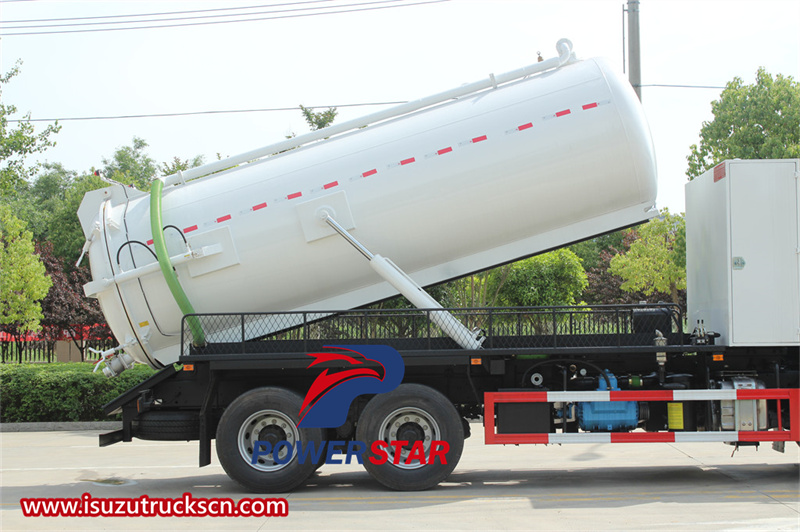

Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck
Philippine Isuzu GIGA 6x4 sewer vacuum truck

Isuzu GIGA 6x4 sewer vacuum truck

The Isuzu GIGA 6x4 sewer vacuum truck is a versatile and reliable vehicle commonly used by municipalities, utility companies, and contractors for sewer maintenance and cleaning operations. It offers efficiency, productivity, and effectiveness in cleaning and maintaining sewer infrastructure to ensure proper functioning and prevent blockages and backups.

  • Work capacity:

    18000L
  • Truck model:

    PT5250GSW
  • Engine power:

    380HP
  • Engine type:

    6WG1-TCG61
  • Axle drive:

    6X4,LHD
  • Gear box:

    FAST 12-speed,manual
  • Remarks:

    Isuzu GIGA chassis, with large capacity tank body

The Isuzu GIGA 6x4 sewer vacuum truck also called Isuzu GIGA sewage suction truck,Isuzu GIGA vacuum tank truck,Isuzu 6x4 sewer vacuum truck,Isuzu GIGA sewage disposal tanker,Isuzu GIGA cesspit emptier, Isuzu GIGA vacuum pump tanker truck,Isuzu GIGA gully emptier,Isuzu GIGA truck mounted sewage cleaner,is a specialized vehicle designed for sewer cleaning and maintenance tasks. This Isuzu GIGA 6x4 sewer vacuum truck is typically equipped with a large capacity vacuum system that can suction and transport sewage, sludge, and other waste materials from sewer systems, septic tanks, and industrial facilities.

isuzu giga sewer vacuum truck

 Key Features:

---- ISUZU GIGA chassis, perfect performance

---- ISUZU technology engine option, super powerful, no overhaul within 100,000 km.

---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.











Vehicle

Manufacture

PowerStar Trucks Industry Co.,Limited

Product Name

Isuzu GIGA 6x4 sewer vacuum truck

Model

PT5250GSW

Overall Dimensions L*W*H

10000*2560*3700mm

Weights

GVW.

25000kg

Kerb Weight

12300kg

Rated Payload

12500kg

Chassis

Chassis Brand

ISUZU

Drive Type

6x4

Steering

LHD

Engine

Brand

ISUZU 6WG1-TCG61

Power

380HP/279KW

Emission Level

EURO 5, 6

Performance

Max. Speed

90km/h

Wheel base

4565+1370mm

Tyre Specifications

315/80R22.5

No. of Tires

10 +1

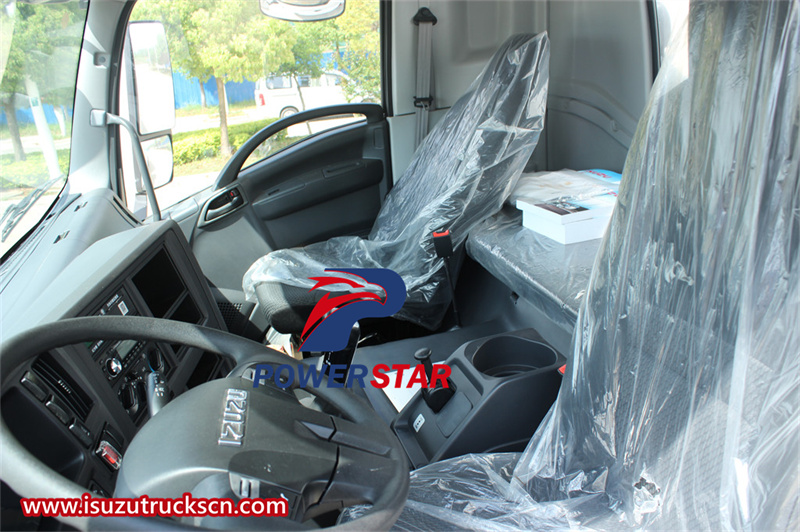

Cab

Cab Capacity

ISUZU GIGA Flat roof cab, 3 seats

Body/Superstructure

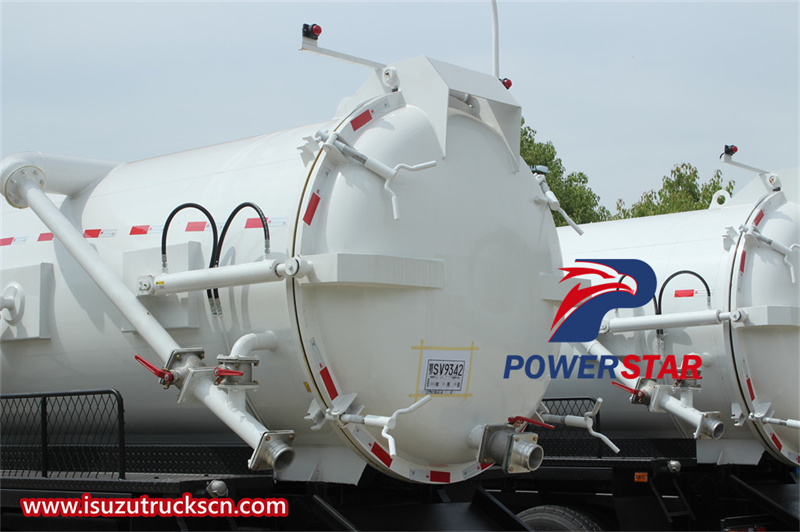

Tank

Capacity

18000L

Material

5mm or  6mm high quality carbon steel

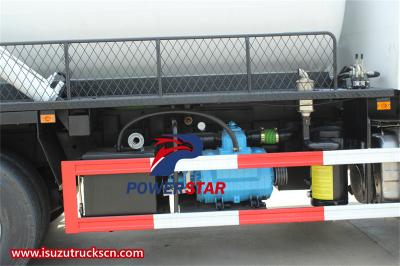

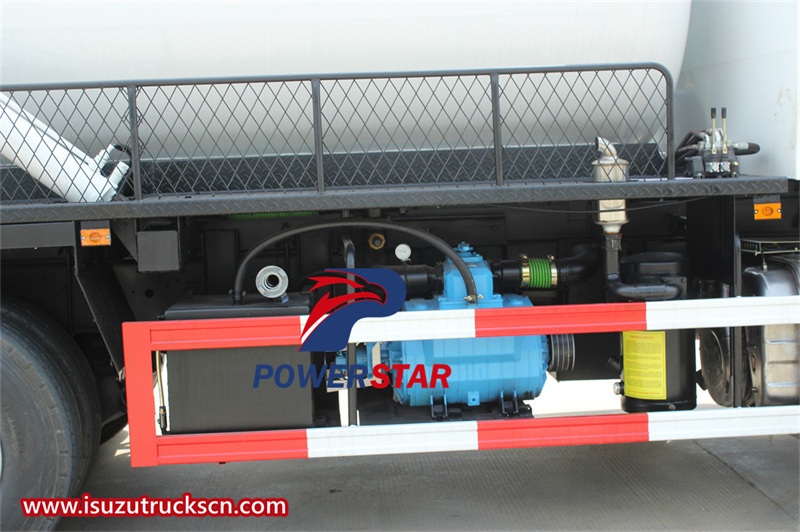

Vacuum pump

China famous vacuum pump

Vacuum rate

99%

Suction head

6m-8m

Rotation speed

500 rpm,low noise,high efficiency

Basic

Install vacuum pumps and hydraulic systems driven by engine through

Equipments

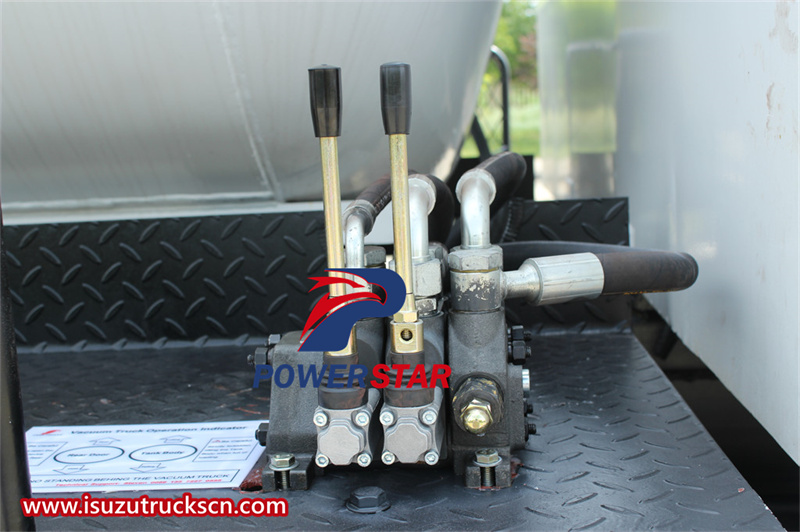

 PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand



washing tank and a piece of 6m suction hose

Paint



Tank color is according to client's requirements.

Optional Equipments

China famous brand or Italy or Spain vacuum pumps

Stainless steel

Anti-rust coating inside tank





The Isuzu GIGA 6x4 sewer vacuum truck is designed to handle a wide range of sewer cleaning and maintenance tasks in various scenarios. Some common usage scenarios for this specialized vehicle include:



Municipal Sewer Maintenance: Municipalities often use the Isuzu GIGA sewer vacuum truck to clean and maintain the sewer systems within their jurisdictions. The truck can help remove debris, sludge, and other materials from sewer lines to prevent blockages, backups, and potential environmental hazards.



Industrial Facilities: Industrial facilities such as factories, refineries, and processing plants may utilize the Isuzu GIGA sewer vacuum truck to manage wastewater and sludge removal requirements. The vehicle can efficiently suction and transport liquid waste from industrial processes for proper disposal or treatment.



Septic Tank Servicing: Septic tank maintenance companies can employ the Isuzu GIGA sewer vacuum truck to empty and clean septic tanks for residential and commercial properties. The truck's powerful vacuum system can quickly and effectively extract the accumulated sludge and wastewater from septic tanks, ensuring proper functionality.



Emergency Response: In the event of sewer line blockages, overflows, or spills, the Isuzu GIGA sewer vacuum truck can be deployed for emergency response actions. The vehicle can swiftly remove the sewage and contaminants from the affected area to contain the situation and prevent further damage.



Construction Sites: Construction companies working on infrastructure projects may use the Isuzu GIGA sewer vacuum truck to manage wastewater and debris generated during construction activities. The vehicle can assist in maintaining clean and functional sewer systems on site.

 ISUZU GIGA sewer vacuum truck

 Isuzu GIGA 6x4 sewer vacuum truck



The Isuzu GIGA 6x4 sewer vacuum truck is a specialized vehicle designed for sewer cleaning and maintenance tasks. This truck is typically equipped with a large capacity vacuum system that can suction and transport sewage, sludge, and other waste materials from sewer systems, septic tanks, and industrial facilities.



isuzu giga sewer vacuum truck

Structure of Isuzu GIGA 6x4 sewer vacuum truck



Key features of the Isuzu GIGA 6x4 sewer vacuum truck may include:

1. **6x4 Drive Configuration:** The truck is equipped with a 6x4 drive configuration, providing good traction and stability for off-road and challenging terrains.



2. **Powerful Engine:** The Isuzu GIGA sewer vacuum truck is likely powered by a robust and efficient engine that delivers high torque and horsepower to support the vacuum system and other operational requirements.



3. **Large Vacuum Tank:** The truck usually comes with a large vacuum tank that can hold a significant amount of liquid waste. The tank is designed to securely store and transport the collected materials.



4. **Vacuum System:** The vacuum system is equipped with a powerful pump that creates suction to extract liquid and solid waste material from sewer lines and other sources. It may also have filtration capabilities to separate solids from liquids.



5. **High-Pressure Water Jetting System:** Some sewer vacuum trucks may be equipped with a high-pressure water jetting system to help dislodge and clean debris, blockages, and buildup in sewer lines and pipes.



6. **Safety Features:** The vehicle may feature safety systems such as emergency stop buttons, warning lights, and alarms to ensure safe operation during sewer cleaning tasks.



The Isuzu GIGA 6x4 sewer vacuum truck is a versatile and reliable vehicle commonly used by municipalities, utility companies, and contractors for sewer maintenance and cleaning operations. It offers efficiency, productivity, and effectiveness in cleaning and maintaining sewer infrastructure to ensure proper functioning and prevent blockages and backups.

 isuzu giga 6x4 sewer vacuum truck

 Isuzu GIGA 18000L sewage suction truck



  • Isuzu giga sewer vacuum truck
  • isuzu giga sewer vacuum truck
  • isuzu giga sewer vacuum truck
