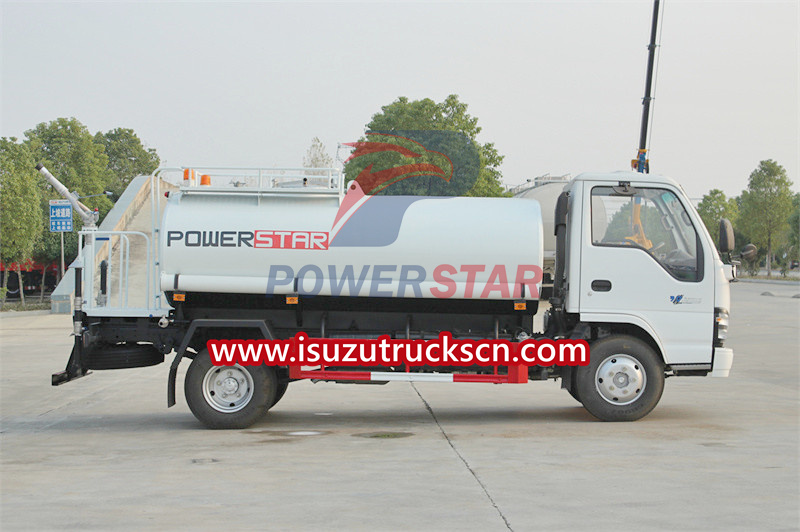

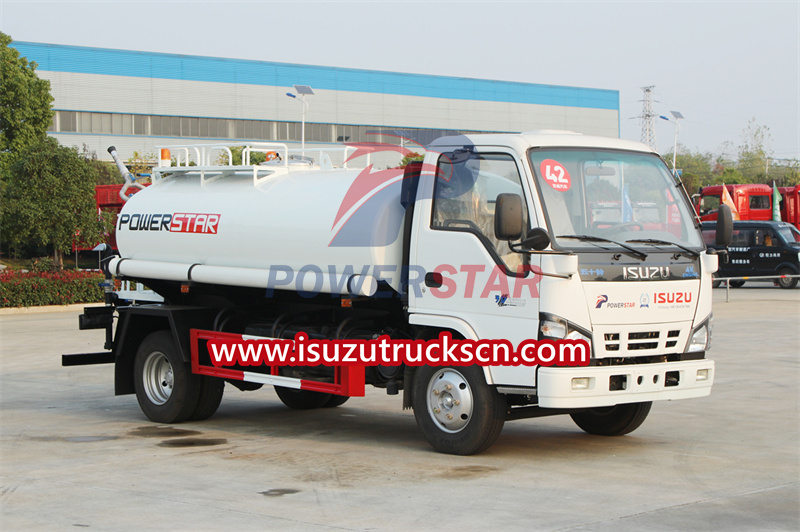

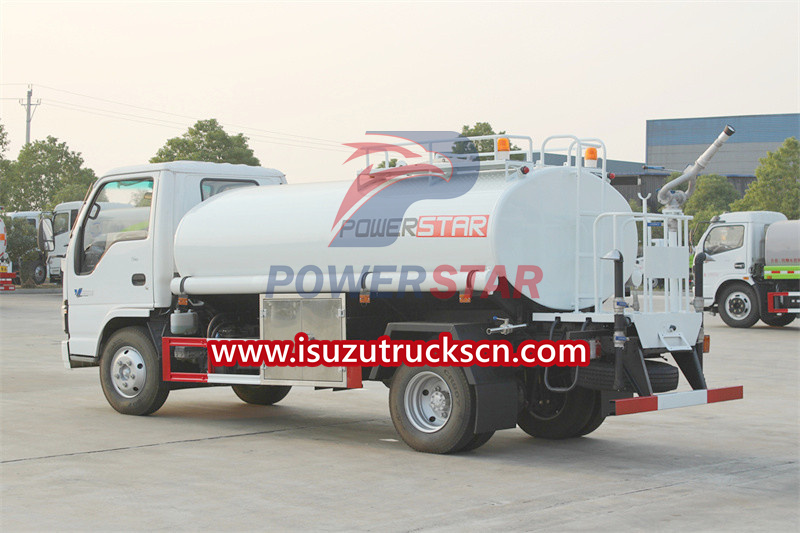

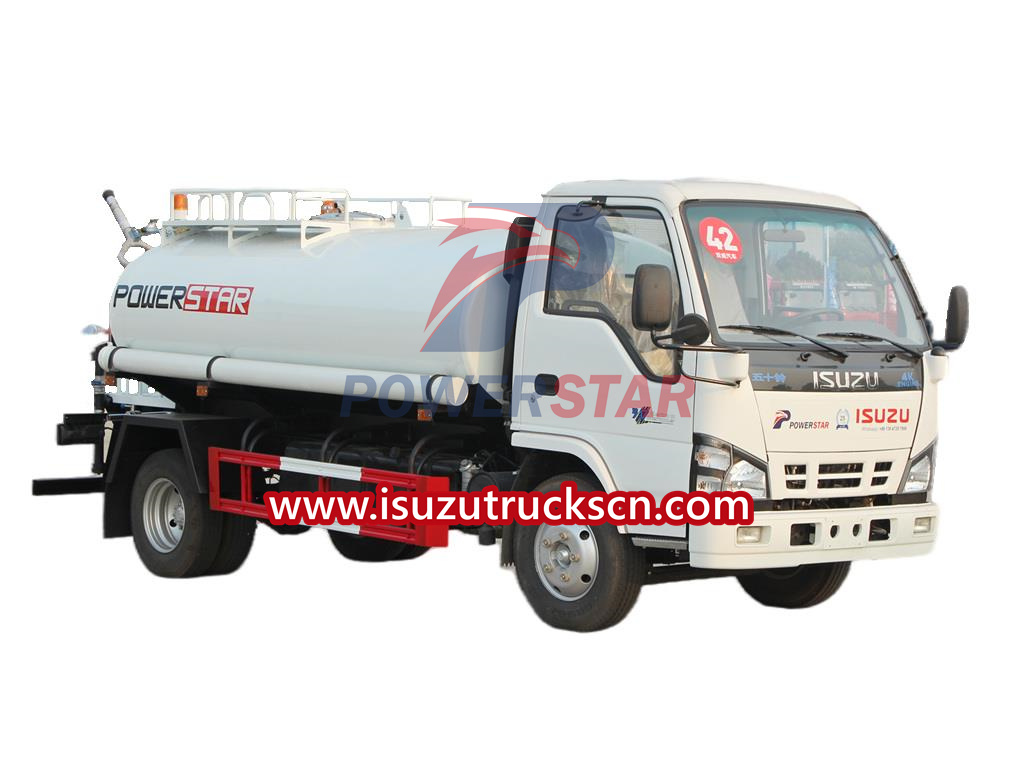

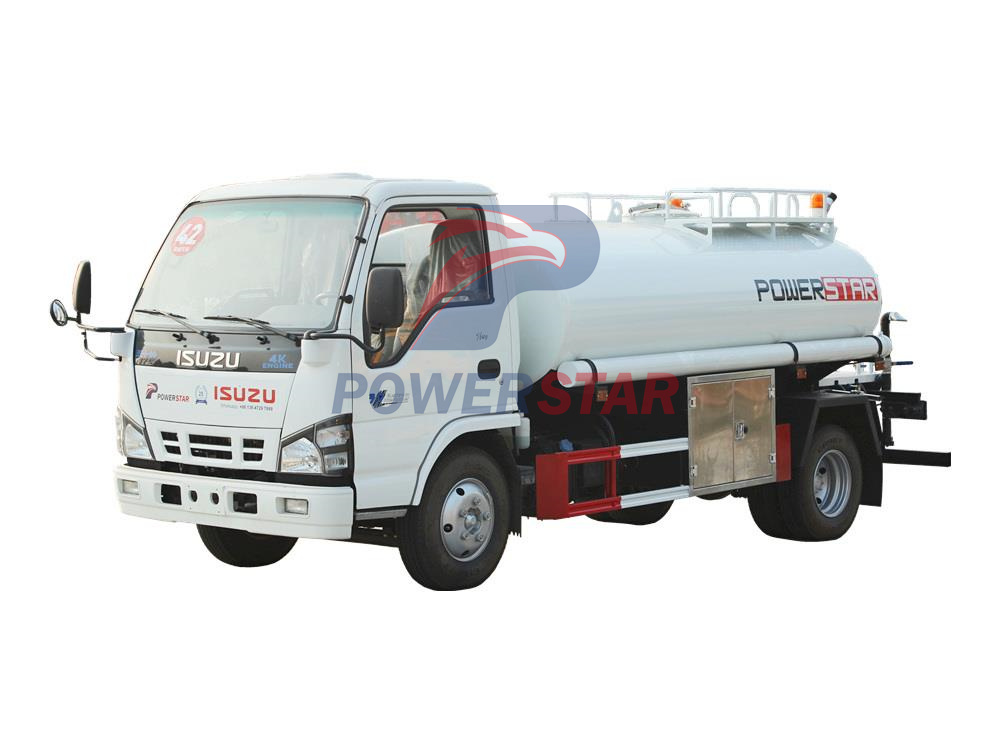

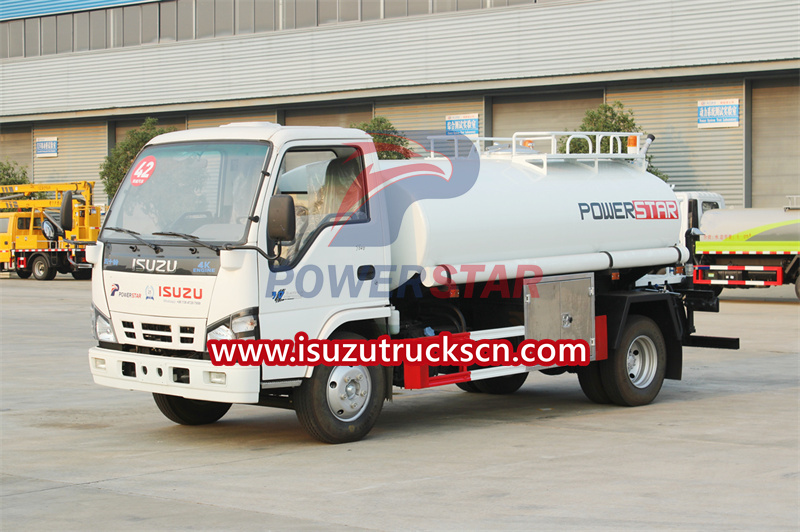

Cab chassis of ISUZU NKR 600P model 5000 liter stainless steel potable drinking water tanker truck, ISUZU brand chassis, condition new, 3 seats, 3360mm wheelbase, ISUZU 4KH1CN 120HP Euro 5 dieseI engine, manual MSB 5-speed transmission, 6+1 pcs 7.00R16 radial tires, with one spare tire, 2.5 ton front axle, 4.8 ton rear axle, air brake, power assist steering, with air conditioning, etc. Food grade stainless steel 304-2B water tank body & pipe valve system, mainly used for water delivery, water sprinkling, or spray water dust suppression, etc;
Work capacity:
5000 LitersTruck model:
PT5070GJY5PEngine power:
120 HPEngine type:
4KH1CNAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
SS304 water tanker with front middle and rear water spraying nozzles and cannon

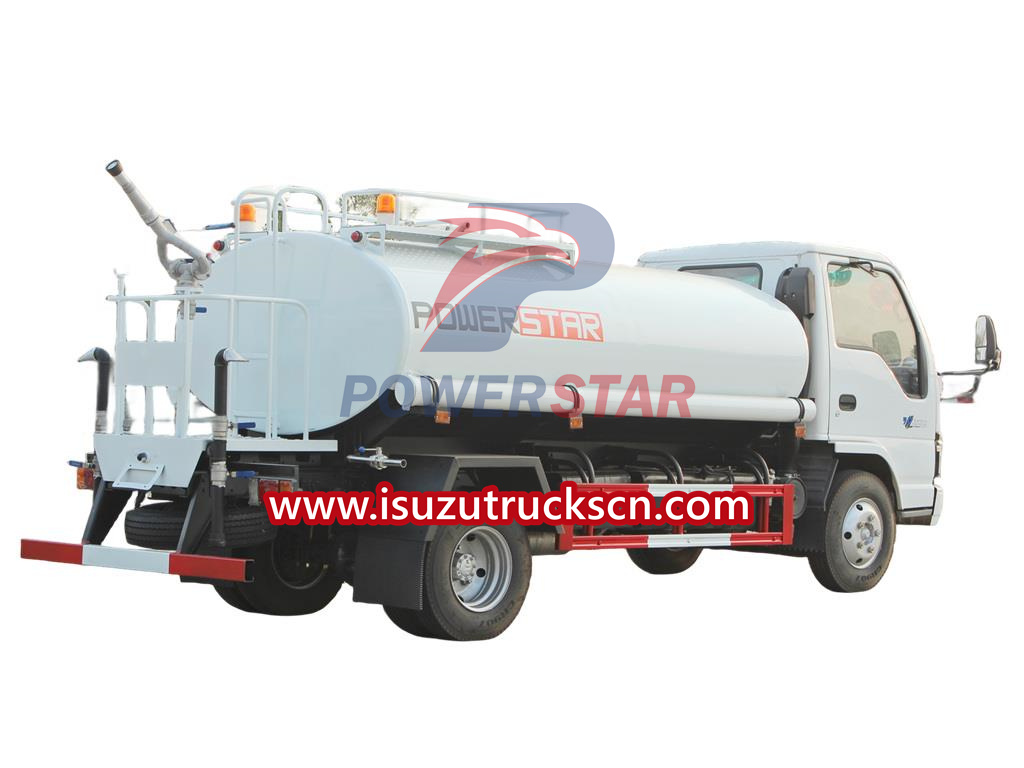

Isuzu Water Sprinkler Truck, also called Isuzu water truck, Isuzu sprinkler truck, Isuzu potable water cart, Isuzu water bowser, Isuzu water tank truck, water delivery truck Isuzu, is a kind of sanitation vehicle which has a tank body, manhole cover, water pump, front/rear/side sprinkler nozzles, water cannon and discharge valves, work platform, etc. Isuzu Water truck can be used for watering tree, grass, cleaning street, dust control, water delivery, emergency fire fighting, etc. Isuzu NKR aircraft potable water truck is composed of ISUZU NKR 600P truck chassis refit assembly, lifting platform assembly, cleaning tank, hydraulic system, electrical system, etc. Which have below Product Standard for quality guarantee:
IATA AHM 910 Basic Requirements for Airport Ground Support Equipment
IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment
IATA AHM 915 Standard Control
MH/T 6014 Aircraft Portable Water Vehicle
ISO 450-1976 Aircraft - Requirements for Portable Water Quality
Product Parameters:
Superstructure of ISUZU 600P NKR model 5000 liter stainless steel potable drinking water tanker truck:
- POWERSTAR produced stainless steel 304-2B water tank body & pipe valve system, mainly used for water delivery, water sprinkling, or spray water dust suppression, etc;

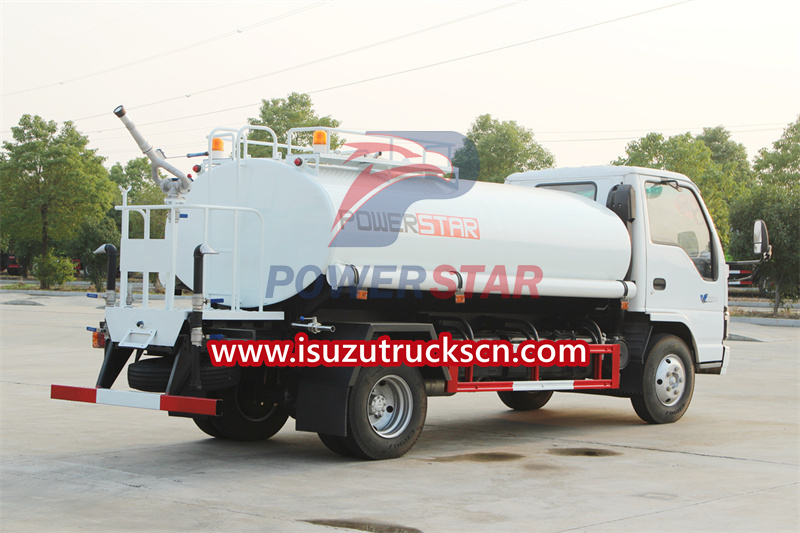

- 5000 liter stainless steel 304-2B tank, inside with anti-corrosion treatment, with one DN500mm manhole, rear with back ladder and discharge vavles;
- with 40m3/h flow water pump;

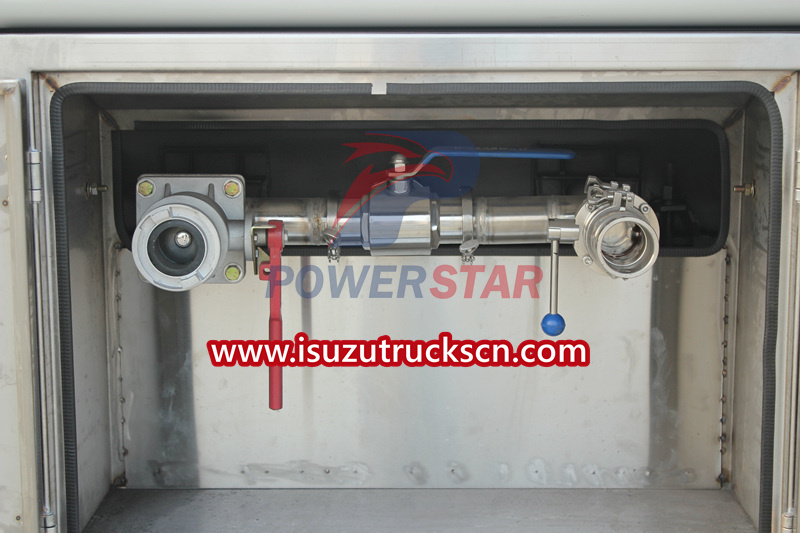

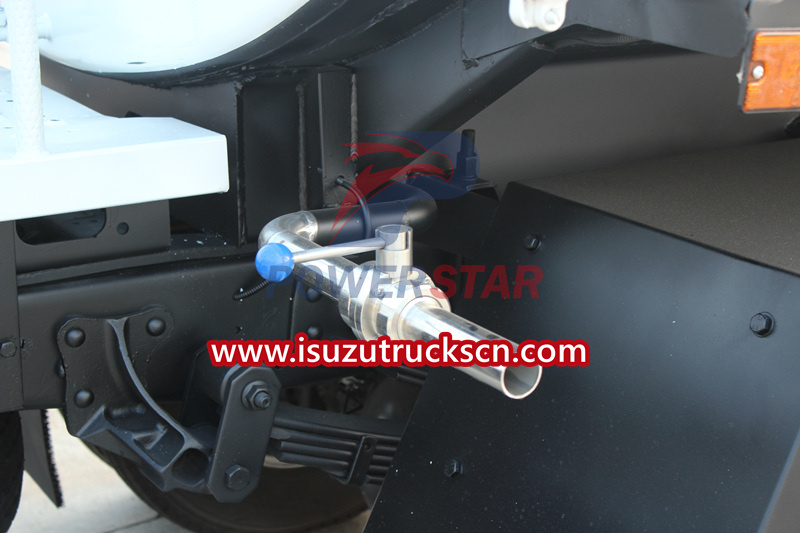

- with stainless steel 304 made pipeline/discharge valve/hydrant joints, etc.
Specifications of ISUZU 8000 liter stainless steel potable drinking water tanker truck:
No. | parameter name | parameter | |
1 | Overall size (length × width × height) | 6200 ×2200 ×2450 | |
2 | Tank size (length × width × height) | 3600 ×2100×1200 | |
Tank volume | 5000L | ||
4 | front overhang | 1100 | |
rear overhang | 2400 | ||
5 | wheelbase | 3360 | |
6 | wheel tread | front gauge | 1680 |
rear gauge | 1650 | ||
7 | Chassis type | QL1070 | |
8 | engine type | 4KH1CN | |
9 | Curb weight | 3550KG | |
10 | front axle load | 2500KG | |
11 | rear axle load | 4800KG | |
12 | Maximum total mass when the tank is fully loaded | 7300 kg | |
13 | permissible velocity | Maximum speed | 90km/h |
Operating maximum speed | 50km/h | ||
14 | 100km fuel consumption | ≤14L | |
15 | outside diameter (mm) | 15.6m | |
16 | departure angle | 5° | |
17 | approach angle | 19° | |
18 | minimum gap | 200mm | |
19 | water pump | Material | 316Stainless steel corrosion resistant centrifugal pump |
pressure of supply water | 0.25-0.4MPa | ||
flow | 150L/min | ||
20 | Cleaning water supply pressure | 0.25-0.4MPa | |
Cleaning water flow | 90-130L/min | ||
21 | Rear platform type | Fixed type | |
22 | Oil Tank Capacity | 78L | |
23 | Hydraulic oil model | 32# Aviation ground hydraulic oil | |
24 | hydraulic system pressure | 10MPa | |
25 | Diesel tank capacity | 70L | |
26 | voltage | 12V(Two batteries) |
