Work capacity:
8 CBMTruck model:
PT5080ZYSEngine power:
130 HPEngine type:
4KH1CN5HSAxle drive:
4×2Gear box:
ISUZU MSB 5-speedRemarks:
Largo compactor volume, custom designed footrests and handrailRear loading garbage trucks, also known as waste compactor trucks, are important tools for garbage collection and transfer. It uses a compactor box, a filler, a push shovel and a set of hydraulic components and electrical control systems to minimize the volume of garbage after being compressed in the compactor box, thus increasing the loading capacity.
Using waste compactor trucks to transport garbage can reduce environmental pollution and reduce the work intensity of cleaning workers. Its operation process is fully automatic, and most of the operation process can be completed through computer control, which greatly improves work efficiency and accuracy.

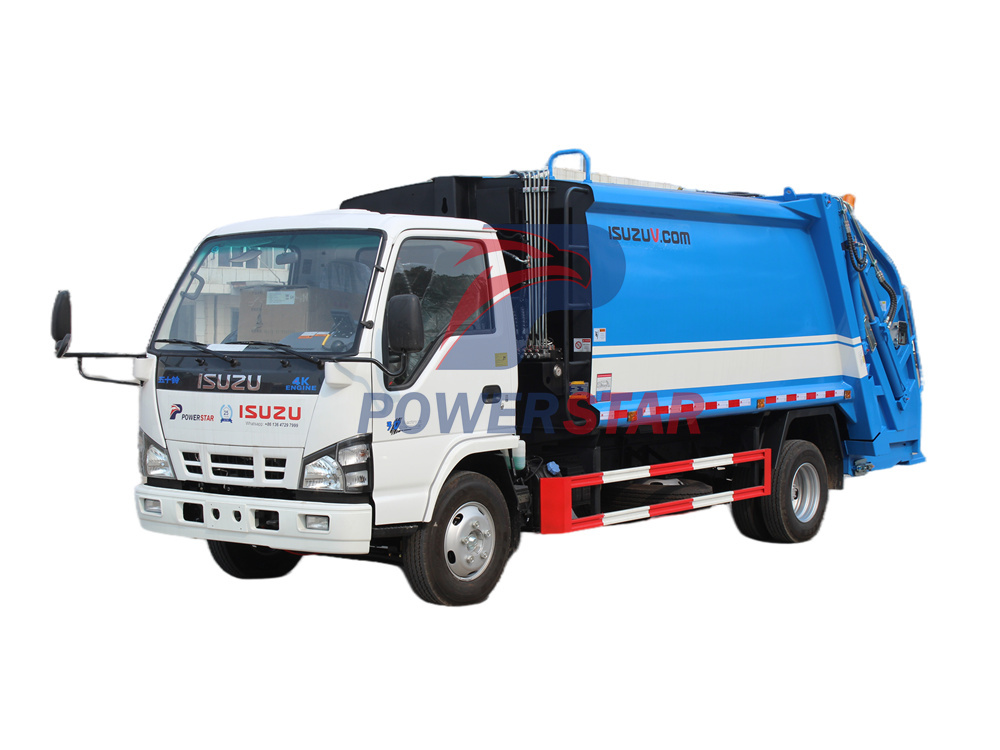

The ISUZU rear loading garbage truck produced by POWERSTAR TRUCKS adopts advanced computer-controlled automatic operating devices, which have a high degree of automation and have been widely praised by customers. The design concept of this kind of garbage truck is to target the minimum environmental impact, the highest work efficiency, and the most convenient operation method, providing strong support for the city's cleaning work.
The loading, compression and unloading of garbage in compressed garbage trucks are driven by a hydraulic system and completed by a special mechanism. The power of the truck engine is transmitted to the gear pump through the power take-off and the transmission shaft, and the gear pump rotates to generate high-pressure oil. By operating the relevant control switches on the multi-way reversing valve, the hydraulic oil causes the relevant cylinders to work, thereby driving the relevant mechanisms to complete the work of loading, compressing and dumping garbage.
Product specifications
General
Truck Name
ISUZU rear loading garbage
truck
Drive Type
4×2, LHD
Gross Vehicle Weight(kg)
7300
Curb
Weight (kg)
5400
Overall Dimensions L*W*H(mm)
7150x2200x2640
Engine
Engine Model
4KH1CN5HS
Engine Brand
ISUZU
Fuel Type
Diesel
Power
130 HP / 96 KW
Emission Standard
Euro 5
Displacement(ml)
2999
Engine Type
4 cylinders in line,
water cooling, turbo-charged diesel engine, inter-cooling
Chassis
Chassis Brand
ISUZU
Front/Rear Axle Load(
KG )
2500 / 4800
Tire No.
6+1 pcs
Tire Specification
7.00R16
Wheelbase (mm)
3360
Axle No.
2
Gear Box
ISUZU MSB,5-speed forward with 1 reverse, manual
Brake
Oil brake
Radiator
Suitable for tropical climate
Front/rear suspension(mm)
1 230 /2 220
Leaf Spring No.
8/6+5
Garbage compactor
Volume (m ³ )
8
Thickness(mm)
Side:4mm, bottom:5mm
Waste water tank
200L
Tailgate volume
1 CBM
Filling time
8~10s
Filling cycle time
50~60s/time
Discharge time
30~40s
Control system
CAN-bus system
Color and logo
According to customer
requirement
Product advantages
1. The ISUZU rear loading garbage truck has efficient compression capabilities. Its advanced compression technology can greatly reduce the volume of garbage, which not only increases the storage capacity of garbage, but also reduces transportation costs. At the same time, efficient compression also means that more garbage can be processed in a timely manner, reducing the impact on the environment.
2. This truck has large storage capacity. Its spacious compartment can accommodate a large amount of garbage, reducing frequent garbage collection and transportation, making garbage disposal more efficient.
3. The ISUZU compactor garbage truck has superior maneuverability. Its flexible design and powerful power system enable it to travel on various roads and environments in the city and adapt to various complex waste disposal needs.
4. ISUZU waste compactor truck comes with a comfortable driving environment. The facilities inside the vehicle are designed to be user-friendly and the operation is simple and easy to understand, allowing the driver to maintain the best working condition when performing tasks.
5. Safety is another important feature of the ISUZU refuse compactor truck. From design to production, every aspect strictly follows safety standards to ensure the safety of drivers and the surrounding environment.
6. The ISUZU garbage truck also uses high-quality parts to ensure its long life. Its low maintenance costs also make the vehicle's operating costs relatively low, saving waste disposal companies significant repair and replacement costs.
