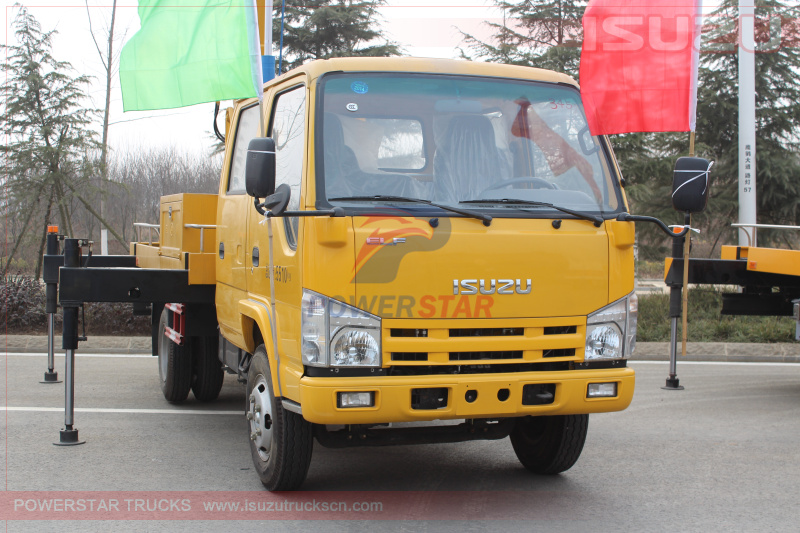

Isuzu truck mounted aerial platform
Order(MOQ):
110~14m Aerial Work Platforms Isuzu

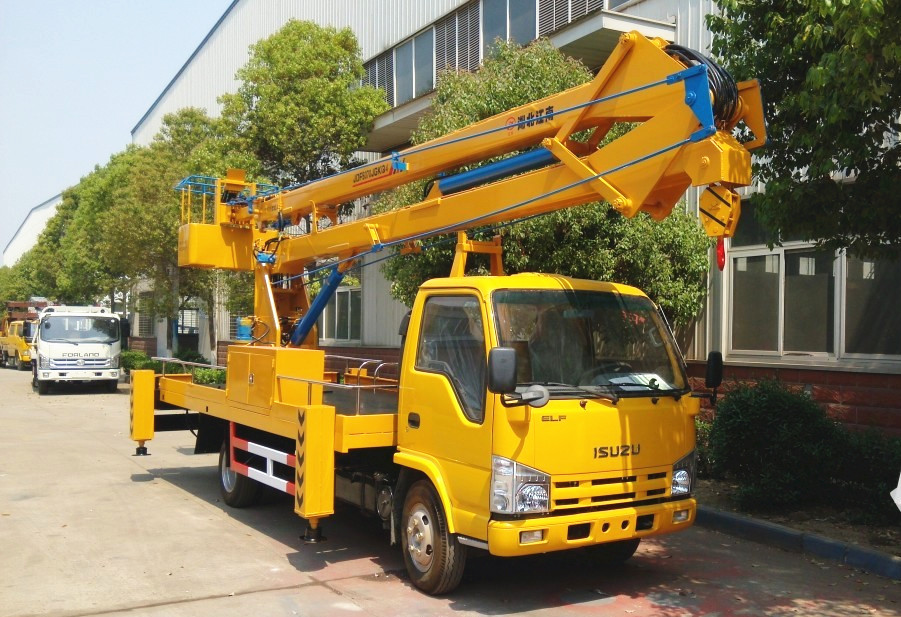

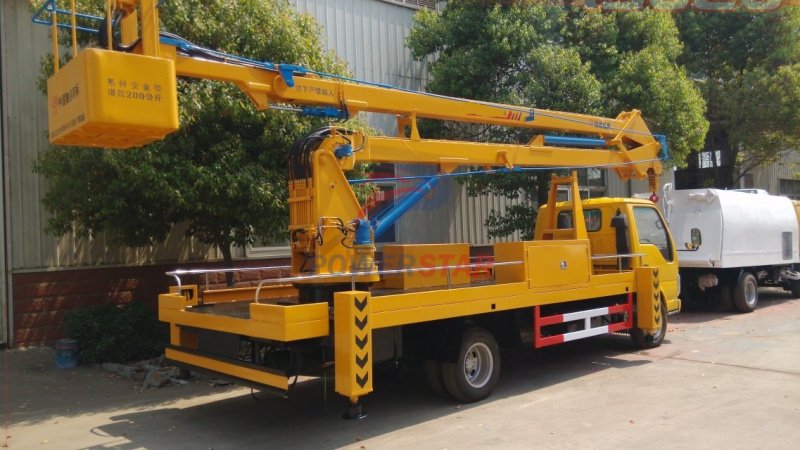

Aerial Woking Platform Truck Isuzu (also called bucket lift truck, articulated boom lift truck, Aerial platform vehicle, basket crane truck, truck mounted aerial lift truck, Basket cranes, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
POWERSTAR telescopic platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;

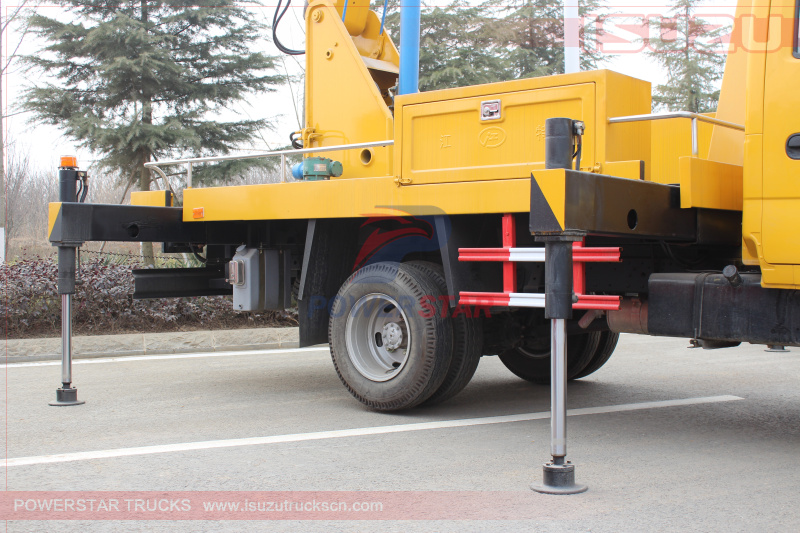

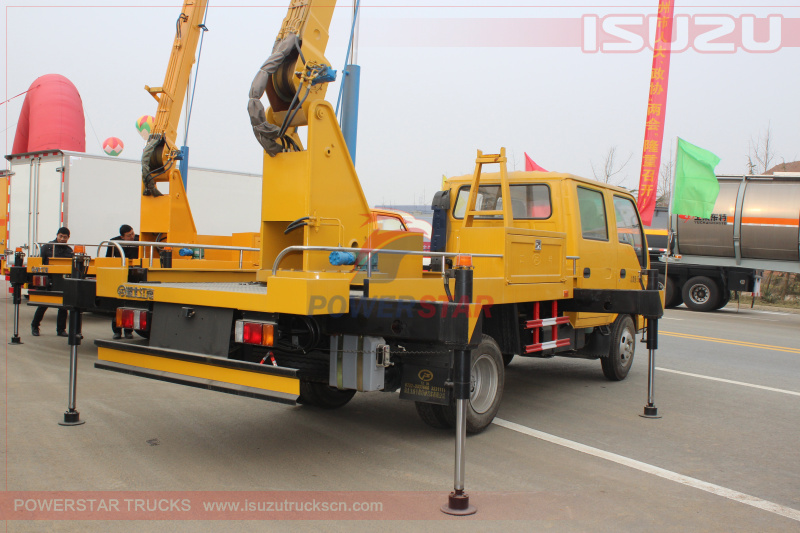

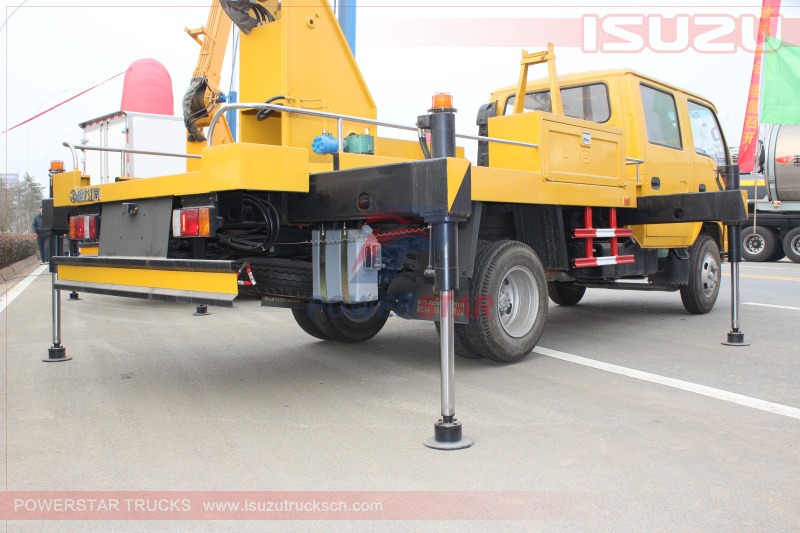

---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
Similar Key Words: Articulated boom lift truck, truck mounted aerial platform, aerial working platform, hydraulic beam lifter, bucket truck, aerial lift truck,truck mounted aerial work platforms
Aerial platform Truck ISUZU (10-14M) | ||
General | Vehicle Brand | POWERSTAR |
Chassis Brand | ISUZU | |
Overall Dimension | 7650 x 2100 x 3250 mm | |
GVW / Kerb Weight | 6,810 kg / 6,485 kg | |
Cab | Cab Capacity | 2+3 persons allowed |
Air Conditioner | With air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU engine, 4JB1CN | |
Power | 98Ps (72KW) | |
Displacement | 2777 ml | |
Emission Standard | Euro IV | |
Chassis | Drive Type | 4X2, left hand drive |
Transmission | ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km | |
Wheelbase/No. of axle | 3815 mm / 2 | |
Tyre Specification | 7.00-16 or 7.00R16 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 95 km/h | |
Paint | Metallic paint | |
Superstructure | Cage Rated Capacity | 200 kg |
Working Height | 10 m~ 14 m | |
Beam | The beam is articulated & telescopic extension type, hydraulic actuated and controlled | |

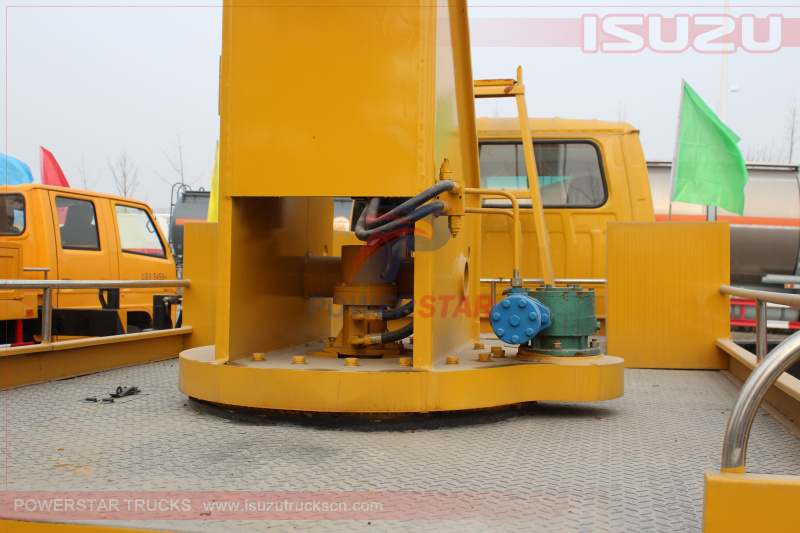

Slewing | Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second. | |
Control | Control both on the ground and remote control in cage | |
Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump | |
Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground | |
Optional | Insulated cage; Wireless remote control system |
