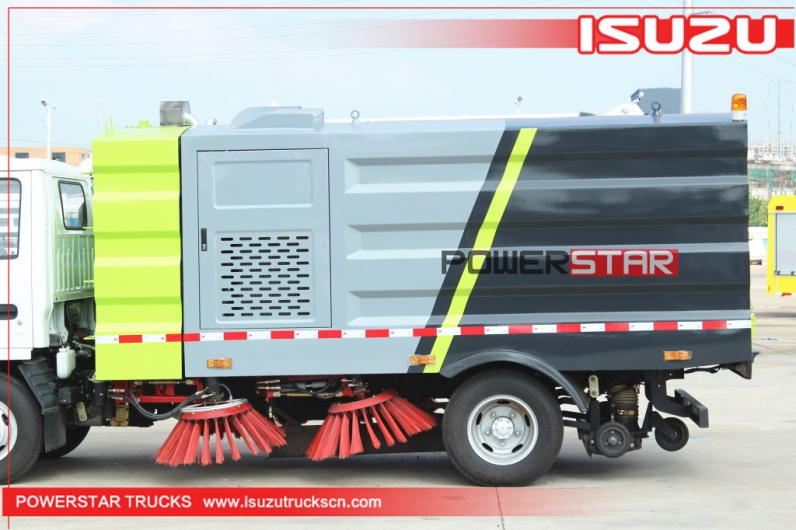

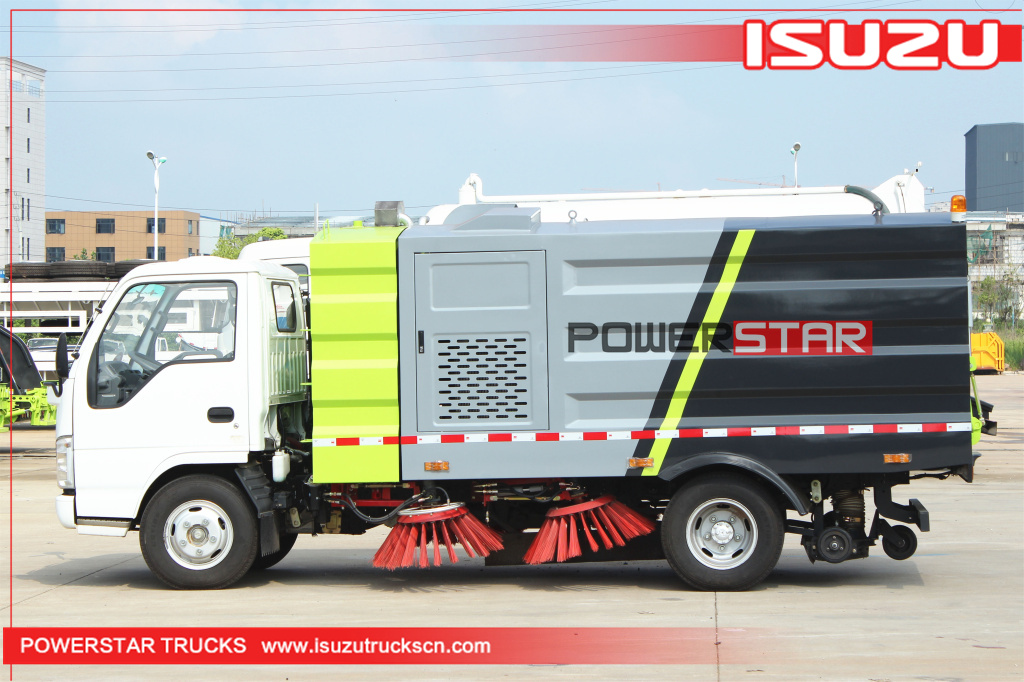

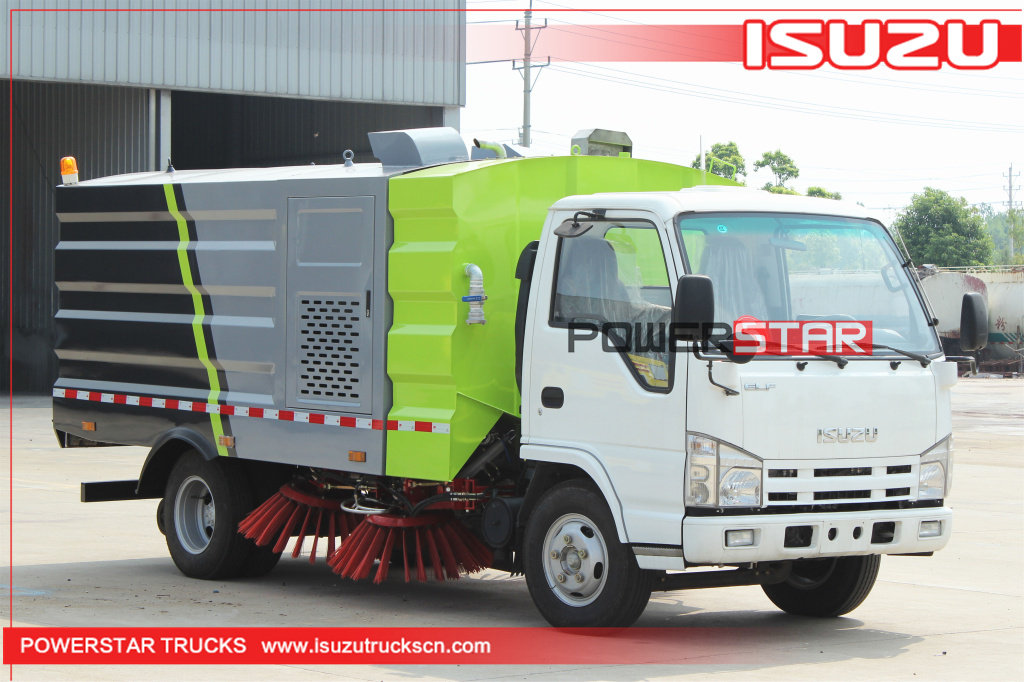

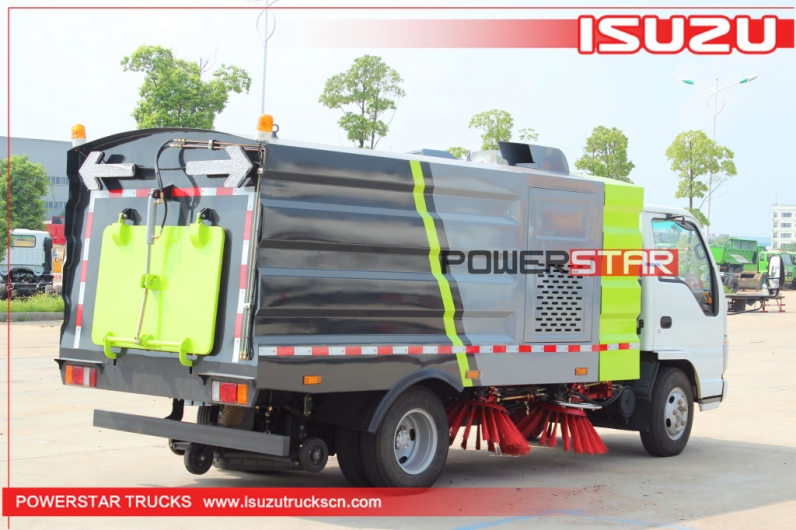

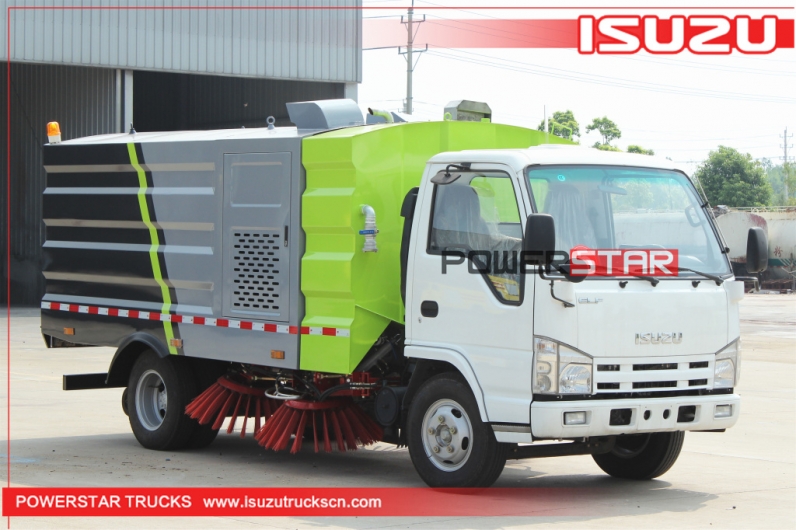

ISUZU Truck Mounted Vacuum Road Sweeper Truck
5cbm, 5,000L ISUZU broom Street sweeper truck, multifunctional road sweeper truck Isuzu, ISUZU sweeper truck manufacturer.Mechanical broom sweepers Isuzu are designed to pick up large and heavy debris, making them more efficient than other types of sweepers. They are especially useful for cleaning up construction sites, where there may be a lot of bulky debris.
Order(MOQ):
1Work capacity:
5 CBMTruck model:
PT5070TSLEngine power:
98 HPEngine type:
Isuzu 4JB1CNAxle drive:
4x2Gear box:
Isuzu MSB5SRemarks:
4 BroomsIsuzu Truck Mounted Vacuum Road Sweeper Trucks

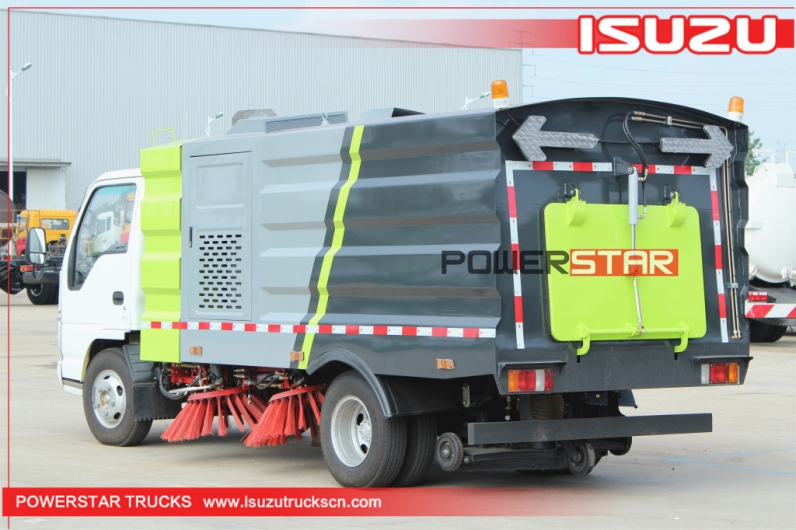

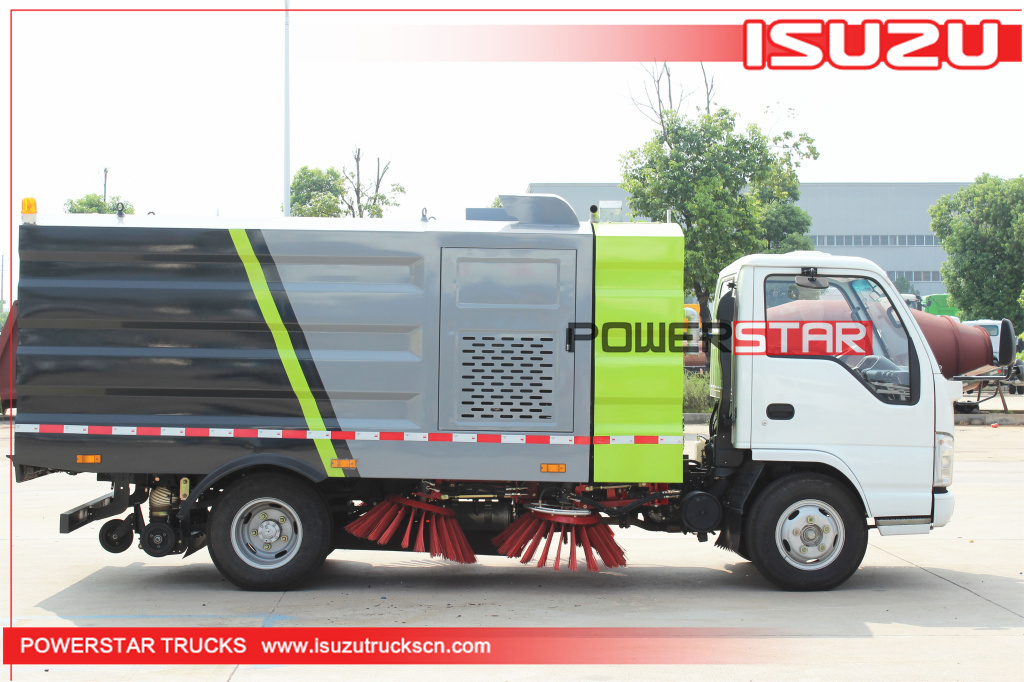

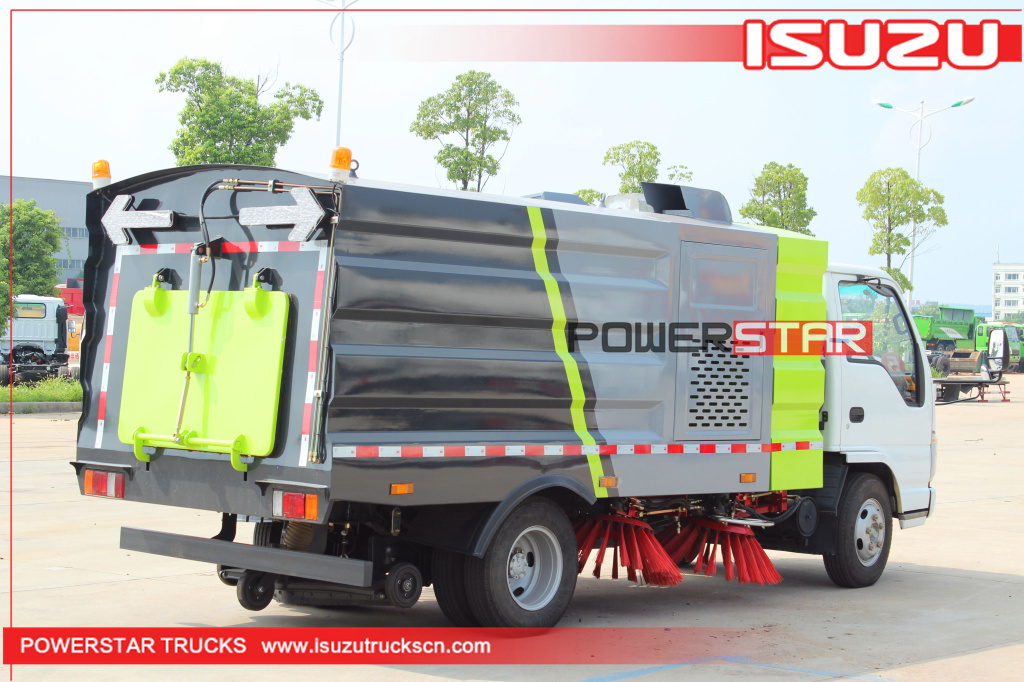

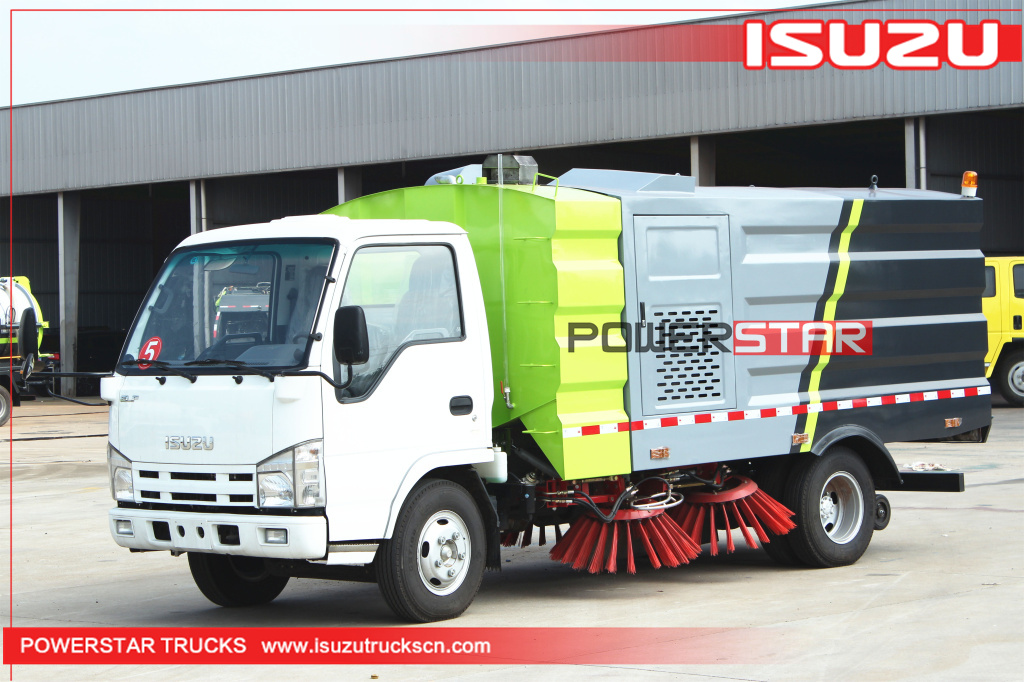

ISUZU Truck Mounted Road Sweeper (also called Road cleaning sweeper truck, Vacuum sweeper truck, Broom sweeper truck ) mainly used in cleaning the city streets, city square, large factories and mines.
|
100% custom-made
|
|
Hopper capacity from 3cbm to 15cbm
|
|
Short delivery time 7~30 days
|
|
Easy operation & Easy maintenance
|
|
15 years spare parts & Technical support
|
PowerStar Trucks Industry Co., Limited |
|||
Product Name |
Airport Road Sweeper Truck |
||
Vehicle Brand Series |
ISUZU |
||
Vehicle Model |
PST5070GSL |
||
Production Time |
25 days |
||
Chassis parameters |
Overall dimensions |
mm |
8560*2500*2960 |
Gross weight |
kg |
21,000 |
|
Kerb weight |
7,760 |
||
Wheelbase |
mm |
4,500 |
|
Driving type |
4*2 |
||
Chassis model |
ISUZU ELF |
||
Tire size |
7.00-15-16PR |
||
Number of Tires |
6+1 |
||
Passengers in cab |
3 |
||
Engine |
Engine model |
4JB1CN |
|
Type of fuel |
Diesel |
||
Power |
98HP |
||
Max speed |
Km/h |
110 |
|
Emission standard |
EURO 4,5,6 |
||
Sweeper performance |
Hopper Tank Capacity |
4 Cbm |
|
Hopper Material |
Stainless Steel |
||
Water Tank Capacity |
1 Cbm |
||

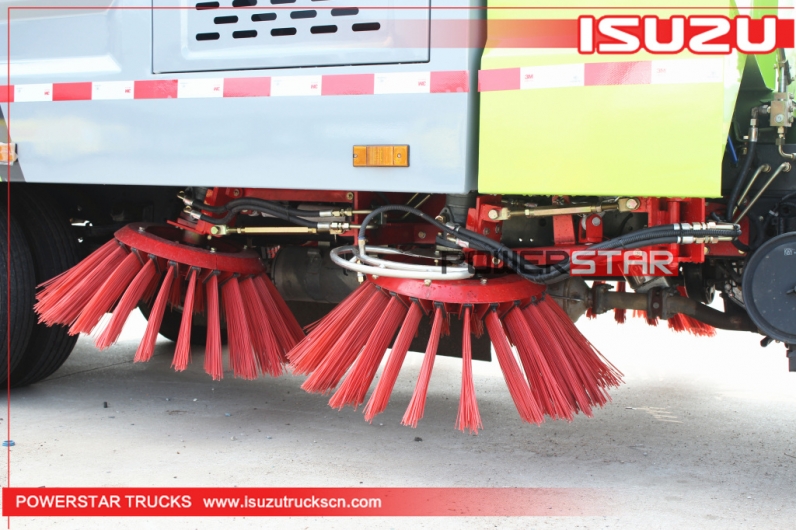

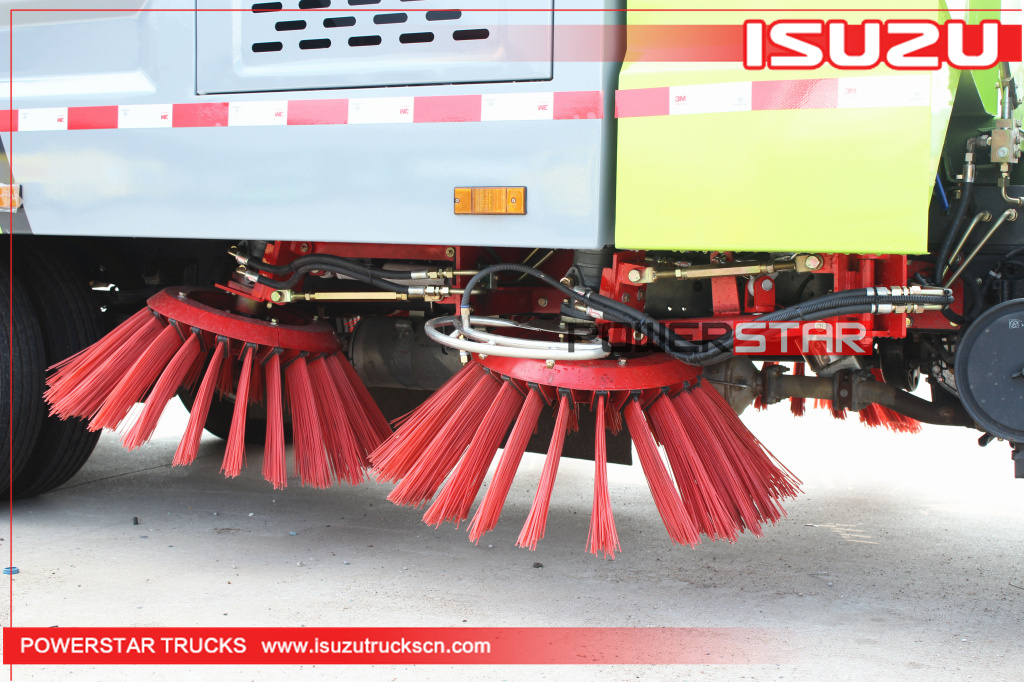

Brooms |
4 pcs |
||
Drive by hydraulic motor |
|||
Sweeping Efficiency |
≥98% |
||
Sweeping Speed |
3-20 km/h |
||
Sweeping Width |
2500 mm |
||
Sweeping Capacity |
60000 m2/h |
||
Auxiliary Engine |
77hp |
||
Powerful Blower |
Equipped |
||

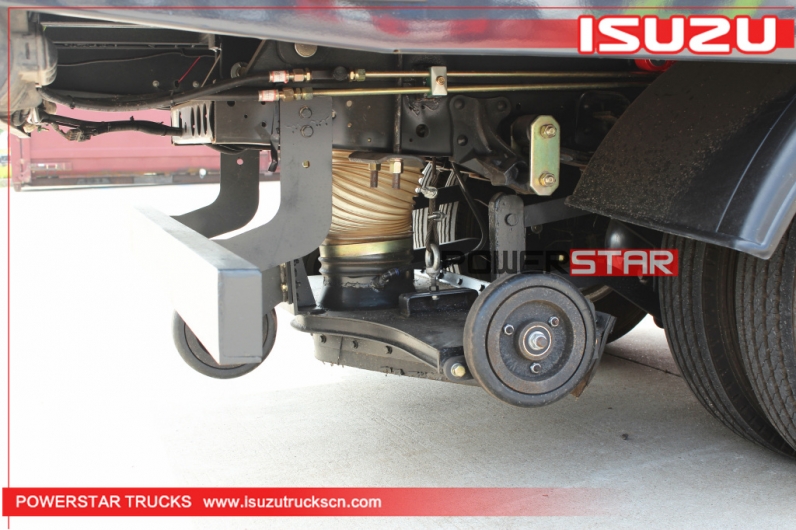

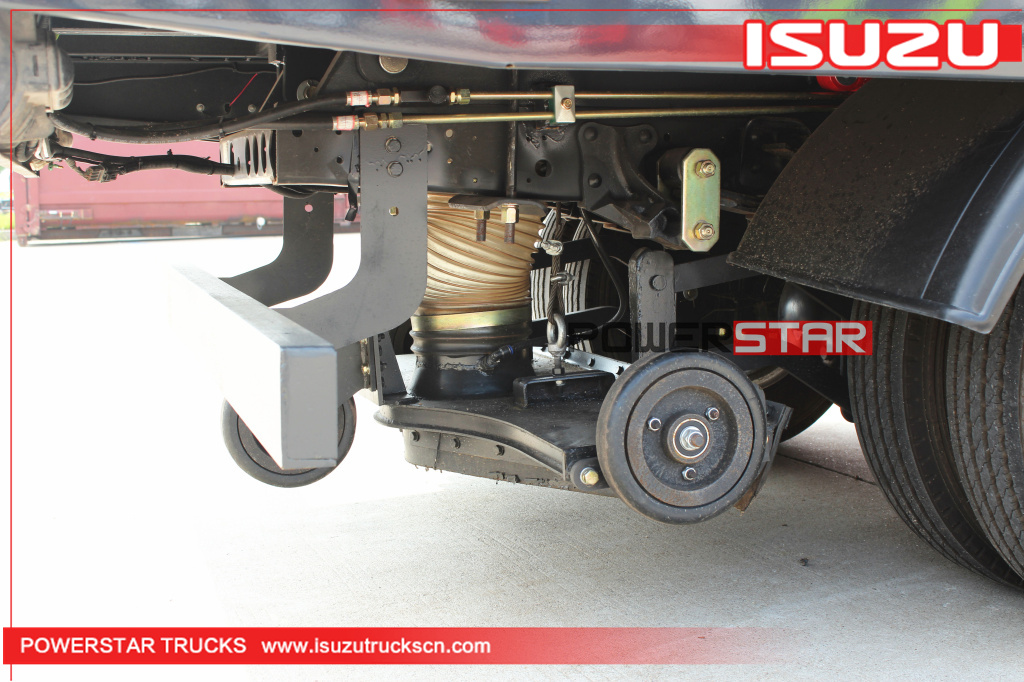

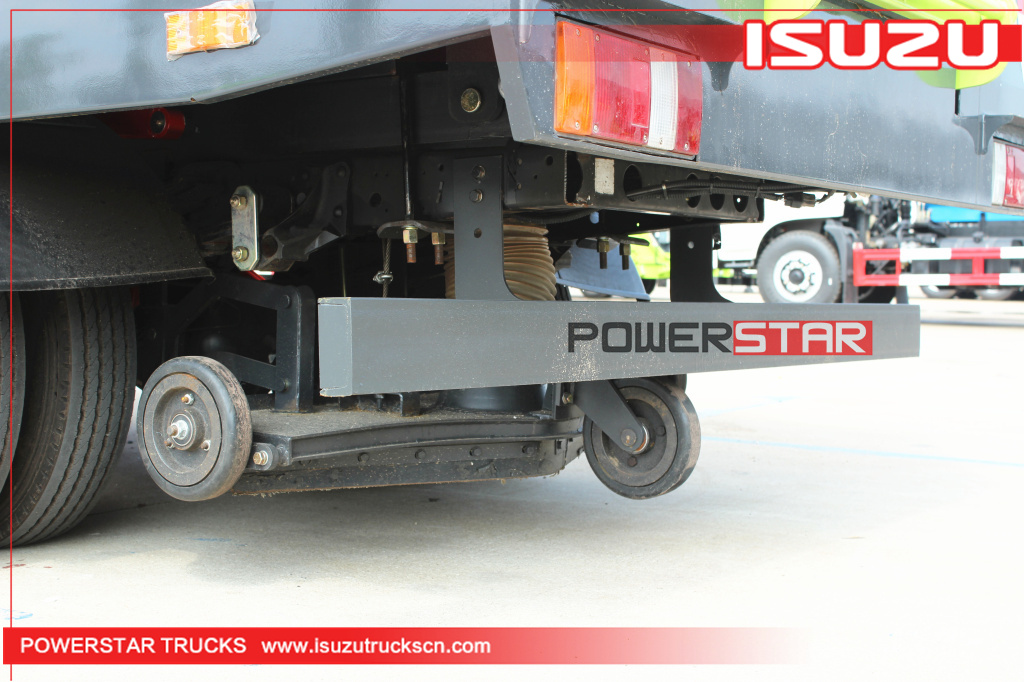

High Productivity Suction Nozzle |
Equipped |
||
Painting |
Two primers, and one final paint coating |
||
Color & LOGO |
According to wish |
||
Factory standard |

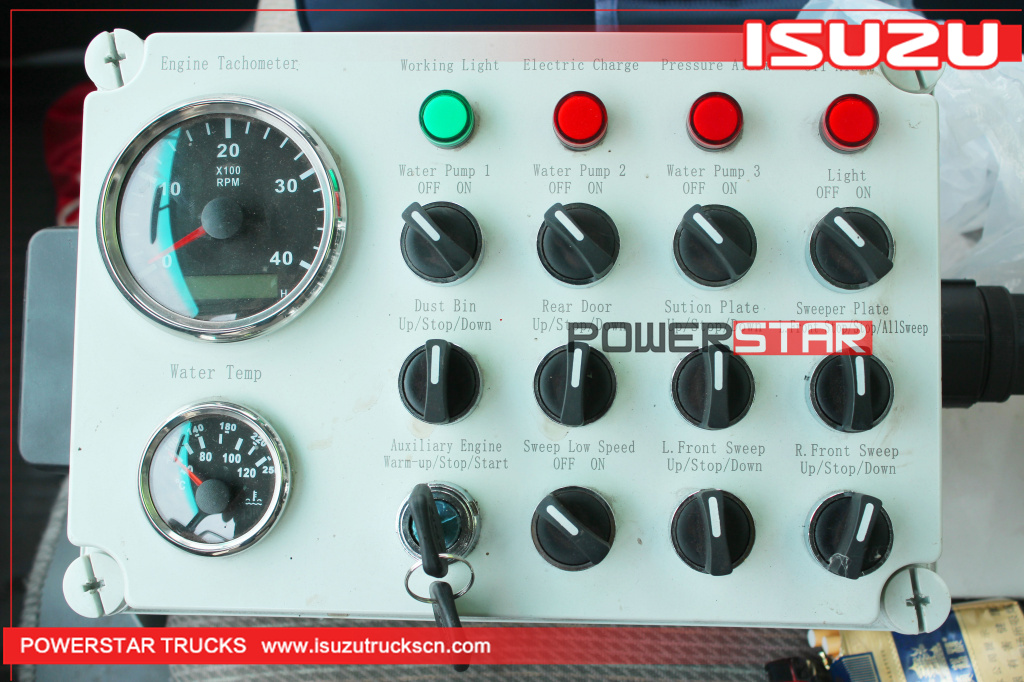

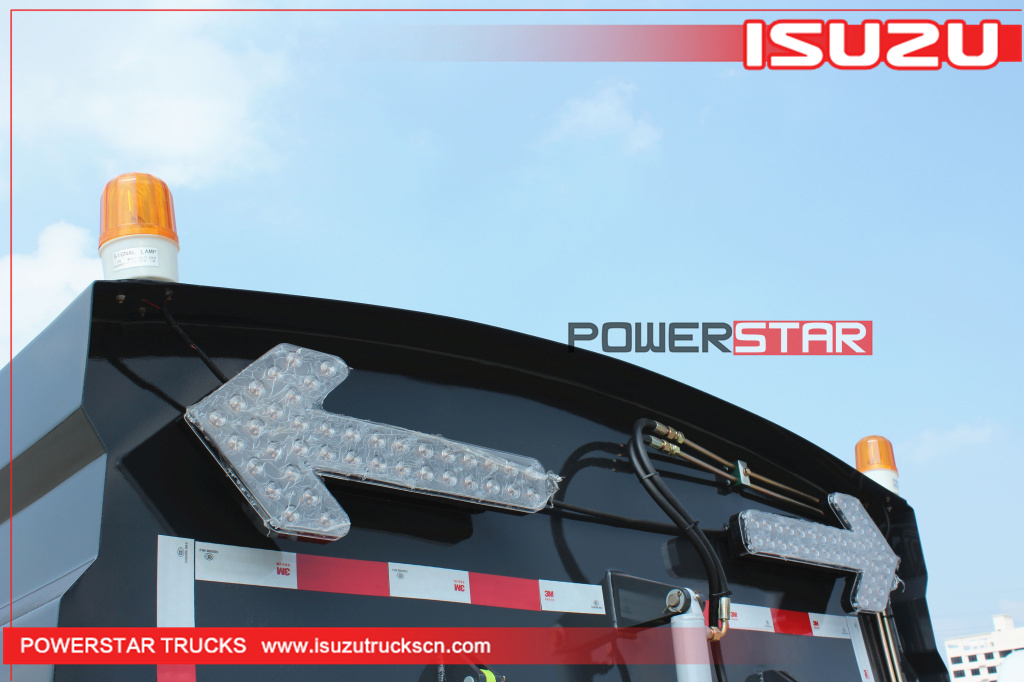

“U” shape Sub Frame, Intelligent control system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
Optional equipment |
1, Front brushes or Front spray bar 2, High pressure road washing system 3, Italy or USA imported hydraulic motor 4, Optional stainless steel waste water tank |
