ISUZU VC46 16 Ton Knuckle Boom Truck Mounted Crane For Heavy Things Lifting
Order(MOQ):
1ISUZU VC46 16 Ton Knuckle Boom Truck Mounted Crane For Heavy Things Lifting
Durable 16 Ton Knuckle Boom Truck Mounted Crane For Heavy Things Lifting
Description:
Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.
Knuckle boom cranes have the ability to stow within itself, folding into a small space out of the way freeing up valuable payload space.
Knuckle boom crane SQ16ZK4Q is lifting capacity is 16tons, moment is 40T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model |
SQ16ZK4Q |
Unit |
Max Lifting Moment |
40 |
t.m |
Max Lifting Capacity |
16000 |
kg |
Recommend Power Needed At Recommend Oil Flow |
37 |
kw |
Max Oil Flow of Hydraulic System |
63 |
L/min |
Rated Pressure Of Hydraulic System |
31.5 |
MPa |
Oil Tank Capacity |
250 |
L |
Rotation Angle |
(360°) All Rotation |
|
Crane Weight |
5000 |
kg |
Installation Space |
1500 |
mm |
Choice of Chassis |
isuzu vc46 |
SQ16ZK4Q Lifting capability diagram |
||||||
Working radius(m) |
2.5 |
4.098 |
5.898 |
7.748 |
9.618 |
11.518 |
Lifting capacity(kg) |
16000 |
9600 |
6600 |
4850 |
3500 |
2600 |
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg

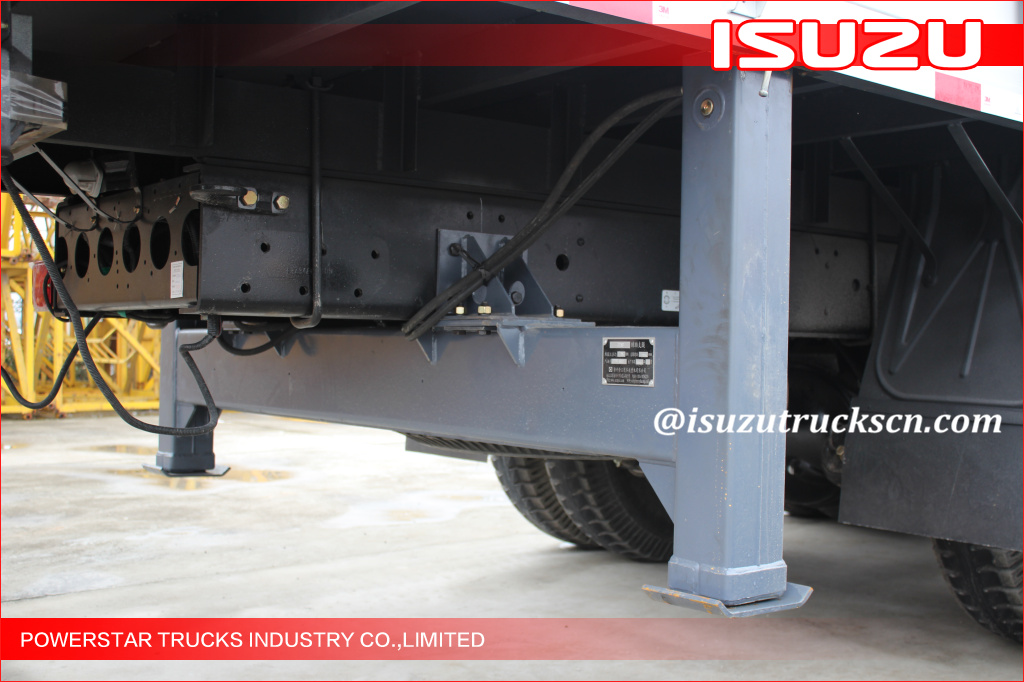

Stabilizer leg |
Spread |
Fixed |
2179mm |
Single extension |
2256-3556mm |
Double extension |
2212-4752mm |
