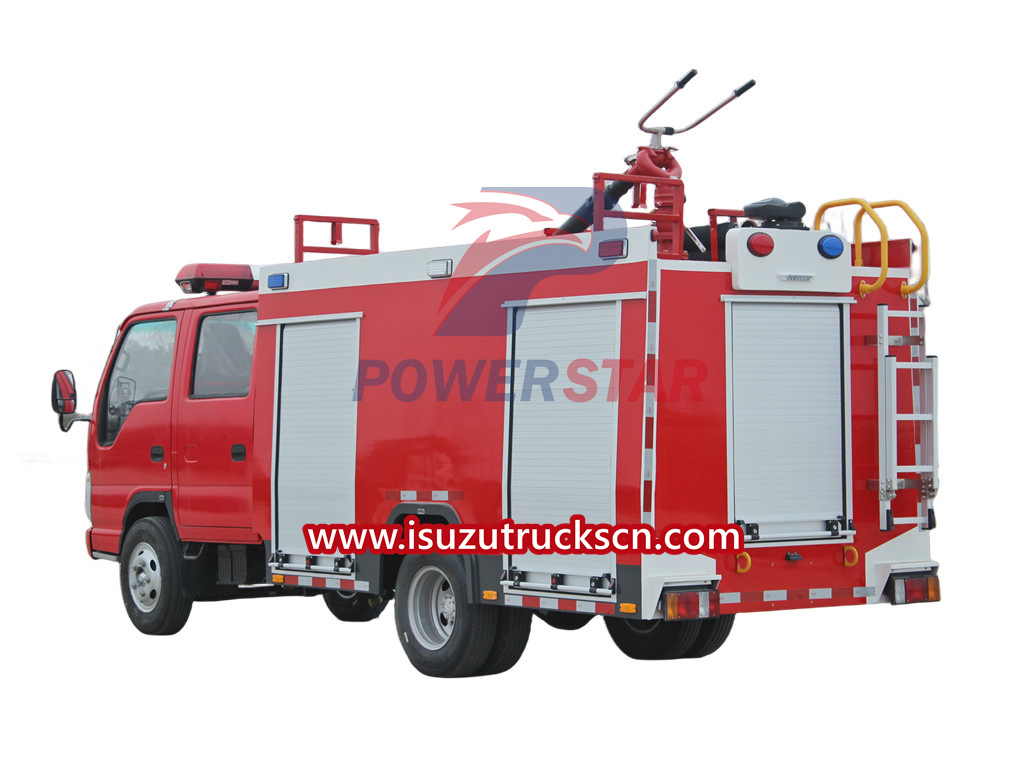

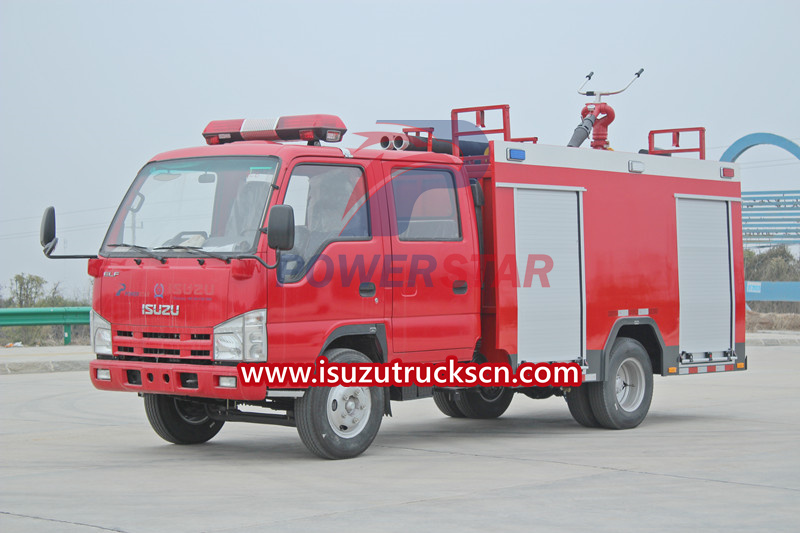

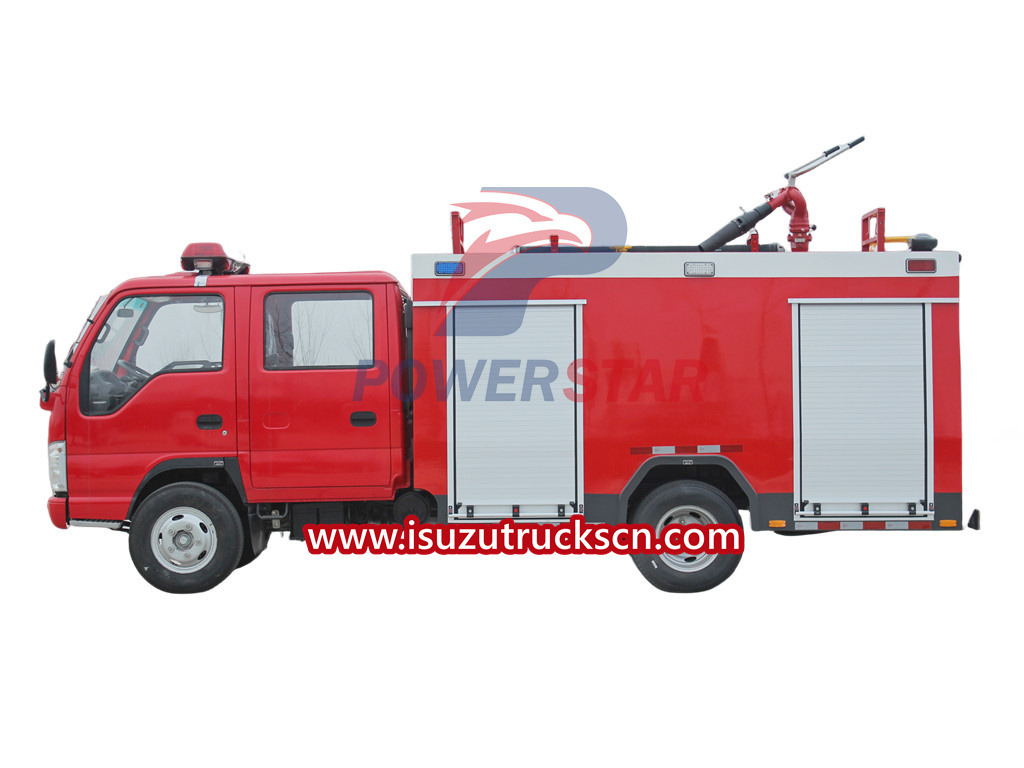

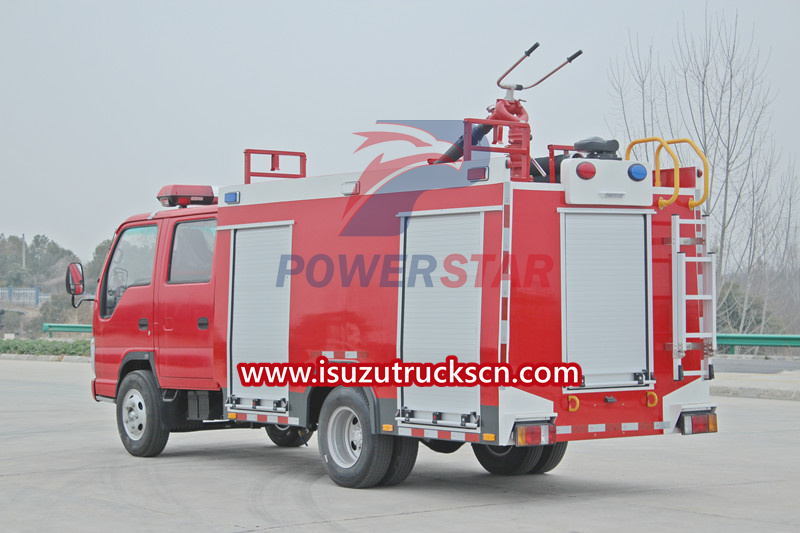

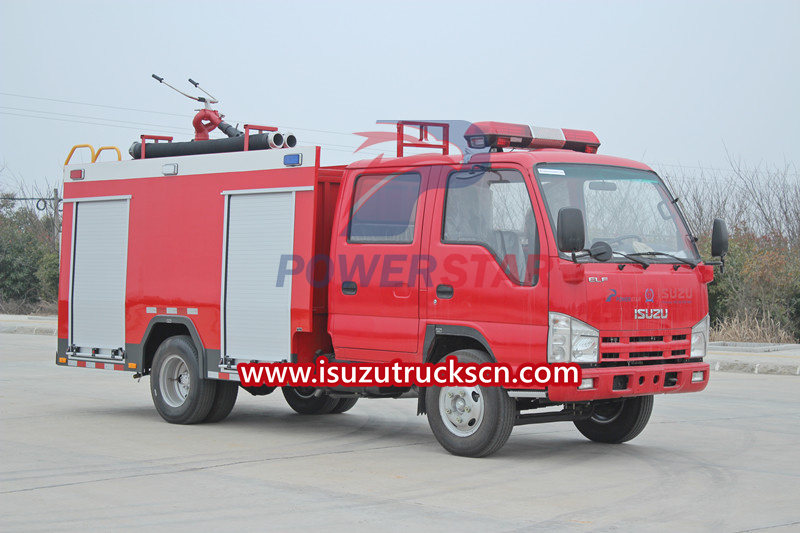

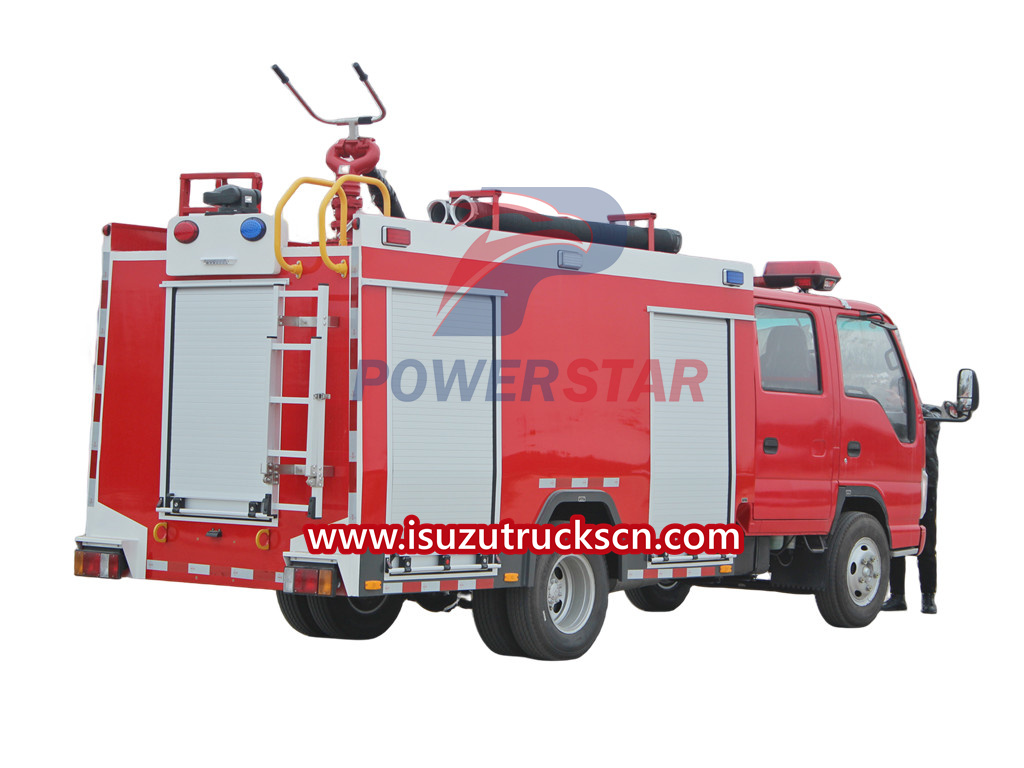

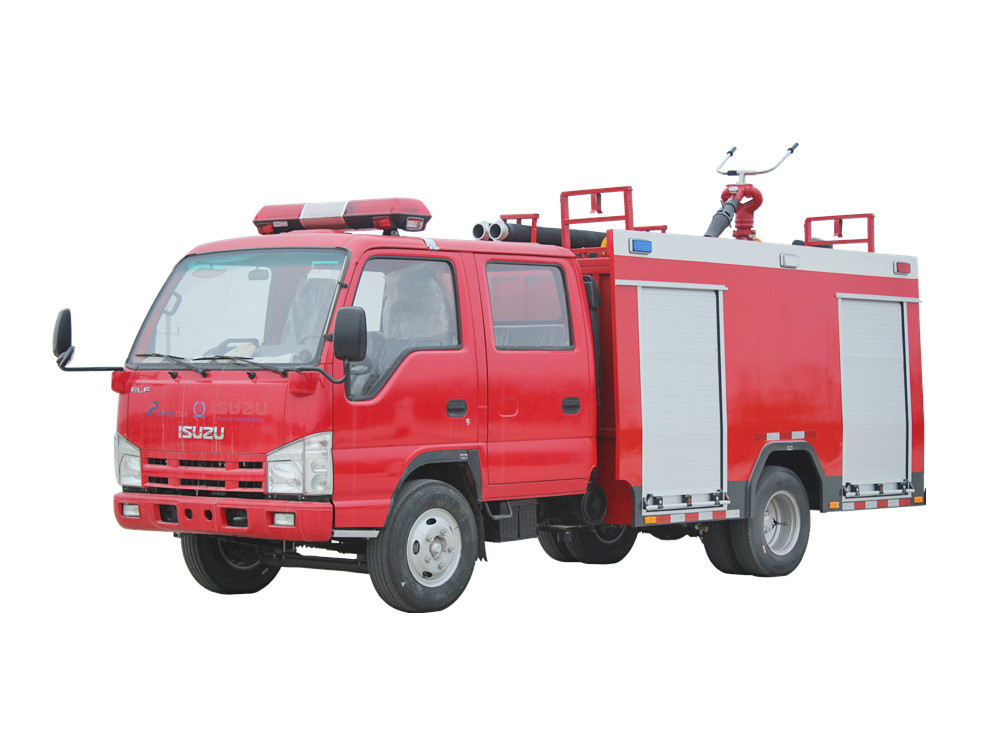

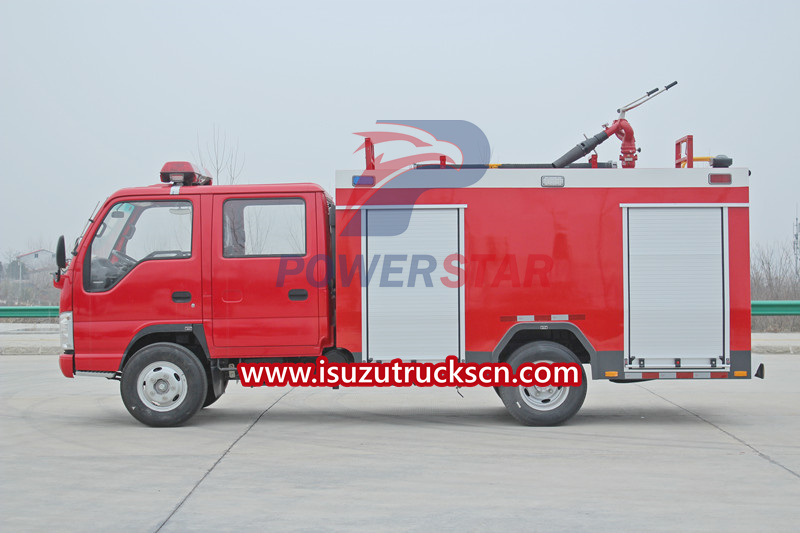

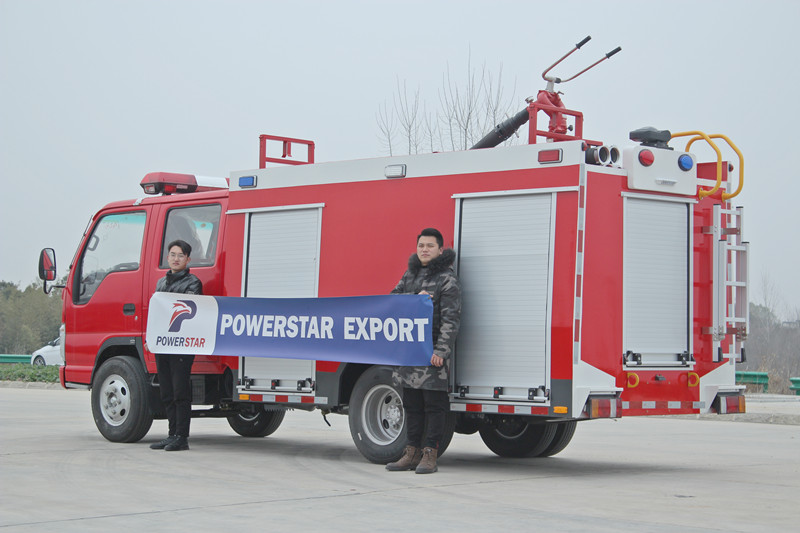

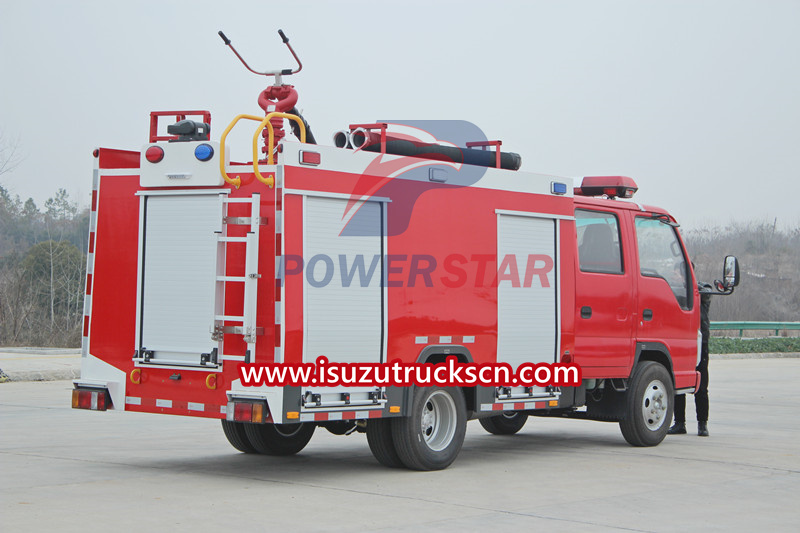

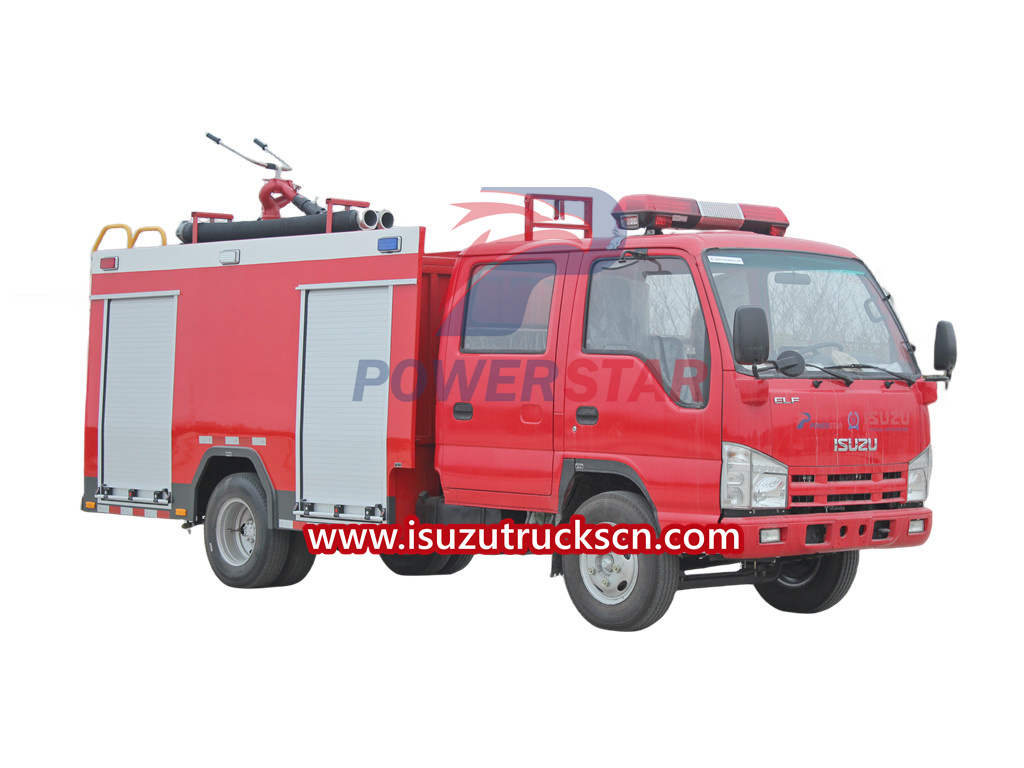

ISUZU mini 3cbm rescue Fire fighting truck also known as a rescue truck, is a vehicle designed and manufactured to be used by firefighters as needed, equipped with various types of firefighting equipment or extinguishing agents, and used by firefighting forces for firefighting, auxiliary firefighting or fire rescue. The truck build based on original Japanese ISUZU double cabin mini ELF NKR truck chassis, with 120HP diesel engine, MSB 5-shift manual gearbox for convenient driving, 3cbm stainless steel tanker body as required, including 2500liters water and 500liters foam, CB10/30 fire pump and PL24 fire monitor for water foam jetting, which can have distance over 45m. truly an ideal fire truck fir all kinds of fire rescue work.
Work capacity:
2500 + 500 LitersTruck model:
PT5070GXF03NEngine power:
120 hpEngine type:
4KH1CN6LBAxle drive:
4x2Gear box:
MSB 5-shift manualRemarks:
Original ISUZU double cabin truck, SS304 material 3cbm water tanker
Isuzu wildland water tender is a specialized vehicle capable of bringing water, foam, or dry chemicals to fire trucks in the field. Water tenders have a large truck-mounted tank with a minimum of 500 gallons and up to 6,000 gallons of water and foam. Water fire engine are typically larger, less agile apparatus. These vehicles are specifically designed for fires in more rugged terrain to help supply water for the fireline. Many modern water tenders can be used tactically to supply critical incident hose lies directly. Tenders are typically used in wildfires because urban fire departments usually get their water from water supply infrastructures. In contrast, rural departments transport large volumes of water to the fireline with water tenders because of a lack of access to municipal water systems. Tactical water tenders can perform some of the functions of a wildland fire engine, such as deploying hose lengths. Unlike support water tenders, tactical water tenders are capable of a technique of pump-and-roll.
ISUZU fire rescue fighter truck,which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximum.
Products Parameters for ISUZU double cabin row 4x2 water foam fire truck:
|
Vehicle description for Isuzu fire fighting truck |
||
| Overall dimension | 6120*2200*2810(mm) | |
| GVW | 7300kg | |
| Curb weight | 3850kg | |
| Chassis brand |
ISUZU NKR |
|
| Traction type | 4*2,left/right hand drive | |
| Chassis description | ||
| Chassis model | QL1070BUHAY | |
| Cab |
Structure: flat-head, original double-row seat four-door passenger compartment. Seat setting: 2 persons in the front row and 3 persons in the back row. |
|
| Wheelbase | 3360mm | |
| Tire specification | 7.00R16 | |
| Tire quantity |
6+1 spare tire |
|
| Engine | Engine model | 4KH1CN6LB |
| Emission level | Euro 6 | |
| Displacement/output | 2999 ml/88kw | |
| Horse power | 120hp | |
| Gear box | Model |
Isuzu MSB |
| Number of gears | 5 forward gears& 1 reverse | |
| Brake system | Type | Drum |
| Service brake | Dual-circuit compressed air brake | |
| Park brake | Power spring brake acting on rear wheel | |
| Auxiliary brake | WEBCO | |
| Axle | Front | 2.5T |
| Rear | 4.8T | |
| Suspension | Front | 7- Leaf spring with shock absorber |
| Rear | 9+6-Leaf spring | |
| Fuel tanker | Type | Steel fuel tanker |
| Capacity | 70L | |
| Up-parts description | ||
| Tanker capacity | Water tanker | 2.5 cbm |
| Foam tanker |
0.5 cbm |
|
| Standard configuration |
2 sets manhole with quick lock and open device; 2 sets overflow device; 2 sets fluid level gauge; 2 sets drain outlet with manual controlled. |
|
|
Fire pump |
Model | CB10/30, normal pressure pump |
| Flow | 30L/S | |
| Pressure | 1.0Mpa | |
| Suction depth | 7m | |
| Fire monitor | Model | PL24 |
| Flow | 24L/S | |
| Pressure | 0.8Mpa | |
| Range | ≥45m | |
| Rotation angle |
Horizontal 360° Pitch -35°~70° |
|
| Other configuration |
Equipped with sandwich PTO, pipeline system; Equipped with equipment box and pump box; Equipped with flip pedal and electric system. Other equipment. |
|
How to buy most suitable Isuzu fire trucks from POWERSTAR TRUCKS INDUSTRY CO., LIMITED?
When purchasing an ISUZU fire truck, it is recommended to communicate with authorized dealers multiple times to ensure a full understanding of the products and services, and to make selections and decisions with professional fire fighters to purchase the most suitable ISUZU fire truck. To buy the right ISUZU fire truck, you can follow these steps:
1. Determine needs: First, clarify the purpose and needs of the fire truck. Consider factors such as the type of fire you need to deal with, the distance to transport water, the amount of equipment and rescue tools, and more. This will help in selecting the appropriate ISUZU firefighting working model.
2. Research products: In the Philippines, ISUZU offers fire trucks of different models and configurations. Carefully study the technical parameters, performance features and functional configuration of ISUZU fire trucks. Understand its water tank capacity, pump output, range, carrying capacity and other key indicators to ensure that it meets the needs.
3. Negotiate a budget: Determine your budget range for purchasing a fire truck so you have something to consider when making your selection. According to the budget range, choose the ISUZU model and configuration that best suits your fire protection needs.
4. Find an authorized dealer: Contact ISUZU's authorized dealer or authorized agent POWERSTAR TRUCKS INDUSTRY CO., LIMITED and inquire with them about the detailed information, price and after-sales service of ISUZU fire apparatus. Authorized dealers will provide professional consultation and assistance.
5. Site visits and test drives: If possible, conduct a site visit and test drive before purchasing. Observe the driving comfort, ease of operation and personnel safety of the fire truck. Ensure that various control equipment, water cannons and fire-fighting equipment match needs.
6. Compare and select: Compare ISUZU firefighting trucks of different models and configurations, including price, performance, quality and after-sales service. Choose the most suitable ISUZU firefighting model based on your needs and budget range.
7. Pre-purchase inspection and contract signing: Before purchasing a car, check whether the fire rescue truck meets the requirements of the Philippine government and relevant regulations. Sign a car purchase contract with an authorized dealer and ensure that the vehicle specifications, price, warranty, maintenance, accessories and other terms are clearly stated in the contract.
8. Delivery and training: After purchasing the vehicle, the authorized dealer will arrange the delivery and training process of the fire truck, including training on vehicle operation, maintenance and routine inspections. Ensure that firefighters are familiar with and master the skills of using ISUZU fire trucks.
