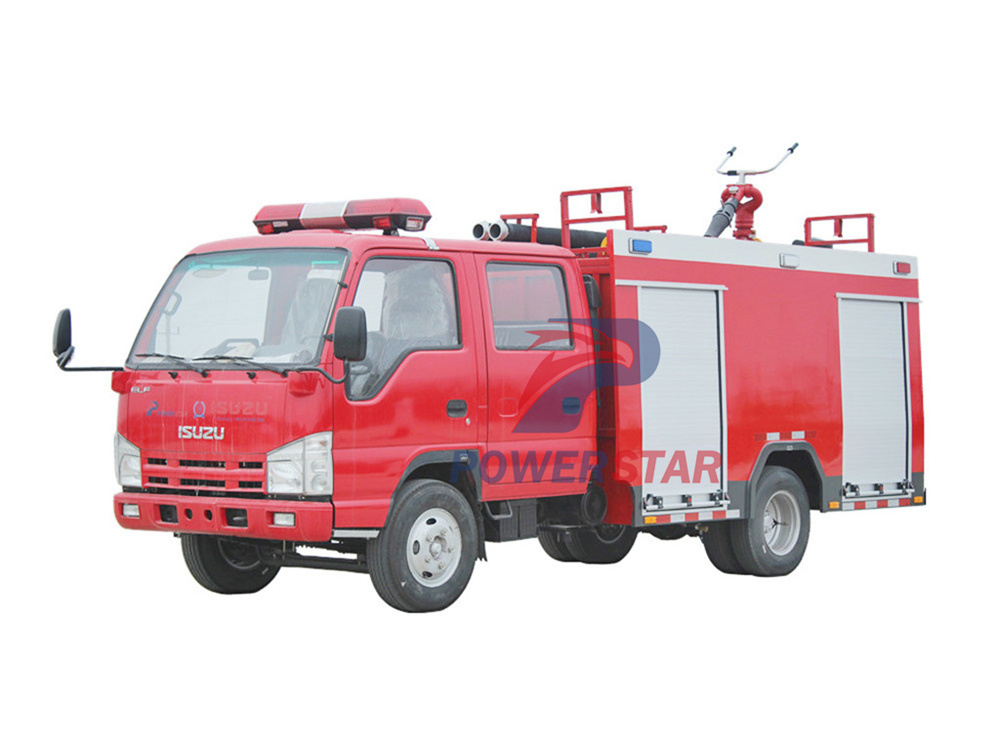

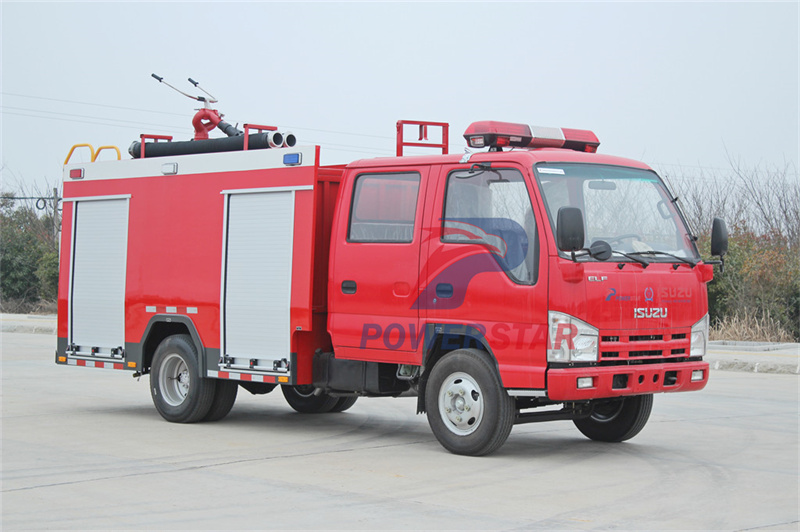

New Isuzu 4KH1 120HP 3000 Liters Fire fighting truck

New Isuzu 4KH1 120HP 3000 Liters Fire fighting truck also called Isuzu 120HP 3cbm water foam fire truck,Isuzu ELF 100P foam fire pumper truck,Isuzu light foam fire tender,Isuzu ELF 3cbm foam water rescue fire truck,Isuzu 100P mini foam fire engine.

The New Isuzu 4KH1 120HP 3000 Liters Fire fighting Truck roars to life like a formidable beast, ready to tackle blazes with unrivaled power and precision. Powered by the mighty Isuzu 4KH1 120HP engine, this firefighting machine is the epitome of strength and resilience, charging into emergency situations with relentless energy to provide a strong support for life, property and more.

With a massive 2000-liter water tank and 1000-liter foam tank at its core, this truck is a reservoir of hope in the face of flames. It carries with it the lifeblood needed to combat fires relentlessly, ensuring that firefighters have the resources they need to battle even the fiercest of infernos without pause.

This fire truck is equipped with a powerful pumping system that can accurately release large streams of water to extinguish fires with surgical precision. Every nozzle is a weapon and every hose is a lifeline as this firefighting marvel is ready to extinguish flames and protect lives.

Specifications

 Applications

The new Isuzu 4KH1 120HP 3000 Litre Fire Truck is a powerful, reliable machine designed for emergency response. With its powerful 120HP Isuzu 4KH1 engine, it races to the scene with unmatched speed and agility. Its 2000 Litre water tank and 1000 Litre foam tank ensure it can extinguish the fiercest flames and turn into a life-saving river. Its stylish red design is particularly eye-catching in any emergency. This fire truck is a guardian of life and property, ready to take on any challenge.

Technical drawing of New Isuzu 4KH1 120HP 3000 Liters Fire fighting truck

★ Body and chassis

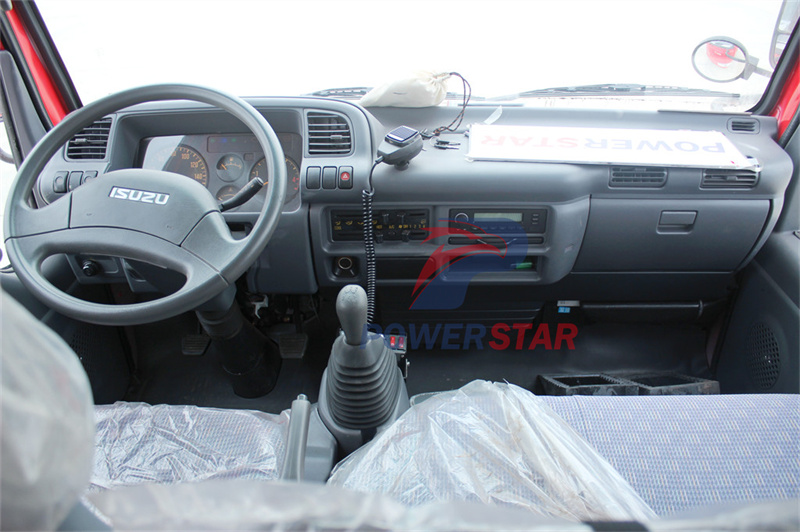

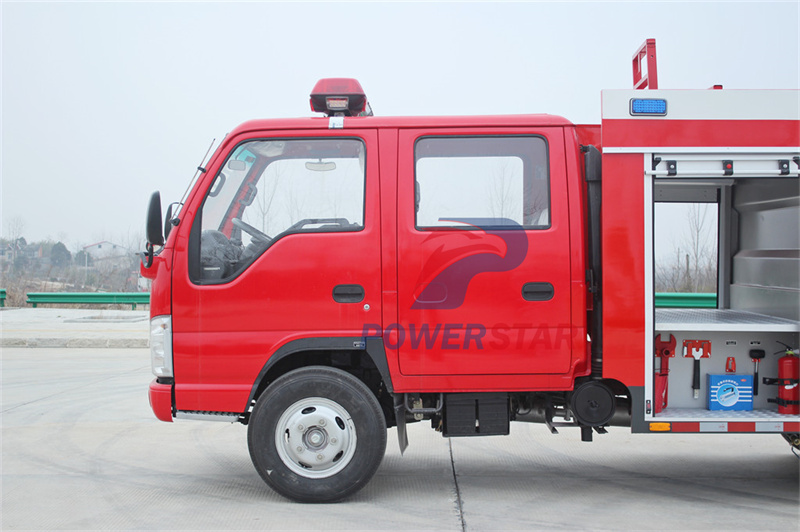

The body and chassis of this fire truck are well designed and built for emergency rescue missions. It adopts a double-row cab design, providing a spacious and comfortable driving space for the driver and co-driver, facilitating efficient communication and collaboration in emergency situations.

In terms of chassis, the vehicle is equipped with an Isuzu 100P 120HP engine, which is powerful and can easily cope with various complex road conditions, ensuring that the fire truck can quickly reach the fire scene. The matching MSB 5-speed transmission has smooth shifting and easy operation, providing the driver with more flexible driving options.

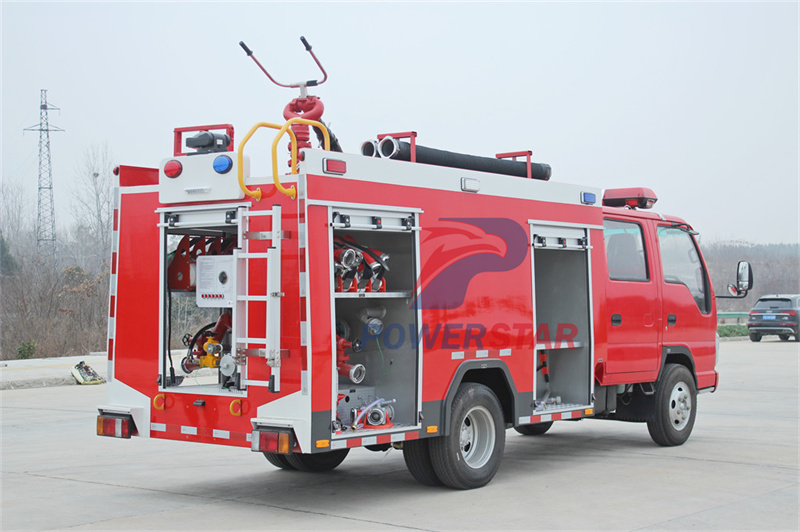

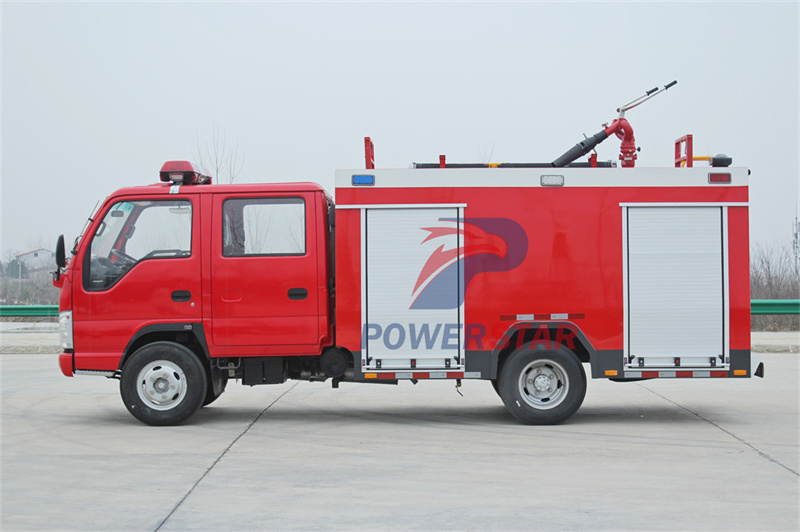

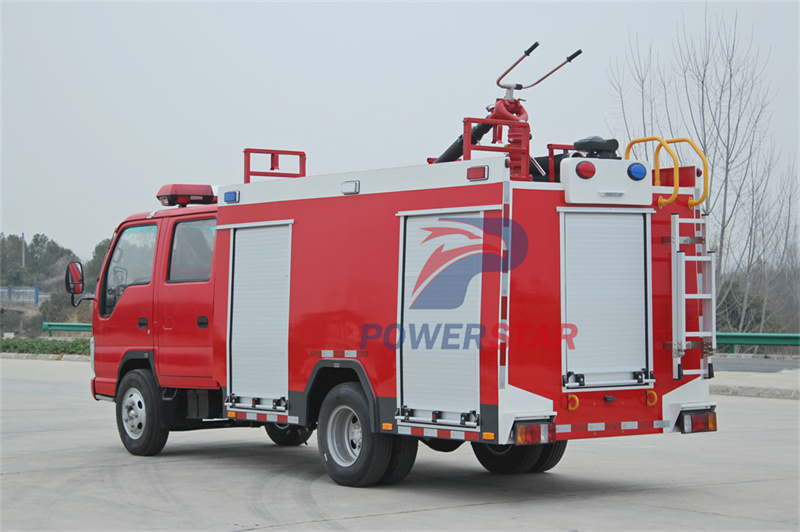

New Isuzu 4KH1 120HP 3000 Liters Fire fighting truck

The overall body is a striking red color, which not only conforms to the traditional image of fire trucks, but also can quickly attract the attention of the surrounding people in an emergency, and buy precious time for rescue operations. There are 2 cubic water tanks and 1 cubic foam tank on both sides of the body. These large-capacity liquid storage tanks provide sufficient fire extinguishing media for the fire truck, ensuring a continuous supply of water during long-term and high-intensity firefighting operations.

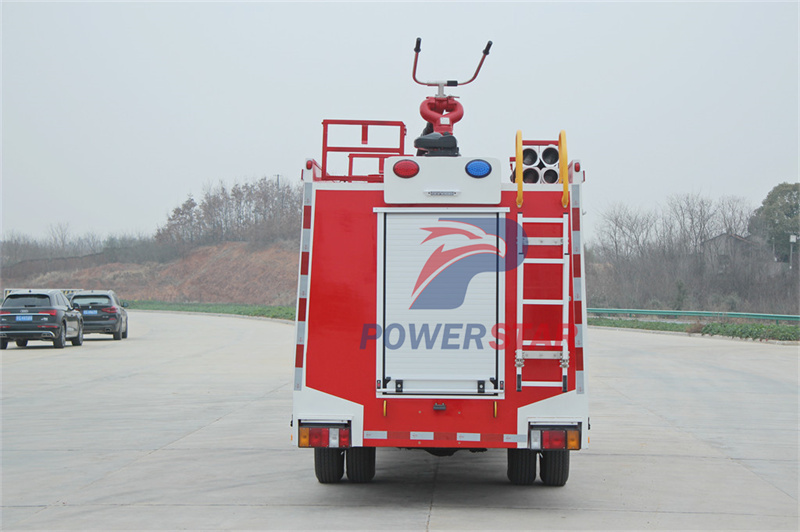

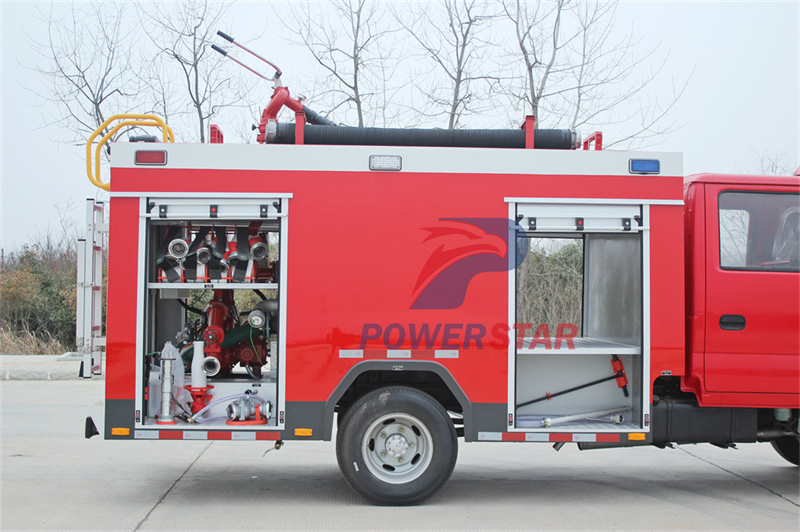

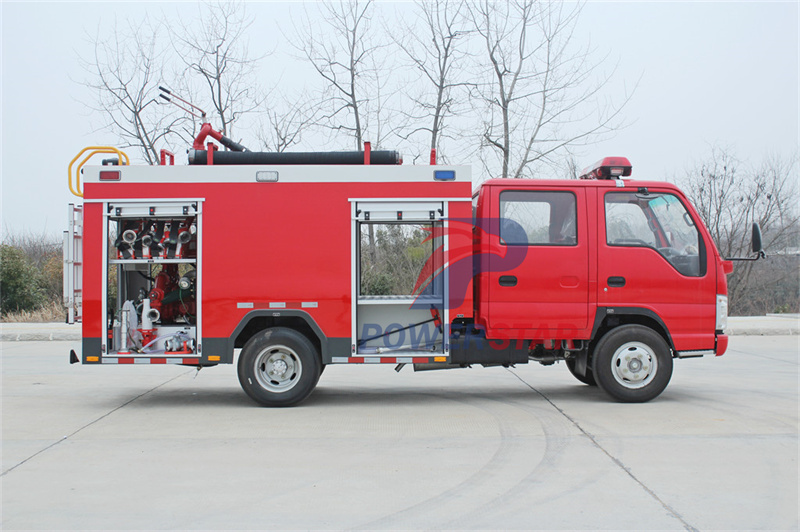

In addition, the body also has a special tool room for storing various firefighting equipment and rescue equipment, which is convenient for firefighters to quickly access in an emergency. The tail is designed as a pump room with a built-in high-performance fire pump system to provide strong water flow support for water guns, water cannons and other water-discharging equipment to ensure the fire-fighting effect.

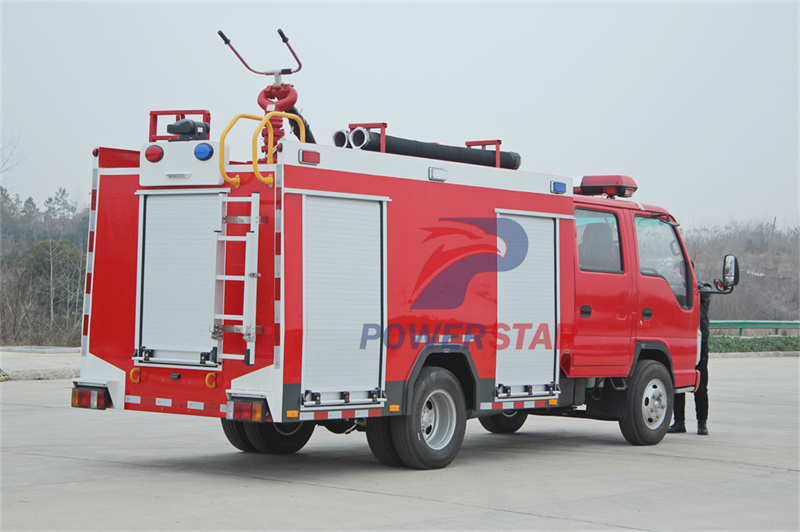

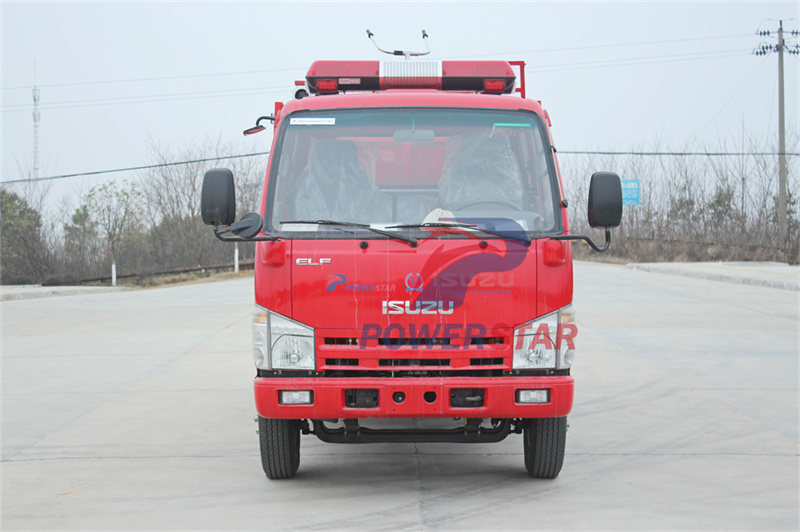

Isuzu ELF 100P foam fire pumper truck

★ 2 cubic water tanks and 1 cubic foam tank

In the body design of this fire truck, 2 cubic water tanks and 1 cubic foam tank occupy an important position. They are not only the core components of firefighting operations, but also an important indicator for measuring the firefighting ability of fire trucks.

The 2 cubic water tanks are located in the middle of the body and are made of high-strength, corrosion-resistant carbon steel materials to ensure that they will not be damaged due to water quality problems or external environmental influences during long-term storage and use. The inside of the water tank has been specially treated to effectively prevent algae growth and bacterial breeding, and keep the water clean and hygienic. At the same time, the water outlet of the water tank is reasonably designed, and can quickly connect water guns, water cannons and other water outlet equipment to ensure smooth and stable water flow.

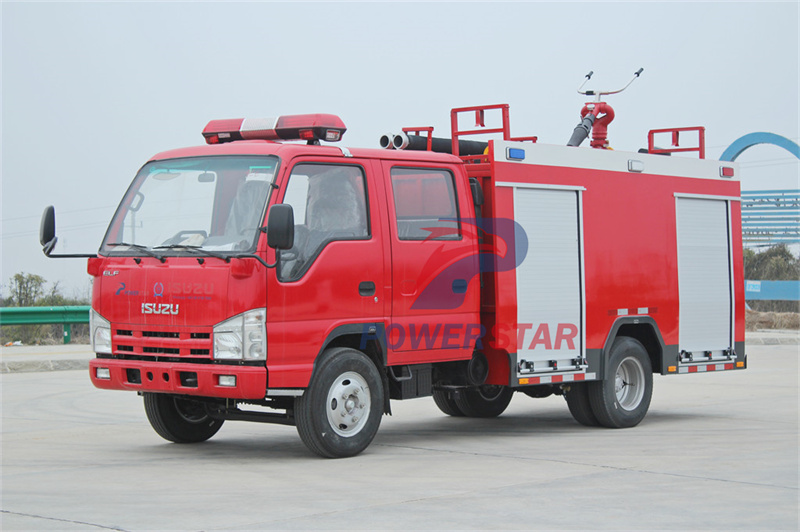

Isuzu 120HP 3cbm water foam fire truck

Next to the water tank is a 1 cubic foam tank, which is also made of high-quality materials and has excellent sealing and thermal insulation properties. The foam tank stores efficient and environmentally friendly firefighting foam, which can quickly form a stable foam layer after mixing with water, covering the surface of the burning object and isolating the air, thereby achieving the purpose of rapid fire extinguishing. The outlet of the foam tank is connected to the water tank. Through the pressurization of the pump system, the foam is mixed with water and then transported to the water outlet equipment to achieve efficient fire extinguishing.

The capacity design of these two liquid storage tanks fully considers the needs of fire trucks in actual fire fighting operations, which not only ensures sufficient supply of fire extinguishing medium, but also avoids problems such as excessive weight and inconvenient operation caused by excessive capacity. At the same time, they are also equipped with accurate liquid level gauges and alarm devices, which can monitor the liquid level changes in the liquid storage tank in real time, and sound an alarm when the liquid level is too low, reminding firefighters to replenish the fire extinguishing medium in time.

The 2 cubic water tanks and 1 cubic foam tank of this fire truck are reasonably designed and powerful, providing the fire truck with sufficient fire extinguishing medium and efficient fire extinguishing means, which is an important tool for the fire department to deal with various fire accidents.

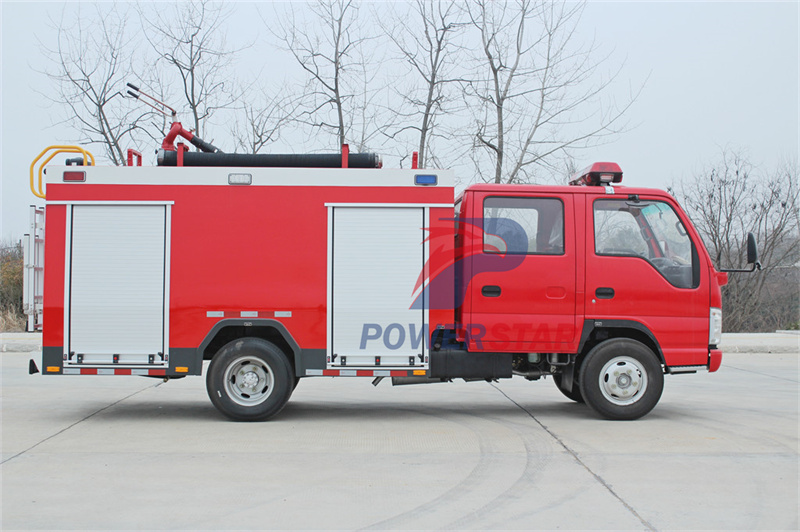

Isuzu light foam fire tender

★ CB10/30 fire pump and PL24 fire monitor

This fire truck is equipped with an advanced CB10/30 fire pump and a PL24 foam water dual-purpose fire monitor, which together constitute its powerful fire extinguishing system.

The CB10/30 fire pump is a high-performance, high-reliability fire-fighting pump. The pump adopts an advanced centrifugal design, which converts mechanical energy into liquid kinetic energy through a high-speed rotating impeller to achieve water pressurization and transportation. Its design fully considers the particularity of firefighting operations, and can start quickly and provide a stable water flow in a short time. The maximum flow rate of the pump can reach 30L/s, which can meet the firefighting needs in a variety of complex environments. The CB10/30 fire pump is made of high-quality materials and advanced technology. It has the characteristics of wear resistance, corrosion resistance, and high temperature resistance, ensuring stable performance in long-term, high-intensity firefighting operations.

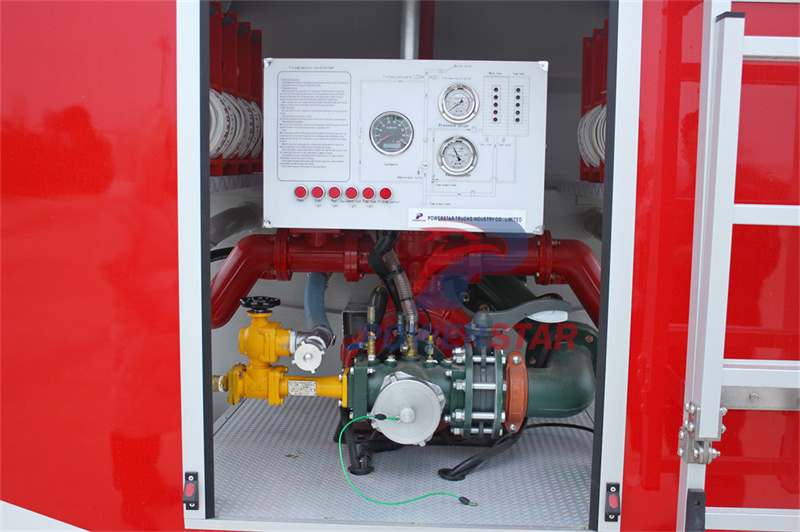

CB10/30 fire pump

The PL24 fire monitor is matched with the CB10/30 fire pump, which is a comprehensive and easy-to-operate fire extinguishing equipment. The range of the PL24 fire monitor is ≥45m. Its 360° all-round rotation and up and down pitch adjustment function enable firefighters to accurately aim at the fire source and achieve fast and effective fire extinguishing. In addition, the water outlet design of the PL24 fire monitor has a variety of optional modes, such as direct current, spray, etc., to meet the needs of different fire sources and fire extinguishing stages.

The PL24 fire monitor is mainly composed of a base, a shell, a nozzle, a barrel, and a horizontal rotation mechanism. The foam liquid enters the shell from the base, diffuses and atomizes when passing through the nozzle, and inhales air from the tail of the barrel to form air foam, which is sprayed out from the barrel to extinguish the fire. The operator can adjust the position of the gun body to aim at the fire point through horizontal rotation and elevation. When spraying, it should be sprayed in the direction of the wind as much as possible, so that firefighters can be safe and give full play to their performance.

The perfect combination of the CB10/30 fire pump and the PL24 fire monitor provides this fire truck with powerful fire extinguishing capabilities and flexible fire extinguishing methods, making it an important tool for fire departments to deal with various fire accidents.

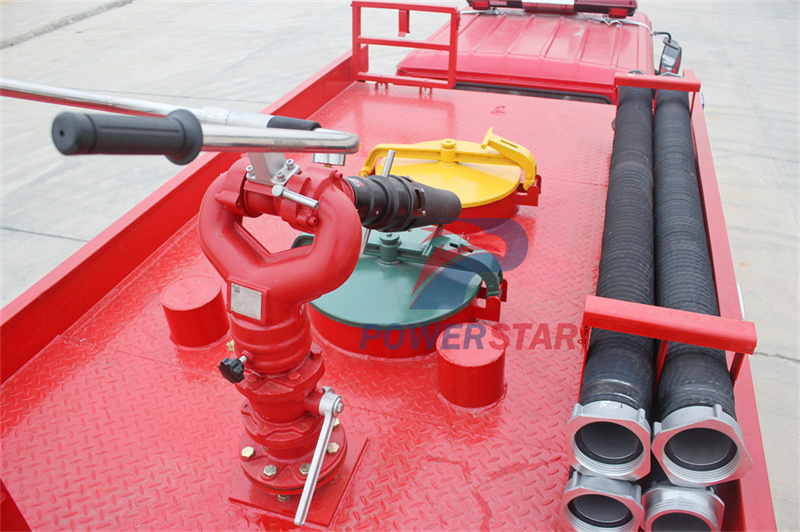

PL24 fire monitor

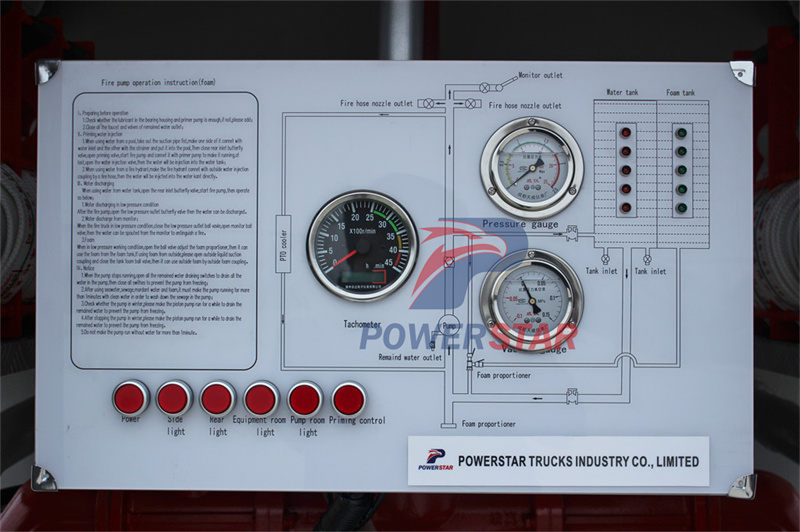

Control panel

The operation introduction and working structure diagram are placed in a prominent position on the control panel. Clear text and intuitive graphics are used to provide firefighters with detailed operation steps and equipment structure descriptions. These introductions and diagrams not only help firefighters quickly familiarize themselves with the equipment, but also provide necessary operation guidance in emergency situations to ensure efficient and safe firefighting operations. The control panel is equipped with a lighting lamp to provide sufficient lighting for operations at night or under low light conditions, ensuring that firefighters can clearly view the instrument panel and operation buttons.

● Instrument panel:

· Vacuum gauge: used to monitor the vacuum degree at the water suction end of the fire pump to ensure that the pump body can form sufficient negative pressure during the water suction process and effectively extract water.

· Pressure gauge: displays the pressure value at the water outlet of the fire pump to help firefighters understand the working status and water discharge performance of the pump body, so as to adjust the water discharge pressure and flow according to the fire scene.

· Tachometer: displays the speed of the fire pump motor in real time, provides firefighters with intuitive feedback on the operating status of the pump body, and helps to timely discover and eliminate potential faults.

 Control panel

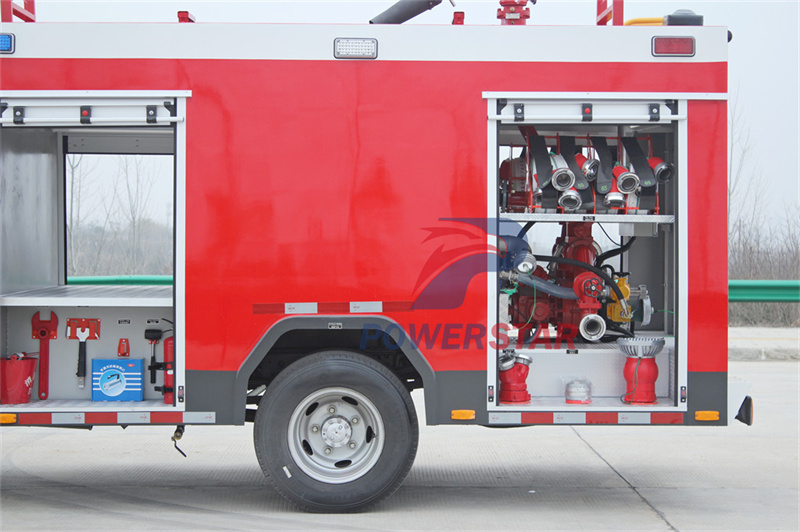

 ★ Firefighting equipment

This fire truck is equipped with comprehensive firefighting equipment, designed to cope with various complex fire scenes, ensuring that firefighters can complete firefighting tasks efficiently and safely. The following are the main firefighting equipment equipped on this vehicle:

Fire extinguisher: The vehicle is equipped with a dry powder fire extinguisher, which is used to extinguish initial fires or specific types of fires.

Water collector: used to collect natural water sources, such as rivers, lakes, etc., and connected to the fire pump through pipes to provide additional water sources for fire trucks.

Water filter: installed at the rear end of the water collector, used to filter out impurities and pollutants in the water to ensure that the firefighting water is clean and safe.、

Fire extinguisher，water collector，water filter

Water distributor: divides the fire hose into multiple branches, which is convenient for supplying water to multiple fire points at the same time and improving firefighting efficiency.

Water gun: including DC hose and DC switch hose, which are used to spray water from a long distance to extinguish large-scale fires.

Foam gun: connected to the foam tank, sprays foam mixture, suitable for extinguishing fires of flammable and explosive substances such as oils and chemicals.

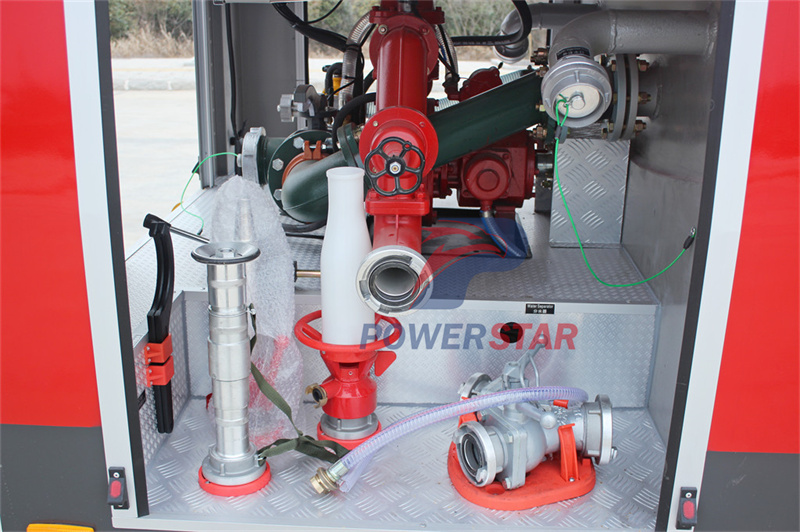

Water distributor,water gun,foam gun

Fire hose: made of high temperature and high pressure resistant rubber or synthetic materials, used to connect fire pumps and water outlet equipment, and transmit water flow or foam mixture.

Fire wrench, shovel, pickaxe, axe:

Fire wrench: used to quickly connect or disconnect fire hoses, water pipes and other equipment.

Fire shovel: used to dig and clear obstacles in the fire scene, or as a demolition tool.

Fire pick: used to demolish obstacles such as walls, doors and windows, and open up fire extinguishing channels.

Fire axe: used to cut down trees, demolish wooden structures, etc., and is also a self-defense weapon for firefighters in emergency situations.

Fire suit: Fire suit is a special suit worn by firefighters when performing tasks such as firefighting and rescue. It is designed to protect firefighters from harmful factors such as high temperature, flames, smoke, and chemicals.

These firefighting equipment together constitute the powerful fire extinguishing system of the fire truck, ensuring that firefighters can take quick and accurate actions when responding to various fires, and effectively protect people's lives and property. At the same time, these devices have also undergone rigorous testing and certification to ensure their reliability and safety in actual use.
