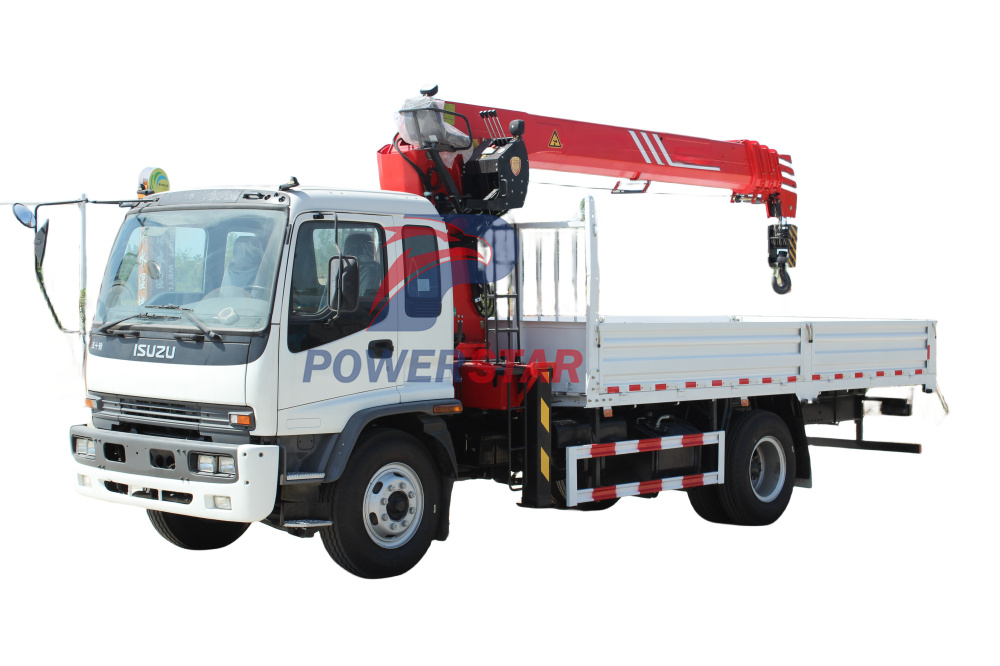

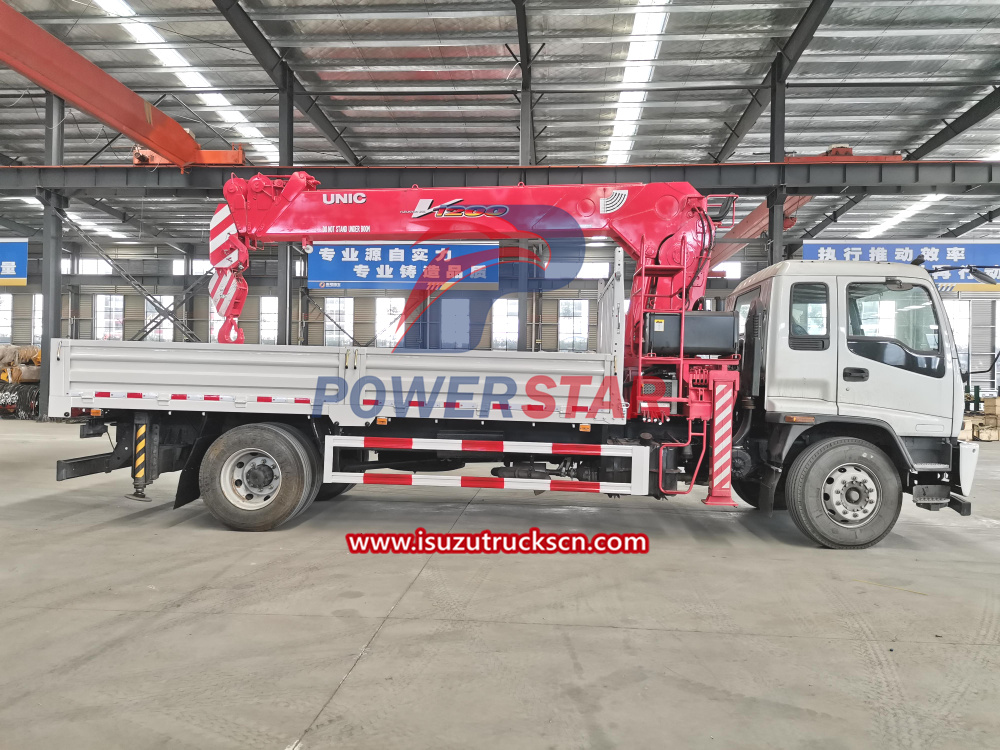

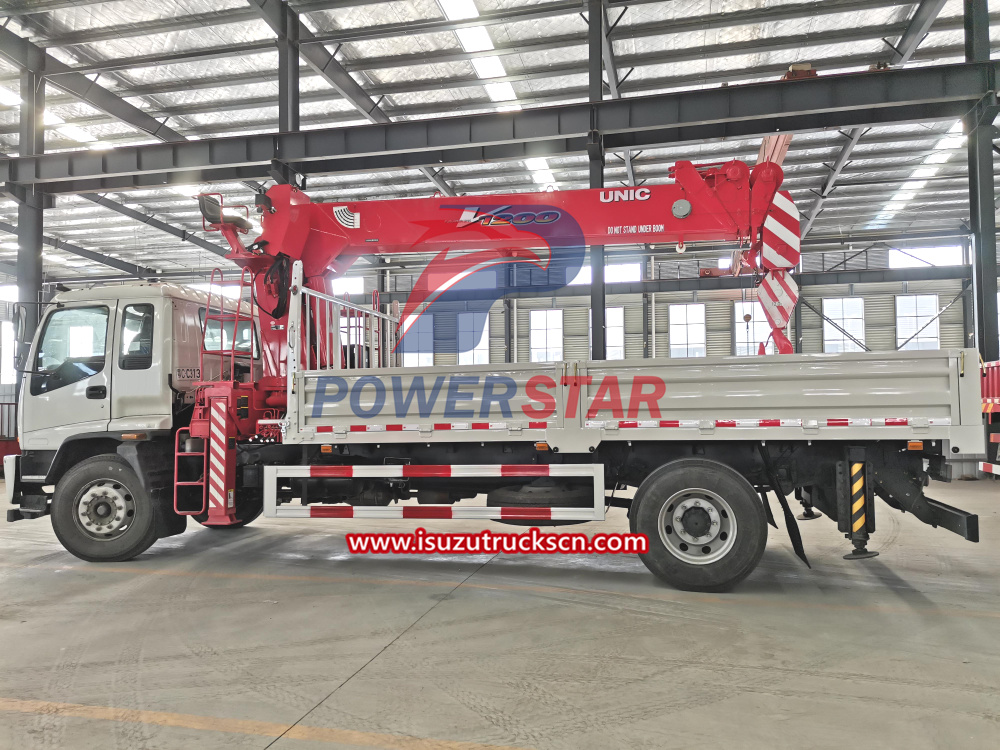

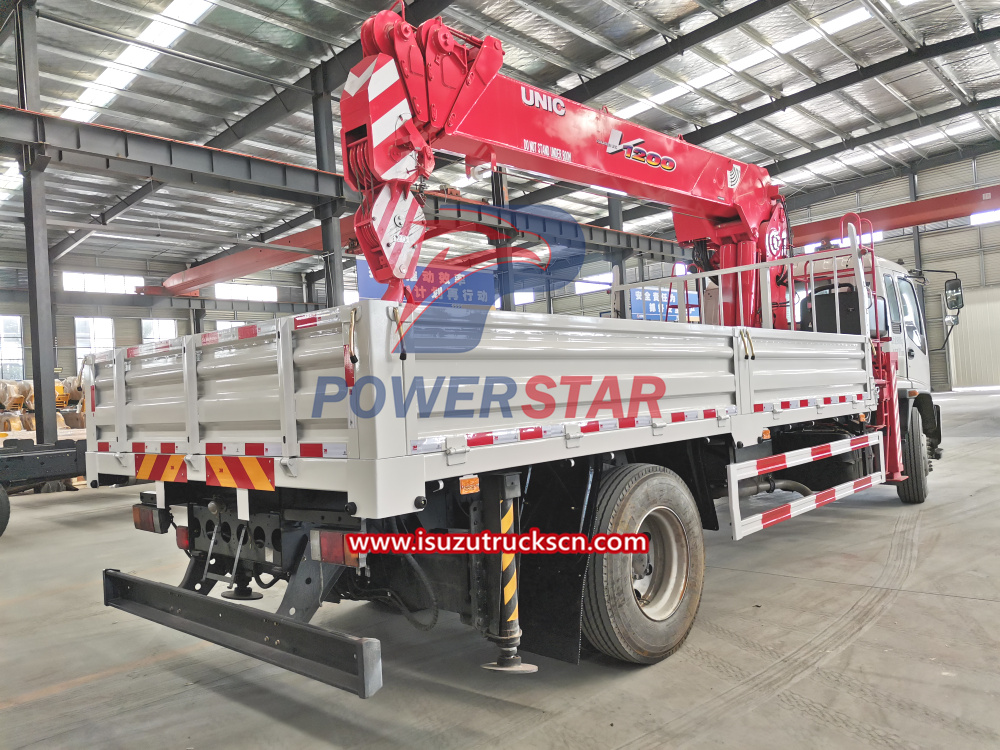

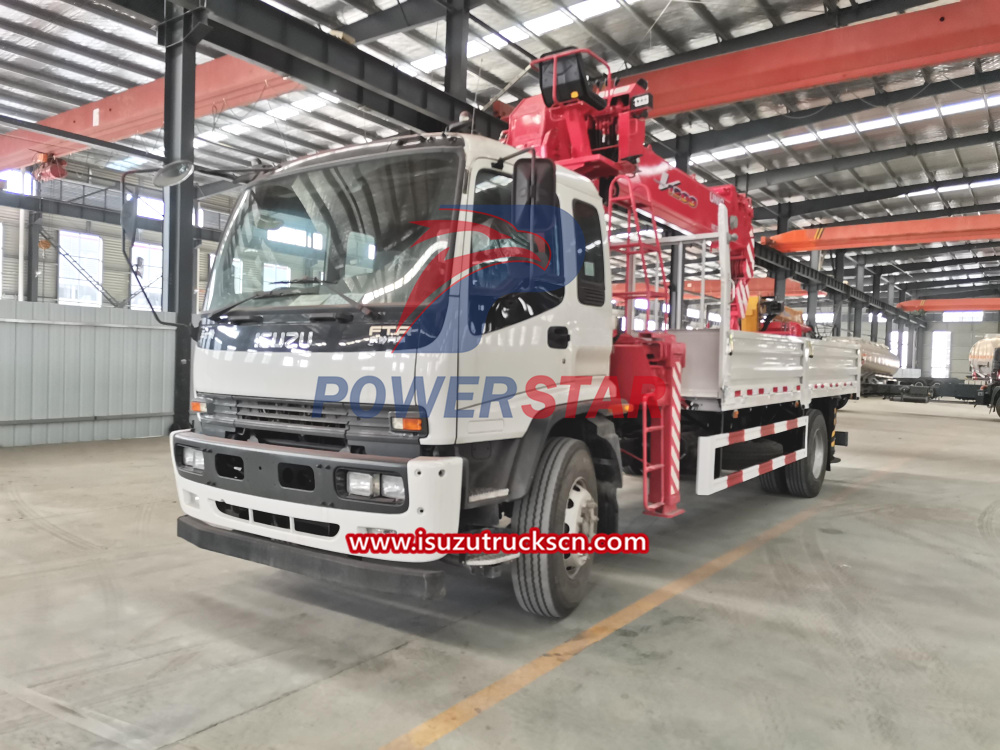

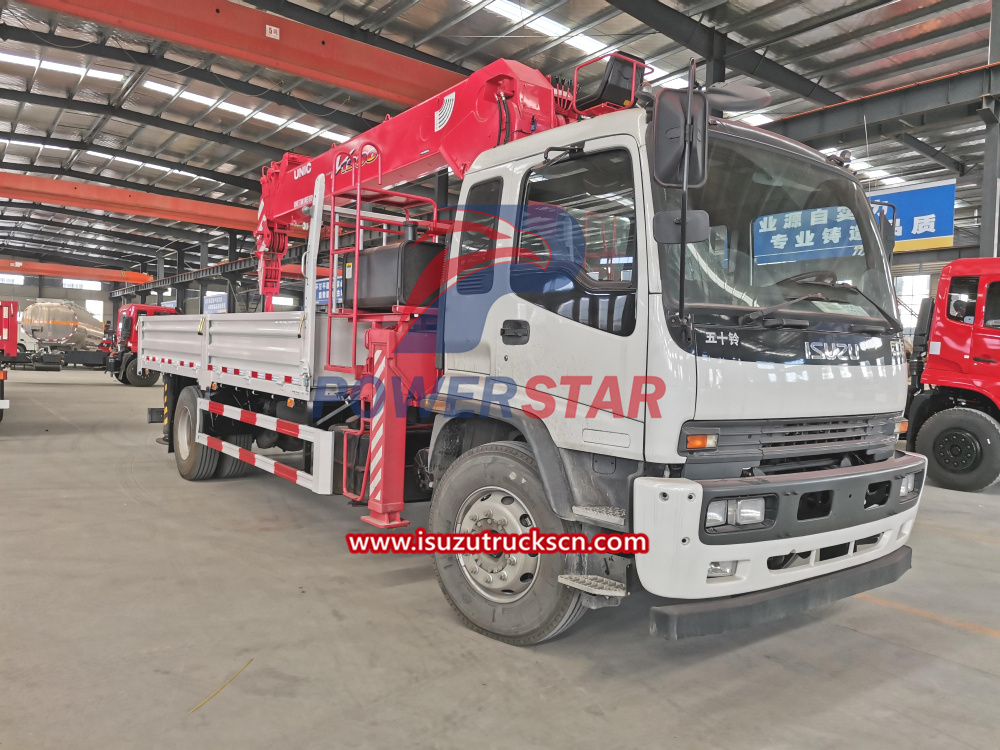

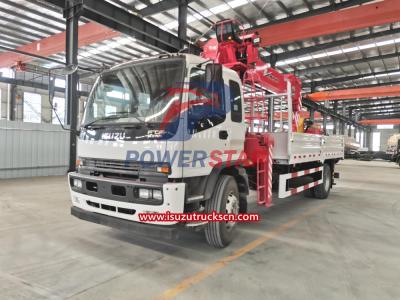

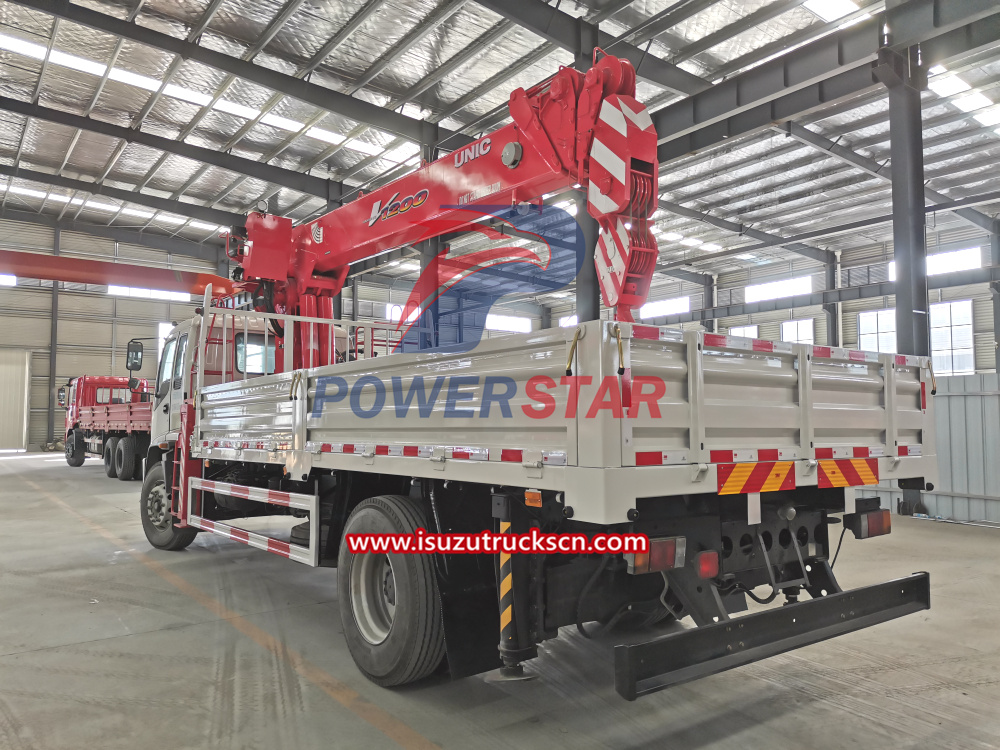

UNIC URV1200 ISUZU FTR Lorry Truck mounted Crane
Work capacity:
12 TonsTruck model:
PT5160TSCEngine power:
205 HPEngine type:
4HK1-TCAxle drive:
4x2Gear box:
ISUZU MLD 6SRemarks:

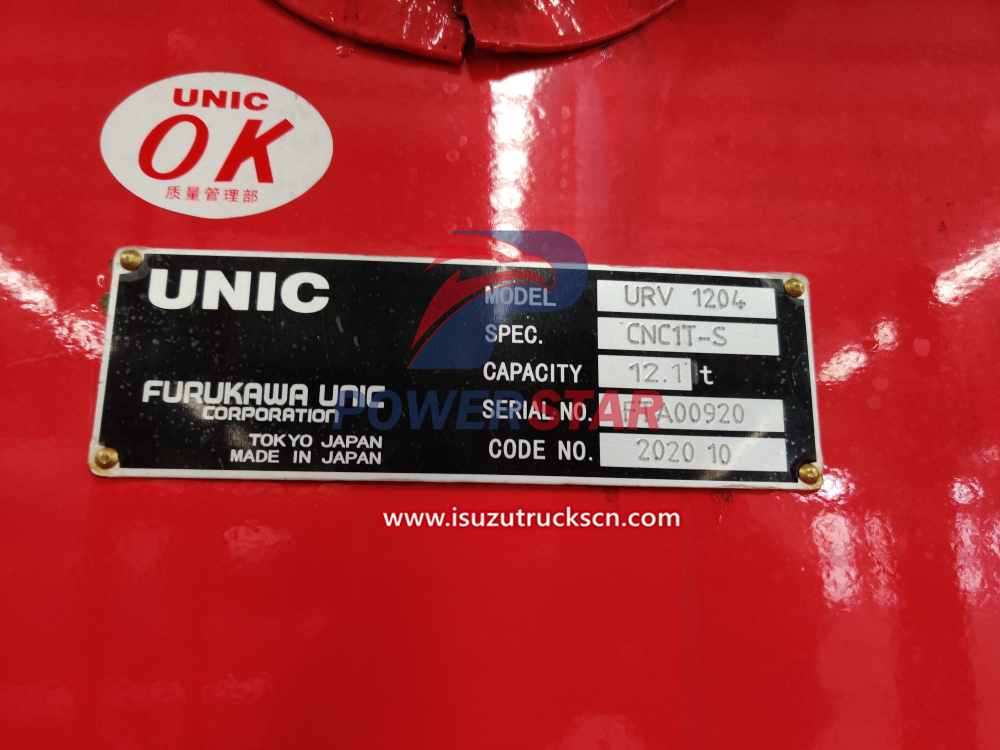

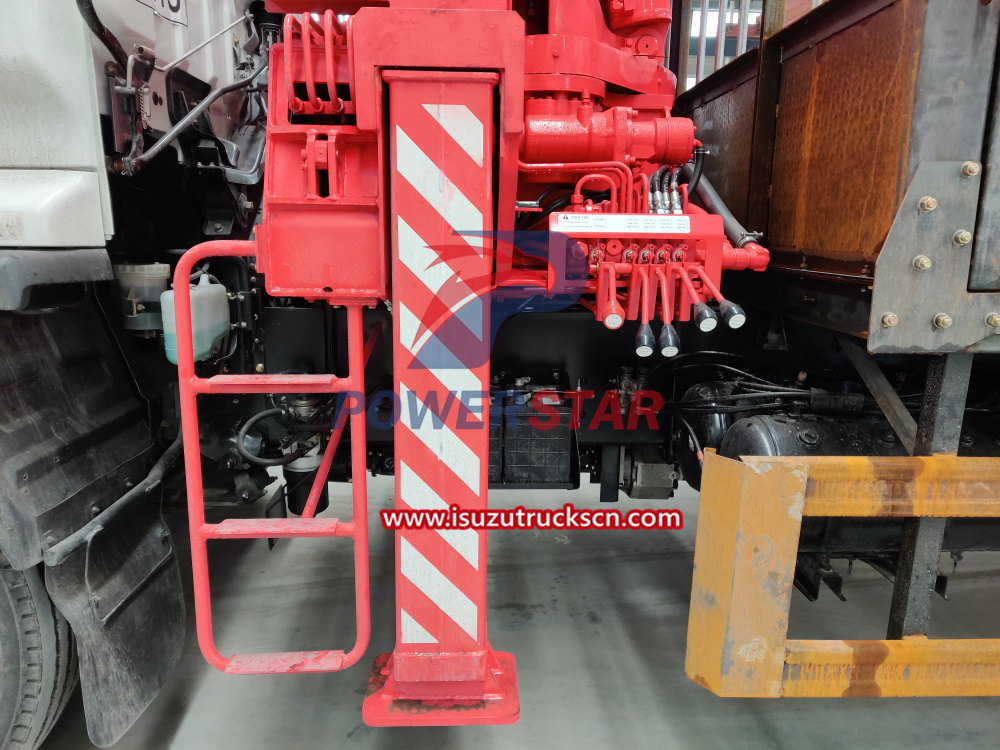

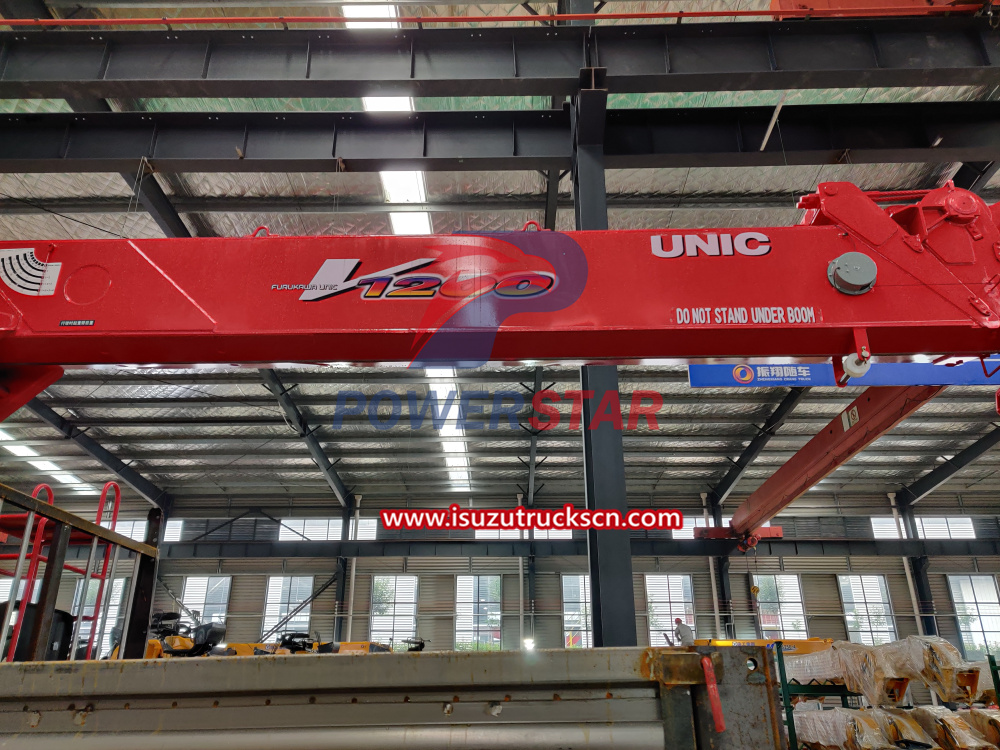

Extra rear support leg, Made in Japan V1200 boom crane
Dubai Government Introduces UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane to Enhance Efficiency at Jebel Ali Port.
In an unprecedented move to boost efficiency at Jebel Ali Port, the Dubai government has introduced the UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane. This exclusive development aims to revolutionize cargo handling capabilities, streamline operations, and reinforce Dubai's position as a global trade hub.
Recognizing the need for advanced technology to optimize port operations and expedite cargo handling processes, the Dubai government conducted extensive research to identify the most suitable manufacturer for their requirements. After careful evaluation, UNIC and ISUZU, global leaders in their respective fields, were selected for their proven expertise and reliability in producing truck-mounted cranes.
The UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane has been meticulously designed to meet the specific demands of Jebel Ali Port. This versatile equipment combines the strength and stability of the ISUZU FTR lorry body with the exceptional lifting capacity and flexibility of the UNIC URV1200 crane. With a reach of up to [X meters] and a lifting capacity of [X tons], this truck-mounted crane can efficiently handle various types of cargo, including heavy machinery and oversized containers.
| Vehicle Description | |
| Overall dimension | 9590*2500*3830mm |
| GVW | 18000kg |
| Curb weight | 9230kg |
| Chassis brand | Japan ISUZU FTR |
| Traction type | 4*2 |
| Up-parts description | |||

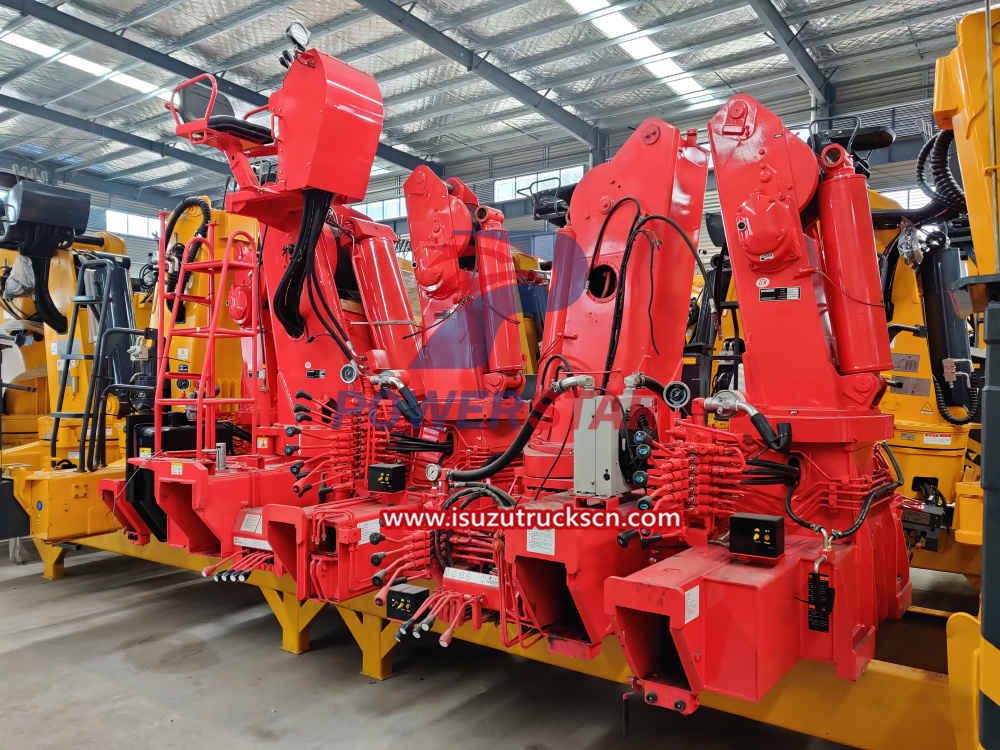

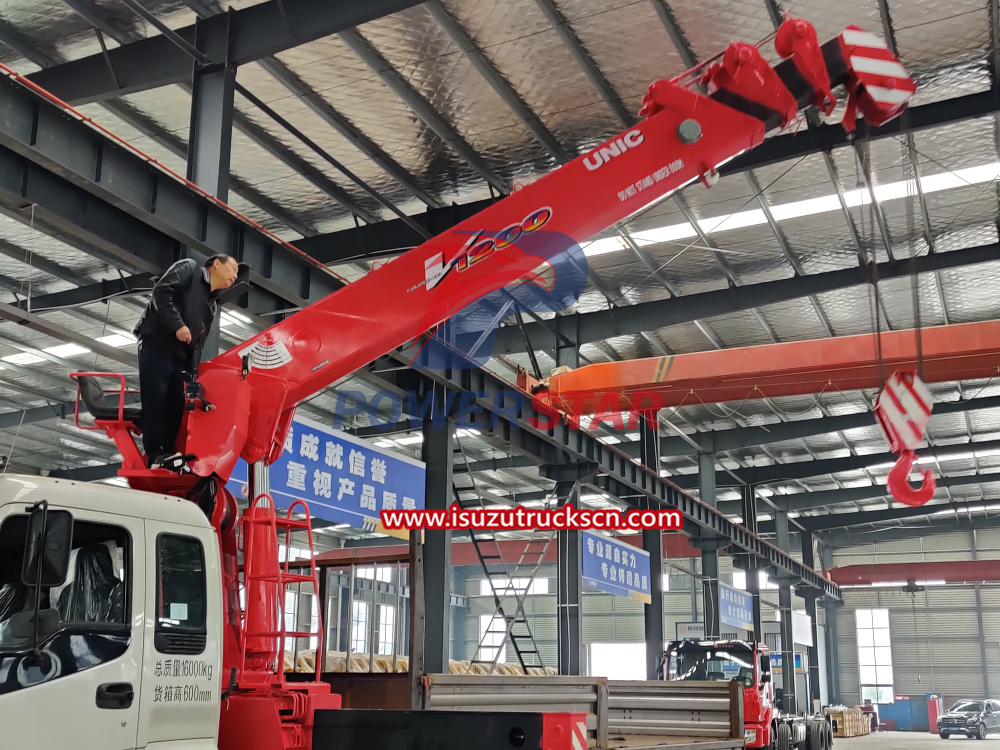

| Crane | Type | Straight Arm Crane | |
| Stage | 4 arm | ||
| Lifting capacity | 12T | ||
| Rotating angle | 360º all rotation | ||
| Cargo box | Dimension | 8200*2400*800mm | |
| Material | Carbon steel | ||
| Thickness | Side | 1mm | |
| Floor | 3mm | ||
| Chassis Description | ||
| Chassis model | ISUZU FTR heavy duty | |
| Cab | Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. | |
| Wheelbase | 5500mm | |
| Tire specification | 10.00-20 | |
| Tire quantity | 6+1 units | |
| Engine | Engine model | ISUZU 4HK1 |
| Emission level | Euro 4 | |
| Displacement/output | 7790ml/150kw | |
| Horse power | 205hp | |
| Gear box | Model | ISUZU MLD 6-shift |
| Number of gears | 6 forward gears& 1 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles; exhaust brake | |
| Axle | Front | 7T- Elliot type, I beam section |
| Rear | 10T-Single reduction, ratio 5.143 | |
| Suspension | Front | 8- Leaf spring with shock absorber |
| Rear | 9-Leaf spring | |
| Fuel tanker | Type | Steel tanker, with lockable cap |
| Capacity | 350L | |
The introduction of the UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane is accompanied by comprehensive training programs for the port's operators. These programs emphasize the proper operation and usage of the crane, adherence to safety protocols, and the implementation of efficient cargo handling techniques. By investing in personnel training, the Dubai government ensures that the port's operators are skilled and knowledgeable, promoting smooth operations and minimizing the risk of accidents or delays.
Looking towards the future, the implementation of the UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane represents a significant step in Dubai's commitment to continuously enhance efficiency at Jebel Ali Port. The government envisions further modernization and integration of advanced technologies to optimize cargo handling processes, including the use of automated systems, artificial intelligence, and Internet of Things (IoT) solutions. This forward-thinking approach aims to meet the growing demand for fast and efficient port services and solidify Dubai's reputation as a leading global trade and logistics hub.
To ensure the authenticity of this exclusive news, the Dubai government has implemented stringent measures to prevent plagiarism. All contractual agreements, invoices, and associated documentation related to the procurement of the UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane have been meticulously reviewed, ensuring compliance with legal and ethical standards, and maintaining transparency and accountability.
