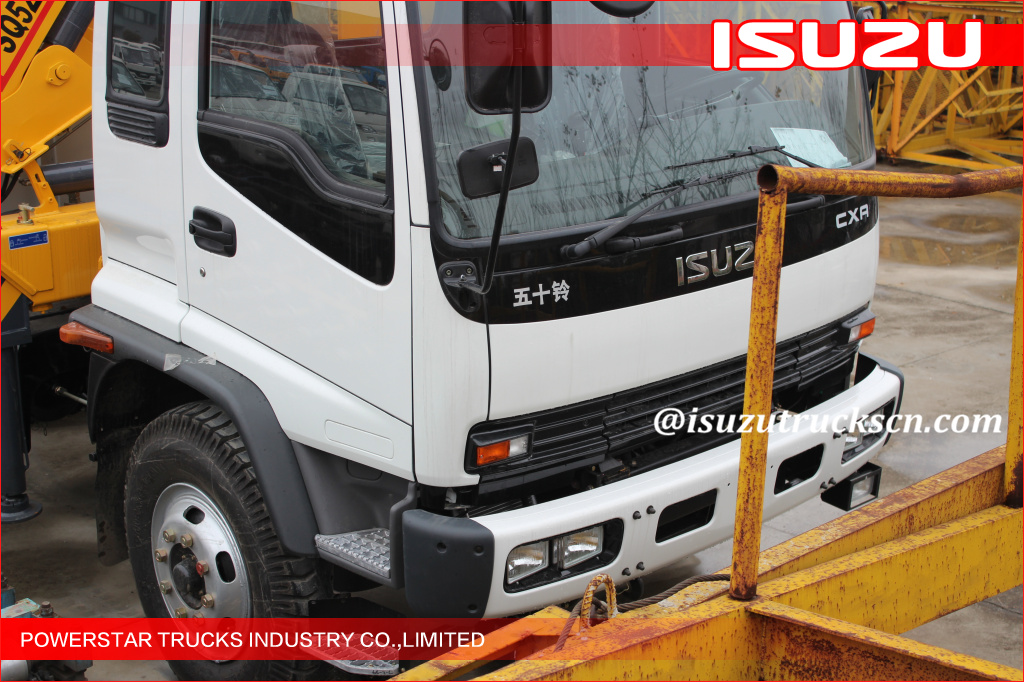

12 Ton ISUZU Truck Loader Crane CE Certification For Transportion
Order(MOQ):
112 Ton ISUZU Truck Loader Crane CE Certification For Transportion
Durable 12 Ton ISUZU Truck Loader Crane CE Certification For Transportion
Description:
ISUZU Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.
ISUZU Telescopic boom crane SQ12SK3Q is lifting capacity is 12tons moment is 30 T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model |
SQ12SK3Q-II |
Unit |
Max Lifting Capacity |
12000 |
kg |
Max Lifting Moment |
30 |
T.M |
Recommend Power |
30 |
kw |
Max Oil Flow of Hydraulic System |
100 |
L/min |
Max Pressure of Hydraulic System |
26 |
MPa |
Oil Tank Capacity |
260 |
L |
Rotation Angle |
All Rotation |
|
Crane Weight |
4200 |
kg |
Installation Space |
1300 |
mm |
Choice of Chassis |
ISUZU |
SQ12SK3Q-II Lifting capability diagram |
|||||
Working radius (m) |
2.5 |
5.6 |
7 |
9 |
12.5 |
Lifting capacity (kg) |
12000 |
4500 |
3500 |
2500 |
1650 |
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg |
Spread |
Fixed |
2179mm |
Single extension |
2256-3556mm |
Double extension |
2212-4752mm |
