14TON Isuzu knuckle boom truck crane Isuzu fold arm truck mounted crane

mini truck mounted crane 14ton with 3 sectionn telescopic boom

14TON Isuzu knuckle boom truck crane Isuzu fold arm truck mounted crane

14TON Isuzu knuckle boom truck crane Isuzu fold arm truck mounted crane, mini truck mounted crane 14ton with 3 sectionn telescopic boom Truck Mounted Crane 14 Ton Lifting Capacity Sale
  • Order(MOQ):

    1

14TON Isuzu knuckle boom truck crane Isuzu fold arm truck mounted crane

14TON Isuzu knuckle boom truck crane Isuzu fold arm truck mounted crane

Durable 14 Ton Knuckle Boom Truck Mounted Crane For Transporting Heavy Things



  1. Name: Folding boom crane, Folding boom truck crane, Knuckled boom crane, Knuckle boom truck mounted crane
  2. Max Lifting Capacity: 14 ton
  3. Max Lifting Moment: 35 t.m
  4. Max Oil Flow of Hydraulic System: 63 L/min
  5. Max. Lifting height: 14meters
  6. Brand: XCMG
  7. Crane Weight: 4800 kg
  8. Oil Tank Capacity: 220 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.


Knuckle boom crane  SQ14ZK4Q is lifting capacity is 14tons, moment is 35T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.



Specifications:



Model

SQ14ZK4Q

Unit

Max Lifting Moment

35

t.m

Max Lifting Capacity

14000

kg

Recommend Power Needed At Recommend Oil Flow

32

kw

Max Oil Flow of Hydraulic System

63

L/min

Rated Pressure Of Hydraulic System

26

MPa

Oil Tank Capacity

220

L

Rotation Angle

(360°) All Rotation

.

Crane Weight

4468

kg

Installation Space

1240

mm

Choice of Chassis

ISUZU



SQ14ZK4Q Lifting capability diagram

Working radius(m)

2.5

3.73

5.58

 7.48

9.45

11.4

Lifting capacity(kg)

14000

 9120

5720

4100

3140

2530



Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

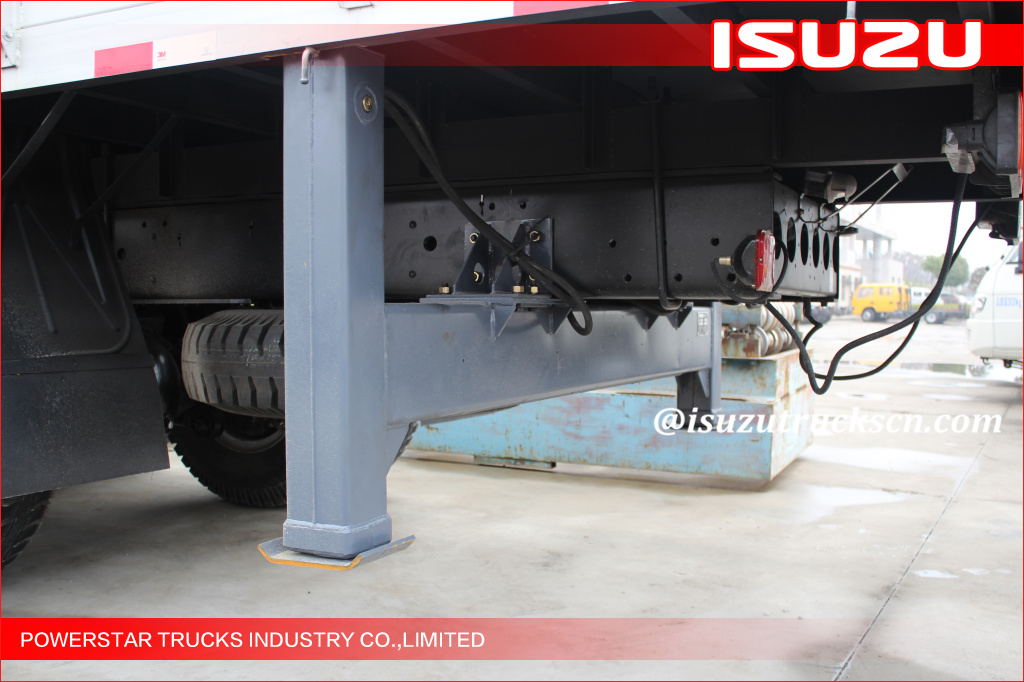

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
