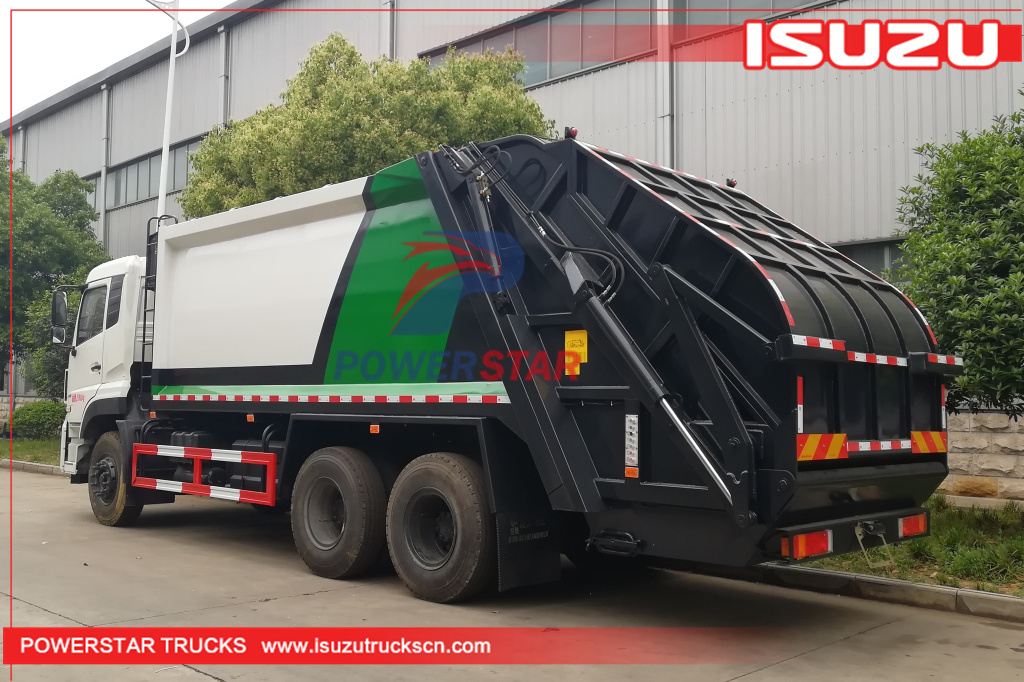

20CBM ISUZU GIGA Rear Loader Rubbish Compactor Trucks
Order(MOQ):
120CBM Isuzu GIGA Rear Loader Rubbish Compactor Trucks
ISUZU GIGA Refuse Collection Truck (also called ISUZU GIGA Trash Compactor Truck, GIGA Refuse Garbage Trucks, giga isuzu Waste Disposal Vehicles) suitable for the garbage collection and transportation in good conditions places, such as urban and rural streets, large factories, residential areas and school.
100% custom-made
|
|
3 cbm to 22 cbm available
|
|
Short delivery time 7~30 days
|
|
Easy operation & Easy maintenance
|
|
15 years spare parts & Technical support
|
PowerStar Trucks Industry Co., Limited |
|||
Product Name |
ISUZU GIGA Refuse Compactor Trucks |
||
Vehicle Brand Series |
ISUZU |
||
Vehicle Model |
PST5310GYS |
||
Production Time |
25 days |
||
Chassis parameters |
Overall dimensions |
mm |
11600*2500*2960 |
Gross weight |
kg |
35,000 |
|
Kerb weight |
11,760 |
||
Wheelbase |
mm |
4565+1370 |
|
Driving type |
6*4 |
||
Chassis model |
ISUZU GIGA Heavy-duty |
||
Tire size |
315/80R22.5 |
||
Number of Tires |
10+1 |
||
Passengers in cab |
3 |
||
Engine |
Engine model |
6UZ1-TCG50 |
|
Type of fuel |
Diesel |
||
Power |
380HP |
||
Max speed |
Km/h |
95 |
|
Emission standard |
EURO 4,5,6 |
||
Compactor performance |
Compactor Body |
20 Cbm |
|
Body Material |
Weather Resisting Steel |
||
Compressing Ration |
≥ 1:3.4 |
||
Dust Bin Lifter |
120 lt. - 240 lt- Two bins |
||
Optional 1100 lt,660 lt |
|||
Loading Cycle Time |
15 ~ 20 sec |
||
Discharging Time |
10 ~18 sec |
||
Discharging system |
Horizontal ejection |
||
Waste Water Tank |
200L |
||
Operation |
Siemens Automatic-PLC system |
||
Control Panel |
English |
||
Foot Stands |
2 sets with hander |
||
Painting |
Two primers, and one final paint coating |
||
Color & LOGO |
According to wish |
||
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
