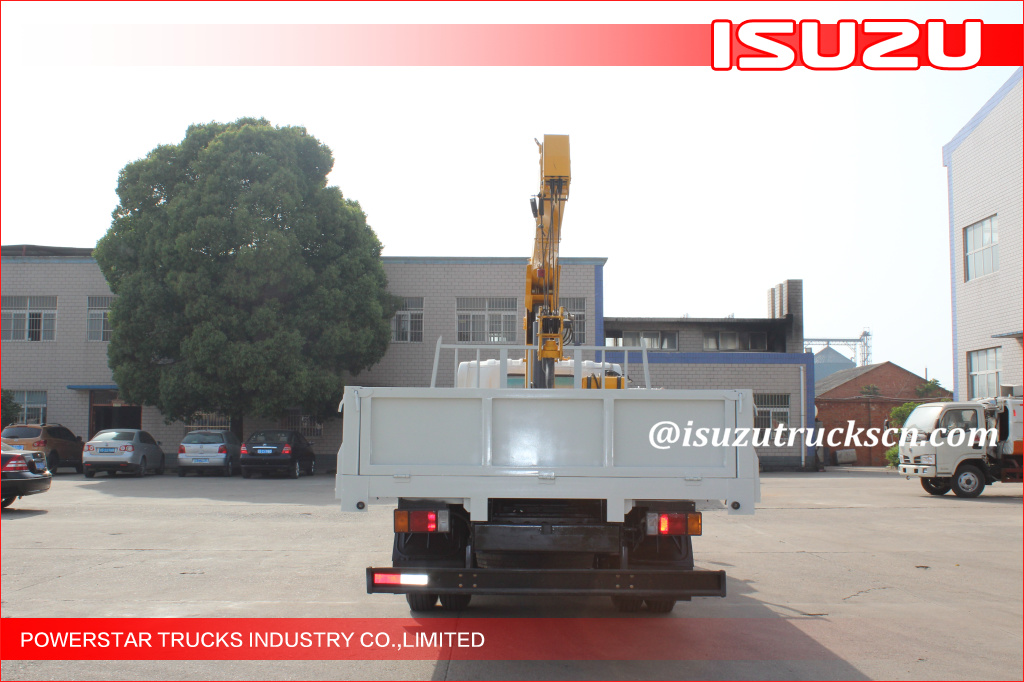

5 Ton Lorry-Mounted Crane with ELF ISUZU Chassis
Order(MOQ):
15 Ton Lorry-Mounted Crane with ELF ISUZU Chassis
Durable Transportation Folding Boom Crane, 5 Ton Lorry-Mounted Crane
Description:
Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.
Knuckle boom crane SQ5ZK3Q is used for lifting 5tons, moment is 10.5T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model |
SQ5ZK3Q |
Unit |
Max Lifting Moment |
10.5 |
t.m |
Max Lifting Capacity |
5000 |
kg |
Recommend Power Needed At Recommend Oil Flow |
18 |
kw |
Max Oil Flow of Hydraulic System |
25 |
L/min |
Rated Pressure Of Hydraulic System |
28 |
MPa |
Oil Tank Capacity |
90 |
L |
Rotation Angle |
(360°) All Rotation |
. |
Crane Weight |
2117 |
kg |
Installation Space |
1050 |
mm |
Choice of Chassis |
ISUZU |
SQ5ZK3Q Lifting capability diagram |
|||||
Working radius (m) |
2.1 |
4.54 |
6.3 |
8.11 |
9.92 |
Lifting capacity (kg) |
5000 |
2400 |
1600 |
1050 |
700 |
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg |
Spread |
Fixed |
2179mm |
Single extension |
2256-3556mm |
Double extension |
2212-4752mm |
