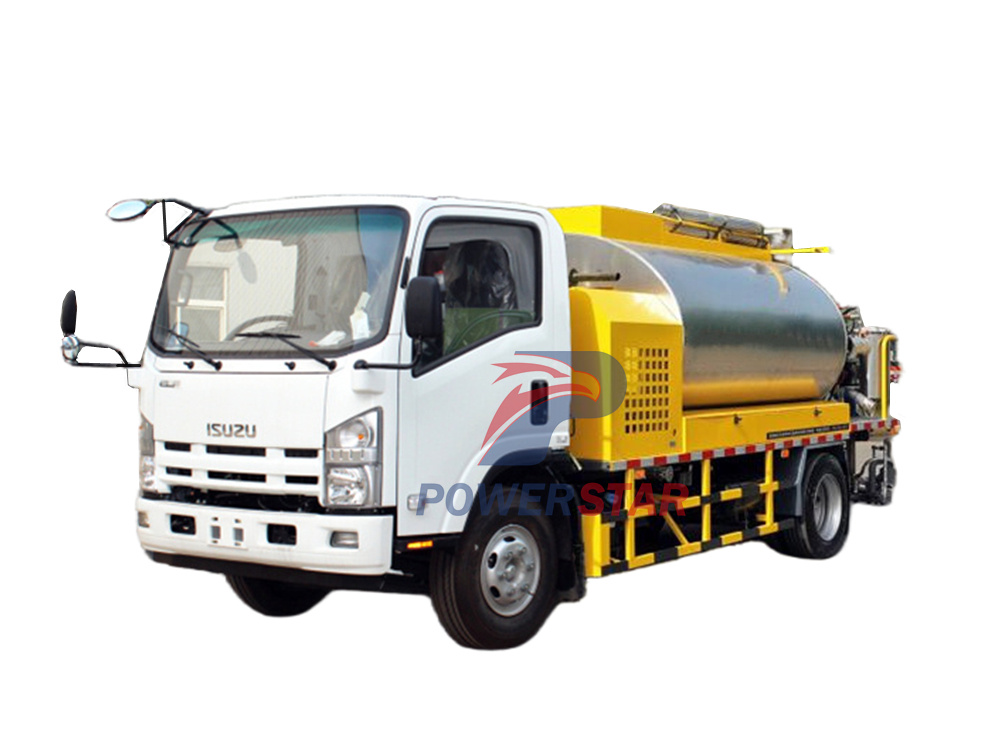

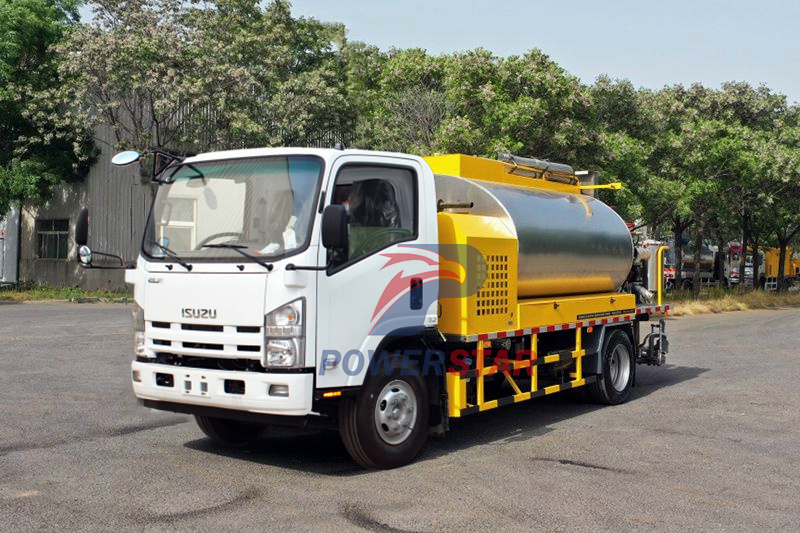

5000L Asphalt Distributor Truck Isuzu
Isuzu 5000L Bitumen Sprayer Truck is a high-performance vehicle designed for road construction and maintenance, equipped with a 5000-liter large-capacity asphalt storage tank and a 26kW auxiliary engine. It is widely used in various road construction and maintenance scenarios and is a powerful assistant in the field of road construction and maintenance.
Work capacity:
5000LTruck model:
PT5110GZREngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4×2,LHDGear box:
Isuzu MLD 6 speed forward with 1 reverse, manualRemarks:
5000L asphalt storage tank and a 26kW auxiliary engineThe Isuzu 5000L asphalt distributor truck is a high-performance vehicle designed for road construction and maintenance, equipped with a 5,000-liter large-capacity asphalt storage tank and a 26kW auxiliary engine. This model is widely praised in the industry for its excellent durability, reliability and high performance. Its dual-engine design ensures the stable performance of the vehicle in various complex construction environments and improves work efficiency. The spraying system adopts advanced technology and can adjust the spraying parameters according to construction needs to achieve uniform and continuous asphalt spraying. The body design fully considers the complexity of the construction environment and humanized needs, ensuring stability and convenience for long-term use. The 5000L Asphalt Distributor Truck Isuzu is widely used in various road construction and maintenance scenarios, and is a powerful assistant in the field of road construction and maintenance.
The truck is designed to cut labor and construction time while increasing efficiency. Our advanced engineering technology and years of experience in equipment design and construction make this asphalt distributor truck an intelligent and practical solution for any project requiring the spraying of emulsified asphalt, diluted asphalt, hot asphalt, or high viscosity modified asphalt. The 5000 liters asphalt tank is designed with a 26 kW auxiliary generator for heating asphalt during transport, enabling efficient asphalt distribution. This truck gives you the perfect balance of convenience, economy, and effectiveness.
|
Isuzu 5000L Asphalt Distributor Truck |
||
|
General |
Truck Model |
PT5110GZR |
|
Cab |
Isuzu 700P single row,2seats,with A/C,USB... |
|
|
Dimension (L×W×H) |
6935×2165×2680 mm |
|
|
GVW/Curb weight |
11000/5250kg |
|
|
Drive Type |
4×2,LHD |
|
|
Max speed |
105km/h |
|
|
Engine |
Engine Type |
4 cylinders in line, 4-stroke,water cooling, turbo-charged diesel engine, inter-cooling |
|
Engine model |
Isuzu 4HK1-TCG61 |
|
|
Horse power |
190HP/139kw |
|
|
Fuel Type |
Diesel |
|
|
Emission Standard |
Euro6 |
|
|
Displacement |
5193ml |
|
|
Auxiliary Engine Model |
4TE35A-39A |
|
|
Auxiliary Engine Power |
26 kW |
|
|
Chassis |
Chassis Brand |
Isuzu |
|
Wheelbase |
3815mm |
|
|
Tire No. |
6+1 |
|
|
Axle No. |
2 |
|
|
Steering Wheel |
With power-assisted |
|
|
Gear Box |
Isuzu MLD 6 speed forward with 1 reverse, manual |
|
|
Brake |
Air brake |
|
|
Tank |
material |
Stainless steel/carbon steel |
|
capacity |
5000l |
|
|
Asphalt Pump |
Famous brand |
|
|
Spray |
Width |
4500 mm |
|
Volume |
0.2-3 kg/㎡ |
|
|
Precision |
1.5% |
|
|
Medium |
Modified asphalt, hot asphalt, emulsified asphalt and other asphalt media |
|
|
Apply |
road paving,etc |
|
|
Asphalt Heating Method |
Thermal oil heating (with automatic temperature control) |
|
|
Asphalt Heating Rate |
12 ℃/h |
|
|
Equipment |
The intelligent asphalt spreader truck consists of a car chassis, an asphalt tank, an asphalt pumping and spraying system, a thermal oil heating system, a hydraulic system, a combustion system, a control system, a pneumatic system, and an operating platform. |
|
The Isuzu 5000L asphalt distributor is a high-performance vehicle designed for road construction and maintenance. With a 5,000-liter asphalt storage capacity, it can meet the needs of large-scale road paving and patching. The 26kW auxiliary engine not only provides additional power support for the vehicle, but also makes the heating, mixing and spraying of asphalt more efficient and stable.
Power System
The core of this asphalt distributor is its powerful power system. The main engine is responsible for driving the vehicle, using the Isuzu 4HK1-TCG61 190HP engine with strong power; while the 26kW auxiliary engine focuses on powering the heating and spraying system of asphalt. This dual-engine design not only ensures the stable performance of the vehicle in complex construction environments, but also greatly improves work efficiency.
The auxiliary engine adopts advanced diesel technology and has the characteristics of low fuel consumption, low emissions and high efficiency. It achieves heating and insulation of the asphalt storage tank by working in conjunction with the main engine, ensuring the optimal temperature of asphalt during transportation and spraying. In addition, the auxiliary engine also provides a stable power output for the spraying system, so that the asphalt can be sprayed evenly and continuously on the road surface.
Spraying system
The spraying system of the Isuzu ELF Automatic Asphalt Distributor is another highlight. The system adopts advanced spraying technology and precise control system, which can adjust the spraying width, speed and asphalt flow according to construction needs. The spray head is made of special materials, which is wear-resistant and corrosion-resistant, ensuring long-term and stable spraying effect.
During the spraying process, the auxiliary engine provides a stable power output for the spraying system, so that the asphalt can be sprayed evenly and continuously on the road surface. At the same time, the spraying system is also equipped with an intelligent control system, which can be automatically adjusted according to construction needs, greatly improving construction efficiency and quality.

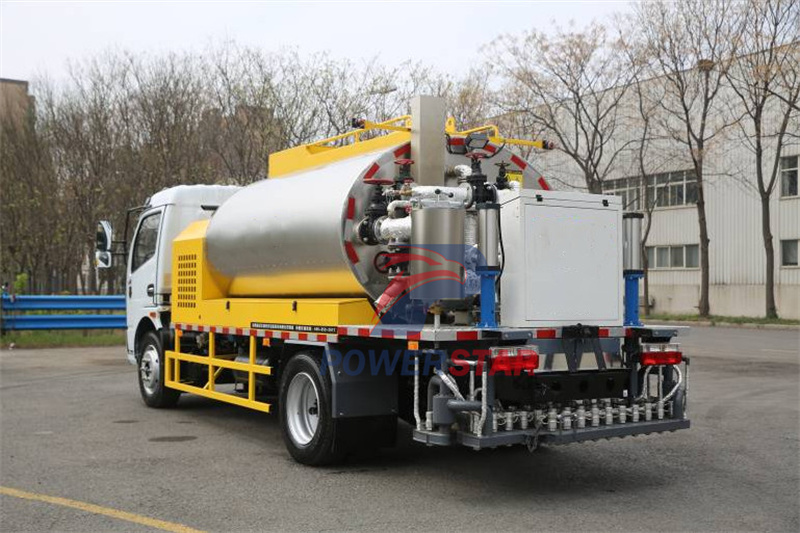

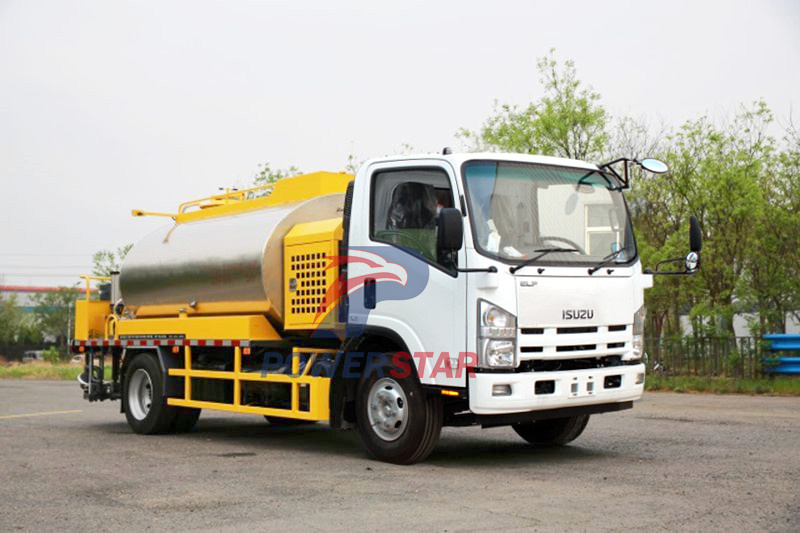

Isuzu ELF Automatic Asphalt Distributor

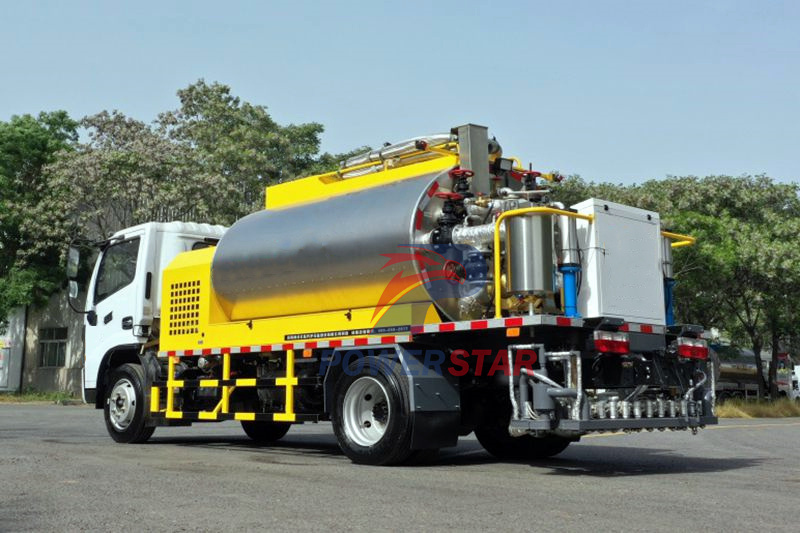

Isuzu 4X2 Automatic Intelligent Asphalt Truck for Paving Work
Body design
The body design of the Isuzu 5000L Bitumen Sprayer Truck fully considers the complexity and diversity of the construction environment. The body is made of high-strength steel with excellent impact resistance and wear resistance. At the same time, the body has also undergone special anti-corrosion treatment to ensure long-term service life in harsh environments.
In order to facilitate construction and maintenance, the body design also fully considers human factors. For example, the opening design of the asphalt storage tank is reasonable, which is convenient for loading and discharging asphalt; the control panel of the spraying system is arranged in a position that is easy for the driver to operate, ensuring the convenience and safety during the construction process.
Application scenario
Isuzu 700P asphalt spreader truck is widely used in various road construction and maintenance scenarios. Whether it is a highway, urban road or rural road, it can provide efficient and stable asphalt spraying services. In the fields of pavement repair, road expansion and road maintenance, it plays an irreplaceable role.
Especially in some emergency situations, such as road damage, traffic accidents and other road damage caused by road damage, Isuzu 5000L asphalt spreader can respond quickly and provide timely repair services to ensure the safety and smoothness of the road.
Isuzu 700P Asphalt Spreader truck
Road Building Machine Asphalt Road Distributor Sprayer Truck
Main Features
● Isuzu Automobile's chassis is equipped with powerful load-bearing capabilities, great fuel efficiency, smooth operation, and plenty of power for optimal performance.
● This asphalt distributor truck features high automation, with automatic control for the spread of asphalt. This ensures accurate calculation of the amount of asphalt sprayed during the building process.
● The industrial vehicle controller provides an advanced level of control and protection.
● The outer wall of the asphalt tank is reinforced with stainless steel frosted paneling for corrosion resistance and durability. Its body is built for excellent thermal insulation, with a temperature reduction of up to 12 ℃/8 h (at normal temperature).
● The asphalt tank body features an imported diesel burner with high combustion efficiency, rapid heating, automatic ignition and a temperature monitoring system for dependable performance.
● The nozzle rack is equipped with a folding feature, plus the added convenience of adjustable height.
● The distributor utilizes nozzles with high precision, ensuring perfect consistency and effect from each nozzle area in the spraying.
● The famous brand gear pump made in China, employed by the asphalt pump, offers optimal self-priming performance, a wide range of speeds, excellent sealing capability, and a consistent flow rate.
● The truck's operation is designed with the operator in mind, allowing ease of use from either the cab or the rear platform - bringing comfort and convenience to the user.
● Zero initial spray is enabled through the combination of electrical controls and hydraulic systems.
● After numerous engineering improvements, the distributor truck boasts reliable performance, easy operation and maintenance.

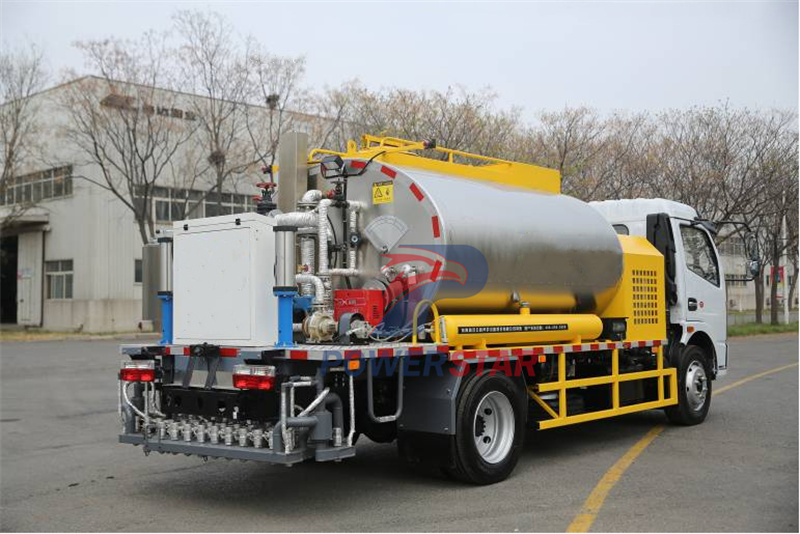

Isuzu NPR 700P Bitumen Sprayer

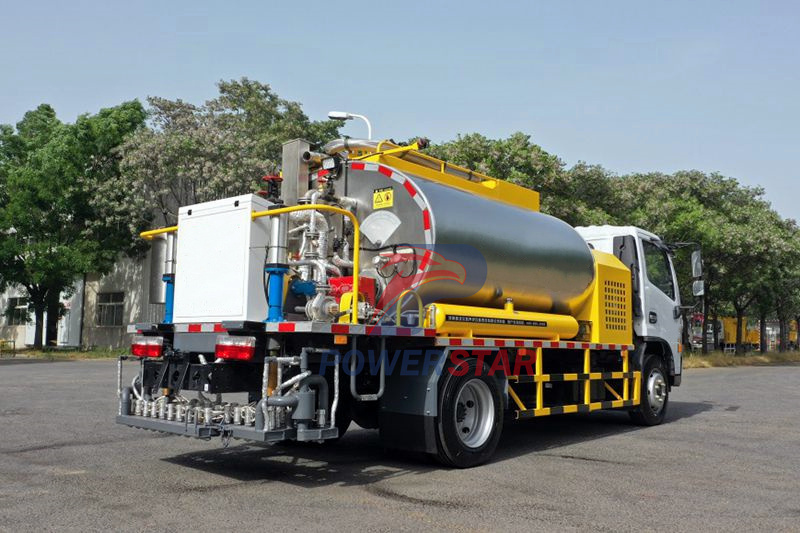

Isuzu ELF 700P Asphalt Paving truck
Asphalt paving scene
