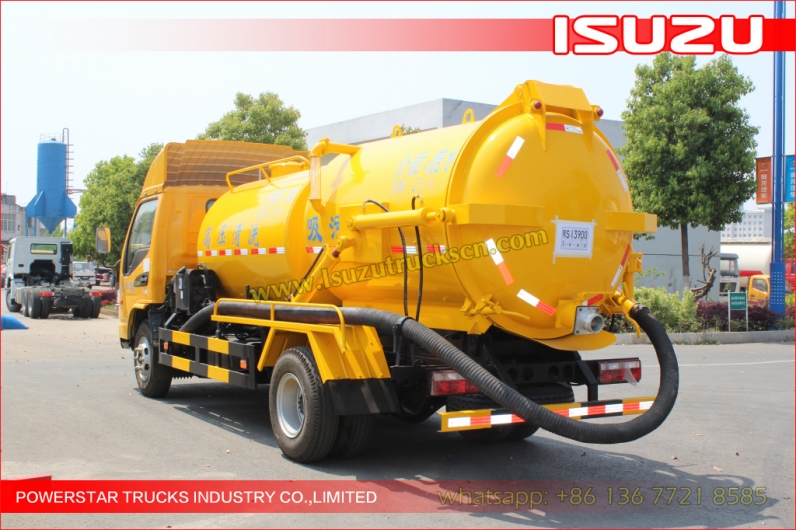

6000Liter Philippines Isuzu Sewer Cleaning Combination Vacuum Jetting Trucks
ISUZU cesspool emptier trucks Vacuum Suction Sewage Truck With Jetting truck,10CBM Or 10000L 6x4 ISUZU Combined Vacuum Jet Truck Or Vacuum Jet Vehicle with Water Recycle For Sale,Combination vacuum truck and high pressure washer truck,high pressure pump truck,Combined vacuum truck and High Pressure Pipeline Flushing Truck,8000L Combined Suction and Jetting Sewage Cleaner Truck
combination vacuum jetting truck, URACA high pressure pump, high vacuum level, high pressure jetting water,
Order(MOQ):

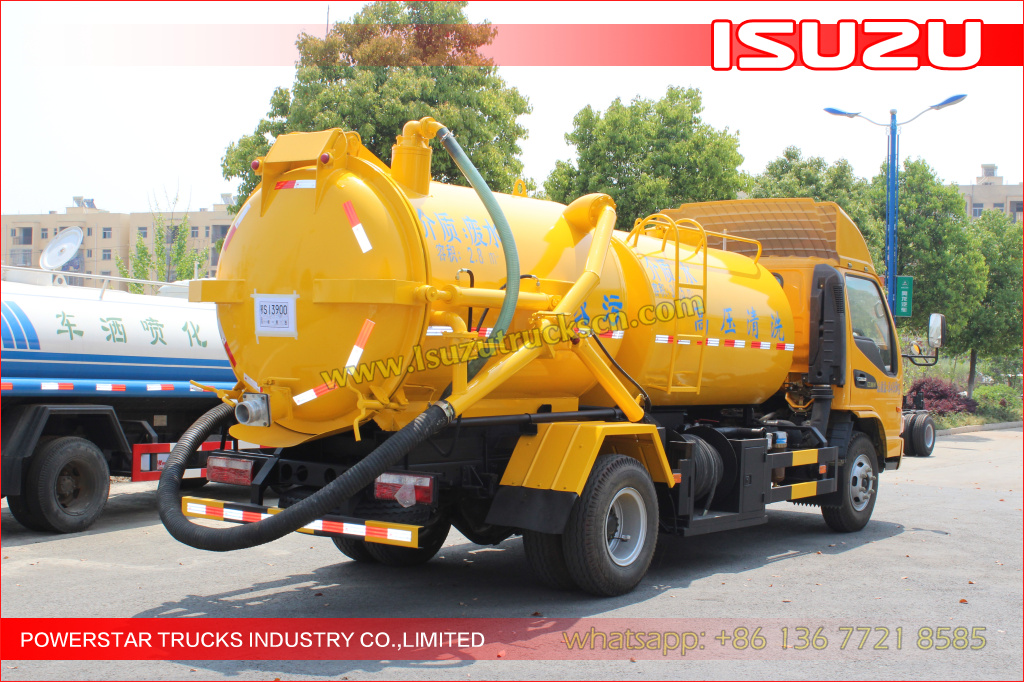

1ISUZU Trucks mounted Jetting vacuum trucks
Isuzu Combination Jetting vacuum Vehicle also called as Isuzu trucks Sewage jetting and vacuum truck, Combined sewer jet truck, Isuzu truck mounted jetting suction tank truck.
Isuzu Combined sewer jetting and suction truck is used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and/or sanitary sewer by the flushing action of high pressure water.
The unit includes a quality vacuum pump and a high pressure water pump, as a multi-functional combination unit integrating a high pressure jetting system, a slurry separation system, a sewage discharge system and vacuum suction system. It becomes the most advanced combination unit in China with its key components imported from Europe.
ISUZU NPR Chassis, Durable & Performance.
Widely used in environment and sanitation field
Stainless steel sewage water tank and clear water tank
High performance vacuum pump & high pressure pump
POWERSTAR 20 years’ experience on Vacuum Tanker truck exporting.
ISUZU NPR Sewer Jetting and Vacuum Truck (6,000 litres) | |||
General | Vehicle Brand | Powerstar | |
Chassis Brand | ISUZU | ||
Overall Dimension | 7600 * 2500 * 3400 mm | ||
GVW / Kerb Weight | 9,800 kg / 5,200 kg | ||
Cab | Cab Capacity | 3 persons allowed | |
Air Conditioner | Air conditioner is equipped | ||
Engine | Fuel Type | Diesel | |
Engine Brand | ISUZU 4HK1-TCG40 | ||
Power | 190 Hp (140 KW) | ||
Displacement | 5200 ml | ||
Emission Standard | Euro 4 | ||
Chassis | Drive Type | 4X2, left hand drive | |
Transmission | 6-speed front, 1 reverse | ||
Wheelbase | 4175 mm | ||
Number of axle | 2 | ||
Tyre Specification | 8.25-16 | ||
Tyre Number | 6 tyres and 1 spare tyre | ||
Max Speed | 90 km/h | ||
Paint | Metallic paint | ||

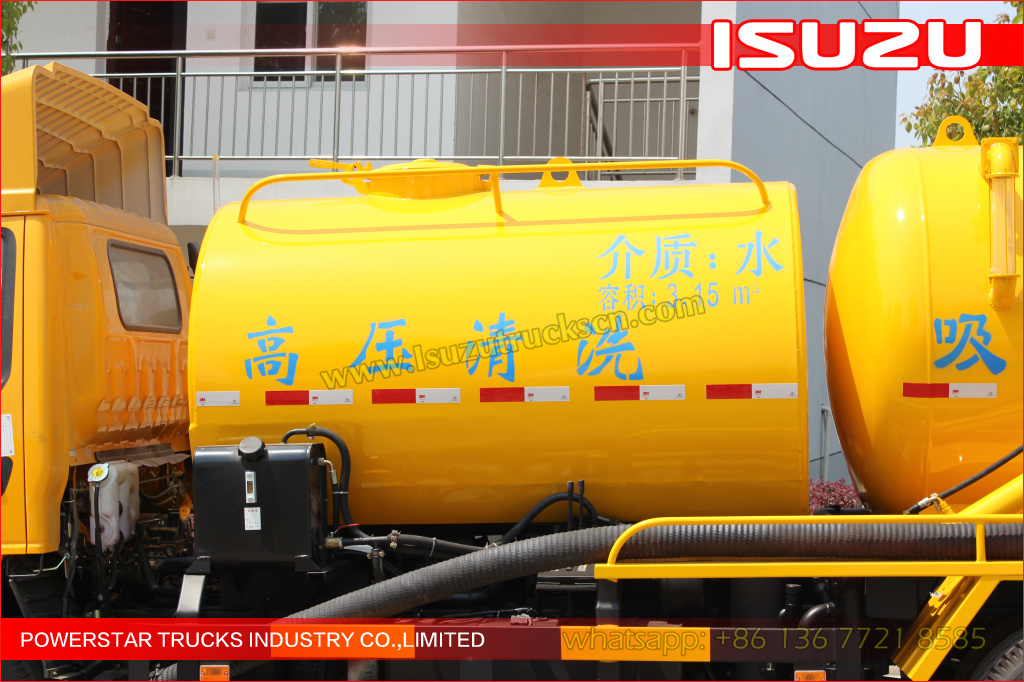

Superstructure | Water Tank | Tank Capacity | 3,000 Litres (about 800 gals) |
Tank Material | Carbon steel | ||
High Pressure Pump | Italy Imported brand / 16Mpa | ||
Flow Speed | 125 L/min | ||
High Pressure Hose | 60m | ||
Suction Head | 6 m | ||
Nozzles | A cluster of nozzles included | ||
Sewer Tank | Tank Capacity | 3,000 Litres (about 800 gals) | |
Tank Material | Carbon steel | ||
Vacuum Pump | PN106D, Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. | ||

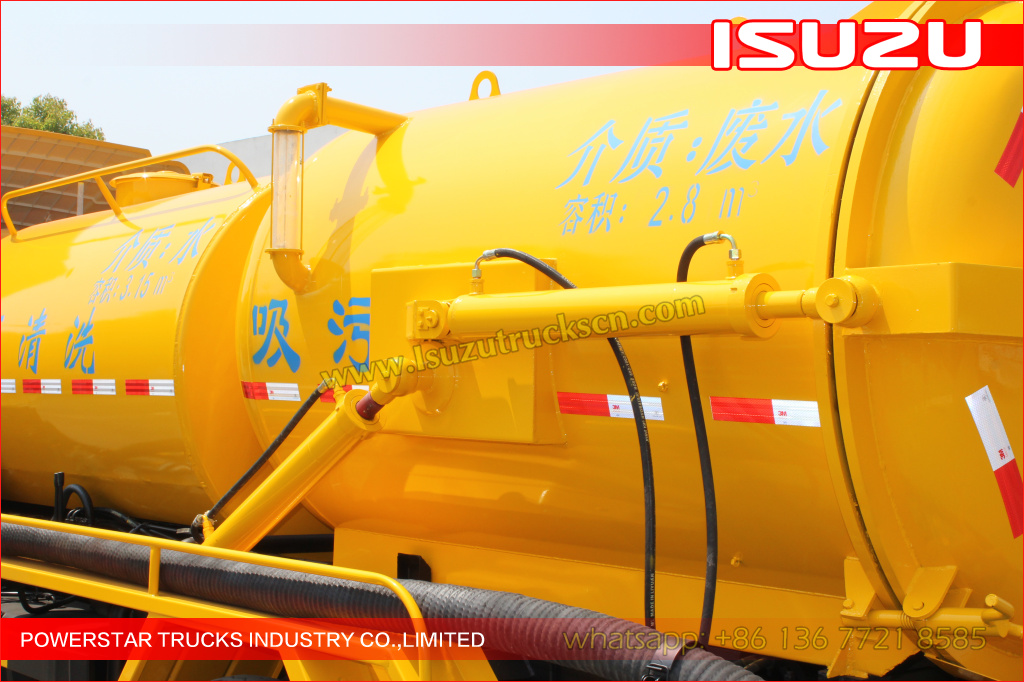

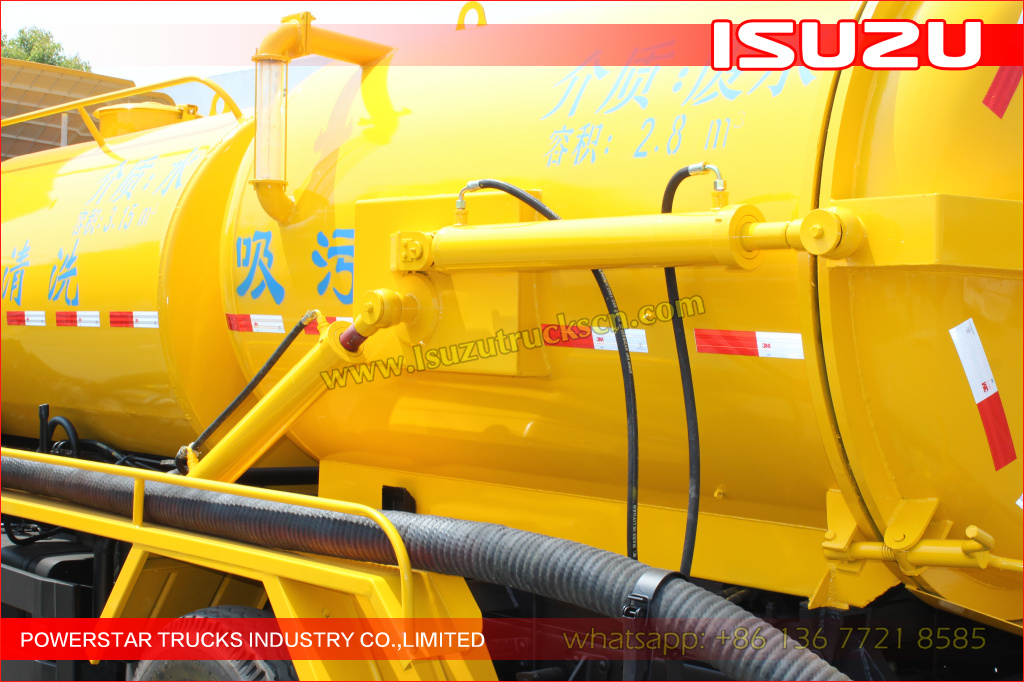

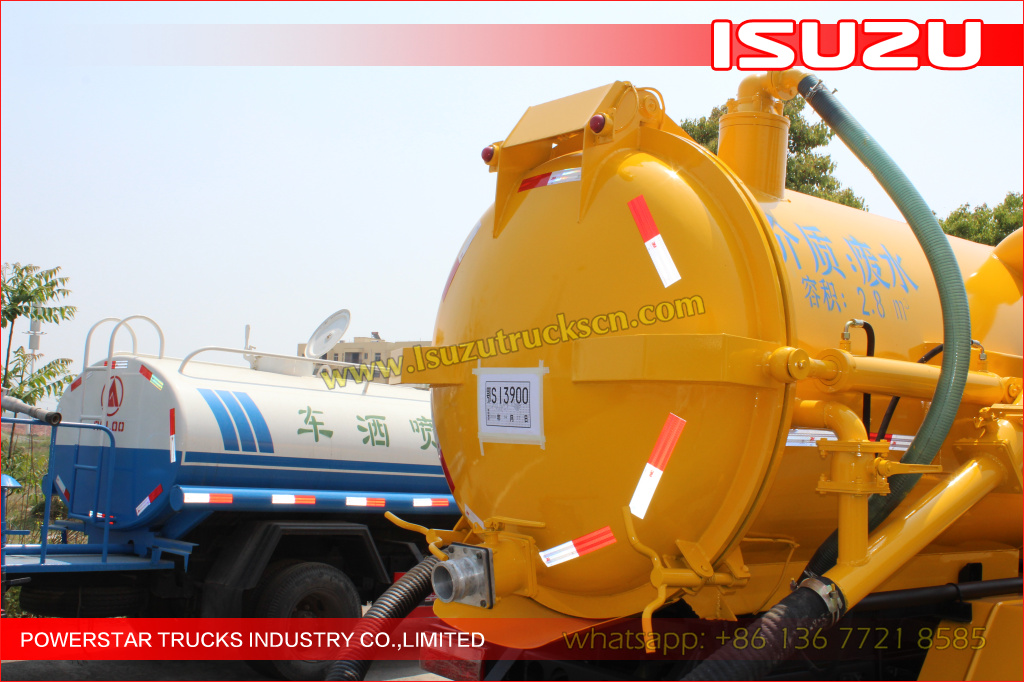

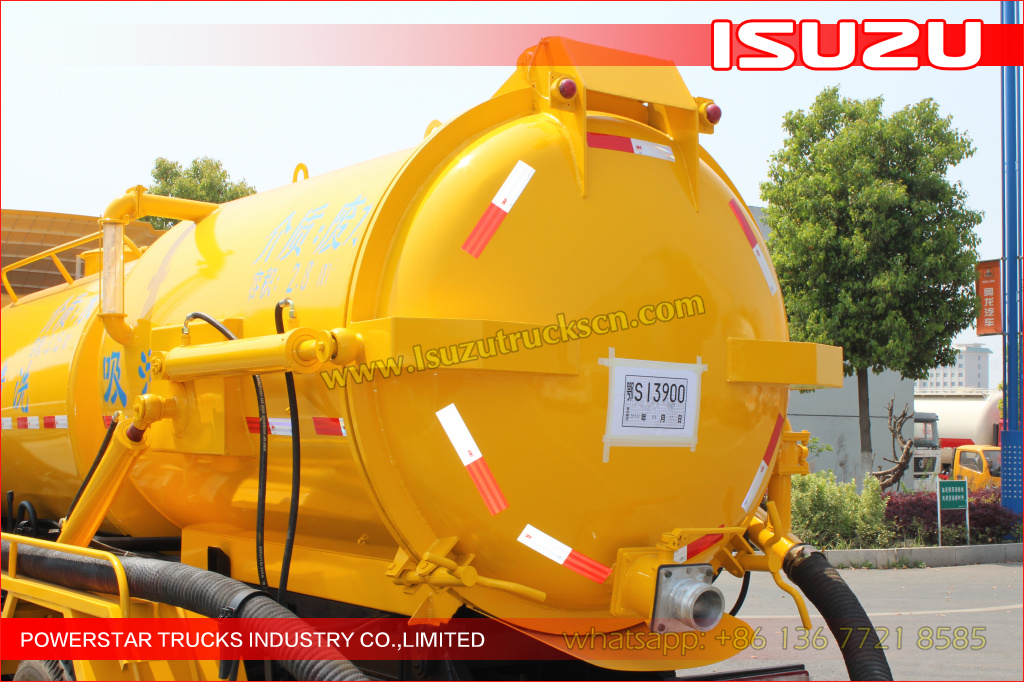

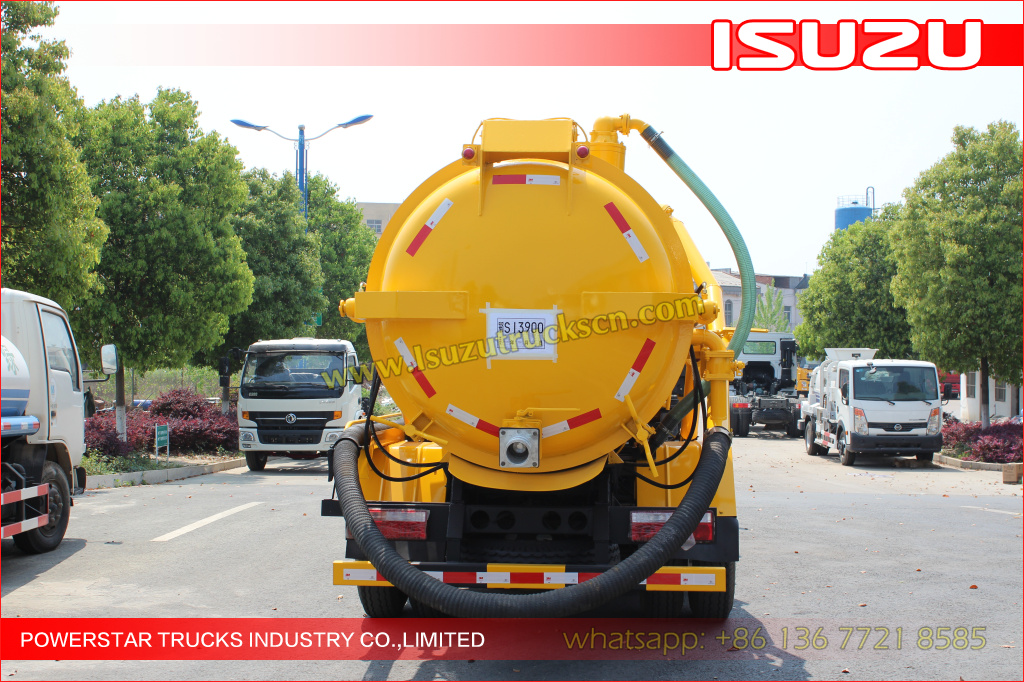

Rear door can be hydraulic opened for complete discharge of solid stuff. | |||
All standard accessories: manhole, tool kit, English manual…….. | |||
Optional | ** Tank material could be stainless steel ** Vacuum pump and jetting pump can be optional * Control panel: English or appointed language ** Tank color and LOGO can be customized ** High pressure hose length could be customized. |

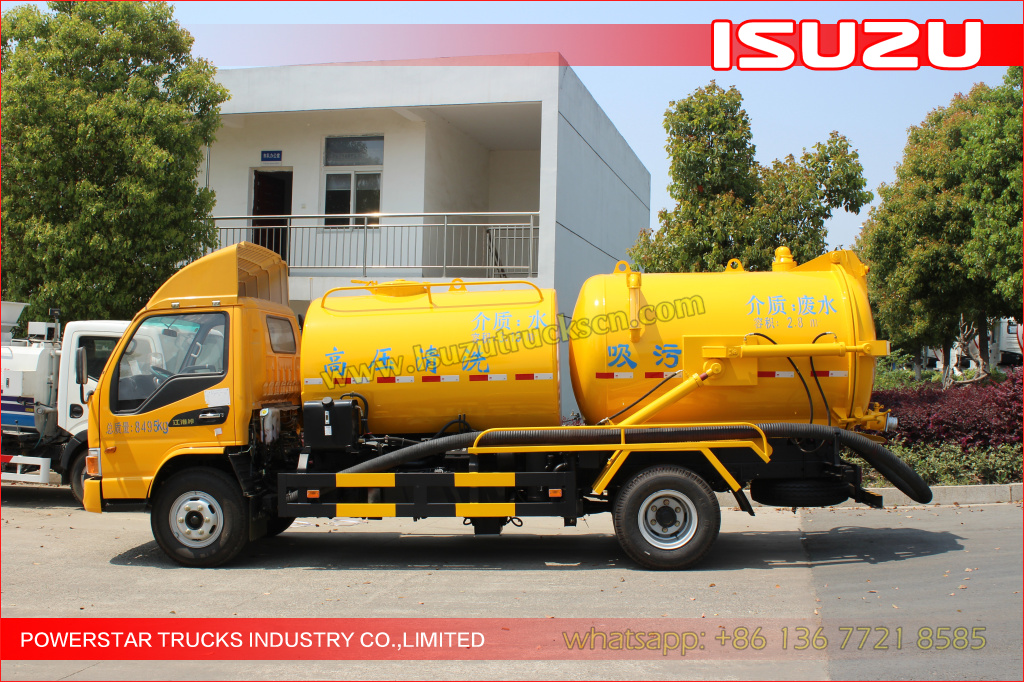

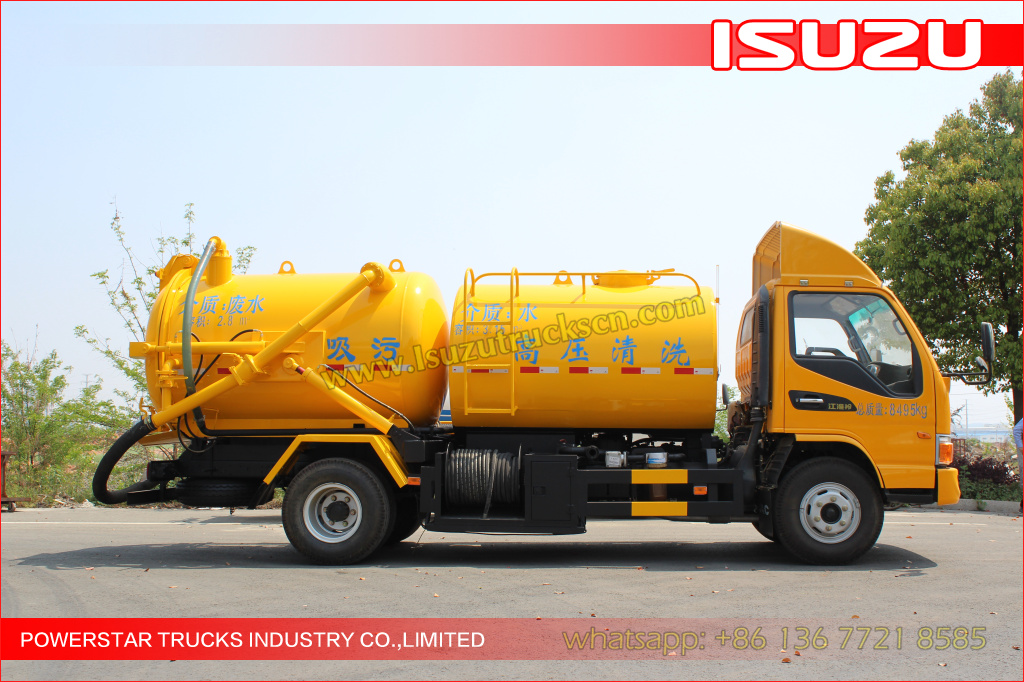

Overview of the ISUZU combination vehicle:
How to operation Combined sewer jetting and vacuum truck Isuzu brand?

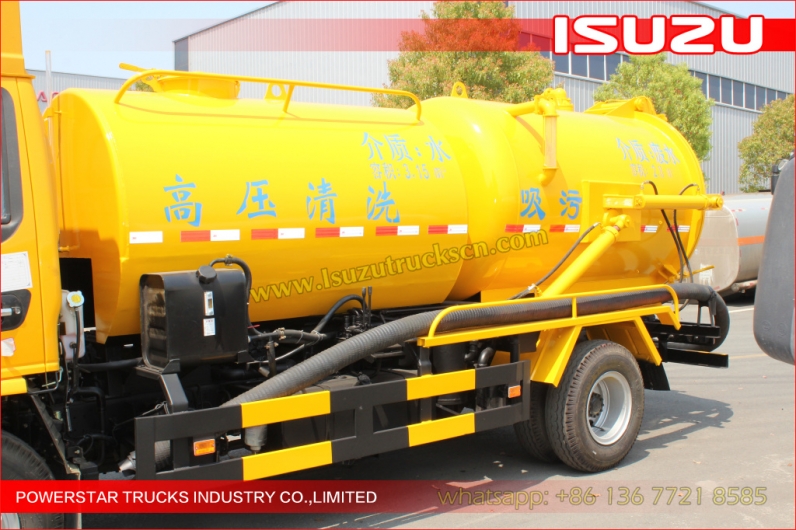

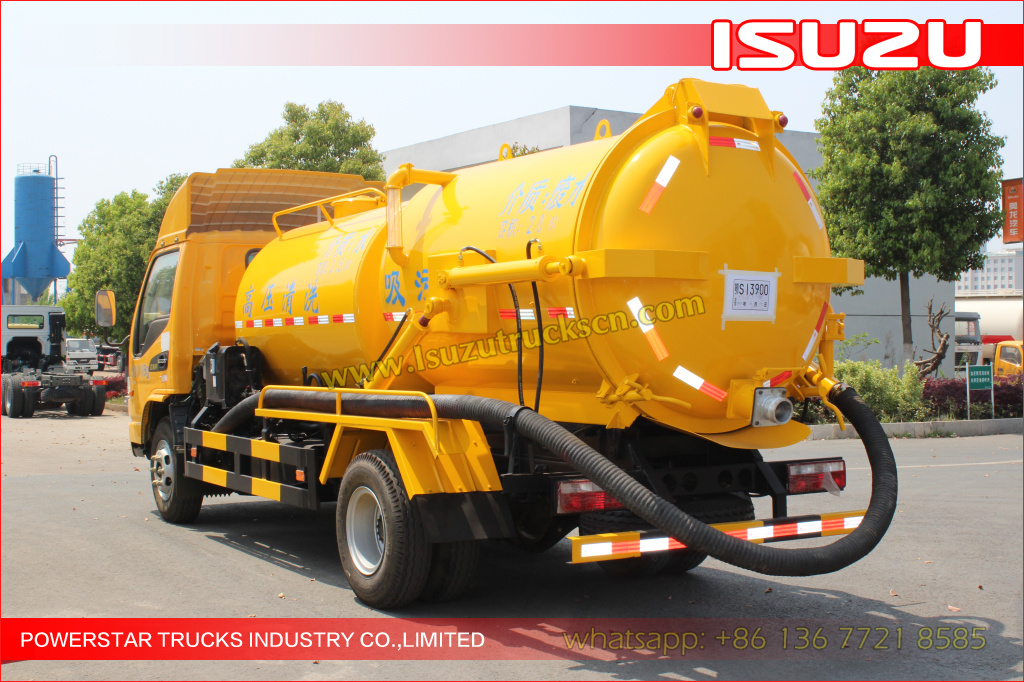

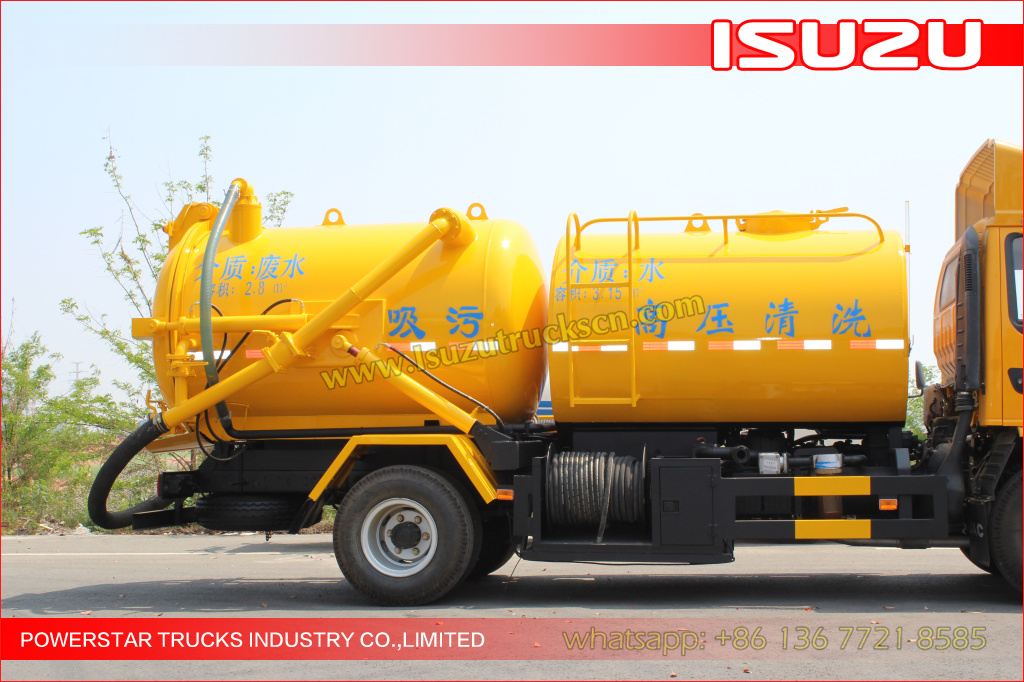

Over view of ISUZU Trucks mounted Jetting vacuum trucks
Customers build examples:
