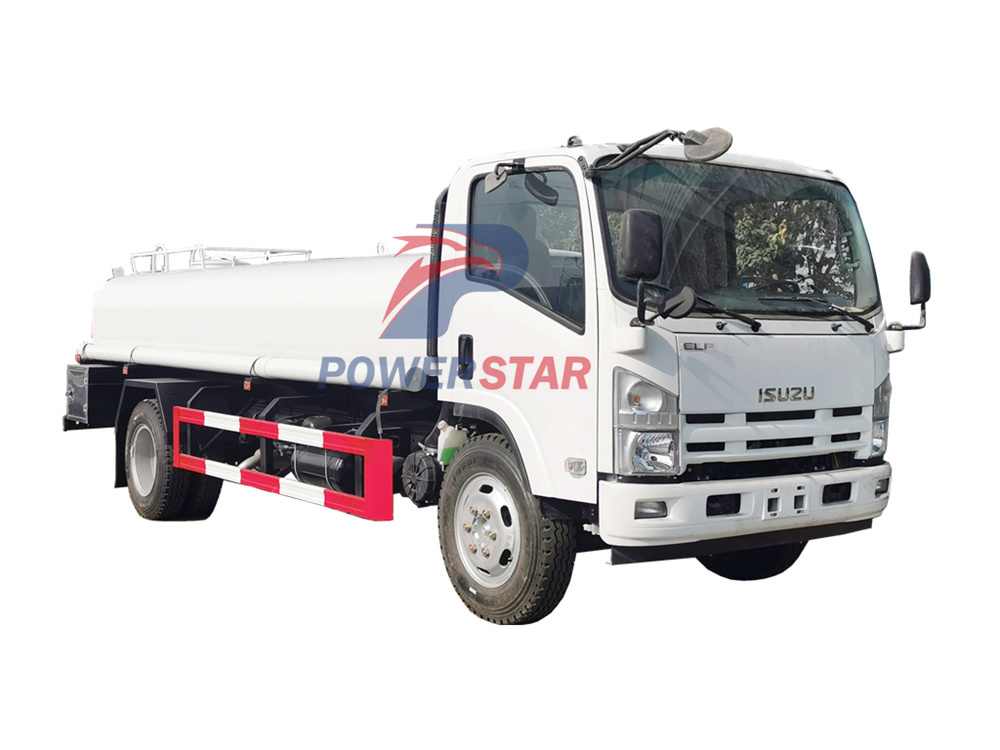

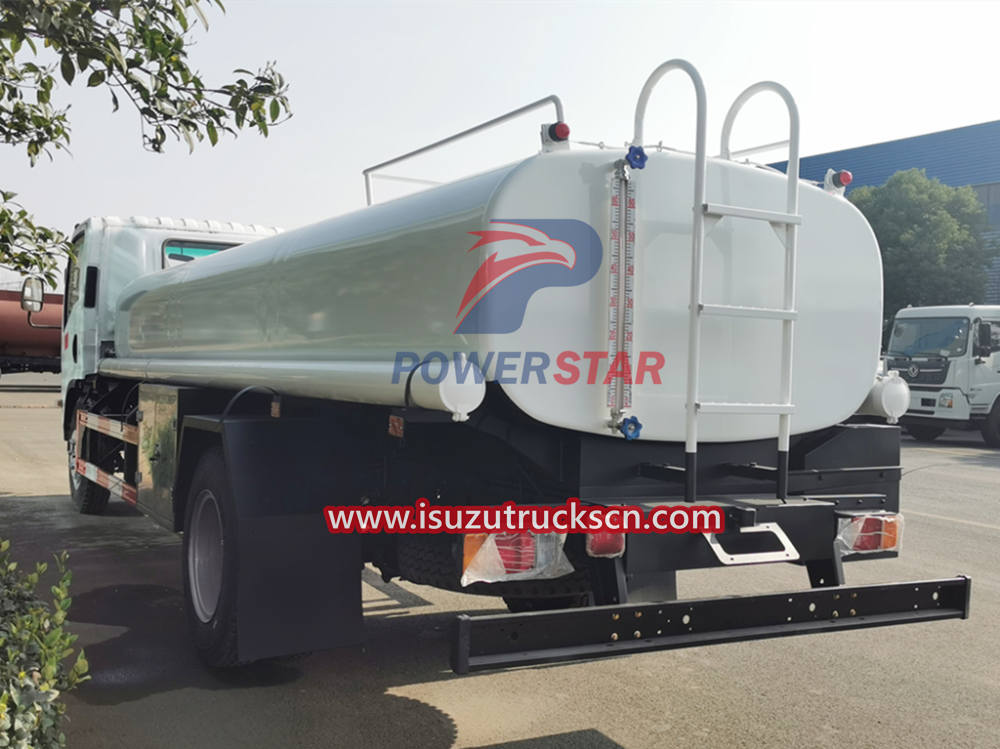

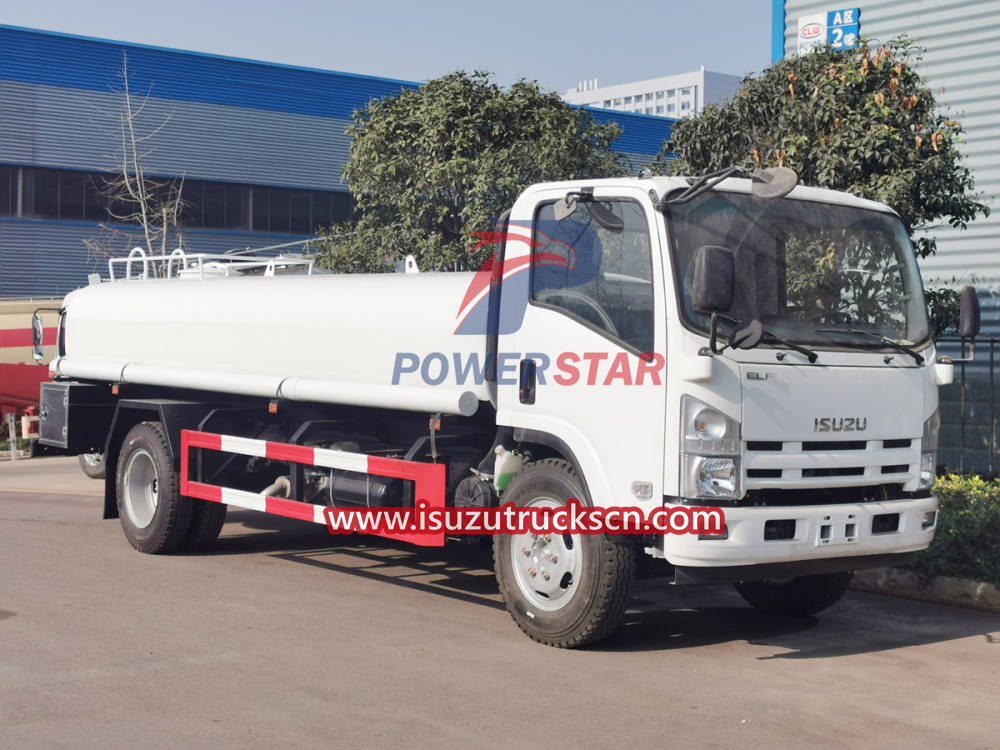

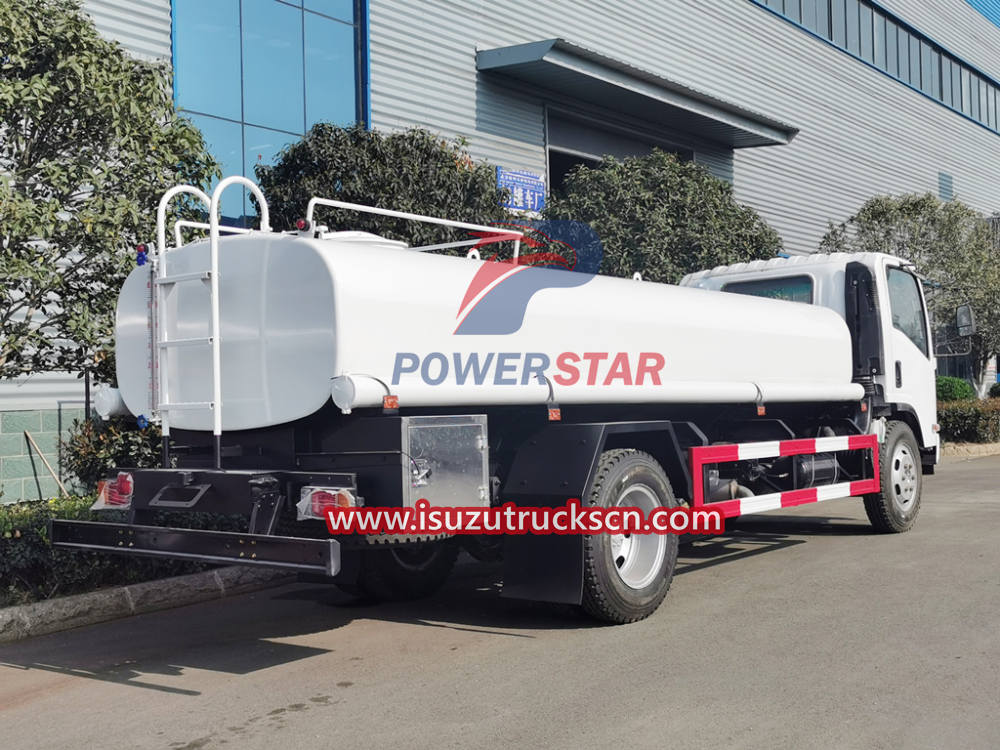

Official 8000L Isuzu Stainless steel potable Clean Water Delivery Truck,they are commonly used in construction, agriculture, disaster relief, and event management. The water carried by these Isuzu potable water trucks can be potable (safe for drinking) or non-potable, depending on the specific requirements[3]. Potable water hauler trucks are specifically designed for transporting bulk drinking water to different locations[5].
Work capacity:
8,000L drinking waterTruck model:
PT5110GYYEngine power:
190 HPEngine type:
Isuzu 4HK1Axle drive:
4x2Gear box:
Isuzu MSBRemarks:
All food-grade stainless steel materialIsuzu chassis Drinking water delivery truck, also known as Isuzu potable water truck or fresh water tanker truck Isuzu, is a vehicle designed to transport and deliver large quantities of water to various locations. These Isuzu Drinking water delivery trucks are used for a wide range of purposes, including providing drinking water in emergency situations, dust suppression at construction sites, filling swimming pools, and delivering water to remote locations with limited water supply.
The main difference between Isuzu potable water Trucks and Isuzu non-potable water trucks lies in the type of water they transport:
1. Isuzu Potable Water Trucks: These are designed to transport fresh clean water that is safe for human consumption. Potable water is suitable for drinking, cooking, and other activities that involve human ingestion. Isuzu Potable water trucks are used for delivering water to locations where safe drinking water is required, such as during emergencies or at events.
2. Isuzu Non-Potable Water Trucks: In contrast, Isuzu non-potable water trucks transport water that is not suitable for human consumption. This water may be used for purposes such as dust suppression at construction sites, filling swimming pools, agricultural irrigation, or industrial processes. Non-potable water is not safe for drinking, cooking, or other activities that involve human ingestion.
The choice between potable and non-potable water trucks depends on the specific requirements for water usage at a given location or for a particular application.
The Uganda 8000L Drinking Water Delivery Truck by Isuzu is a specialized vehicle designed to transport and deliver clean drinking water to remote areas, communities, and events in Uganda. With a large water capacity of 8000 liters, this truck is equipped to meet the high demand for safe and potable water.
2. Features:
- High-Capacity Water Tank: The truck comes with a durable 8000-liter water tank for efficient water storage and delivery.
- Potable Water System: Equipped with specialized fixtures and materials to ensure the water remains safe for consumption.

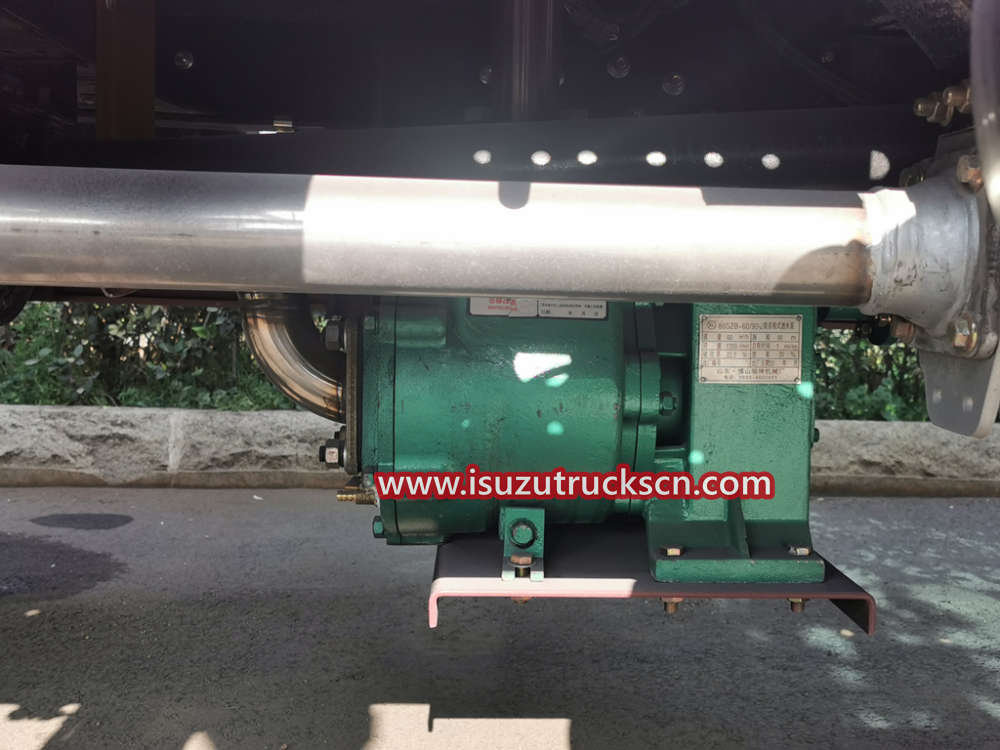

- Pumping System: The truck features a powerful pumping system for fast and controlled water distribution.
- Isuzu Reliability: Built on an Isuzu chassis, known for its durability and performance in rugged terrains.

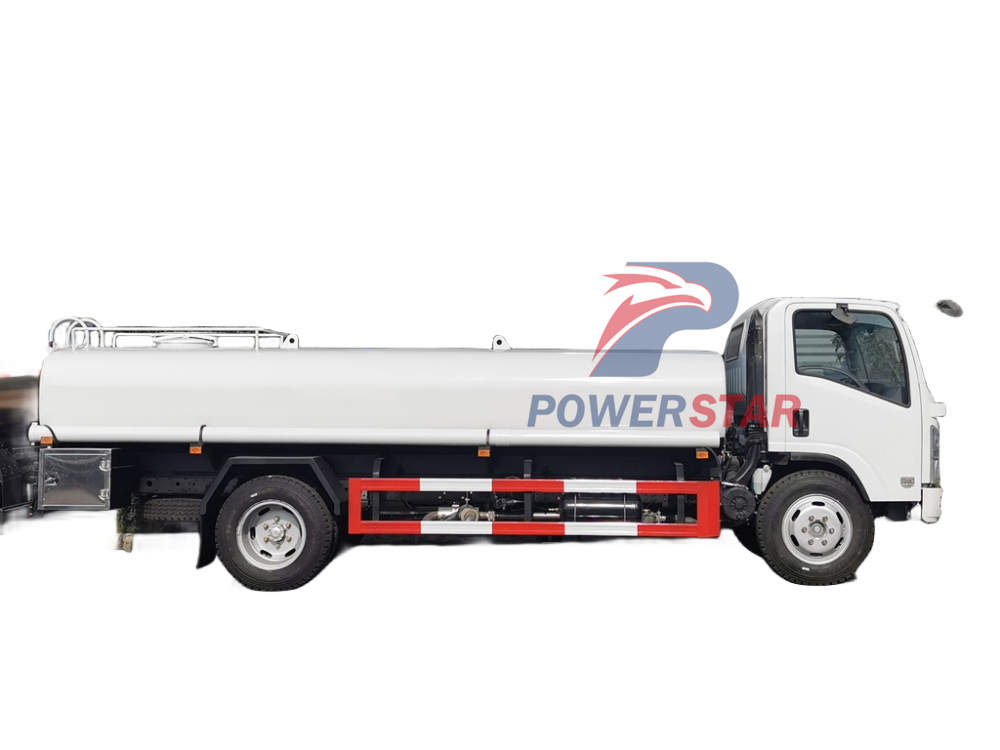

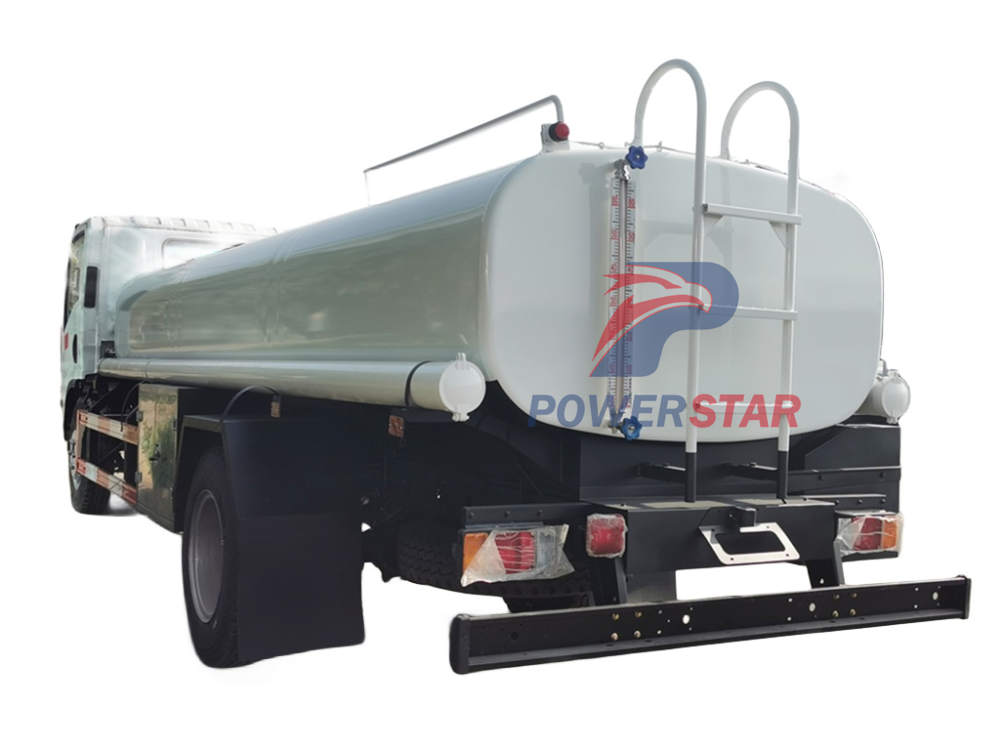

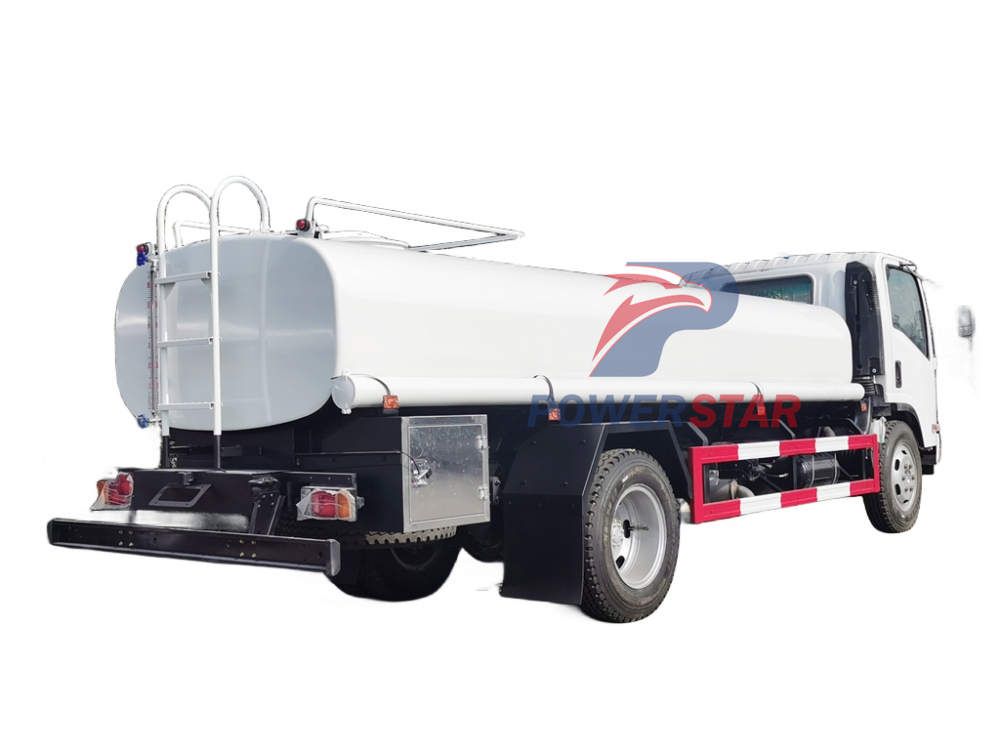

Detailed specifications For ISUZU NPR 8000liters Potable water Transport Truck | ||
Chassis parameters | ||
Vehicle Model No. | PT5100GSS | |
Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 8310×2500×3200 |
Drive Type | 4×2 | |
Wheel Base(mm) | 4600 | |
Wheel Track(Front/Rear)mm | 2010/1865 | |
Weight data | Tare Weight(kg) | 7004 |
Capacity(kg) | 10866 | |
Persons in cab | 3 | |
Total weight(kg) | 18000 | |
Whole vehicle main performance | Max.driving speed(km/h) | 89 |
Max.climbing degree(%) | 38 | |
Engine | Model | Isuzu 4HK1 |
Displacement(L) | 5200 | |
Rated Power(kw/rpm) | 139(2200) | |
Max torque(N.m/rpm) | 1100(1200-1600) | |
Gearbox | Model No. | Isuzu MLD 6S |
Clutch | Type | Reinforced diaphragm clutch, diameter 430mm |
Rear Axle | Type/Mainreducetion ratio | 13T/4.8 |
Suspension | Front suspension/Leaf spring number | 9 |
Rear suspension/Leaf spring number | 9+6 | |
Steering Gear | AM75L | |
Brake system | Service brake | dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels | |
Auxiliary brake | engine exhaust valve brake | |
Wheels and tyre size | 6+1/8.25R20 | |
Fuel Tank(L) | 380 | |
Cabin | Manual, cab lift, airbag seat, manual rearview mirror glass lifter, air conditioner | |
Upload parameters | ||
A.TANK BARREL | ||
1. Tank Profile | Round shape | |
2. Test pressure | Hydrostatic test to5 psi (35 Kpa) on each compartment. | |
3. Working pressure | Atmospheric. | |
4. Capacity | 8000L plus 3~5% ullage. | |
5. Compartments | Single compartment. | |
6. Interior weld finish | Not polished or grinded (W-0). | |
7. Exterior weld finish | Not polished or grinded (W-0). | |
8. Shell material | Stainless steel 304 2B. | |
a) Top | 3.7mm nominal. | |
b) Sides | 3.7mm nominal. | |
c) Bottom | 3.7mm nominal. | |
9. End Plate | Stainless steel 304 2B, 3.7mm nominal. | |
All single heads dished and flanged. | ||
10. Bulkhead | Nil. | |
11. Baffle / Surge Heads | Stainless steel 304 2B, 3.7mm nominal. | |
Dished with flap. | ||
2 pcs | ||
12. Spill molding and rollover protection | Stainless steel around the dome with drain hose. | |
13. Spill molding lids | Nil. | |
14. Outer rings | 304-2B stainless steel, 60mm height, 3mm nominal, continuously welded. | |
15. Frame | Carbon steel independent. | |
16. Loaders and brackets | Carbon steel. | |
15. Isolation | Nil. | |
16. Exterior lining | Nil. | |
B. TANK FITTINGS AND PIPING | ||
1. Manholes | 20" diameter with 6 stainless steel wing nuts, located at the top center | |
2. Pressure Vacuum Vent | Two per compartment. 6~12 kPa pressure, 2~4 kPa vacuum. | |
Chinese Brand | ||
3.Foot valve | Nil. | |

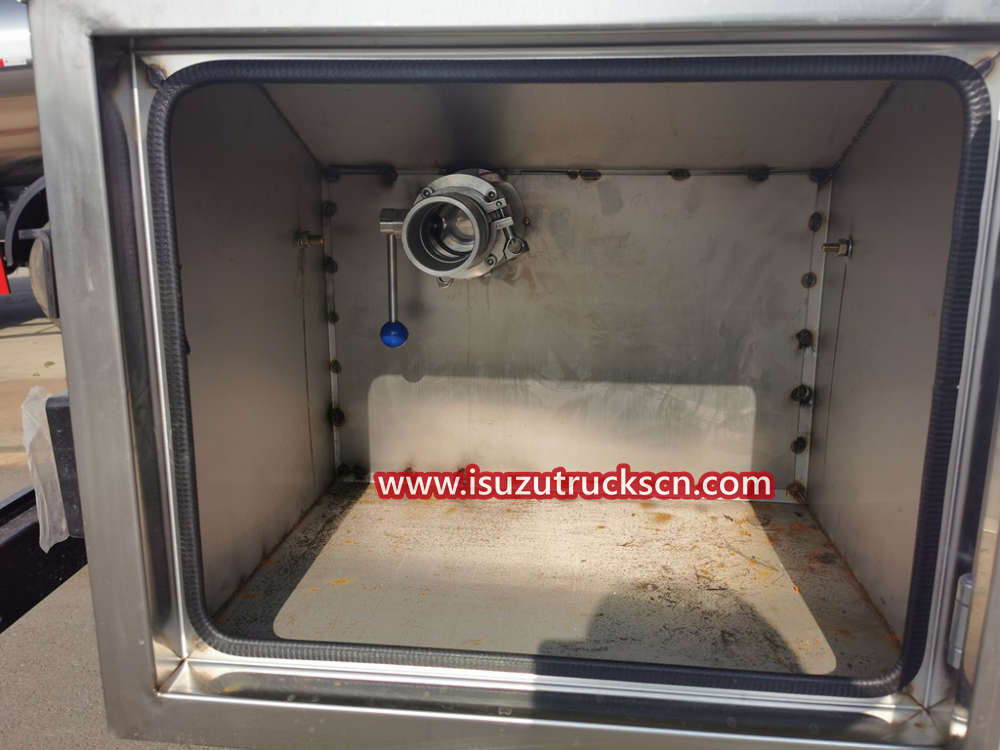

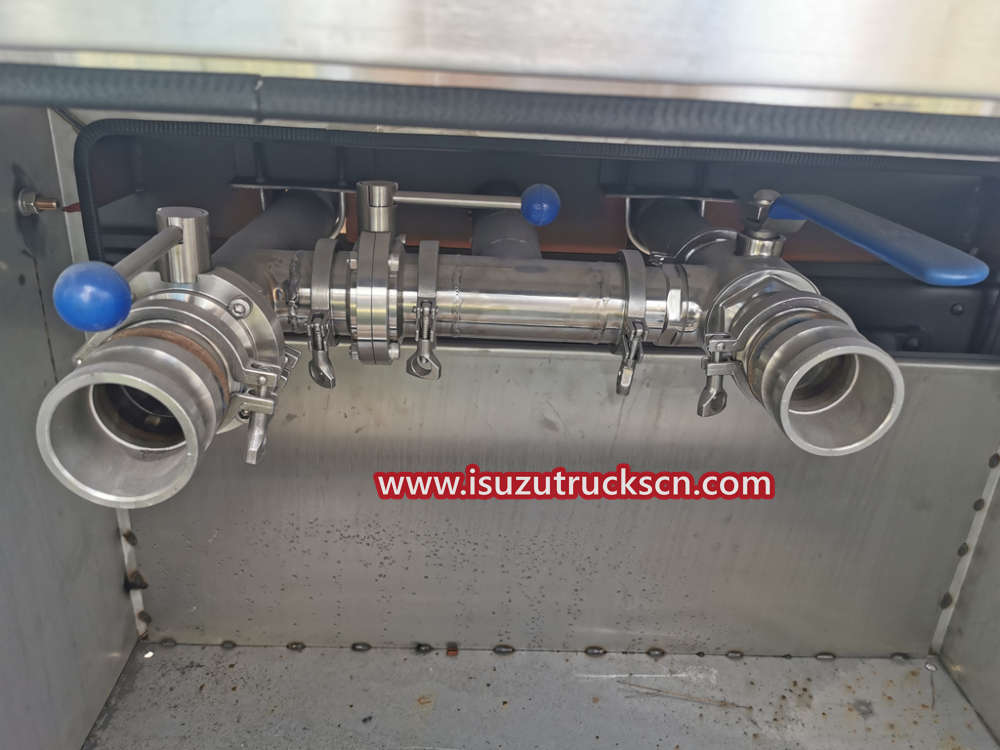

4 Discharge system | 3” diameter discharge with 3" diameter butterfly valve, 3" stainless steel male camlock coupling and quick cap, located at the back of the tank. | |
5. Piping | Nil. | |
6. Thermometer | Nil. | |
7. Steam trace | Nil. | |
8. Overfill Prevention | Nil. | |
9. Tow Hook | Nil. | |
10. Product Indicators | Nil. | |
C. ACCESSORIES | ||
1. Ladder | Stainless steel, 400mm wide, with non skid rungs and lateral handles, mounted at right middle of tanker. | |
2. Walkway | Extruded aluminium around dome. | |
3. Hose Carries | 1 no, hose carrier (round tubes) to fit Ø159 x 6meter (236") hose close type complete with brackets to be installed at the right side. | |
4. Hose | Firemen type flexible discharge hoses, 30m 2.5" for discharge. and flexible plastics suction hoses, 5.9m 3"for suction, 3" female camlock coupling at both ends. | |
5. Motor Pump | BRIGGS & STRATTON Gasoline motor , 4 stroke motor, fuel tank capacity 4.0 liters of gasoline, WB30 pump with a 3" input and outlet diameter, 7m suction head, discharge capacity 900L/min (238Gal/min) pump head pressure 33 m, weight 30kg. | |
6. Toolbox | Nil. | |
7. Rear Bumper | Aluminium member to accommodate light assembly and number plate to cover full width of the tank. | |
Steel bumper with ground clearance 500mm approx. | ||
8. Hazchem Plate | Nil. | |
9. Mudguard | Aluminum over suspension and the upper coupler. | |
Mud flaps rigid plastic at the rear. | ||
10. Lights & Wiring | 24V. ISO 1185 7 pin socket. | |
Harness: oil and vapour proof cable. | ||
Front: nil. | ||
Side: | ||
Mark lamp 3Pcs/side, LED. | ||
Reflector 3Pcs/side | ||
Turning lamp 1Pcs/side, LED. | ||
Rear Bump: | ||
Reverse lamp R-L 2Pcs, LED. | ||
Turning lamp R-L 2Pcs, LED. | ||
Brake lamp R-L 2Pcs, LED. | ||
Register plate light | ||
Rear top: nil. | ||
Brand of Wiring: | ||
11. Reverse alarm | Nil. | |
12. Connector Box | At the center in the front dishend | |
13. Sticker | 50mm wide red-white reflective sticker, mounted at both sides and rear bump. | |
14. Hand rail | Nil. | |
15. Fire Extinguisher | 8kg , 2Pcs. | |
Carbon steel extinguisher holder located on the landing gear on the curb side. | ||
16. Drains hose | water drains hose 2", installed at the back of spill molding | |
17. Wheel chocks | Nil. | |
18. Traffic cone | Nil. | |
19. Spare wheel bracket | 1set | |
Carbon steel, basket type, located behind the landing gear. | ||
20. Painting | Polyurethane medium Aluminium gray, applied over epoxy primer on carbon steel elements |
3. Advantages:
- Reliable Water Delivery: The Uganda 8000L Isuzu Drinking Water Delivery Truck ensures reliable and timely delivery of clean drinking water to underserved areas.
- Potable Water Assurance: The truck's potable water system guarantees safe and contaminant-free water for consumption.
- Cost-Effective Solution: Renting or purchasing this water delivery truck offers a cost-effective solution for providing clean water services.
- Isuzu Quality: Isuzu trucks are renowned for their reliability, durability, and performance, ensuring long-term value for users.
4. Application:
The Uganda 8000L Drinking Water Delivery Truck Isuzu is ideal for a variety of applications, including:
- Emergency relief efforts during natural disasters or crises.
- Serving communities without access to clean water infrastructure.
- Providing water supply for events, festivals, and large gatherings.
- Supporting water distribution initiatives in rural and remote areas.
5. After-Sales Service:
Our after-sales service includes:
- Regular maintenance and servicing to ensure optimal performance.
- Technical support and troubleshooting assistance.
- Genuine Isuzu spare parts availability.
- Operator training for safe and effective operation.
6. FAQ:
1. What is the maximum water capacity of the Uganda 8000L Drinking Water Delivery Truck?
2. Is the water in the tank treated for safe consumption?
3. Can the delivery schedule be customized based on specific needs?
4. Are there options for additional water treatment equipment on the truck?
7. Upper Body Customized:
Customization options are available for the upper body of the truck to accommodate specific storage or equipment requirements, ensuring versatility in water delivery operations.
8. Truck Chassis Choice:
The Uganda 8000L Drinking Water Delivery Truck Isuzu is built on a reliable Isuzu chassis, providing a robust foundation for transporting water in varied terrain and conditions.
