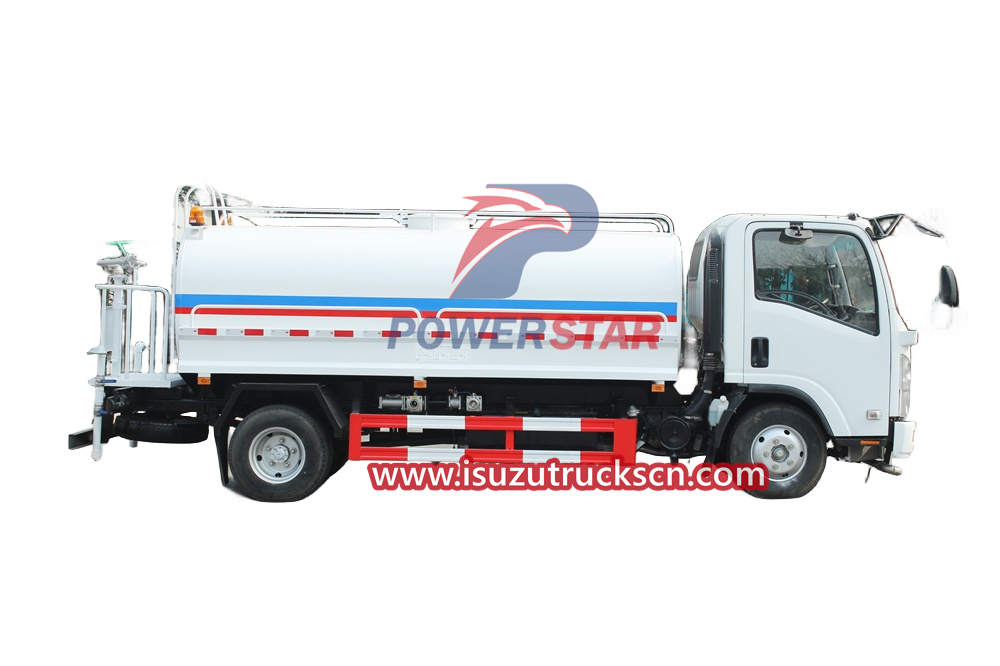

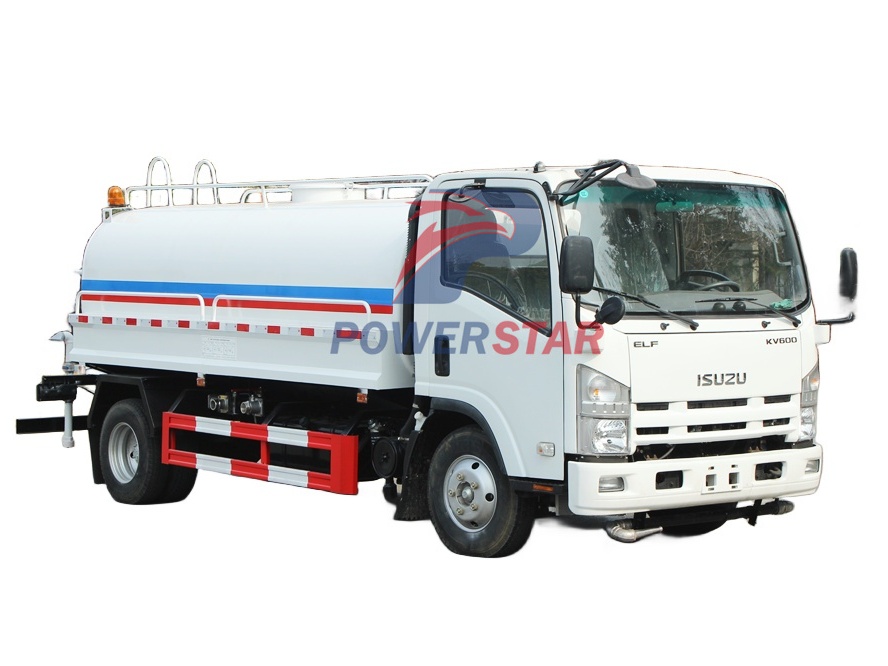

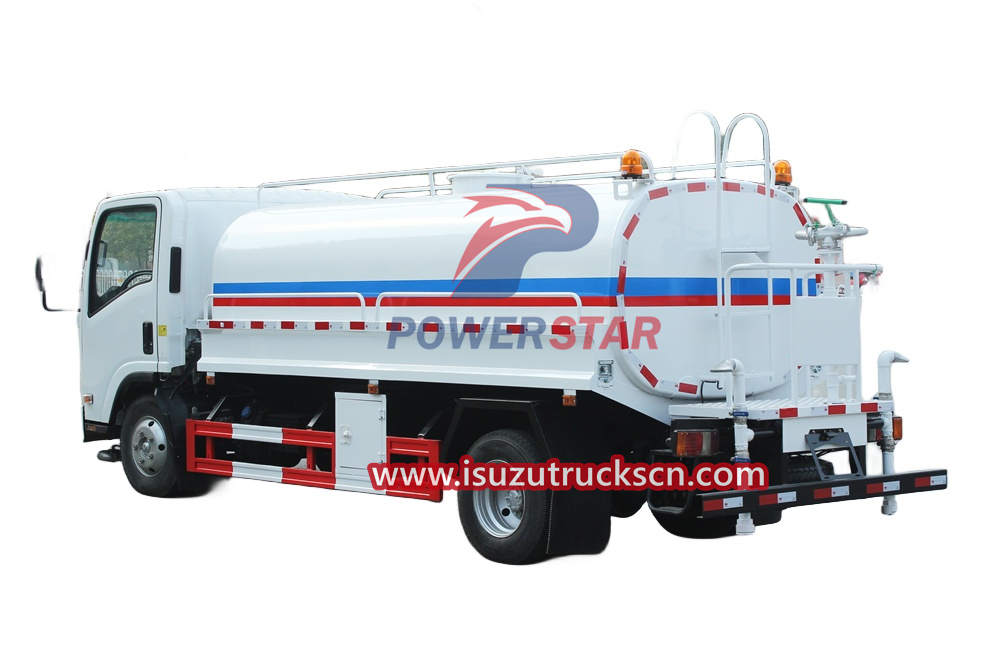

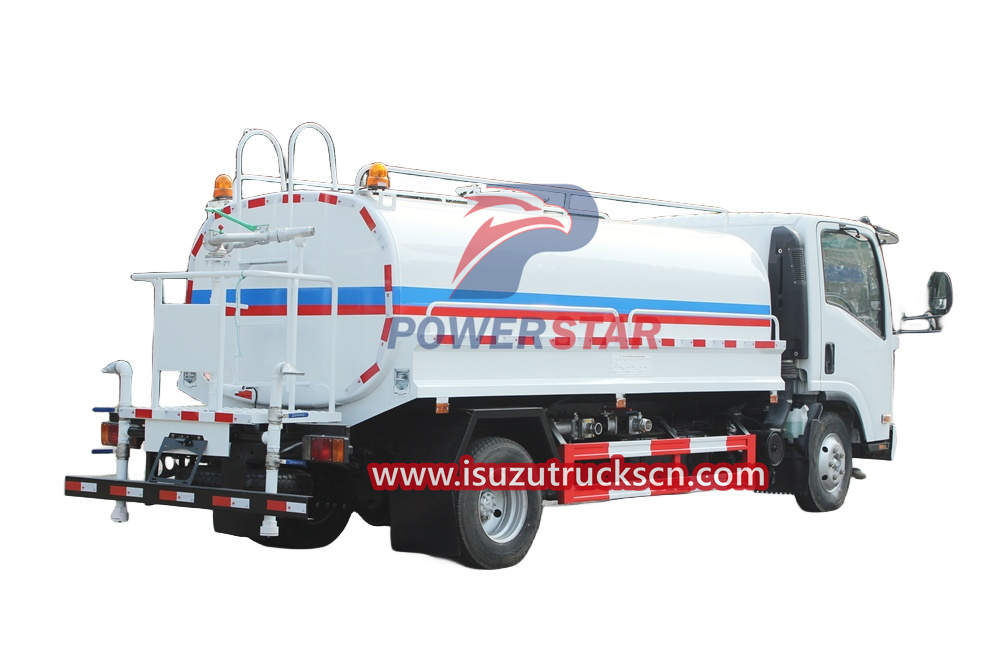

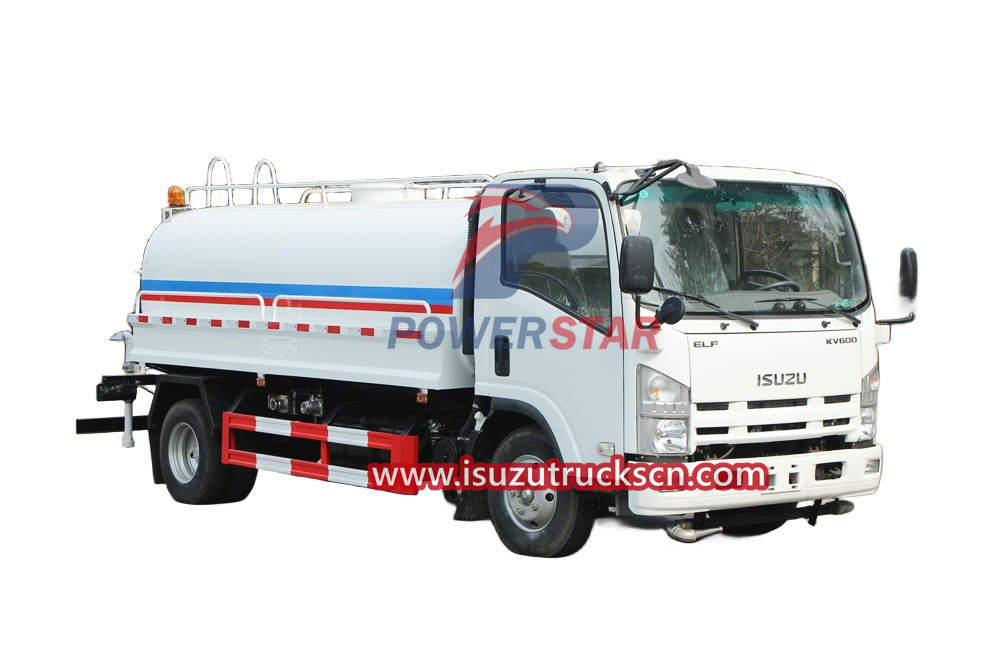

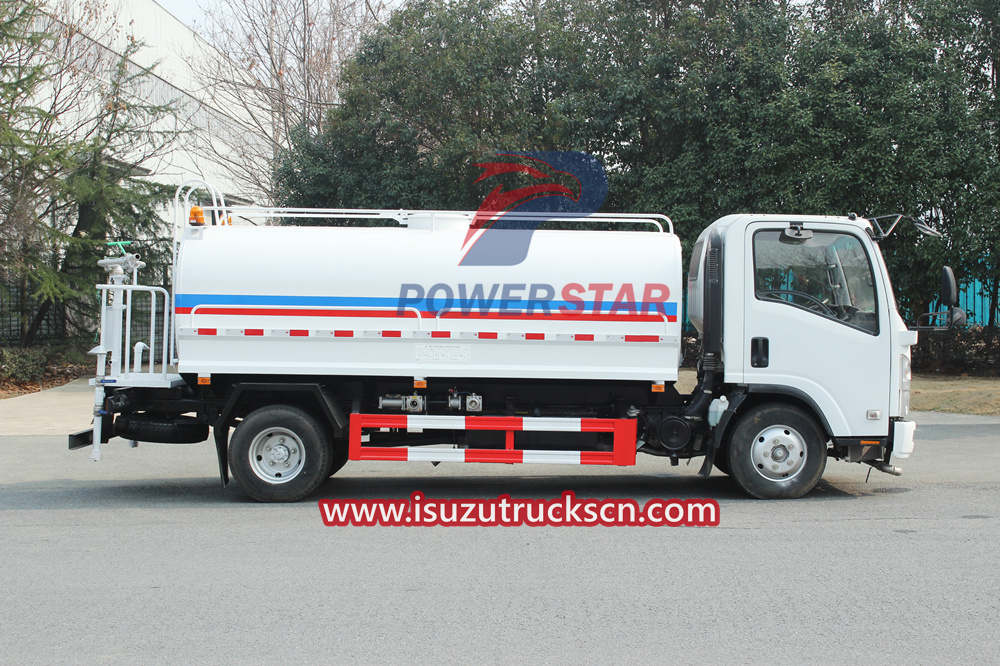

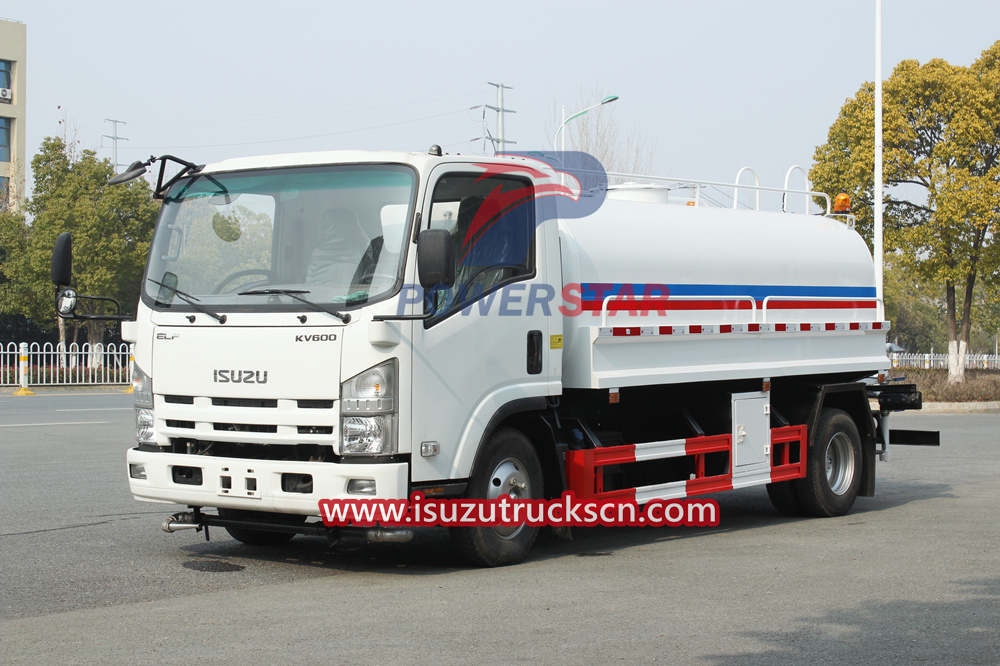

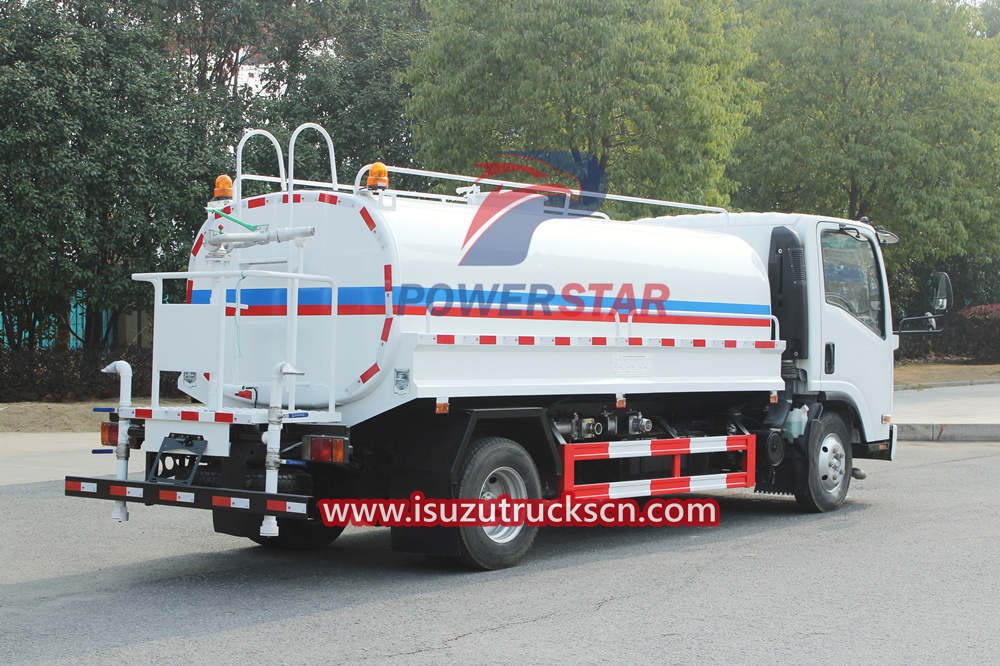

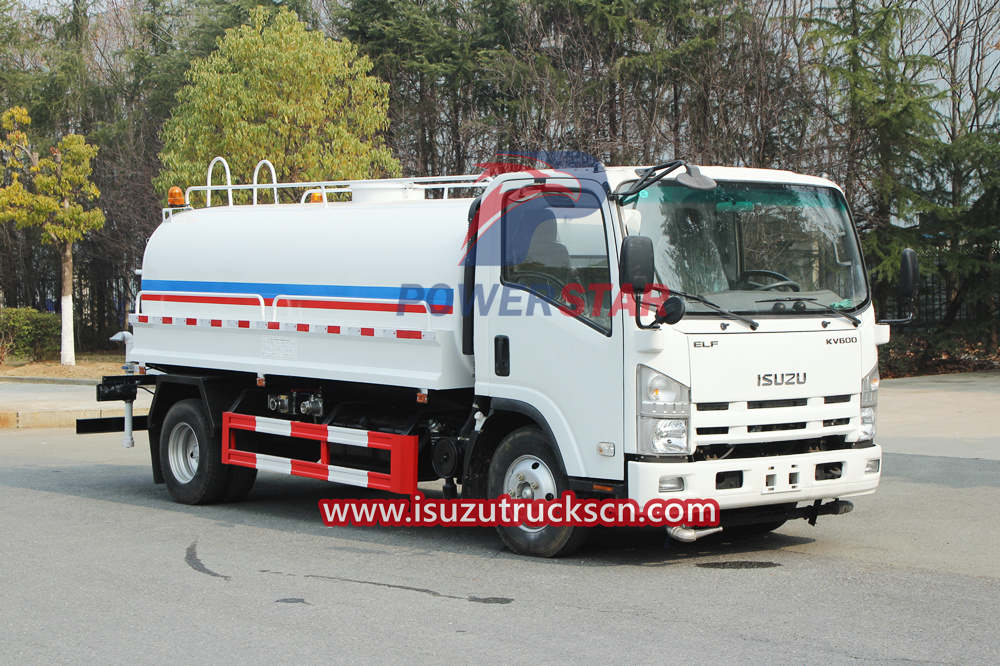

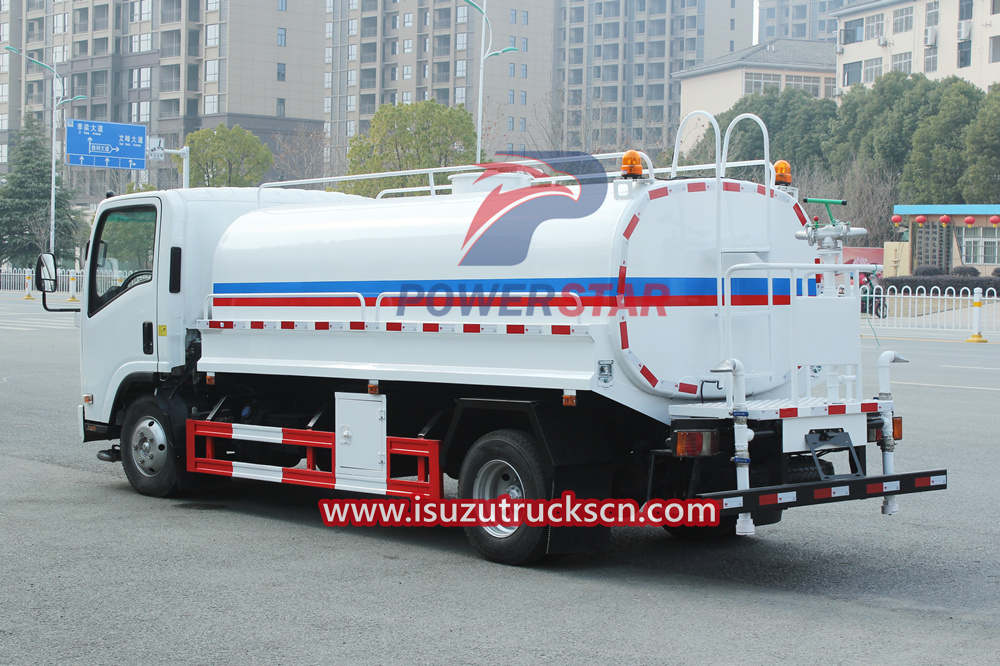

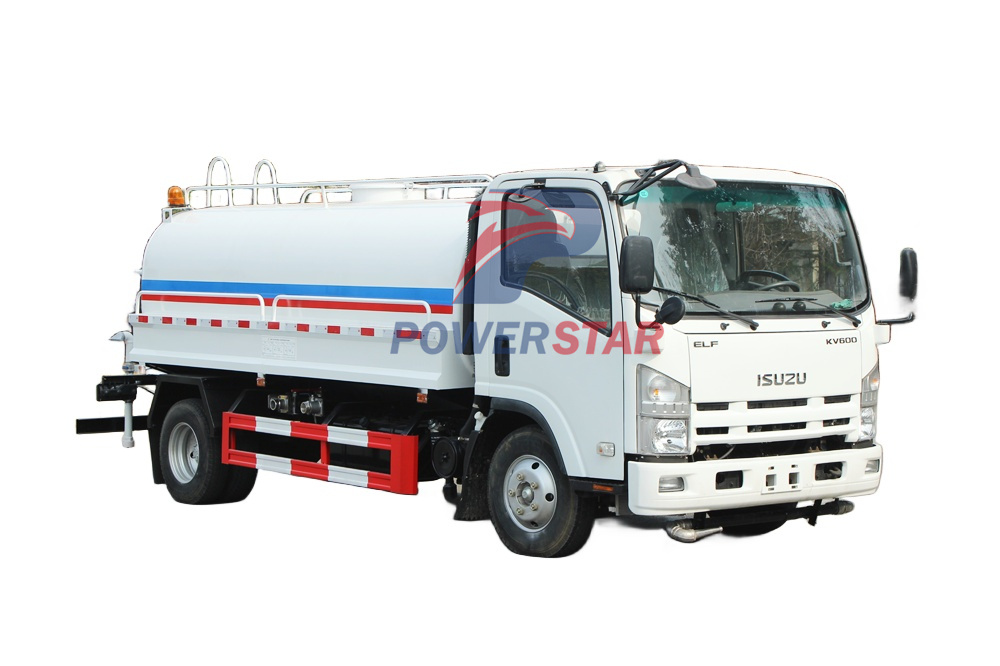

8,000L new or used Isuzu Potable water trucks with sprinkler is mainly composed of Isuzu KV600 truck chassis, a water tank, a pipe system, and other components. This Isuzu KV600 water trucks is suitable for washing operations, like direct the water from the tank and disperse it to where it is needed, such as for dust control at construction sites, firefighting in remote areas, or washing operations in urban roads and highways. It typically has a large horizontal water tank in the rear, ranging from 2,000 to as much as 30,000 liters for on-road vehicles.
Work capacity:
8000 LTruck model:
PT5100GSSEngine power:
120 HPEngine type:
Isuzu 4KH1CNAxle drive:
4x2Gear box:
Isuzu MSBRemarks:
Square tank body designGhana Isuzu Potable Water Trucks with Sprinkler System offer a game-changing solution for clean water delivery needs in Ghana, driving sustainability, efficiency, and reliability in water transportation. For more information on these innovative water trucks and how they can benefit your operations, contact Ghana Isuzu today.
| Chassis Specification | ||||
| Driving Type | ISUZU 4*2 Left hand driving | |||
| Max Speed (km/h) | 99 | |||
| Overall Dimension (mm) | 6320*2320*2750 | |||
| GVW (kg) | 9000 | |||
| Truck Tare Weight (kg) | 5370 | |||
| Wheelbase (mm) | 4475mm | |||
| F/R track base (mm) | 2022/1830 | |||
| F/R overhang (mm) | 1500/2750 | |||
| Approach/Departure Angel (°) | 16/14 | |||
| Tire | 8.25-16 | |||
| Clutch | Single-plate dry diaphragm spring clutch | |||
| Steering | Hydraulic steering with power assistance | |||
| Gear Box | ISUZU MSB | |||
| Bridge | Front axle | 4000kg load-bearing | ||
| Rear axle | 5000kg load-bearing | |||
| Engine | Brand | ISUZU | ||
| Model | 4KH1 | |||
| Fuel Type | Diesel fuel | |||
| Emission Standard | Euro 5 | |||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | |||
| Exhaust (ml) | 2999 | |||
| Max output power/rotate speed (hp /rpm) | 120/2200 | |||
| Max torque/rotate speed (N.m/rpm) | 1350/1100-1600 | |||
| Upper Parts Specification | ||||

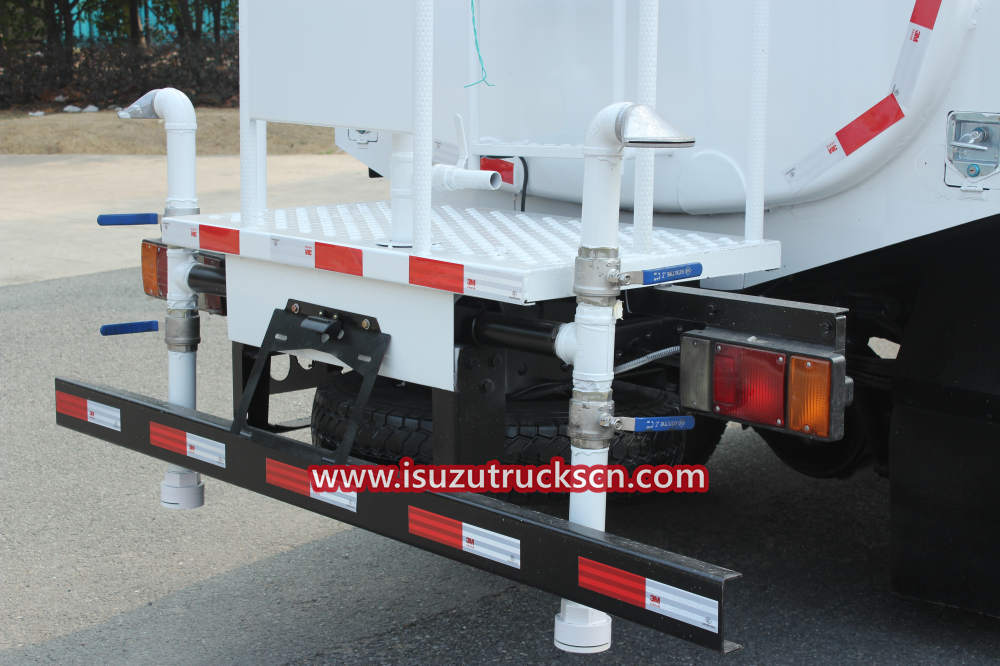

| Sprinkler | front, side, rear three sprinklers | |||

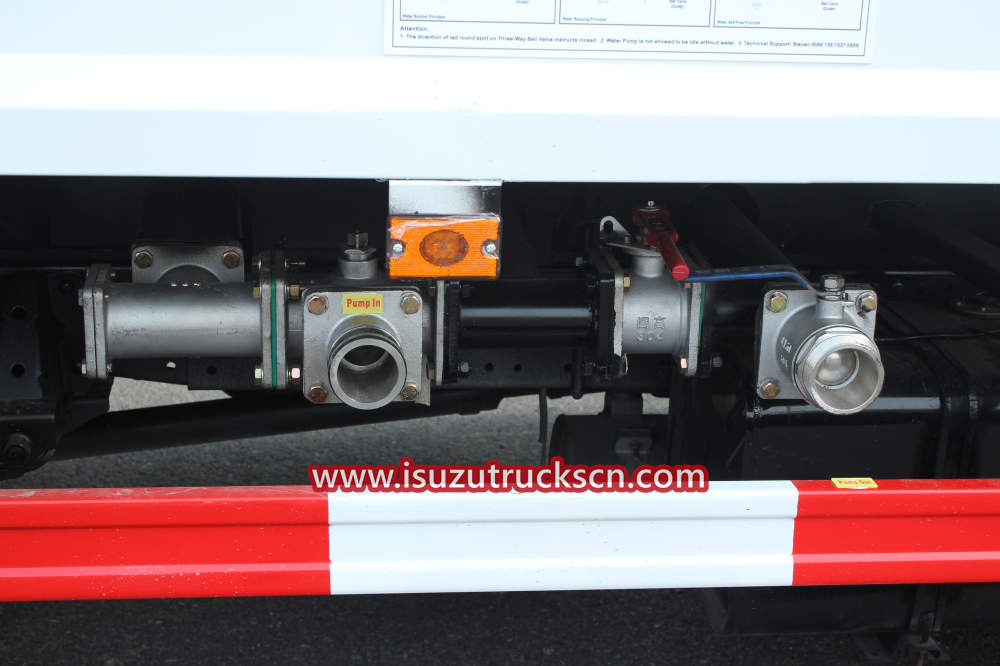

| Valves | Fire valve and water valve | |||
| Tank shape | Ellipse | |||
| Material of tanker | 5mm carbon steel | |||
| Color of the tanker | According your demands | |||
| Special function | Rating speed | 1450r/min | ||
| flux | 60m³/h | |||
| self-suction height | 7.5m | |||
| sprinkler width | ≥14m | |||
| the range | when adjusted column,the range ≥30m | |||
| when adjusted fog, the range≤15m | ||||

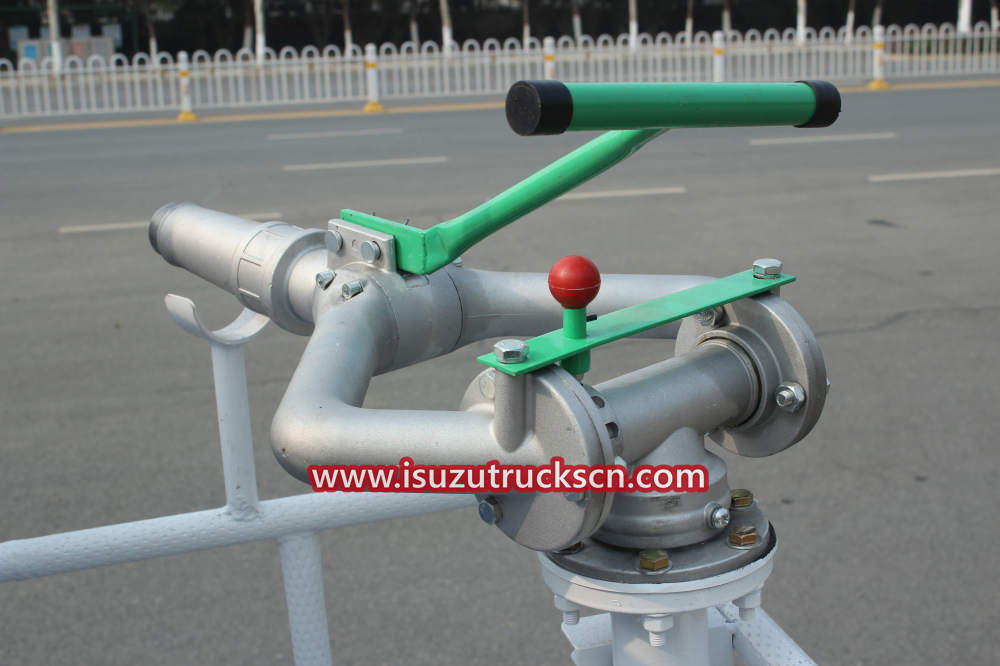

| Introduction of function | front rise and back sprinkler, side spray, with working platform at back of truck, with high pressure gun, which can be adjusted according to requirement, and assemble the high quality watering pump, with fire fighting connection and overflow valve, with self-suction function. | |||
| Fittings | PTO water pump | |||

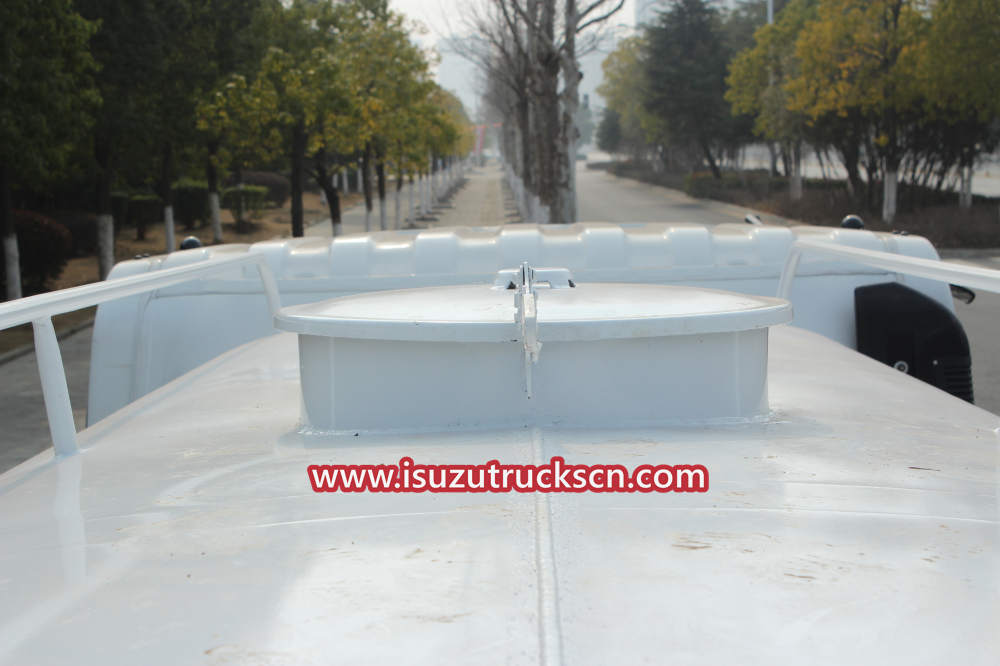

| One Manhole | ||||
| water hose box fitted on both side of tank | ||||
| One spare tyre | ||||
| Ladder: For access to top of tank complete with cat walk on top of tank | ||||
| Heavy-duty rear bumper | ||||
In a groundbreaking development in the water transportation industry, Ghana Isuzu has unveiled its innovative line of Potable Water Trucks equipped with a state-of-the-art sprinkler system. This cutting-edge integration of technology is set to revolutionize clean water delivery and distribution across various sectors in Ghana.
Isuzu, a globally recognized leader in vehicle manufacturing, has collaborated with local experts to design and manufacture these specialized Potable Water Trucks tailored specifically for Ghana's unique water transportation needs. The combination of Isuzu's renowned reliability and the advanced sprinkler system ensures efficient and effective water delivery to communities, construction sites, agricultural fields, events, and more.
Key Features of Ghana Isuzu Potable Water Trucks with Sprinkler System:
1. Potable Water Tank: The trucks are equipped with spacious and durable potable water tanks, ensuring the safe storage and transport of clean water.
2. Advanced Sprinkler System: The integrated sprinkler system allows precise and controlled water distribution, making it ideal for dust suppression, irrigation, and other applications.
3. High-Performance Pumping System: The trucks feature a high-capacity pumping system for quick and seamless water delivery, maximizing efficiency.
4. Isuzu Durability: Built on Isuzu's sturdy chassis, these water trucks are designed to withstand the demands of rugged terrains and challenging environments, guaranteeing longevity and reliability.
Advantages of Ghana Isuzu Potable Water Trucks with Sprinkler System:
- Reliable Clean Water Delivery: The trucks provide a reliable solution for delivering potable water to communities and sites with limited access to clean water sources.
- Versatile Applications: With the sprinkler system and high-capacity tank, these trucks can be used for a wide range of applications, including agriculture, construction, and emergency water provision.
- Isuzu Quality Assurance: The Isuzu brand is synonymous with quality, durability, and performance, ensuring that these water trucks meet and exceed industry standards.
- Sustainable Cleaning Solutions: The efficient sprinkler system helps minimize water wastage and ensure environmentally friendly water distribution practices.
Applications of Ghana Isuzu Potable Water Trucks with Sprinkler System:
- Community Water Supply: Providing clean water to rural communities and underserved areas.
- Agricultural Irrigation: Supporting farming activities by delivering water for crop irrigation.
- Mining Operations: Dust suppression and water transportation for mining sites.
- Special Events: Water supply for festivals, concerts, and public gatherings.
After-Sales Service for Ghana Isuzu Potable Water Trucks:
1. Regular Maintenance: Ensure optimal performance through scheduled maintenance services.
2. Technical Support: Expert assistance and troubleshooting guidance for any issues.
3. Genuine Spare Parts: Availability of authentic Isuzu spare parts for replacements and repairs.
4. Operator Training: Comprehensive training programs for safe and efficient operation of the water trucks.
Ghana Isuzu Potable Water Trucks with Sprinkler System offer a game-changing solution for clean water delivery needs in Ghana, driving sustainability, efficiency, and reliability in water transportation. For more information on these innovative water trucks and how they can benefit your operations, contact Ghana Isuzu today.
