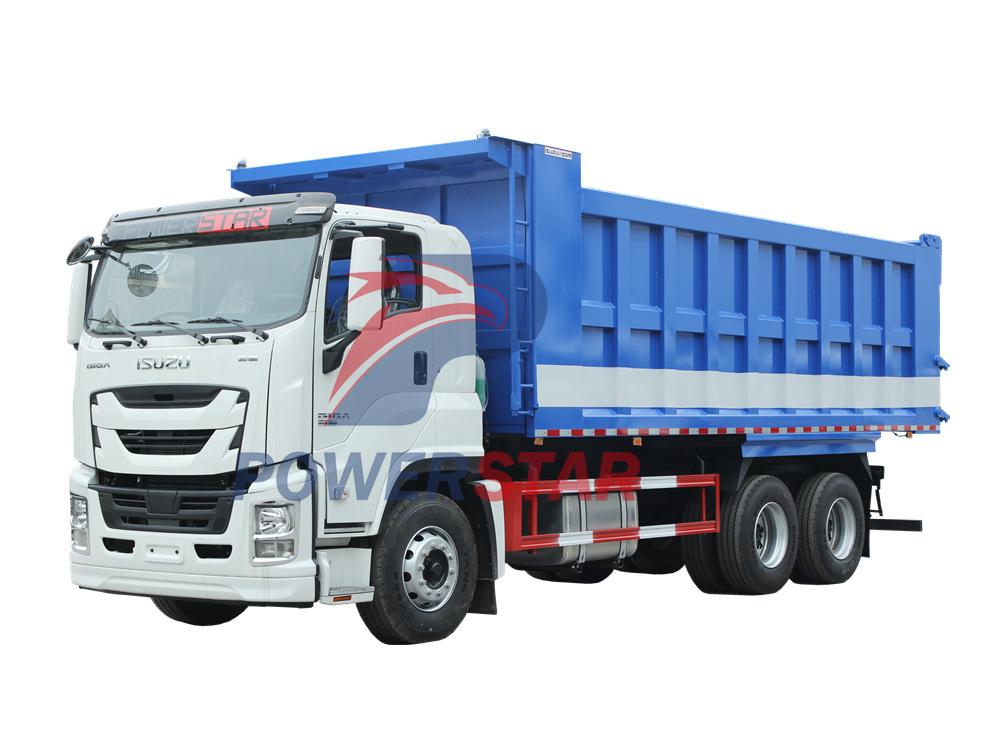

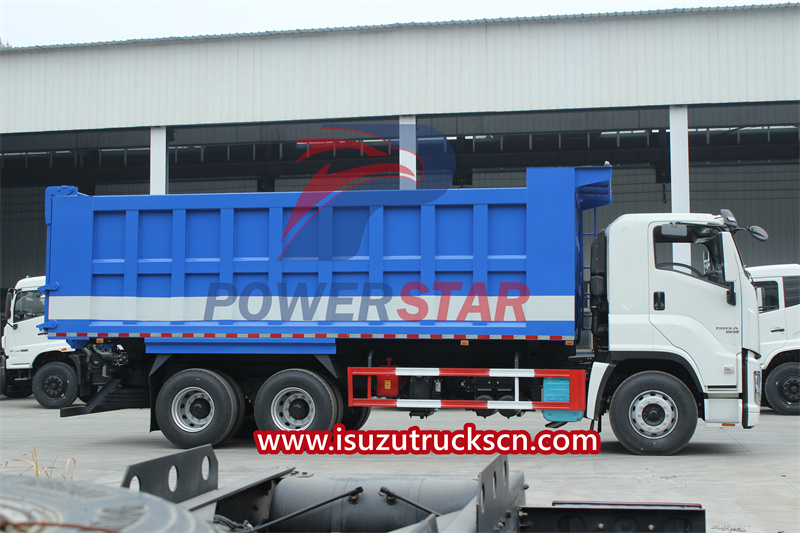

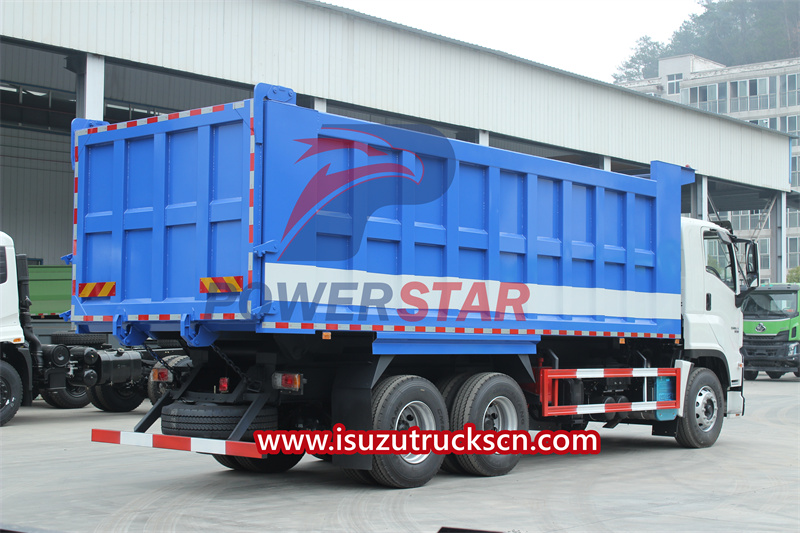

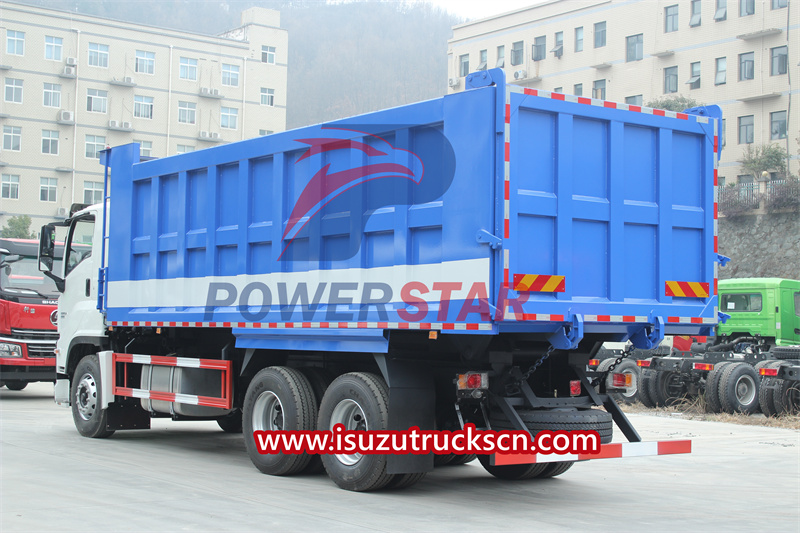

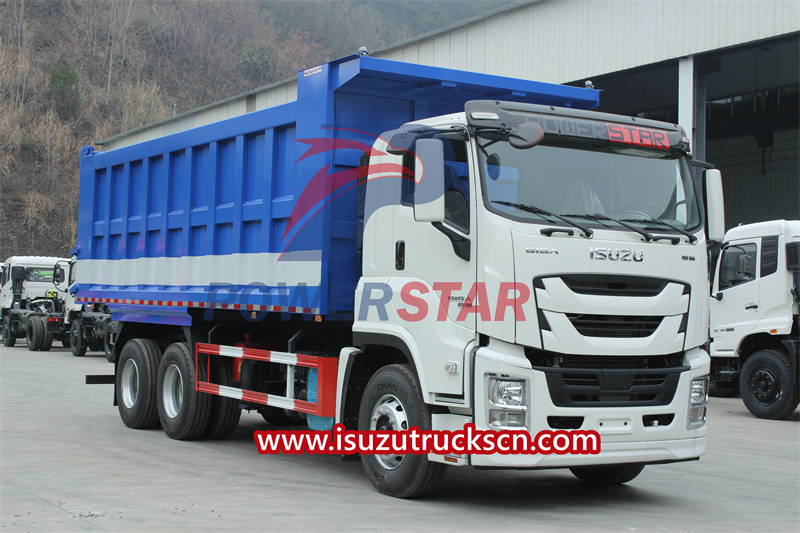

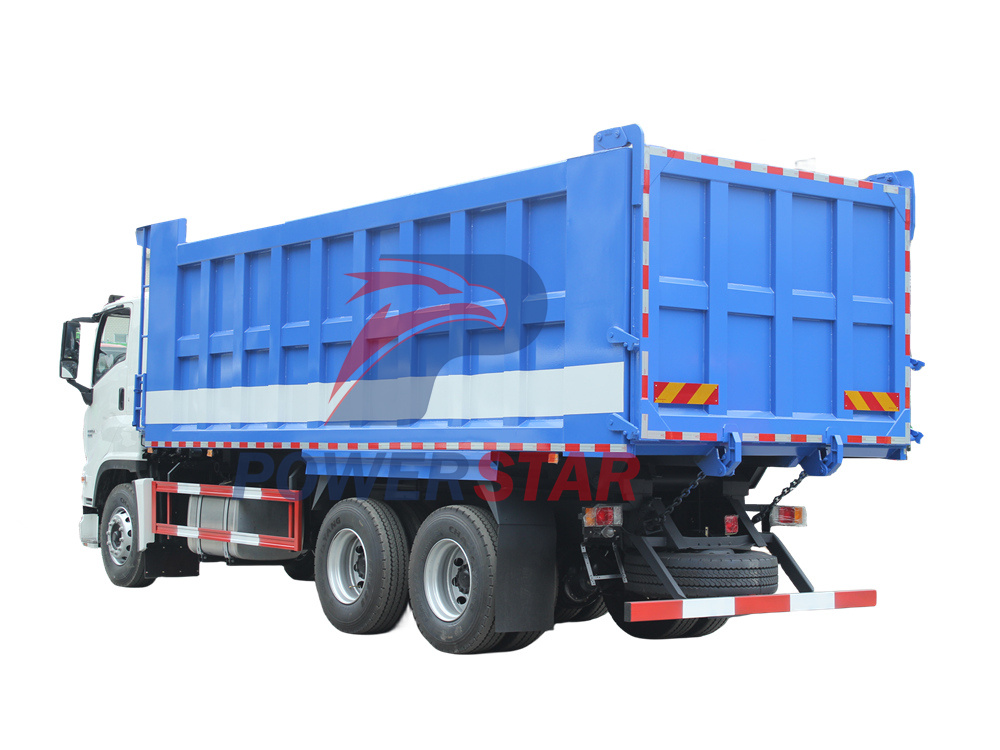

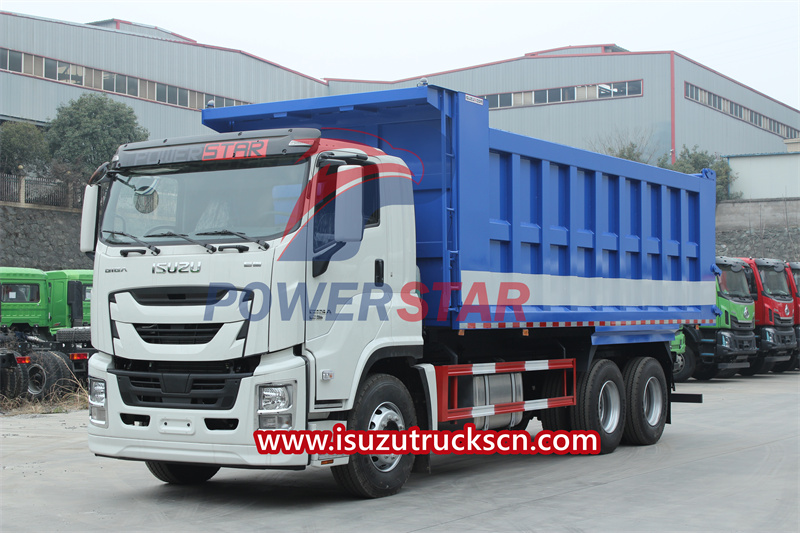

The Isuzu GIGA mining Dumper is a powerful and reliable dump truck designed specifically for mining operations. Its sturdy construction and efficient performance make it a trusted choice for transporting heavy loads in difficult terrain. Isuzu GIGA models feature a comfortable cab equipped with two pneumatic suspension seats and a bed to provide a comfortable ride for the driver and passengers. Isuzu GIGA mining Dumper is equipped with an advanced 6WG1-TCG52 engine with excellent performance.
Work capacity:
25tonsTruck model:
Isuzu GIGA mining dumperEngine power:
420hpEngine type:
Isuzu 6WG1-TCG60Axle drive:
6x4Gear box:
Fast 12 speed levers with 1 reverseRemarks:

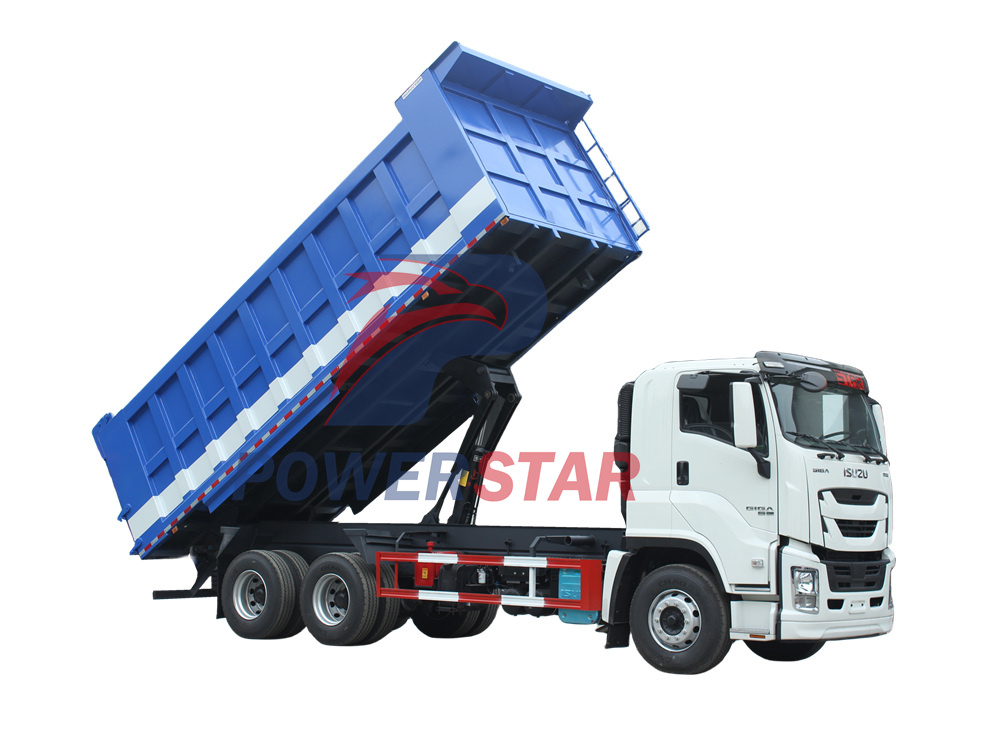

mining dumperThe Isuzu GIGA mining Dumper is a truck designed for mining and heavy material transportation. It has excellent performance and durability and is suitable for a variety of harsh working environments and heavy-duty transportation needs. The main application scenarios are mines and quarries, used to transport various ores, slag, sand and other excavation and construction products. It is able to work well in the rugged terrain and harsh conditions of the mine, and can carry heavy-duty materials up to 25 tons. The Isuzu GIGA mining Dumper has a strong and durable body and dump system. The body is made of high-performance carbon sheets, with a front side panel thickness of 6 mm and a rear side panel thickness of 8 mm, which can withstand a large amount of pressure and impact. The dump system adopts hydraulic control. The central or front lifting device can unload materials efficiently. The lifting time is fast and stable, which greatly improves work efficiency.
Applications:
ISUZU GIGA mining tipper trucks(also called Isuzu GIGA 6 Wheel tipper, Isuzu GIGA mining dump truck, Japan ISUZU Rear dumper trucks, Brand new Isuzu dump trucks ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.
Powerstar ISUZU dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.
Key Features:
---- ISUZU GIGA heavy duty chassis, perfect performance
---- 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Virious types of tipper body are available.
Specifications:
|
Description |
Isuzu GIGA mining Dumper |
|
|
Item |
Powerstar dump truck |
|
|
Model |
Isuzu GIGA |
|
|
Cabin |
Two air-suspended seats and one bed |
|
|
whole vehicle main
|
Overall dimensions (L*W*H)mm |
9400*2680*3650 mm |
|
Dimensions of dump body (L*W*H)mm |
6000*2400*1500 mm |
|
|
Driving type |
Left hand drive 6×4 |
|
|
Wheel base |
4565+1370 |
|
|
Weight data |
Gross weight (kg) |
34,000 |
|
Kerb weight(kg) |
15,440 |
|
|
Person in cab (persons) |
3 |
|
|
whole vehicle main |
Max.speed(km/h) |
105 |
|
Max.slope of climb(%) |
25 |
|
|
Min.turning radius (m) |
7.5 |
|
|
Engine |
Engine model |
6WG1-TCG52 |
|
Engine type |
Vertical, water-cooled, six-stroke, |
|
|
Emission standard |
Euro 5,6 |
|
|
Displacement (L) |
15.681L |
|
|
Rated power (KW) |
420 hp |
|
|
Max torque (N.m/rpm) |
2060N.M |
|
|
Steering gear type |
Power steering |
|
|
Brake system |
Service brake and boosting type |
Air brake |
|
Parking brake |
Central drum brake |
|
|
Auxiliary brake |
Air brake |
|
|
Tyre size |
295/80R22.5 |
|
|
Electric system |
Rated voltage |
24V |
|
Battery |
100Ah |
|
|
Dump Performance |
Loading Capacity |
25 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 6mm |
|
|
Rear/Side are 8mm |
||
|
Control System |
Hydraulic |
|
|
Discharging System |
Middle lifting device |
|
|
Lifting Time |
Tipping 45 degree |
|
|
Lowering Time |
35 s |
|
|
Tailgate |
25 s |
|
|
Drop side |
Auto release |
|
|
Painting |
Detachable |
|
|
Color & Logo |
Two primers,and one final paint coating |
|
|
Loading Capacity |
According to wish |
|
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|

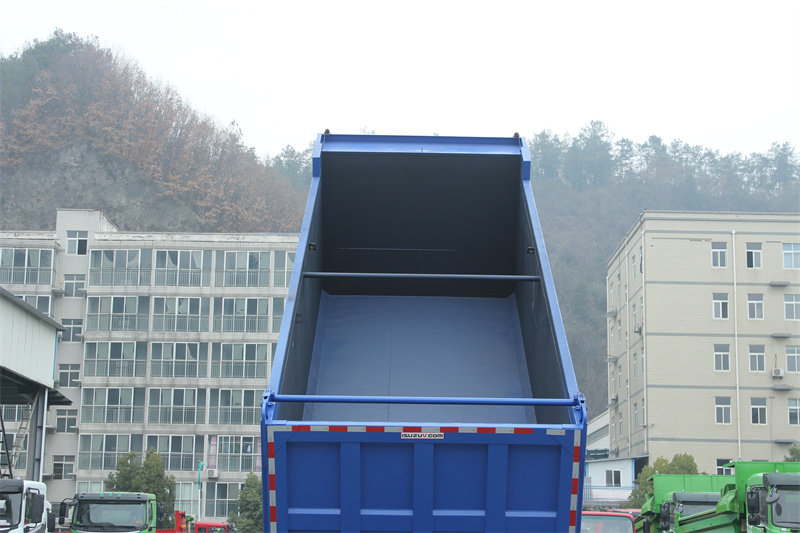

Using high-performance carbon steel and a large box on the Isuzu GIGA mining dumper has the following advantages:
1. Strength and durability: High-performance carbon steel has excellent strength and stiffness and can withstand high levels of pressure and impact. This allows the Isuzu GIGA mining Dumper to function properly in harsh mining conditions and have a longer service life.
2. Heavy load capacity: Due to the superior strength properties of high-performance carbon steel, the Isuzu GIGA mining Dumper is able to carry larger loads. The large box provides larger storage space and can load more ores, slag or other heavy materials, improving transportation efficiency and economy.
3. Anti-wear performance: Isuzu GIGA mining Dumper often faces sand, gravel, rocks and other abrasive materials in mining operations. The anti-wear properties of high-performance carbon steel can reduce damage caused by wear and maintain the integrity of the truck. Durability.
4. Safety performance: High-performance carbon steel has excellent impact resistance, which can effectively absorb impact and reduce damage caused by accidents. The large box provides a more stable loading space to avoid sliding and overturning of ore or other materials, ensuring the safety of transportation.
