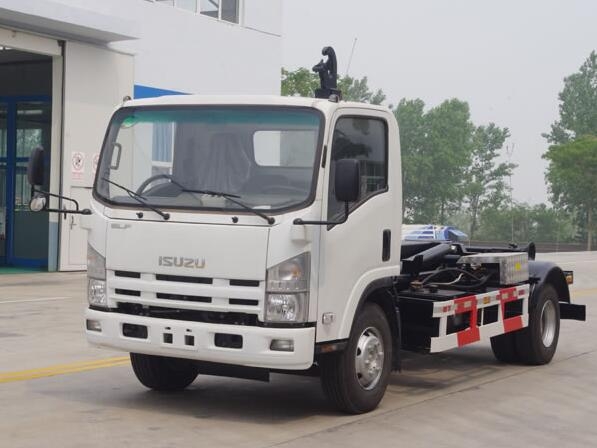

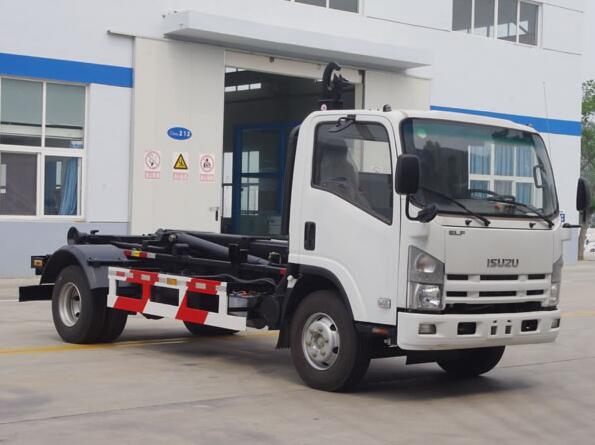

Hook Loader Garbage Truck Isuzu 8 Tons
Applications:

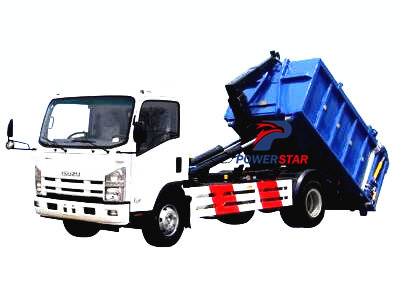

Hook loader garbage truck (also called Hooklift garbage truck, Hook arm garbage truck, Hook lifting garbage truck,Detachable container garbage truck, Hydraulic hook loader trucks) has a domestic well-know brand hook arm which is installed the special truck chassis. It is also equipped with a superpower diesel engine. This type truck lifting capacity from 1.5 tons up to 20tons, according to optional.
Hook lift garbage truck mady by Powerstar Trucks is necessary for city sanitation department, waste processing company, big factory.... This type arm roll garbage truck has two holes on one side of its cabinet. After the rubbish loading is finished, the holes will be automatically closed by the covers equipped. In addition, cabinet of this sanitary vehicle is removable.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Main hydraulic coomponents of our hooklift truck are imported from well-known company.
---- Strong, durable, perfect performance
Specifications:
|
Hook Lift garbage truck Isuzu (5 tons) |
||
|
General |
Vehicle Brand |
POWERSTAR |
|
Chassis Brand |
ISUZU ELF |
|
|
Overall Dimension |
6080 * 2300 * 2860 mm |
|
|
GVW / Kerb Weight |
10,000kg / 4,820kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU |
|
|
Power |
190 HP (139 KW) |
|
|
Displacement |
5199 ml |
|
|
Emission Standard |
Euro 4 or 5 |
|
|
Chassis |
Drive Type |
4X2, (left hand drive) |
|
Transmission |
6 speed levers with 1
reverse |
|
|
Wheelbase/No. of axle |
3815 mm / 2 |
|
|
Tire Specification |
8.25-16 |
|
|
Tire Number |
6 tires and 1 spare tire |
|
|
Max Speed |
90 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Lift Capacity |
8 Tons |
|
Max dump angle |
51 |
|
|
Garbage bin volume |
3 cubic meters |
|
|
Hydraulic system pressure |
16 MPa |
|
|
Garbage bin material |
Carbon steel |
|
|
Control |
Hydraulic Manual |
|
|
Discharge method |
Rear dumping |
|
|
All standard accessories: Warning
lights, music alarm, basic tool kit, English manual…… |
||
|
Optional |
** Backup alarm can be equipped.
** Other vacuum pump can be equipped. ** Operation language can be English or Appointed language. |
|
