ISUZU 100P skip loader dumper placer for sale
Order(MOQ):
1
High Quality ISUZU Skip Bin Truck For Gambia
Japan Isuzu 5cbm 5tons container removable garbage truck for sale
ISUZU 6CBM Skip Bin Loader (also called swing arm refuse collection truck Isuzu, skip bin truck, skip lorry, dumper placer, Skip Bin lifter, isuzu skip bin loader truck) is is applicable for craneing and transporting garbage bin. It is featured with large capacity garbage bin, high quality hydraulic parts, easy operation, maintenance and anti-secondary pollution. Then mechanization of cleaning and transporting garbage can be achieved.
|
100% custom-made
|
|
3 cbm to 22 cbm available
|
|
Short delivery time 7~30 days
|
|
Easy operation & Easy maintenance
|
|
15 years spare parts & Technical support
|
PowerStar Trucks Industry Co., Limited |
|||
Product Name |
ISUZU NKR/100P Skip Bin Lifter |
||
Vehicle Brand Series |
ISUZU ELF |
||
Vehicle Model |
PST5070ZXX |
||
Production Time |
25 days |
||
Chassis parameters |
Overall dimensions |
mm |
5300*2000*2500 |
Gross weight |
kg |
7,300 |
|
Kerb weight |
3,200 |
||
Wheelbase |
mm |
3360 |
|
Driving type |
4*2 |
||
Chassis model |
ISUZU ELF Light-duty |
||
Tire size |
7.00-16 |
||
Number of Tires |
6+1 |
||
Passengers in cab |
2 |
||
Engine |
Engine model |
4JB1 |
|
Type of fuel |
Diesel |
||
Power |
98HP |
||
Max speed |
Km/h |
110 |
|
Emission standard |
EURO 4,5,6 |
||
Hook lift body performance |
Container capacity |
6CBM container |
|
Loading capacity |
2~3 Tons |
||
Container material |
Anti-corrosive Steel |
||
Control system |
Electric control box in cabin |
||

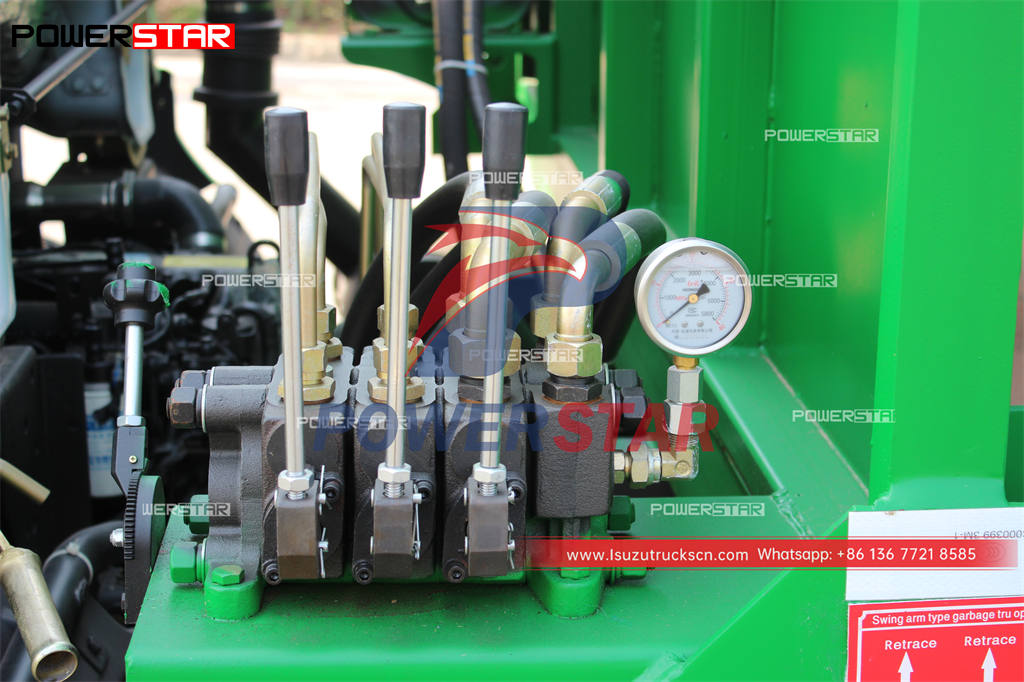

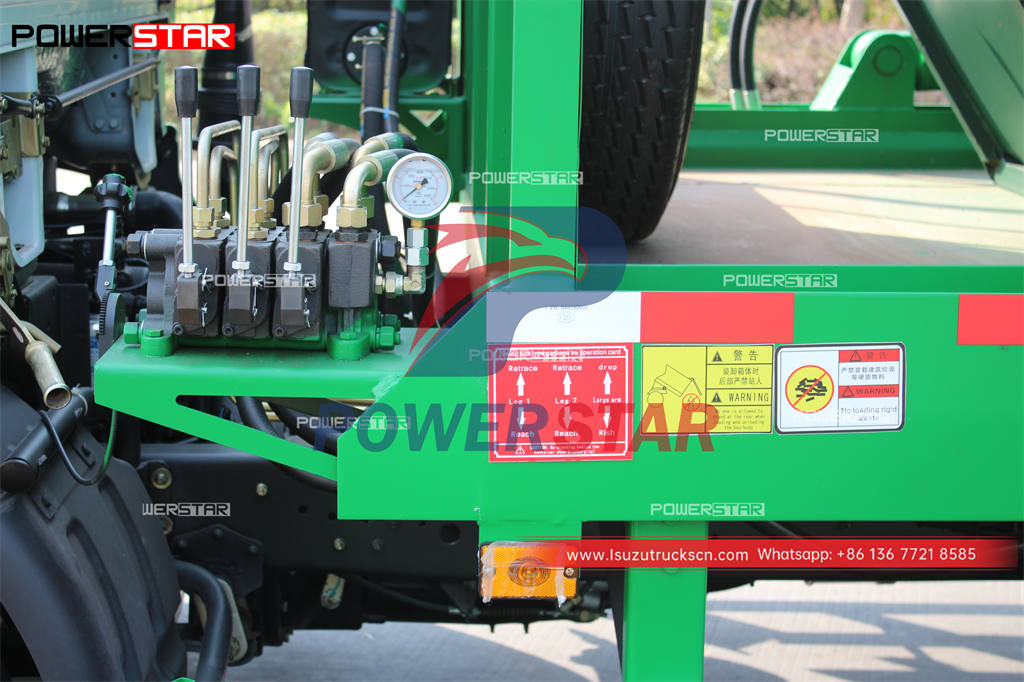

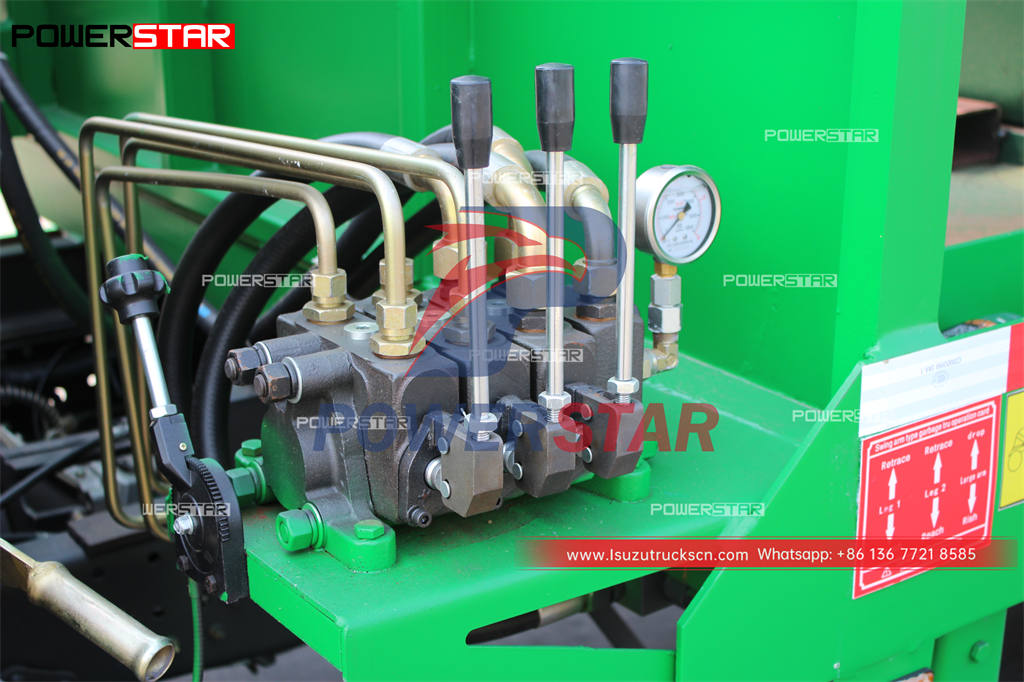

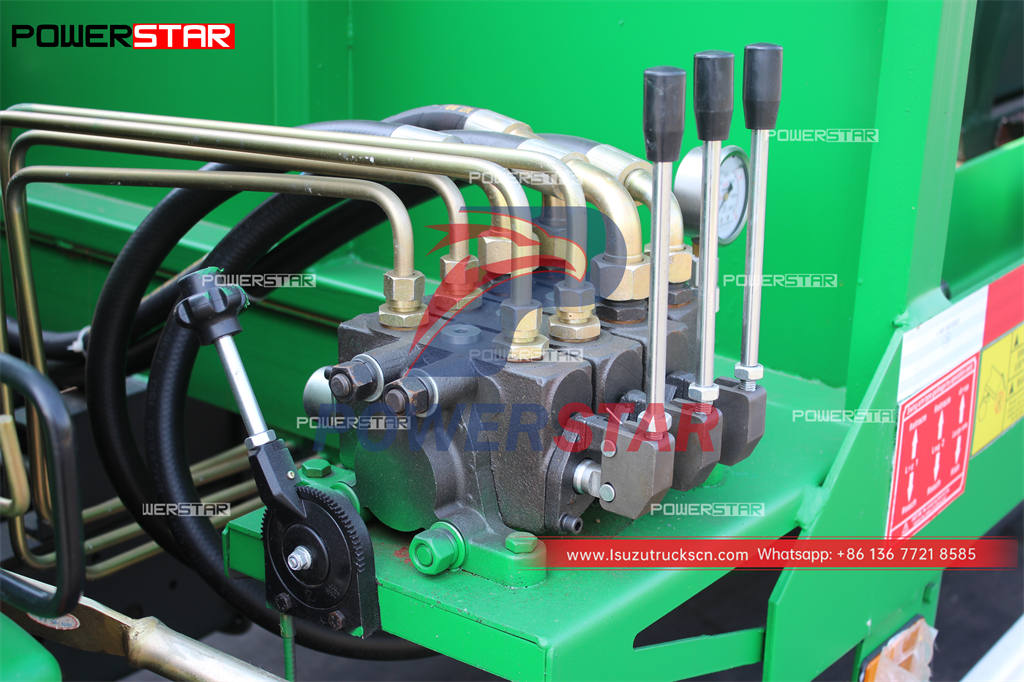

Hydraulic control valve at rear |
|||

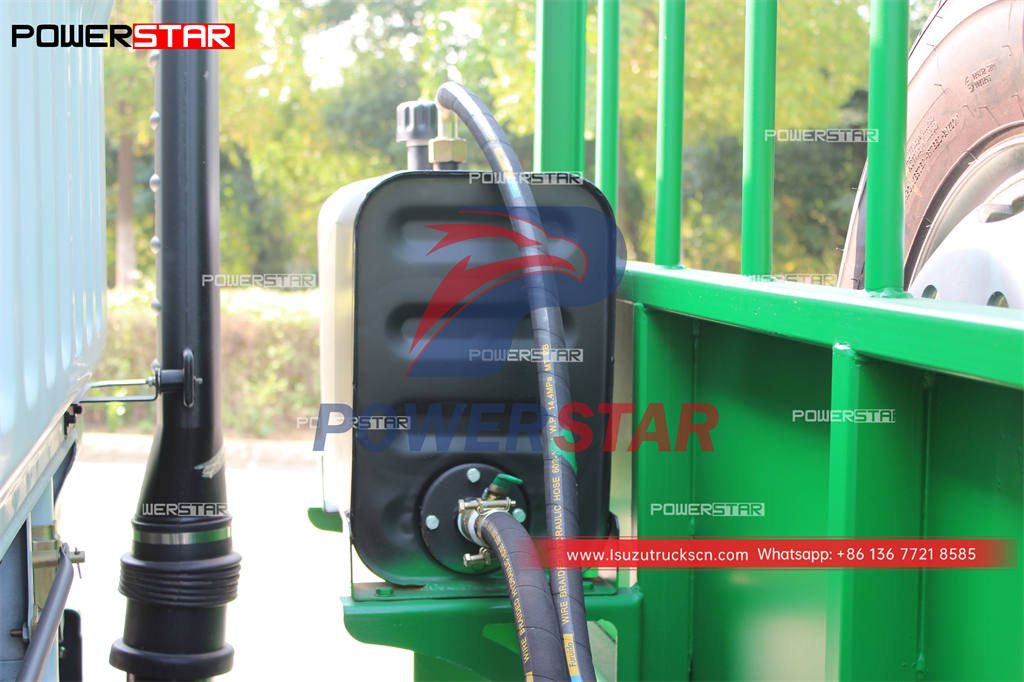

Hydraulic system |
China famous cylinders and valves |
||
Discharging system |

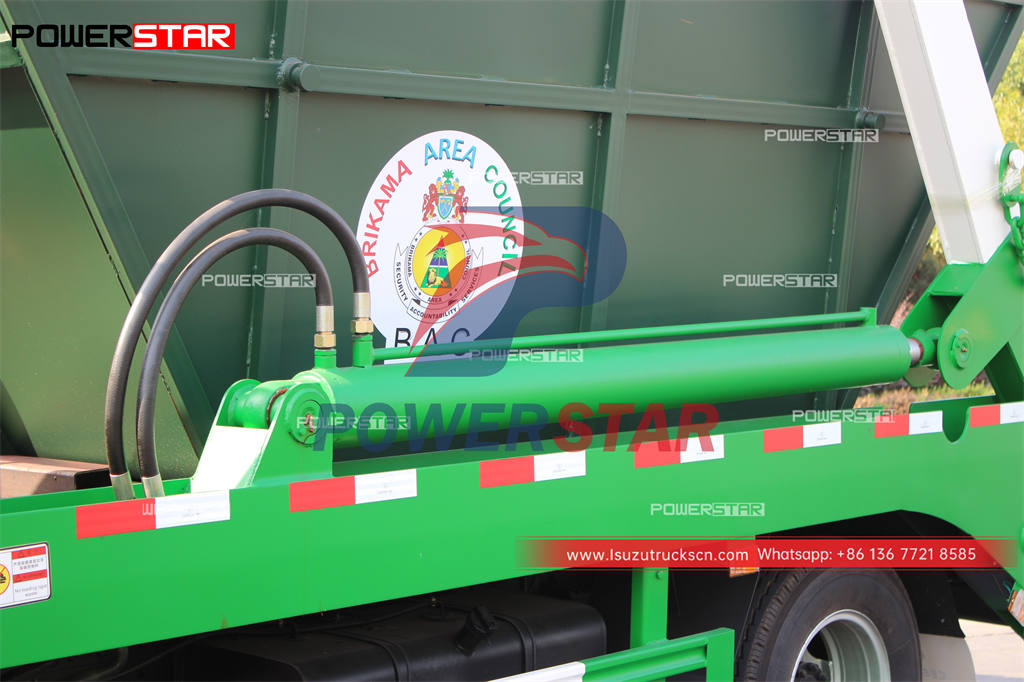

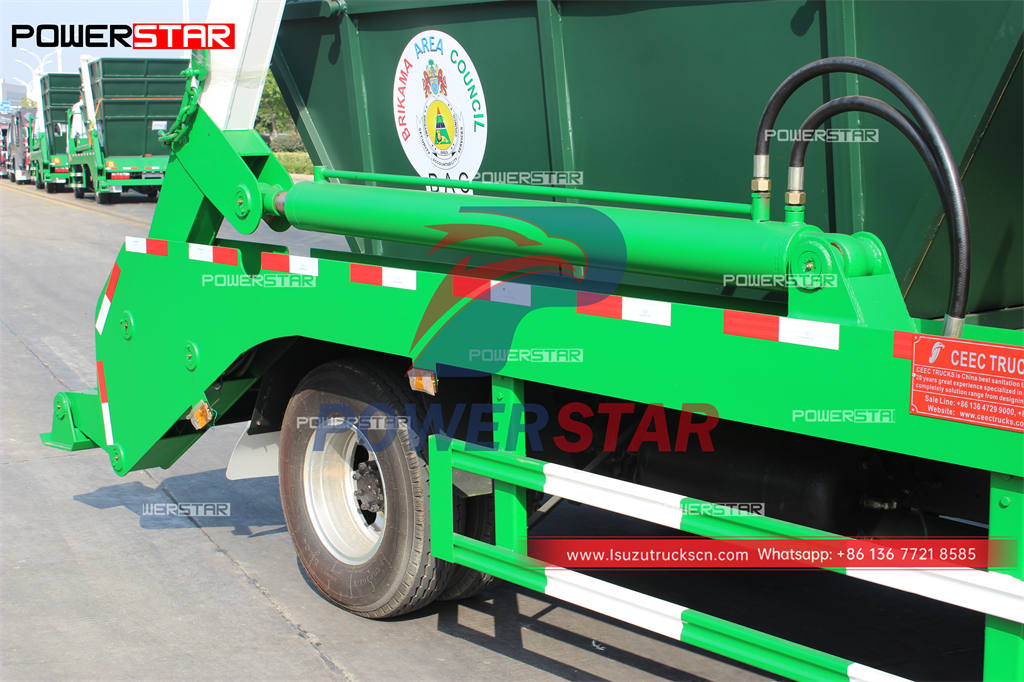

Double hydraulic cylinders |
||
Self-discharging angle |
≥45° |
||
Discharging time |
≤45 s |
||
Lifting time |
≤45 s |
||
Control panel |
English |
||
Drop side |
Detachable |
||
Painting |
Two primers, and one final paint coating |
||
Color & LOGO |
According to wish |
||
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
Optional equipment |
1, Remote Control Box 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel container |
