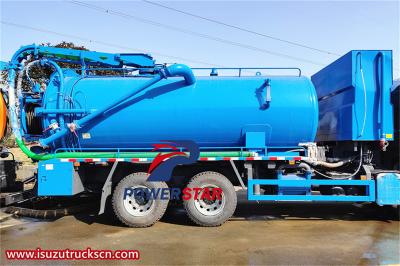

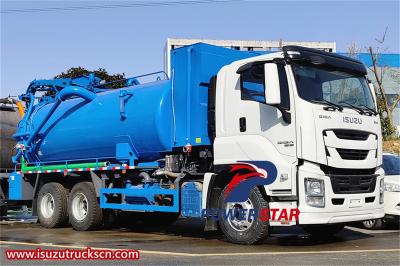

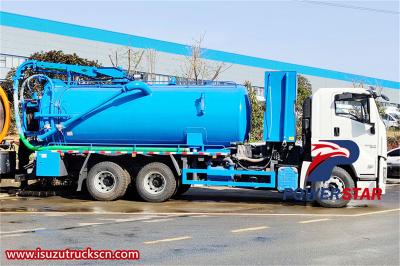

Isuzu 20 cbm Hydro Jetting Drain Cleaning Truck
The Isuzu 20cbm high pressure jetting drain cleaning truck is a powerful and versatile machine designed to tackle the tough tasks of drain cleaning and sewer maintenance. Its combination of advanced technology, durable construction and comprehensive after-sales service make it an ideal choice for municipalities, utilities and contractors seeking reliable, efficient cleaning solutions.
Work capacity:
20cbmTruck model:
PT5350GWXEngine power:
420HPEngine type:
6WG1-TCG60Axle drive:
6x4,LHDGear box:
Fast 12-speed,manualRemarks:
Isuzu GIGA 6x4 combined drain jetter truck,large capacity, efficient cleaning.
The Isuzu 20cbm Hydro Jetting Drain Cleaning Truck also called Isuzu GIGA drain jetter truck,Isuzu GIGA combined sewage jetting truck, Isuzu GIGA combined sewer cleaning vehicle,Isuzu GIGA 6x4 combined dredging vehicle,Isuzu 6x4 20cbm sewer dredging vehicle,Isuzu heavy combined sewer jetting truck,is a versatile and powerful machine designed specifically for tackling the challenging task of drain cleaning and sewer maintenance. This Isuzu 20cbm hydro jetting drain lleaning truck combines the durability and reliability of Isuzu's engineering expertise with the advanced technology required for efficient and effective cleaning of underground pipes and sewer systems.
Feature：
● Cylinder vacuum tank can be lifted hydraulically to 40-45 degrees with a rear door that opens and closes hydraulically.
● Uses EU vacuum pump or top Chinese brand double vacuum pumps for powerful and efficient performance.
● Pump can be operated by a hydraulic motor or auxiliary engine.
● Equipped with an overfill system with a music horn to prevent damage from sewage water entering the vacuum pump when the tank is full.
● Durable, long service life, and aesthetically pleasing design.
Isuzu combined dredging vehicle has the function of automatically reaching blocked areas of the sewer that cannot be reached by human power, forming high-pressure flushing, and combining sewage suction to reduce the buffering effect of the liquid surface on the high-pressure flushing, thereby better achieving the purpose of dredging. The high-pressure cleaning pipe is equipped with a special milling head to clear obstacles such as tree roots in the sewer, thereby smoothly reaching the blocked area.
After the vehicle absorbs the accumulated water in the sewer through the sewage suction pipe system, the on-board winch places the high-pressure pipe at a uniform speed. When the high-pressure flushing pipe is working, the rotating force causes the high-pressure flushing pipe to enter the blocked area of the sewer that cannot be reached by manpower, and perform high-pressure flushing operations. Through the sewage suction pipe, the coverage of water and sewage on the blocked area is minimized, the best flushing effect is achieved, and the purpose of unblocking the sewer is achieved.
|
Isuzu GIGA 20 cbm hydro jetting drain cleaning truck |
|||
|
General
|
Vehicle Brand |
POWERSTAR |
|
|
Vehicle Model |
PT5350GWX |
||
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
9980 * 2560 * 3650 mm |
||
|
GVW / Kerb Weight |
35,000 kg / 12,000 kg |
||
|
Axle loads |
7000/26000Kgs (Two-Axle Group) |
||
|
Cab |
Cab Capacity |
2 persons seats with 1 sleeper |
|
|
Air Conditioner |
Air conditioner is optional |
||
|
Engine |
Fuel Type |
Diesel, 6 cylinders in-line |
|
|
Brand |
Isuzu |
||
|
Model |
6WG1-TCG60 |
||
|
Power |
420HP(309 KW) |
||
|
Displacement |
15681 ml |
||
|
Emission Standard |
Euro VI |
||
|
Chassis |
Drive Type |
6x4, left hand drive |
|
|
Transmission |
FAST 12-speed,manual |
||
|
Wheelbase |
4565+1370 mm |
||
|
Number of axle |
3 |
||
|
Tyre Specification |
9.00 - 20 |
||
|
Tyre Number |
10 tyres and 1 spare tyre |
||
|
Max Speed |
95 km/h |
||
|
Paint |
Metallic paint |
||
|
Superstructure |
Tank |
Tank Capacity |
20,000 Litres |
|
Tank Material |
Carbon steel |
||
|

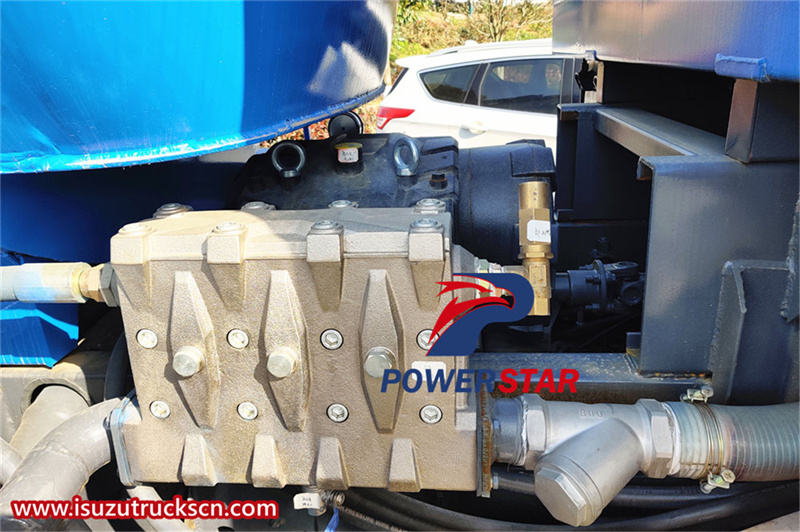

High Pressure Pump |
Italy Imported brand o/ 16Mpa |
||
|
Suction Time |
600s |
||
|
Tank lifting angle |
45 degree |
||
|
High Pressure Hose |
60m |
||
|
High flushing height |
≥15m |
||
|
Suction Head |
7m |
||
|
Nozzles |
A cluster of nozzles included |
||
|
Vacuum Pump |
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. |
||
|
Rear door can be hydraulic opened for complete discharge of solid stuff. |
|||
|
All standard accessories: manhole, tool kit, English manual..... |
|||
|
Optional |
** Tank material could be stainless steel. |
||
The Isuzu 20 cbm Hydro Jetting Drain Cleaning truck stands out as a versatile and powerful vehicle designed to tackle various drain cleaning tasks efficiently. With a focus on productivity and reliability, this truck combines Isuzu's renowned craftsmanship with cutting-edge technology to provide a robust solution for cleaning and maintaining drainage systems.
The Isuzu 20cbm High Pressure Jetting Drain Cleaning Truck has a tank capacity of 20 cubic meters, which is sufficient to hold the water and cleaning solutions required for a variety of cleaning operations. The truck is equipped with a high-pressure water jet system that can spray powerful streams of water at high speeds to break up and remove the most stubborn blockages and accumulations within the pipes.The high-pressure water jets generated by this system provide a thorough cleaning process, ensuring the removal of stubborn obstructions and residue within the drainage system. This technology enables precise and efficient cleaning, enhancing the truck's overall performance.
The chassis configuration of this vehicle is 6x4 drive, which ensures stability and traction even on rough terrain or uneven roads. Its gross vehicle weight of 26 tons makes it a heavy-duty machine suitable for demanding applications. The diesel engine, with 420 horsepower, provides ample power to drive the truck and operate the cleaning equipment.

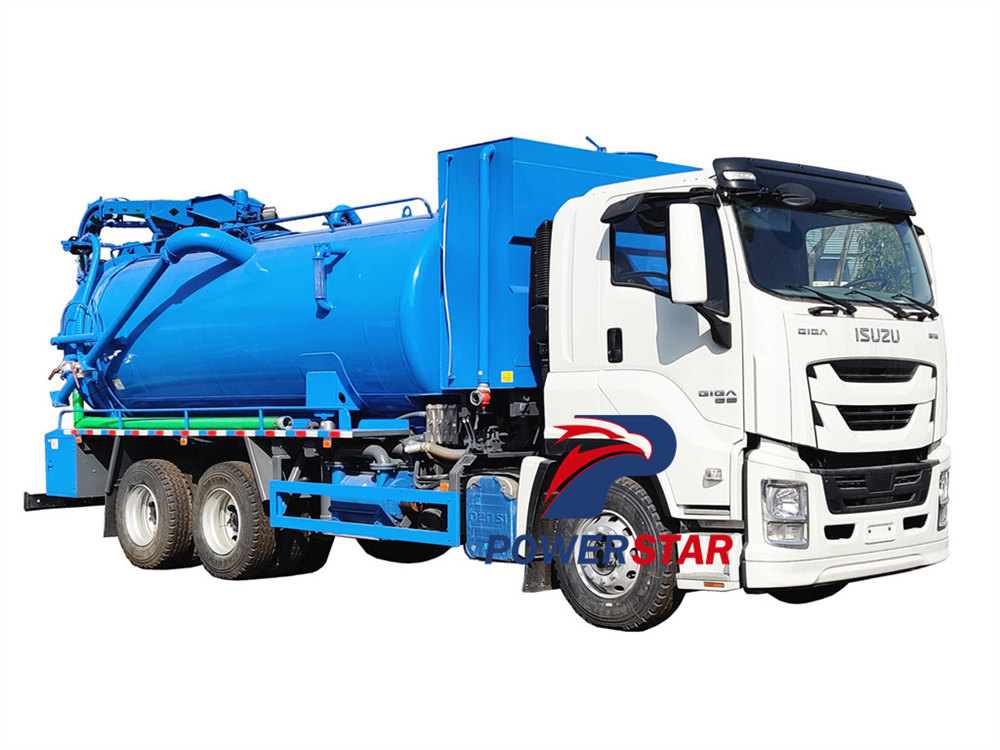

Isuzu GIGA combined sewage jetting truck
One of the key features of the Isuzu 20cbm High Pressure Jetting Drain Cleaning Truck is its dump system, which allows the water tank to be emptied easily and efficiently after each cleaning job. The system requires no human intervention, saving time and effort while reducing the risk of injury.
The truck is also equipped with a water-recirculating vacuum pump, which facilitates the suction and removal of sewage, sludge and other waste from pipes and drains. The pump is designed to effectively handle large amounts of liquid and solid waste, ensuring that the cleaning operation is thorough and complete.
Isuzu GIGA drain jetter truck
The high-pressure water jetting system is at the heart of the truck's cleaning capabilities. The system uses a powerful stream of water to break up blockages and debris within pipes, restoring their flow capacity and reducing the risk of backflow and overflow. The water jet can be adjusted to different pressures and flow rates, allowing the operator to tailor the cleaning process to the specific needs of each job.This technology enables precise and efficient cleaning, enhancing the truck's overall performance.

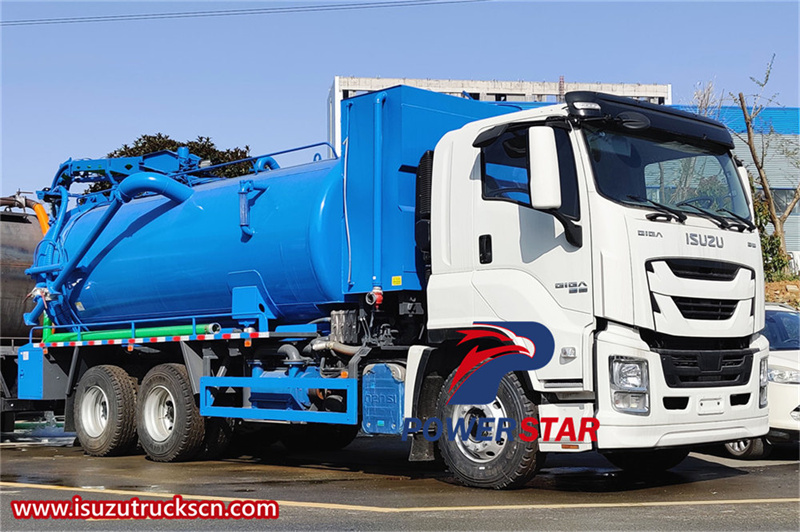

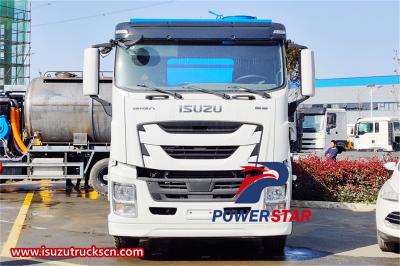

Isuzu GIGA combined sewer cleaning vehicle front view

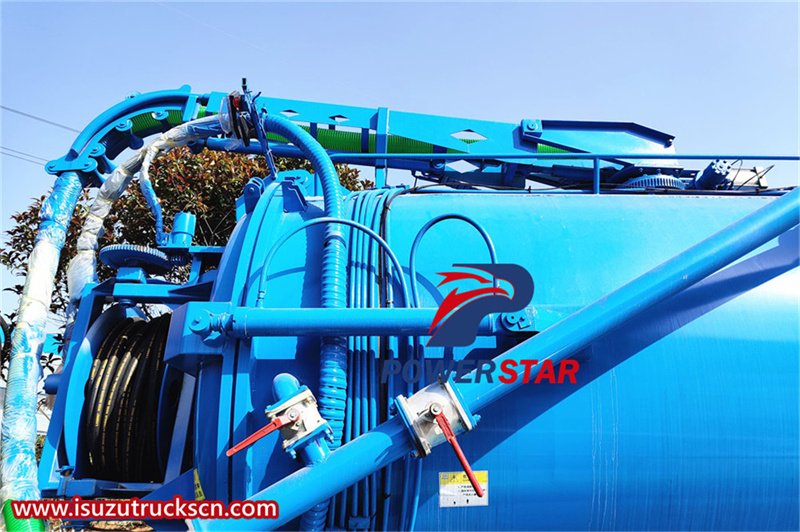

Isuzu GIGA combined sewer cleaning vehicle hydraulic cylinder

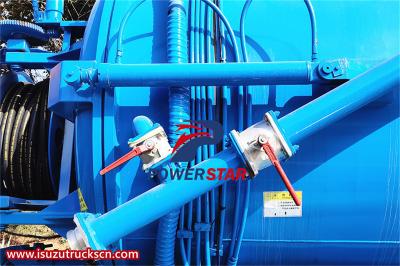

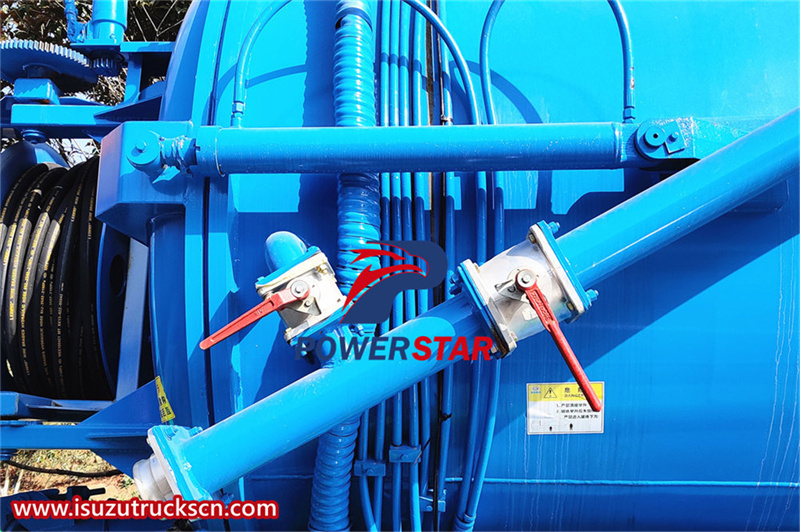

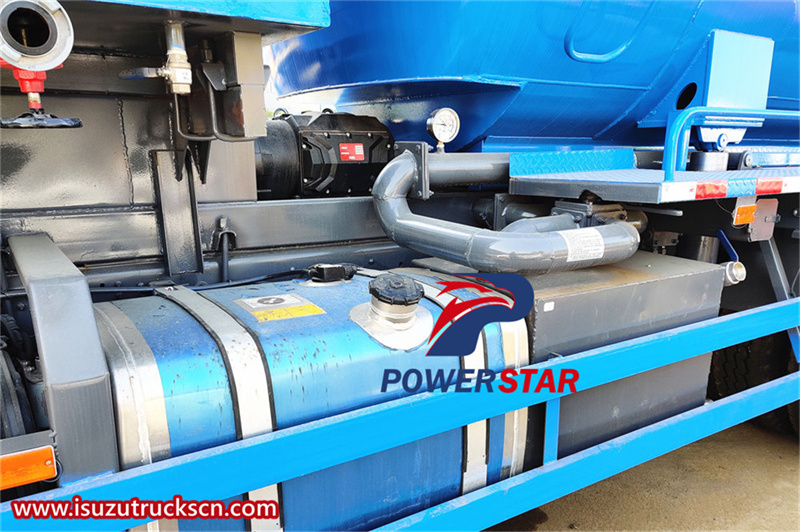

Isuzu GIGA 6x4 combined dredging vehicle pipeline

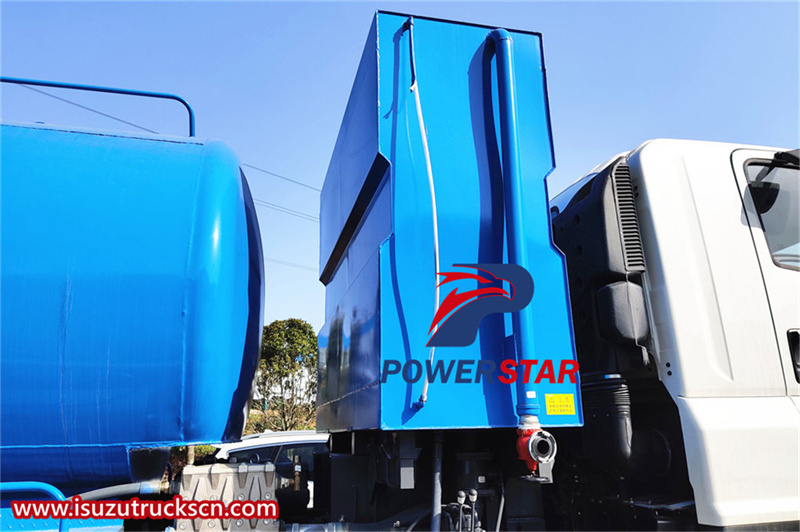

Isuzu 6x4 20cbm sewer dredging vehicle fresh water tank

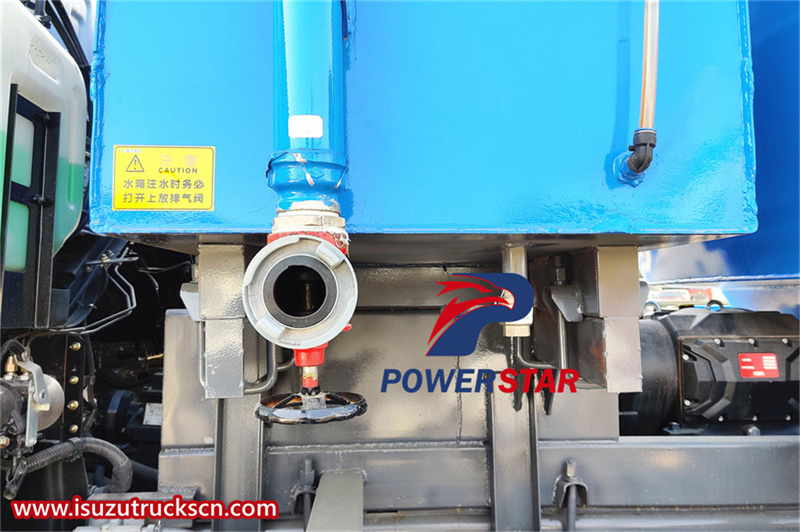

Isuzu heavy combined sewer jetting truck water inlet

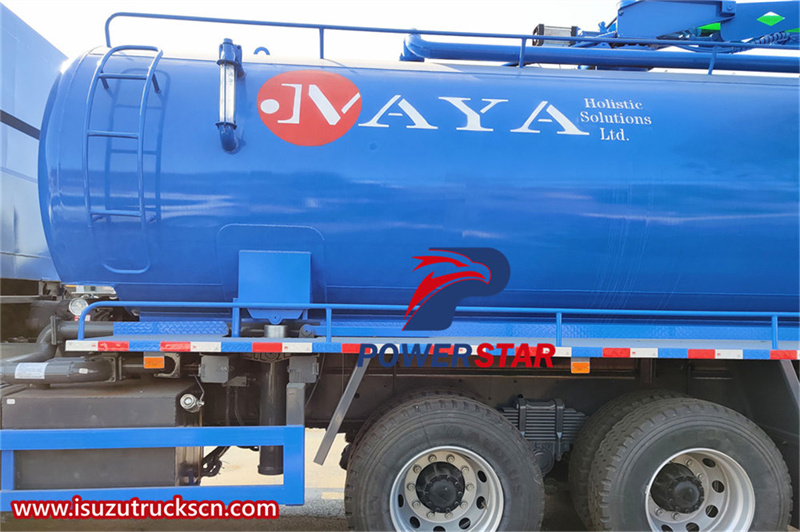

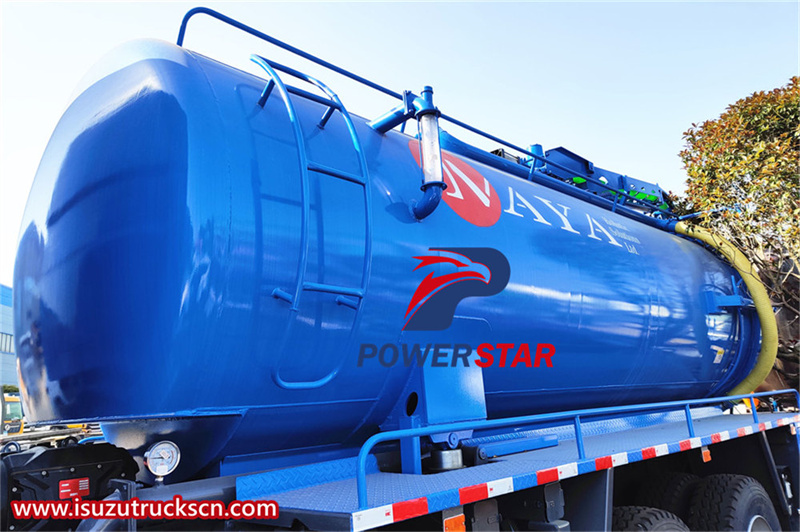

Isuzu 6x4 combined dredging vehicle ladder& view window
