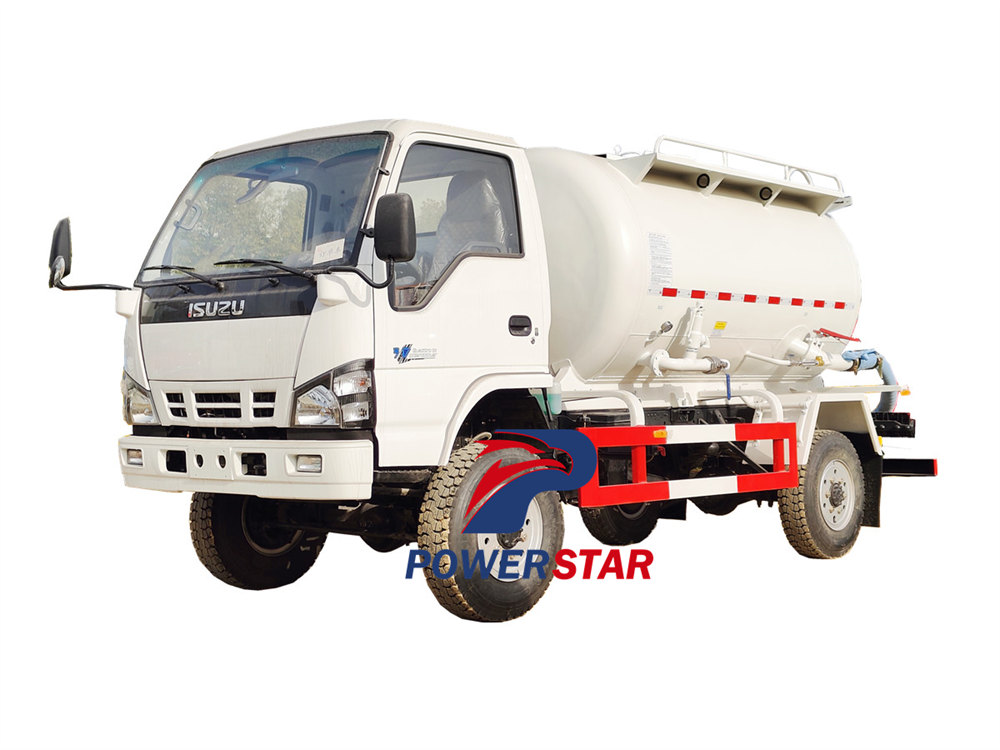

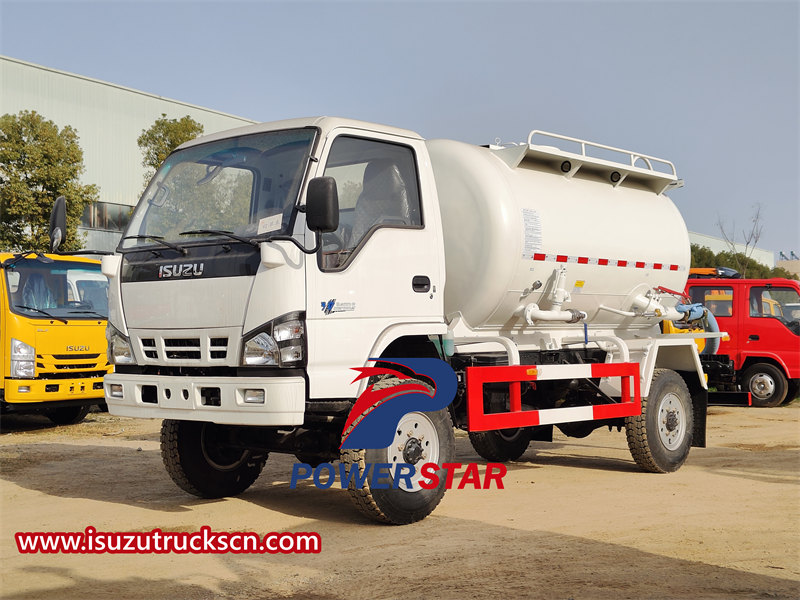

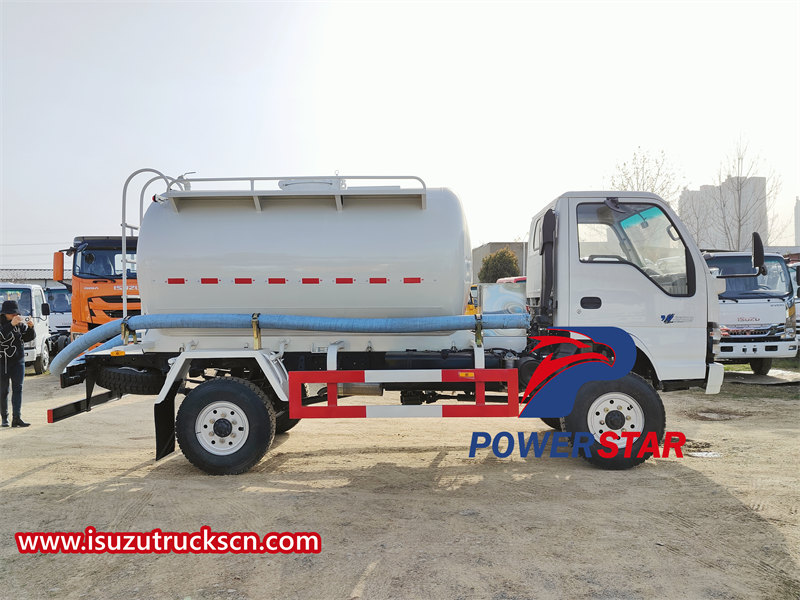

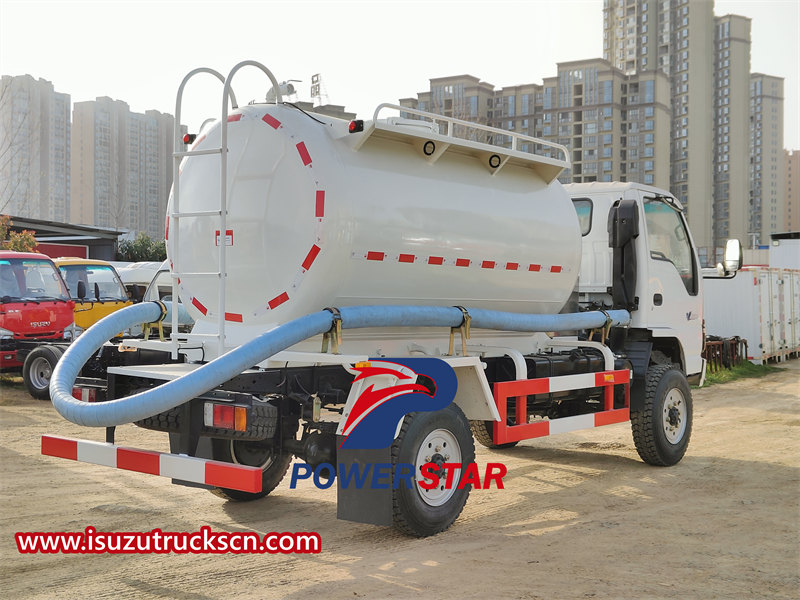

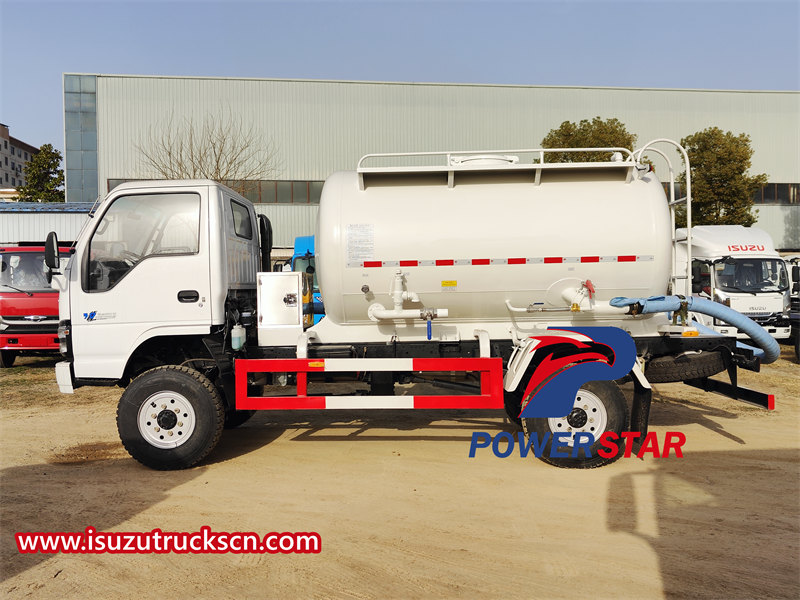

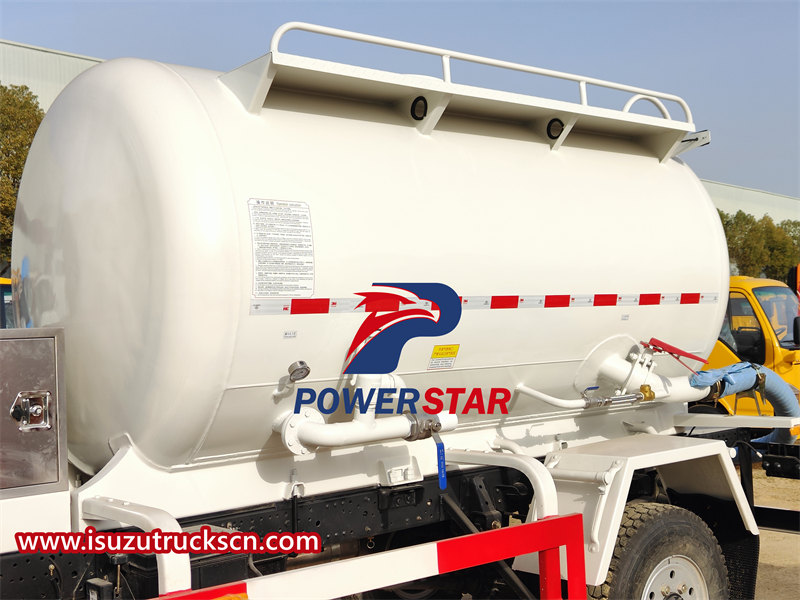

The ISUZU 4×4 vacuum tank truck mainly consists of a 4000L sewage storage tank, vacuum pump system and corresponding pipelines and control systems. Among them, the MORO PM70A vacuum pump is the core component of the sewage suction truck. It has a compact design and stable performance, and can provide sufficient suction force to ensure that the vehicle can efficiently complete the sewage extraction task under various working conditions.
Work capacity:
4000 LitersTruck model:
PT5070GXW4Engine power:
130 HPEngine type:
4KH1CN5HSAxle drive:
4×4Gear box:
MSB 5-speed, manualRemarks:
ISUZU 4×4 chassis, 4 tires, high quality vacuum system

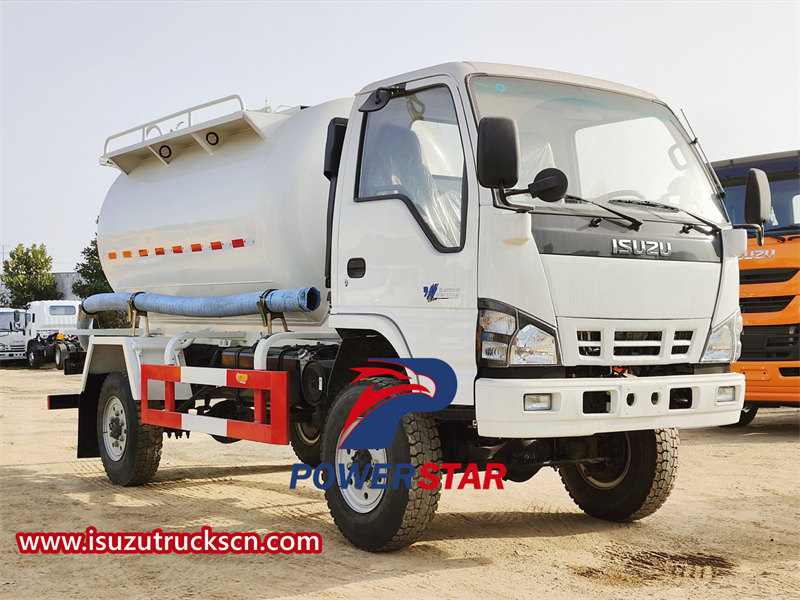

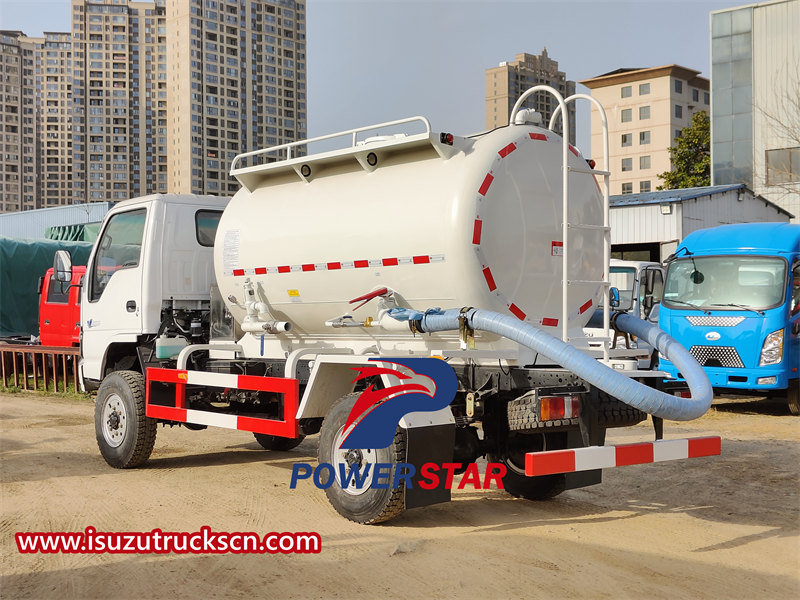

ISUZU 4×4 vacuum tank truck, also called ISUZU 4×4 sewage suction truck, ISUZU 4×4 septic tank truck, is mainly composed of chassis, sewage storage tank, vacuum pump, piping system, control system and other parts. The car adopts ISUZU 4×4 all-wheel drive chassis, which has good load-bearing capacity, stability and off-road capability. The sewage storage tank has reasonable design and moderate capacity, which can meet different operating needs. The vacuum pump is connected to the sewage storage tank through the pipeline system to form a complete sewage suction system. The control system is responsible for controlling the entire sewage suction process to ensure the safety and efficiency of the operation.
The work of ISUZU 4×4 vacuum truck mainly relies on the powerful suction power of MORO PM70A vacuum pump. During the operation, the vacuum pump draws out the air in the sewage storage tank through the pipeline system to form a negative pressure environment. At this time, the external sewage is sucked into the pipeline system under the action of negative pressure, and finally flows into the sewage storage tank. As the sewage suction operation proceeds, the sewage in the vacuum tank gradually increases, while the vacuum pump continues to work to maintain a negative pressure state to ensure the continuity and efficiency of the sewage suction process.
ISUZU 4×4 sewage suction trucks are mainly used for cleaning sewage in urban sewers, septic tanks, sewage treatment plants and other places. It can efficiently extract and transport various liquid and semi-solid wastes, which is of great significance for maintaining urban environmental sanitation and preventing sewage pollution. In addition, the vehicle can also be used for emergency response in emergencies, such as water extraction after floods.
Product Specifications
|
ISUZU 4m3 Sewage Suction Vacuum Tank Truck |
||
|
General |
Chassis Brand |
ISUZU |
|
Overall Dimension |
6000x2000x2710mm |
|
|
GWW Kerb Weight |
7,300 kg |
|
|
Kerb Weight |
3,800 kg |
|
|

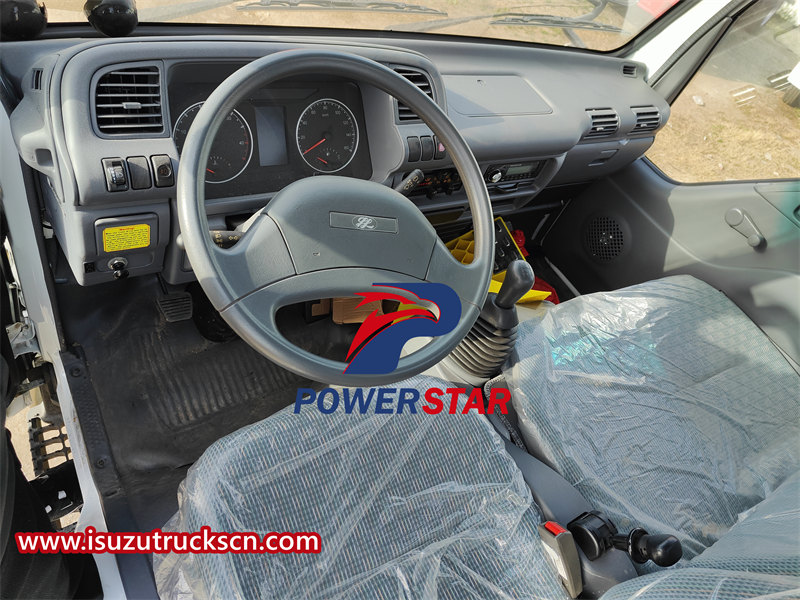

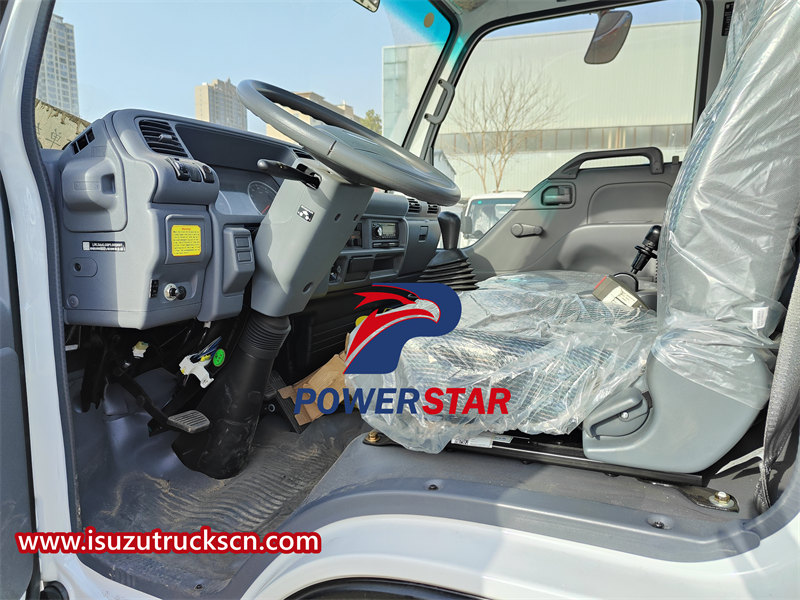

Cab |
Cab Capacity |
2 persons allowed |
|
Air Conditioner |
Air conditioner equipped |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU, 4KH1CN5HS |
|
|
Power |
130HP (96KW) |
|
|
Displacement |
2999ml |
|
|
Emission Standard |
Euro V |
|
|
Chassis |
DriveType |
4X4, left hand drive |
|
Transmission |
ISUZU MSB, Manual, 5-Forward & 1-Reverse |
|
|
Wheelbase/No.of axle |
3360mm / 2 |
|
|
Tyre Specification |
8.25R16 |
|
|
Tyre Number |
4 tyres and 1 spare tyre |
|
|
Max Speed |
100km/h |
|
|
Paint |
Metalic paint |
|
|
Super structure |

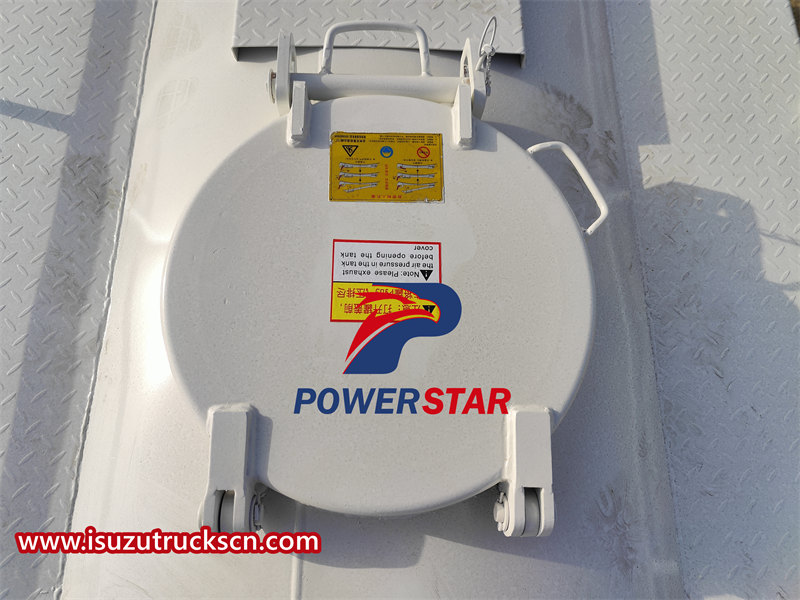

Vacuum Tank Capacity |
4000 L |
|
Tank Material |
Carbon steel, 6mm thickness |
|
|
Suction Head |
7m |
|
|
Vacuum Pump |
High efficiency, vacuum rate up to 93%, quick suction and discharge |
|
|
Suction Hose |
High quality, wire strength hose |
|
|

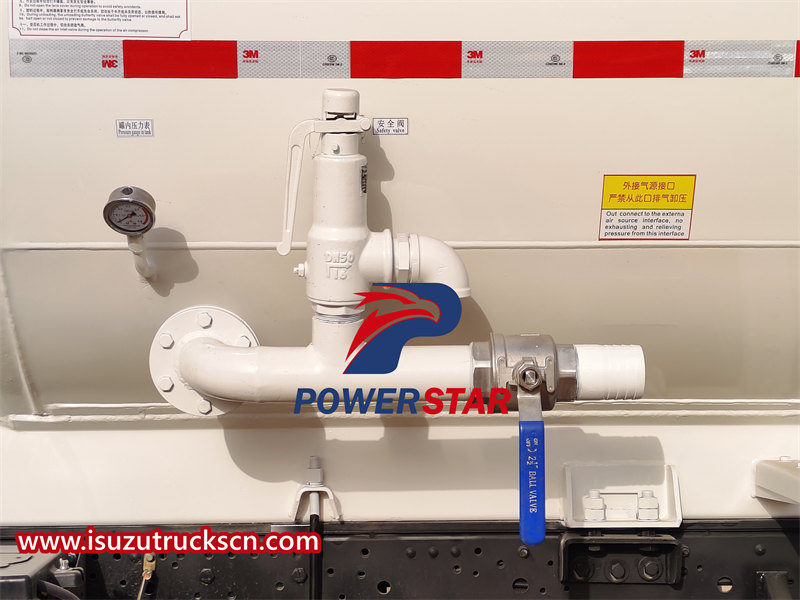

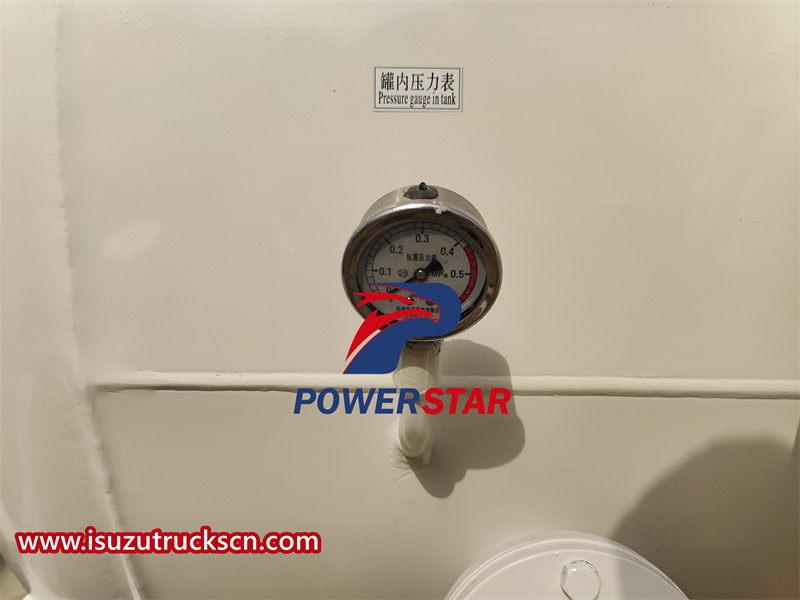

Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose. |
||
|

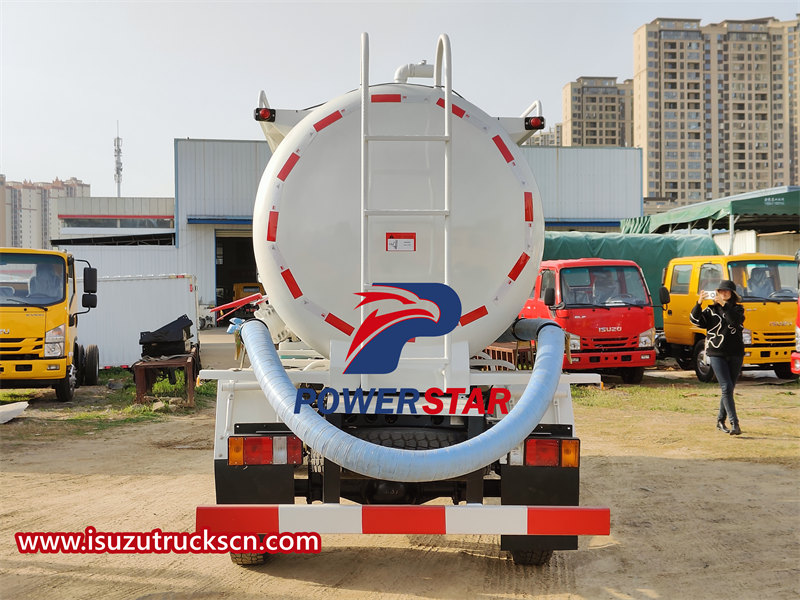

Rear door can be hydraulic opened for complete discharge of solid stuff. |
||
|
All other standard accessories: Tool kit, English manual. |
||
|
Optional |
1.Tank material could be mild steel, stainless steel |
|
Product Features
As a high-performance cleaning equipment, the Isuzu 4×4 4000L sewage suction truck has many remarkable features. Here is a detailed introduction to its main features:

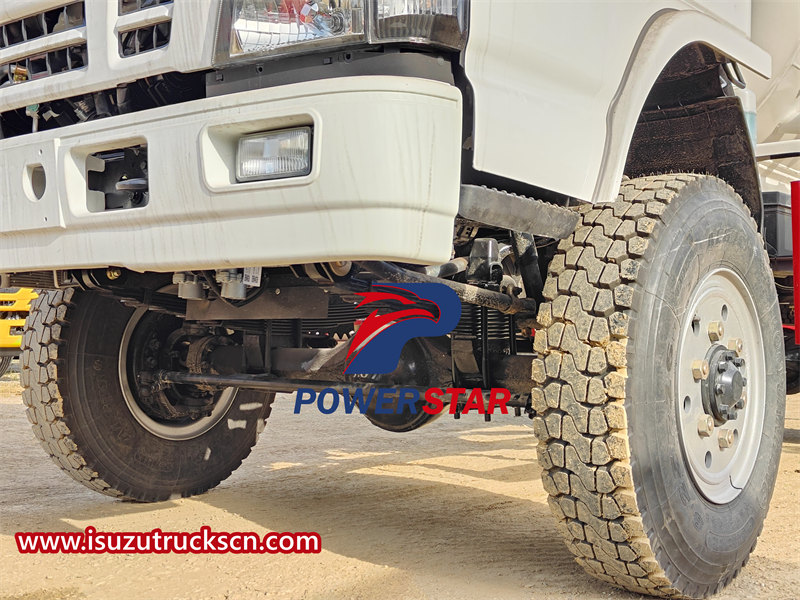

1. Powerful four-wheel drive capability: Isuzu 4×4 sewage suction truck has four-wheel drive capability, which allows it to perform well in complex terrain and harsh weather conditions. Whether it is on rugged mountain roads, muddy fields or slippery rain and snow roads, it can easily handle it to ensure efficient sewage suction operations.
2. Large-capacity sewage storage tank: The vehicle is equipped with a 4000L sewage storage tank, which has a large capacity and can complete more sewage suction tasks at one time, reducing the number of operations and improving work efficiency. At the same time, the sewage storage tank is reasonably designed and easy to clean and maintain, ensuring long-term use.
3. Efficient vacuum sewage suction system: Isuzu sewage suction trucks adopt advanced vacuum sewage suction technology, which can quickly and effectively absorb all kinds of sewage and dirt. Its powerful suction power can ensure that dirt is completely sucked away without leaving any dead corners, keeping the environment clean and hygienic.
4. High-quality materials and manufacturing process: The truck is made of high-quality materials and advanced manufacturing processes to ensure the durability and reliability of the vehicle. At the same time, its good sealing performance and anti-corrosion performance also ensure the stable operation of the sewage suction truck in various harsh environments.
5. Intelligent control system: Isuzu 4×4 vacuum tank truck is equipped with an intelligent control system that can monitor the working status of the vehicle in real time, such as vacuum degree, liquid level, etc. This makes operation more convenient.
6. Good adaptability: The Isuzu 4×4 septic tank truck is not only suitable for sewage suction operations on flat surfaces such as urban roads and squares, but can also easily cope with complex terrains such as mountainous areas and construction sites. Its strong adaptability and flexibility allow it to perform well in a variety of environments.
Product Application
Isuzu 4×4 vacuum sewage truck is suitable for a variety of scenarios with its unique design and excellent performance. The following are its main applicable scenarios:
1. Urban sanitation: The ISUZU 4×4 sewage tank truck's powerful sewage suction capacity and large-capacity sewage storage tank make it excellent in cleaning operations in urban roads, squares, parks and other public places. It can quickly clean up water, sewage and garbage on the ground and maintain the cleanliness and hygiene of the urban environment.
2. Industrial areas: Industrial areas often contain large amounts of wastewater and waste residue, which require efficient and professional cleaning equipment to handle. Isuzu all-wheel drive vacuum pump truck can cope with complex terrain and harsh environments, easily sucking away industrial wastewater, waste residue and oil stains, keeping industrial areas clean and safe.
3. Construction sites: On construction sites, mud, dust and standing water are common problems. With its four-wheel drive capability and powerful suction power, Isuzu 4×4 sewer sucker truck can quickly clean up sewage and mud on the construction site, keeping the construction site tidy and improving work efficiency.
4. Mountainous and rural areas: In mountainous and rural areas, road conditions may be harsh, but cleaning is equally important. The four-wheel drive function of the Isuzu 4×4 sewage tank truck enables it to easily cope with rugged mountain roads and muddy fields and complete cleaning tasks.
5. Emergency rescue: Isuzu 4×4 sewer suction truck can also play an important role in natural disasters or other emergencies. It can quickly arrive at the scene to carry out emergency cleaning and sewage treatment work, providing strong support for rescue efforts.
