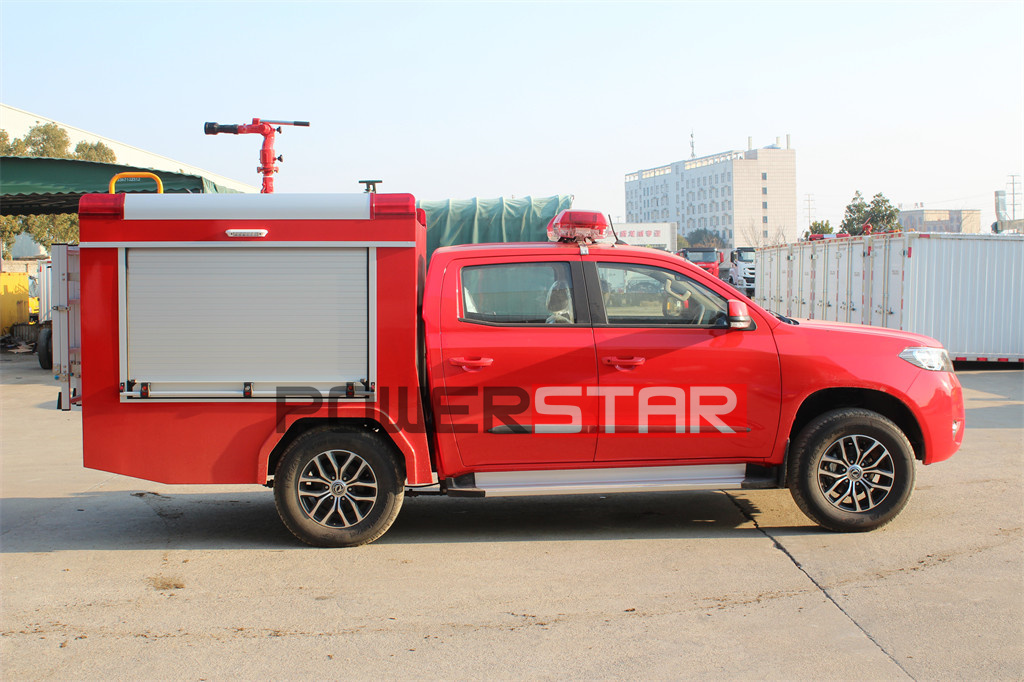

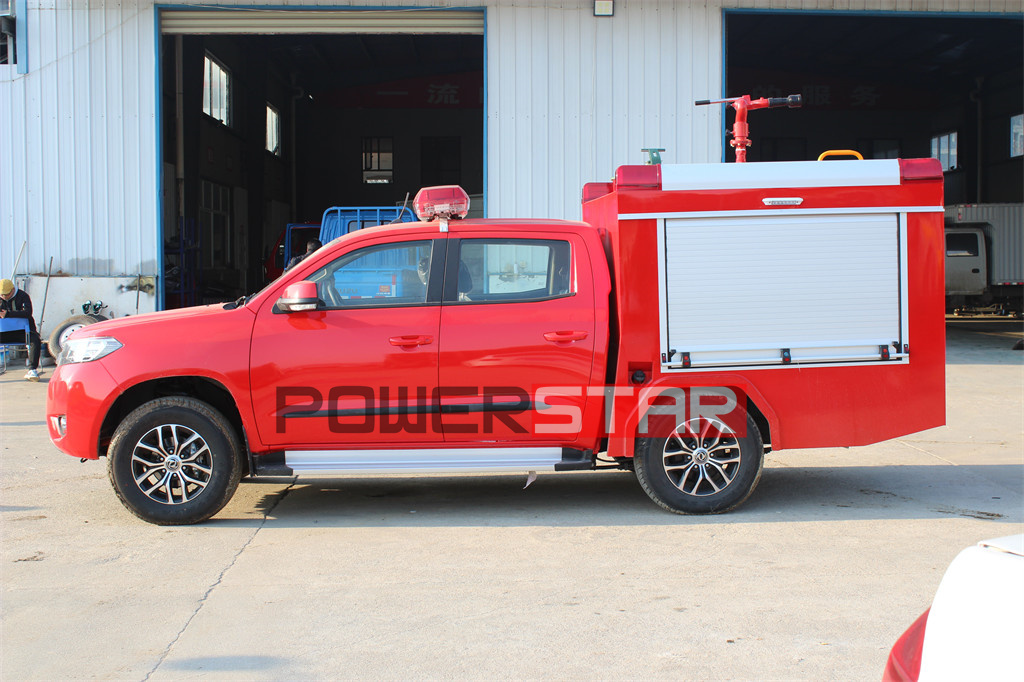

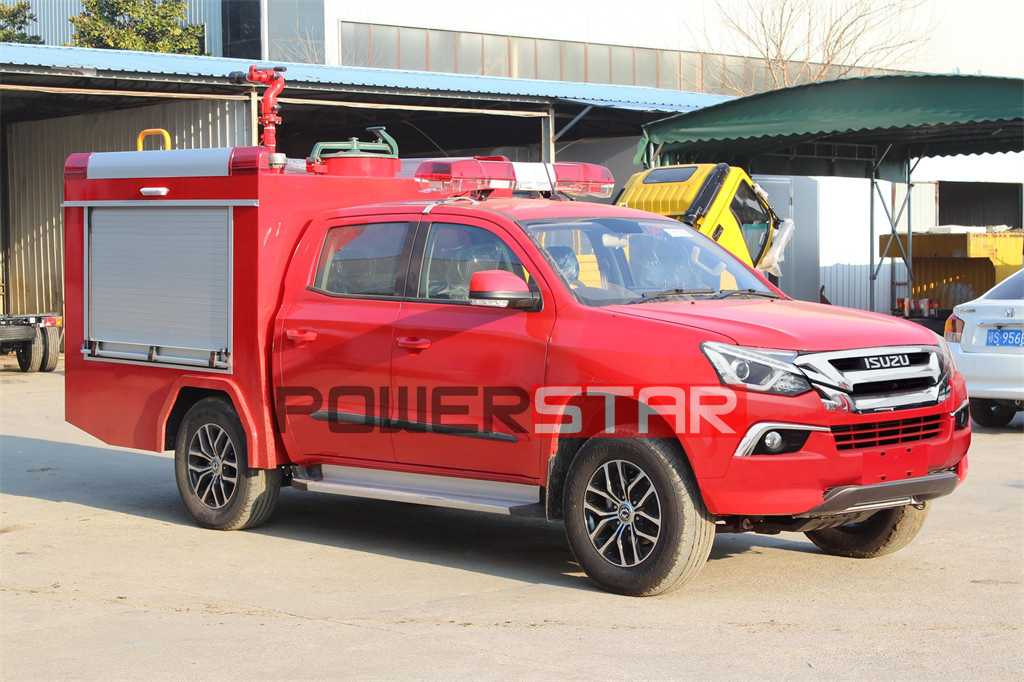

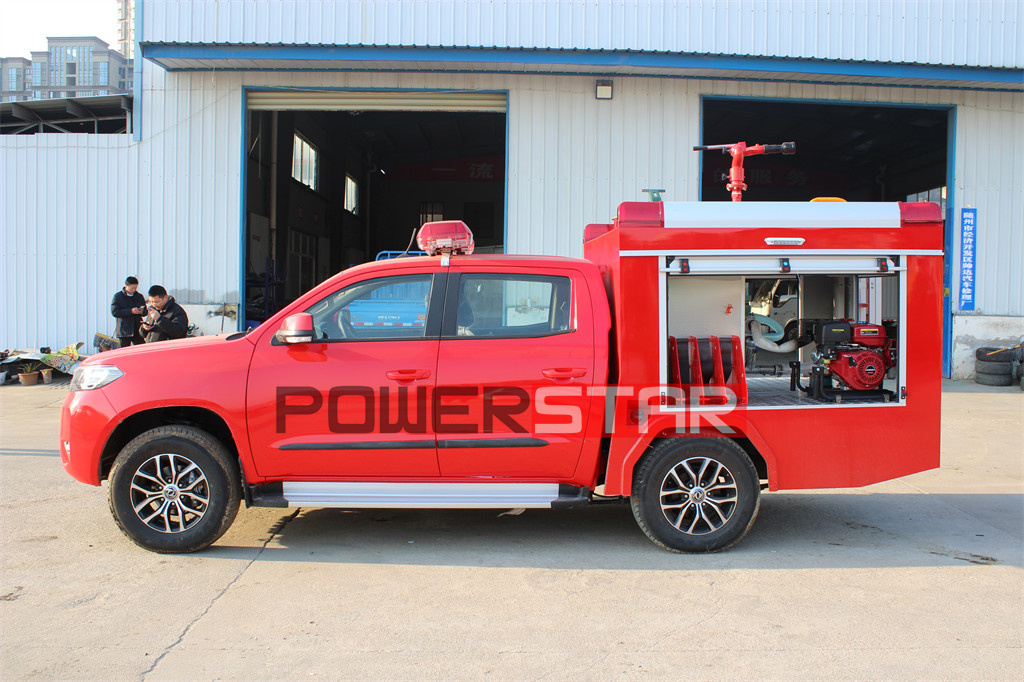

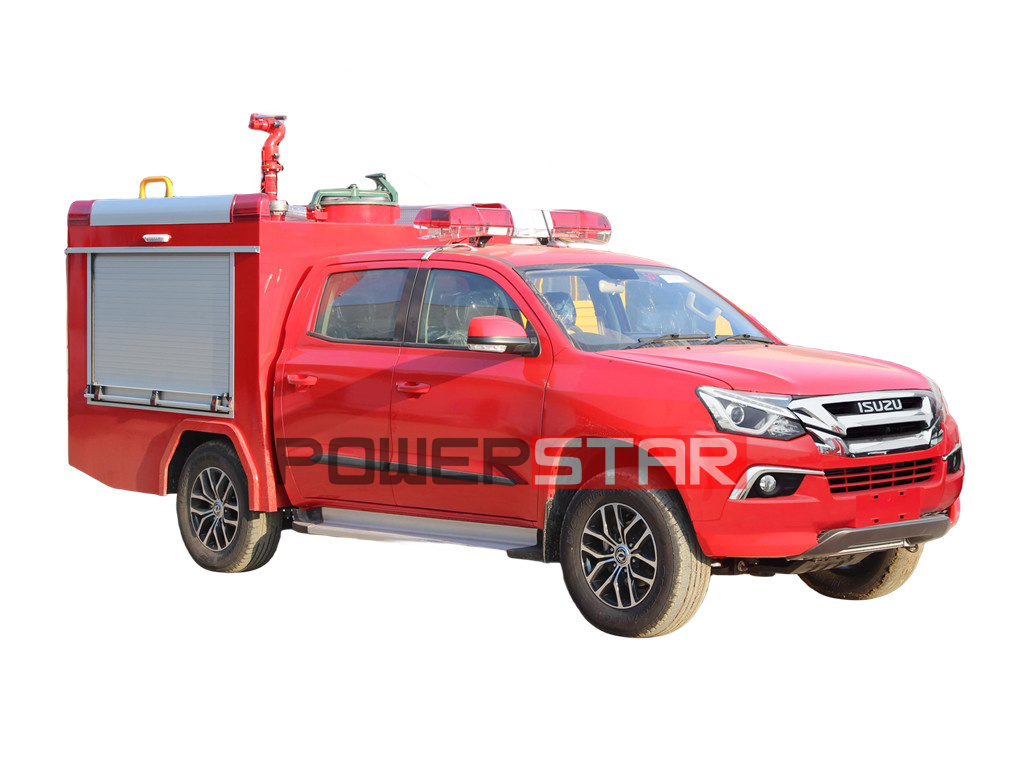

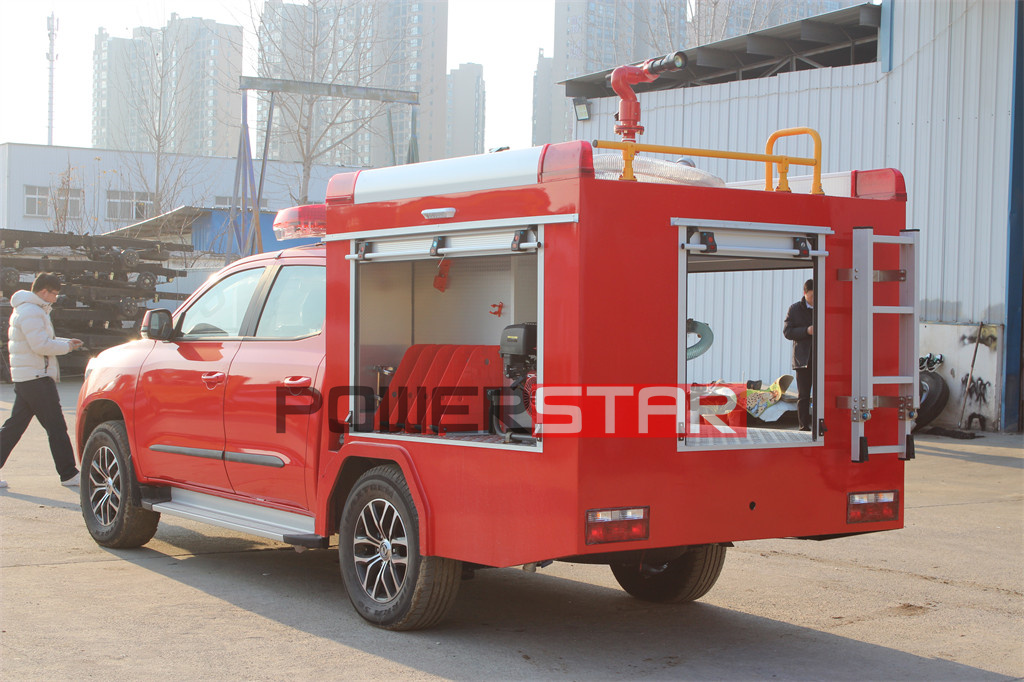

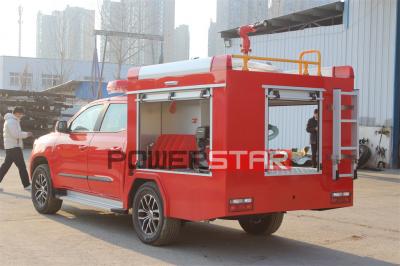

ISUZU pickup 4x4 offroad pickup fire engine also called Isuzu rapid intervention vehicle. The city's rapid response fire truck is modified from original Japanese ISUZU technology 4x4 Pickup chassis. The vehicle is small and flexible, it has strong climbing ability and the ability to adapt to various terrains. Isuzu pickup fire engine can be widely used in port terminals and cargo piles. Fields, industrial and mining enterprises, business squares and community towns and other places can quickly reach the scene to extinguish the initial fire. It is an ideal equipment for the firefighting force to respond quickly to fire rescue.
Work capacity:
500L+100LTruck model:
PT5030GXFEngine power:
143HP/105kwEngine type:
Isuzu 4KH1CT6H1Axle drive:
4×4, LHDGear box:
Isuzu 5 speed,manualRemarks:
Fire fighting red paintingIsuzu offroad 4x4 Pickup fire engine is a special type of firefighting vehicle, which combines the mobility of Isuzu 4x4 pickup trucks with the firefighting and rescue functions of fire trucks. Isuzu Pickup fire truck is a firefighting vehicle with unique advantages and scope of application. Isuzu fire tender plays an important role in urban and forest firefighting and other emergency rescue operations. However, it is also necessary to pay attention to its limitations when using it, and make reasonable selection and configuration according to actual conditions.
| Special Function | |||
| Tank | Water Tank | Capacity | 500L Water and 100L Foam |
| Material | Stainless steel | ||
| Configuration |
|
||

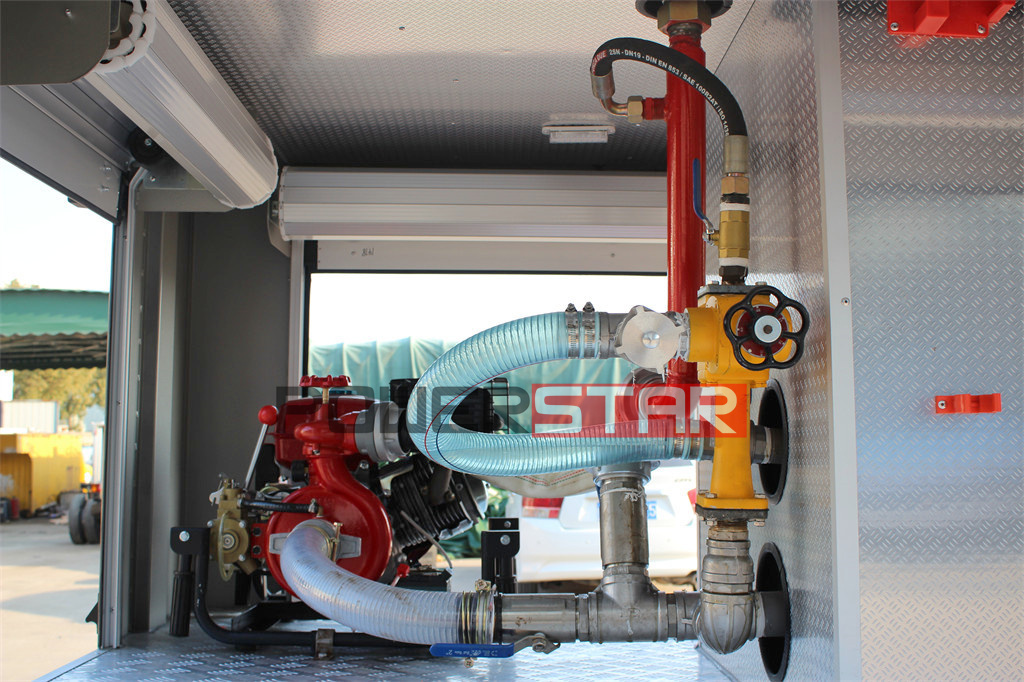

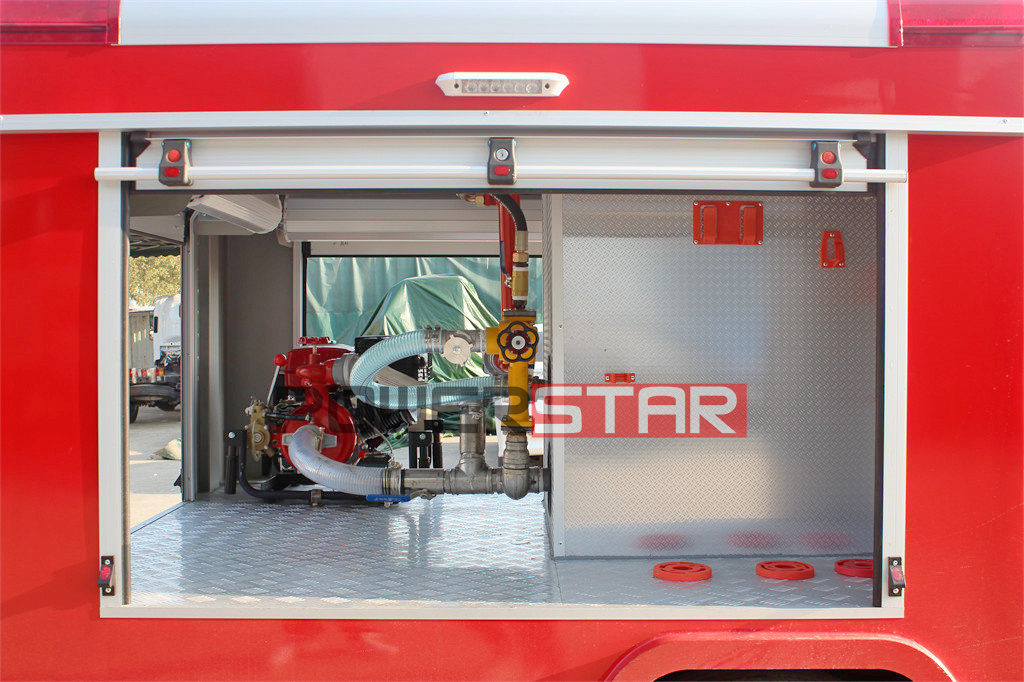

| Pump | Model | SCB80-50/110 | |
| Pumping time | 10min/tank | ||
| Flow | 50cbm/h | ||
| Head of delivery | 110m | ||
| Self-priming height | 6m | ||
| Water nozzle | Shoot range | 25-35m | |

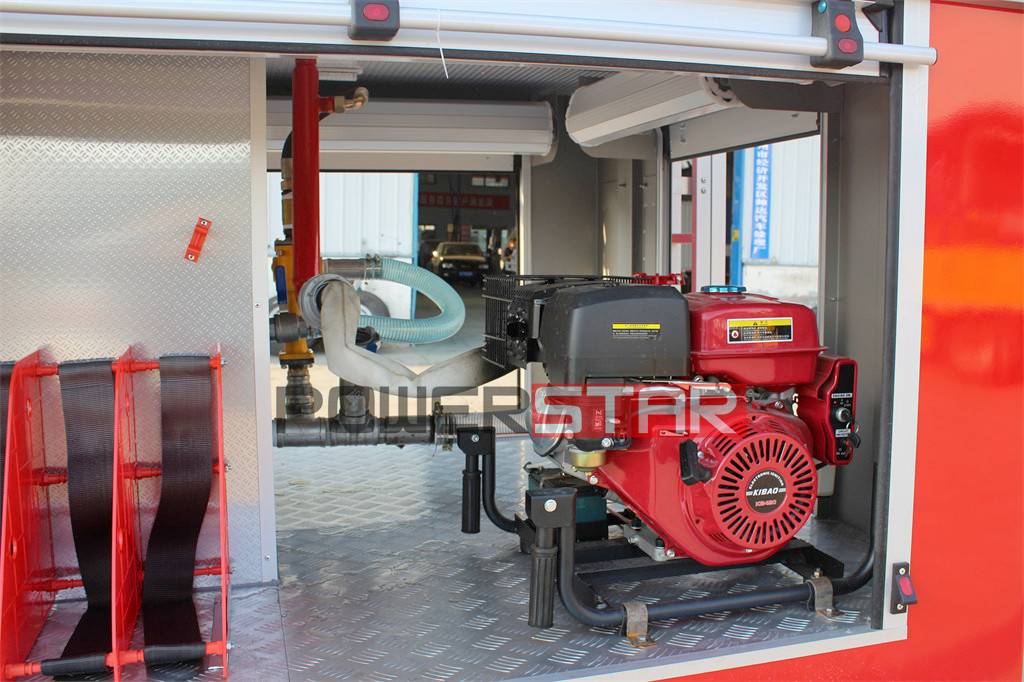

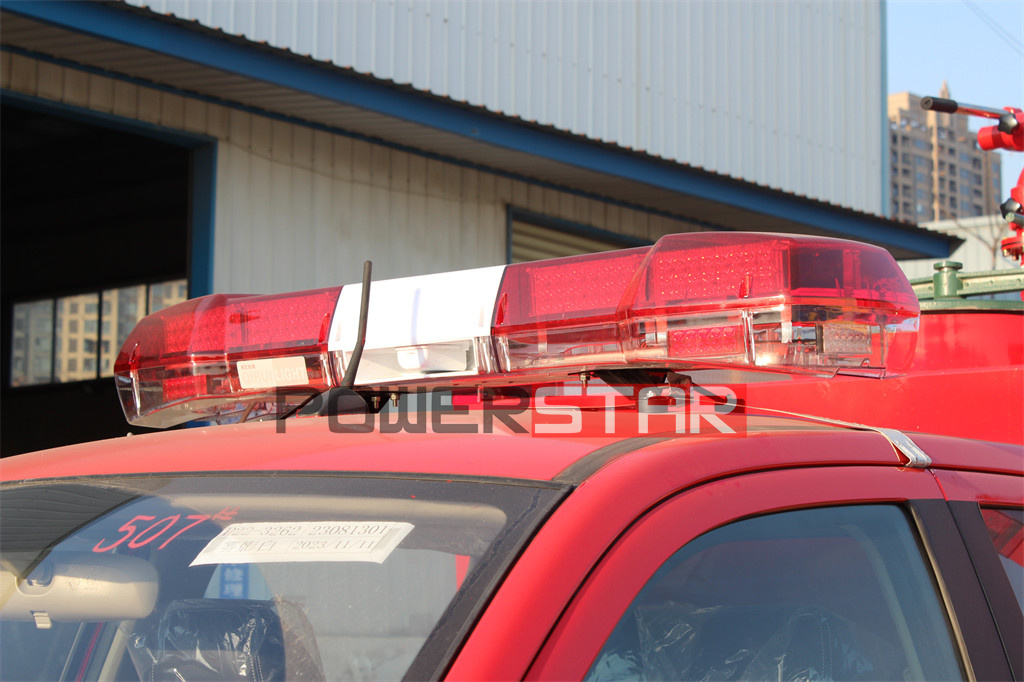

| Standard configuration | Water nozzle, suction pipe, water pumping filter, fire hose, horizontal and vertical wave-proof board designed in the water tank, cathodic electrophoresis anticorrosion of water tank, electronic display meter of water level in water tank, electric switch for water injection and water spray. Electric butterfly valve, centrifugal water pump, warning light, alarm, publicity loudspeaker | ||
| Color | As customer required | ||
| Chassis Specification | |
| Truck Model | PST5030GXFGS10 |
| Chassis Manufacturing Date | Year of latest |
| Cab | Single row, Decorative leather seats, leather multi-function steering wheel + airbag + pre-tightening seat belt / radio + MP3 / electric air conditioner |
| Driving Type | 4x4 all-wheel drive, Left hand driving |
| Max Speed (km/h) | 140 |
| Overall Dimension (mm) | 5520×1950×2070 |
| GVW (kg) | 3295 |
| Curb Weight (kg) | 2550 |
| Wheelbase (mm) | 3406 |
Isuzu pickup truck mounted fire engine Brief Introduction:
An ISUZU pickup fire truck refers to a fire truck that adopts an Isuzu 4x4 pickup design, has a super power offroad type chassis and power system similar to a pickup truck, but is equipped with professional firefighting equipment and equipment at the rear of the vehicle. The Isuzu 4x4 Pickup fire trucks are flexible and convenient, and are suitable for some narrow sections and complex terrains, such as alleys in urban areas, old neighborhoods, rural roads, mountainous areas and forests, and other difficult-to-reach areas.
Isuzu pickup fire trucks can be divided into many types according to their functions and uses, such as Isuzu pickup water tank fire trucks, Isuzu 4x4 pickup forest fire trucks, and Isuzu pickup equipment fire trucks. Different types of Isuzu pickup fire fighting vehicles have different functions. For example, Isuzu water tank fire pumper can carry water sources for firefighting operations, Isuzu forest fire tanker trucks are more suitable for use in complex terrains such as mountains and forests, and equipment fire trucks are loaded with various firefighting equipment and rescue tools for various emergencies.

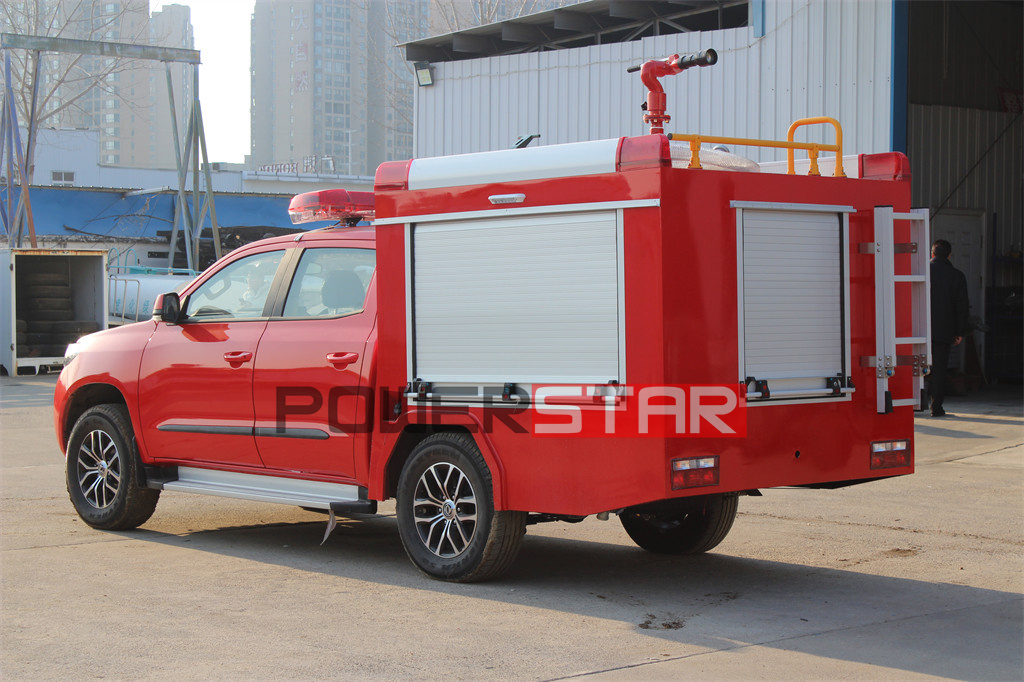

Isuzu Pickup fire fighting truck for export

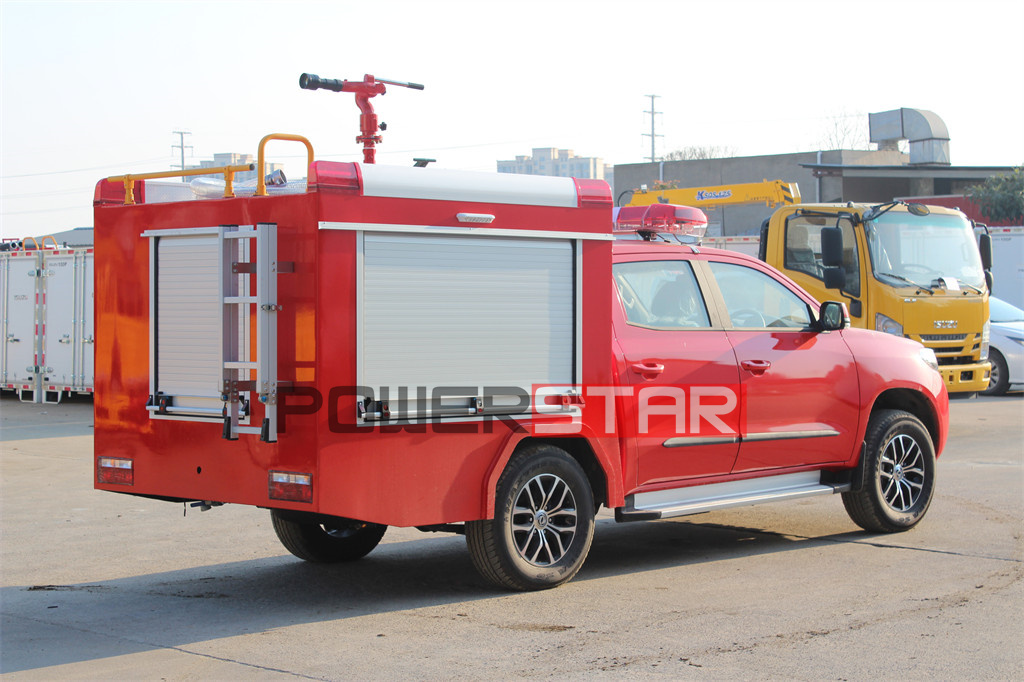

ISUZU pick up rapid intervention fire fighting truck
Isuzu pickup offroad 4x4 fire pumper truck Advanced Features:

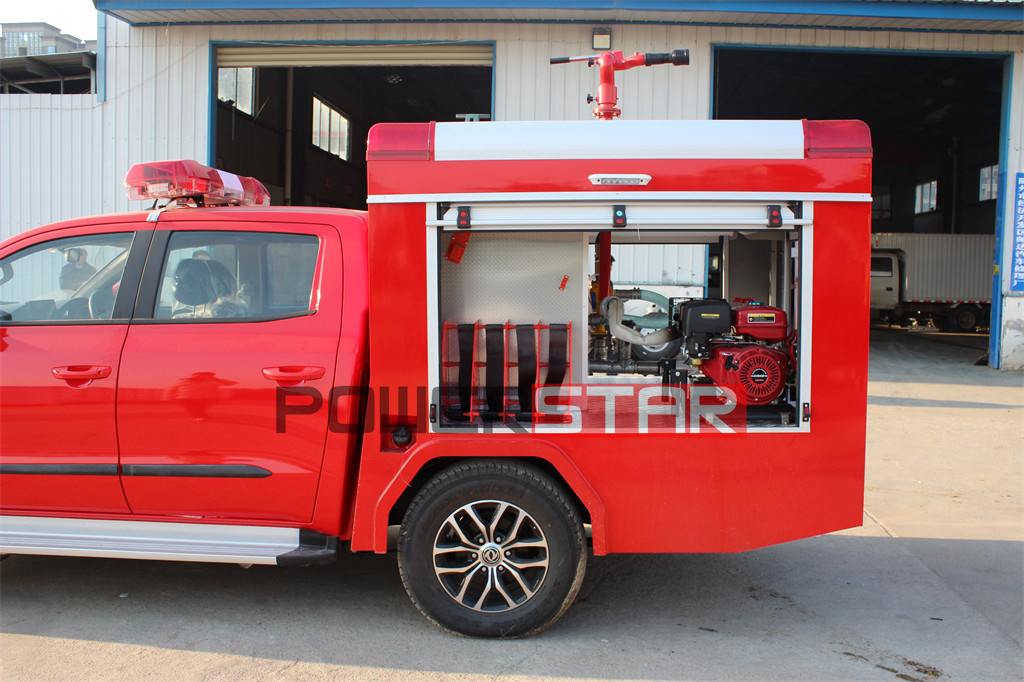

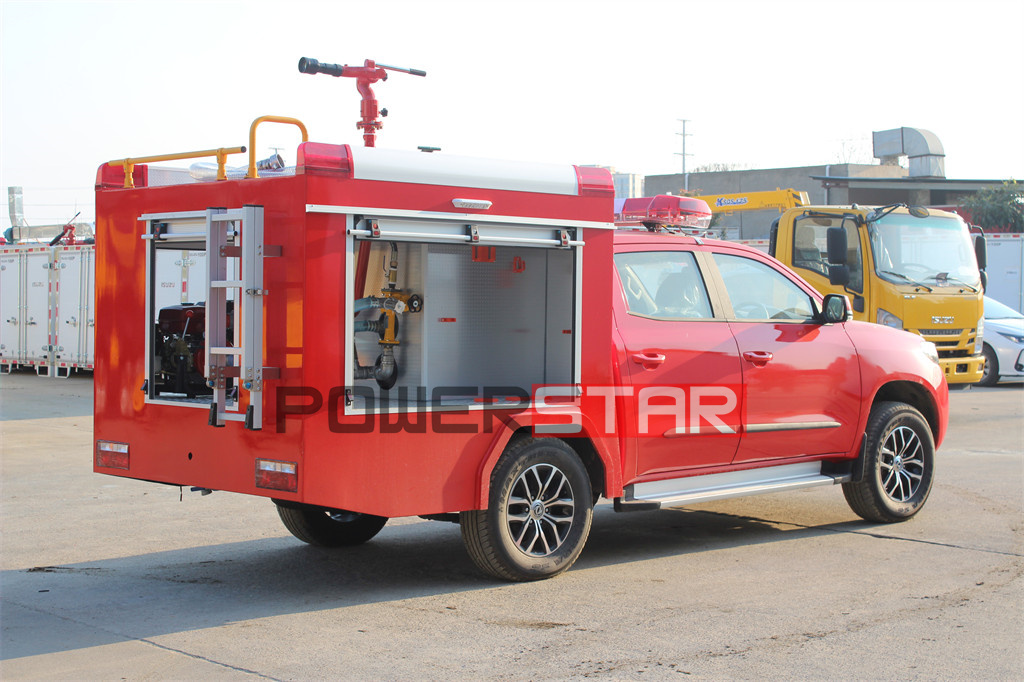

1. Complete Aluminum Compartment and Never Rust. The compartment of Isuzu pickup fire fighting vehicle can be customized uses high-quality aluminum alloy profile, and the integral welded frame structure is made by the patented technology. It has a built-in bolt connection and the space could be adjusted easily. It has the advantages of high strength, corrosion resistance and light weight. All harnesses are preset in the groove to avoid wear.
2. High-Quality PP Composite Material Liquid Tank and Never Rust. PP is a special plate made of polymer composite materials to create a liquid tank for fire truck. It has the advantages of high strength, impact resistance, low temperature resistance and corrosion resistance. And this material also can be customized to be installed on POWERSTAR ISUZU Pick up fire fighting rescue trucks.
3. Modular Control System. The fire pumpers control system adopts PLC intelligent program design and full electronic control operation. Different control program modules are available to choose according to the vehicle configuration. With waterproof and dustproof design, the protection level can reach IP56 or higher.
4. Modular Standard Parts. Water & Foam fire pumps, fire monitors, aluminum roller shutter doors, storage racks and pipelines are all manufactured by POWERSTAR with modular design. It can not only ensure the quality of parts and the best match with the whole vehicle, but also ensure generalization and flexibility.
Isuzu pickup fire engine truck Application:

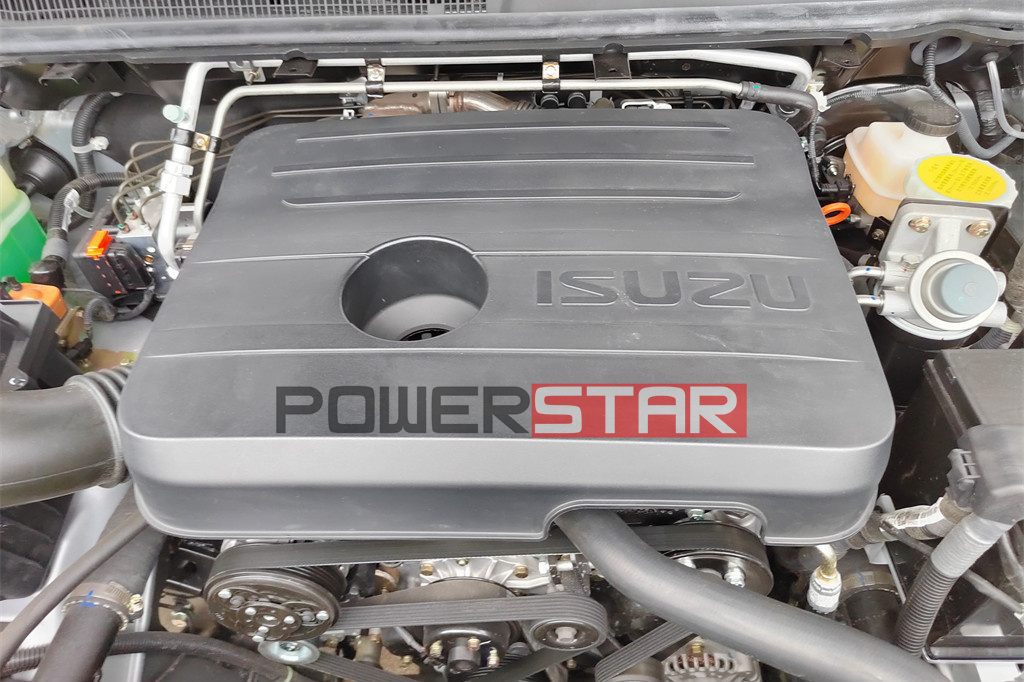

The ISUZU 0.6 ton fire rescue truck is a reliable and efficient vehicle crafted for emergency response situations. With a powerful engine 4KH1 model 143HP and 2999cc emission, and a capacity of 600kg, this fire truck is equipped to handle even the most challenging firefighting scenarios. It features state-of-the-art firefighting equipment, including water hoses, pumps, and storage compartments for essential tools and gear. The advanced technology and durable construction of the ISUZU rescue fire fighting vehicle make it a valuable asset for any fire department or emergency response team. Trust in this vehicle to deliver the performance and safety you need when it matters most.
Urban firefighting: In cities, Isuzu pickup fire trucks can quickly shuttle through narrow streets and alleys and arrive at the fire scene in time for firefighting and rescue.
Forest firefighting: In complex terrains such as mountains and forests, Isuzu 4x4 offroad pickup fire trucks can quickly reach the disaster area with their high passability and stability, carry out initial fire fighting, and effectively control the spread of fire.
Other scenarios: In addition to urban and forest firefighting, pickup fire trucks can also be used for rescue operations in various other emergency situations, such as traffic accidents, natural disasters, etc.
Isuzu 4x4 military pickup tanker fire pumper Advance and Limitation:
Advantages: Pickup fire trucks ISUZU 4x4 have the advantages of strong mobility, wide application range, and easy operation. It can quickly reach the fire scene and flexibly shuttle through complex terrain, providing strong support for fire fighting and rescue work.
Limitations: Due to the small body of the Isuzu pickup fire pumper vehicle, the fire fighting equipment and rescue tools it carries are relatively limited, and it may not be able to cope with some large fires or serious emergencies. In addition, the driving performance of the pickup fire truck may also be affected in bad weather or extreme road conditions.

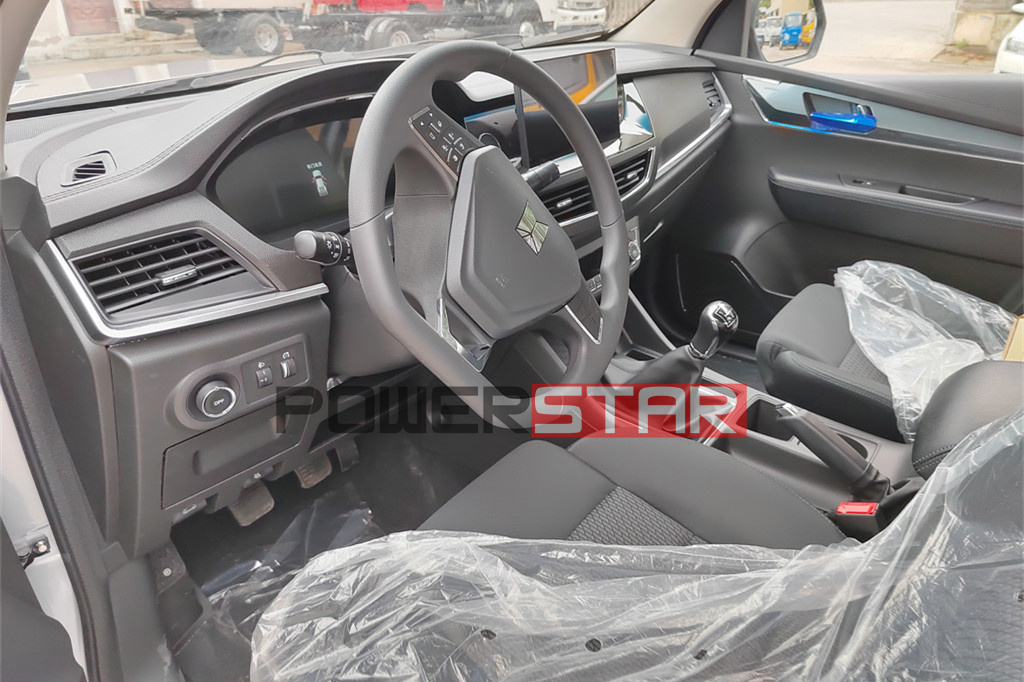

Isuzu 4x4 fire rescue tanker truck Cabin introduction:
The design of the Isuzu 4x4 offroad pickup rapid fire engine cab focuses on practicality and comfort. The cab is spacious and bright, providing a good driving space. The seat design is ergonomic, providing good support and comfort, and can also reduce fatigue during long-distance driving. At the same time, the layout of the cab is reasonable, and various control buttons and dashboards are within reach, making it convenient for the driver to operate. The Isuzu pickup rescue fire fighting truck cab is made of high-quality materials and craftsmanship. The key parts such as the center console are wrapped with soft materials to enhance the touch and luxury. At the same time, the metal parts in the cab are finely polished and processed, with good rust resistance and durability.
Isuzu's all-wheel drive pickup fire truck is a professional firefighting equipment designed to cope with various fire and emergency rescue situations. The vehicle uses advanced four-wheel drive technology to improve emergency response capabilities and ensure efficient operation of fire and disaster scene rescue work. It is suitable for various roads and environments, providing firefighters with rapid response and effective firefighting support.
