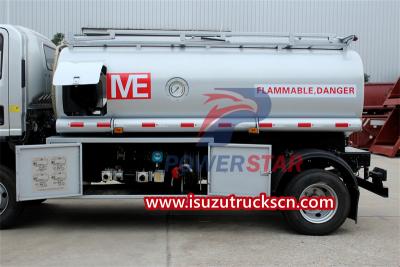

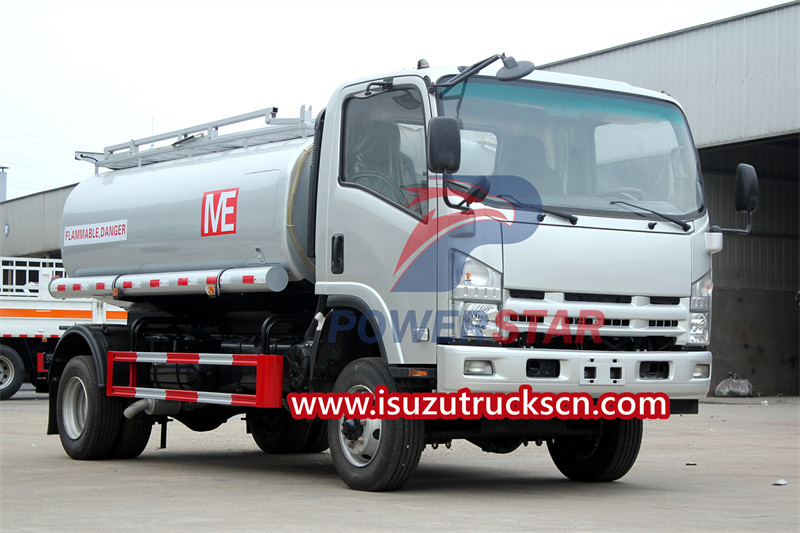

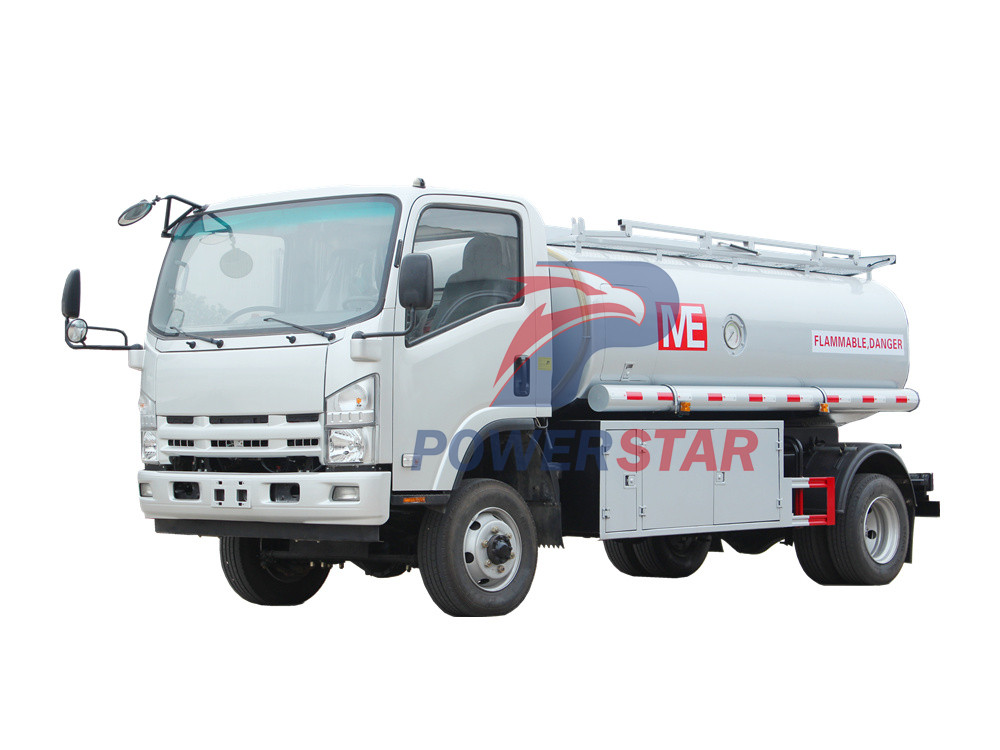

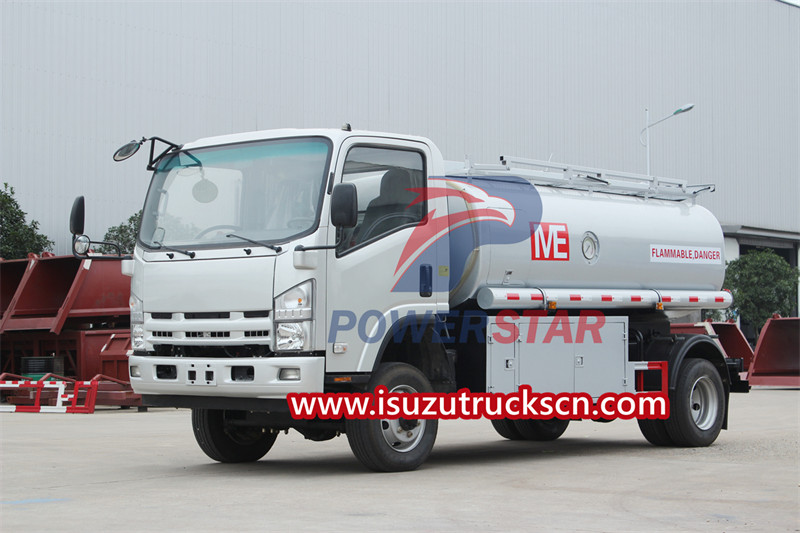

Isuzu oil tanker truck is a special vehicle mainly used to transport various oil products, such as gasoline, fuel, oil, diesel, lubricants, etc. It is usually used in petrochemical industry, transportation, fire safety and other fields. As an important liquid transportation tool, tank trucks play an indispensable role in ensuring oil supply, maintaining oil quality, and reducing logistics costs.
Work capacity:
6000 LitersTruck model:
PT5060GJYEngine power:
190 HPEngine type:
4HK1-TC51Axle drive:
4×4Gear box:
MLD 6-speed manualRemarks:
ISUZU 4×4 chassis, equipped with two fuel pump
Isuzu mobile refueling trucks are special vehicles used to transport oil products (such as gasoline, diesel, etc.) and are usually equipped with oil tanks and refueling equipment (such as refueling guns, oil pumps, etc.). Isuzu fuel trucks are mainly used to provide oil products to various vehicles and mechanical equipment to ensure their normal operation and operation.

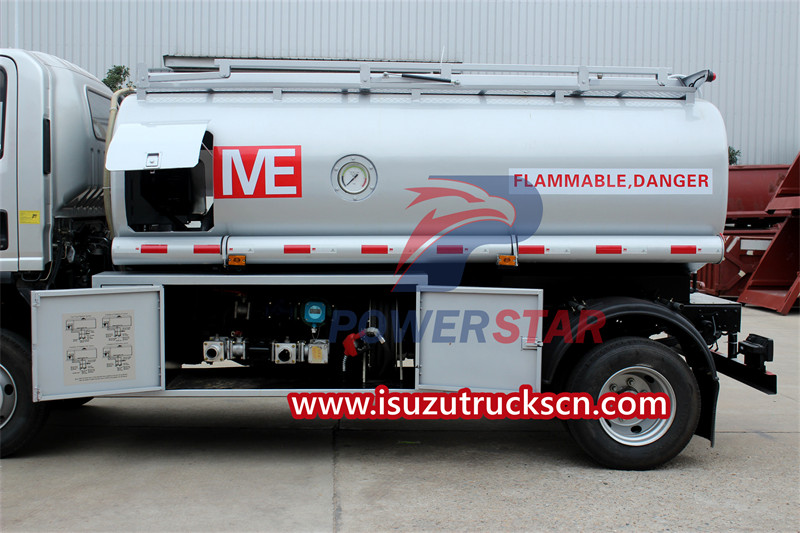

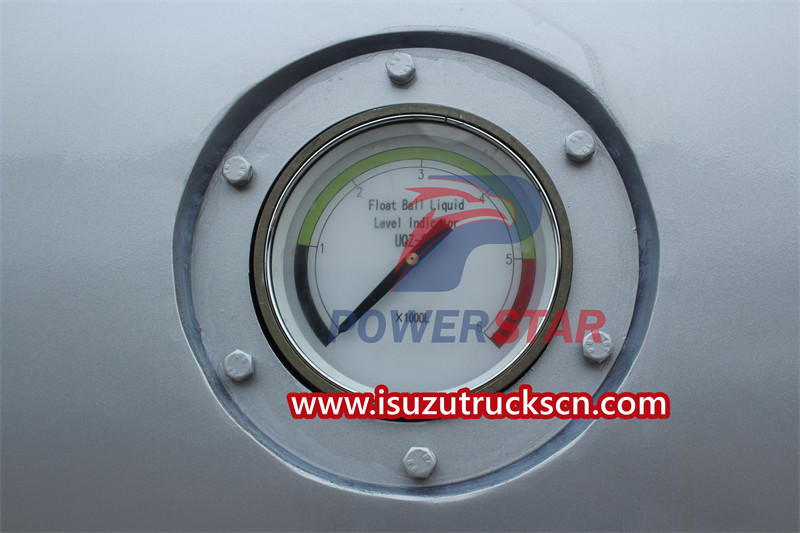

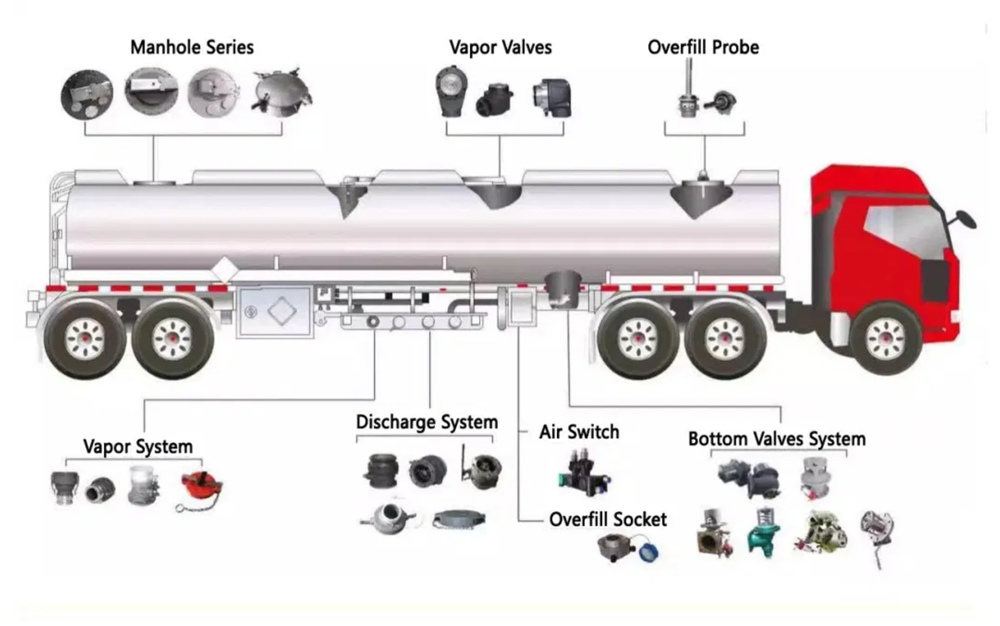

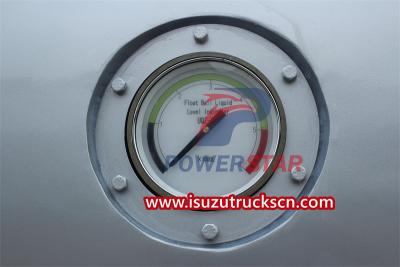

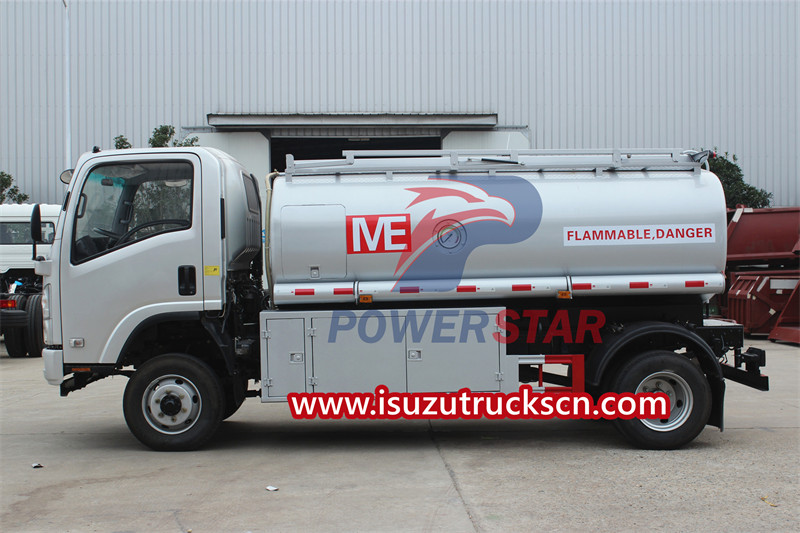

The core part of the Isuzu 6000L diesel bowser truck is the tank, which is made of carbon steel and is used to store oil, fuel, diesel, petrol or gasoline. The tank is divided into two compartments, with an anti-corrosion coating inside to prevent oil from corroding the tank. The top of the tank is equipped with oil measuring holes, manholes and other devices to facilitate the measurement and inspection of oil products.

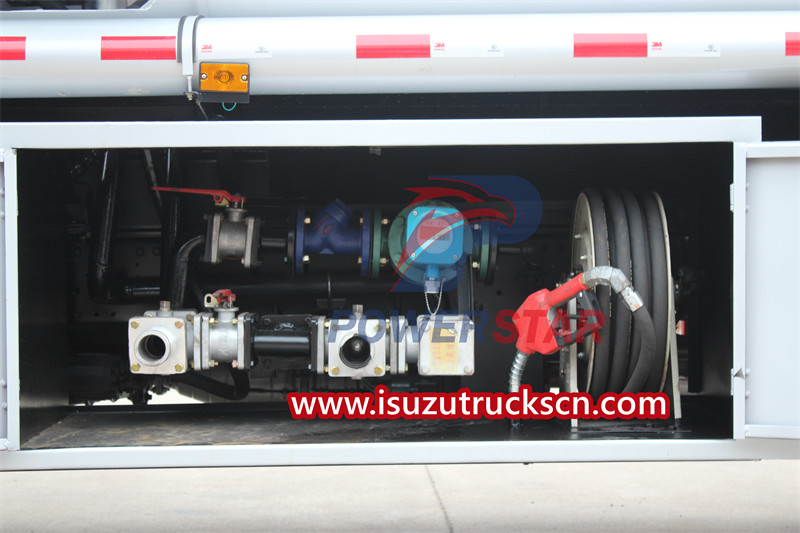

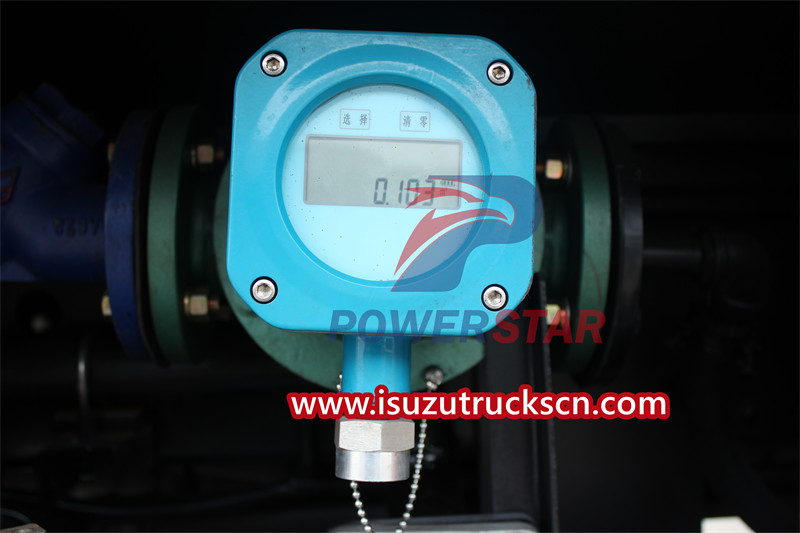

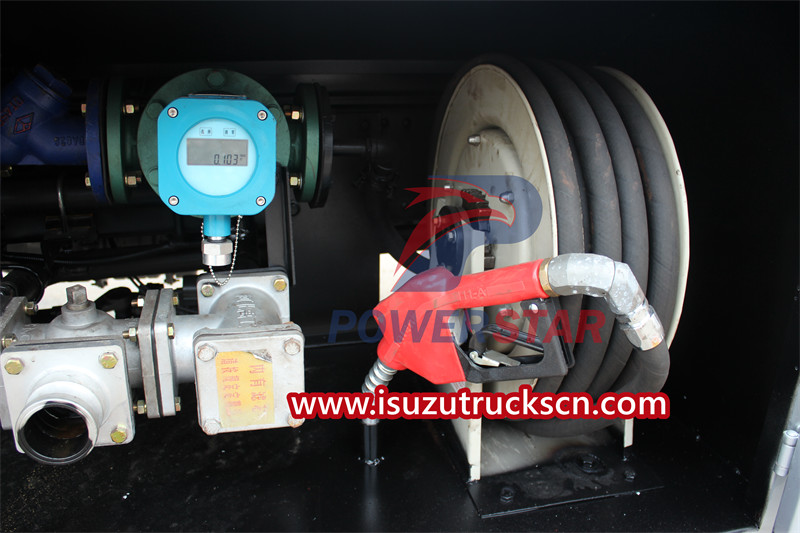

The Isuzu fuel tank bowser is also equipped with a refueling system, including refueling nozzles, valves, pipes and other components, which are used to refuel other vehicles or equipment. The valves are used to control the flow direction and flow of oil, and the pipeline is responsible for transporting the oil from the tank to the refueling nozzle.
In order to ensure safety during transportation, the Isuzu tank truck is equipped with an anti-spill and explosion-proof system. The system includes anti-overflow valves, safety valves, flame arresters and other devices, which can prevent oil spills or explosions under certain circumstances.

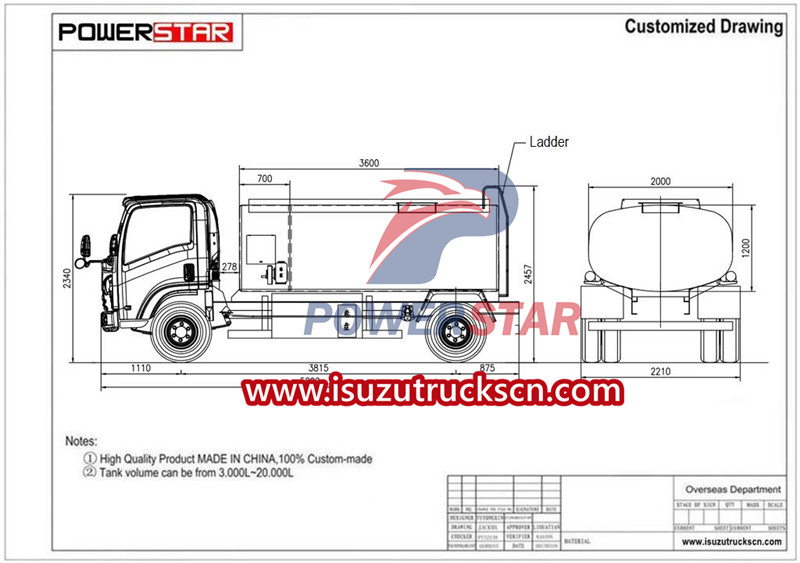

Product Specifications
|
Product Name |
ISUZU 6000L diesel bowser truck |
||
|
Chassis |
Brand |
ISUZU |
|
|
Curb weight(kg) |
5260kg |
||
|
Wheelbase(mm) |
3815 mm |
||
|
Dimensions(mm) |
6900X2300X2550 mm |
||
|
Front/Rear Axle loading(kg) |
4000/7000 kg |
||
|
Wheel track (front/rear) (mm) |
1880/1800 mm |
||
|
Front/Rear overhang(mm) |
1430/2370 mm |
||
|
Approach/Departure angle(°) |
26/20 |
||
|
Max. driving speed(km/h) |
95 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
|
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels |
||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
Quantity |
6 pcs with one spare tire |
|
|
Specifications |
235/75R17.5 |
||
|
Transmission |
Manual type, 6 Forwards and 1 reverse |
||
|
Cabin |
3 seats. With Air Conditioner |
||
|
|
Brand |
ISUZU |
|
|
Model |
4HK1-TC51 |
||
|
Fuel type |
Diesel |
||
|
Displacement(ml) |
5193 ml |
||
|
Power(kw) |
141kw |
||
|
Horsepower(HP) |
190HP |
||
|
Cylinder number |
4 |
||
|
Emission standard |
Euro 5 |
||
|
Fuel Tank |
|||
|
Fuel tank |
Capacity(liters) |
6000 |
|
|
Tank material |
Q235 high tensile strength carbon steel |
||
|
Thickness(mm) |
5mm of tank and 6mm of tank head |
||
|
Compartment No. |
2 |
||
|
Baffle |
1 unit, 4 mm carbon steel |
||
|
Manhole cover |

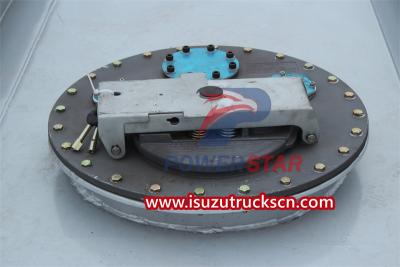

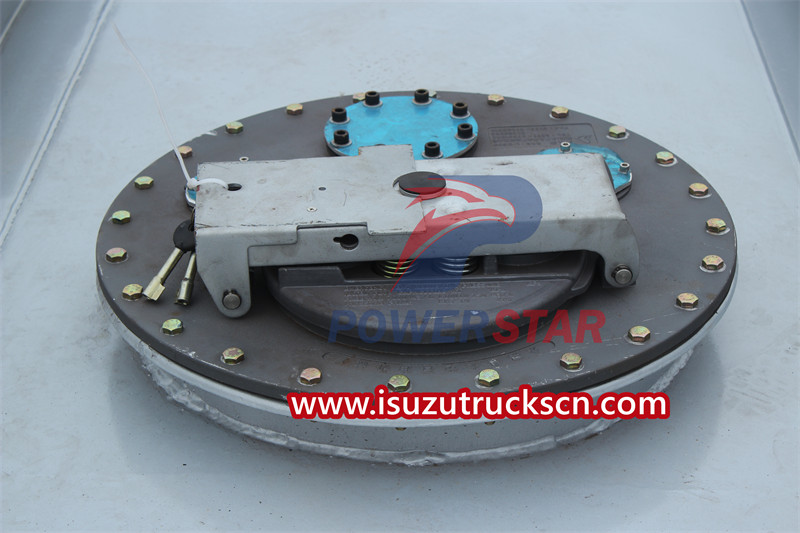

1 manhole cover, ∮500mm, European standard |
||
|
Bottom Valve |
1 set of API Pneumatic Bottom Valve |
||
|
Discharging valve |
1 set discharging valve |
||
|
Handrail |
Two sides, carbon steel |
||
|
Ladder |

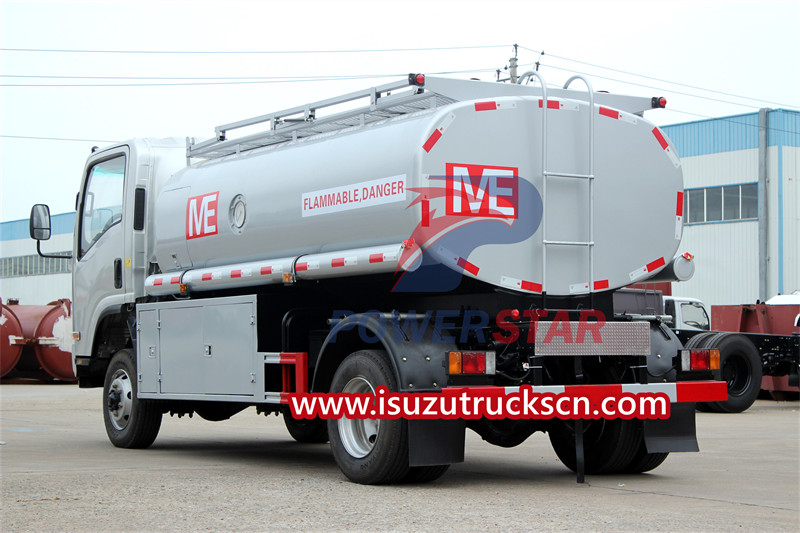

At rear of tank |
||
|
Painting |
Color and logo as customer's requirement |
||
Product Features:
1. ISUZU 4×4 chassis, which is adaptable to various harsh terrains and complex road conditions
2. ISUZU 190HP diesel engine, providing strong power
3. 6000 liters fuel tanker, with 2 compartments for trasportation different oil
4. Equipped with European standard manhole cover with high safety
5. Equipped with double fuel pump, which has large flow rate
How to deal with emergencies that may occur when Isuzu fuel tanker trucks transport oil products?
During the transportation of oil products by ISUZU fuel tank trucks, various emergencies may be encountered, such as vehicle breakdowns, traffic accidents, fires, etc. In order to deal with these situations, drivers and escorts need to know some emergency response measures. Here are some suggestions:
1. Vehicle breakdown: If a tanker truck breaks down during transportation, the driver should stop immediately and move the vehicle to a safe area as much as possible. At the same time, check whether there is any oil leakage and take appropriate measures to deal with it. If the fault cannot be solved, call the police and seek rescue immediately.
2. Traffic accident: If a traffic accident occurs, the driver should first ensure the safety of personnel and then check whether there is any oil leakage. If oil leaks, take immediate steps to control the leak and move the vehicle to a safe area if possible. At the same time, record the accident situation and call the police, waiting for the traffic police to deal with it.
3. Fire: If a fire breaks out in ISUZU diesel tanker truck, the driver should stop immediately and move the vehicle to a safe area as much as possible. At the same time, use the fire extinguisher in the truck to put out the fire and call the police for rescue immediately. If the fire cannot be controlled, the surrounding people should be evacuated immediately to ensure personal safety.
4. Leakage accident: If an oil leakage accident occurs in ISUZU oil bowser truck, the driver should stop the vehicle immediately and move the vehicle to a safe area as much as possible. At the same time, measures should be taken to control leakage, such as using adsorbent materials or cofferdams. Then call the police for rescue immediately.
